1 Preliminary note
This document is part of the device and contains information about the correct
handling of the product�
This document is intended for specialists� These specialists are people who are
qualified by their training and their experience to see risks and to avoid possible
hazards that may be caused during operation or maintenance of the device�
Read this document before use to familiarise yourself with operating conditions,
installation and operation� Keep this document during the entire duration of use of
the device�
1.1 Symbols used
►Instructions
→Cross-reference
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note
2 Safety instructions
2.1 General
Observe the operating instructions� Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can affect the safety of operators and machinery�
The installation and connection must comply with the applicable national and
international standards� Responsibility lies with the person installing the device�
The device must only be installed, connected and put into operation by a qualified
electrician as the safe function of the device and machinery is only guaranteed
when installation is correctly carried out�
Disconnect the unit externally before handling it�
In case of malfunction of the device or uncertainties please contact the
manufacturer� Tampering with the device can seriously affect the safety of
operators and machinery� This is not permitted and leads to an exclusion of liability
and warranty�

5
UK
2.2 Radio equipment
In general, radio equipment must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations�
►Do not transport and store any flammable gases, liquids or explosive
substances near the unit�
2.3 Interference of electronic and medical devices
Operation can affect the function of electronic devices that are not correctly
shielded�
►Disconnect the device in the vicinity of medical equipment�
►Contact the manufacturer of the corresponding device in case of any
interference�
Because of the requirements for electromagnetic interference emissions, the unit
is intended for use in industrial environments� The unit is not designed for use in
domestic areas�
The unit may only be used under the operating conditions specified in the
data sheet�
3 Functions and features
In connection with the evaluation unit DTE10x the read/write head ANT600
enables non-contact reading and/or writing of the RFID transponders (ID tags)
conforming to the system�
The data is converted into digitally coded values and provided to the evaluation
unit�
4 Functions
4.1 Operating principle
The ID tags are operated passively, i�e� without battery� The energy required for
operation is supplied by the read/write head�
The physical principle of the energy transfer is based on inductive coupling� The
integrated antenna coil in the read/write head generates a magnetic field which
partly penetrates the antenna coil of the ID tag� A voltage is generated by induction
that supplies the data carrier with energy�

6
4.2 Overview
Art� no�:
Function:
Type designation:
Operating frequency:
Type:
Max� transmitter power:
ANT600
Read/write head
DTRHF HLRWIDUS03
13,56 MHz
Rectangular
2 watt
5 Installation
5.1 General installation instructions
When mounting several read/write heads adhere to the minimum distances
between the systems�
The mounting of a read/write head in and on metal reduces the read/write
distance�
The immediate vicinity of powerful HF emission sources such as welding
transformers or converters can affect operation of the read/write heads�
Information on the available mounting accessories is available on our website at:
www�ifm�com
5.2 Notes on ID tag mounting
If the ID tags are mounted in/on metal, the read/write distance is reduced�
For positioning the ID tags the read/write heads are marked with an
antenna symbol on the active face� It designates the middle of the
integrated antenna coil and has to correspond with the middle of the ID tag�
The orientation of the read/write head antenna axis must correspond with
the axis of the ID tag coil�

7
UK
5.3 Avoiding interference
The device generates a modulated electrical field with a frequency of 13�56 MHz�
To avoid interference of the data communication no other devices generating
interference emission in this frequency band must be operated in the vicinity� Such
devices are for example frequency converters and switched-mode power supplies�
5.4 Mechanical design
1
2
1: Sensing face
2: Connection (can be rotated by 270°)
5.5 Mounting options
For installation, the following optional accessories are available�
The unit can be mounted without the accessories� For installation, please
use the threaded sleeves on the back of the unit� The necessary screws are
not supplied with the unit�
5.5.1 Installation with angle bracket E80335

8
5.5.2 Installation with mounting device E80336
The mounting device is used to mount the unit to a clamp� The following clamps
can be used:
● E21110 with a rod diameter of 12 mm
● E20795 with a rod diameter of 14 mm
● E21109 with a rod diameter of 14 mm
5.5.3 Installation with fixing bars E80337
►Fix the unit with fixing screws to the designated location�

9
UK
5.6 Mounting distances
Operating mode Distance side (A) Distance front (B)
For reading and writing
(at 100% transmitter power)
≥600mm ≥400mm
5.7 Positioning of the ID tags
D
►Align the ID tag on the antenna central axis

10
6 Electrical connection
6.1 Wiring
►Connect the device to the evaluation unit DTE10x using the M12 connection�
Voltage is supplied via the evaluation unit�
4
1
3
L+
1
3
4
L
DATA
A selection of sockets is available on our website at: www�ifm�com
Cables with the following characteristics are suitable for the connection:
Length Ohmic resistance (feed + return line) Effective cable capacity
< 20 m max.3Ω max� 3 nF
7 Display elements
1
2
1: LED
2: Sensing face
Status LED PWR (1x green) LED Signal bar (4x yellow)
Ready for operation Lights
Not ready for operation Flashing slowly
ID tag read / written
successfully Flashing 2x

11
UK
Status LED PWR (1x green) LED Signal bar (4x yellow)
Error when reading /
writing on ID tag Flashing quickly
If the ID tag has a high receive signal strength, all LEDs of the signal bar
are on (configurable)�
The max� receive signal strength depends on the type of the ID tag�
8 Operation
The read/write head is configured via the connected evaluation unit DTE10x� You
can find more information about the operation in the manual: www�ifm�com
9 Scale drawing
Original Scale Drawing (MTD)
P_MZ_190_0024
EPS Source
Product Scale Drawing
Frame Size: 80 mm x 31,5 mm
30% 333,4%
64 12,5
88
12,4
50
113
113
120
M12x1
1 2
64 12,5
88
12,4
50
113
113
120
M12x1
1 2
The max� tightening torque of the screws when mounting the unit is 0�8 Nm�

12
10 Technical data
The data sheets are available on our website at: www�ifm�com
10.1 Detection range with E80384
0-50-150
170
220
120
20
[mm]
[mm]
-100-200 50 100 150 200
70

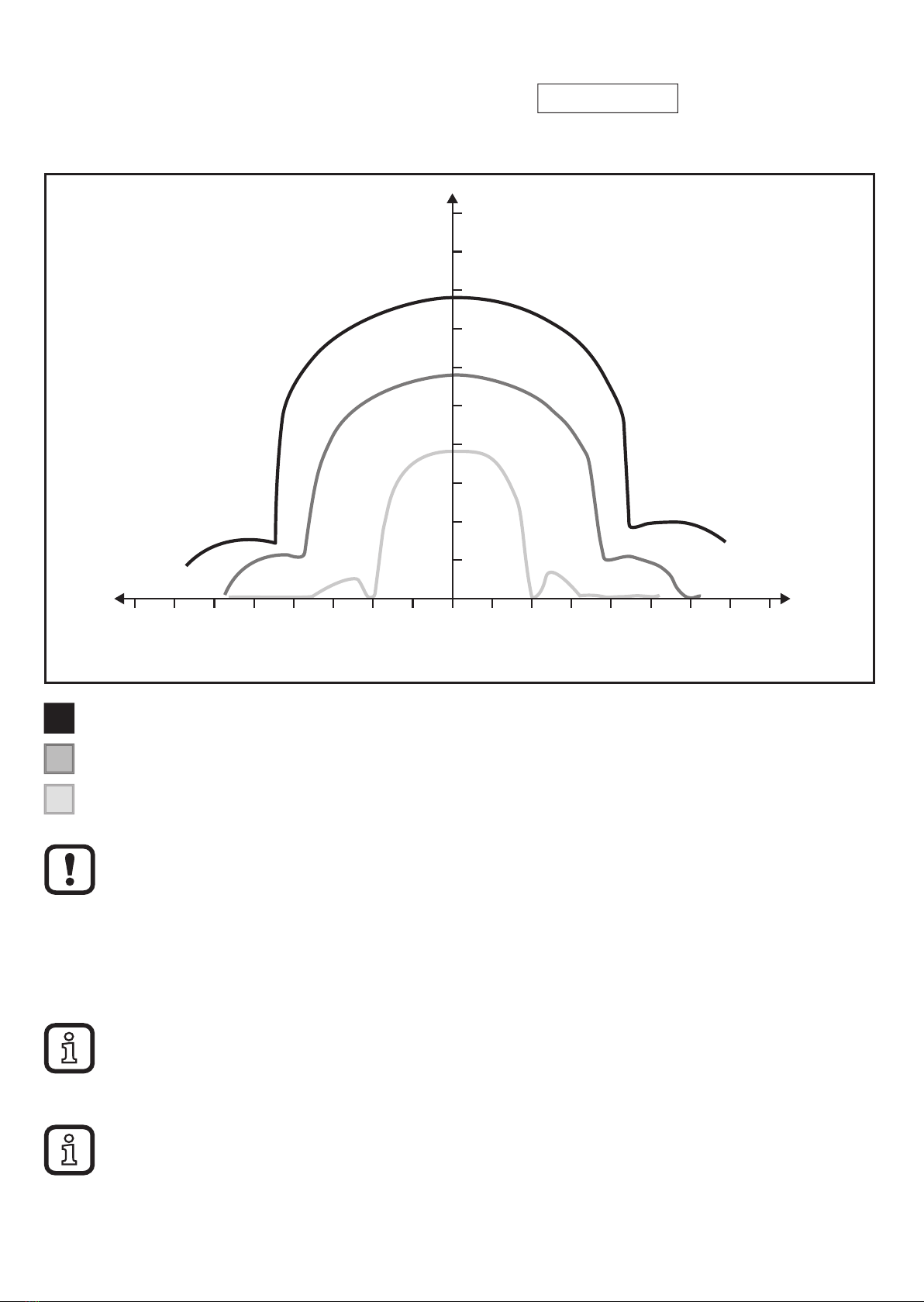

Detection range at 100 % HF power
Detection range at 75 % HF power
Detection range at 50 % HF power
Individual ID tags require 100 % transmission power for correct reading and
writing�
►In case of reduced transmission power, check the reading and writing
range of the ID tags�
All indications apply to static write operations� If not otherwise stated they
refer to the installation of the unit and of the ID tag in a non-metallic envi-
ronment�
The transmitter power can be set to 50, 75 or 100% via the device configu-
ration�

13
UK
11 Maintenance, repair, disposal
The operation of the unit is maintenance-free� For perfect functioning: Keep the
sensing face and a clear space, if any, free from deposits and foreign bodies�
When replacing the device ensure that installation is done in the same way and
that the same type of unit is used� It is not possible to repair the unit� After use
dispose of the unit in an environmentally friendly way in accordance with the
applicable national regulations�
12 Approvals/standards
12.1 Radio approvals
12.1.1 Overview
The overview of the approval status of a unit is available on our website at:
www�ifm�com
12.1.2 Europe
Use in all EU countries
12.2 EC declaration of conformity
ifm electronic gmbh hereby declares that the ANT600 radio system corresponds to
the directive 2014/53/EU�
You can find the EC declaration of conformity on our website at: www�ifm�com
