1 Preliminary note
Technical data, approvals, accessories and further information →
www�ifm�com�
1.1 Symbols used
►Instruction
→Cross-reference
Important note
Non-compliance may result in malfunction or interference�
Information
Supplementary note
1.2 Warnings used
NOTE!
Type and source of the hazard
> Damage to property may result�
►Actions to refrain from�
►Measures to take�
2 Safety instructions
2.1 General
● The device described is a subcomponent for integration into a system�
- The manufacturer is responsible for the safety of the system�
- The system manufacturer undertakes to perform a risk assessment and to
create a documentation in accordance with legal and normative requirements
to be provided to the operator and user of the system� This documentation
must contain all necessary information and safety instructions for the operator,
the user and, if applicable, for any service personnel authorised by the
manufacturer of the system�
● Read this document before setting up the product and keep it during the entire
service life�
● The product must be suitable for the corresponding applications and
environmental conditions without any restrictions�

5
UK
● Only use the product for its intended purpose (→ 3 Functions and features).
● If the operating instructions or the technical data are not adhered to, personal
injury and/or damage to property may occur�
● The manufacturer assumes no liability or warranty for any consequences
caused by tampering with the product or incorrect use by the operator�
● Installation, electrical connection, set-up, operation and maintenance of the
product must be carried out by qualified personnel authorised by the machine
operator�
● Protect units and cables against damage�
2.2 Radio equipment
In general, the device must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations�
►Do not transport and store any flammable gases, liquids or explosive
substances near the unit�
2.3 Interference of electronic and medical devices
Operation can affect the function of electronic devices that are not correctly
shielded�
►Disconnect the device in the vicinity of medical equipment�
►Contact the manufacturer of the corresponding device in case of any
interference�
Because of the requirements for electromagnetic interference emissions, the
device is intended for use in industrial environments� The device is not suitable for
use in domestic areas�
The device may only be used under the operating conditions specified in
the data sheet�
3 Functions and features
The DTC600 read/write head is used for non-contact reading and writing of RFID
tags that conform to the system� The data is transmitted via CAN bus�

6
4 Function
4.1 Operating principle
The ID tags are operated passively, i�e� without battery� The energy required for
operation is supplied by the read/write head�
The physical principle of the energy transfer is based on inductive coupling� The
integrated antenna coil in the read/write head generates a magnetic field which
partly penetrates the antenna coil of the ID tag� A voltage is generated by induction
that supplies the data carrier with energy�
4.2 Overview
Art� no�:
Function:
Type designation:
Operating frequency:
Type:
Max� Transmitter power:
DTC600
Read/write head
DTCHF HLRWCOUS03
13�56 Mhz
Rectangular
2 watts

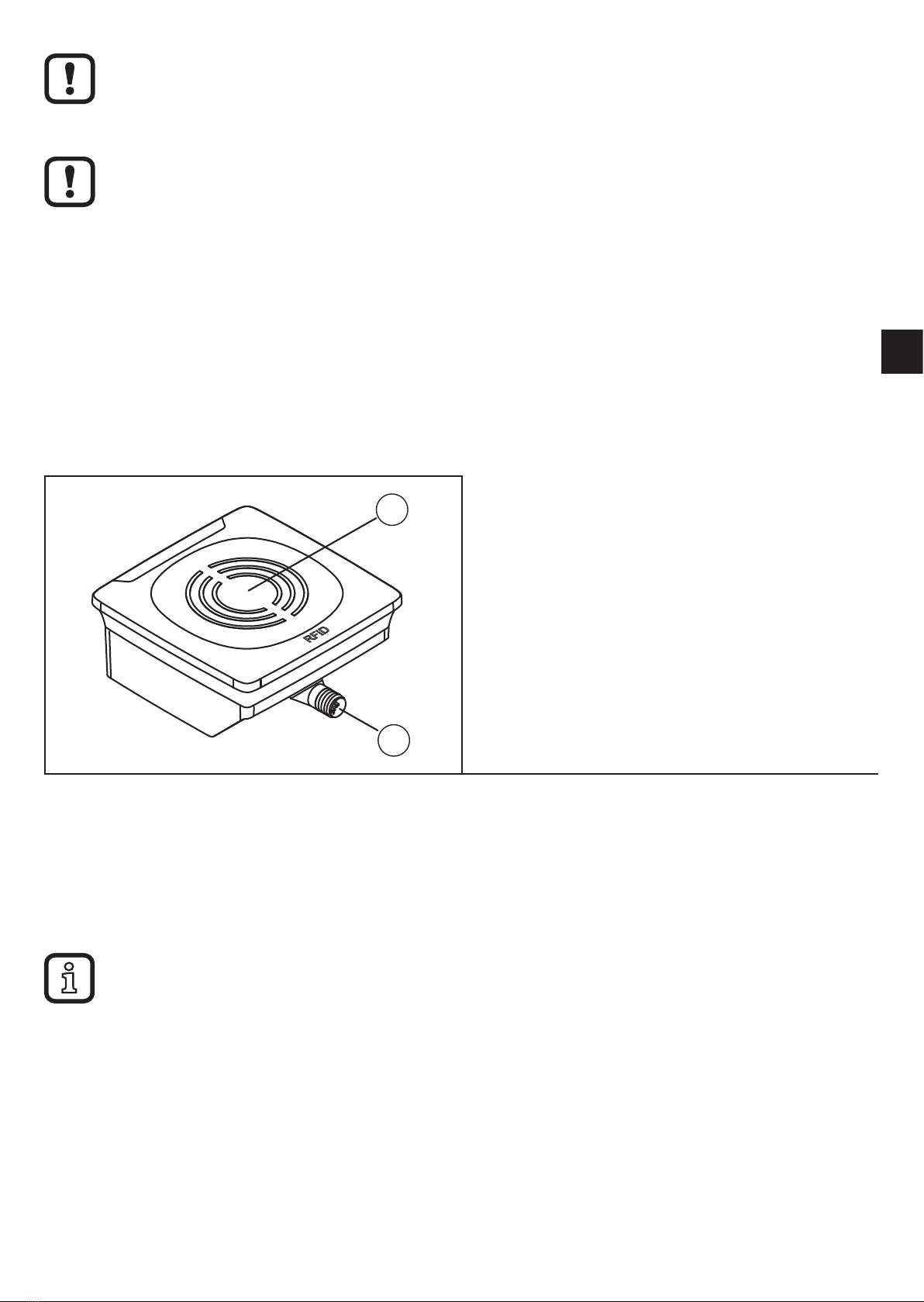

Fig� 1: Overview
5 Installation
5.1 General installation instructions
When mounting several read/write heads adhere to the minimum distances
between the systems�
Installing a read/write head in or on metal reduces the read and write
distance�
The immediate vicinity of powerful HF emission sources such as welding
transformers or converters can affect operation of the read/write heads�
Information on the available mounting accessories is available on our website at
www�ifm�com�
5.2 Notes on ID tag mounting
Installation of the ID tags in and on metal reduces the read and write
distances�

7
UK
For positioning the ID tags the read/write heads are marked with an
antenna symbol on the active face� It designates the middle of the
integrated antenna coil and has to correspond with the middle of the ID tag�
The orientation of the read/write head axis must correspond with the axis of
the ID tag coil�
5.3 Avoiding interference
The device generates a modulated electrical field with a frequency of 13�56 MHz�
To avoid interference of the data communication no other devices generating
interference emission in this frequency band must be operated in its vicinity� Such
devices are for example frequency converters and switched-mode power supplies�
5.4 Mechanical design
1
2
1: Sensing face
2: Connections (can be rotated by 270°)
Fig� 2: Mechanical design
5.5 Fixing
For installation, the following optional accessories are available�
The unit can be mounted without the accessories� For installation, please
use the threaded sleeves on the back of the unit� The necessary screws are
not supplied with the unit�

8
5.5.1 Installation with angle bracket E80335
Fig� 3: Installation with angle bracket E80335
5.5.2 Installation with mounting device E80336
The mounting device is used to mount the unit to a clamp� The following clamps
can be used:
● E21110 with a rod diameter of 12 mm
● E20795 with a rod diameter of 14 mm
● E21109 with a rod diameter of 14 mm
Fig� 4: Installation with mounting device E80336

9
UK
5.5.3 Installation with fixing bars E80337
Fig� 5: Installation with fixing bars E80337
►Fix the unit with fixing screws to the designated location�
5.6 Mounting distances
Fig� 6: Mounting distances
Operating mode Distance side (A) Distance front (B)
Read and write
(at 100% transmitter power)
≥ 1200 mm ≥ 900 mm

10
5.7 Positioning of the ID tag
D
►Align the ID tag
on the antenna
central axis�
> The distance D is
indicated in the
data sheet
Fig� 7: Position the ID tag
6 Electrical connection
NOTE!
The unit must be connected by a qualified electrician�
Device of protection class III (PC III)
Electric supply via PELV circuits only�
Electric supply must correspond to UL 61010-1, chapter 9�4 - Limited
Energy:
The overcurrent protection device must switch off a current of 6.6 A in
120 s. For the correct rating of the overcurrent protection device take
the technical data of the device and wiring into account.
The separation of external circuits must comply with UL 61010-2-201,
Figure 102�
►Disconnect power before connecting the device�
►For cable lengths > 30 m use an additional protection against surge
voltages to IEC 61000-4-5�
NOTE!
The IP rating indicated in the data sheet is only guaranteed if the M12
connectors are firmly screwed�
The device can be damaged by insufficiently tightened M12 connectors�
►Firmly screw the M12 connectors to the device�
For the scope of validity cULus: Minimum temperature rating of the cable to
be connected to the field wiring terminals: 70 °C�

11
UK
Cover the unused sockets with protective caps (E73004).
Tightening torque 0�6���0�8 Nm�
Accessories: www�ifm�com
6.1 Wiring
1
(1) Power supply and CAN bus
M12 connector, A-coded, 5 poles
4
2 1
3
5
1 CAN screen
2 U+
3 CAN_GND
4 CAN_H
5 CAN_L
Not used
Supply voltage
GND
H bus cable
L bus cable
Fig� 8: Wiring
6.2 CAN bus interface
The device has a CAN interface�
Use cables that are approved for CAN bus� Terminate the cables using
terminating resistors (120 Ω). Use ifm's EVC492 cable with integrated
terminating resistor as an alternative�
6.3 cULus
For devices with cULus approval and the cULus scope of validity:
►Supply the device from an isolating transformer having a secondary UL- listed
fuse rated:
a) 5 A at voltages of 0...20 V rms (0...28.3 V p )
b) 100/V p at voltages of 20...30 V rms (28.3...42.4 V p )

12
7 Indicators
1
2

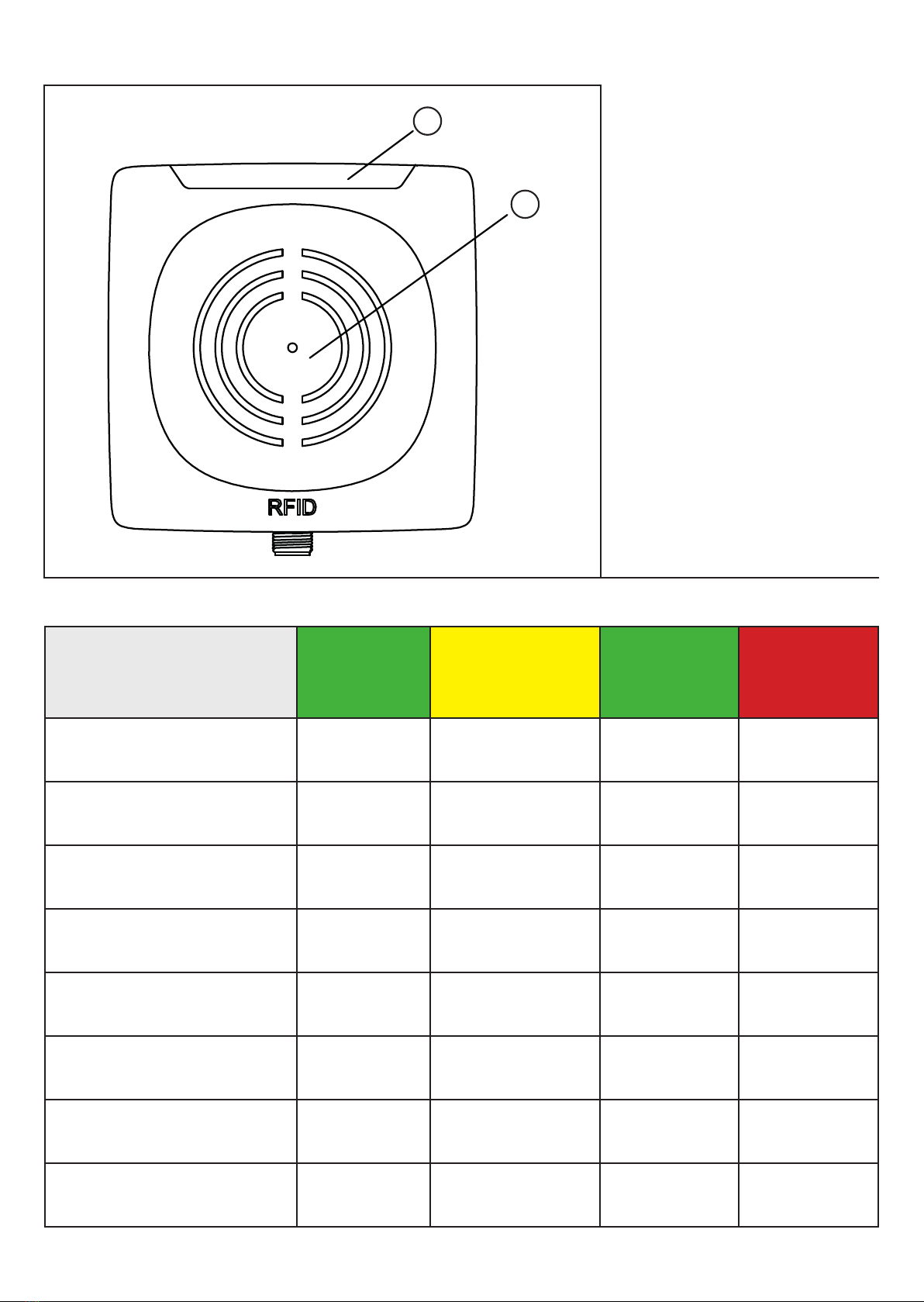

1: LEDs
2: sensing face
Fig� 9: Indicators
Status power LED
(green)
LED signal bar
(4x yellow)
LED CAN
status
(green)
LED CAN
status (red)
Ready for operation
without ID tag on off - -
Ready for operation with
ID tag on up to 4 LEDs
are on - -
Read/write successful on up to 4 LEDs are
flashing 2x - -
Read/write not successful on up to 4 LEDs are
flashing 5x - -
HF field not active flashes
(1 Hz) off - -
CAN status pre-opera-
tional - - on off
CAN status stopped - - flashing
slowly off
CAN status operational - - flashes off

13
UK
Status power LED
(green)
LED signal bar
(4x yellow)
LED CAN
status
(green)
LED CAN
status (red)
CAN LSS service active - - off flashing
quickly
CAN configuration error - - off flashes
CAN warning limit for
communication errors
reached
- - off flashing
slowly
CAN status bus off - - off on
If the ID tag has a high receive signal strength, all LEDs of the signal bar
are on (configurable).
The max� receive signal strength depends on the type of the ID tag�
8 Operation
The device is operated in a CAN network�
The CAN network configuration must be correct to ensure that the device
functions reliably�
►Depending on the configuration of the CAN network, adjust the settings
of the CAN network under (→ 8.1).
More notes on operation can be found in the operating instructions:
www�ifm�com
8.1 CANopen
The device is delivered with the node ID 32 and a bit rate of 125 Kbits/s�

14

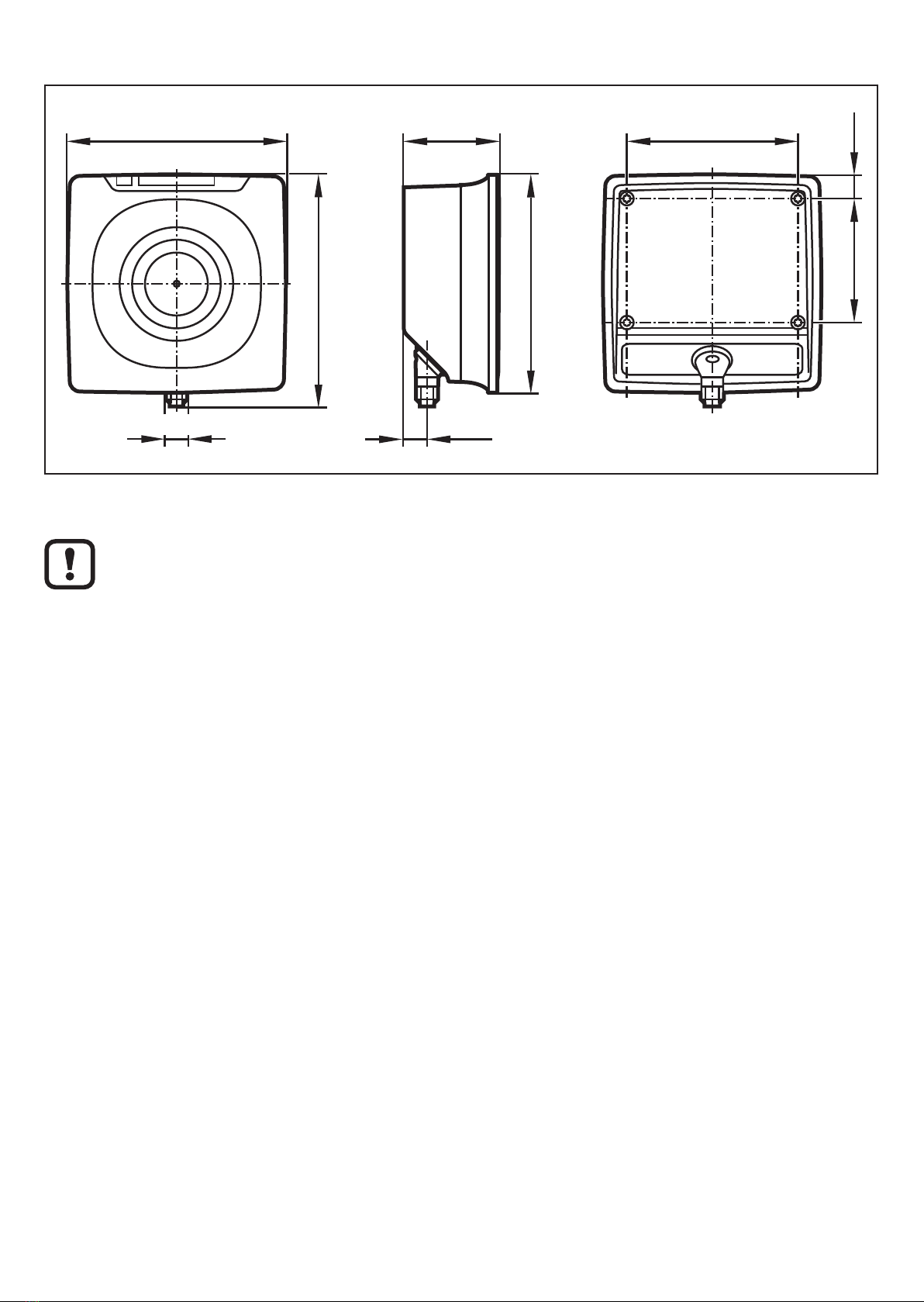

9 Scale drawing
64 12,5
88
12,4
50
113
113
120
M12x1
Fig� 10: Scale drawing
The max� tightening torque of the screws when mounting the unit is 0�8 Nm�
10 Technical data
The data sheets are available on our website at www�ifm�com�

15
UK
10.1 Detection range with E80384
0-50-150
170
220
120
20
[mm]
[mm]
-100-200 50 100 150 200
70
Fig� 11: Detection range with E80384
All indications apply to static write operations� If not otherwise stated,
they refer to the installation of the unit and of the ID tag in a non-metallic
environment�
11 Maintenance, repair, disposal
The operation of the unit is maintenance-free� For perfect functioning, please
consider: Keep the sensing face and a clear space, if any, free from deposits and
foreign bodies�
When replacing the device, ensure that installation is done in the same way and
that the same type of unit is used� It is not possible to repair the unit� After use
dispose of the unit in an environmentally friendly way in accordance with the
applicable national regulations�

16
12 Approvals/standards
If approval is granted the approval text of the respective countries applies
(→ 12 Approvals/standards).
Information about the approvals granted: www�ifm�com
12.1 Radio approvals
12.1.1 Overview
The overview of the approval status of a unit is available on our website at www�
ifm�com�
12.1.2 Europe / EC declaration of conformity
ifm electronic gmbh hereby declares that the DTC600 radio system corresponds
to the directive 2014/53/EU�
You can find the EC declaration of conformity on our website at: www�ifm�com
12.1.3 USA
FCC note:
This device complies with Part 15 of the FCC Rules� Operation is subject to the
following two conditions:
1� This device must not cause harmful interference, and
2� this device must accept any interference received, including interference that
may cause undesired operation�
Changes or modifications made to this equipment not expressly approved by ifm
may void the FCC authorization to operate this equipment�
NOTE: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules� These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment� This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications� Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense�

17
UK
12.1.4 Canada
IC note:
This device complies with Industry Canada license-exempt RSS standards�
Operation is subject to the following two conditions:
1� The device may not cause interference, and
2� the user of the device must accept any interference received, including
interference that may cause undesired operation�
12.1.5 Taiwan
Administrative Regulations on Low Power Radio Wave Devices warning
Article 12
Unless granted permission by NCC, no company, firm, or user shall alter
the frequency, increase the transmitting power, or alter the original design
characteristics or operating functions of an approved low-power radio-frequency
device�
Article 14
Low-power radio-frequency devices shall not affect aircraft security nor interfere
with legal communications� If such interference occurs, the user shall immediately
cease operating the device until improvement is made and the interference no
longer exists�
Legal communications refers to the wireless telecommunication operations that
comply with the Telecommunications Act� Low-power radio-frequency devices
must accept any interference received from legal communications and ISM radio
wave devices�
Below are the Taiwanese legal regulations in Chinese�
低功率電波輻射性電機管理辦法:
● 第十二條
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。
● 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象
時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

18
12.1.6 Australia
Use in Australia:
12.1.7 Singapore
Complies with
IDA Standards
DB 103032
The “Equipment Registration” is available on our website at: www�ifm�com
Other manuals for DTC600
2
Table of contents
Other IFM RFID System manuals
Popular RFID System manuals by other brands

impinj
impinj SPEEDWAY IPJ-R1000 quick start guide

Nedap
Nedap TRANSIT Quick installation guide

SATO
SATO Argox RA-7120 user guide

ZKTeco
ZKTeco SpeedFace-V5L user manual

Feig Electronic
Feig Electronic OBID classic-pro ID CPR.M04.P/AB-U2 Installation

Feig Electronic
Feig Electronic OBID i-scan ID ISC.ANT.MUX manual

Elatec
Elatec TWN4 MultiTech 2 HF user manual

Feig Electronic
Feig Electronic ID LRU500i-BD Series Installation

Magellan
Magellan MARS-1-2-4-6 user manual

turck
turck IN TAG 200 SLIX2 Instructions for use

IDEC
IDEC KW2D Series user manual

Emka Electronics
Emka Electronics Swing Handles Series quick start guide
