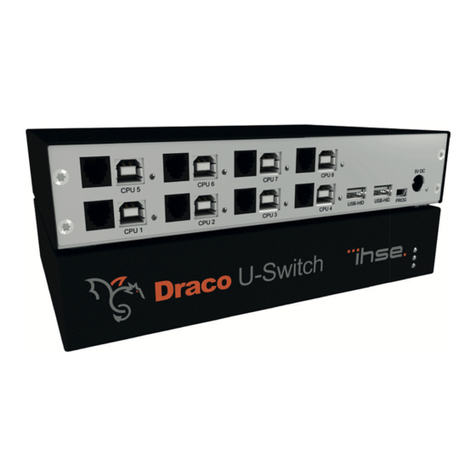

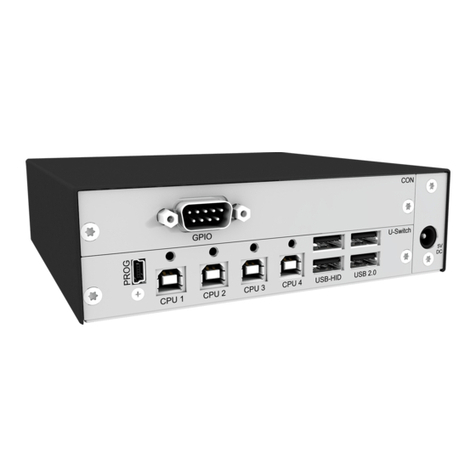

Ihse Draco U-Switch 476 Series Specification sheet

Manual:
We continue to develop and improve our products, adding new
functions and features on a regular basis, so we want you to always
have the latest manual. For this reason, we do not include a manual
in an electronic or printed form but kindly ask you to download the
latest manual using the following link:
http://www.ihse.de/leadmin/redakteur/pdf/manuals/m476.pdf
3. Technical Support
Prior to contacting support please ensure you have read the
manual, and then installed and setup your KVM matrix as
recommended.
Support Checklist
To efciently handle your request it is necessary to complete our
checklist for support and problem cases:
http://www.ihse.com/leadmin/redakteur/pdf/support/Checklist.pdf
Please have the following information available before you call:
■Company, name, phone number and e-mail
■Type and serial number of the device (see bottom of device)
■Date and number of sales receipt, name of dealer if
necessary
■Issue date of the existing manual
■Nature, circumstances and duration of the problem
■Involved components (such as graphic source/CPU,
OS, graphic card, monitor, USB-HID/USB 2.0 devices,
interconnect cable) including manufacturer and model num-
ber
■Results from any testing you have done
Shipping Checklist
1. To return your device, please contact your dealer to obtain
a RMA number (Return-Material-Authorization).
2. Package your devices carefully, preferably using the
original box. Add all pieces which you received originally.
3. Please note your RMA number visibly on your shipment.
Please understand that devices which are sent in without a
RMA number cannot be accepted.
IHSE GmbH
Maybachstrasse 11
88094 Oberteuringen
Germany
Phone [phone]
Fax [phone]
Web www.ihse.de
E-mail [email protected]
Skype ihse.support
Oce hours (GMT +1:00):
Monday - Thursday 8.00 - 4.30 p.m.
Friday 8.00 - 3.00 p.m.
Draco U-Switch
Quick Setup
Series 476
Quick Setup Quick SetupQuick Setup
Draco U-Switch Series 476 Draco U-Switch Series 476Draco U-Switch Series 476
Excellence in KVM and Video
!

2.3.1. Switching via mouse (panning)
When panning the mouse cursor beyond the border of the moni-
tor, you can switch from your console between different monitors
that are in vertical or horizontal position to each other.
Monitors that are only arranged horizontally (e. g. 4x1, 8x1) have
to be operated with the one-dimensional Multi-Screen mode. Mo-
nitors that are arranged vertically and horizontally (e. g. 2x2, 4x2)
have to be operated with the two-dimensional Multi-Screen mode.
1. Activate the switching via mouse by executing the
following keyboard sequences:
■One-dimensional mode:
‚Hot Key‘, <x>, <1>, <Enter>
■Two-dimensional mode:
‚Hot Key‘, <x>, <2>, <Enter>
2. Move the mouse pointer beyond the border of the
monitor to the vertically or horizontally located
monitor.
The switching operation will be immediately executed
to the connected source (computer, CPU) by passing
over the mouse pointer.
3. Deactivate the switching via mouse by executing the
following keyboard sequence:
‚Hot Key‘, <x>, <0>, <Enter>
Additional software for calibration and positioning of the
mouse pointer is not necessary.
When using sources (computers, CPUs) in multi-head
operation (e. g. dual-head), the switching is only working
manually via keyboard commands. Any non-observance
may have a negative inuence on the stability of the
system.
2.3. Operation
2.3.1. Switching via keyboard
From your console, you can switch via keyboard sequence be-
tween different monitors
1. Open Command Mode with the ‚Hot Key‘ (2x <Right
Shift>).
2. Enter the number of the specic source or monitor and
conrm with <Enter>.
At the same time Command Mode is closed and the key-
board LEDs return to previous status.
Keyboard and mouse are connected to the specied sour
ce or monitor.
When using the numeric keypad for switching, a conrma-
tion of the switching operation by using the key <Enter> is
not necessary.
2.2. System Overview
This section illustrates typical installations of the U-Switch:
!
Draco U-Switch Series 476 Draco U-Switch Series 476Draco U-Switch Series 476
1. System Setup
First time users are recommended to carry out a test placement
by setting up the system in a single room. This will allow you to
identify and solve any cabling problems, and experiment with your
system more conveniently.
1. Switch off all devices.
2. Connect the USB cables to the CPUs (CON Units) and to
the U-Switch
3. Connect mouse and keyboard to the U-Switch
4. Connect the 5VDC power supply with the U-Switch
5. Power up the system
2. Specifications
2.1. Package Contents
Your extender package contains the following items:
■U-Switch
■5VDC international power supply unit
■Country specic power cord
■Quick Setup
■4x USB cable ( 1.8 m, USB type A to type B)
Additional content for K476-8U/ K476-4U2
■4x USB cable (1.8 m, USB type A to type B)
If anything is missing, contact your dealer.
!
!
!
Quick Setup Quick SetupQuick Setup
12 3
1. Sources (computers, CPU, KVM extender CON units)
2. CPU Unit
Keyboard, mouse
