Ihse Draco major K474-U8/C8 User manual

IHSE GmbH
Maybachstrasse 11
88094 Oberteuringen
Germany
[email protected]
www.ihse.de
Tel. [phone]
Fax [phone]
User Manual
Edition: 2011-10-11
Draco major
Model:
K474-UX / CX

Draco major
2 2011-10-11
Copyright
© 2011. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.
Information in this document is subject to change without notice.
Trademarks
All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.
Disclaimer
While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.
The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.
The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

Contents
2011-10-11 3
Contents
1 About This Manual....................................................................... 7
1.1 Scope.................................................................................. 7
1.2 Validity ................................................................................ 7
1.3 Cautions and Notes ............................................................ 7
1.1 Spellings ............................................................................. 7
2 Safety Instructions.......................................................................8
3 Description ................................................................................... 9
3.1 Application .......................................................................... 9
3.2 Access Possibilities............................................................. 9
3.3 System Overview .............................................................. 10
3.4 Product Range .................................................................. 11
3.5 Accessories....................................................................... 11
3.6 Device Views .................................................................... 12
3.6.1 Configuration Redundancy.................................. 12
3.6.2 Configuration Standard 1 .................................... 13
3.6.3 Configuration Standard 2 .................................... 14
3.7 Diagnostics and Status ..................................................... 15
3.7.1 Status LEDs........................................................ 15
3.7.2 Status of Console Ports ...................................... 17
3.7.3 Status of the CPU Ports...................................... 21
3.7.4 Network Status.................................................... 24
3.7.5 Firmware Status.................................................. 26
3.8 Trace Function .................................................................. 27
3.9 Flash Memory Status ........................................................ 29
4 Installation .................................................................................. 30
4.1 Package Contents............................................................. 30
4.2 System Setup.................................................................... 31
4.3 Example Applications........................................................ 32
4.3.1 Single-Head Matrix (KVM) .................................. 33
4.3.2 Dual-Head Matrix (KVM)..................................... 34

Draco major
4 2011-10-11
4.3.3 Quad-Head Matrix (KVM).................................... 35
4.3.4 Single-Head Matrix (KVM / USB 2.0) .................. 36
4.3.5 Triple-Head-Matrix (KVM / USB 2.0)................... 38
4.3.6 Training System 15 ............................................. 40
4.3.7 Training System 30 ............................................. 42
4.3.8 Crosspoint Matrix ................................................ 44
4.3.9 Parallel Operation (Stacking) .............................. 46
4.3.10 Cascading........................................................... 48
5 Configuration.............................................................................. 49
5.1 Command Mode ............................................................... 49
5.2 Control of the Draco major ................................................ 51
5.2.1 Control via OSD .................................................. 51
5.2.2 Control via Java Tool .......................................... 55
5.2.3 Control via LCD Display...................................... 62
5.2.4 Control via Serial Interface.................................. 66
5.3 System Settings ................................................................ 67
5.3.1 System................................................................ 67
5.3.2 Access ................................................................ 71
5.3.3 Switch ................................................................. 74
5.3.4 Network............................................................... 79
5.3.5 Date and Time .................................................... 82
5.4 User Settings .................................................................... 84
5.4.1 User Properties ................................................... 84
5.4.2 User Matrix.......................................................... 87
5.5 Console Settings............................................................... 89
5.5.1 Console Ports (CON Ports)................................. 89
5.5.2 Console Matrix (CON Matrix) .............................. 93
5.5.3 Mouse and Keyboard.......................................... 95
5.5.4 Touch Screen...................................................... 98
5.5.5 Macro Keys....................................................... 100
5.5.6 Multicast (Follow Me) ........................................ 103

Contents
2011-10-11 5
5.6 CPU Settings .................................................................. 106
5.6.1 CPU Ports......................................................... 106
5.7 Saving and Loading of Configurations ............................ 109
5.7.1 Saving of Configurations in the Matrix .............. 109
5.7.2 Saving of Configurations in a File ..................... 110
5.7.3 Loading of Configurations ................................. 113
5.7.4 Saving and Loading of Configurations
from FTP........................................................... 116
5.8 Firmware Update ............................................................ 118
6 Operation .................................................................................. 120
6.1 Operation by 'Hot Keys'................................................... 120
6.1.1 Direct Switching ................................................ 120
6.1.2 Scan Mode........................................................ 121
6.1.3 Addressing of Main and Sub Matrix .................. 122
6.1.4 Macro Keyboard................................................ 123
6.1.5 Function Keys <F1>–<F12>.............................. 123
6.2 KVM Mode ...................................................................... 124
6.2.1 KVM-List ........................................................... 124
6.2.2 KVM-Switch Function........................................ 126
6.2.3 Follow Me Function (Multicast) ......................... 129
6.3 Crosspoint Mode............................................................. 132
6.3.1 Crosspoint Switch Function (CON Ports).......... 132
6.3.2 Crosspoint Switch Function (CPU Ports) .......... 136
6.4 Serial Interface................................................................ 139
6.5 Power On and Power Down Functions ........................... 140
6.5.1 Restart .............................................................. 140
6.5.2 Reset ................................................................ 141
6.5.3 Power Down...................................................... 141
7 Specifications........................................................................... 142
7.1 Interfaces ........................................................................ 142
7.1.1 RJ45 (Interconnect) .......................................... 142
7.1.2 Fiber SFP Type LC (Interconnect) .................... 142

Draco major
6 2011-10-11
7.1.3 RJ45 (Network) ................................................. 142
7.1.4 RS-232 (Serial) ................................................. 142
7.2 Interconnect Cable.......................................................... 143
7.2.1 Cat X................................................................. 143
7.2.2 Fiber.................................................................. 144
7.3 Supported Peripherals .................................................... 146
7.3.1 KVM Extender................................................... 146
7.4 Serial Control .................................................................. 152
7.4.1 Telegram Structure ........................................... 152
7.4.2 Telegrams, Switching Functions ....................... 154
7.5 Connector Pinouts .......................................................... 156
7.6 Power Supply.................................................................. 157
7.7 Environmental Conditions ............................................... 157
7.8 Size................................................................................. 157
7.9 Shipping Weight.............................................................. 157
8 Troubleshooting....................................................................... 158
8.1 External Failure............................................................... 158
8.2 Failure at the Matrix ........................................................ 158
8.3 Blank Screen................................................................... 159
8.4 Video Interference........................................................... 160
9 Technical Support.................................................................... 161
9.1 Support Checklist............................................................ 161
9.2 Shipping Checklist .......................................................... 161
10 Regulatory and Standards Compliance ................................. 162
10.1 CE Declaration of Conformity.......................................... 162
10.2 North American Regulatory Compliance......................... 163
10.3 WEEE ............................................................................. 163
10.4 RoHS .............................................................................. 163
11 Glossary.................................................................................... 164
11.1 Matrix specific Glossary .................................................. 166
Pos: 1 /806-IHSE/ Zu diesem Handbuch/A TB_Zu diesem Handbuch @ 5\mod_1278 573163276_6.doc @ 41510 @ 1222 @ 1

About This Manual
2011-10-11 7
1 About This Manual
1.1 Scope
This manual describes how to install your Draco major, how to operate it
and how to perform trouble shooting.
1.2 Validity
This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.
1.3 Cautions and Notes
The following symbols are used in this manual:
This symbol indicates an important operating instruction that should be
followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.
This symbol indicates important information to help you make the best use
of this product.
=== Ende der Liste f ür Textmarke Inhalt ===
1.1 Spellings
You can find the following spellings in the manual:
Spelling Description
<key> Description of a key on the keyboard
<key> + <key> Press keys simultaneously
<key>, <key> Press keys successively
2x <key> Press key 2x in quick succession
(cf. mouse double click)
Menu item Description of a menu item in the software
Menu item > Menu item Select menu items successively
Bold print Description of terms that are used in the
device software

Draco major
8 2011-10-11
2 Safety Instructions
To ensure reliable and safe long-term operation of your Draco major
please note the following guidelines:
Installation
Only use the device according to this User Manual. Otherwise the
provided safety can be affected.
Only use in dry, indoor environments.
The Draco major and the power supply units can get warm. Do not
situate them in an enclosed space without any airflow.
Do not place the power supply directly on top of the device.
Do not obscure ventilation holes.
Only use power supplies originally supplied with the product or
manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged chassis.
Connect all power supplies to grounded outlets. In each case, ensure
that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.
Do not connect the link interface to any other equipment, particularly
network or telecommunications equipment.
Only connect devices to the serial interface that are sufficiently
secured against short circuit currents and false voltages at the serial
interface.
Take any required ESD precautions.
Repair
Do not attempt to open or repair a power supply unit.
Do not attempt to open or repair the Draco major. There are no user
serviceable parts inside.
Please contact your dealer or manufacturer if there is a fault.

Safety Instructions
2011-10-11 9
3 Description
3.1 Application
The Draco major matrix is used to switch from consoles (monitor,
keyboard, mouse, and other peripheral devices) to various sources
(computer, CPU) for establishing a connection.
In a maximum configuration, up to 16 independent consoles can be
switched with up to 32 independent sources.
The Draco major matrix is only specified for the use with extenders that
are able to transmit video, KVM and USB 2.0 signals.
The connection between the matrix and the KVM extenders can only be
made by Cat X or fiber cables.
The matrix serves as a repeater. Thus the matrix can be run in a
maximum distance of 10 km away from the consoles and 10 km away
from the sources.
3.2 Access Possibilities
You have the following possibilities to access the Draco major for
configuration and operation:
Access Option Symbol
OSD
Java tool
LCD display
Serial interface

Draco major
10 2011-10-11
3.3 System Overview
A Draco major matrix system consists of a Draco major matrix and one or
more CPU and CON units. The Draco major matrix is connected to the
CPU and CON units by interconnect cables.
The CPU units are connected directly to the source (computer, CPU) by
the provided cables.
Monitor(s), keyboard and mouse are connected to the CON units.
The communication between the Draco major matrix and the CPU and
CON units takes place over the respective interconnect cables.
12 3 5
36
4
System Overview (exemplary)
1 Source (computer, CPU)
2 CPU Units
3 Interconnect cable
4 Draco major matrix
5 CON Units
6 Console (monitor, keyboard, mouse)
See Chapter 4.3, Page 32 for installation examples.

Safety Instructions
2011-10-11 11
3.4 Product Range
Part No. Description
K474-U8/C8 Draco major matrix for 8 users and 8 CPUs
K474-U8/C16 Draco major matrix for 8 users and 16 CPUs
K474-U8/C24 Draco major matrix for 8 users and 24 CPUs
K474-U8/C32 Draco major matrix for 8 users and 32 CPUs
K474-U16/C8 Draco major matrix for 16 users and 8 CPUs
K474-U16/C16 Draco major matrix for 16 users and 16 CPUs
K474-U16/C24 Draco major matrix for 16 users and 24 CPUs
K474-U16/C32 Draco major matrix for 16 users and 32 CPUs
K474-UX/CX Draco major matrix empty (consisting of a basic
chassis, a basic circuit board, a control board and a
plug-in power supply unit for free configuration)
3.5 Accessories
Part No. Description
474-PSU Plug-in power supply unit as a replacement or for an
upgrade to a redundant power supply
474-OSD Draco major OSD card
474-DIS Draco major display card
474-C8 Draco major Cat X I/O card
474-M8 Draco major fiber I/O card, Multi-mode
474-S8 Draco major fiber I/O card, Single-mode
474-X8 Draco major I/O card empty, for free configuration
459-1M Multi-mode GBIC for the use in 474-X8
459-1S Single-mode GBIC for the use in 474-X8
474-KEY 16 key macro keyboard
You can find appropriate extenders or other components in Chapter 7.3,
Page 146.

Draco major
12 2011-10-11
3.6 Device Views
3.6.1 Configuration Redundancy
123 56874
Rear View
1 I/O module CPU (Cat X)
2 I/O module CPU (fiber)
3 I/O module console (Cat X)
4 I/O module console (fiber)
5 Connect to network (RJ45)
6 Connect to serial interface (D-sub 9-pole)
7 Connect to power supply unit 2 (redundancy)
8 Connect to power supply 1 (standard)
12 3
Front View
1 LCD display
2 Plug-in power supply unit 1 (standard)
3 Plug-in power supply unit 2 (redundancy)

Safety Instructions
2011-10-11 13
3.6.2 Configuration Standard 1
123 5674
Rear View
1 I/O module CPU (Cat X)
2 I/O module CPU (fiber)
3 I/O module console (Cat X)
4 I/O module console (fiber)
5 Connect to network (RJ45)
6 Connect to serial interface (D-sub 9-pole)
7 Connect to power supply
12
Front View
1 LCD display
2 Plug-in power supply unit

Draco major
14 2011-10-11
3.6.3 Configuration Standard 2
123 6784 5
Rear View
1 I/O module CPU (Cat X)
2 I/O module CPU (fiber)
3 I/O module console (Cat X)
4 I/O module console (fiber)
5 LCD display
6 Connect to network (RJ45)
7 Connect to serial interface (D-sub 9-pole)
8 Connect to power supply
1
Front View
1 Plug-in power supply unit

Safety Instructions
2011-10-11 15
3.7 Diagnostics and Status
3.7.1 Status LEDs
The Draco major is fitted with the following LEDs for overall status
indication on every I/O module:

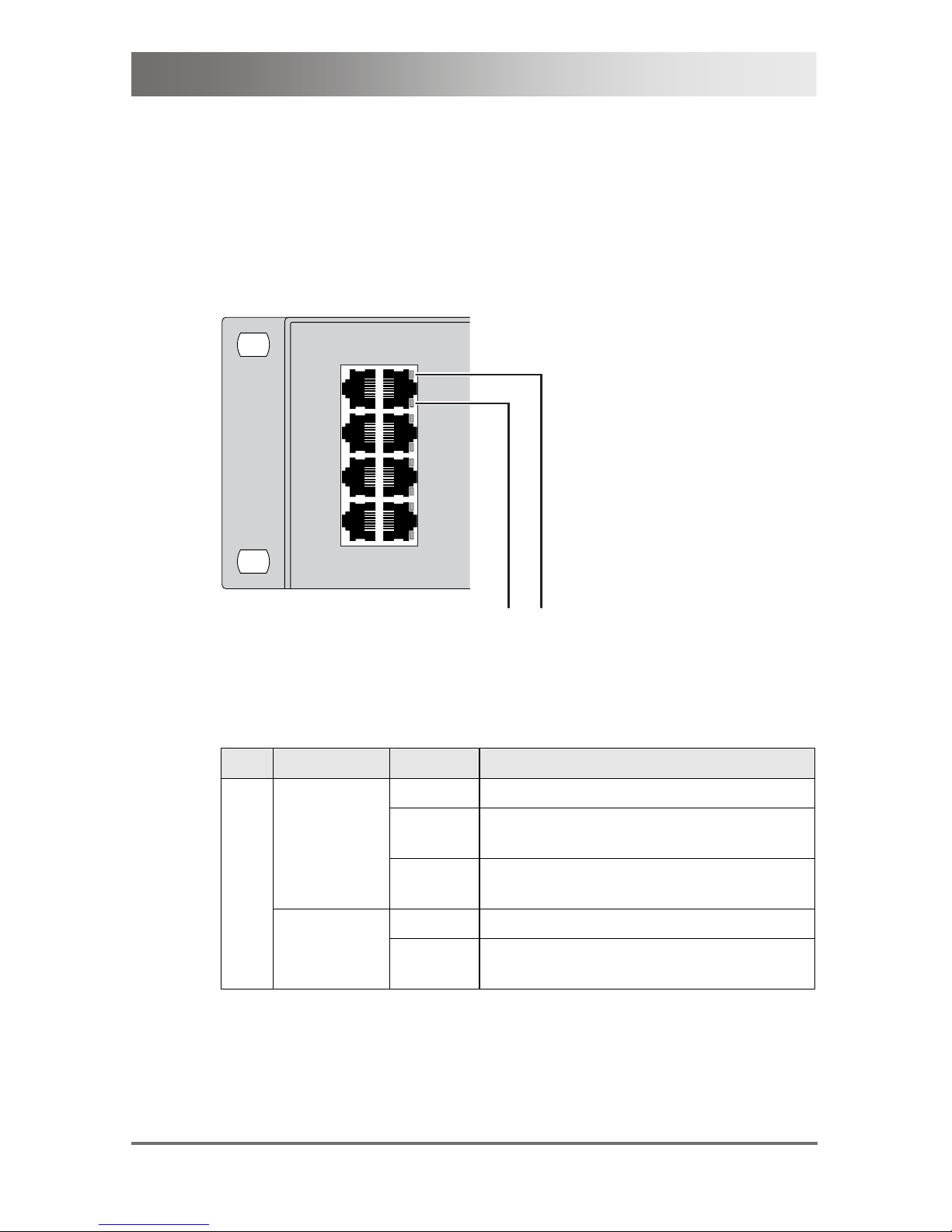

I/O card Cat X
2 1
Rear View
1 Status LED left port
2 Status LED right port
Pos. LED Status Description
Off Port offline
Flashing Port online, no connection via Cat X
cable
Link Status
(green)
On Connection via Cat X cable ok,
data traffic active.
Off Port offline
1,2
Link Status
(orange) Flashing Port online, no connection via Cat X
cable.

Draco major
16 2011-10-11

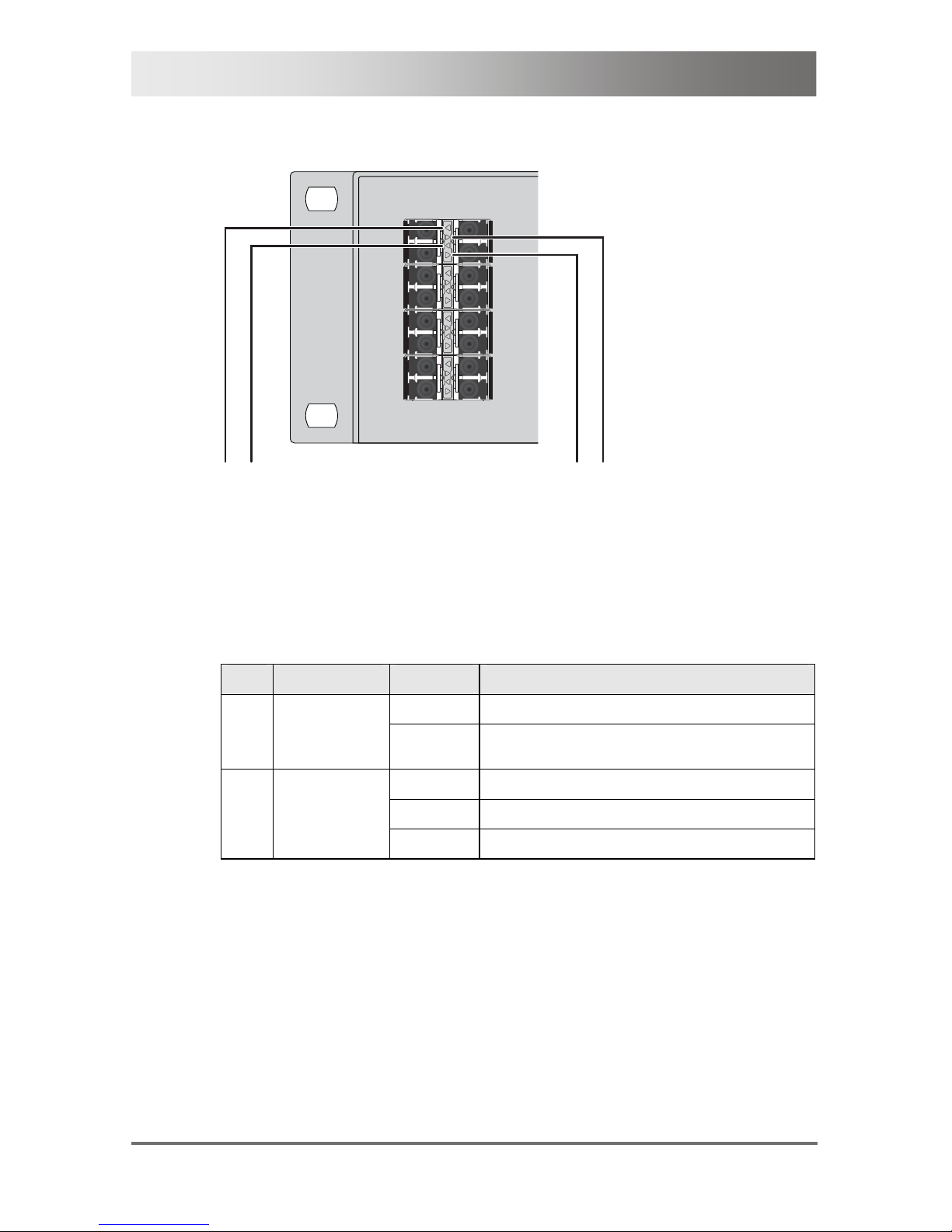

I/O card fiber
31 24
Rear View
1 Failure LED left port
2 Status LED left port
3 Status LED right port
4 Failure LED right port
Pos. LED Status Description
Off Port offline1,4 Failure
Status
(red) Flashing Port online, SFP module failure signal
Off Port offline
On Port online, signal ok
2,3 Link Status
(green)
Flashing Port online, no signal

Safety Instructions
2011-10-11 17
3.7.2 Status of Console Ports
All of the connections between the various consoles and CPUs are shown
in this menu.
You have the following possibilities to access the menu:
OSD
1. Select Status > CON Ports in the main menu.
Menu Status – CON Ports
2. Press key <F1> to get to the view CPU Ports.

Draco major
18 2011-10-11
The following information is shown in this menu:
Field Description
Black: Number of the CON port
Green: Name of the CON port
K/M: Number of the CPU port with
keyboard and mouse connection
MON: Numbers of the CPU ports with
video connection
Java Tool
Select Status > CON Ports in the task area.
Menu View Status > CON Ports
In this view, video only connections are displayed in orange. Connections
with keyboard and mouse are displayed in red. Finally, full KVM
connections are displayed in green.

Safety Instructions
2011-10-11 19
You can select between the following buttons:
Button Function
Reload Reload status of the CON ports
LCD Display
Select Status > Ports in the main menu.
Output Input
CPU_01 CON_01
CPU_02 n.c.
CPU_03 n.c.
CPU_04 n.c.
CPU_05 n.c.
CPU_06 n.c.
CPU_07 n.c.
CPU_08 n.c.
Status Ports
Draco major
Menu Status – Ports (Video)
The menu consists of six pages. The first four pages inform about the set
video connections, the last two pages inform about the set mouse and
keyboard connections.
To open the next page, press the key <Page Down>.
To open the previous page, press the key <Page Up>.
The following information is shown in this menu:
Field Description
Output Name of CPU port
Input Name of CON ports connected to the output
signal (Video) of the CPU port.

Draco major
20 2011-10-11
Output Input
CON_01 CPU_01
CON_02 n.c.
CON_03 n.c.
CON_04 n.c.
CON_05 n.c.
CON_06 n.c.
CON_07 n.c.
CON_08 n.c.
Status Ports
Draco major
Menu Status – Ports (mouse / keyboard)
The following information is shown in this menu:
Field Description
Output Name of CON port
Input Name of CPU port connected to the output signal
(K/M) of the CON port.
