ENGLISH

6
Declaration of conformity
We declare under our sole responsibility that this product corresponds to the directives
2014/35/EU, 2014/30/EU and 2011/65/EU and conforms with the following standards
or standardized documents: EN 61010-1, EN 61010-2-010, EN 61010-2-051,
EN 61326-1, EN 60529 and EN ISO 12100.

7
20
19
18
12
10
/// DEVICE SETUP
›C-MAG HS 7 control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
› Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
/// SAFETY INSTRUCTIONS
›About our warning symbols. . . . . . . . . . . . . . . . . . . . . . . 12
›General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
›device design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
›Permissible medium / contaminants / side reactions . . . . . 14
›Procedures during sample runs . . . . . . . . . . . . . . . . . . . . 15
› Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
›Power supply / switching off . . . . . . . . . . . . . . . . . . . . . . 16
›About protecting your device. . . . . . . . . . . . . . . . . . . . . . 17
/// PROPER USAGE
› Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
/// UNPACKING
›Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
/// ASSEMBLING THE SUPPORT ROD
› Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8
28
43
22
/// START UP
› Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
›Setting the safety temperature limit . . . . . . . . . . . . . . . . 24
›Controlling the medium temperature
limit via contact thermometer . . . . . . . . . . . . . . . . . . . . . 26
/// INTERFACES AND OUTPUTS
›USB- and RS 232 interfaces . . . . . . . . . . . . . . . . . . . . . . . 43
/// MENU
›Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
›Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
›Temperature control mode. . . . . . . . . . . . . . . . . . . . . . . . 33
›Intermittent mode / rotation direction . . . . . . . . . . . . . . . 34
› Beep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
›Error 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
›Timer expired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
›Safe / Visc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
›Factory reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
›External probe calibration . . . . . . . . . . . . . . . . . . . . . . . . 37
›Software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
›Timer / Counter (F, 4). . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
›Lock (G, 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

9
56
48
49
51
55
/// MAINTENANCE AND CLEARING
› Correct handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
/// ACCESSORIES
› An overwiew. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
/// ERROR CODES
› Troubleshoot correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
/// WARRANTY
› Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
/// TECHNICHAL DATA
› C-MAG HS 7 control in detail. . . . . . . . . . . . . . . . . . . . . . 56

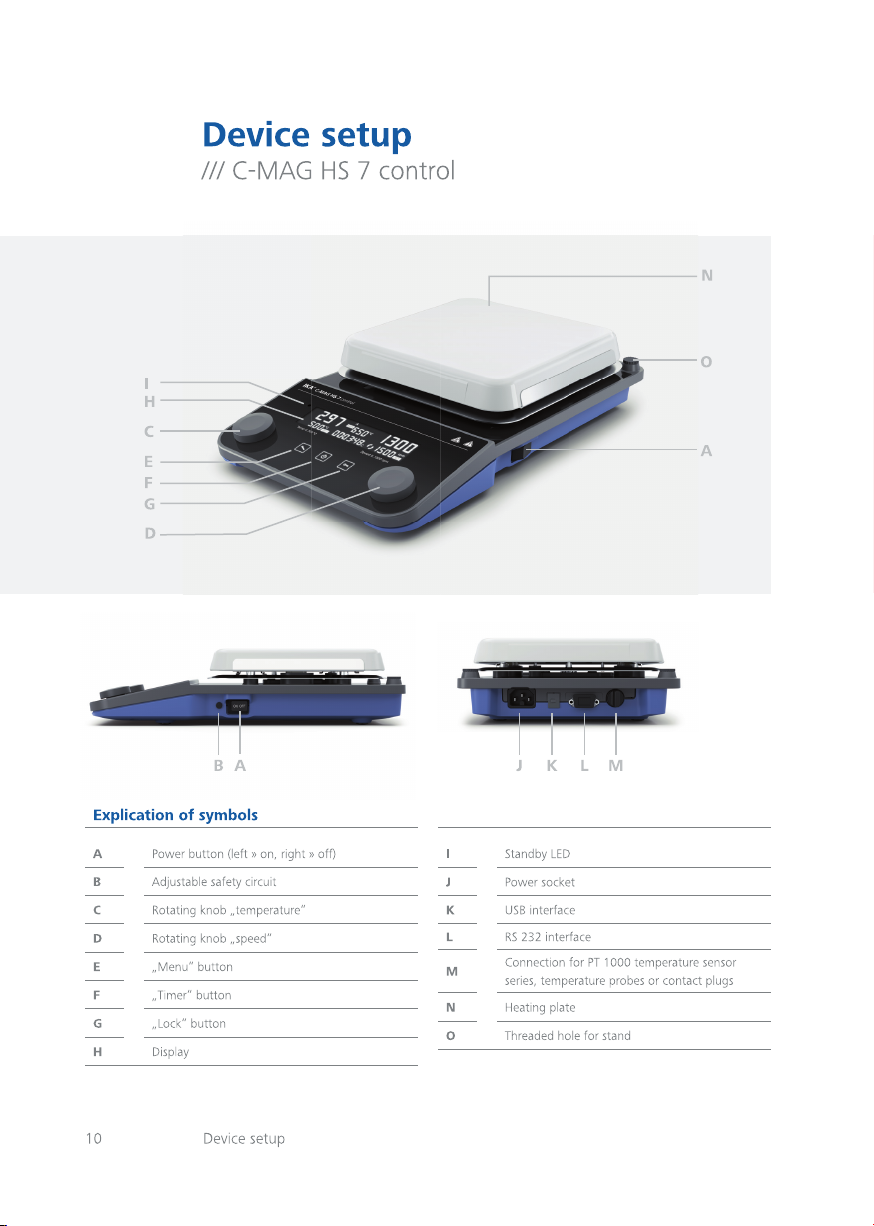

Device setup 11
/// Display
07 11 0809 10 15 1713 | 14
06 02 05 04 0112
SET
SET
SAFE
VISC
16
01 Set speed value
02 Set temperature value
03 Motor running / rotation direction
04 Timer / counter
05 Temperature value
06 Heating function activated
07 Actual hotplate temperature
08 Actual speed value
09 Temperature control mode
Display
10 Operating mode
11 Safety circuit temperature
12 Viscosity trend value
13 |
14
PT 1000 temperature sensor connected
ETS-D5 / ETS-D6 connected
15 All parameters locked
16 USB connection with PC
17 Connection with PC etablished
18 Intermittent mode activated
03 18

12 Safety instructions
Safety instructions
/// About our warning symbols
Indicates an imminently hazardous situation, which,
if not avoided, will result in death, serious injury.
Indicates handling, which, if not avoided,
can result in equipment damage.
!
Indicates a potentially hazardous situation, which,
if not avoided, can result in death, serious injury.
Indicates a potentially hazardous situation, which,
if not avoided, can result in injury.
Attention!
Indicates the risks of magnetism.
Danger!
Indicates the exposure to a hot surface.

Safety instructions 13
/// General information
› Read the operating manual in its entirety before using
the IKA Plate (RCT digital) and follow the safety instructions.
› Keep the operating manual in a location that is easily
accessible by everyone in the laboratory.
› Ensure that only trained staff operates the device.
› Follow the safety instructions, (laboratory) guidelines, occupational
health and safety and accident prevention regulations (OSHA).
› Electrical outlet must be grounded (protective ground contact).
Attention – Magnetism! ()
Effects of the magnetic field have to be taken into
account (e.g. data storage media, cardiac pacemakers ...).
Risk of burns! ( )
Exercise caution when touching parts of the housing and the heating plate.
The heating plate can reach dangerous temperatures. Pay attention to the
residual heat on the heating plate after switching off the stirrer.
The device must only be transported when the heating plate
has cooled off and is no longer hot to the touch!
/// Device design
Danger! ( )
Do not operate the device in explosive atmospheres,
with hazardous substances or under water.
› Set up the device in a spacious area on an even,
stable, clean, non-slip, dry and fireproof surface.
› The feet of the device must be clean and undamaged.
› Ensure that the power cord does not touch the heating plate.
› Check the device and accessories for damage before each use.
Do not use damaged components.

14 Safety instructions
Caution! ( )
Device surface is partially made of glass!
› Glass surface can be damaged by impact.
› If glass surface is damaged it could cause injury, don‘t use
the device anymore and contact your IKA Service team.
/// Permissible medium /
contaminants / side reactions
Caution! ( )
Only process and heat media that has a flash point higher than the adjusted
safe temperature limit that has been set. The safety temperature limit must
always be set to at least +25 °C lower than the fire point of the media used.
Warning! ( )
Beware of hazards due to:
› flammable materials.
› combustible media with a low boiling temperature.
› glass breakage.
› incorrect container size.
› overfilling of media.
› unsafe condition of container.
› Process pathogenic materials only in closed vessels under
a suitable fume hood.
Please contact IKA if you have any questions.

Safety instructions 15
Danger! ( )
Only process media that will not react dangerously to the extra energy pro-
duced through processing. This also applies to any extra energy produced in
other ways, e.g. through light irradiation.
› The heating plate can heat up due to the action of the magnets
at high motor speeds, even if the heater is switched off.
› Please consider any possible contaminations and unwanted
chemical reactions.
› It may be possible for wear debris from rotating accessory parts
to reach the material being processed.
› When using PTFE-coated magnetic bars, the following has to be noted:
Chemical reactions of PTFE occur in contact with molten or solute alkali metals
and alkaline earth metals, as well as with fine powders of metals in groups
2 and 3 of the periodic system at temperatures above +300 °C to +400 °C.
Only elementary fluorine, chlorotrifluoride and alkali metals attack it;
halogenated hydrocarbons have a reversible swelling effect.
(Source: Römpps Chemie-Lexikon and ”Ulmann”, Volume 19)
/// Procedures during sample runs
Warning! ( )
Wear your personal protective gear in accordance with the hazard
category of the media to be processed. There may be a risk from:
› splashing and evaporation of liquids.
› ejection of parts.
› release of toxic or combustible gases.
Reduce speed if:
› medium splashes out of vessel because the speed is too high.
› device is not running smoothly.
› container moves on the heating plate.
› an error message is displayed.

16 Safety instructions
/// Accessories
› Safe operation is only guaranteed with the accessories
described in the ”Accessories” chapter.
› Always disconnect the plug before attaching accessories.
› Observe the operating instructions of the accessories.
› Ensure that the external temperature sensor is inserted into
the medium to a depth of at least 20 mm when connected.
› Accessories must be securely attached to the device and
cannot come off by themselves. The centre of gravity of the
assembly must lie within the surface on which it is set up.
/// Power supply / Switching off
› The voltage stated on the type plate must correspond to
the mains voltage.
› The outlet for the mains plug must be easily accessible.
› The device can only be disconnected from the mains outlet
by pulling out the power cord or the connector plug.
Warning! ( )
› The device will automatically restart in mode B following
any interruption to the power supply.
› After continuously running for 100 hours the device will limit
the maximum heating power by 10% for self-protection.

Safety instructions 17
> 100 mm
> 100 mm
> 100 mm
/// About protecting your device
› The stirrer may only be opened by qualified and IKA approved experts.
› Do not cover the device, even partially e.g. with
metallic plates or film. This may result in overheating.
› Protect the device and accessories from bumps and impacts.
› Keep base plate clean.
› Observe the minimum distances:
between devices min. 100 mm,
between device and wall min. 100 mm,
above the device min. 800 mm.

18 Proper usage
Proper usage
/// Basics
Usage
› The magnetic stirrer has been designed for mixing
and / or heating liquids.
Area of use (only indoors)
› laboratories
› pharmacies
› universities
› schools
This device is suitable for use in all areas except
› residential areas.
› areas that are connected directly to a low-voltage
supply network that also supplies residential areas.
The safety of the user cannot be guaranteed
› if the device is operated with accessories that are not
supplied or recommended by the manufacturer.
› if the device is operated improperly or contrary to
the manufacturer’s specifications.
› if the device or the printed circuit board are modified
by third parties.

Unpacking 19
Unpacking
/// Scope of delivery
Unpack the device carefully. Any damage should immediately be
reported to the carrier (mail, rail or freight forwarding company).
Scope of delivery
› C-MAG HS 7 control
› power cord
› USB cord
› operating manual
› warranty card
› screwdriver (safety circuit)
› magnetic stir bar IKAFLON 30 and 40 mm
› temperature sensor PT 1000.60
C-MAG HS 7 control Garranty
+
+ +
+ +

20 Assembling the support rod
Assembling the support rod
/// Process
Note! ( )
Review the mounting and safety instructions of the IKA boss head clamp
prior to using it. (see “Accessories”)
The device must not be suspended from the support rod!
Procedure
1. Remove the threaded plug in the threaded hole (O).
2. Remove the protective cap from the support rod.
3. Place the washer between the housing and the nut.
4. Screw in the support rod manually until it no longer can be tightened.
5. Tighten the nut using an SW17 open-end spanner.
6. Assemble the accessories using a boss head clamp.
