Insportline IN 5561 User manual

1
USER MANUAL –EN
IN 5561 Recumbent inSPORTline Rapid RMB
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.

2
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS............................................................................................................ 3
PARTS LIST........................................................................................................................................................... 4
HARDWARE LIST ............................................................................................................................................ 6
TOOLS................................................................................................................................................................ 6
OVERVIEW DRAWING....................................................................................................................................... 7
ASSEMBLY INSTRUCTIONS.............................................................................................................................. 8
CORRECT WORKOUT POSITION.................................................................................................................... 21
HOW TO MOVE THE RECUMBENT BIKE...................................................................................................... 21
MOUNTING AND DISMOUNTING THE RECUMBENT BIKE...................................................................... 22
OPERATING THE COMPUTER......................................................................................................................... 22
ADJUSTMENTS.................................................................................................................................................. 24
ADJUSTING THE TENSION CONTROL KNOB.......................................................................................... 24
ADJUSTING THE ADJUSTABLE LEVELER ............................................................................................... 24
ADJUSTING THE SEAT FORWARD / BACKWARD.................................................................................. 24
MAINTENANCE ................................................................................................................................................. 25
CLEANING ...................................................................................................................................................... 25
STORAGE ........................................................................................................................................................ 25
TROUBLESHOOTING........................................................................................................................................ 25
WARM UP AND COOL DOWN ROUTINE ...................................................................................................... 25
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ....................................................... 27

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important safety instructions when
using this equipment. Read all instructions before using this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is
properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are recommended.
3. Please make sure all parts are not damaged and fixed well before use. This equipment should be placed
on a flat surface when using. Using a mat or other covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that may catch
any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this manual. Should any
problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately
and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away from the equipment
while in use. This machine is designed for adults use only. The minimum free space required for safe
operation is not less than two meters.
12. The net weight of this product is 33 kgs.
13. The maximum weight capacity for this product is 130 kgs.
14. Class - HC (according to EN ISO 20957) for home use.
WARNING: Before beginning any exercise program consult your physician. This is especially important
for the people who are over 35 years old or who have pre-existing health problems. Read all instructions
before using any fitness equipment.
CAUTION: Read all instructions carefully before operating this product. Retain this Owner’s Manual for
future reference.

4
PARTS LIST
No.
Description
Qty
001
Right Front Stabilizer End Cap Ø60x1.5
1
002
Front Stabilizer Ø60x1.5x330
1
003
Cap Nut M8
6
004
Curve Washer Ø8
3
005
Screw ST4.2x25
11
006
Bolt M8x70
4
007
Left Front Stabilizer End Cap Ø60x1.5
1
008
Cover Cap Ø50xØ25x10
2
009
Pan Head Phillips Self Drilling Screw ST4.2x25
4
010
Right Cover
1
011
Belt 350J6
1
012
Right Foot Pedal YH-30X
1
013
Crank Ø240
1
014
Washer Ø34.5xØ23x25
1
015
Axle Sleeve II 15/16"
1
016
Bearing
2
017
Axle Bush
2
018
Axle Sleeve I 7/8"
1
019
Nut 7/8"
2
020
Flywheel Ø230
1
021
Front Main Frame 80x40x2
1
022
Left Cover
1
023
Triangle Knob M12x58
1
024
Round End Cap for Handlebar Ø25x1.5
4
025
Front Handlebar Foam Grip Ø24xØ30x160
2
026
Extension Sensor Wire L=500mm
1
027
Extension Wire L=350mm
2
028
Computer (HR-1568)
1
029
Bolt M5x12
4
030
Tension Control Knob
1
031
Tension Cable L=1150mm
1
032
Washer Ø5
1
033
Bolt M5x20
1
034
Front Handlebar Post 70x30x1.5
1
035
Bolt M8x10
4

5
036
Washer Ø8
21
037
Bolt M8x20
1
038
Left Rear Stabilizer End Cap
1
039
Idle Wheel Bracket
1
040
Nylon Nut M8
1
041
Front Handlebar Post Cover
1
042
Spring
1
043
Bearing 6000ZZ
2
044
Middle Section Hand Pulse Sensor Wire L=1000mm
2
045
Bolt M8x30
2
046
Rear Main Frame
1
047
Seat Cushion
1
048
Back Cushion
1
049
Bolt M6x15
8
050
Washer Ø6
8
051
Backrest and Seat Support Bracket End Cap 23x53x1.5
1
052
Seat Sliding Tube 53x23x2.0
1
053
Back and Seat Support Bracket 53x23x2.0
1
054
Handlebar Foam Grip
Ø24xØ30x550
2
055
Screw ST4.2x20
2
056
Hand Pulse Sensor with Wire L=750mm
2
057
Bolt M8x45
2
058
Wire Plug Ø12.1
2
059
Nut M6
2
060
Round Knob M16x1.5
1
061
Bushing
2
062
Right Rear Main Frame Cover
1
063
Left Rear Main Frame Cover
1
064
Rear Stabilizer
1
065
Right Rear Stabilizer End Cap
1
066
Nut M10
2
067
Adjustable Leveler M10
2
068
Handlebar Ø25x1.5
1
069
Left Foot Pedal YH-30X
1
070
Extension Hand Pulse Sensor Wire L=1000mm
2
071
Sensor with Wire L=750mm
1
072
Bolt M8x15
13

6
073
Washer Ø40xØ24x3
1
074
Nut M10x1
2
075
Adjustable Bolt M6x36
2
076
Screw ST2.9x12
2
077
Big Curve Washer Ø8
4
078
Spring Washer Ø6
2
079
U Bracket
2
080
Washer Ø10xØ14x1
2
081
Washer Ø12xØ6x1
1
082
Bolt M6x10
1
083
Water Bottle Holder
1
084
Bolt M5x15
2
HARDWARE LIST
TOOLS

7
OVERVIEW DRAWING

8
ASSEMBLY INSTRUCTIONS
STEP 1
Remove two M8x30 Bolts (45), four M8x15 Bolts (72), and six Ø8 Washers (36) from the Rear Main Frame
(46). Remove bolts with the Allen Wrench provided.

9
STEP 2
Connect the Middle Section Hand Pulse Sensor Wires (44) from the Rear Main Frame (46) to the Extension
Hand Pulse Sensor Wires (70) from the Front Main Frame (21).
Attach the Rear Main Frame (46) into the Front Main Frame (21) with two M8x30 Bolts (45), four M8x15 Bolts
(72), and six Ø8 Washers (36) that were removed. Tighten bolts with the Allen Wrench provided.

10
STEP 3
HARDWARE:
Position the Front Stabilizer (2) in front of the Front Main Frame (21) and align bolt holes.
Attach the Front Stabilizer (2) onto the front curve of the Front Main Frame (21) with two M8x70 Bolts (6), two
Ø8 Big Curve Washers (77), and two M8 Cap Nuts (3). Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.

11
STEP 4
HARDWARE:

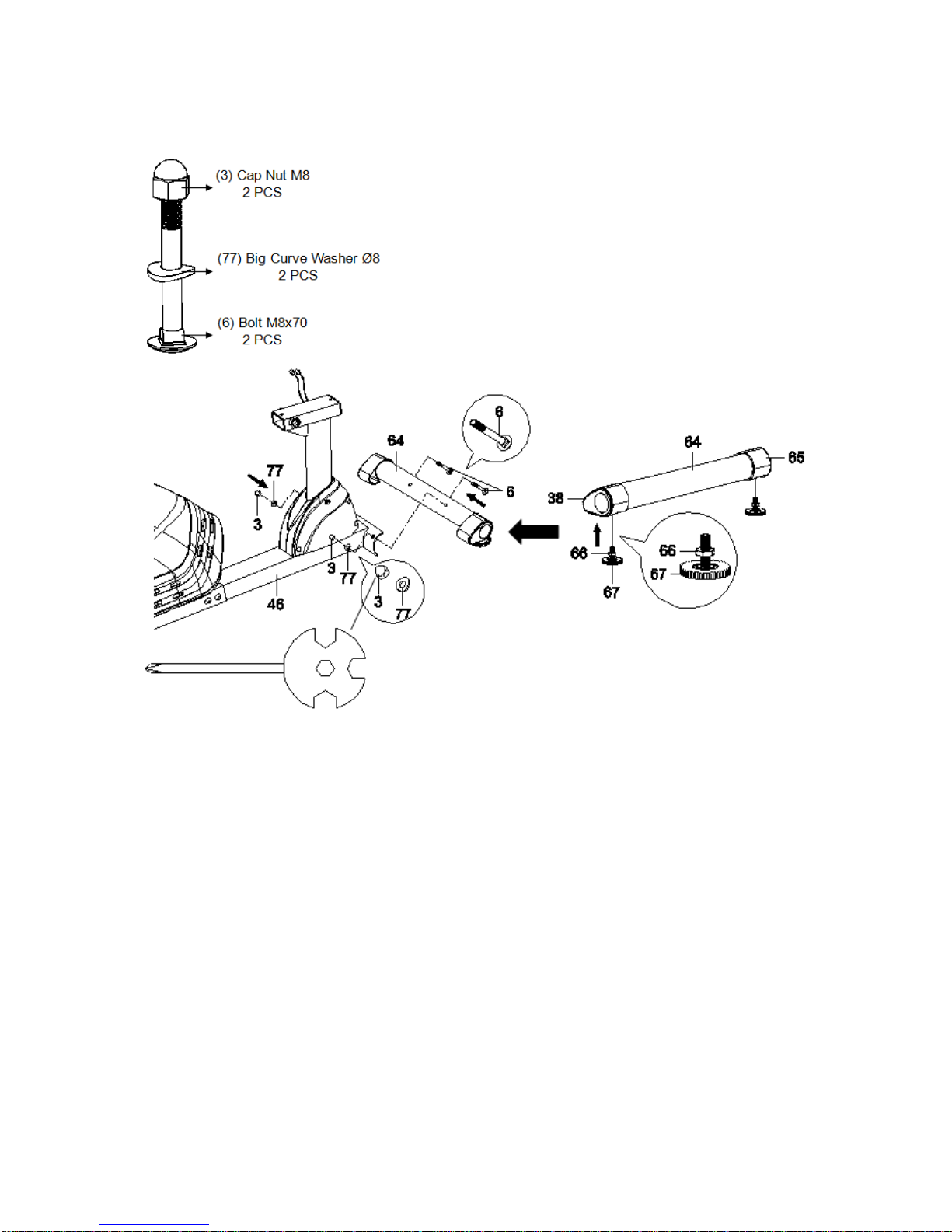

Insert both M10 Adjustable Levelers (67) into the threaded holes on the underside of the Rear Stabilizer (64).
Twist the M10 Adjustable Levelers (67) to adjust height, then tighten the M10 Nuts (66) after adjustment.
Position the Rear Stabilizer (64) behind the Rear Main Frame (46) and align bolt holes.
Attach the Rear Stabilizer (64) onto the rear curve of the Rear Main Frame (46) with two M8x70 Bolts (6), two
Ø8 Big Curve Washers (77), and two M8 Cap Nuts (3). Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.

12
STEP 5
Remove one Ø8 Curve Washer (4), one M8x15 Bolt (72), four M8x10 Bolts (35) and four Ø8 Washers (36) from
the Front Main Frame (21). Remove bolts with the Allen Wrench provided.

13
STEP 6

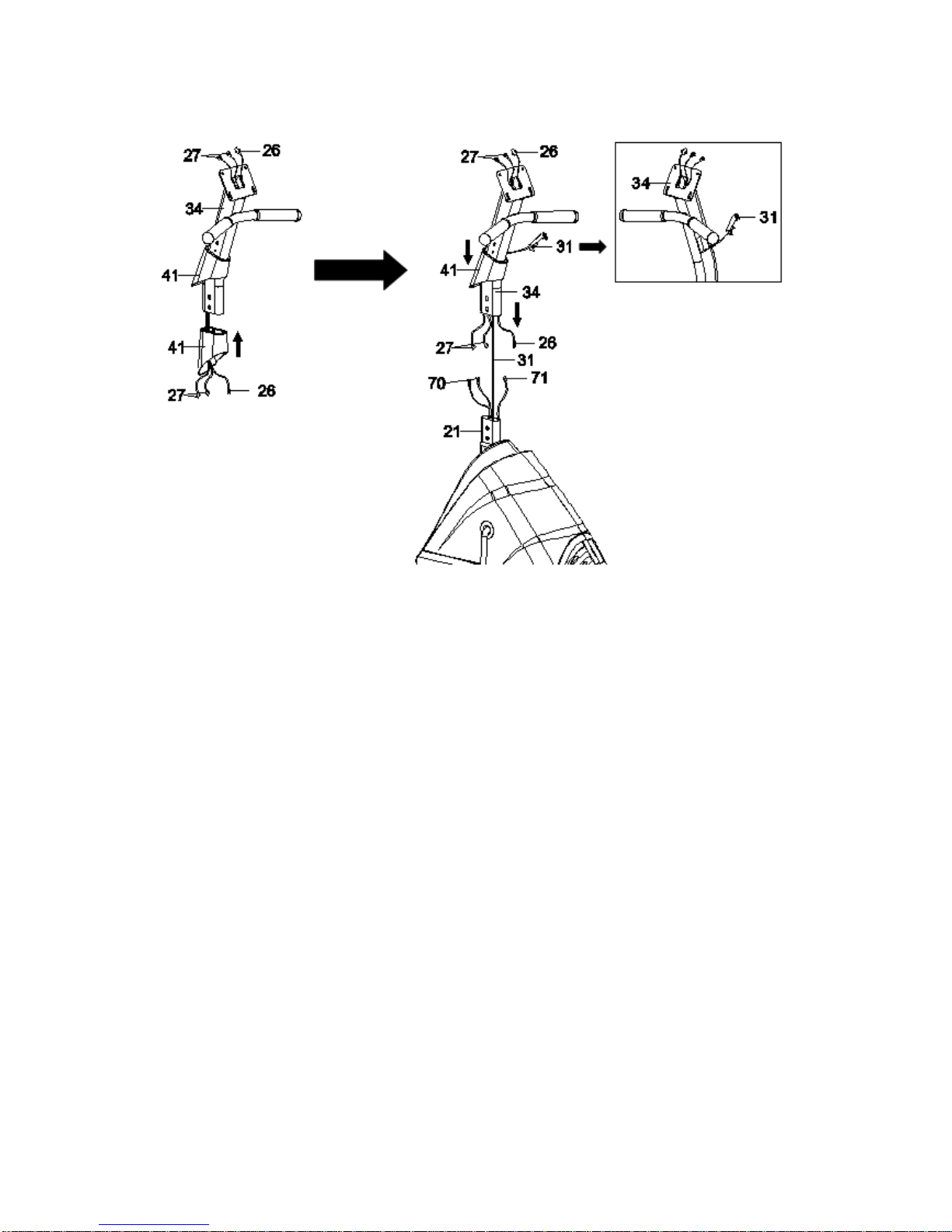

Slide the Front Handlebar Post Cover (41) up to the Front Handlebar Post (34).
Insert the Tension Cable (31) through into the bottom hole of Front Handlebar Post (34) and pull it out from the
square hole of Front Handlebar Post (34). Connect the Sensor Wire (71) and Extension Hand Pulse Sensor Wires
(70) from the Front Main Frame (21) to the Extension Sensor Wire (26) and Extension Wires (27) from the Front
Handlebar Post (34).

14
STEP 7
Insert the Front Handlebar Post (34) onto the tube of the Front Main Frame (21) and secure with one Ø8 Curve
Washer (4), one M8x15 Bolt (72), four M8x10 Bolts (35) and four Ø8 Washers (36) that were removed. Tighten
bolts with the Allen Wrench provided.
Slide the Front Handlebar Post Cover (41) down to the Front Main Frame (21).

15
STEP 8

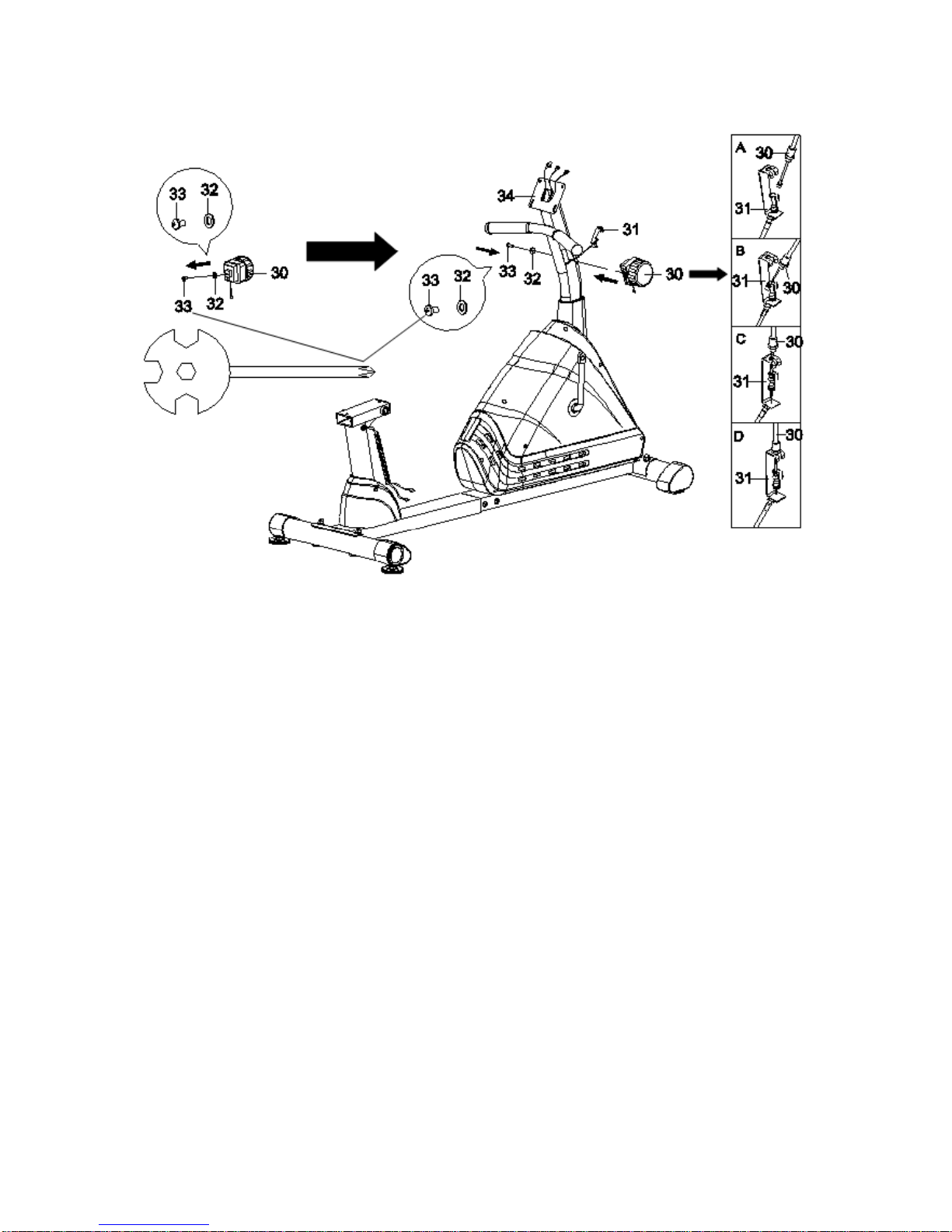

Remove one M5x20 Bolt (33) and one Ø5 Washer (32) from the Tension Control Knob (30). Remove bolt with
the Multi Hex Tool with Phillips Screwdriver provided.
Put the cable end of resistance cable of Tension Control Knob (30) into the cable lock of Tension Cable (31), see
Figure A.
Pull the resistance cable of Tension Control Knob (30) up and force it into the slot of metal bracket of Tension
Cable (31), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (30) into the hole at the end of the slot in
the metal bracket of Tension Cable (31), see Figure C.
Connect the resistance cable of Tension Control Knob (30) to Tension Cable (31) complete, see Figure D.
Attach the Tension Control Knob (30) onto the Front Handlebar Post (34) with one M5x20 Bolt (33) and one Ø5
Washer (32) that were removed. Tighten bolt with the Multi Hex Tool with Phillips Screwdriver provided.

16
STEP 9
Remove two M5x15 Bolts (84) from the Front Handlebar Post (34). Remove bolts with the Multi Hex Tool with
Phillips Screwdriver provided.
Attach the Water Bottle Holder (83) onto the Front Handlebar Post (34) with two M5x15 Bolts (84) that were
removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
STEP 10
Remove eight Ø8 Washers (36) and eight M8x15 Bolts (72) from the Back and Seat Support Bracket (53).
Remove bolts with the Allen Wrench provided.

17
STEP 11
Insert the Seat Sliding Tube (52) into the Bushings (61) of the Rear Main Frame (46).
STEP 12
Attach the Seat Sliding Tube (52) to the Back and Seat Support Bracket (53) with eight Ø8 Washers (36) and
eight M8x15 Bolts (72) that were removed. Tighten bolts with the Allen Wrench provided.

18
STEP 13
Adjust the seat position and insert the Round Knob (60) and Triangle Knob (23). Turn the Round Knob (60) and
Triangle Knob (23) in the clockwise direction to tighten.
STEP 14

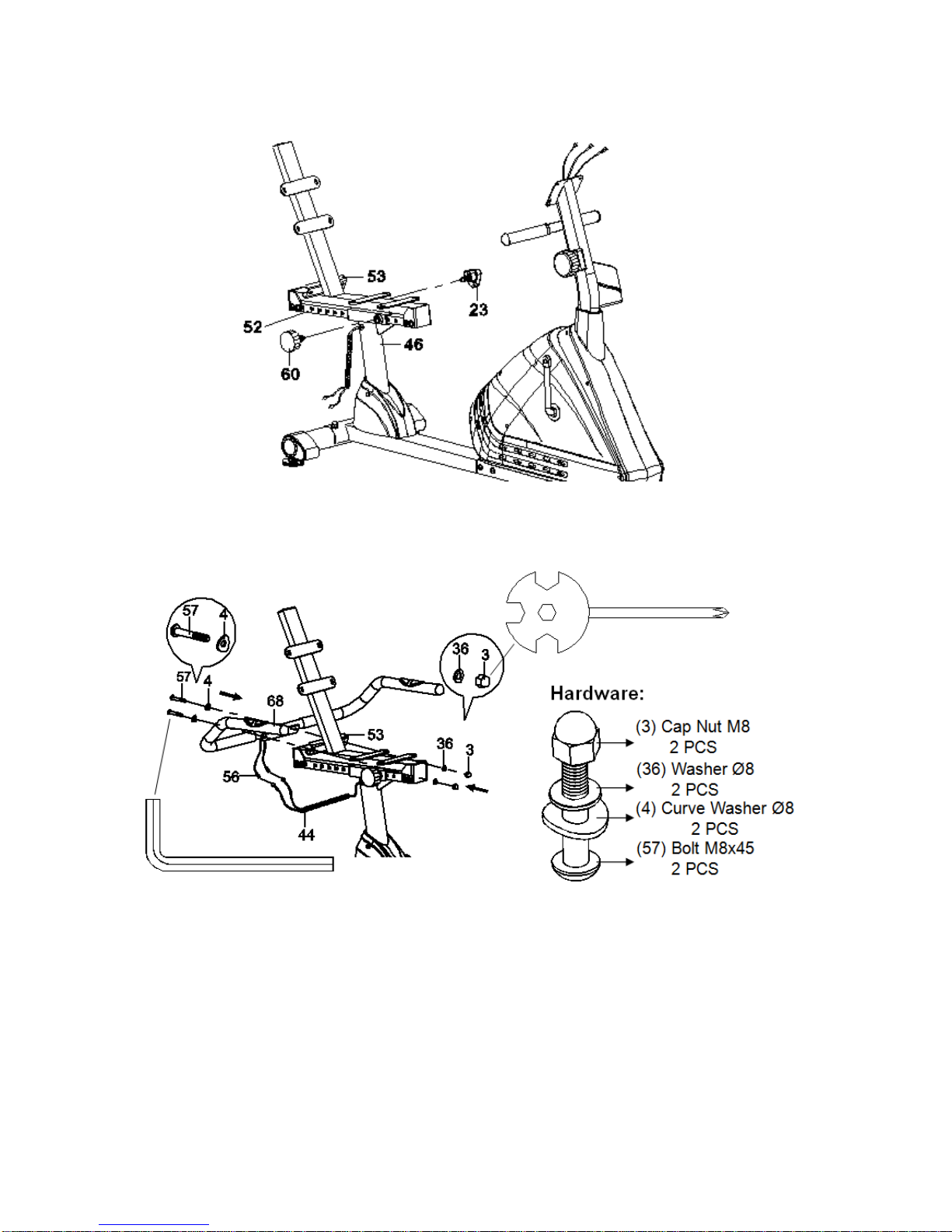

Attach the Handlebar (68) onto the Back and Seat Support Bracket (53) with two M8x45 Bolts (57), two Ø8
Curve Washers (4), two Ø8 Washers (36), and two M8 Cap Nuts (3). Tighten bolts and cap nuts with the Allen
Wrench and Multi Hex Tool with Phillips Screwdriver provided.
Connect the Middle Section Hand Pulse Sensor Wires (44) to the Hand Pulse Sensor Wire (56).

19

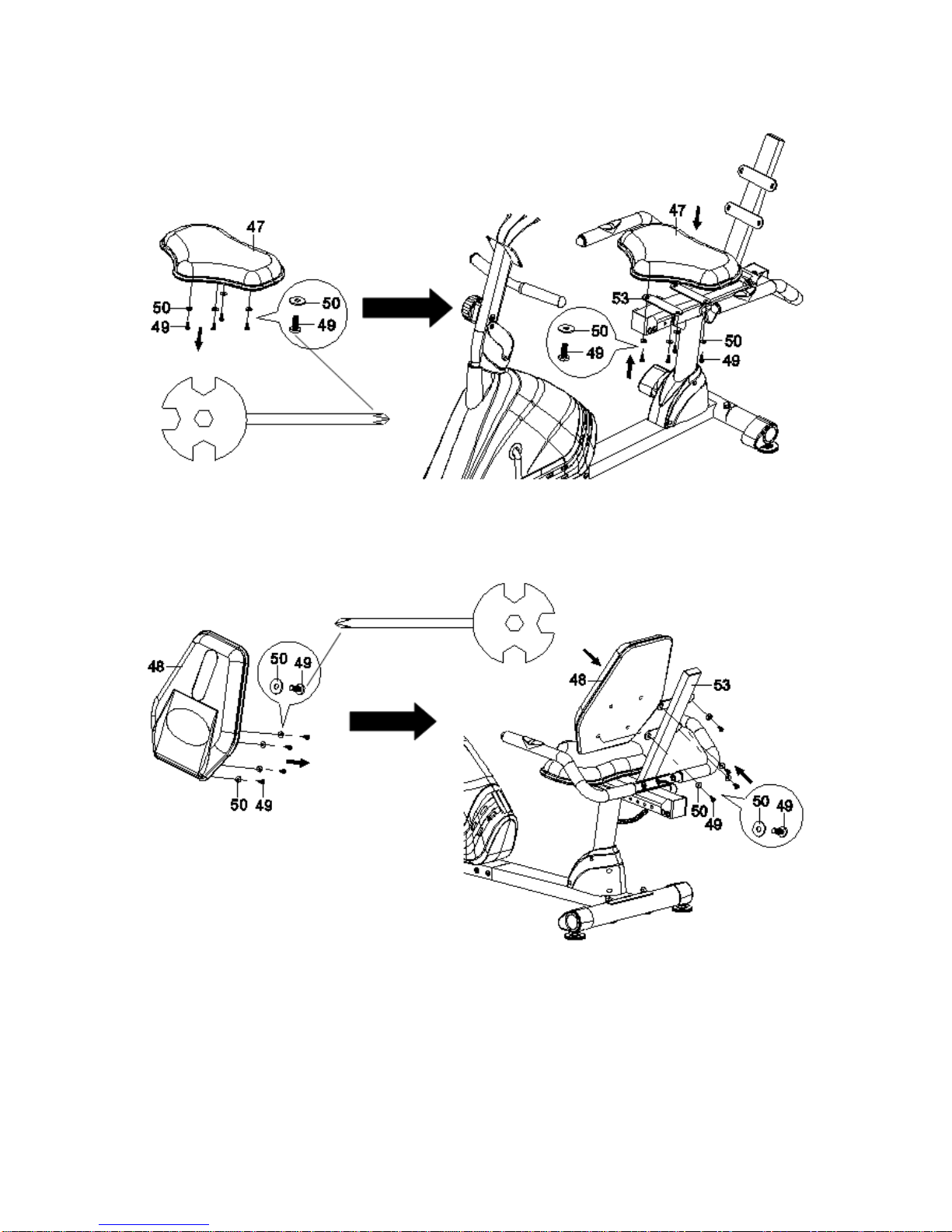

STEP 15
Remove four M6x15 Bolts (49) and four Ø6 Washers (50) from the back of the Seat Cushion (47). Then attach
the Seat Cushion (47) onto the Back and Seat Support Bracket (53) with four M6x15 Bolts (49) and four Ø6
Washers (50) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
STEP 16
Remove four M6x15 Bolts (49) and four Ø6 Washers (50) from the back of the Back Cushion (48). Then attach
the Back Cushion (48) onto the Back and Seat Support Bracket (53) with four M6x15 Bolts (49) and four Ø6
Washers (50) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.

20
STEP 17

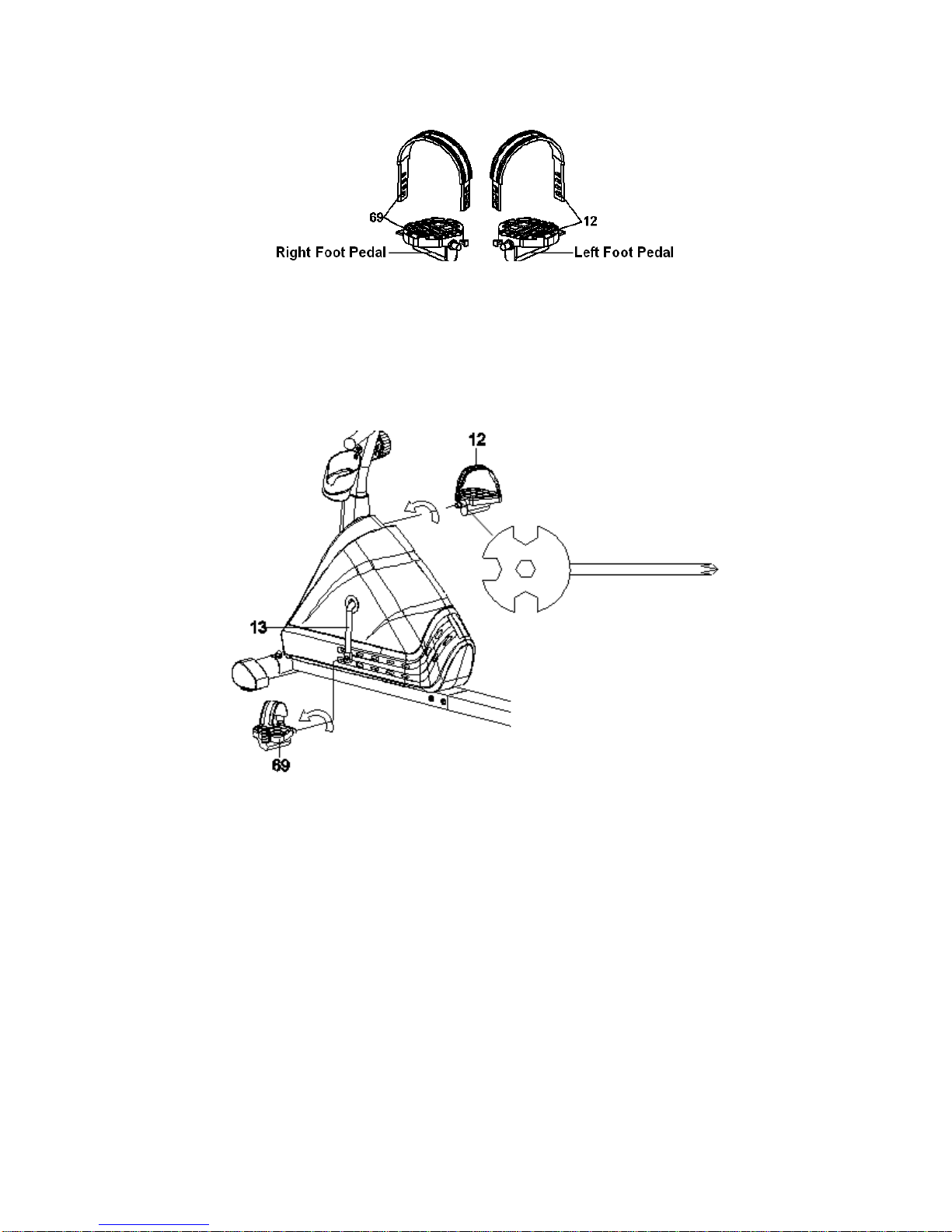

The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for Left.
Select the Right Foot Pedal Strap (12) which has R marked on the side of the strap. Snap the three hole end of
the strap onto the inside edge of the Right Foot Pedal (12). Snap the other end of the strap onto the outside edge
of the Right Foot Pedal (12). Select adjustment holes which allow your foot to be easily removed from the foot
pedal.
Use the same procedure to snap the Left Foot Pedal Strap (69) onto the Left Foot Pedal (69).
STEP 18
Insert the pedal shaft of Left Foot Pedal (69) into threaded hole in the left Crank (13). Turn the pedal shaft by
hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the threads.
Tighten the pedal shaft of Left Foot Pedal (69) with the Multi Hex Tool with Phillips Screwdriver provided.
Insert pedal shaft of Right Foot Pedal (12) into threaded hole in right Crank (13). Turn the pedal shaft by hand in
the clockwise direction until snug. Tighten pedal shaft of Right Foot Pedal (12) with the Multi Hex Tool with
Phillips Screwdriver provided.
