Inspur Yingxin User manual

Dear User of Inspur Yingxin Server ,
Heartfelt thanks to you for your use of Yingxin Server.
This manual introduces the technical characteristics, the system instal-
lation, setup of the server to help you to particularly understand and expedi-
ently use this server.
Please deliver the package of our product to the waste recycling station
for recycling, in favor of pollution prevention and humankind’s benefits.
This manual is the property of the Inspur Group Co., Ltd.
This User Manual is not to be copied by any group or person in any
manner without the consent of Inspur Group Co., Ltd. The Inspur Group
Co., Ltd. reserves the right of revising this manual momentarily.
Any alteration about the content of this manual will not be noticed.
Please contact Inspur Group Co., Ltd., if you have any questions or ad-
vice about this manual.
Inspur Group Co., Ltd.
August, 2011
“Inspur” is registered trademark of the Inspur Group Co., Ltd.
Other trademarks belong to other corresponding registered companies.

Statement
Please read the following statement before you use this server formally. Only
when you have read this statement hereinafter and agreed the following terms, you can
formally use this server. If you have any questions about the following terms, please
contact our supplier or us directly. If you have no questions about these terms and start
to use this server, it acquiesces that you have agreed the following terms.
1. We must call your attention that you must not alter any other parameters in
the motherboard BIOS of this server at any time, except for the parameters which we
prompt that you can alter.
2. If there are any hardware problems when you use this server, or you wish to up-
grade the hardware, please feed back the detailed hardware configuration of your com-
puter to our Customer Service. Don’t disassemble the server chassis or any hardware
components in the chassis by yourself.
3. In this server, the MEMORY, CPU, CPU Fan and Fan are in given standard.
Please don’t use them with the corresponding components of any other computers con-
fusedly.
4. When you have any software problems during the application of this server,
we hope that you firstly contact the corresponding software supplier and then he will
contact us in favor of communication so as to solve your problem together, especially
the software problems about the database, the installation and running of the network
management software or other networking product.
5. Please firstly read the accompany Brief User Guide, when you install this
server. Please contact our Customer Service Center, if you have any questions about the
application.
6. We must call your attention that in the application process, you should pay
attention to doing necessary backup of your file.
7. This is a Grade A product, and this product may induce radio jamming. In this

chassis, users need to adopt feasible measures to the jamming.
8. The copyrights of the markers and names of the software and hardware product
referred in this manual are the property of corresponding companies.
9. In the above statement, “us” indicates the Inspur Group Co., Ltd. The Inspur
Group Co., Ltd. reserves the right of final explanation about the above statement.

Regarding the Manual
●Chapter One Safety Information
In this chapter, safety information regarding server usage is introduced.
●Chapter Two Product Introduction
In this chapter, main features of the server are introduced: including technical fea-
tures, appearance features and I/O interfaces technical specification.
●Chapter Three System Setup
In this chapter, the setup of the motherboard BIOS of this server is introduced.
●Chapter Four SAS RAID of SWR Model Setup
In this chapter, how to set SAS RAID of SWR model with onboard SAS control-
ler is introduced.
●Chapter Five SAS RAID of IR Model Setup
In this chapter, how to set SAS RAID of IR model with onboard SAS controller is
introduced.
●Chapter Six SATA HostRAID Setup
In this chapter, how to set onboard SATA HostRAID controller is introduced.
●Chapter Seven Operating System Installation
In this chapter, how to install the prevailing operating system to this server is in-
troduced
●Chapter Eight Common Problems and Trouble-shooting
In this chapter, solutions to some common problems are introduced.
●Chapter Nine Instructions on Baseboard Management Controller
In this chapter, how to use baseboard management controller is introduced.
●Chapter Ten Server Installation Guide
In this chapter, how to install server to the cabinet by rail will be introduced.
We suggest you to read this manual carefully before you use this server for fear of
the unnecessary faults in your operation.
Address: NO.1036 Langchao Road, Jinan, China, Inspur Group Co., Ltd
Post Code: 250101

Content
Chapter One Safety Information.........................................................................1
Chapter Two Product Introduction.....................................................................6
2.1 Server Technical Specification .................................................................6
2.2 Front Panel View......................................................................................8

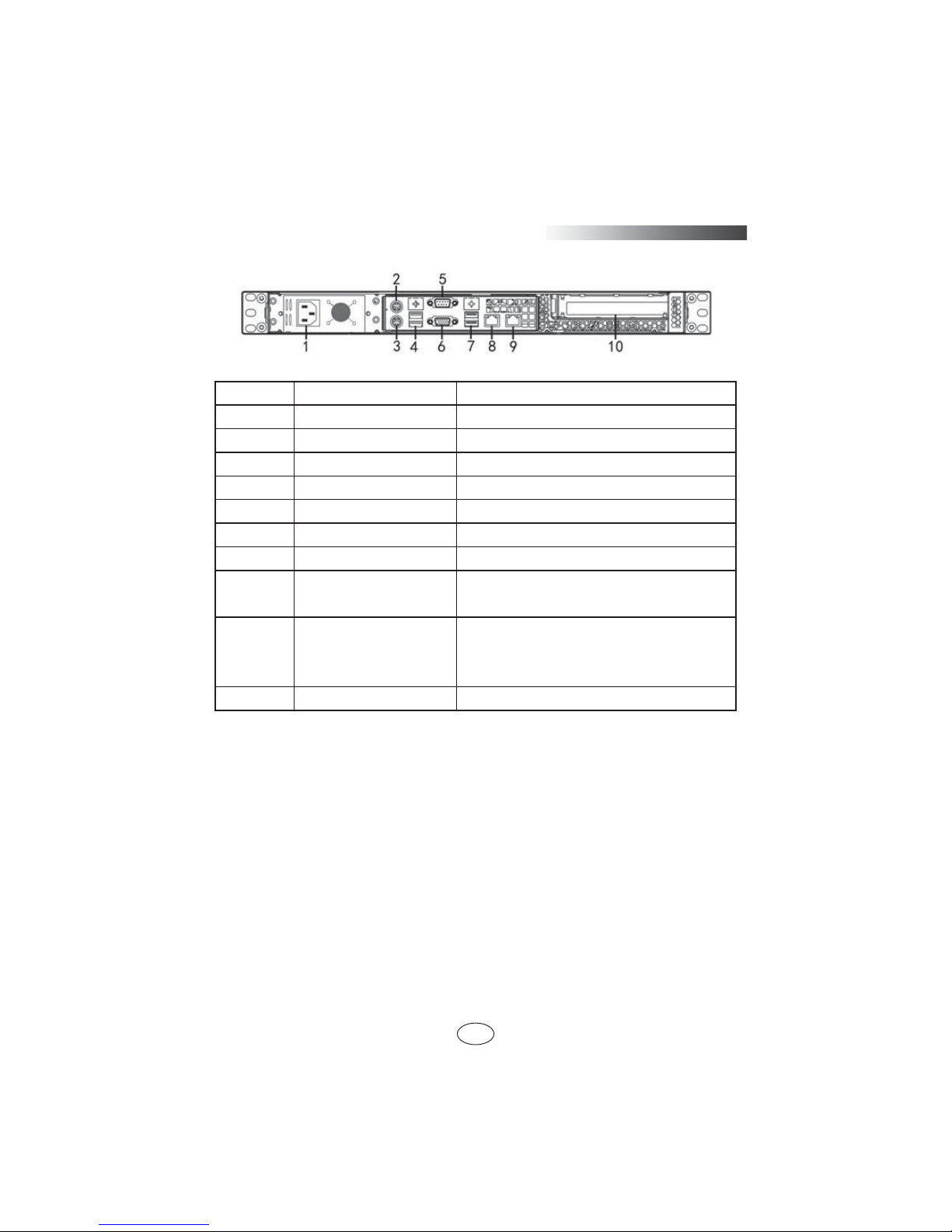

2.3 Back Panel View ......................................................................................9
Chapter Three System Setup ...............................................................................10
3.1 Main Board BIOS Setup ..........................................................................10
3.2 Motherboard Jumper Settings ..................................................................15
Chapter Four SAS RAID of SWR Model Setup ..............................................18
4.1 How to Enter SAS RAID Configuration Interface...................................18
4.2 SAS RAID Menu Description..................................................................20
4.3 How to Configure SAS RAID..................................................................24
4.4 Rebuild Setting Process............................................................................26
Chapter Five SAS RAID of IR Model Setup ....................................................26
5.1 How to Enter SAS BIOS..........................................................................26
5.2 Control Key Application ..........................................................................26
5.3 SAS BIOS Setting ....................................................................................26
Chapter Six SATA HostRAID Setup ..................................................................31
6.1 How to Enter the Configuration Interface of SATA.................................31
6.2 Application of Control Keys ....................................................................31
6.3 Setup of SATA HostRAID........................................................................31
Chapter Seven Operating System Installation...................................................35
7.1 Application Instructions for Inspur Driver U Disk ..................................35

7.2 Manually Install Windows Server 2003 Enterprise Edition.....................40
7.3 Manually Install Windows Server 2008 Enterprise Edition.....................45
7.4 Manually Install Red Hat Enterprise Linux 5.2 .......................................49
Chapter Eight Common Problems and Trouble-shooting.................................54
8.1 Restarting the Server ................................................................................54
8.2 Problems When Starting the Machine......................................................54
8.3 Ruijie Server Kit and Other Machine-attached Software Problem..........57
8.4 Additional Notes.......................................................................................58
8.5 Technical Support Information.................................................................59
Chapter Nine Introduction on Baseboard Management Controller................60
9.1 Management Chip BMC IP......................................................................60
9.2 Remote Login...........................................................................................60
9.3 Function Menu Introduction ....................................................................61
Chapter Ten Server Installation Guide...............................................................67
10.1 Cabinet Preparation................................................................................67
10.2 Server Guide Rail Kit.............................................................................68
10.3 Slide Rail................................................................................................68
10.4 Install the Internal Rail...........................................................................69
10.5 Install the Guide Rail Bracket at the External Rail ................................70
10.6 Install the External Rail on the Cabinet .................................................71
10.7 Install the Server on the Cabinet ............................................................71

1
Chapter One Security Information
Chapter One Security Information
Chapter One Safety Information
Chapter One Safety Information
Warning: the following warnings show that there are potential dangers
that may cause property loss, personal injury or death:
Warning 1: The power supply equipment in the system may generate high
voltage and dangerous electrical energy and thus cause personal injury. Please do
not dismount the cover of the host or to dismount and replace any component in
the system by yourself, unless otherwise informed by Inspur; only maintenance
technicians trained by Inspur have the right to disassemble the cover of the host,
dismount and replace the internal components.
Warning 2: Please connect the equipment to appropriate power supply, and
the power should be supplied by external power supply which is indicated on the
rated input label. To prevent your equipment from damages caused by momentary
spike or plunge of the voltage, please use relevant voltage stabilizing equipment or
uninterruptible power supply equipment.
Warning 3: If extended cables are needed, please use the three-core cables
matched with correct earthed plug, and check the ratings of the extended cables to
make sure that the sum of rated current of all products inserted into the extended
cables do not exceed 80% of the limits of the rated currents of the extended cables.
Warning 4: Please be sure to use the supplied power supply component, such
as power lines, power socket (if supplied with the equipment) etc.. For the safety of
equipment and the user, do not replace randomly power cables or plugs.
Warning 5: To prevent electric shock dangers caused by leakage in the sys-
tem, please make sure that the power cables of the system and peripheral equip-
ment are correctly connected to the earthed power socket. Please connect the
three-core power line plug to the three-core AC power socket that is well earthed
and easy to access, be sure to use the earthing pin of power lines and do not use the
patch plug or the earthing pin unplugged with cables. In chassis of the earthing
conductors not installed and it is uncertain whether there are appropriate earth-
ing protections, please do not operate or use the equipment. Contact and consult
with the electrician, please.
Chapter One Security Information
Chapter One Security Information
！

2
Chapter One Security Information
Chapter One Security Information
Warning 6: To avoid short circuit of internal components and fire or electric
shock hazards, please do not fill any object into the open pores of the system.
Warning 7: Please place the system far away from the cooling plate and at
the place with heat sources, and be sure not to block the air vents.
Warning 8: Be sure not to scatter food or liquid in the system or on other
components, and do not use the product in humid and dusty environment.
Warning 9: The replacement of batteries with those of another Model may
cause explosion. When replacement of batteries is required, please consult first the
manufacturer and choose batteries of the same or a similar Model recommended
by the manufacturer. Do not dismount, extrude and pink the batteries or make
the external connection point short circuit, and do not expose them in the environ-
ment over 60°C. Never throw them into fire or water. Please do not try to open
or repair the batteries, and be sure to reasonably deal with the flat batteries and
do not put the flat batteries, the circuit boards that may include the batteries and
other components with other wastes. For relevant battery recovery, please contact
the local waste recovery and treatment mechanism.
If what you bought is the chassis, besides carefully read the installation descrip-
tion attached with the cabinet products and get known about the special warning no-
tices and installation process, you must abide by the following preventive measures to
guarantee the cabinet to be stable and safe:
Warning 10: Before installing equipment to the chassis, please install front
and side supporting feet on the independent chassis; for cabinet connecting with
other chassis, it shall install the front supporting foot first. If you fail to install
correspondingly the supporting foot before installing equipment in the chassis, it
may cause the cabinet to turn over in some chassis, and thus may cause personal
injury. Therefore, it is necessary to install supporting feet before installing equip-
ment in the chassis. After installing the equipment and other components in the
chassis, you can only pull out one component from the cabinet through its sliding
component at one time. Pulling out several components at the same time may lead
the cabinet to turn over and cause serious personal injury.
Warning 11: Please do not move the chassis. Considering the height and
weight of the chassis, at least two people are needed to complete its movement.
Warning 12: Declaration
The product is Grade A product, and in the living environment, it may cause

3
Chapter One Security Information
Chapter One Security Information
radio jamming. In such chassis, it may need the user to take feasible measures for
the jamming.
Notes: in order to help you use the equipment, the following considerations can
help avoid the occurrence of problems that may damage the components or cause data
loss: 1. In chassis of the following chassis, please unplug the power line plug of prod-
ucts from the power socket and contact the customer service department of Inspur:
- The power cables, extended cables or power plugs are damaged.
- The products get wet by water.
- The products have fallen off or been damaged.
- Objects fall into the products.
- When operating according to the operation instructions, the products cannot
function normally.
2. If the system becomes damp, please treat it according to the following steps:
- Switch off the power supplies of the system and the equipment, disconnect them
with the power socket, wait for 10 to 20 minutes, and then open the cover of the host.
- Move the equipment to the ventilation place to dry the system at least for 24
hours and make sure that the system is fully dried.
- Close the cover of the host, re-connect the system to the power socket, and then
start the equipment.
- In chassis of operation failure or abnormal situation, please contact Inspur and
get technical support.
3. Pay attention to the position of the system cables and power cables, wire them
in places not to be stepped on or knocked down and ensure not to place other objectives
on the cables.
4. Before dismounting the cover of host or contacting the internal components,
you shall cool down the equipment first; to avoid damaging the motherboard, please
power off the system and wait for 5 seconds, and then dismount the components from
the motherboard or disconnect the connection of peripheral equipment of the system.
5. If there exist modulator-demodulator, telecommunication or local area network
options in the equipment, please pay attention to the following matters:
- In chassis of thunder and lightning weather, please do not connect or use the
modulator-demodulator. Otherwise, it may be subject to lightning strike.
- Never connect or use modulator-demodulator in moist environment.
- Never insert the modulator-demodulator or telephone cables to the socket of net-

4
Chapter One Security Information
Chapter One Security Information
work interface controller (NIC).
- Before unpacking the product package, contacting or installing internal compo-
nents or contacting un-insulated cables or jacks of the modulator-demodulator, please
disconnect the modulator-demodulator cables.
6. In order to prevent the electrostatic discharge from damaging the electronic
components in the equipment, please pay attention to the following matters:
- You shall conduct off the static electricity on the body before dismounting or
contacting any electronic component in the equipment. You can conduct off the static
electricity on the body by contacting the metal earthing objects (such as the unpainted
metal surface on the chassis) to prevent the static electricity on the body from conduct-
ing itself to the sensitive components.
- For electrostatic sensitive components not ready to be installed for application,
please do not take them out from the antistatic package materials.
- During the work, please touch the earthing conductor or the unpainted metal sur-
face on the cabinet regularly to conduct off the static electricity on the body that may
damage the internal components.
7. When dismounting the internal components with the approval of Inspur, please
pay attention to the following matters:
- Switch off the system power supply and disconnect the cables, including discon-
necting any connection of the system. When disconnecting the cables, please grab the
connector of cables and plug it out, and never pull the cables.
- Before dismounting the cover of cabinet or touching the internal components,
the products need to be cooled down.
- Before dismounting and touching any electronic component in the equipment,
you shall conduct off the static electricity on the body by touching the metal earthing
objectives.
- During the dismounting process, the operation shall not be too big, so as to pre-
vent damage to the components or scratching of the arms.
- Carefully deal with the components and plug-in cards, and please never touch
the components or connection points on the plug-in cards. When taking the plug-in
cards or components, you should grab the edges of the plug-in cards or components or
their metal fixed supports.
8. During the process of cabinet installation and application, please pay attention
to the following matters:

5
Chapter One Security Information
Chapter One Security Information
- After the installation of cabinet is finished, please ensure that the supporting feet
have been fixed to the rack and supported to the ground, and all weight of the rack have
been fell onto the ground.
- It shall be installed to the cabinet according to the sequences from the bottom to
the top, and first install the heaviest component.
- When pulling out the components from the cabinet, it shall apply force slightly
to ensure the cabinet to keep balance and stabilization.
- When pressing down the release latch of the sliding rail of components and slid-
ing in or out, please be careful, as the sliding rail may hurt your pictures.
- Never make the AC power branch circuit in the cabinet overload. The sum of
cabinet load shall not exceed 80% of the ratings of branch circuits.
- Ensure that components in the cabinet have good ventilation.
- When repairing components in the cabinet, never step on any other components.

6
Chapter Two Product Introduction
Chapter Two Product Introduction
Chapter Two Product Introduction
2.1 Server Technical Specification
Processor
Processor type Dual-way Intel® Xeon 5500, 5600 series CPU
Interface 1366 pin Sockets
Chipset
Chipset
Chipset type Intel 5500 plus ICH10R chipset
Memory
Memory type DDR3 Unbuffered/ECC Registered memory
Memory Slot Number 8
Memory Capacity Up to 64GB
I/O Interface
Keyboard and
Mouse Interface One PS/2 keyboard interface, one PS/2 mouse interface
USB Interface Four rear USB interfaces
Two front USB interfaces
Serial Interface One rear serial interface
Network Interface Two RJ45 Network card interfaces
Display Interface One VGA interface
Video controller
Controller type Onboard AST2050 display controller
Video Memory 8MB video memory
Integrated hard disk controller
SAS Controller
Onboard LSI SAS 1068E controller.
SWR model supports HostRAID 0/1/10 and optional i-
button to realize RAID5;
IR model supports HostRAID 1/0/1E;
Please refer to your purchased configuration about whether
SAS controller is integrated on the motherboard.
SATA controller Six SATA II interfaces, applicable to HostRAID 0/1/5/10

7
Chapter Two Product Introduction
Chapter Two Product Introduction
Network card
Network controller 1/2 Integrated two Intel 82574L Gigabit Network cards, sup-
ports WOL, PXE
Management chip
Management chip Integrated AST 2050 chip, applicable to KVM function
PCI Expansion slot
PCI Bus PCI-Express bus, supports full height, full length card
PCI-E slot One PCI-Express 2.0x8 slots. Optional to configure PCI-E
connect board
Hard disk
Hard disk type 3.5 inches SATA hard disk
2.5 inches SAS /SATA /SSD hard disk
External memory driver
CD-ROM Slim CD-ROM
Driver U disk Optional to driver U disk
Power
Power
Specification Single supply
Power input AC 100-240V, 50-60Hz
Physical specification
Package box outer size W（Width）669mm; H（Height）287mm; D（Depth）
909mm
Host size W（Width）430mm; H（Height）43.5 m ; D（Depth）
660mm
Host weight Full configuration Net weight: 12.5kg; Gross weight: 22kg
Environment parameter
Operation environment
temperature 10℃-35℃
Storage and transport
temperature -40℃-55℃
Operation humidity 35%-80% relative humidity(RH)
Storage and transport
humidity 20%-93%(40℃) relative humidity(RH)

8
Chapter Two Product Introduction
Chapter Two Product Introduction
2.2 Front Panel View
Number Name Specification
1 CD-ROM slot Optional to install the Slim CD-ROM.
2 Hard disk bay Applicable to four hot swapping hard disks,
HDD1~HDD4 lies from left to right successively.
3 Front USB interface To connect the USB devices
4 Reset button System reset button
5Hard disk working in-
dicator light Flickers when hard disks read and write
6 Power indicator light Always on when server works
7Network card 1st and 2nd
indicator light
On: network is connected or data are transmitted;
Off: network is not connected
8 Power button Server on/off button
9 Mylar label bar With product information on it
Indicator
light on the
hard disk
bracket
Hard disk power
status indicator
The light is always blue if hard disks is installed
in the hard disk bay when the system is powered.
Hard disk working
status indicator light
The light is always green when hard disk is
reading and writing.

9
Chapter Two Product Introduction
Chapter Two Product Introduction
2.3 Back Panel View
Number Name Function and specification
1 Power input interface For connecting power line
2 PS/2 mouse interface For connecting PS/2 mouse
3 PS/2 keyboard interface For connecting PS/2 keyboard
4 Rear USB interface1/2 For connecting USB interface devices
5 Serial interface For connecting serial interface devices
6 VGA interface For connecting display devices
7 Rear USB interface3/4 For connecting USB interface devices
8 Network card 1 interface Integrated gigabit network card 1
interface(left)
9 Net card 2 interface
Integrated gigabit network card 2
interface(right); use this interface when on-
board IPMI management function is applied
10 PCI expansion slot For inserting the external PCI expansion card
Attention
Please remove the plastic film over panels of the server chassis before power the
server.

10
Chapter Three System Setup
Chapter Three System Setup
Chapter Three System Setup
In this chapter, the jumper of motherboard and BIOS function setup of this server
are introduced. Only operator or administrator with qualification of system maintenance
can implement these operations described in this part.
3.1 Main Board BIOS Setup
BIOS is a basic input and output system. With some special setting programs, it can
adjust the system parameter and the hard disk parameter. AS BIOS has great influence on
the starting and running of the system, setting parameters improperly may lead to the con-
flict among hardware resources, or affect the system’s performance. Hence understanding
the BIOS setup is significant to the configuration of your server. If there is no special re-
quirement, we suggest you using the default value and not altering the parameters.
Notes:
1. Before the server BIOS setup is altered, please record the corresponding origi-
nal setup. Hence when there are operating problems in the system due to the alteration,
the setup can be reversed.
2. The factory default system value is usually the optimized setup. Don’t try to al-
ter the parameters before you understand their denotations.
3. The common setup is introduced in detail in this chapter. For items less used in the
application, this chapter only offers simple simply instruction or just omits the instruction.
4. The contents of the BIOS may be different based on the different configurations
of the products; hence the detailed introduction is elided.
3.1.1 How to Enter the BIOS Setup
Power up and start the server. When “Press <DEL> to SETUP or <TAB> to
POST” appears at the bottom of the screen, please press <DEL> key. The system will
enter BIOS setup.
If the system does not enter BIOS setup after previous steps, please press
<Ctrl><Alt>and<Del> at the same time to reset the system and repeat the previous
steps. (if the prompt displays to press <DEL> again, please press it quickly.)
3.1.2 BIOS System Menu Introduction
The following function menus of the BIOS system will be introduced mainly:

11
Chapter Three System Setup
Chapter Three System Setup
Menu name Menu function
Main
Configuring the basic system setup, like the system time and
date, and displaying the information of the system, such as
BIOS, CPU and memory
Advanced Configuring advanced characteristics in the chipset
PCIPnP Configuring traditional Plug & Play and PCI setup
Boot Setting the system’s guiding order
Security Configuring the super user’s system and setting user’s password
Chipset Configuring the managing characteristics of chipset
Exit Saving or exiting BIOS, etc
There are some items that cannot be set in BIOS, for example some informa-
tion on system’s automatic detection and configuration. A right-pointing signal may be
found before some item, which means this item is selected, and press <Enter>, the sys-
tem will enter the cascading menus (i.e. submenus).
Operation key introduction
Key Description
<↑> for selecting the previous menu or value
<↓> for selecting the next menu or value
<←> for selecting the left menu or value
<→> for selecting the right menu or value
<ESC > for returning to the superior menu or the main menu
<+ >
for changing the item value
for changing the current menu item into the previous item value
The key only displays the item values relevant to the item itself
rather than all the item values
<- >
for changing the item value
for changing the current menu item into the next item value
The key only displays the item values relevant to the item itself
rather than all the item values
<F1 > the help key for displaying the relevant explanation of current menu
<F8> for restoring to the default setting of the system safety performance
<F9 > for restoring to the default setting of the system best performance
<F10> for preserving the CMOS’s setting and exiting
[Enter] for operating current order or entering submenu

12
Chapter Three System Setup
Chapter Three System Setup
I. Main menu
The Main menu appears first when entering the BIOS setup system. The BIOS
version information, processor information and memory capacity can be examined here
and the system date and time can be set.
Arrow keys can be used to select options. [Enter] can be used to select subfield.
<-, +> can be used to set the field values.
●System Time
Set the system time, adopting 24 hour system, in format of [hour/minute/second].
●System Date
Set the system date, in format of [week month/date/year].
II.Advanced menu
The menu is mainly used to set to enhance characteristics. Improper setting may
cause the abnormal system operation, so please keep factory default settings.
●CPU Configuration
Display the detailed information installed in the system including manufacturer,
CPU frequency, front-end bus, the size of cache and so on.
●IDE Configuration
The options in this menu can be used to configure the onboard SATA controller
function and IDE device.
* SATA Configuration
In SATA channel model setting, there are three options: Disabled, Enhanced and
Compatible.
If you don’t use RAID when using onboard SATA controller, please set the SATA
Configuration item to Enhanced.
* Configure SATA as
If the system will be configured as SATA RAID model, set this item to RAID.
Notes: after setting the system to RAID or AHCI model, SATA Configuration is
automatically hidden.
●Hardware Health Configuration
In this menu, the health information of the hard disks can be configured and ex-
amined. In the submenu of Sensor Data Register Monitoring, information on system
and CPU temperature, fan speed, system power voltage and other parameters can be
examined.
●IPMI Configuration

13
Chapter Three System Setup
Chapter Three System Setup
Onboard BMC information and event log can be examined in this menu.
In the submenu of Set LAN Configuration, BMC IP Address can be examined and
set.
●Onboard Devices Configuration
This menu can be used to set the onboard devices (such as network card).
III. Boot Menu
III. Boot Menu
Boot menu is mainly used for system setup and priority settings of system boot
devices.
●Boot Settings Configuration
This menu can be used to set the system startup process.
* Quick Boot
This item is to set the enable-quick-start system. If the system is set to Enabled,
then it allows BIOS to reduce the boot time by skipping some tests.
* Quiet Boot
This item can be used to set display status during the system startup process. Set
to Disabled, it will show the self-test process and test information; set to Enabled (de-
fault), it will display the LOGO of manufacturers.
●Boot Device Priority
Enter this menu and select certain boot order device item. Press [Enter] and the
system will display optional boot device table. Then select a device through arrow key
in the table to finish the setting of the boot order item.
IV. Security Menu
IV. Security Menu
●Supervisor Password
●User Password
The above two items can not be set, which display the setting state (whether it has
been set or not) of the passwords of the super-user and the common user respectively in
the current system.
●Change Supervisor Password
If you haven’t set the super-user password, select this menu, press [Enter] and you
can set super-user password.
If you have already set the super-user password, select this menu, press [Enter]
successively and you can clear the super-user password.
●Change User Password

14
Chapter Three System Setup
Chapter Three System Setup
Used to set or alter common user password
●Boot Sector Virus Protection
This item is used to set whether to enable boot sector virus protection. The default
setting is Disabled.
V. Chipset menu
V. Chipset menu
The options in this menu can be used for the setting of some advanced features,
including onboard CPU Bridge, South Bridge chipsets and management engine.
●South Bridge Configuration
The submenu in this menu can be used for the setting of South Bridge functions.
* HDA Controller
HAD (Audio) controller is used to open or close the configuration. According to
different configurations, some servers may not integrate audio controller and for this
item “Disabled” is the suggested setting.
* SMBUS Controller
SMBUS Controller is used to open or close the setting.
* Restore on AC Power Loss
This item is used to set the repower state after system’s abnormal power-off. Its
default setting is Power Off, the state of off, which needs manual boot for availability.
Power On is the state of on. Last State is the state before power-off.
VI. Exit Menu
The options in Exit menu can be used to save or discard the settings of the chang-
es in the BIOS and exit the setting program.
* Save Changes and Exit
Select this item and press [Enter]. After selecting [OK] for confirmation, the
changes in the BIOS settings will be saved and the system will exit the BIOS setup.
* Discard Changes and Exit
Select this item and press [Enter]. After selecting [OK] for confirmation, the
changes in the BIOS settings will be discarded and the system will exit the BIOS setup.
* Discard Changes
Select this item and press [Enter]. After selecting [OK] for confirmation, the
changes in the BIOS settings will be discarded, but the system will not exit the BIOS
setup
* Load Optimal Defaults
Select this item and press [Enter]. After selecting [OK], the system will load opti-
