Intellijel Shifty User manual

Shifty Manual v1.00
Shifty
Voice Allocator / Hocketing Controller / Analog Shift Register

ShiftyManualv1.00
TableofContents
Table of Contents
Overview
Features
Installation
Before Your Start
Installing Your Module
Front Panel
Controls
Inputs and Outputs
Instructions
Voice Allocation Mode
Shift Register Mode
Track & Hold / Sample & Hold
Sampling Delay Compensation
Calibration
Technical Specifications
Page 1

ShiftyManualv1.00
Overview
The Intellijel Shifty distributes gate and CV signals from a single source to as many as four
different destinations.
At its core Shifty is essentially a combination of four sample and hold stages, a sequential gate
and a sequencer controller. This collection of functions allows for some specific and useful utility
applications.
One of the primary uses for Shifty is to take a monophonic sequence source and route each
new note of the sequence to two, three or four different synthesizer voices in a specific pattern.
In this way you can create pseudo polyphonic sequences since each voice can be triggered to
play and sustain while the next voice in the sequence is triggered. This is called: Voice
Allocation Mode. Another term for this is hocketing.
Shifty can also function as a digital emulation of an Analog Shift Register. An Analog Shift
Register is essentially a little 4-slot voltage recorder and sequencer. When the first clock is
received, Shifty passes the corresponding CV value to the first output. When the next clock is
received, the previous CV value shifts to the second output so that the new CV can appear at
the first output. Each time Shifty gets a new clock, its corresponding CV value is sent to the first
out, while older CVs continue to shift down. There is no fifth output, so after four gates, the
oldest CV value simply disappears. This can be an interesting way to create chords that are up
to four stacked notes when used with a pitch sequence source that has a harmonious series of
notes (e.g. a pentatonic scale works really well). Even just using two of the outputs yields a
variety of melodic interplay and is an excellent way to make a simple sequence much more
complex and dynamic. Unlike its analog counterpart, Shifty’s shift register mode does not suffer
from voltage droop over time.
Features
●In voice allocate mode (VOICES 2-4) the direction switches are for UP, DOWN,
PINGPONG and RANDOM
●In Shift Register mode (SR) the directions are UP, DOWN, TOGGLE (via reset) and
SCATTER.
●Manual button for sampling/tracking and advancing the sequence
●Manual reset button and jack
●Gate input can configured to act as a track or sample control via toggle switch
●Pitch input can sample or track pitches in the range of 0-10V
●The pitch outputs are driven by a precision quad DAC.
●Firmware is updateable via USB
Page 2

ShiftyManualv1.00
Installation
Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power
supply.
BeforeYourStart
Before installing a new module in your case you must ensure your case’s power supply has
sufficient available capacity to power the module:
● Sum up the specified +12V current draw for all modules, including the new one. Do the
same for the -12 V and +5V current draw. The current draw will be specified in the
manufacturer's technical specifications for each module.
● Compare each of the sums to specifications for your case’s power supply.
● Only proceed with installation if none of the values exceeds the power supply’s
specifications. Otherwise you must remove modules to free up capacity or upgrade your
power supply.
You will also need to ensure you have enough free space (hp) as well as free power headers in
your case to fit the new module.
You can use a tool like ModularGrid to assist in your planning. Failure to adequately power your
modules may result in damage to your modules or power supply. If you are unsure, please
contact us before proceeding.
InstallingYourModule
When installing or removing a module from your case always turn off the power to the case and
disconnect the power cable. Failure to do so may result in serious injury or equipment damage.
Ensure the 10-pin connector on the power cable is connected correctly to the module before
proceeding. The red stripe on the cable must line up with the -12V pins on the module’s power
connector. The pins are indicated with the label -12V, a white stripe next to the connector, the
words “red stripe”, or some combination of those indicators.
Page 3

ShiftyManualv1.00
Most modules will come with the cable already connected but it is good to double check the
orientation. Be aware that some modules may have headers that serve other purposes so
ensure the cable is connected to the right one.
The other end of the cable, with a 16-pin connector, connects to the power bus board of your
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board.
On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe:
If you are using another manufacturer’s power supply, check their documentation for
instructions.
Page 4

ShiftyManualv1.00
Once connected, the cabling between the module and power supply should resemble the
picture below:
Before reconnecting power and turning on your modular system, double check that the ribbon
cable is fully seated on both ends and that all the pins are correctly aligned. If the pins are
misaligned in any direction or the ribbon is backwards you can cause damage to your module,
power supply, or other modules.
After you have confirmed all the connections, you can reconnect the power cable and turn on
your modular system. You should immediately check that all your modules have powered on
and are functioning correctly. If you notice any anomalies, turn your system off right away and
check your cabling again for mistakes.
Page 5

ShiftyManualv1.00

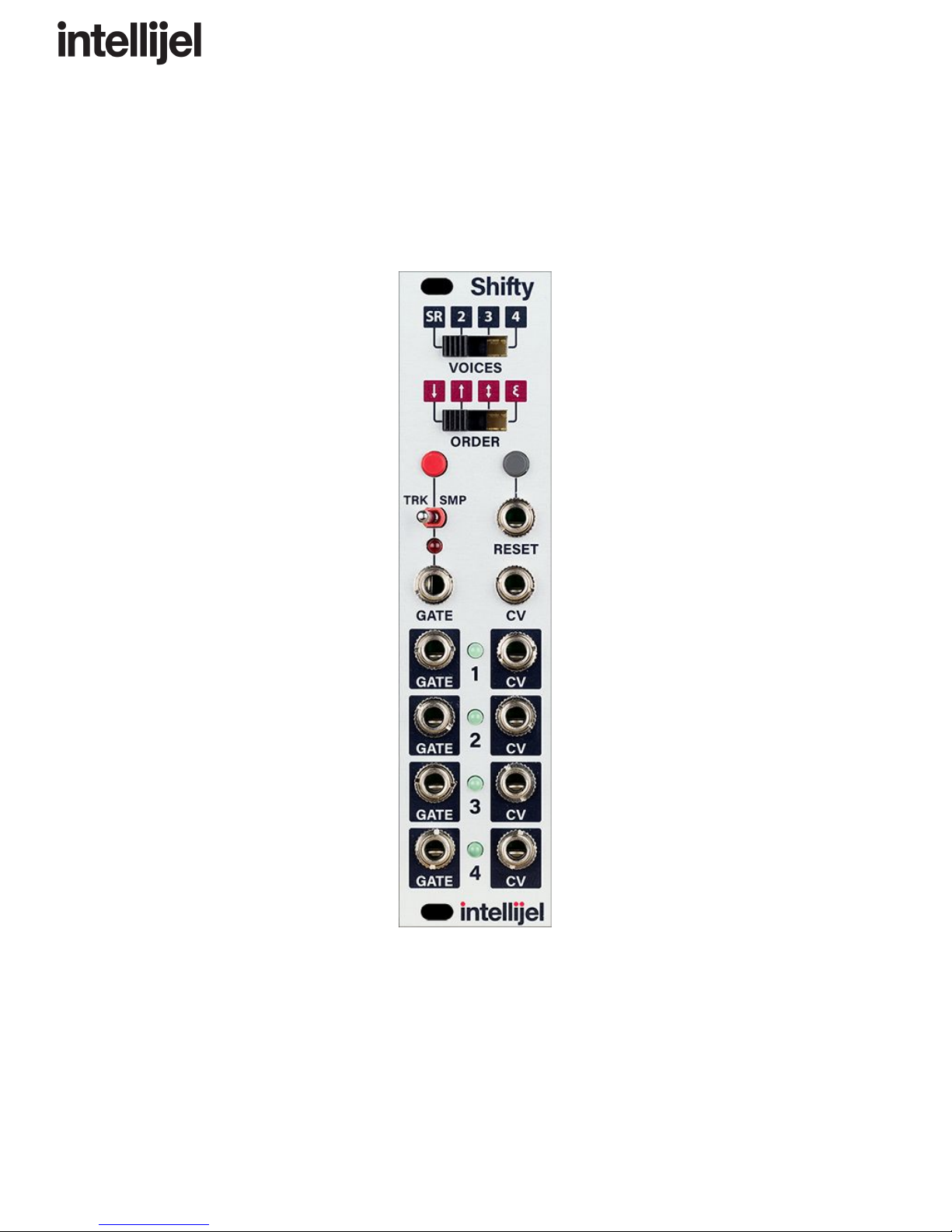

FrontPanel
 
Page 6

ShiftyManualv1.00

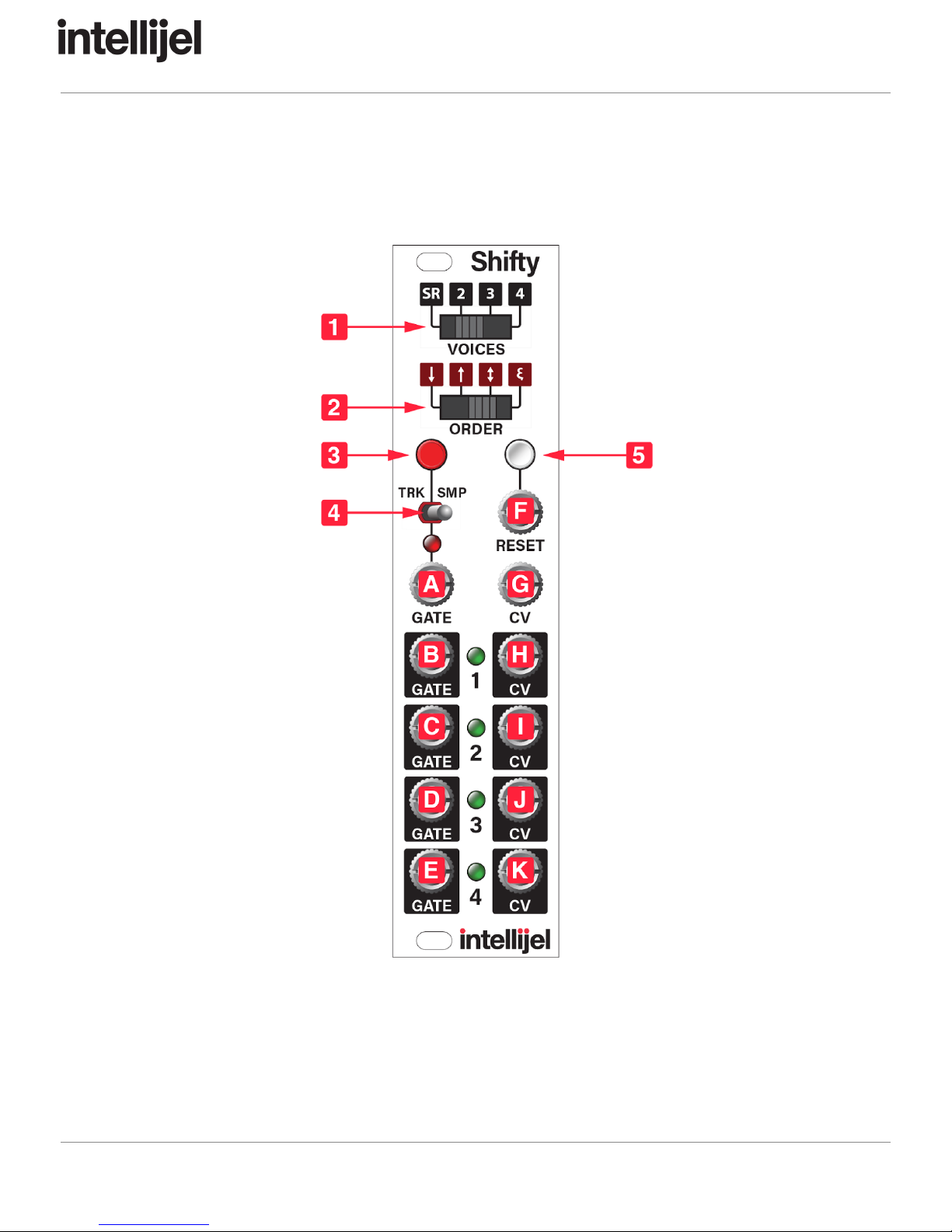

Controls
1. VOICES - This switch selects the number of voices, or outputs, used by the module. In
the first setting, SR, it causes the module to operate as a shift register.
2. ORDER - This switch selects in which order the input is assigned to the outputs. The
options are: ascending, descending, ping-pong, and random.
3. GATE - Manually triggers the gate input.
4. TRK / SMP - Toggles between track & hold and sample & hold modes.
5. RESET - Manually triggers the reset.
InputsandOutputs
A. GATE - The gate input that triggers sampling of the CV input and advances the output
assignment.
B. GATE 1 - Gate output for voice 1
C. GATE 2 - Gate output for voice 2
D. GATE 3 - Gate output for voice 3
E. GATE 4 - Gate output for voice 4
F. RESET - The reset input resets the voice allocation algorithm back to its first position.
G. CV - The CV input which is sampled on each incoming gate. The input voltage range is 0
to 10 V.
H. CV 1 - The CV output for voice 1
I. CV 2 - The CV output for voice 2
J. CV 3 - The CV output for voice 3
K. CV 4 - The CV output for voice 4

 
Page 7

ShiftyManualv1.00
Instructions
The most straightforward way to use Shifty is to distribute the sequence from one sequencer to
multiple voices. For example you can use the PITCH and GATE outs of the Metropolis to control
up to 4 different oscillators and envelope generators. Simply connect the PITCH and GATE out
to the CV and GATE ins of the Shifty, and then connect each pair of CV and GATE outputs to
an oscillator pitch input an envelope trigger. Each GATE and CV output pair is considered a
“voice”.
Then use the VOICES switch to select how many voices are being used, and the ORDER

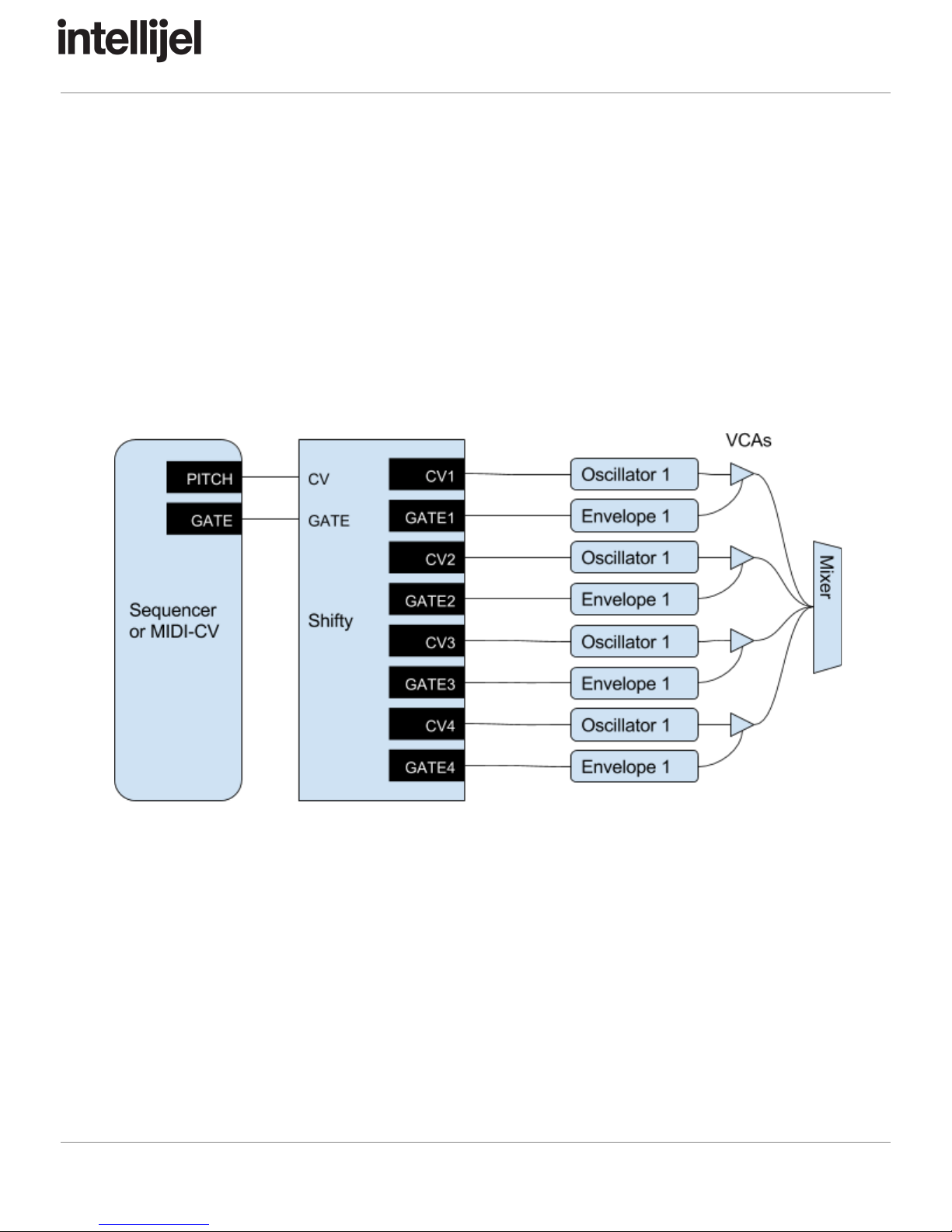

switch to select in which order they are assigned. See the diagram below for a simple illustration
of the patching:
It can be musically pleasing to use four similar-sounding voices to get complex intertwined
melodies, but it can also be interesting to use four totally different sound generators for a more
complex ensemble. Experiment with different voice settings!

 
Page 8

ShiftyManualv1.00
VoiceAllocationMode
Voice Allocation Mode is the primary mode of Shifty which is enabled whenever VOICES is set
to 2, 3, or 4. In this mode Shifty will play one of the four voices each time it receives a gate. The
order in which the voices are played is determined by the ORDER switch. There are four
ORDER settings: Forward, Reverse, Ping-Pong, and Random.
In Forward mode the first incoming gate will sample the CV, output it on CV1, and then trigger
GATE1 for the duration of the incoming gate. The second received gate will sample the CV,
output it on CV2, and then trigger GATE2, etc. After the output reaches the maximum number of
voices, the assignment wraps back around to the voice 1. If the RESET jack receives a gate, or
the RESET button is pushed, the next voice to be allocated will be voice 1.
In Reverse mode the assignment starts at the last voice. For example if the VOICES switch is
set to 3, the first incoming gate would trigger voice 3. The next voice 2, and finally voice 1
before wrapping back around to voice 3 again. In the case of a reset, the next voice to be
allocated will be the last one.
Ping-Pong mode functions like a combination of Forward and Reverse modes. It begins like
Forward mode except that once the last voice is reached, the direction of assignment reverses
to act like Reverse mode. When assigning in reverse, once voice 1 is reached, it begins
assigning forward again, etc. Upon reset the voice assignment begins at voice 1 again.
Random mode will randomly assign each sampled CV to a different voice, without repeating the
same one twice in a row, in order to make the assignment more musically interesting. The
exception is when the number of voices is 2, in which case Shifty will just randomly select
between the first two voices with equal probability. In the case of a reset the assignment is still
random but the last assigned voice is forgotten.

 
Page 9

ShiftyManualv1.00
ShiftRegisterMode
Shift Register mode is a digital emulation of an Analog Shift Register (ASR). It is enabled when
the VOICES switch is set to the leftmost position (SR). This mode works differently from the
other three VOICE settings: Instead of replacing one of the CV outputs, the other voices are
“shifted” to make way for the new one. All four GATE outputs become active on each received
input.
For example, suppose ORDER is set to Forward and initially all of the CV outputs are 0: [0, 0,
0, 0]. If when the first gate is received the CV input is 1 volt, the outputs will become: [1, 0, 0, 0].
If when the next gate is received the CV input is 2 volts, the output will now be: [2, 1, 0, 0]. As
you can see, the input is always assigned to voice 1, and what was previously voice 1 becomes
voice 2, voice 2 becomes voice 3, and voice 3 becomes voice 4.
If the ORDER is set to Reverse, the incoming CV is always assigned to voice 4, and voice 4
shifts to voice 3, voice 3 to voice 2, and voice 2 to voice 1.
If ORDER is Ping-Pong, the shift register acts as if it is in Forward mode until the RESET
button is pushed or a gate is received on the RESET input. Then it begins acting as in Reverse
mode until the next reset turns it back to Forward.
Finally, with Random order, the input replaces a random voice and then to make things more
interesting, the voices are randomly reassigned.Track & Hold / Sample & Hold
The TRK/SMP switch selects between two different ways of reacting to the incoming CV: Track
& Hold and Sample & Hold.
When using Track & Hold, the currently assigned voice’s CV output will follow changes to the
CV input for as long as the input gate is high. This allows any pitch bends, slides, or other
articulation to affect the assigned voice.
When using Sample & Hold, the currently assigned voice’s CV output assumes the value of the
CV input and then does not change until the next time it is triggered.

 
Page 10

ShiftyManualv1.00
SamplingDelayCompensation
Due to the nature of how many Eurorack sequencers or MIDI interfaces are implemented their
CV output can lag their gate output by up to a few milliseconds. The consequence is that if a
module like Shifty samples its CV input immediately upon receiving a gate it may read a value
that is slightly higher or lower than that which the sequencer is outputting. If this CV is
being used to control the frequency of an oscillator it will result in it sounding out of tune.
In the case of Shifty if the module is being used in track & hold mode mode this is rarely a
problem because this behaviour will simply result in a short and usually inaudible pitch glide at
the beginning of the note. However in sample & hold mode if the CV is sampled too early, the
note will be slightly out of tune.
Fortunately Shifty provides a way to compensation for this via a configurable gate delay. With
the gate delay disabled the CV output for the selected voice will reflect the CV input as soon as
possible. With the gate delay enabled the CV output and its corresponding gate will have a
slight delay before updating. This allows the incoming CV to settle at its target value.
Configuring the amount of delay compensation is simple:
1. Turn off your modular system.
2. Hold the GATE button on Shifty.
3. Turn on your modular system.
4. Use the VOICES switch to select the amount of delay compensation. When set to “SR” the
compensation is disabled, while settings 2, 3, and 4 provide increasing amounts of delay.
5. Push the RESET button to confirm and save your settings.
You will need to experiment with different settings depending on which sources of gate and CV
you are using and find what works best for your system.

 
Page 11

ShiftyManualv1.00
Calibration
Shifty comes calibrated out of the factory and usually there should be no need to perform
calibration.
1. Hold the RESET button while powering on your modular system. Shifty will start up in
calibration mode.
2. Connect a patch cable from the CV input to CV 1 and move the VOICES switch to the
SR position. The LED next to CV 1 should be illuminated.
3. Press the GATE button. The calibration procedure will begin and the red LED gate LED
will illuminate.
4. Once the gate LED turns off, move the patch cable from CV 1 to CV 2. Move the
VOICES switch to position 2, and press the GATE button again.
5. Repeat step 4 for CV 3 and CV 4.
6. Restart your modular system. The calibration is automatically saved.
 
Page 12

ShiftyManualv1.00
TechnicalSpecifications
Width
6 hp
Maximum Depth
44 mm
Current Draw
52 mA @ +12V
5 mA @ -12V
Page 13
