Interpack HSD2000 ET II RC User manual

1
HSD2000 ET II RC
RipCord™ Tape Head
OPERATION MANUAL & PARTS LISTS
2” (48mm) & 3” (72mm)
This Manual Covers Tape Heads with the Serial Numbers Starting with:
H175R or H675R
For All Other Numbers, Please Contact Customer Service @ 800-474-8273

2

3
TABLE OF CONTENTS
Section 1 Table Of Contents--------------------------------------------- 3
Section 2 Technical Assistance----------------------------------------- 4
Section 3 Warranty--------------------------------------------------------- 5
Section 4 Description Of Tape Head----------------------------------- 6
Section 5 Safety Issues--------------------------------------------------- 7
Section 6 Specifications--------------------------------------------------- 10
Tape Head Dimensions-------------------------------------- 10
Tape Head Components------------------------------------- 11
Tape Head Specifications----------------------------------- 12
Installation In Other Machinery----------------------------- 13
Section 7 Set Up Procedures-------------------------------------------- 14
Mounting Adapters-------------------------------------------- 15
Tape Loading--------------------------------------------------- 16
Tape Threading------------------------------------------------ 17
Ripcord™ Shaft Adjustment-------------------------------- 19
Ripcord™ Threading----------------------------------------- 20
Tape Centering------------------------------------------------ 21
Tape Leg Length Adjustment------------------------------ 22
One Way Clutched Roller Adjustment------------------- 23
Main Spring Adjustment------------------------------------- 23
Mandrel Tension Adjustment------------------------------- 24
RipCord™ Shaft Tension Adjustment-------------------- 25
Section 8 Troubleshooting----------------------------------------------- 26
Section 9 Recommended Spare Parts List-------------------------- 29
Section 10 Preventive Maintenance------------------------------------ 31
Knife Blade Replacement----------------------------------- 31
RipCord™ Rotary Blade Replacement------------------ 32
Oiler Pad Lubrication----------------------------------------- 33
Urethane Wipe Down Roller Replacement------------- 34
Spring Replacements---------------------------------------- 35
Wipe Down Brush Replacement-------------------------- 42
Schedule Of Preventive Maintenance------------------- 43
Section 11 Appendix A-Illustrations And Parts Lists---------------- 44

4
TECHNICAL ASSISTANCE
Technical Support
This is the Interpack Model HSD 2000-ET II RC Series Tape Head you ordered. It has been set
up and tested in our factory with Intertape brand tapes and RipCord™ thread. If any problems
occur when setting up or operating this equipment, please contact the authorized distributor
from where you purchased this item.
If contact with the authorized distributor is not possible, Interpack Technical Support is
available. Should the need to contact Interpack Technical Support arise, please have the
Tape Head model number and serial number on hand. This information can be found on the
nameplate of the side panel of the Tape Head. Interpack Technical Support is available during
normal business hours (Eastern Time).
PHONE [phone] Option 3
If you have a technical question that does not require an immediate response, you may contact
Interpack by fax.
FAX [phone]
Replacement Parts
Order parts by item number, part description and quantity required. Replacement parts are
available from your Authorized Interpack Distributor exclusively.
Should you require assistance selecting the correct part, you may call:
Intertape Polymer Group
Interpack Machinery
Tel: [phone] Option 3
Fax: [phone]
MODEL:
SERIAL NUMBER:
DISTRIBUTOR PURCHASED FROM:
DATE OF PURCHASE:

5
WARRANTY
EQUIPMENT WARRANTY AND LIMITED REMEDY: The following warranty is made in lieu of all other
warranties, express or implied, including, but not limited to, the implied warranty of
merchantability, the implied warranty of fitness for a particular purpose, and any implied
warranty arising out of a course of dealing, a custom or usage of trade:
Intertape sells its Interpack Tape Heads, Case Tapers and Case Erectors with the following warranties:
1. The HSD
2000 Tape Heads' knife blades, springs and wipe down rollers will be free from all
defects for a period of ninety (90) days.
2. All other HSD2000 Tape Head parts will be free from all defects for one (1) year after delivery.
3. Water Activated Tapers’ blades and brushes will be free from defects for ninety (90) days after
delivery
4. Drive Belts will be free from defects for ninety (90) days after delivery
5. The Gear Motors will be free from defects for one (1) year after delivery.
6. All other components will be free from defects for one (1) year after delivery.
If any part is proven defective within its warranty period, then the exclusive remedy and
Intertape's and the seller's sole obligation shall be, at Intertype’s option, to repair or replace the
part, provided the defective part is returned immediately to Intertape's factory or an authorized
service station designated by Intertape.
A part will be presumed to have become defective after its warranty period unless the part is
received or Intertape is notified of the problem no later than five (5) calendar days after the
warranty period.
If Intertape is unable to repair or replace the part within a reasonable time, then Intertape, at its
option, will replace the equipment or refund the purchase price. Intertape shall have no
obligation to install the repaired or replacement part.
Intertape shall have no obligation to provide or pay for the labor required to install the repaired
or replacement part. Intertape shall have no obligation to repair or replace (1) those parts failing
due to: operator misuse, carelessness, or due to any accidental cause other than equipment
failure, or (2) parts
1. Failure or damage is due to misapplication, lack of proper maintenance, abuse,
improper installation or abnormal conditions such as temperature, moisture, dirt
or corrosive matter, etc.
2. Failure due to inadequate cleaning, improper operating environment, improper
utilities or operator error.
3. Failure due to operations above the rated capacities, or in any other improper
manner, either intentional or otherwise.
4. Failure is due to equipment, which has been altered by anyone other than an
authorized representative of Intertape Polymer Group.
5. Failure is due to an attempt by the purchaser to correct alleged defective
equipment. In this event the purchaser is responsible for all expenses incurred.
LIMITATION OF LIABILITY: Intertape and seller shall not be liable for direct, indirect, special,
incidental or consequential damages based upon breach of warranty, breach of contract,
negligence, strict liability or any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be
changed only by written agreement signed by authorized officers of Intertape and seller.

6
DESCRIPTION OF TAPE HEAD
Figure 1-1
The Intertape HSD 2000-ET II RC Family of Tape Heads are designed to apply Intertape brand
pressure sensitive carton sealing tape and RipCord™ thread to the top center seam of regular
slotted corrugated cartons and Intertape brand pressure sensitive carton sealing tape to the
bottom center seam of regular slotted corrugated cartons.

7
SAFETY ISSUES
There is a safety label used on all Interpack Tape Heads. This label is placed on the Tape
Head knife guard to warn operators and service personnel of the sharp cutting edge of the
blade. Please read the label and the following safety precautions before using the Tape Head.
Read this manual for other important safety operating and service information.
Only trained personnel are to operate and service Tape Head.
Wear safety glasses.
Shut off power to machine before adjusting.
Unplug electrical power before servicing.
All covers and guards must be in place before operating.
Stay clear of moving parts which can shear and cut.
Never operate the Tape Heads with the Knife Guard removed.
Turn electrical supply off before servicing the Tape Heads, including tape loading
and threading.
Note: Should any of the safety labels placed on the Tape Head be
damaged or destroyed, replacements are available.

8
S AFETY I SSUES

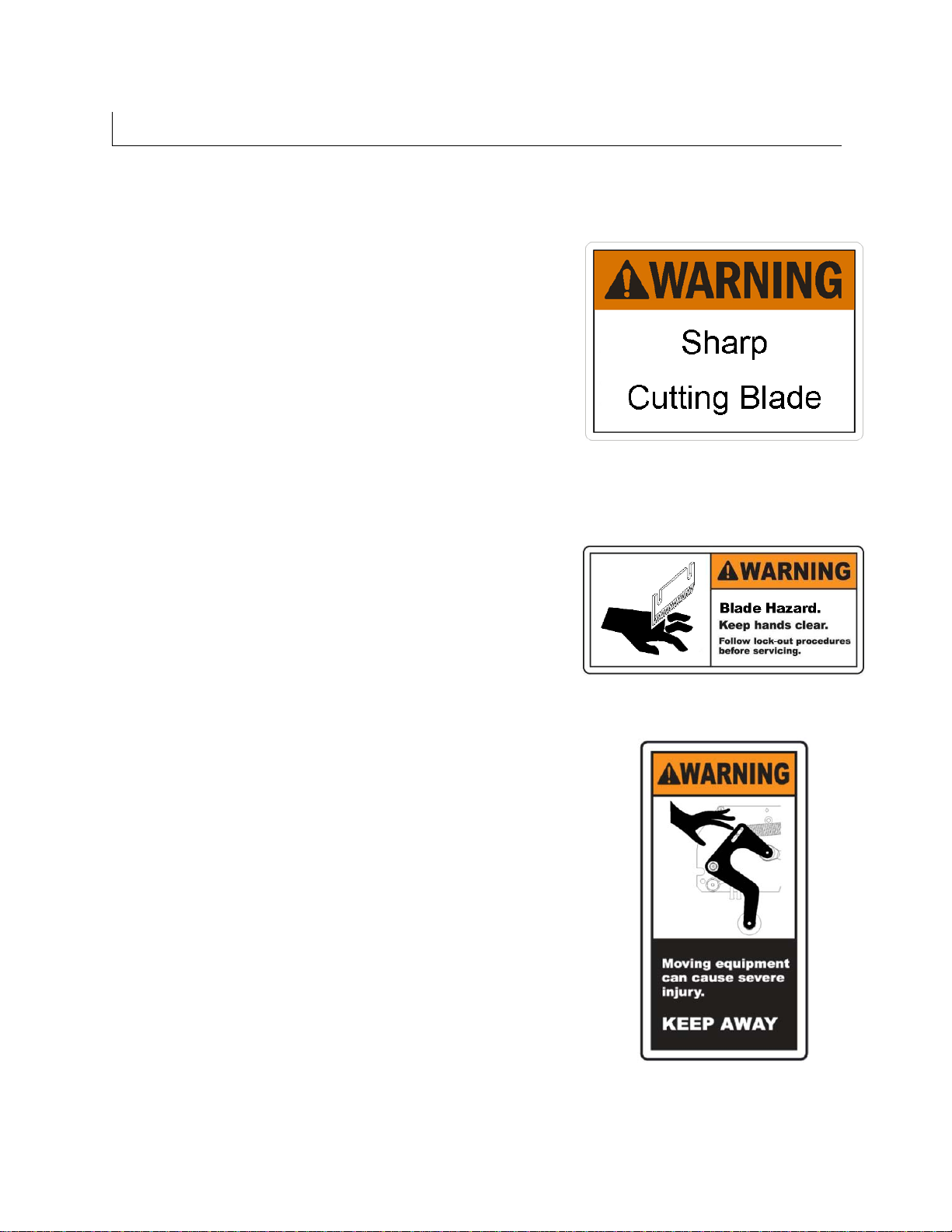

The illustrated label shown in Figure 2-1 is attached
to the Knife Guard. The label warns operators and
service personnel of the very sharp blade. The guard
shall only be removed when the torsion spring or the
guard itself are being replaced.
Should the tape head be operated without blade
guard, user voids all warranty implied, the
manufacturer bears no responsibility for the
consequences.
Tape head shall never be serviced while mounted in a
machine.
Figure 2-1
Label on Figure 2-2 is visible on carton sealing
machine.
Figure 2-2
While the tape head is processing cartons, or it is in
motion, keep your hands away (Figure 2-3).
Figure 2-3

9
SAFETY ISSUES
The illustrated label shown in Figure 2-4 is attached to
the operator side plate of each tape head. The label
provides operators and service personnel the proper
method of threading a new roll of tape through the tape
head.
More detailed information is provided in the “Set Up
Procedures” portion of this manual.
Turn air and electrical supplies off before servicing
the tape heads.
Figure 2-4

10
SPECIFICATIONS
Tape Head Dimensions

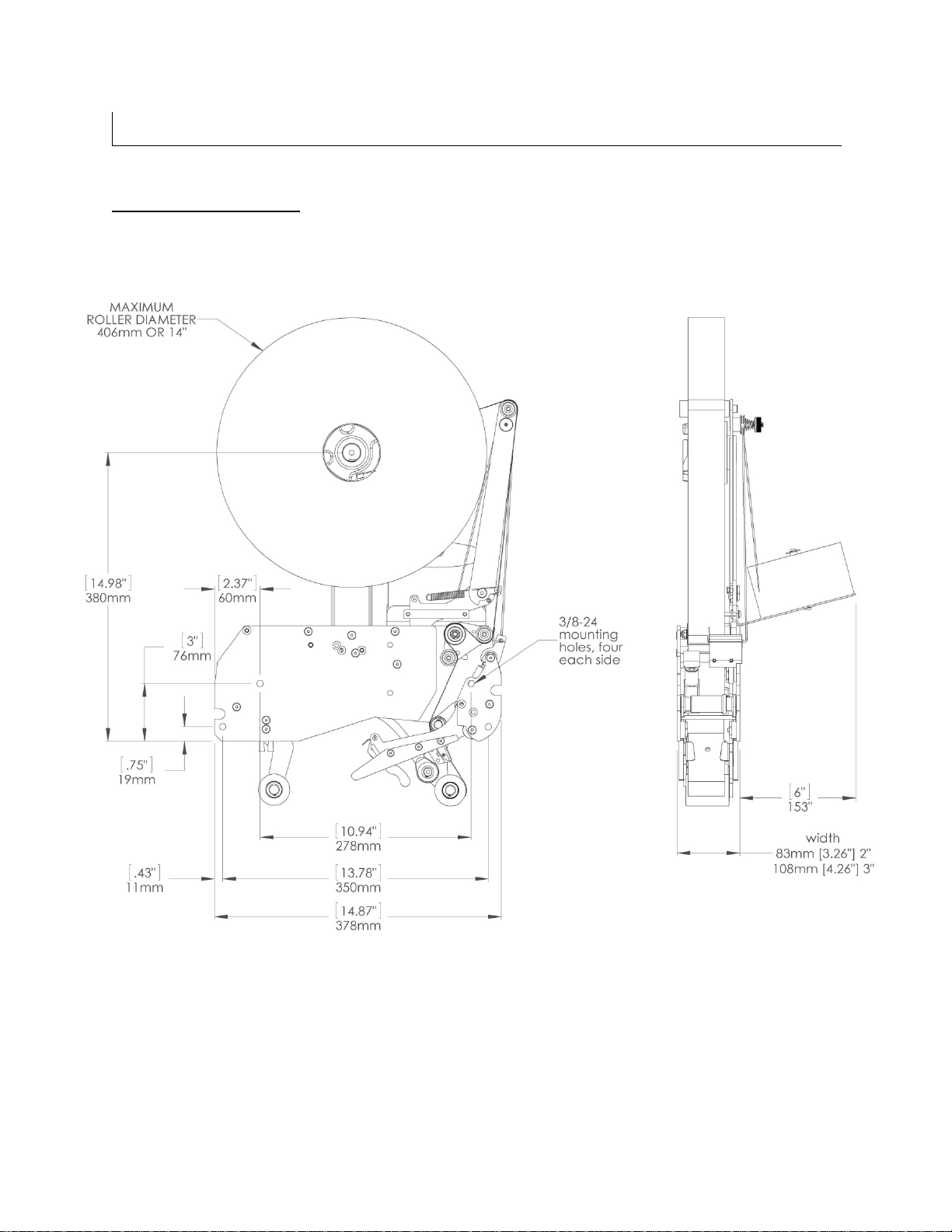

Figure 3-1
Front View

11
SPECIFICATIONS
Tape Head Components
Figure 3-2

12
SPECIFICATIONS
Operating Conditions
Use in a dry, relatively clean environment at 40º to 105º F (5º to 40º C) with clean, dry cartons.
Note:
The HSD 2000-ET II RC Standard Tape Head should never be washed down or
subjected to conditions causing condensation on components. HSD 2000-ET II
SS Stainless Steel tape heads provide protection against mild detergent wash
down only. Do not subject Stainless Steel tape heads to ANY harsh detergent or
solvent wash down. The warrantee will be voided as a result.
Tape Head Specifications
1) General
Use Intertape brand Pressure Sensitive Carton Sealing Tape.
Use RipCord™ Thread.
2) Tape Width
For HSD 2000-ET II RC/2” (48mm) models
1 ½ to 2 inch wide tape (36 to 48 mm)
For HSD 2000-ET II RC/3” (72mm) models
2 ½ to 3 inch wide tape (60 to 72mm)
3) Tape Roll Diameter
Maximum of 16 inches (405 mm) on a 3-inch (76.86 mm) diameter core.
(Accommodates all Intertape brand film tape machine roll lengths)
4) RipCord™ Thread Roll Diameter
Maximum of 5 inches (127mm).
5) Tape Application Leg Length – Standard
2 inches (+0.25", -0")
50.8 mm, (+6.3 mm, -0 mm)
6) Tape Application Leg Length – Optional
The tape leg length can be adjusted from:
1 7/8 to 2 3/4 inches
47.8 mm to 69.9 mm
7) Tape Head Weight
The Tape Head weighs 13 lbs. (6.1 kg.)
8) Operating Speed
For use with line speeds up to 90 ft/min maximum.
PLEASE NOTEUUU: A stronger main spring may be necessary to process cases at
90 ft/ min. Void filled cases should not be processed with the stronger main
spring

13
SPECIFICATIONS
Installation Of HSD 2000-ET II RC In Other Machinery
This tape head can be used to upgrade case sealers provided by other manufacturers. It can
be mounted in the upper or lower positions. It can also be mounted horizontally. Please contact
the factory for the proper mounting adapters, any possible mirror image footprint requirements
and any limitations when upgrading competitive machinery.
1) The case must be positively propelled through the case sealer taking into account any void
fills, overfills, stability factors or weight factors.
2) Verify the case sizes which will be processed through the case sealer. Installing Interpack
HSD 2000-ET II RC tape heads to process very short cases may cause the tape heads to
collide with each other.
3) If a flight bar or lug drive system propels the case, be sure that these devices provide proper
clearance and do not contact any portion of the tape head.
4) Be sure to verify that the proper adapter kits have been ordered and supplied with the tape
head.

14
SET-UP PROCEDURES
Receiving and Handling
All contents must be verified upon reception. The following items are included with each tape
head.
DESCRIPTION UH175R
2” WIDE PLATED
UH675R
3” WIDE PLATED
Main Tape Head assembly 1 1
SHCS M6 x 8 (part no. UF0810) 4 4
Mounting adaptors (part no. UPH3880) 4 4
Mounting adaptors (part no. UPH3882) 4 -
Mounting adaptors (part no. UPH0864) 4 4
Mounting adaptors (part no. UPH0282) 4 -
Main spring (part no. UPH1090) 1 1
Main spring (part no. UPH0910) 1 1
Knife arm spring (part no. UPH4665) 1 1
Operational manual & parts list 1 1
Note: After unpacking the Tape Head, look for any damage that may have occurred
during shipping. Should the Tape Head be damaged, file a claim with the
transport company and notify your Intertape representative.

15
SET-UP PROCEDURES
WARNING! TURN OFF ELECTRICAL POWER SUPPLY AND DISCONNECT THE POWER CORD
FROM THE ELECTRICAL SUPPLY BEFORE BEGINNING TO WORK ON THE TAPE
HEADS OR TO LOAD TAPE.IF POWER CORDS ARE NOT DISCONNECTED,
SEVERE INJURY TO PERSONNEL COULD RESULT.
Mounting Adapters
HSD 2000-ET II RC Tape Heads require Mounting Adapter Hardware to install in any case
sealer or case erector. If your Tape Heads are pre-installed in your Interpack or TUFflex case
sealer or case erector, you do not need to follow any instructions from this section. If your tape
heads will be installed in any other competitive machinery, please review these general
guidelines plus any additional instructions included with your HSD 2000-ET II RC tape head.
Location Of Mounting Adapter Holes
Front Cover
Figure 4-1 Rear Cover Figure 4-2
Examples Of Mounting Hardware
There are numerous mounting holes on the
front and rear side plates of the tape head.
These are used to install various mounting
adaptors. Examples of these mounting
adapters are:
1. Internal and external threaded nuts
2. Mounting Bars
3. Threaded Spacers
Figure 4-3

16
SET-UP PROCEDURES
Tape Loading
The HSD 2000-ET II RC Tape Heads accommodate 2-inch (48mm) wide tape rolls, while the
HSD 2000-ET II RC/3" Tape Heads accommodate 3-inch (72mm) wide rolls.
1. Place the tape head onto a sturdy, flat surface.
2. Move the peel off roller away from the mandrel.
3. Push the roll of tape onto the mandrel with the adhesive side up (refer to Threading
Diagram under Tape Threading section in this manual) until the core seats against
the mandrel flange. This ensures the tape will be aligned when feeding into the tape
head.
4. Replace the peel roller against the tape roll.
Figure 4-4
Adhesive Side
Peel Off Roller Tape Roll

17
SET-UP PROCEDURES
WARNING! THE KNIFE CONTAINED IN THE TAPE HEAD IS EXTREMELY SHARP.USE CAUTION
WHEN REMOVING THE BLADE GUARD AND THREADING THE TAPE TO AVOID
PERSONNEL INJURY.
Tape Threading Preparation
Figure 4-5
Threading the tape in the Tape Head does not require any special tools.
1. Pull approximately twelve (12) inches of tape from the roll and fold in half
lengthwise, adhesive side to adhesive side. This allows you to thread the tape
without it adhering to the guide and clutch rollers inside the Tape Head.
12

18
SET-UP PROCEDURES
Figure 4-6 Figure 4-7
1. As illustrated in Figures 4-6 & 4-7, first thread the tape tail over the Peel Off
Roller.
2. Thread the tape over and around the first “smooth” Guide Roller.
3. Continue to thread the tape over and around the “knurled” Clutch Roller.
4. Then pass the tape up and over the second “smooth” Guide Roller.
5. Continue threading the tape over and behind the final “knurled” Guide Roller.
6. Thread the tape through the cut-out provided in the Tape Guide Shoe and pull the
tape through the front Application Roller, ensuring that the tape is retained in the
tape guide shoe
7. Cut off the folded tape.
8. Replace the Tape Head to its initial position in the machine.
Adhesive Side
Guide Roller
Clutch Roller

19
S ET -U P P ROCEDURES
RipCord™ Shaft Plunger Adjustment
Every RipCord™ tape head has been set up and tested in our factory. RipCord™ spool cores
may differ slightly in size and adjustment may be required for proper operation.
1. Make sure that there is a full roll of
IPG®Pressure Sensitive Carton
Sealing Tape installed and threaded as
shown.
2. Slide spool holder around peel off arm
bracket and clamp on by fastening a
second screw/washer as shown in
Figures 4-9 through 4-11.
Figure 4-8 Figure 4-9
Figure 4-10 Figure 4-9

20
S ET -U P P ROCEDURES
RipCord™ Threading
Figure 4-11 Figure 4-12
3. Install RipCord™ pool onto shaft, making
sure that the spool sits flush on the
mounting plate.
4. Pull cord around tensioner as shown and
pull towards the front of the tape head.
Figure 4-13 Figure 4-14
5. Bring cord down to the threading guide and
insert through slot. 6. Once threaded in the guide, adhere cord tail to the adhesive side of the sape as
shown.
7. Pull tape leg through the tape head until
thread has been fully threaded with the
tape throughout the tape head.
8. Make sure that the cord is properly
aligned with groove on clutch roller. If
cord is not aligned with groove, adjust
threading guide so that it properly aligns.
