Lynx L-3 & Lynx L-4
Parts Catalog Issued: Apr 9, 2007

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 06-109. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2007 Invacare Corporation. Elyria, Ohio. Invacare, the Medallion Design and Yes, you can. are registered trademarks and Lynx is a trademark of Invacare
Corporation.
Parts Catalog Usage Guide
1
Form No. 06-109
To order call toll free 1-800-333-6900, or www.invacare.com

Arms & Seat Bracket ................................................................................................................ 13
Battery Box, Charger, Controller & Harnesses ......................................................................... 15
Bracket, Accessory ................................................................................................................... 18
Floor Mats, Basket, Reflectors & Owner's Manual ................................................................... 8
Footplate and Battery Box Door ............................................................................................... 11
Lower Tiller Assembly .............................................................................................................. 6
Motor & Transaxle .................................................................................................................... 17
Packaging & Touch-Up Paint ................................................................................................... 3
Rear Wheels & Anti-Tips .......................................................................................................... 14
Seat & Arms ............................................................................................................................. 12
Shrouds, Main & Rear .............................................................................................................. 9
Tiller Maintenance .................................................................................................................... 4
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Part Number Kit Contains:
(I ea.) Carton,
(1 ea.) Insert,
(1 ea.) Foam Pad, and
(2 ea.) Foam Block.
1148170
Touch-Up Paint - Blue1149226 Touch-Up Paint - Red1149227
Packaging & Touch-Up Paint
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Tiller Maintenance
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Tiller Maintenance

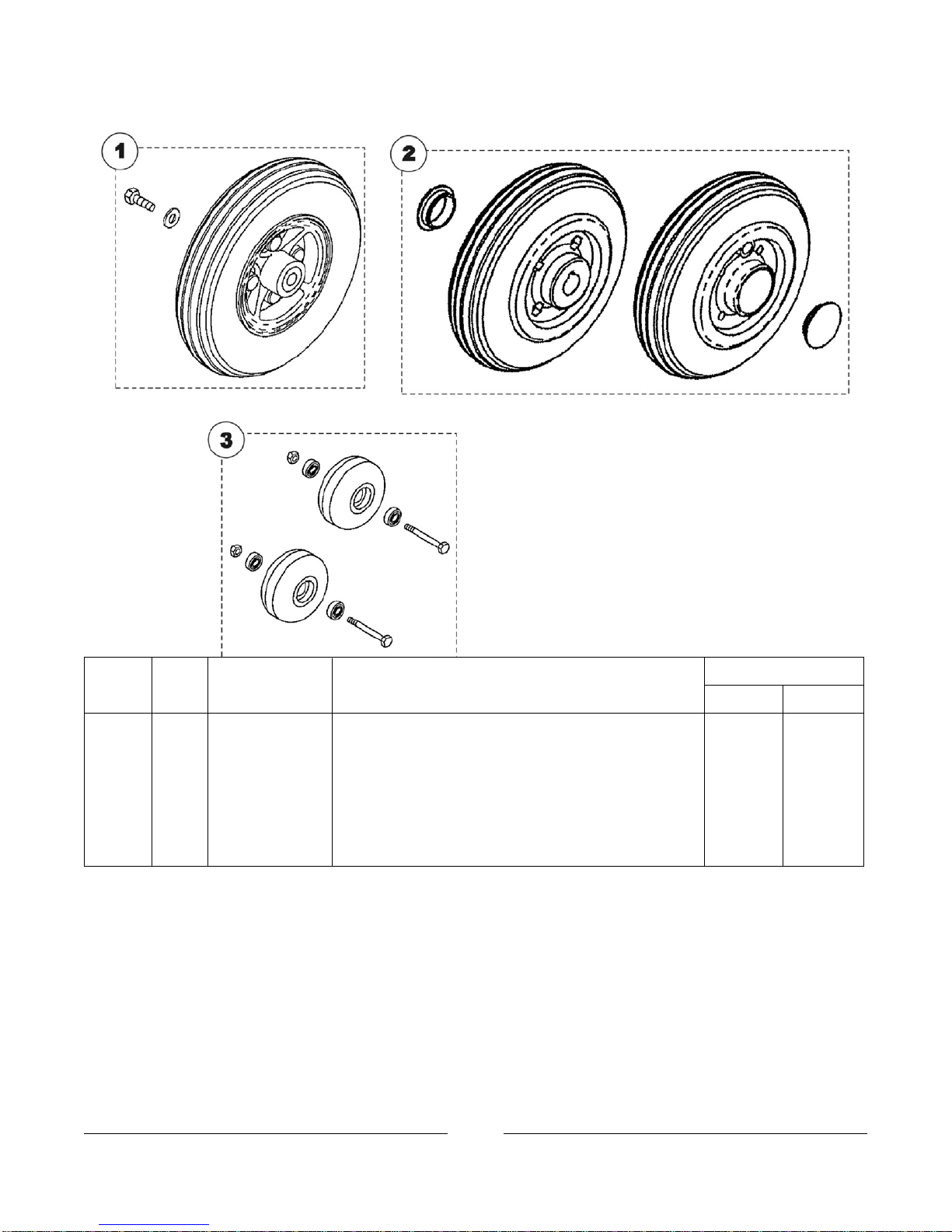

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144807 Kit, Tiller Steering Cover (Red)
Includes:
(1) ea. Tiller Cover - Upper,
(1) ea. Tiller Cover - Front,
(1) ea. Tiller Cover - Rear,
(6) ea. Screws,
(1) ea. Battery Indicator,
(2) ea. Screws,
(1) ea. Speed Pot,
(1) ea. Speed Pot Knob,
(1) ea. Ignition Switch w/ Key,
(1) ea. Horn Speaker,
(2) ea. Screws,
(1) ea. Horn Button,
(1) ea. Horn Button Cap, and
Decals
1 11
1144808 Kit, Tiller Steering Cover (Blue)
Includes:
(1) ea. Tiller Cover - Upper,
(1) ea. Tiller Cover - Front,
(1) ea. Tiller Cover - Rear,
(6) ea. Screws,
(1) ea. Battery Indicator,
(2) ea. Screws,
(1) ea. Speed Pot,
(1) ea. Speed Pot Knob,
(1) ea. Ignition Switch w/ Key,
(1) ea. Horn Speaker,
(2) ea. Screws,
(1) ea. Horn Button,
(1) ea. Horn Button Cap, and
Decals
1 11
1144802 Pkg, Tiller Grips (Pkg of 2) 2 12 1144791 Kit, Speed Pot
Includes:
(1) ea. Speed Control Knob and
(1) ea. Speed Pot - 30 K Ohms
1 13
1144792 Pkg, Speed Control Knobs (Pkg of 10) 10 14 1144793 Ignition Switch w/Key 1 15 1144794 Pkg, Ignition Keys (Pkg of 10) 10 16 1144795 Throttle Pot & Lever Assembly 1 17 1144796 Throttle Lever w/Hardware 1 18
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

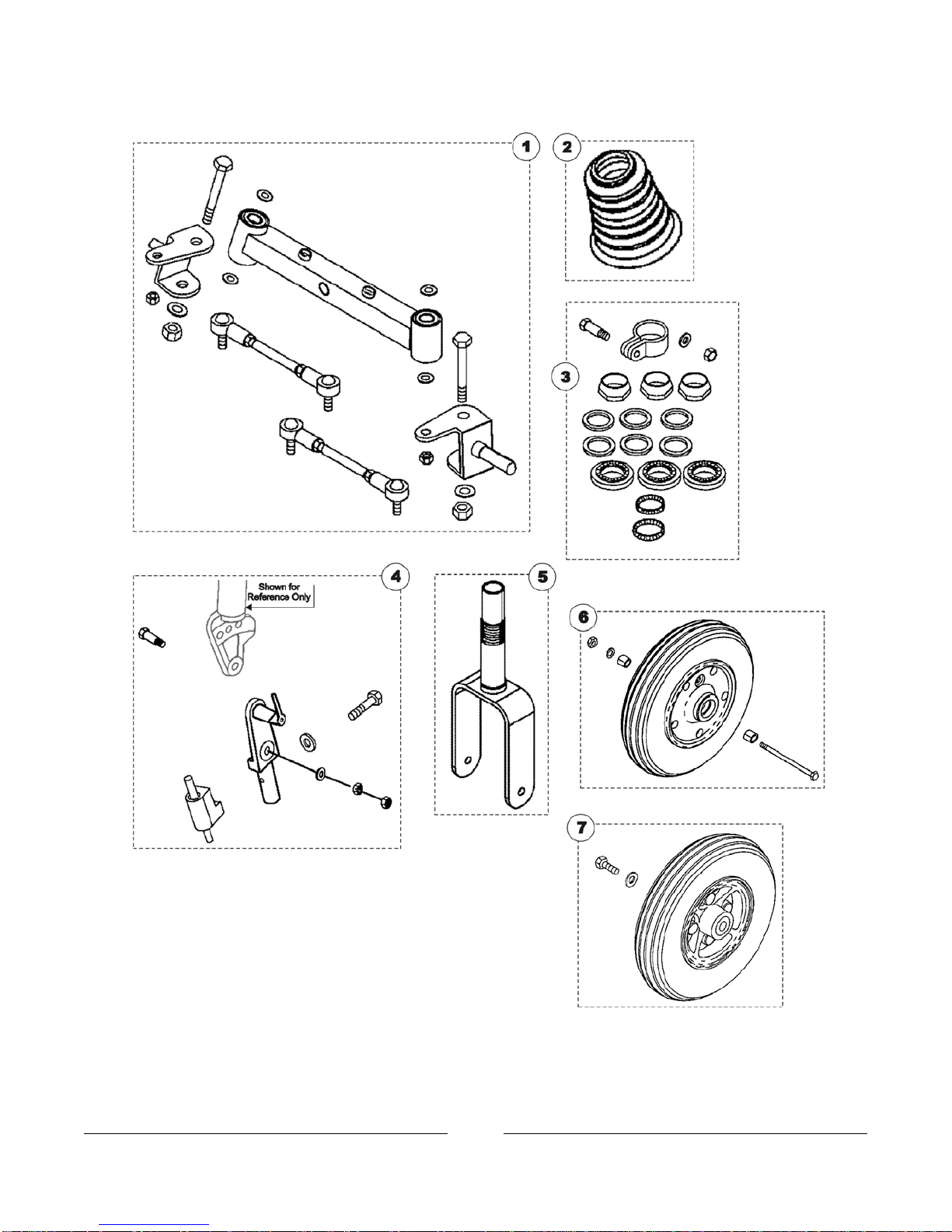

Lower Tiller Assembly
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Lower Tiller Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144826 Kit, Front Steering (L-4)
Includes:
(1) ea. Swing Assembly,
(4) ea. Nylon Washer,
(1) ea. Axle - Right,
(1) ea. Axle - Left,
(2) ea. Bolts,
(2) ea. Washers,
(2) ea. Nylon Nuts,
(2) ea. Rod Assemblies, and
(2) ea. Nuts
1 11
1144806 Boot (Bellow), Tiller 1 12 1144803 Kit, Headset Bearing
Includes:
(1) ea. Tube Clamp with Hardware,
(3) ea. Steering Nut,
(3) ea. Plain Washer,
(3) ea. Tooth Washer,
(3) ea. Steering Race, and
(2) ea. Bearings
1 13
1144804 Kit, Lower Hardware (L-3)
Includes:
(1) ea. Guide,
(1) ea. Washer,
(1) ea. Bolt,
(1) ea. Bolt,
(2) ea. Nylon Nut,
(1) ea. Washer, and
(1) ea. Steering Adjustment Bracket
1 14
1144805 Fork, Front (L-3) 1 15 1144822 Kit, Front Wheel (L-3)
Includes:
(1) ea. Nylon Nut,
(1) ea. Plain Washer,
(2) ea. Spacer,
(1) ea. Bolt, and
(1) ea. Front Wheel
2 16
1144832 Kit, Front Wheel (L-4)
Includes:
(1) ea. Bolt,
(1) ea. Plain Washer, and
(1) ea. Front Wheel
2 17
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144825 Kit, Reflectors
Includes:
(2) ea. Yellow Reflectors,
(2) ea. Red Reflectors, and
(1) ea. Orange Reflector
5 11
1144827 Kit, Floor Mat (L4)
Includes:
(1) ea. Rubber Pad and
(6) ea. Push Rivets
1 12
1144815 Kit, Floor Mat w/ Hardware (L3)
Includes:
(1) ea. Rubber Pad and
(6) ea. Push Rivets
1 13
1144816 Pkg, Push Rivets (Pkg of 25) 25 14 1144838 Basket (Lynx L3 & L4) 1 15 1143205 Owner's Manual (Lynx L-3 & L-4) 1 16 A
A - Not Shown
NOTE:
Floor Mats, Basket, Reflectors & Owner's Manual
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

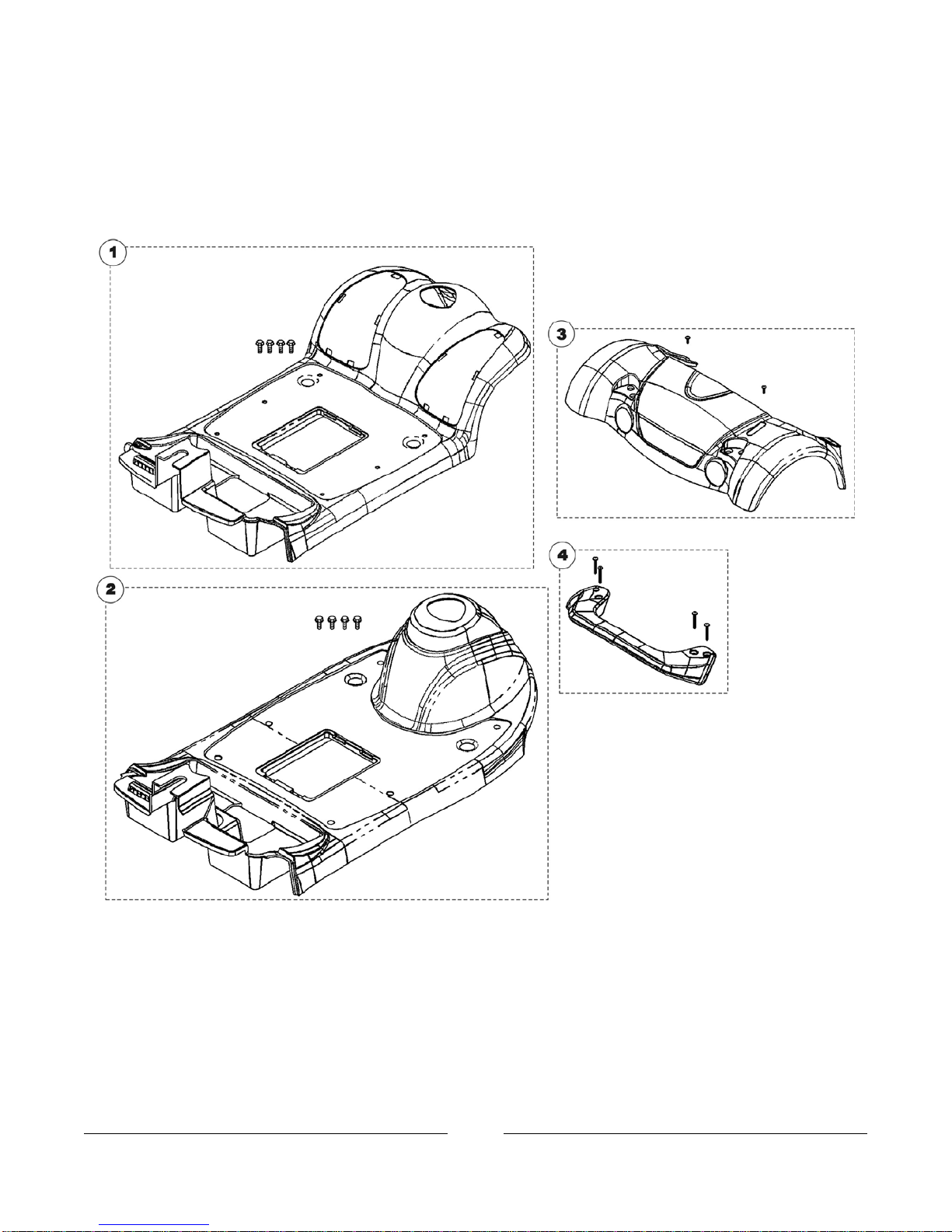

Main & Rear Shrouds
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Main & Rear Shrouds
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144828 Shroud, Main w/ Hardware & Decals - Red (L-4) 1 11 1144829 Shroud, Main w/ Hardware & Decals - Blue (L-4) 1 11 1144818 Shroud, Main w/ Hardware & Decals - Red (L-3) 1 12 1144819 Shroud, Main w/ Hardware & Decals - Blue (L-3) 1 12 1144830 Shroud, Rear w/ Hardware & Decals - Red (L-4) 1 13 1144831 Shroud, Rear w/ Hardware & Decals - Blue (L-4) 1 13 1144820 Shroud, Rear w/ Hardware & Decals - Red (L-3) 1 13 1144821 Shroud, Rear w/ Hardware & Decals - Blue (L-3) 1 13 1144817 Handle, Rear w/ Hardware 1 14
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1146449 Door, Battery Box 1 11 1146447 Pad, Foot - Black Plastic (Right) 1 12 1146448 Pad, Foot - Black Plastic (Left) 1 13
Footplate and Battery Box Door
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1146610 Seat and Arm Assembly (Lynx L-3 & L-4) 1 11
Seat & Arms
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144809 Arm & Arm Pad Assembly w/Hardware - Right 1 11 1144810 Arm & Arm Pad Assembly w/Hardware - Left 1 11 1144813 Pkg, Arm Pads (Pkg of 2) 2 12 1144814 Kit, Arm Pad
Includes:
(2) ea. Bolts,
(2) ea. Plain Washers,
(2) ea. Nylon Nuts,
(2) ea. Bolts,
(2) ea. Nuts, and
Decals, Warnings, & Logos
1 13
1144812 Spring, Seat Lever 1 14 1144811 Kit, Seat Guide Bracket
Includes:
(1) ea. Seat Guide Bracket, and
(2) ea. Bolts
1 15

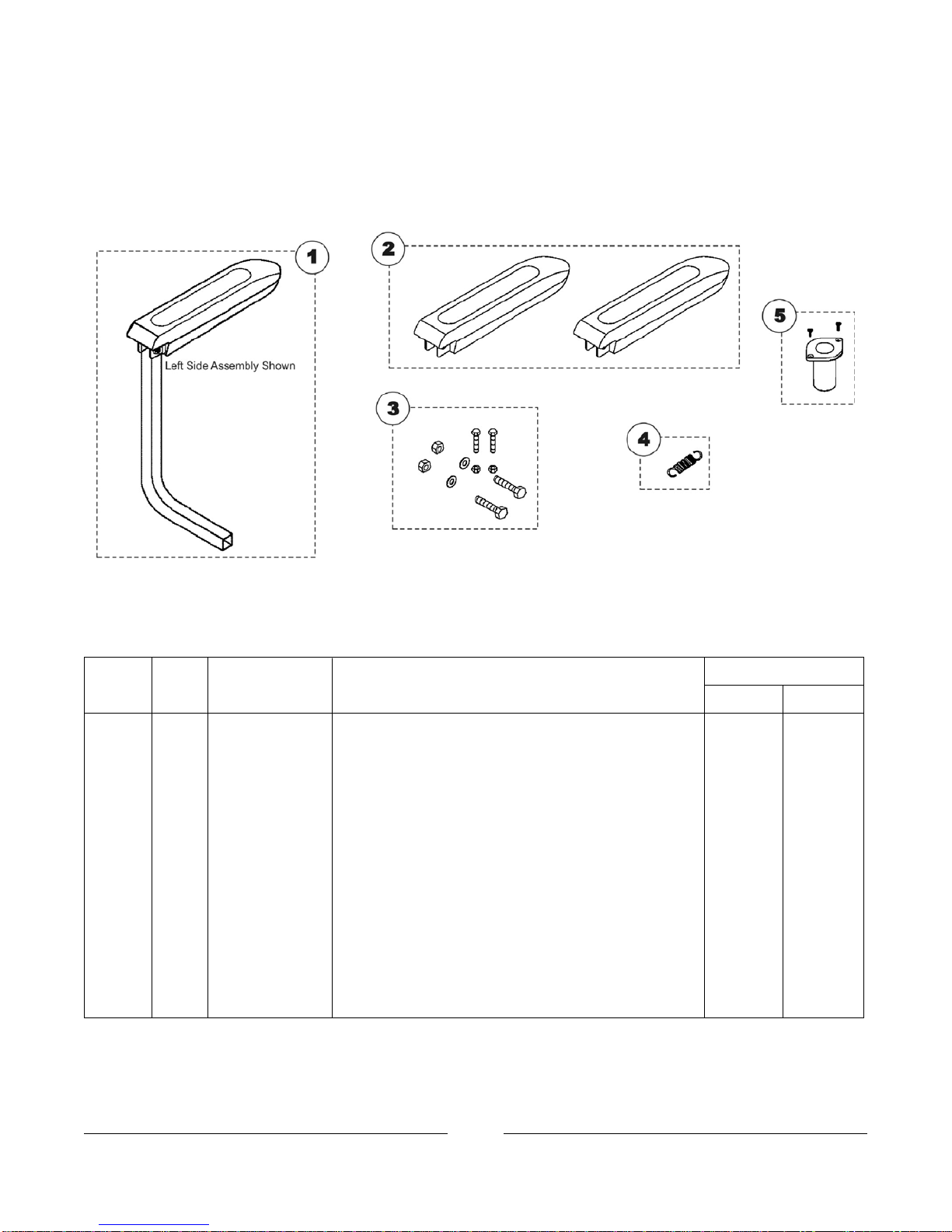

Arms & Seat Bracket
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144834 Rear Wheel Assembly (L-4) - Single Wheel 1 21 1144823 Rear Wheel Assembly (L-3) - Wheel Pair 2 12 1144824 Kit, Anti-Tip Wheels
Includes:
(2) ea. Nylon Nut,
(4) ea. Bearings,
(2) ea. Bolts, and
(2) ea. Anti-Tip Wheels
1 13
Rear Wheels & Anti-Tips
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Battery Box, Charger, Controller & Harnesses
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Battery Box, Charger, Controller & Harnesses
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144797 Charger, On Board 2 AMP 1 11 1144798 Cable, Charger 1 12 1144800 Kit, Battery Box
Includes:
(1) ea. Battery Cover,
(6) ea. Battery Terminals,
(3) ea. Bolts,
(3) ea. Nuts,
(3) ea. Tapping Screws,
(1) ea. Wire Clamp, and
(1) ea. Screw
1 13
1144801 Kit, Charger Cover Port
Includes:
(1) ea. Inlet Cover,
(2) ea. Plain Washer,
(1) ea. Spring, and
(1) ea. Bolt
1 14
1144835 Fuse, 3 AMP 1 15 1144799 Kit, Rear Wiring Harness
Includes:
(1) ea. Battery & Charger Wire,
(1) ea. Power Inlet,
(1) ea. Battery Wire,
(1) ea. Motor/Brake Wire,
(1) ea. Battery Wire, and
(1) ea. Rear Wiring Group
1 16
1144836 Fuse, 5 AMP 1 17 1144790 Controller, Rhino 70 AMP 1 18 1144837 Batteries, 12 Volt (A2SH) - pair 2 1A
A - Not Shown
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144788 Kit, Motor & Brake
Includes:
(1) ea. Motor,
(1) ea. Guide,
(4) ea. Bolts, and
(2) ea. Keys
1 11
1144789 Kit, Brake
Includes:
(1) ea. Brake and
(2) ea. Screws
1 12
1144787 Kit, Transaxle
Includes:
(1) ea. Differential,
2 ea. Keys,
2 ea. E Rings,
2 ea. Plain Washers,
2 ea. Bolts (M8 x 20L), &
2 ea. Flat Washer
1 13

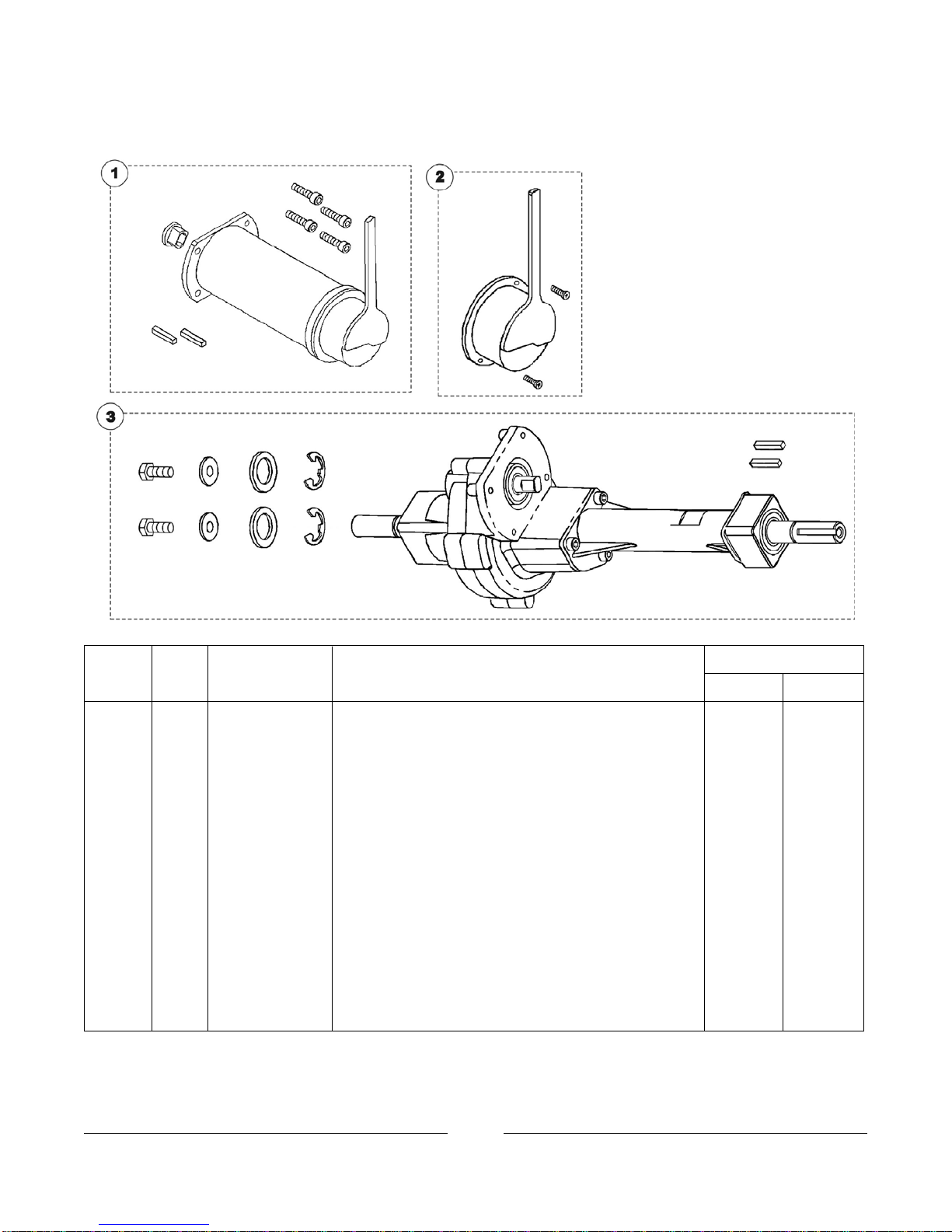

Motor & Transaxle
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-109

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly

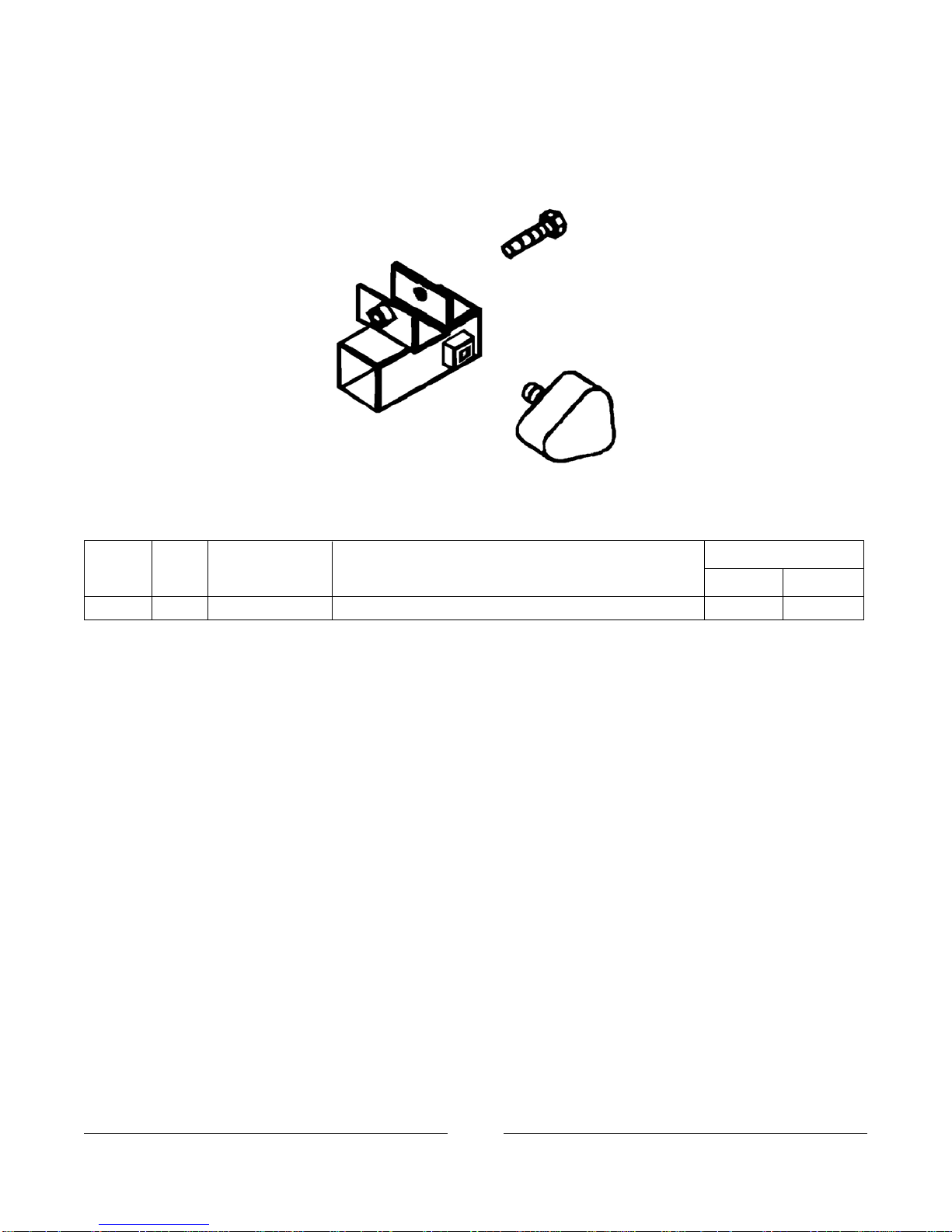

1148158 Bracket, Accessory (Lynx L-3 & Lynx L-4) 1 1
