IWILL P55TU User manual

i
EC Declaration of Conformity
We
Iwill Corp.
No. 9-1, Kong 6th RD.,
Lin Kou 2nd Industrial
Park, Taipei, Taiwan R.O.C.
declare under sole responsibility that the
P55TU motherboard
meets the intent of Directive 89/336/ECC forElectromagnetic Compatibility.
Compliance was demonstrated to the followingspecificationsas listed in the
official Journal of the European Communities:
EN 50081-1Emissions:
EN 55022 Radiated, Class B
EN 55022 Conducted, Class B
EN 60555-2 Power Harmonics
EN 50082-1Immunity:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiat
IEC 801-4 Fast Transient

ii
About this manual
This P55TU SCSI Motherboard is the newest memberto our SCSI Motherboard
solution products families. It incorporated with Intel4th generation 430HX
Chipset with BGA technology and with Adaptecnew Ultra / Ultra Wide SCSI
embedded which is equilevent to AHA 2940UW. AdaptecRAID port option
ready is a big advantage in this P55TU SCSI motherboard.It can turn this SCSI
motherboard to support hardware SCSI RAID by addingthe RAIDBUS 1000 or
the ARO 1130 adapterfrom Adaptec.
Run with fasterCPU is very important function that thisSCSI Motherboard support.
It support bothP54C up to 200 MHz* and Intel’s next generation P55C processor
with MMX technology.
Feature with Error Check Correction ( ECC ) system memory is another plus on
this SCSI Motherboard to outperform the whole system stability. It equipe 4 of the
72 pin SIMM that supportsEDO DRAM with ECC.
This manualis subject to change without notice.
This manualcontainsinformation protected by copyright law. All rights are
reserved. No any partof this document may be used or reproduced in any forms
or by any means,or stored in a database orretrieval system, without prior written
permission.
Trademark
Intel
®
/ Pentium is trademark of Intel
®
Corporation and all other product names
are trademarksandregistered trademarksof their respective owners.
Warning
This motherboard is carefully designed with Intelspec. to fully supportP54C
processor up to 200Mhzand thenew P55C. Since Intel is notshiping theP54C
with 200Mhz and the new P55C CPU at the point that we deliver this
motherboard so we hold theresponsibility on if Intelchange any spec. that cause
the new processor not function properly in this motherboard.

iii
Contents
Chapter 1- Overview
1.1 Features P1
1.2 Specifications P3
Chapter 2- Quick Installation P4
Chapter 3- Hardware Installation
3.1 Preparation and Inspection P6
3.2 Placement P8
3.3 CPU group P10
3.4 Cache Memory P13
3.5 D-RAM Configuration P14
3.6 SCSI Interface P14
3.7 Adaptec RAIDport option P17
3.8 IDE Interface P18
3.9 USB P19
3.10 Enhanced Multi-IO P19
3.11 Other P20
Chapter 4- Award BIOS Setup
4.1 Main Menu P26
4.2 Standard CMOS Setup P29
4.3 BIOS Features Setup P33
4.4 Chipset Feature Setup P39
4.5 Power Management Setup P46
4.6 PNP/PCI Configuration P50
4.7 Integrated Peripherals P52
4.8 Load Setup Defaults P54
4.9 Supervisor/User Password P54
4.10 IDE HDD Auto Detection P55
4.11 HDD Low Level Format P55
4.12 Save & Exit Setup P55
4.13 ExitWithout Saving P55
Chapter 5- SCSI BIOS Setup
5.1 When to Use the SCSI Select Utility P56
5.2 SCSI Select Utility option P57
5.3 Configure / View Host AdapterSettings Menu P57
5.4 SCSI Disk Utilities P64

1
CHAPTER1
Overview
Thank you for purchasing this P55TU SCSI Motherboard. This operation
manualwill guide you to proper configure and install. It has an overview of the
engineer design and feature of this board.Also, this manualprovidesuseful
information foryour later upgrade or change the configuration.Keep this, for
your futureneed.
1.1 Features
This P55TU SCSI Motherboard is a powerfulcombination of performance,
qua lity and innovative design to address the need of today’s ma rket. With current
Intel P54C, Cyrix 6x86,AMD 5k86 and next generation on Intel P55C with
MMX technology supported, 512K externalLevel 2 Pipelined Burst fast Write-
Back Cache,64 bit Burst Bus DRAM and AdaptecWide/Ultra Wide SCSI
(AHA-2940UW ), fully plug and play Super I/O, this SCSI Motherboard brings
exceptionalprocessing power that could only be achieved by Mini-computer.
Incorporatingthe new emerging industrial standard PeripheralComponent
interconnect (PCI) Local Bus together with the standard 16-bit Industrial
Standard Architecture (ISA), this SCSI Motherboard dramatically bootssystem
I/O through for even the most dema nding application in today’s market.
◼CPU:
CPU socket (socket 7) supports theflexibility of differenttype of current
and future Intel Pentium, AMD (5k86) and Cyrix (6x86) processor. One
easy jumperdesign, while choosing your CPU speed from 75 to 200MHz.
◼Cache memories:
High performance write back secondary cache.This supports Pipelined
Burst Cache512K on-board to achieve the highest performance.
◼BIOS:
Award BIOS, on-screen "Plug & Play" setup forAdaptecSCSI, Enhanced
IDE, andSuper multi-IO. Support Flash ROM ( This ROM provides
better upgradeability for user to updatetheirBIOS data on the system
board,user can down-load newer version BIOS from Internet,BBS or get
the diskette file from your vender.
◼Expansion slots:

2
5 X 16-bits ISA slots.
3 X 32-bits PCI slots for PCI compatible add-on cards.(PCI#2 is occupied
by the AdaptecSCSI, it is flexible for your choosewhile youinstall a prior
or minor controller on this PCI bus.)
◼Memories:
4 X 72-pin SIMM(Single In Line Memory Module)
Support up to 256MB (minimum of 8MB ) on board.for both the Fast
Page Mode and Extended Data Output(EDO) module with ECC support.
◼Ultra/ Ultra Wide SCSIinterface:
⚫Built in Adaptec PCI Ultra Wide SCSI ( AIC 7880chip ) which
is equilevent to Adaptec AHA-2940UW PCI SCSI controller.
⚫Data transfer rate up to 40MB/Sec.
⚫Complete software driver from Adaptec Inc., include EZ-SCSI
for
DOS/Windows, 7800 Family Set Driver forNetware, Windows NT ,
OS/2 , SCO Unix ,
Unixware.
◼IDE functions:
⚫Built in dualPCI Bus EIDE Channels.
⚫Support ATAPI (AT Attachment Packet Interface)
◼USB interface (Universal Serial Bus):
⚫Plug and Play peripherals outside the box
⚫Up to 12Mbit
⚫Easy of use
◼Floppy Interface:
⚫Support both 3 1/2"and 5 1/4" floppy disk drives and Tape Drive
(360K / 720K/ 1.2M / 1.44M / 2.88MB)
⚫Enabled/Disable selectable from system BIOS
⚫Non-Burst Mode DMA Option
⚫Byte Data FIFO
⚫ModeDriver (option)
◼Serial Port
⚫Two high speed 16550 UART serial port
⚫Address changeable form system BIOS
⚫Programmable Baud Rate Generator
◼Parallel Port:
IRQ selectable for IRQ5(278h), 7IRQ(378h) from system BIOS.
Standard mode--Compatiblewith IBM PC/AT Printer port

3
EPP Mode --Enhanced Parallel Port compatible(EPP) compatible
IEEE 1284
ECP Mode --Microsoft & Hewlett Packard Extended Capabilities Port
(ECP) Compatible
Incorporates Chip Protect Circuit for protection against damage due to
printer power-on
◼Others function:
Support both Fast Page DRAM or EDO DRAM SIMM.
Support Pentium CPU SMM (System Management Mode).
Using Embeded Battery in RTC (Real Time Clock) which provides
environmentalprotection and longer battery life.
1.2 Specifications
◼Physical Dimensions:
Length: 330mm / Width: 220mm
◼Environmental Requirements:
Temperature 0-55 degrees C (operating or storage)
5% to 95% non-condensingrelative humidity

4
CHAPTER2
Quick Installation
This SCSIMotherboard isshippedwith
manufacturepresetat:
1. CPU Clock at 100 MHz
2. Adaptec Ultra Wide SCSIChip Enabled
3. Wide SCSI Mode Enabled
4. SCSI Terminator Control by BIOS
5. 512K Pipeline Burst Cache on board
6. Printer ECPMode at DMA3
7. Printer at IRQ7, Address at 378h
8. Serial 1 at IRQ4, Serial 2 at IRQ3
9. PS/2 MOUSE at IRQ 12
Referenceto the Chapter 3 & Chapter 4, if you
havedevices conflictwith themanufacture default.
Step 1. Install CPU and Cooler
Makesure the Clock Frequency is set to thesameas theCPU
installed. (Choose the CPU speed by one jumperon JP10)

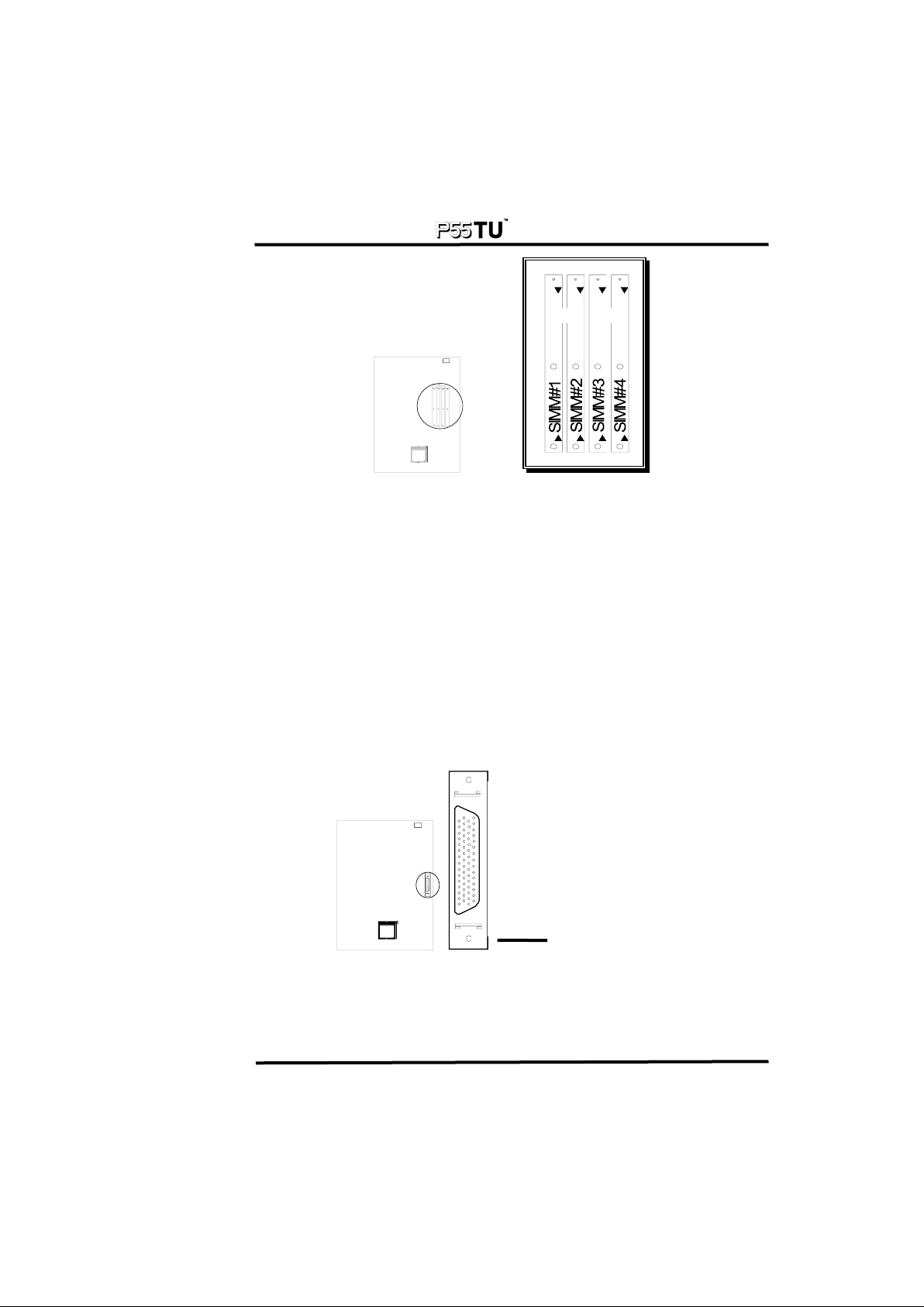

Step 2. Install the memory
Plug at least 2 PCS of 72 pins Micro Edge DRAM modules
to either Bank0or Bank1.
Step 3. Install display controller and connect I/O ports
This system boardis designed using PCI (Peripheral Component
Interconnect)and ISA (Industry Standard Architecture) interface
controller. This support +5Volt interface slots. All PCI interface
controllers must be PCI Rev 2.1 compliant.
Step 4. Connect the power supply
Connect P8 and P9 from power supply output.
Step 5. Power on the system
Turn on the Computerpower.

5
Step 6. Setting up the system
Enter the "Setup Menu" screen by press the " Del " key while
power on or warm reset the system.Always "LOAD SETUP
DEFAULT" at first and select others necessary that your
system require.
Step 7. Save the setup data to the CMOS
Exit the"Setup Menu " screen and then write to CMOS RAM.
And enjoy the high performance system board.
Step 8. After boot yoursystem O.S., insert the AdaptecEZ-SCSI
Installation diskette in a floppy disk drive and follow the EZ-
SCSI operation manualorreference to Adaptec 7800 Family
Set manualwhich will guide you to install theDOS/Windows,
Netware, Windows NT, OS/2 , SCO UNIX, Unixware.
CHAPTER3
Hardware Installation

6
3.1 Preparation and Inspection
The P55TU SCSI Motherboard,like all electronic equipment is static sensitive.
Please take the proper precautionswhen handlingthis board.You should avoid
static up. If possible, You should ground yourself by touchinga metaltable or
your computerframe.Keep the board in its conductive wrapping until it is
configured and ready to be installed in your system.
For installation, you may need some or all of the following tools:
‧SCSIHDD drive/devices manual(s).
‧IDE HDD drive/devices and floppy drive manual(s).
‧Peripherals that connect to your system's manual(s).
‧MS DOS diskettes with FDISKand FORMATprograms.
‧Medium size flat blade screwdriver.
‧Medium sized Phillips head screwdriver.
‧A 3/16 inch nut driver or wrench.
You should find the Following components whenopen thebox :
1. P55TU SCSI Motherboard.
2. This Operation Manual
3. Adaptecsoftware driver Diskette (EZ-SCSI).
4. Adaptec 7800 Family ManagerSet softwaredriver Diskettes.
5. AdaptecEZ-SCSI Manual.
6. Adaptec 7800 Family ManagerSet Manual.
7. 68 pins high density internal Wide SCSI signal flat cable
8. 50 pins internal SCSI signal flat cable.
9. 40 pins internal IDE signal cable.
10. 34 pins internal Floppy Disk Drive signal cable.
11. 10 pins IDC flat cableto 9 pins D-Sub maleRS-232 connector.
12. 26 pins IDC flat cableto 25 pins D-Sub femaleprinter signal flat
cable.
13. 10 pins IDC flat cableto 25 pins D-Sub male RS-232 connector.
14. 1 x 5 pins IDC flat cable to L-frame5 pins PS-2 mouseport.
15. Musical CPU Cooler.
16. External SCSI-2 port expansion kit (optional).
17. External Wide SCSI port expansionkit (optional).
18. High speed printer port software driver(optional).
19. 3 ModeDriver (option)

7
3.2 Placement
Placement & Connector
J3
1J1
P55TU Keyboard
PS2 mouse
ISA
Bank 0 Bank 1
CPU
FAN
Speaker Keylock
Reset SW
SCSI LED
IDELED
SMI SW
Turbo LED
1

8

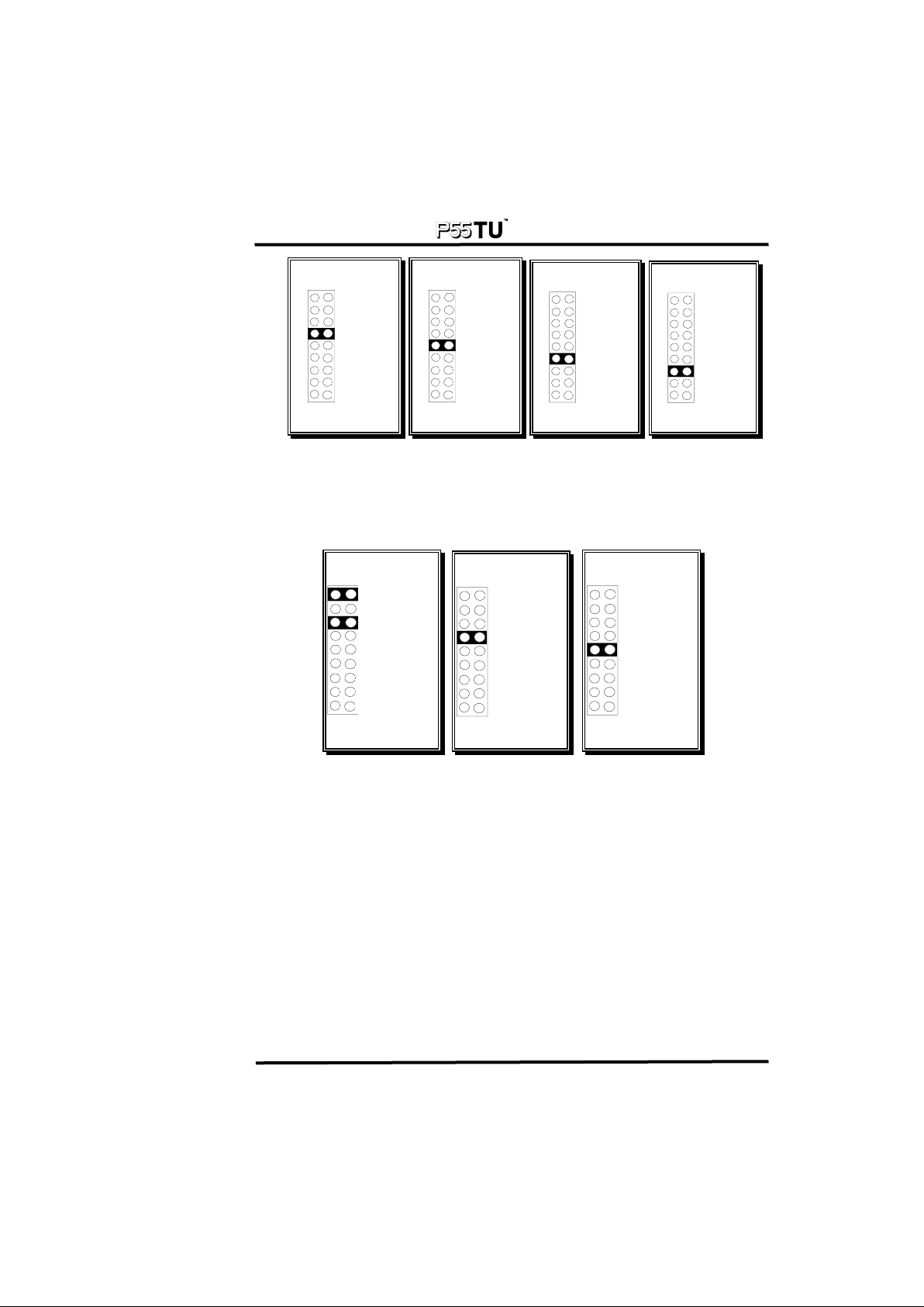

Jumper
J3
1
P55TU
12.50 V
2.70 V
2.83 V
3.38 V
3.52 V
75
90
100
120
133
150
166
180
200 MHz
JP5
JP11
JP12 1
JP7 1
JP3
1
JP2
JP1

9

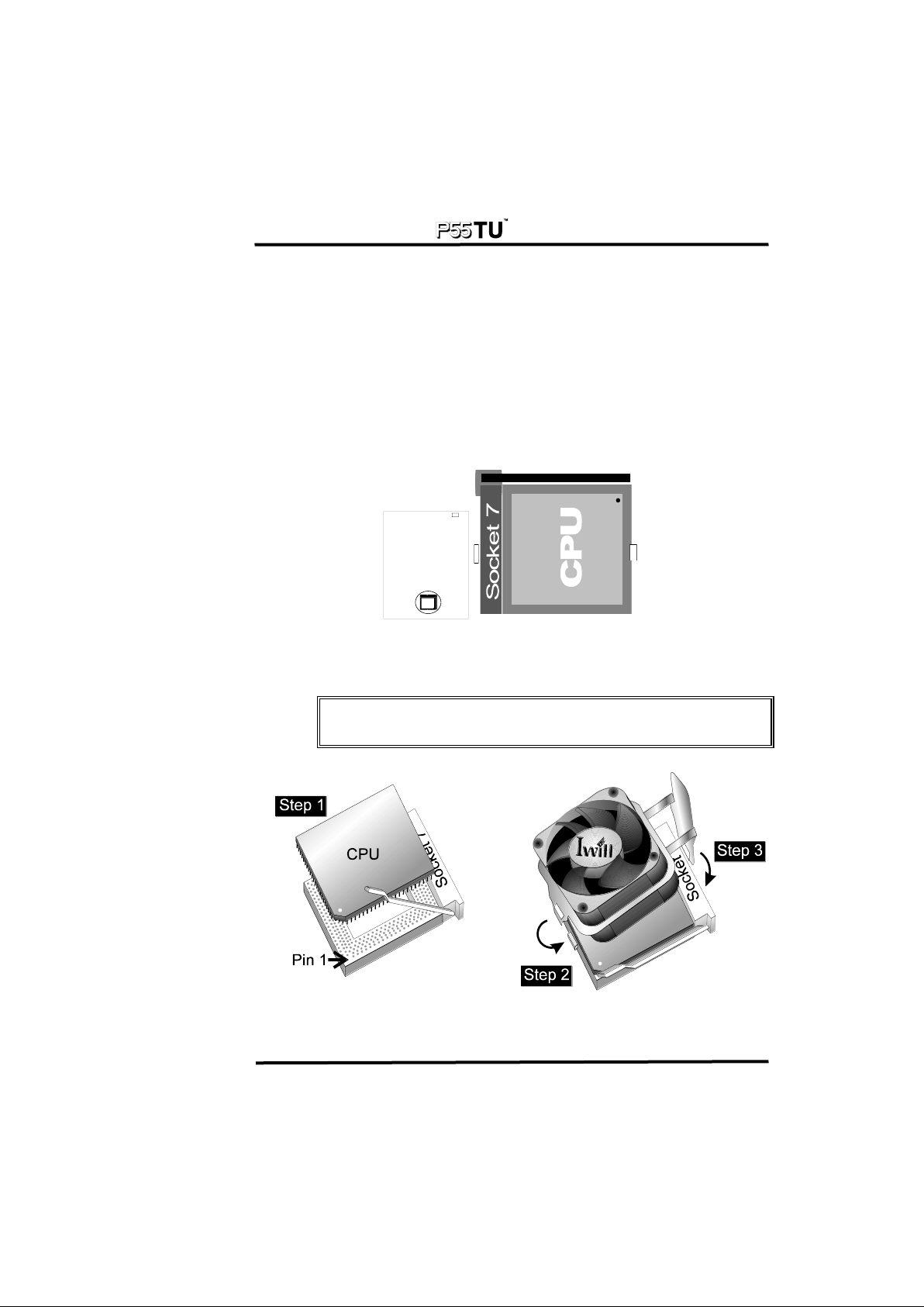

3.3 CPU group
3.3.1 CPU Socket
This CPU socket provides flexibility for Intel Pentium , Pentium
OverDrive, Pentium future processors, AMD (5k86) and Cyrix (6x86)
processor. When installing the CPU into the Zero Insertion Force ( ZIF )
socket should be very carefully. Lift thehandleof this 321 Pin ZIF socket
up carefully and insert the CPU into ZIF socket. And makesure the CPU
Pin 1 is with the square base andit goes to particular hole onthe ZIF
socket. Once you match the hole with Pin 1 then gently insert the CPU and
press socket handle down.
1
3.3.2 J22 CPU Cooler Fan PowerConnector
Warning !!! Warning !!! Warning !!!
CPU Cooler is required to be placed on top of the CPU
all the times to prevent CPU over-heat.
The CPU fan power connector is a 1 x 3 pin.

10
Pentium
pin #1
Soocket 7
J22
J22 Pin
+12V
GND
Control
3.3.3 CPU Clock Select
To set the correct CPU clock select forthe Intel Penitum basedCPU to
this motherboard.You need to set both the CPU External Clock Frequency
and the CPU to bus frequency ratio correctly. But this motherboard special
design with a one jumpermoveto set the CPU clock select and you only
need to place thejumpercap into the CPU clock that you desire. The JP10
is a 2 X 9 pin jumper,with one "colored" jumpercap on it. One and only
one jumpercap ( Expect when you use the Cyrix 120+ CPU ) need to put
on this connectorfor selecting theCPU clock. Simply place thecolored
yellow jumpercap to the speed of theCPU really is (the CPU
internal/externalclock ratio andISA clock will be automatically selected
by setup the JP10)
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 75MHz
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 90MHz
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 100MHz

11
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 120MHz
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 133MHz
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 150MHz
JP10
75
90
100
120
133
150
166
180
200 MHz
Intel 166MHz
If you are using Cyrix 6X86CPU, please be noted on Cyrix 6X86 120+
which is 100 MHz CPU. Both jumpers caps on 75 MHz and 100 MHz
need to be placed. To use other Cyrix CPU speed please refernce
following table.
JP10
75
90
100
120
133
150
166
180
200 MHz
Cyrix 120+
JP10
75
90
100
120
133
150
166
180
200 MHz
Cyrix 150+
JP10
75
90
100
120
133
150
166
180
200 MHz
Cyrix 166+
Cyrix 120+ (100MHz) Cyrix150+(120MHz) Cyrix166+(133MHz )

12

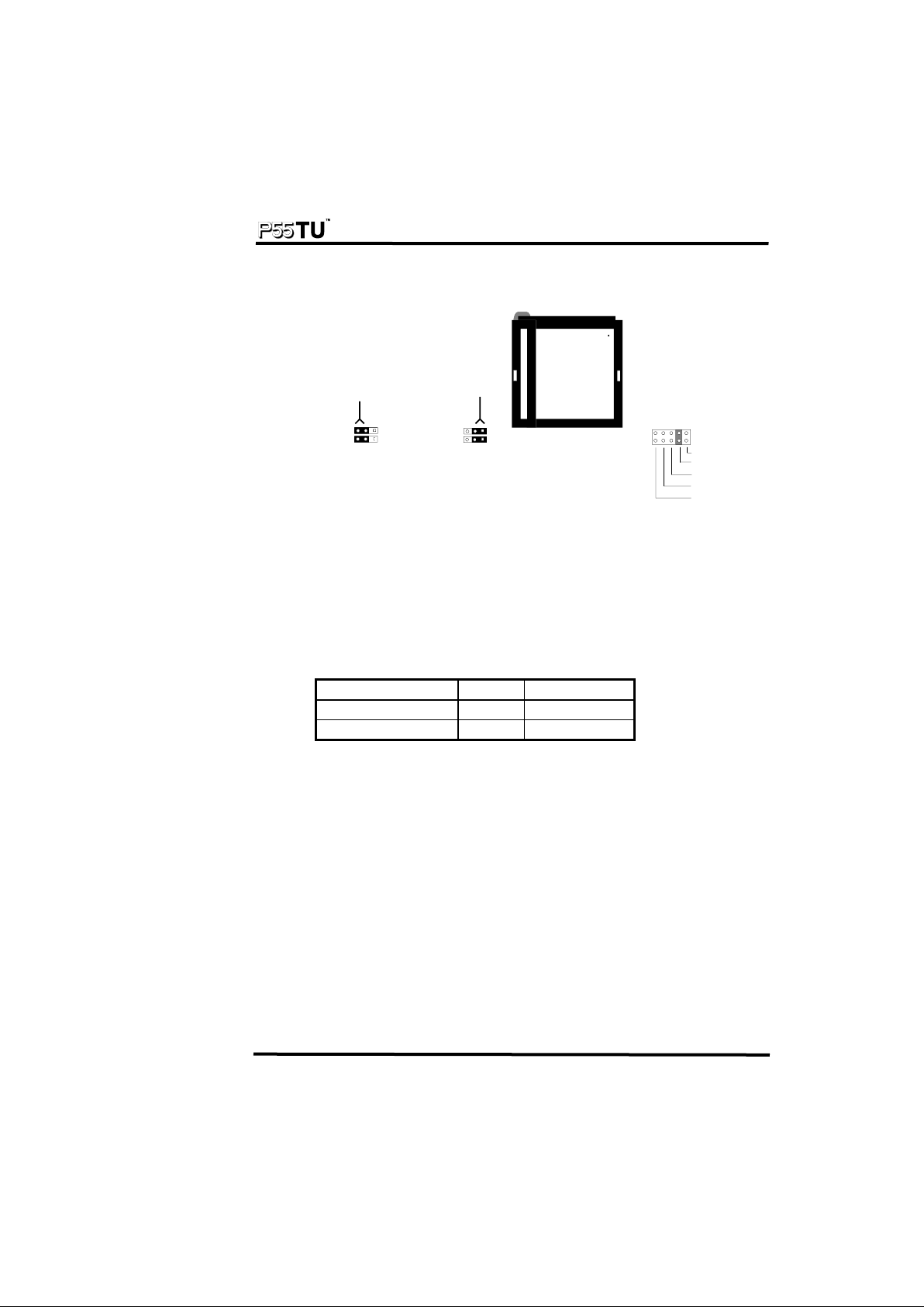

3.3.4 CPU Voltage Select (JP4)
The on-boardregulator provides different voltage selection for Intel P54C
Pentium and future P55C processor.
3.52V
3.38
2.83
2.70
2.50
JP4
JP7
P54C
JP7
1
P55C
or
1
(Default)
DifferentCPU require change the JP4 set to different voltage.
3.52V ( VRE ) is design when Cyrix CPU is installed
3.38V ( Default ) is forall the Intel P54C CPU
2.83V is reserve forthe Intel P55C
2.7V and2.5V is reserve for Cyrix M2 CPU
3.3.5 P54C/P55C Select (JP4)
CPU
JP4
Note
P54C/P54CS/P54CT
1-2, 1-2
*Default
P55C
2-3, 2-3
3.4 Cache Memory
The cache memory support for pipilined burst SRAM, this will perform at
least 10% fasterthan traditionalasynchronous SRAM. Manufacture default is
512K on-board.
3-5 D-RAM Configuration

13
Bank 0 Bank 1
The P55TU supports different type of system memory. No jumperneeded for this
function or configure. This mainboard separates four pieces of 72 pins
SIMM(Single In Line Memory Module) into two banks.
NOTE:
1
. P55TU supportsEDO DRAM.
2 . The 60 ns EDO DRAM is required.
3.6 SCSI Interface
3.6.1 J3 Ultra Wide SCSI Connector
J3 is a 68 pins 16 bit internal Ultra Wide SCSI connector.Itattachesthe
SCSI cable(s) from the P55TU SCSI controller to the SCSI peripherals.
The externalSCSI port expansion kit is a optionalfor your connecting
externaldevices. Be-sure the cable's colored side should align to pin #1 of
this connector.
Ultra SCSI Wide
3.6.2 J2 Ultra SCSI Connector

14
J2 is a 50 pins 8 bit internal Ultra SCSI connector.It attachestheSCSI
cable(s) from theP55TU SCSI controller to theSCSI peripherals. The
externalSCSI port expansionkitis a optionalfor your connecting external
devices. Be-sure the cable's colored side should align to pin #1 of this
connector.
1
2
49
50
3.6.3 Link Internal Ultra & Ultra Wide SCSI devices
The SCSI devices are cabled together in a single, connected series. This
SCSI cablemust run sequentially from one device to the next,with no
branches.
P55TU
Ultral SCSIdevices
Ultra Wide SCSIdevices
Host=ID7 50pin flat SCSIcable
Internal SCSI Connection
68pin flat SCSIcable
Note: The 50 pin SCSI is an 8 bit SCSI bus, the 68 pin SCSI is a 16 bit SCSI bus
which hasa pin-to- pin connected to the 50 pins SCSI connector.
Note: The SCSI termination must be onforthe both side. The beginer and end
must set the terminator on - otherwise the SCSI bus will not operate properly.
Forlinking both the 50 & 68 pin SCSI together, the High byte terminator must
set to on and Lowbyte set to off.

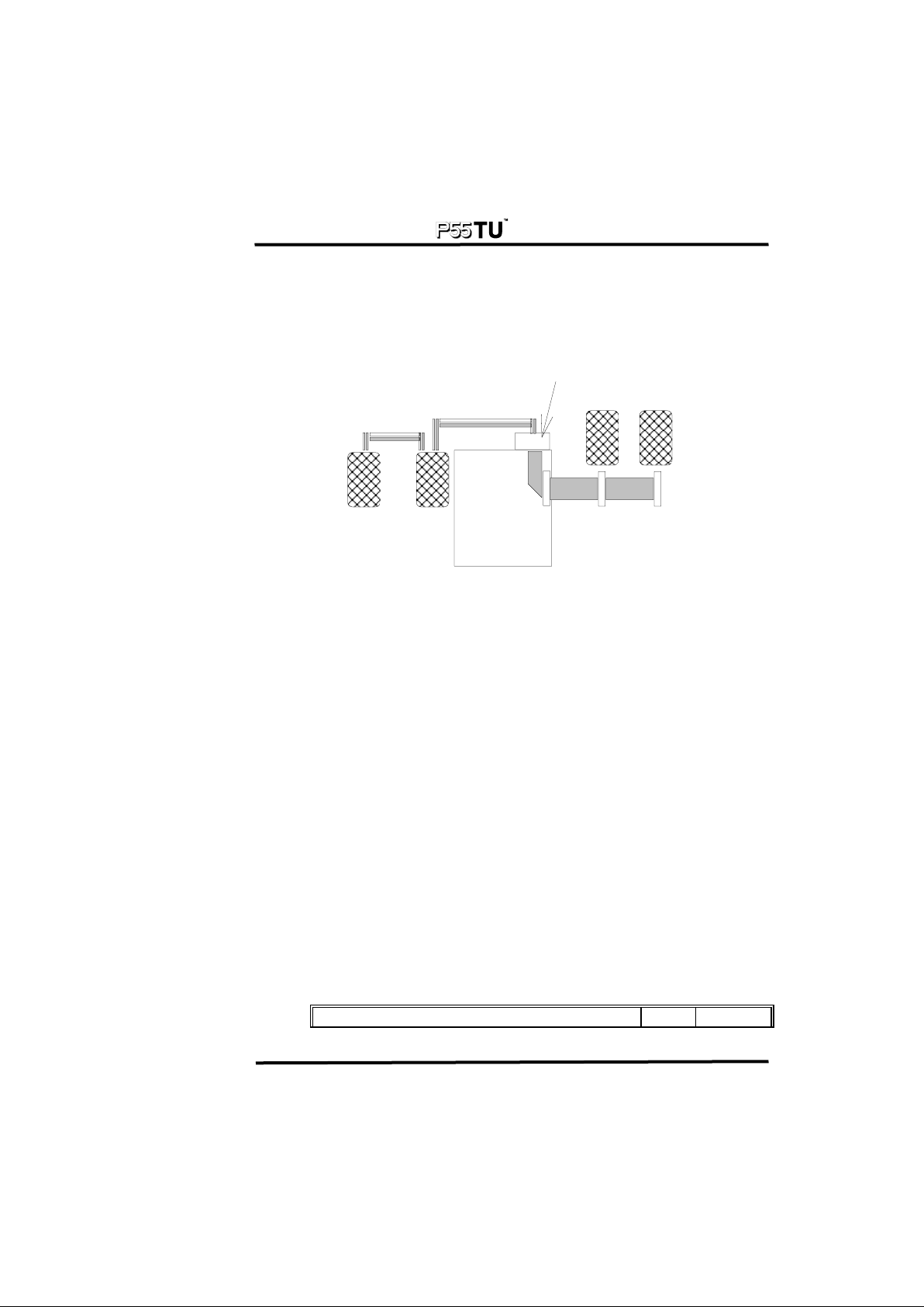

3.6.4 Link Internal & External SCSI devices

15
The concept of linking the internal andexternalSCSI devices is still the
same--- cabled together in a single, connected series. This SCSI cable
must run sequentially from one device to the next,with no branches.The
manufactureprovidestwo kinds of option --- Fast SCSI and Wide SCSI
external expansion kit for user’s multiple choices.
P55TU
Internal SCSIdevices
External SCSIdevices Host=ID7 Internalt SCSIcable
External SCSIexpansion kit
*SCSI-2 external expansion kit
The manufacture provides tw o kinds of SCSIexpansion kit
for user's choices.
*Wide SCSIexternal expansion kit
External SCSIcable
*Referenceto Chapter5. SCSI Select Utility for software setup.
3.6.3 Set SCSI IDs
You must assign a different SCSI ID to each device on the SCSI bus
connected to the P55TU system board. See yourSCSI device
documentation fordirections on how to determine theID and change it.
◼Ultra/ Ultra Wide SCSI devices that connect to this mainboard'sSCSI
connectorcan be assigned ID from 0 to 15(for 68 pin Wide SCSI
connection). Normally, the host will use ID7. Or reference to Chapter5 for
more information.
◼The SCSI ID0 is the best use for SCSI harddisk to be used asyour
computer'sbootdevice, ID1 is best reserved for a secondarySCSI hard
disk.(This is only when you use the SCSI hard disks and devices.)
3.6.4 SCSI Chip Select
JP3 is a 3 pin jumper connector.This is for SCSI Enabled/Dsiabled
control.
Function
JP3
Note

16
Enabled
1-2
*Default
Disabled
2-3
3.6.5 SCSI Terminator Control
JP1&JP2 are both 3 pin jumperconnectors. These are for Low/ High Byte
SCSI Terminator.
Function
JP1
Note
Low ByteSCSI TerminatorAlways On
1-2
Low ByteSCSI TerminatorAlways Off
off
Low Byte SCSI TerminatorControlled by BIOS
2-3
*Default
Function
JP2
Note
High Byte SCSI TerminatorAlways On
1-2
*Default
High Byte SCSI TerminatorAlways Off
Off
High Byte SCSI TerminatorControlled by BIOS
2-3
3.6.6 Wide SCSI Select
JP5 is a 2 pin jumper connector.This is for Wide SCSI function enabled.
Function
JP5
Note
Wide SCSI Enabled
On
*Default
Wide SCSI Disabled
Off
3.6.7 SCSI LED
J29 pin jumperconnector. This is for SCSI LED. Reference to Chaptor
3.9 for more detail.
3.7 AdaptecRAIDport option
3.7.1 SCSI RAIDPort
Turn this SCSI embedded Motherboard to be hardware assist RAID ready
by addingthe RAIDBUS 1000 or the Adaptec ARO 1130 adapter.
This RAID port option by adding the RAIDBUS 1000 adaptercan
support :
◼Bus MasterDMA
◼Up to 133 Mbyte/Sec Burst rate
◼RAID level :5,1,0 and 0/1
◼Fully Netware 3.11, 3.12, 4.x & WinNT 3.51 supported by Adaptec
The PCI solt #1uses the120 pin for PCI Local Bus with 60 pin RAID
Port option.
