IWILL KK266Plus User manual

1
KK266plus-R/KK266plusVersion1.0A
TableofContent
FB11351040000
Quick Installation .....................................................3
BeforeInstallation........................................................................3
Layout...........................................................................................4
ItemChecklist.......................................................................4
Jumpers/Connectors..................................................................5
Feature...................................................................10
MotherboardComponentsPlacement......................................10
Block Diagram..............................................................................12
Specifications..............................................................................13
HardwareSetup .....................................................15
Install theProcessor..................................................................15
Install MemoryModules..............................................................17
IWILL6ChannelsAudio/SuperAudio(Optional)..........................18
ATXPowerSupplyConnector....................................................21
Back Panel...................................................................................22

Chapter1QuickInstallation
2
BIOSSetup.............................................................23
BIOSSetup.................................................................................23
MainMenu...................................................................................25
StandardCMOSFeatures..........................................................25
AdvancedBIOSFeatures ...........................................................29
AdvancedChipsetFeatures........................................................32
IntegratedPeripherals...............................................................35
PowerManagementSetup..........................................................38
PnP/PCIConfigurations.............................................................43
PCHealthStatus.........................................................................45
IWILL SmartSetting....................................................................45
LoadFail SafeDefaults..............................................................47
LoadOptimizedDefaults............................................................47
SetSupervisor/UserPasswordSetting....................................48
Save&ExitSetup.......................................................................49
ExitWithoutSaving....................................................................49
OnboardAudio......................................................50
AudioFeatures............................................................................50
DriverInstallation.......................................................................52
TheAudioRack..........................................................................54

3
Chapter1QuickInstallation
QuickInstallation
BeforeInstallation
Forinstallation,you mayneed someorall ofthe following tools:
Mediumsizeflatblade screwdriver
MediumsizePhillipshead screwdriver
A3/16 inch nutdriverorwrench
Users must follow these guidelines to ensure the
motherboard is protected during installation.
1.Make sure your computer is powered-off whenever
working in with inside components
2.The motherboard, like all other electronic equipment,
is sensitive to static. Please take the proper precautions
when handling it. If possible, ground yourself by touching a
metal table or desk. keep the board in its conductive
wrapping until it is configured and ready to be installed in
your system.
3.Keep all magnets away from both your hard and floppy
disk drives, especially magnetic screwdrivers. Keep both
floppy and hard disks apart if disassembed.
4.Keep water and liquids away from your computer and its
components.

Chapter1QuickInstallation
4
[V]The motherboard
[V]Operation manual
[V]ATA100/66 IDEcable
[V]Floppycable
[V]PowerInstallerCD
[V]6-ChannelAudio(Bracket)
[V]Cablefor6ChannelsBracket.
Optional
[]USB riserkit
[]ThermalSensorforSystem
[] Infrared portcable
[]OptionalModule(SPDIFversion only)
[]IWILL SuperAudio(forSPDIF)
Layout
ItemChecklist

5
Chapter1QuickInstallation
Jumpers/Connectors
Clear CMOS
FSB 100MHz
(Default)
Normal(Default) Increase 5%
FSB 133MHz
Clear CMOS
FSB jumper
VIO
Normal (Default)
1
1
1
1
2
2
2
2
3
3
3
3
1 2 3
1
2
3
Increase 10%
1
2
3
Pin Assigment
1: 5V
2: NC
3: IRRX
4: GND
5: IRTX
12345
Infrared connector(IR)
Audio Jumper
IDE RAID Jumper
Enabled
(Default) Disabled
1
1
2
2
3
3
Enabled
(Default)
Disabled
1
1
2
2
3
3

Chapter1QuickInstallation
6
Faux
FCPU
System fan
Pin Assigment
1: GND
2: 12V
3: NC
Pin Assigment
1: GND
2: 12V
3: Sensor
1
1
1: GND
2
2
2 : 12V
3
3
3 : Sensor
PinAssigment
1: SMBUSCLK
2: NC
3: GND
4: SMBDATA
5: VCC
PinAssigment
1: 5VSB
2: GND
3: Control Pin
PinAssigment
1: 5VSB
2: GND
3: LAN_Wake
1
1
1
2
2
2
3
3
3
4
5
SMBUS Connector
Wake-ON-MODEM
Wake-ON-LAN

7
Chapter1QuickInstallation
PinAssigment
1: 5V 6: 5V
2: USBDT2- 7: USBDT3-
3: USBDT2+ 8: USBDT3+
4: GND 9: GND
5: GND 10: NC
PinAssigment
1:Left Channel
2: GND
3: GND
4: Right Channel
1
1
6
7
8
9
10
2
2
3
3
4
4
5
Internal USB Connector
Aux_IN / CD_IN Connector
Pin Assigment
1: +12v 2: NC
3: NC 4: SPDIFO
5: SPDIFI 6: GND
7: NC 8: SPGPIO
9: NC 10: NC
11: BASS 12: XREARR
13: GND 14: GND
15: CENTER 16: XREARL
1
6CH bracket
SPDIF
6
7
8
9
10
11
12
13
14
15
16 2
3
4
5
SPDIF & 6 Channel (Optional)

Chapter1QuickInstallation
8
PIN No. Definition PIN No Definition
1+3.3V 11 +3.3V
2+3.3V 12 -12V
3Ground 13 Ground
4+5V 14 Power Supply On
5 Ground 15 Ground
6+5V 16 Ground
7Ground 17 Ground
8Power Good 18 -5V
9+5V 19 +5V
10 +12V 20 +5V
ATXpowerconnector
1
11
10
20

9
Chapter1QuickInstallation
Function PIN NO. Definition
PWR_ON
(Power/Soft_Off) 1,13
ACPI(ACPI LED) 3,4 PIN 3:Anode
PIN 4:Cathode
ALED(IDE LED) 7,8 PIN 7:Anode
PIN 8:Cathode
RST(RESET) 11,12 PIN 11:RST
PIN 12:GND
PLED
(System PowerLED) 15,16,17 PIN 15:VCC
PIN 16:NC
PIN 17:GND
KL
(Keyborard Lock) 18,19 PIN 18:KL PIN 19:GND
SPKR(Speaker) 21,22,23,24
PIN 21:VCC
PIN 22:NC
PIN 23:NC
PIN 24:SPEAK
(BUZZ)
Frontpanel connector
13
1
12
24

10
Chapter2Feature
Features

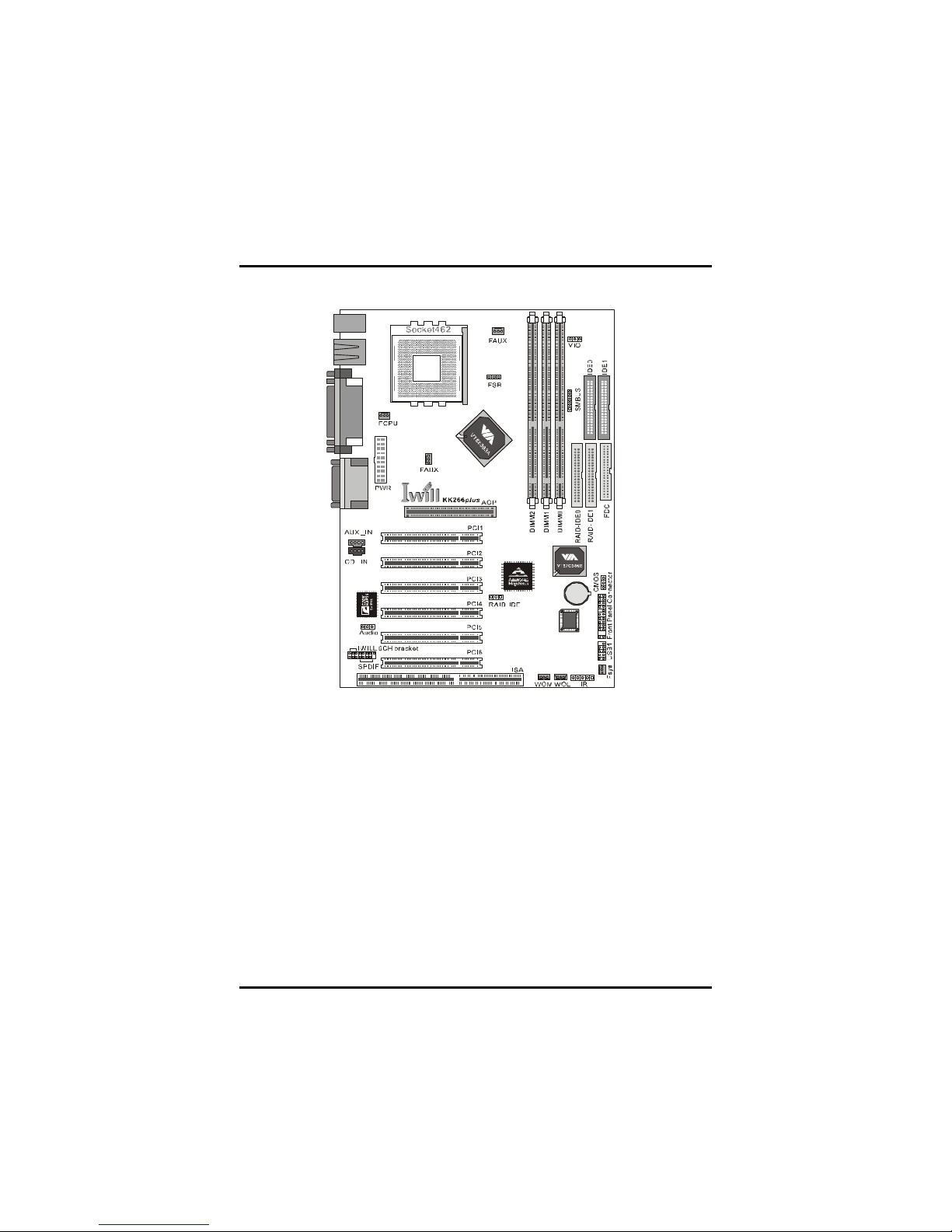

MotherboardComponentsPlacement
5
7
8
9
10
6
11
12
13
14
15
16
17
18
19
20
4
1
2
3

11
Chapter2Feature
[
NO. Description
1CPU Socket
2VIA VT8363 chipset
3DIMM sockets
4ATX Power connector
5IDE connector
6FDC connector
7IDE RAID Channels (KK266Plus-R only)
8VIA VT82C686B chipset
9AMI IDE RAID Chip (KK266Plus-R only)
10 FWH chipset for programmable BIOS
11 ISA slot
12 PCI slot
13 CMI 6 Channel sound chip
14 AGP slot
15 Joystick, Midi Line In / Out, Microphone In
16 COM2
17 COM1
18 Parallel Port
19 USB
20 PS2 Mouse / Keyboard

12
Chapter2Feature
BlockDiagram
AGP 4X
SDRAM
IDE Channel x 2
IDE RAID
Socket 462 CPU
Super I/O
VIA VT8363A Chipset
(North Bridge)
VIA VT82C686B
(South Bridge)
PCI x 6
6 Channel Sound
H/W Monitoring Serial Port x 2
Infrared Port
Parallel Port
FDC
USB Port 1&2
Internal USBx2
Keyboard & Mouse
SM Bus

13
Chapter2Feature
Specifications
Processor/(Socket462)
Supports1processors
SupportsDDR266MHzFSB (FrontSide Bus)
SupportsAMDDuron CPU from600MHzto950MHzand higher.
SupportsAMDAthlon CPU from700MHzto1.6GHzorhigher.
CPUFrequency/VoltageSelection
SupportsVcoreselectionfromBIOS
SupportsVIOselectionfromJumpers
SupportsCPU MultiplierselectionfromBIOS
SupportsCPU ExternalFrequencyselection fromBIOS
Memory
SupportsPC100/PC133SDRAM/VCM
SupportsUnbuffered DIMMs
Supports64M/128M/256M/512MSDRAMModule
Supportsup to1.5GBwhen using 256MBtechnologyDRAM.
Graphics
SupportsAGP4X/2Xmode
GeneralI/O
PCI2.2compliance
Supports32-bit/33MHzPCIinterface
SupportsATA33/ATA66/ATA100IDEinterface
SupportsFloppyinterface
Supports16550AUARTinterface
SupportsECP/EPPinterface
SupportsPS2interface
SupportsSIRinterface
SupportsUSBinterface
Soundsupport
SupportsCMI8738 H/W6Channel
SupportsSPDIF(throughIWILL SuperAudio)
SupportsGame/MIDIinterface
SupportsWin9X/WinNT/Win2000/Linux.

14
Chapter2Feature
Management
Supportsvoltage monitoring
Supportsfancontrolsignal(CPU/SYS)
Supportstemperaturesensor(CPU/SYS)
SupportsPoweronbyLAN/Ext.Modem/Int.Modem/RTC/PME
SupportsResumebyLAN/Ext.Modem/Int.Modem/PS2Keyboard/
PS2Mouse/RTC/PME
SupportsACPI
SupportsAPM
SupportsDMI
SupportsSMBUS
SupportsPnP
SupportsBIOSROMFlashControl
SupportsManuallyAssign PCIIRQ
Powerrequirement
OnboardDC/DC switching voltage regulatorsupportsVcoreup to46A
current
SupportsadjustableVIO(Normal/Increase5%/Increase10%)
Supports30A//usIcc slewrate
Supports3phasepowersolution
ExpansionSlot,SocketsandConnectors
One Socket462socket
Three DIMM sockets
One UniversalAGPslot
SIX32bit/33MHzBusMasterPCIslots
TwoIDEconnectors
TwoIDERAIDconnectors
One FDC connector
One ISA slot
One ExternalUSBx2connectors
One ATX20-pinpowerconnector

15
Chapter3HardwareSetup
HardwareSetup
The CPU should have a fan attached to prevent
overheating. If this is not the case, then purchase a fan
before you turn on your system.
Be sure that there is sufficient air circulation across the
processors heatsink by regularly checking that your
CPU fan is working. Without sufficient circulation, the
processor could overheat and damage both the
processor and the motherboard. You may install an
auxiliary fan, if necessary.

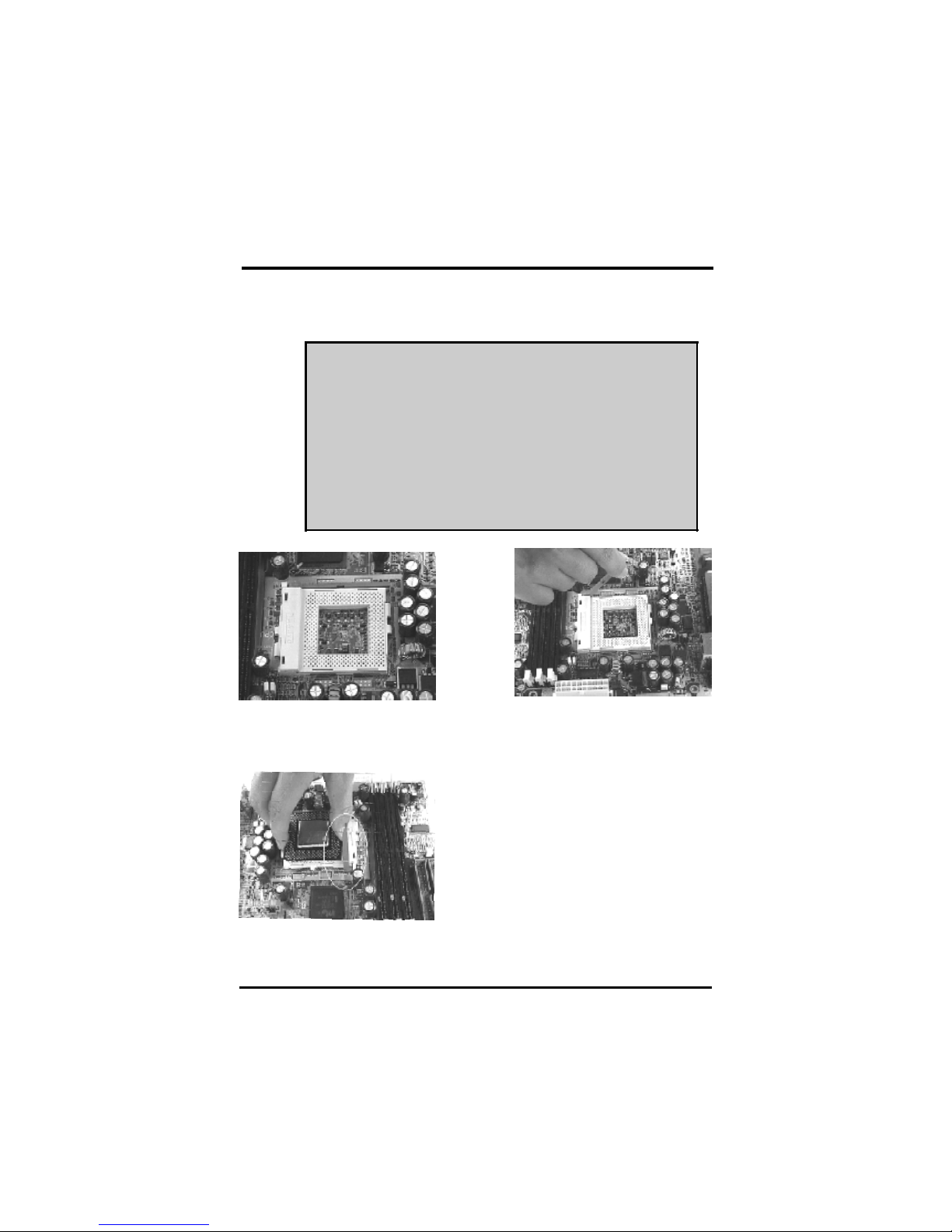

Install theProcessor
Step1:
Locatethe ZIFsocketand open it
by firstpulling the leverofsocket
upward.
Step2:
Insertthe CPU intothe socket.
Pleasekeep the leverrightangle
when inserting CPU.

16
Chapter2Feature
Step3:
When inserting the CPU Please
notethe correctorientation as
shown.The notched cornershould
pointtowardthe end ofthe lever.
Step4:
Pushthe leverdowntoclosethe
socket.

17
Chapter3HardwareSetup
Install MemoryModules
The motherboardhasthree Memorysocketsand supportsmemorysize
up to3GB.
Step1:Step2:
Open latchesofDIMM socket.Proofread the RAMmoduletothe
DIMM Socket.
Step3:Step4:
Insertthe RAMmoduleintothe DIMM
socket.
Press the latchesintothe notchesofthe
RAMmodule.

18
Chapter3HardwareSetup
IWILL6ChannelsAudio/SuperAudio(Optional)
ConnectorsandJumpers
JP5 Audio Extension (Digital I/O) Connector
JP7 CD-SPDIF IN
JP10 BASS/Center Select
Line-IN LINE-IN Connect to the audio output port of stereo
Mic-IN Connect to the Microphone (Mono)
Front- Speaker Output to speakers with the amplifier or earphones or AUDIO-IN of
home stereo
Rear-Speaker Connect to the rear speakers while four/six channel speakers mode
is enabled
Center/BASS Connect to the center speaker and BASS while six channel speakers
mode is enabled
GAME/MIDI Connect to Joystick or devices using MIDI interface
RCA SPDIF IN/OUT Connects to digital audio devices such as DAT and MiniDisc
recorders, via RCA input/output
Optical SPDIF IN/OUT Connects to digital audio devices such as DAT and MiniDisc
recorders, via optical input/output
JP10 function
exChange
(BASS/Center) Channel
1
2
3
4
5
6
Default
1
2
3
4
5
6
BASS channel
Center channel
BASS
Center channel
J10
Rear-Speaker
Center/BASS
Audio Cable
6Channels Audio
6CH-Audio
J5
1
2
3
4
5
6
J7
Front-Speaker
Line-IN
MIC-IN
Game/MIDI

19
Chapter3HardwareSetup
J10
Rear-Speaker
Center/BASS
RCA SPDIF IN
Optical SPDIF IN
RCA SPDIF OUT
Optical SPDIF OUT
SuperAudio(Optional)
Audio Cable
Front-Speaker
Line-IN
MIC-IN
Game/MIDI
SuperAudio
J5
1
2
3
4
5
6
J7
Please remove the cap
from the optical cable first

20
Chapter3HardwareSetup
IWILL 6ChannelsAudioIWILL SuperAudio(Optional)
