Thank you for choosing the IWILL DPX2-S320 high performance Server
motherboard. The DPX2-S320 is a dual Socket-604 motherboard (M/B)
based on the ATX form factor. As the latest Intel MCH E7501 with South
Bridge ICH3; PCI-X Bridge P64H2 is built in the M/B, DPX2-S320 fully
supports Intel®Prestonia socket 604 processor at 400/533 MHz FSB (Front
Side Bus) frequency. In memory support, DPX2-S320 provides six DIMMs for
the system memory. Users just simply choose PC1600/PC2100
(DDR200/DDR266), registered with ECC DIMMs as the system memory and
the total maximum memory size can be up to 12GB. Flexibility and
expandability are always concerned by IWILL, DPX2-S320 contains one
PCI-X 64bit/133 or 66 MHz slot, two PCI-X 64bit/100MHz slots; three
PCI-32bit/33Mhz slots、for numerous add-on cards and provides Peer PCI
transaction support to increase system performance.
Other features such as onboard Adaptec AIC-7902 dual channel Ultra 320
SCSI interface、dual Intel®(82540EM) Gigabit Ethernet controllersand
onboard Ati RageXL video controller with 8MB memory will provide high
system capabilities that meet a wide range of demanding Sever applications.
Unpacking
Remove all items from the box and make sure you have these following
items:
? ? One IWILL DPX2-S320 motherboard
? ? One Floppy ribbon cable
? ? One ATA /100 IDE ribbon cable
? ? One 68-pin (female) SCSI cable
? ? One bag of spare jumpers
? ? One CD containing drivers and utilities
? ? One DPX2-S320 User’s Guide
If you discover damaged or missing items, please contact your retailer.

iv
Overview
Overview
Features Highlight
CPU
I. Support dual Intel®Xeon Socket 604 CPUs
at 400/533 MHz Host Bus Interface
VRM Support
I. Integrated VRM complies to spec 9.1
Chipset
I. Use the latest Intel®MCH E7501 with South
Bridge ICH3 chipset in the DPX2-S320 M/B.
System
Memory
Support
I. DPX2-S320 provides six memory DIMMs
and supported total system memory size can
up to 16GB.
II. A user just chooses specific
PC1600/PC2000 (DDR 200/266), registered
with ECC DIMMs and DIMMs support up to
12GB technology that will allow up to
128/256/512/1024 Mbyte per two row
(Double sided DIMM) as the system
memory.
VGA
I. ATIRageXL video controller with 8MB
memorynot upgradeable.
SCSI
I. AdaptecAIC-7902W Ultra 320 SCSI
supports dual channels for bandwidth up to
320MB/s.
Ethernet
I. Dual Intel®(82540EM) Gigabit/10/100
Ethernet controllerson board.
II. A user can achieve advanced manageability
of the Alert on LAN II Specification by using
this Intel® 82540EMchip.
Expansion
Slots
I. One PCI-X 64bit/66 or 133Mhz slot.
(Depends on the number of add-on card
insert in PCI-X 100MHz slot.
II. Two PCI-X 64bit/100MHz slots;
III. Three PCI-32bit/33MHz slots;
IV. The advantage from 64-bit/66MHz PCI

v
Overview
Overview
technology is the theoretical bandwidth can
be up to 528MB/s.
Super Multi-I/O
I. NS super I/O (PC87360)
II. One serial ports with UART 16550
III. Dual onboard USB v1.1 connectors; One
extendable USB header
IV. PS/2 mouse and keyboard connectors with
Wake-up function
Intelligent
Platform
Manage
Interface
I. Hardware Monitor by ADM1026
II. AMC connector for BMC module
III. Hardware monitor of CPU Thermal Protect,
CPU/System Fan monitor, Voltage Report,
Chassis Intrusion
Enhanced
ACPI
I. Fully implements the ACPI standard for
FreeBSD /RedHat /Windows 2000
compatibility, and supports soft off.
System
Management
I. Redundant power supply controller ready
II. Alert on LAN ready
III. Remote system controller ready
Desktop
Management
Interface (DMI)
I. Supports DMI through BIOS, which allows
hardware to communicate within a standard
protocol creating a higher level of
compatibility.
PC99
Compliant
I. The DPX2-S320 is fully compliant with the
Microsoft PC99 specification at both the
hardware and BIOS levels.
Dimension
I. SSI form factor-12’x13”

vi
Overview
Overview
About This User Guide
This manual explains how to build your system with DPX2-S320 in detail.
Please follow the procedures of this User Manual carefully and pay special
attention to these icons.
IMPORTANT
This icon informs you for particularly important
details regarding the setup or maintenance of
your system. While we point out the most vital
paragraphs in a chapter, you should always
read every word carefully. Failing to do so can
cause exasperation.
WARNING
This icon alerted you for potential dangers
during setting up your system with DPX2-S320.
These warnings should not be regarded as the
whole of your safety regimen. Never forget that
computer are electronic devices and are
capable of delivering a shock. Prevent damage
to yourself and to your board: always ensure
that your system is turned off and unplugged
the power cords whenever you are working with
it, and that you are equipped
NOTE
This icon alerted you for notice during setting
up your system. It provides you can useful alert
during setting up a new system.
TIP
This icon will show you how to configure your
system with DPX2-S320 in an easy and simple
ways. This icon always provides some useful
description to help you configure your system.

vii
Overview
Overview
Getting Help
If a problem arises with yours system during installation or OS operating, you
should ask your dealer for help first as your system has most likely be
configured by them. They always have the best idea and quick response for
your symptoms. If your dealer is near to your locations, you should bring your
system to them to have it quickly serviced instead of attempting to solve the
problem by yourself. Besides these, IWILL also provides some helpful
resources to help you.
1. Select IWILL’s website at www.iwill.net and navigate to this product page
which contain links to product updates such as Jumper settings or BIOS
updates.
2. FAQ sections on IWILL Website are often helpful since other user’s
questions are often your own.
3. Email us at: [email protected] and we will try to answer your questions
within 24 hours. Before you email your symptom to [email protected]
please fill in the symptom report in order to let our engineers solve your
problem quickly.

viii
Overview
Overview

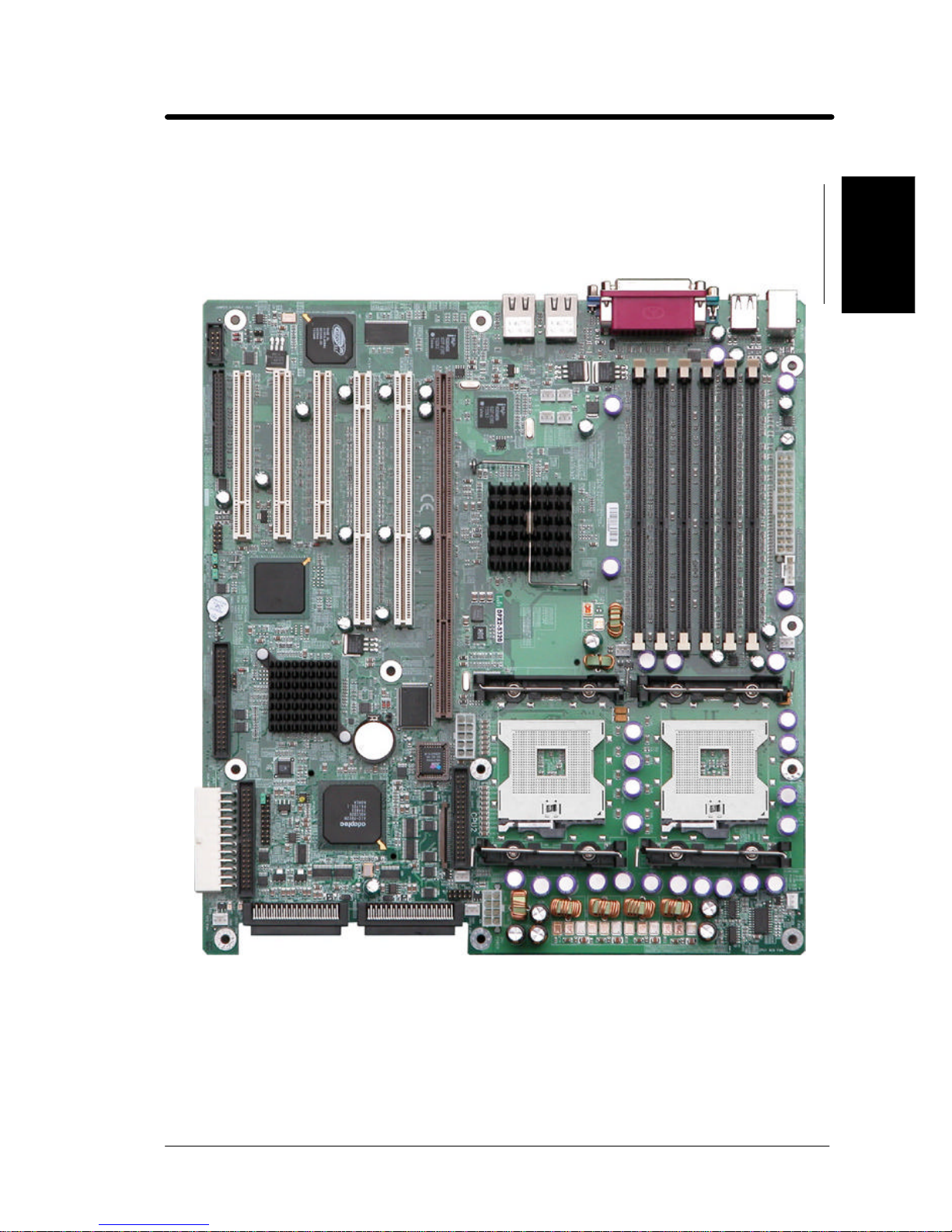

DPX2-S320 Motherboard (Picture)

ix
Overview
Overview
DPX2-S320 Motherboard (Layout)

x
Overview
Overview
This page left intentionally blank for notes

1
2
BIOS
Chapter 1
Hardware Installation
In this chapter, the installation of the DPX2-S320 with the processor and other
hardware connected to your system will be explained in detail.
Installation Procedures
Installation procedures will be broken up into six major parts.
Step 1:Jumper setting
Step 2: Install memory (DDRAM modules)

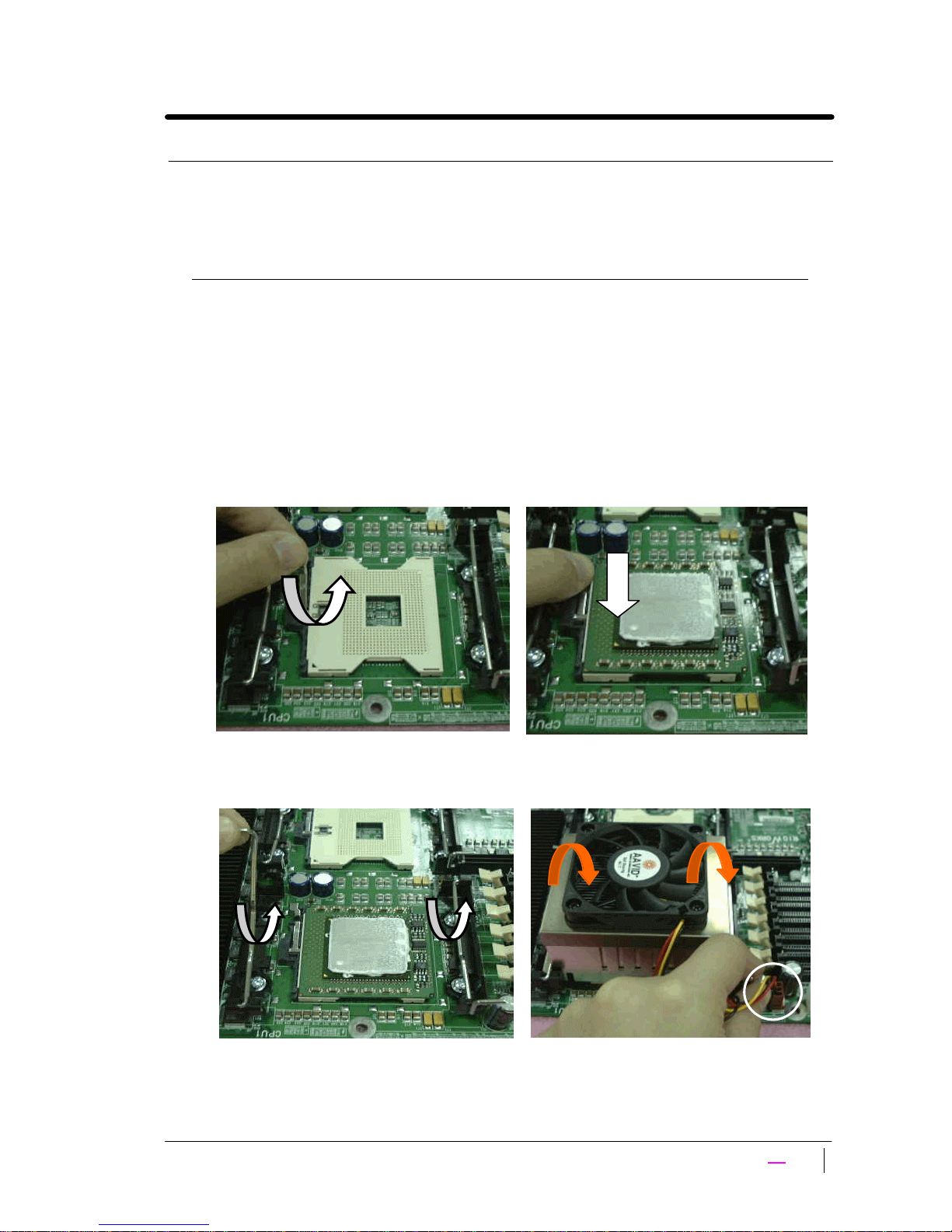

Step 3: Install Prestonia CPU
Step 4: Attach cables to connectors
Step 5: Install expansion cards
Step 6: Power connection
Warning
This motherboard contains sensitive electronic components that can be
easily damaged by static electricity. Follow the instructions carefully to
ensure correct installation and to avoid static damage.

2
2
BIOS
Step 1. Jumper Setting

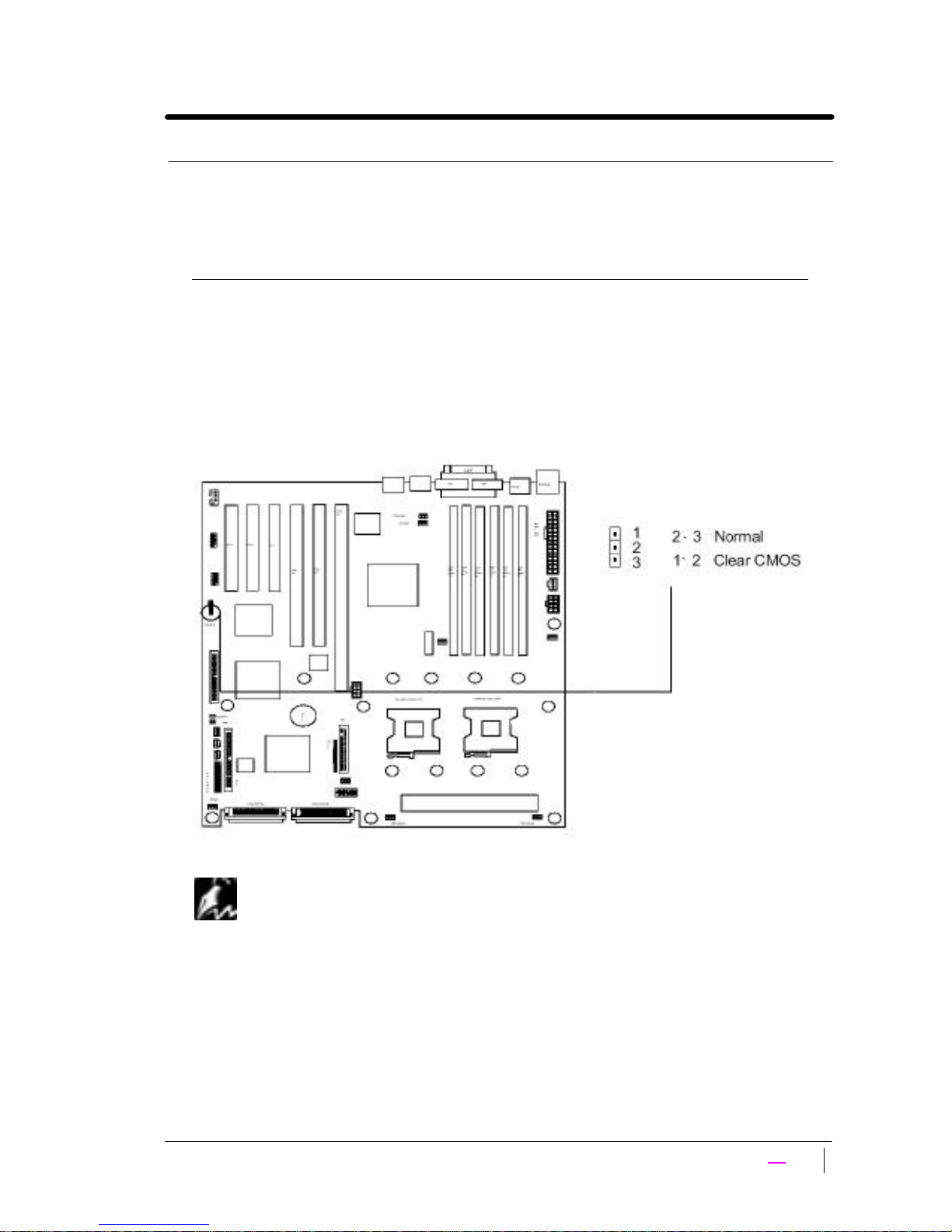

1. Clear COMS Header
The onboard button cell battery powers the CMOS RAM. It contains all the
BIOS setup information. Normally, it is necessary to keep the jumper
connected to pin2 and pin3 (Default) to retain the RTC data as shown below.
Note
Should you want to clear the RTC data:
(1) Soft off your computer
(2) Short pin1 and pin2 with jumper for few seconds
(3) Connect pin2 and pin3 with jumper
(4) Turn on your computer by pressing the power-on button from front-panel.

3
2
BIOS
(5) Hold down <Delete> during bootup and select <Load Optimal Defaults> or
<Load Failsafe Defaults> option in the selection “Exit”. Then re-enter
BIOS setup to re-enter user preferences.

4
2
BIOS
Step 2 Install Memory
DPX2-S320 uses Dual Inline Memory Modules (DIMM). Six DIMM sockets
are available for 2.5 Volts (power level), PC1600 (DDR200) and PC2100
(DDR266), Double Data Rate Memory (DDR) with 128MB, 256MB, 512MB,
and 1GB combinations. And the total memory size is between 128MB and
12GB.
IMPORTANT
II. As DPX2-S320 has strict memory type and timing
requirements. Hence, before you attend to buy the DDR DIMM
(Double Data Rate) and use in the DPX2-S320, please consult
your local reseller for memory suggestion first.
III. DPX2-S320 only supports PC1600 (DDR200) or PC2100
(DDR266) compliant at 100/133 MHz DDR modules.
IV. Since the DPX2-S320 memory bus is synchronized to front
side bus (FSB) speed, it is not allows a user to use PC200
DIMM with 100 MHz FSB CPU in the DPX2-S320. Otherwise
system may not able to bootup. When a user usesPC1600
(DDR200) DIMM with 100 FSB CPU, it will result in 100MHz
memory speed operation.
Memory Installation Procedures
1. Locate the DIMM modules on the DPX2-S320.
2. Make sure the DIMM module’s pins face down and match the socket’s
size as depicted below.

5
2
BIOS
3. Insert the module down to the DIMM socket in with both hands and press
down firmly until the DIMM module is securely in place.(The tabs of the
socket will close-up to hold the DIMM in place when the DIMM touches
80 Pins104 Pins

6
2
BIOS
the socket’s bottom.)
4.Repeat step1 to step 3 to add additional DIMM modules.
IMPORTANT
You have to insert two memory DIMMs in #DDR-A1 and #DDR-B1 or
#DDR-A2 and #DDR-B2 or #DDR-A3 and #DDR-B3 DIMMs sockets (slots or
connectors) while you install the system at the first time that you want to use
it ; such as the system will be able to boot up, otherwise, it can not work yet.
DDR-A1
DDR-B1
DDR-A2
DDR-B2
DDR-A3
DDR-B3

7
2
BIOS
Step 3 Install CPU
DPX2-S320 provides Intel®Xeon Socket 604 processor at 400/533 MHz FSB
CPU Installation Procedures
1. Lift up the socket lever and carefully place the Socket 604 CPU with the
correct orientation as the figures are shown below
2. Mount the CPU heatsink with exproxy and secure it with the lock as the
figures are shown below.
3. Plug the 3-wire fan power core into the connector named CPI1 FAN
4. Repeat to install the other CPU

8
2
BIOS
Ye
llo
w-
col
or
Wi
re
Re
d-
col
or
Wi
re
Bl
ac
k-
col
or
Wi
re

9
2
BIOS
Step 4. Attach Cable to Connectors
This step explains where each connector isinserted on the DPX2-S320.
There will be a DPX2-S320 layout picture following each explanation
indicating where the connector is inserted. The motherboard connectors are:

10
2
BIOS
Item
Connectors Page
1ATX Power Supply 1-12
2Floppy Disk Drive Connector 1-13
3Primary IDE Connectors 1-14
4Reset Switch 1-15
5SCSI Hard disk Card Activity LED 1-15
6Hard Disk Activity LED 1-15
7Speaker Connector 1-16
8ATX Power Switch / Soft Power Switch 1-16
9System Power LED 1-16
10 Front, Back, CPU and Aux Fan Connectors 1-16
11 Wake-On-LAN 1-17
12 PS/2 Mouse Connector 1-18
13 PS/2 Keyboard Connector 1-18
14 Universal Serial BUS Ports 0 &1、1 & 2 1-18
15 Parallel Printer Connector 1-19
16 Onboard LAN Port 1-19
17 Serial Port COM1/2 Connectors1-19
18 Chassis Intrusion Sensor Connector 1-20
19 System Thermal Sensor Connector 1-20
20 IPMB Connector 1-21
21 Adaptec 7899W SCSI Channels 1-22
22 System health Header 1-23
