IWILL piils User manual

1

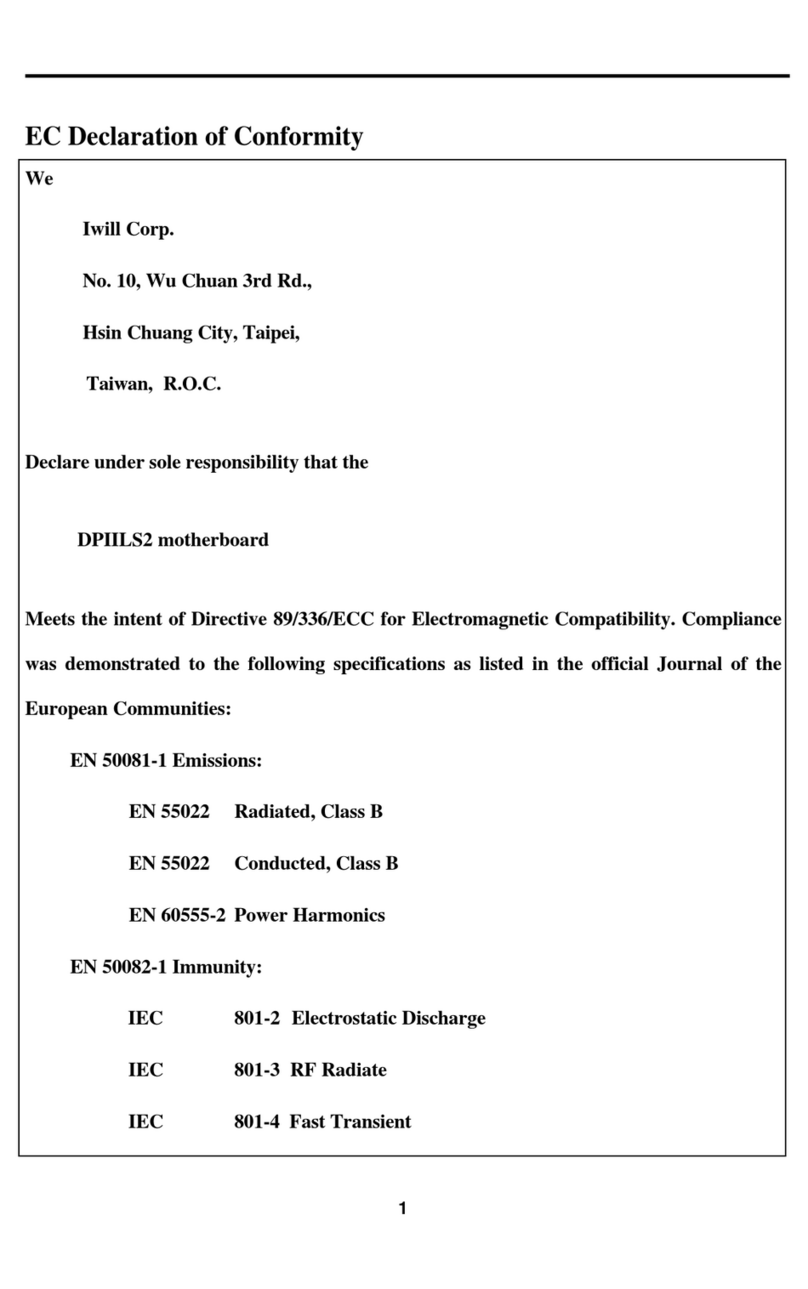

EC Declaration of Conformity
We
Iwill Corp.
No. 10, Wu Chuan 3rd Rd.,
Hsin Chuang City, Taipei,
Taiwan, R.O.C.
Declare under sole responsibility that the
PIILS motherboard
Meets the intent of Directive 89/336/ECC for Electromagnetic Compatibility. Compliance
was demonstrated to the following specifications as listed in the official Journal of the
European Communities:
EN 50081-1 Emissions:
EN 55022 Radiated, Class B
EN 55022 Conducted, Class B
EN 60555-2 Power Harmonics
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiate
IEC 801-4 Fast Transient

2
About This Manual
This manual will introduce to the user how this product is consisted. All useful information will
be described in later chapters. Keep this manual for your future upgrade or system re-
configuration.
Chapter 0 Overview
The features and specifications of this motherboard
Chapter 1 Quick Installation
The quick reference for experienced users
Chapter 2 Hardware Installation
The detailed information on jumper setting, connection, and hardware installation
Chapter 3 System BIOS Setup
The detail information of the system BIOS setup options
Chapter 4 SCSI BIOS Setup
The detail information of the SCSI BIOS setup options
Copyright
This manual contains information protected by copyright law. All rights are reserved. No any part
of this document may be used or reproduced in any forms or by any means, or stored in a database
or retrieval system without prior written permission from Iwill Corp.
This manual is subject to change without notice.
Trademark
Intel / Pentium are trademarks of Intel Corporation.
IWILL and IWILL logo are trademarks of IWILL Corp.
Sound Blaster is a registered trademark of Creative Technology Ltd.
Sound Blaster-LINK and SB-LINK are trademarks of Creative Technology Ltd.
And all other product names are trademarks and registered trademarks of their respective owners.
Warning
Most of the features of this product have passed strict verification and are subject to change at any
time without notice. If any malfunction occurs due to the future technical changes made by the
respective component manufacturers, Iwill assumes no responsibility or liability for it.

3
Content
CHAPTER 0.........................................................................................................................5
OVERVIEW.........................................................................................................................5
0.1 FEATURES ........................................................................................................6
0.2 ENVIRONMENT REQUIREMENTS ........................................................................8
0.3 MOTHERBOARD COMPONENTS PLACEMENT ......................................................9
0.4 BACK PANEL CONNECTORS.............................................................................11
0.5 FORM FACTOR................................................................................................12
CHAPTER 1.......................................................................................................................13
QUICK INSTALLATION.................................................................................................13
CHAPTER 2.......................................................................................................................16
HARDWARE INSTALLATION........................................................................................16
2.1 PREPARATION AND INSPECTION.......................................................................16
2.2 UNPACK THE PIILS.........................................................................................16
2.3 INSTALLATION PROCEDURES............................................................................17
CHAPTER 3.......................................................................................................................26
SYSTEM BIOS SETUP .....................................................................................................26
3.1 INTRODUCTION...............................................................................................26
3.2 MAIN MENU...................................................................................................28
3.3 STANDARD CMOS SETUP.........................................................................28
3.4 BIOS FEATURES SETUP.............................................................................32
3.5 CHIPSET FEATURES SETUP......................................................................36
3.6 POWER MANEGEMENT SETUP................................................................40
3.7 PNP/ PCI CONFIGURATION .......................................................................43
3.8 INTEGRATED PERIPHERALS....................................................................45
3.9 LOAD SETUP DEFAULTS...........................................................................48
3.10 SUPERVISOR / USER PASSWORD SETTING ..........................................48
3.11 IDE HDD AUTODETECTION....................................................................48
3.12 SAVE & EXIT SETUP ................................................................................49
3.13 EXIT WITHOUT SAVING..........................................................................49

4
CHAPTER 4.......................................................................................................................50
SCSI BIOS SETUP ............................................................................................................50
4.1 INTRODUCTION...............................................................................................50
4.2 CONFIGURE/VIEW HOST ADAPTER SETTINGS ..................................................50
4.3 SCSI DISK UTILITIES......................................................................................55

5
Chapter 0
Overview
Thank you for purchasing Iwill PIILS motherboard This operation manual will instruct you how
to configure and install the system properly. It contains an overview about the engineering design
and features of this product. Also, this manual provides useful information for later on upgrade or
configuration change. Keep this for your future need.
YEAR 2000 issue
The IBM compatible PC utilizes a Motorola MC146818 compatible Real-Time Clock (RTC) chip
to maintain the date and time. Unfortunately, the “century”is not manipulated by the RTC. It uses
8-bit of information to report the year and can only hold the last two digits of a year in packed
BCD format. So 1997 is reported solely as 97. Since the RTC also contains non-volatile memory,
IBM specified a location in the memory to hold “century”information. By combining the century
data with the year data, software can obtain a full 4-digit year. When the Year 2000 occurs, the
RTC reports the year as ’00’and the “century”in RTC memory will contain ’19.’Combining the
full 4-digit year yields 1900, not 2000. Any applications which compares dates, or uses relative
dates to perform functions will see an incorrect dates.
Motherboards contain BIOS, which is one of the key ingredients to check for systems designed to
handle the year 2000. All motherboards currently shipped from Iwill contain BIOS capable
of handling the year 2000 date correctly. The BIOS contains a feature that checks the least two
significant digits of the year stored in the RTC during each BIOS request (INT 1Ah) to read the
date and, if less than `80', updates the century byte to `20'. This feature enables operating systems
and applications using the BIOS date/time services to reliably manipulate the year as a four-digit
value.
Be aware that the BIOS capability alone does not ensure that the system will handle the transition
correctly. Other system components such as the operating system and application software also
need to be able to handle the year 2000 date and recognize the date format from other pieces.

6
0.1 Features
0.1.1 Processor
Single Pentium® II processor support
Supports 66 MHz bus speed
Supports all published Pentium® II processor voltages
S.E.C. (Single Edge Contact) cartridge Slot 1 connector
Easy-jumper to set the processor speed from 233 MHz to 333 MHz
0.1.2 Core Logic
Intel 82443LX PCI/A.G.P. controller (PAC)
Integrated DRAM controller
Integrated PCI bus mastering controller
Integrated Accelerated Graphics Port (A.G.P.) bus controller
Intel 82371AB PCI/ISA/IDE Xcelerator (PIIX4)
Multifunction PCI-to-ISA bridge (PCI Rev 2.1 compliant)
Integrated IDE controller with Ultra DMA/33 support
USB host interface with support for two USB ports
Enhanced DMA controller and standard Interrupt controller and Timer function
Support system Management Bus (SMB)
0.1.3 Main Memory
Four 168-pin DIMM (Dual In Line Memory Module) sockets
Supports up to 512 MB of 3.3 V Unbuffered Synchronous DRAM (SDRAM)
Supports up to 1 GB of 3.3 V Extended Data Out (EDO) memory
64-bit data interface with ECC support
0.1.4 SCSI Subsystem
Adaptec AIC-7880 PCI Bus Master SCSI Host Adapter
Providing up to 40 MB/sec sustained throughput per channel
Supports burst data transfer on the PCI bus up to 133 MB/sec
Providing one Ultra Wide 68-pin connectors and one 50-pin connector
Adaptec RAIDport interface supported

7
0.1.5 Multi I/O
ALI M5135 super I/O controller
Supports two floppy disk drives (include 3 Mode drive) and/or QIC-80 tape drive
Supports one multi-mode parallel port
Supports two high speed 16550 FIFO serial ports
Integrated keyboard controller
Integrated PS/2 mouse controller
0.1.6 Expansion slots
Three ISA slot
Three PCI slot
One shared ISA/PCI slot
One A.G.P. slot
0.1.7 Form Factor
Compliance with ATX Version 2.01 specification
Supports ATX power supply connector
Supports the remote on/off switch
Physical dimensions: length: 245 mm / width: 305 mm
0.1.8 Manageability
Optional Hottek HT82H791 System Hardware Monitor
0.1.9 Other features
Award BIOS
Using Flash ROM to provide on-board-upgrade ability without changing components
Plug and Play compatible
Supports Advanced Power Management (APM)
Supports Creative SB-LINK to deliver Sound Blaster 16 compatibility

8
0.2 Environment Requirements
Temperature 0-55 degrees C (operating or storage)
5% to 95% non-condensing relative humidity
At least a 250 W power supply
The power supply must comply with the following recommendations found in the spec.:
The potential relation between 3.3 VDC and +5 VDC power rails
The current capability of the +5VSB line
All timing parameters

9
0.3 Motherboard Components Placement
The following figure shows the location of the motherboard components.
PCIx
FAN
AGP
SEC.
PRI.
J2
J1
J9
SLOT1
J3
J5
J4
JP1
J10
DIMM0~3
FLOPPY
GND
+12V
SENSE
1
3
PW ON
233
266
300
350
RS0
RS1
1
1
1
1
J6/7/8
1
1--2:Normal
2--3:Clear CMOS
3
JP19
IRMODE
1
NC
NC
VCC
IRRX
GND
IRTX
7
JP23
J35
SIRQ
6
2
1
5
GND
REQ#
GND
GNT#
SB LINK
RAIDBUS
1
10
11
20
RESET SCSI IDE
SPEAKER
Cathode-
Anode+
GND
Reset
VCC
Cathode-
Anode+
Cathode-
NC
Anode+
Buzz
GND
Keylock
GND
NC KEYLOCK
J46
JP20
SCSI_WIDESCSI
J45
3
1
LID
GND
5VSB
WOL

10
Location ScreenPrinting Description
J1 J1 Serial 1 connector
J2 J2 Serial 2 connector
J3 J3 Two USB connectors
J4 J4 PS/2 keyboard connector
J5 J5 PS/2 mouse connector
J6--J8 J6,J7,J8 ISA expansion slots
J9 J9 Parallel connector
J10 J10 Standard ATX power connector
J11--J14 PCI1--4 PCI expansion slots
J15 AGP A.G.P. connector
J16 Slot1 Processor Slot 1 socket
J17 FAN Processor fan header
J18 RAIDBUS Adaptec RAIDport connector
J19,J22--J24 DIMM0--3 168-pin DIMM Sockets
J25 PRI. Primary IDE connector
J26 SEC. Secondary IDE connector
J27 FLOPPY Floppy drive connector
J33 SCSI Narrow SCSI connector
J34 SCSI_WIDE Wide SCSI connector
J35 J35 Jumper for PCI devices compatibility
J36 J36 Front panel I/O header
IDE (pins 5--6): IDE LED header
SCSI (pins 7--8): SCSI LED header
RESET (pins 9--10): Reset Switch header
KEYLOCK (pins 11--15): Power LED and Keylock switch header
SPEAKER (pins 17--20): Speaker header
J44 SB LINK Creative SB-LINK header
J45 J45 System fan header
J46 J46 System fan header
J48 WOL Wake On LAN header
JP1 JP1 Jumper for processor frequency selection
JP10 PW ON Remote power on/off header
JP19 JP19 Jumper for clearing CMOS
JP20 JP20 Jumper for SCSI enable/disable
JP23 JP23 IR (infrared) connector

11
0.4 Back Panel Connectors
The following figure shows the location of the back panel I/O connectors, which include:
PS/2-style keyboard and mouse connectors
Two USB connectors
Two serial port connectors
One parallel port connector
Serial 1
Mouse
Keyboard
Parallel
Serial 2
USB1
USB0

12
0.5 Form Factor
The motherboard is designed to fit into an ATX form-factor chassis. The I/O connector locations
and the mounting hole locations are in compliance with the ATX specification. Please see detail
in the following figure.
Datum (0, 0)
A
B
C
D
E
F
G
H
I
J
K
6.250
REAR I/O WINDOW IN CHASSIS
M
0.156 inch
Mounting Holes
L
0.800 TYP.
Between
Connectors
0.812 Pin 1 ISA
to Pin 1 PCI
0.768 Pin 1 AGP
to Pin 1 PCI
A: 0.400 inch H: 0.150 inch
B: 1.000 inch I: 0.650 inch
C: 1.300 inch J: 5.550 inch
D: 1.625 inch K: 11.750 inch
E: 2.630 inch L: 12.000 inch
F: 6.500 inch
G: 9.350 inch
M: 9.606 inch

13
Chapter 1
Quick Installation
Several easy installation steps will be described in this chapter to help the experienced users with
quick installation. If you are a beginner or need to know more about this product, refer to the
Chapter 2.
Step 1. Install retention mechanism and Pentium II processor
There is one set of the thread studs that need to be screwed to the Slot 1’s retention mechanism
with a criss-cross screwdriver. Insert the Pentium II processor along the retention mechanism in
vertical direction down to Slot 1 connector. Make sure that they are connected thoroughly.
Step 2. Install processor fan
Attach the processor cooler’s power cable to the header marked “FAN”.
Step 3. Select the processor frequency
JP1 is used to select the processor frequency. Simply place one jumper cap onto the speed number
according to the internal frequency you see on your processor. For example: select 333 for a
Pentium II processor 333 MHz.
Step 4. Install the memory module
At least one piece of 168-pin 3.3V unbuffered SDRAM or EDO DIMM is needed to be located
into the DIMM sockets.
Step 5. Connect the internal peripherals
The internal peripherals means devices that are in the computer chassis like the floppy disk drive,
hard disk drive, CD-ROM drive …etc. There are one 34-pin flat cable for floppy disk drive and
one 40-pin flat cable for IDE devices included in your retail package. The protected key on
cables’connector will guide you the correct direction when you insert the cables.

14
Step 6. Connect the Reset button
The 2-pin reset header is located on pins 9--10 (marked as RESET) of the front panel connector.
Connect the momentary type switch on the chassis to this header for reset function.
Signal of RESET header
Pin 9 RESET
Pin 10 Ground
Step 7. Connect the Speaker
The 4-pin speaker header is located on pins 17--20 (marked as SPEAKER) of the front panel
connector. Connect the speaker to this header.
Signal of SPKR header
Pin 17 VCC
Pin 18 Ground
Pin 19 NC
Pin 20 BUZZ
Step 8. Connect the power LED and keylock switch
The 5-pin keylock header is located on pins 11--15 (marked as KEYLOCK) of the front panel
connector. It contains two functions: Power LED and Keylock switch. Connect chassis’s power
LED and keylock switch (if supported) to this header.
Signal of KEYLOCK header
Pin 11 Anode (+)
Pin 12 NC
Pin 13 Cathode (-)
Pin 14 KEYLOCK
Pin 15 Ground
Step 9. Connect the IDE LED
The 2-pin IDE LED header is located on pins 5--6 (marked as IDE) of the front panel connector.
Connect the chassis’s LED to this header.
Signal of IDE header
Pin 5 Anode (+)
Pin 6 Cathode (-)

15
Step 10. Connect the SCSI LED
The 2-pin SCSI LED header is located on pins 7--8 (marked as SCSI) of the front panel connector.
Connect the chassis’s LED to this header.
Signal of SLED header
Pin 7 Anode (+)
Pin 8 Cathode (-)
Step 11. Connect the Power ON button
All the ATX computer chassis provide a power on button. Connect the button to the header
marked as “PW ON”.
Step 12. Install the Power Supply cord
This motherboard provides the 20-pin ATX power connector. This works conjunction with the
Power On button to provide remote On/Off function.
Step 13. Install the Keyboard
Connect the keyboard to the PS/2 keyboard connector at the back panel.
Step 14. Install the Display Card
Insert the display card into the ISA, PCI or AGP expansion slot.
Step 15. Connect the External Peripherals
The external device means devices outside the computer chassis like the serial mouse, printer,
PS/2 mouse, external modem…etc.
Step 16. Power on the system
Once the system is powered on, make sure you enter the BIOS setup program and loads the
manufacturer’s default settings. After the system reboot, you are ready to install your operating
system and we wish you to enjoy it.

16
Chapter 2
Hardware Installation
2.1 Preparation and Inspection
This motherboard, like all other electronic equipment, is static sensitive. Please take the proper
precautions when handling it. If possible, ground yourself by touching a metal table or your
computer frame. Keep the board in its conductive wrapping until it is configured and ready to be
installed in your system.
2.2 Unpack the PIILS
You should find the following components when opening the box:
One PIILS motherboard
This operation manual
One 40-pin IDE cable
One 34-pin floppy cable
One 50-pin Narrow SCSI cable
One 68-pin Wide SCSI cable
One Bus Master Driver diskette
One EZ-SCSI Driver diskette
One EZ-SCSI manual (OEM)
Two Adaptec 7800 FMS Driver diskettes
One Adaptec 7800 FMS Manual
One set of Pentium® II Retention kit
One External SCSI-II expansion Kit (Optional)
One External Wide SCSI expansion Kit (Optional)
For installation, you may need some or all of the following tools:
Medium size flat blade screwdriver
Medium sized Phillips head screwdriver
A 3/16 inch nut driver or wrench

17
2.3 Installation procedures
2.3.1 Processor (J16 and FAN)
The motherboard supports single Pentium® II processor. The processor’s VID pins automatically
program the voltage regulator on the motherboard to the required processor voltage. The
motherboard currently supports processors that run internally from 233 MHz to 333 MHz.
The Pentium® II processor is packaged in a Single Edged Contact (S.E.C.) cartridge. The
cartridge includes the processor core, second-level cache, thermal plate and back cover. The
processor connects to the motherboard through the Slot 1 connector, a 242-pin edge connector.
When mounted in a Slot 1 connector, the processor is secured by a retention mechanism attached
to the motherboard.
First, screw the main body of Slot 1 retention mechanism to the motherboard then insert the
processor cartridge along the retention mechanism in vertical direction. A “click”sound will be
heard while the processor is located right in position. Finally, attach the cooler’s power cable to
the processor fan header on the motherboard.
Signal of FAN header (processor fan header)
Pin 3 Ground
Pin 2 +12 V
Pin 1 SENSE
Note 1. Processor cooler is always required to prevent over-heat.
Note 2. The second-level cache is located on the substrate of the S.E.C. cartridge. The cache size
and cacheable memory size are dependent on the processor used.
2.3.2 Processor frequency Selection (JP1)
JP1 is a 2x6-pin jumper block with Easy-jumper cap on it for you to select the processor’s
working speed easily.
233 266 300 333 RS0 RS1 Processor
ON OFF OFF OFF OFF OFF For Pentium® II 233 MHz
OFF ON OFF OFF OFF OFF For Pentium® II 266 MHz
OFF OFF ON OFF OFF OFF For Pentium® II300 MHz
OFF OFF OFF ON OFF OFF For Pentium® II 333 MHz
Note: This jumper is able to provide more powerful functions, which are reserved for
technician’s special testing purpose only. DO NOT use these functions unless you are an
experienced user and you are willing to take your risk.

18
233 266 300 333 Multiplier RS0 RS1 External Clock
OFF OFF OFF OFF x 2 OFF OFF 68 MHz
ON OFF ON OFF x 2.5 ON OFF 66 MHz
ON ON OFF OFF x 3 OFF ON 75 MHz
ON OFF OFF OFF x 3.5 ON ON 83 MHz
OFF ON OFF OFF x 4
OFF OFF ON OFF x 4.5
OFF OFF OFF ON x 5
OFF OFF ON ON x 5.5
OFF ON OFF ON x 6
ON OFF OFF ON x 6.5
2.3.3 Main memory (DIMM0--3)
The motherboard has four dual inline memory module (DIMM) sockets, which supports memory
size from 8 MB to 512 MB with SDRAM and 1 GB with EDO DRAM. The Synchronous DRAM
(SDRAM) improves memory performance through memory access that is synchronous with the
memory clock. The Error Checking and Correcting (ECC) memory improves system security by
detecting and correcting error bit when accessing memory.
The motherboard supports the following memory features:
JEDEC MO-161 compliant 168-pin DIMMs with gold-plated contacts
3.3 V memory module only
ECC logic detects multiple-bit errors and corrects single-bit errors (SDRAM)
Unbuffered SDRAM or 60-ns 3.3 V EDO DIMMs
4 / 16 / 64 Mbit DRAM technology
Symmetrical and asymmetrical DRAM addressing
Single-sided or double-sided DIMMs
3.3 V EDO and SDRAM DIMMs can be installed on the same motherboard
Memory can be installed in DIMM sockets without any order restriction. The memory type, size,
speed can vary between sockets. The BIOS automatically detects memory type, size and speed.
Note 1. In order to reduce the loading, the total memory chip count installed on the system should
not exceed 72.

19
2.3.4 Accelerated Graphics Port (AGP)
The Accelerated Graphics Port (A.G.P.) is a high-performance interconnect, especially for
graphic-intensive 3D applications. A.G.P. is independent of the PCI bus and is intended for
exclusive use with graphical display devices. The A.G.P. supports AC timing for 133 MHz data
transfer rates, allowing data throughput of 533 MB/sec.
The most important feature of A.G.P. is DIME (Direct Memory Execute). DIME needs to allocate
some system memory via the O.S. to access large textures outside the local graphic memory of the
card. In order to take advantage of DIME feature, some software components should be installed
or upgraded in the system.
For Windows NT 4.0: Upgrade to "Windows NT 4.0 Service Pack 3".
For Windows 95: Upgrade to Windows 95 OSR 2.1.
Install DirectX 5 from Microsoft.
2.3.5 Primary/Secondary IDE connectors (PRI. and SEC.)
The motherboard has two bus-mastering IDE interfaces, which support PIO Mode 3 / 4 and Ultra
DMA 33 mode transfer. These interfaces support IDE disks, ATAPI devices (ex: CD-ROM), ZIP
and LS-120 devices. If two devices are connected to one channel, one should be set to "Master"
and the other one to "Slave" (Refer to device operation guide).
Simply connect the 40-pin IDE cable between the IDE/ATAPI devices and these connectors on
the motherboard. For a performance reason, we suggest that connect the disk drive to the primary
channel and other devices like CD-ROM to the secondary channel.
2.3.6 Floppy drive connector (FLOPPY)
The motherboard has one floppy interface, which supports 360K, 720K, 1.2M, 1.44M, 2.88M, 3
Mode floppy drives and QIC-80 Floppy tape drive. It supports up to two devices in any capacity
with the same connector. Simply connect 34-pin floppy cable between this connector and floppy
drives.
2.3.7 Serial port connector (J1 and J2)
The two 9-pin D-Sub serial port connectors on the back panel are compatible with 16550 UART.
These ports are used for serial mouse, serial printer, fax modem…etc. Simply connect the serial
devices to these connectors.
2.3.8 Parallel port connector (J9)
The connector for the multi-mode parallel port is a 25-pin D-Sub connector located on the back
panel. It is used for the printer or other parallel devices. Simply connect the parallel cable between
devices and the parallel port connector.

20
2.3.9 Universal Serial Bus (J3)
The USB is suitable for mid-to-low speed devices like mouse, keyboard, joystick...etc. In the past,
all these devices were using different connectors, and it is difficult for end users to install the
system. With USB technology, users only need to plug all their USB peripherals on the connector
in chain and ready to go.
The motherboard supports following USB features:
Self-identifying, hot pluggable peripherals
Support of isochronous and asynchronous transfer type
Supports for a maximum of 127 physical devices
Supports data transfer rate up to 12 Mbit/sec
The motherboard has two USB ports; any USB peripheral can be connected to either port. For
more than two USB devices, an external hub can be connected to either port.
2.3.10 PS/2 keyboard and mouse connectors (J4 and J5)
The keyboard connector is a 6-pin mini-DIN connector located on the back panel (the bottom
one). Simply connect the standard PS/2 keyboard into this connector. The PS/2 mouse connector
is a 6-pin mini-DIN connector on the back panel. Simply connect the PS/2 mouse into this
connector.
Note that power to the computer should be turned off before a keyboard and/or mouse is
connected or disconnected.
2.3.11 ATX power connector (J10)
This motherboard supports an ATX power connector. Simply connect the power cord of power
supply to this connector.
Signal of ATX power supply connector
Pin 1 +3.3 V Pin 11 +3.3 V
Pin 2 +3.3 V Pin 12 -12 V
Pin 3 Ground Pin 13 Ground
Pin 4 +5 V Pin 14 PWR_ON#
Pin 5 Ground Pin 15 Ground
Pin 6 +5 V Pin 16 Ground
Pin 7 Ground Pin 17 Ground
Pin 8 PWRGOOD Pin 18 -5 V
Pin 9 +5VSB Pin 19 +5 V
Pin 10 +12 V Pin 20 +5 V
