Motherboard Description
1.Overview
This section provides a summary of the DX400-SN motherboard’s features and the manufacturing options
available.
Feature Summary
This table summarizes the DX400-SN motherboard’s major features.
Item Description Remark
CPU Supports Dual Intel Xeon (socket 603) processor
Supports CPU speed from 1.3 GHz up to 2GHz and higher
Chipset Intel 860 chipset
MCH (1012 OLGA) –Memory & Graphics controller
ICH2 (360 EBGA) –I/O controller
FWH (32 PLCC) –BIOS & Management controller
P64H (241 mBGA) –64-bit Bus Master PCI Expander
Memory One MECC
Supports PC600/PC800 DRDRAM modules
Supports maximum memory capacity up to 4GB.
(when using MEC8)
I/O Control Winbond W83627HF SIO low pin count (LPC) interface I/O controller
Graphics AGP universal connector support AGP4X/AGP Pro 50
(1.5 V Only)
Peripheral
Interfaces Supports one floppy connector Supports two ATA/100 IDE connectors
Supports two external COM connector

-5-
Supports one external Parallel connector
Supports four external USB 1.1 connectors
Supports two internal USB 1.1 connectors
Supports one external PS/2 keyboard connector
Supports one external PS/2 mouse connector
Supports one Front-Panel connector
PCI Supports three 32-bit/33MHz Bus Master PCI slot
Supports two 64-bit/66MHz Bus Master PCI slots
H/W Monitoring Supports Voltage sense to detect out of range values
Supports three Fan Speed Monitoring and Control
Supports three Temperature Monitoring
Supports Chassis Intrusion detection.
Management Resume by LAN/Ext. Modem/PS2 keyboard/PS2 mouse/RTC
Supports Intel LDCM/LDSM (optional)
Supports ACPI
Supports APM
Supports SMBUS
Supports DMI
Supports PnP
Supports BIOS Flash Control to provide H/W & S/W BIOS protection
Supports AC-Loss Recovery
Software Focus on the Windows NT 4.0/Windows 2000/Redhat Linux
Corelogic Patch utility for Windows 2000(T.B.D.)
SCSI Driver Set for Windows NT 4.0/Windows 2000/Redhat Linux
H/W Monitoring utility for Windows NT 4.0/Windows 2000(T.B.D.)
Power Supply Limitation Supports WTX power connectors only
Misc. On-board Buzzer
8-layer PCB design
ATX form-factor with 305mm x330mm board size
Specifications -Optional Components
The following on-board components are optional at the time of purchase:
Please contact with IWILL to determine which options are available to you.
Options
Audio Audio Codec’97 (AD1881A) compatible using an AD1881
audio codec
LAN Support for LAN on motherboard
* Intel 82550 Local Area Network (LAN) Controller
* Alert on LAN 2 device
* RJ45 LAN connector
Qlogic Ultra 160
SCSI Controller Support three SCSI Interface Onboard * Two 68pin SCSI connector
* One 50pin SCSI connector

-6-
2 Motherboard Layout
The picture shows the location of the major components on the motherboard.
ACPU 1 Fan Connector QInternal Speaker
BPrimary IDE Connector RQlogic 12160 SCSI Controller
CSecondary IDE Connector SSCSI controller ROM
DDiskette Drive Connector TFront 90x90mm System Fan Connector
EWTX Power Connector A UFront Panel Connector
FRear 120x120mm Case Fan Connector VUltra2 SCSI Connector
G
82801BAI/O Controller Hub (ICH2) WUltra-160 SCSI Connector B
HIntel 82860 Memory Controller Hub (MCH) XUltra-160 SCSI Connector A
ICPU 1 Socket YRear Chassis Intrusion Detection
JMemory Expansion Card Connector (MECC) Z82802AB Firmware Hub (FWH)
KWTX Power Connector B AA
Intel 82806AA PCI 64 Hub (P64H)
LDC-to-DC Converter AB
PCI64 Slots
M
CPU 0 Fan Connector AC
PCI Slots
NCPU 0 Socket AD
Aux_In Connector
O
Front 80x80mm System Fan Connector AE
CD-ROM Connector
PBattery AF
Rear Panel Connectors
AG
USB Internal Header AH
IR Connector
AI
LAN 82550 Chipset AJ Temperature Sensor
AK
SCSI Activity LED Input

-7-
Supported Processors
This section describes the processors supported by the DX400-SN motherboard and how to install them.
The DX400-SN Motherboard only supports Intel Pentium Xeon processors with a Front
Side bus speed of 400 MHz . If two processors are installed, both processors must run the
same core frequency speed. Installing processors of different core frequencies speed may
damage the motherboard and processors.
The processor is packaged in a Organic Land Grid Array (OLGA). The Pentium Xeon Processors implement
integrated L2caches. The Pentium Xeon processor increases Performance for server and workstation
applications by adding either 512KB or 1MB of integrated L3 cache, which is also 8-way set associative.
The System Bus uses Source-Synchronous Transfer (SST) of address and data to improve performance and
enables data transfers at a frequency of 400MHz.This allows the processors to have 3.2GB/sec data transfer
rate .The control signals and bus phases are based on 100MHz system clock. This enhanced bus protocol
and internal architecture increases performance beyond previous levels.
The Processor Information ROM is a 128 byte read –only device that incorporates Intel processor specific
data .The OEM EEPROM, also known as the Scratchpad EEPROM, is a 128-byte read/write EEPROM in
which an OEM may program system specific data. The Thermal Sensor monitors the temperature of the
processor die.
Installing the Processors and Retention Mechanism
Single processor:
Install the processor in the socket marked ‘CPU0’
For Dualprocessors
the following values must be identical for both processors:
·Host bus speed
·Processor core frequency
·Cache size
·Cache type (either discrete or advanced transfer)
·Operating voltages
Installing the retention on the motherboard.

-8-
AClip F
Socket
BHeatsink G
MB
CProcessor H
Screw
DScrew IChassis
ERetainer JNuts

-9-
Processor installation.
a. Be sure the first pin position in the right direction and install the processor(C), see figure down below.
b. There is a handle at the side of socket603 (F), and it should be fully pulled up or the processor(C) can not
be installed on it. After that, pull down the handle of socket603 (F).
c. If only one processor will be installed on motherboard, it should be installed in the socket P0 and leave the
socket P1 with nothing.
Screws:
a. Support the motherboard (G) on the chassis (I) after nuts (J) and screws (H) have screwed on the chassis
(I) first, see the figure down below.
b. Screw the retainer (E) on the chassis (I) thru motherboard (G), so that the retainer (E) will be fixed on the
motherboard (G).
Socket P1
Socket P0

-10 -
Heatsink installation.
a. Before installing a heatsink (B), it should be sure that the processor(C) had be installed.
b. Put some thermo grease or stick a thermo pad at the bottom of heatsink (B).
c. Put the heatsink (B) on the processor(C) and make sure they
contact with each other well by thermo grease or thermo pad,
see figure in the right.
d. Put the clips (A) on the side-edge of heat, which the side with fillister, and make sure the key of clip (A) slid
into the fillister.
e. Push the both ends of clip (A) once at a time with the fastener retainer (E).
There are three major steps about the Pentium Xeon processor installation for a DX400-SN
motherboard.
1. Motherboard and retainers installation.
2. Processors installation.
3. Heatsinks installation.
1. Motherboard and retainers installation.
To install the motherboard on the chassis, it should be clarify the method of fixing fastener retainers (E) first.
(see figure3)

-11 -
Please follow the following steps to fix the retainer (E) on the motherboard (G).
Screws:
a. Support the motherboard
(G) on the chassis
(I) after nuts
(J) and screws
(H) have screwed on the chassis
(I) first, see the figure3.
b. Screw the retainer
(E) on the chassis
(I) thru motherboard
(G) so that the retainer
(E) will be fixed on the motherboard
2. Processor installation.
a. There is a handle at the side of socket603
(F), and it should be pulled up before the processor(C) installed on it.
b. Be sure the first pin position in the right direction and install the processor(C).
c. Pull down the handle of socket603 (F)
Illustration of Installing CPU

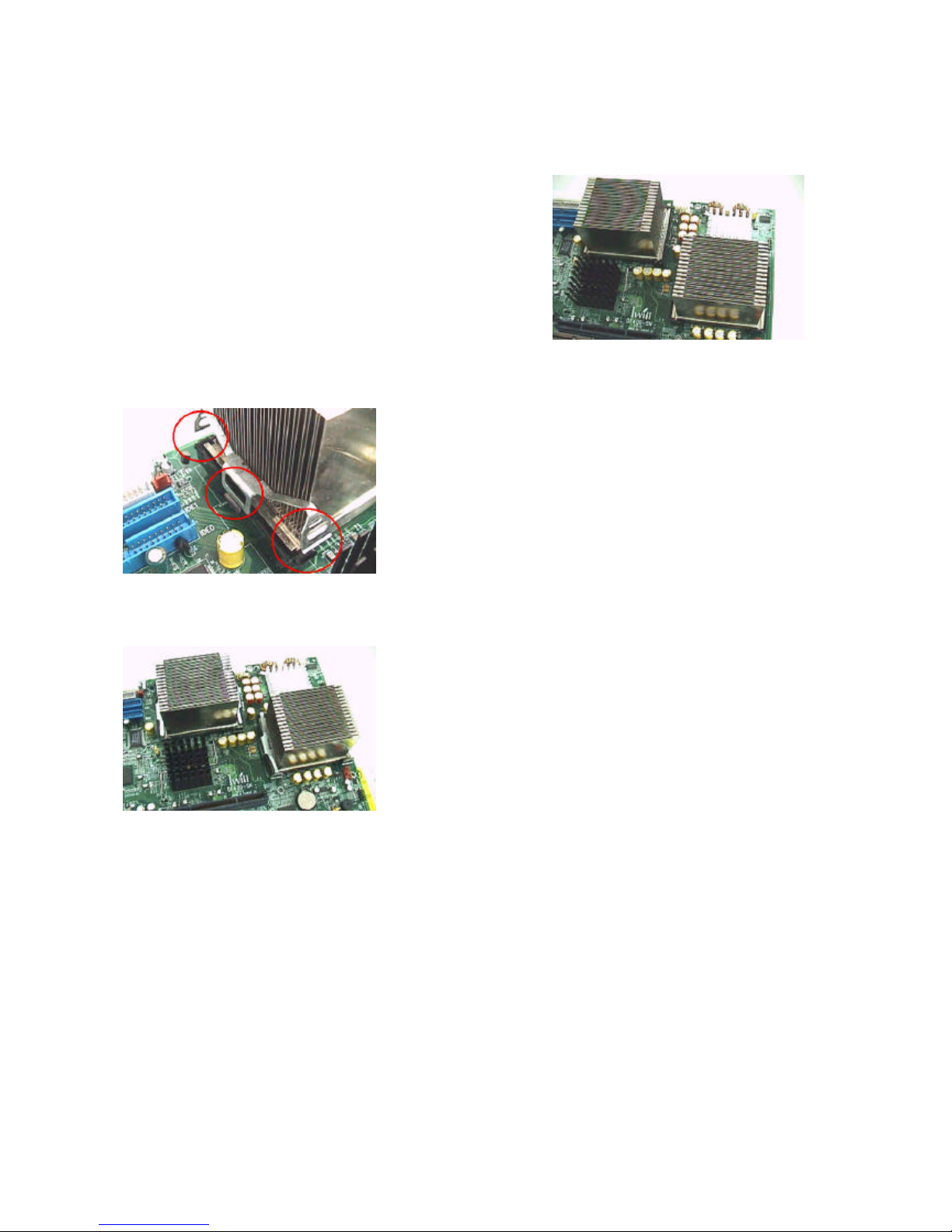

Heatsink installation.
1. Before installing a heatsink (B), it should be sure that the
processor(C) had be installed.
2. Put some thermo grease or stick a thermo pad at the bottom of
heatsink (B).
3. Place the heatsink (B) on the processor(C) and make sure they
contact with each other well by thermo grease or thermo pad.
4. Connects the clips (A) on the side-edge of heat, which the side
with fillister, and make sure the key of clip (A) slid into the
fillister.
5. Push the both ends of clip (A) until it click with the fastener retainer (E).

-12 -
3.System Memory
The Intel 82860 Memory Controller Hub (MCH) integrates dual Rambus* channels, providing a
processor to memory bandwidth up to 3.2 GB/sec.
MEC on motherboard
A Memory Expansion Card may be used to increase memory size configurations, which are required for
most server and workstation designs. The Intel 860 chipsets provide memory repeater hubs that allow for
this memory expandability. IWILL MEC card allowsfor memory support of up to 4GB.
ECC Memory
ECC memory detects multiple-bit errors and corrects single-bit errors. When ECC memory is installed, the
BIOS support both ECC and non-ECC modes. ECC mode is enabled in the Configuration Manager program.
The BIOS automatically detects if ECC memory is installed.
The Configuration Manager program provides an option for enabling and disabling ECC mode.
Whenever ECC mode is selected in Configuration Manager, a small performance difference may occur.
Memory Installation

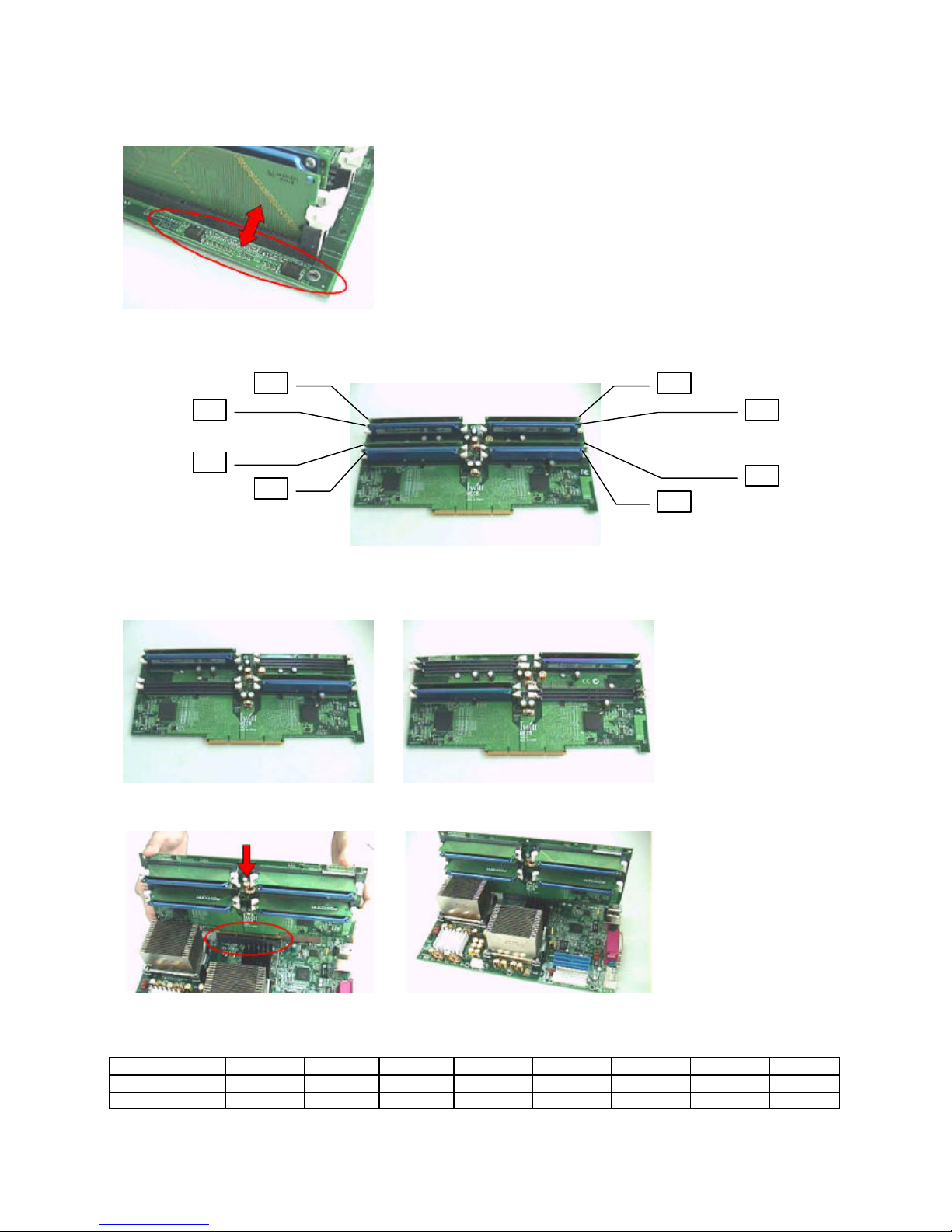

The MEC8 containsTWO memory channels, in which a total of eight RIMMs banks. When using only four
RIMMs, you must install a Continuity Rambus Inline Memory Module (CRIMM) in those slots that do not
contain RIMMs.
You must first populate J8 and J4 and J7 and J3.
Below illustration show the correct method for installing RIMMs.
Here are the steps of memory installation.
a. Install the Rambus module on the slot of MEC8, see figure down below.
Notice where the key pin is, or it may not be installed.

-13 -
b. If there is any CRIMM module will be installed, it is recommended that the CRIMM module
should be installed near the terminators, see the figure down below.
c. The minimum memory installation we suggested is four exactly the same modules with
four CRIMM modules.
There are two possible memory installations which we do not recommend using two
rambus modules with two CRIMM modules.
d. Install the MEC8 on the motherboard.
RIMM Installation Combinations
J1 J2 J3 J4 J5 J6 J7 J8
Combination 1 CRIMM CRIMM RDRAM RDRAM CRIMM CRIMM RDRAM RDRAM
Combination 2 RDRAM RDRAM RDRAM RDRAM RDRAM RDRAM RDRAM RDRAM
J1
J3
J5
J7
J2
J4
J6
J8

-14 -
Supported RIMM Sizes
RIMM Size RIMM Technology
64 MB 64 M bit
128 MB 128 M bit
256 MB 256 M bit
512 MB 256 M bit
MEC8 Usage
The MEC8 (using two memory repeater hubs) supports the following memory features:
* Up to eight 2.5V, 184-pin RDRAM* interface memory modules (RIMMs*)
* 300/400MHz Direct RDRAM* interface
* Support for PC600 PC800 RDRAM*
* 4GB maximum capacity with RIMMs using 256Mbit technology
* Single-or double-sided RIMM configurations
* Non-ECC (16-bit) and ECC (18-bit) memory
* Support for 64Mbit ,128Mbit and 256Mbit RDRAM* technologies.
MEC8 Block Diagram
MRH-R (Device 1)
MRH-R (Device 2)
VTERM VTERM
VTERM VTERM
VTERM VTERM
CHA2 DGCG
MEC8 Block Diagram
MECC
EXA
EXB
CHA2 CHB2
CHB2 DGCG
CHA1 DGCG CHB1 DGCG
CHA1 CHB1

-15 -
MEC8 Card Specification
MEC8 SPEC. Comments
Dimensions W xD in mm 325X140 Contain the golden finger
Number of RDRAM sockets 8
Voltage 2.5 & 1.8V
Max Memory 4GB 256Mbit technology x 16 devices
You must first populate J8 and J4.and J7 and J3.
Installing RIMMs
J1
Channel B2J5
Channel A2
J2
Channel B1 J6
Channel A1
J3
Channel B2J7
Channel A2
J4
Channel B1J8
Channel A1

-16 -
RIMM Installation Combinations
J1 J2 J3 J4 J5J6 J7J8
Combination 1
CRIMM CRIMM RDRAM
RDRAMCRIMM CRIMM RDRAM RDRAM
Combination 2
RDRAM RDRAM
RDRAM
RDRAM RDRAM RDRAM RDRAM RDRAM
CRIMMs must be installed in unpopulated RIMM connectors for the motherboard to boot. RIMMs
must be installed as described in above table or the motherboard will not boot. The memory
must be the same size, density, type, and speed.
Using the encoded part numbers on the RIMMs is the best way to determine if the parts are
the same.

-17 -
4 Intel 860Chipset
The components of the Intel 860 Chipset on DX400-SNconsists of the following devices:
·82860 Memory Controller Hub (MCH)
·82801BA I/O Controller Hub (ICH2)
·82802 AB Firmware Hub (FWH).
The chipset provides the host bus, memory, AGP, and I/O interfaces.
Intel 860 Chipset Block Diagram
AGP
AGP is a high-performance interconnect for graphic-intensive applications, such as 3D
applications. AGP is independent of the PCI bus and is intended for exclusive use with graphical display
devices. AGP provides these performance features:
* Pipelined-memory read and writes operations that hide memory access latency
* Demultiplexing of address and data on the bus for near-100 percent bus efficiency
* AC timing for 133 MHz data transfer rates (AGP 2X), allowing data throughput of 533 MB/sec
* AC timing for 266 MHz data transfer rates (AGP 4X), allowing data throughput of 1064 MB/sec
AGP Pro50
AGP Pro50 universal add-in card connector is provided on the motherboard. It will accommodate both AGP
and AGP Pro50 cards with a maximum power requirement of 50 Watts.
It is an extension to the AGP interface specification and is designed to meet the needs of advanced
workstation graphics. The new specification is primarily designed to deliver additional electrical power to the
graphics add-in cards.
The AGP Pro universal connector on the DX400-SN motherboard is designed to deliver up to 50 Watts of
electrical power.
The DX400-SN isdesigned to support AGP 1.5V add-on cards only!
Do Not Use 3.3V add-on cards.

-18 -
Universal Serial Bus
The motherboard has four Universal Serial Bus (USB) ports and two USB headers; one USB peripheral can
be connected to each port. For more than two USB devices, an external hub can be connected to either port.
The four USB ports are implemented with stacked back panel connectors. An additional USB riser is required
to co-work with the two USB headers.
The motherboard fully supports the universal host controller interface (UHCI) and uses UHCI-compatible
software drivers.
USB features include:
* Self-identifying peripherals that can be plugged in while the computer is running
* Automatic mapping of function to driver and configuration

-19 -
* Support for isochroous and asynchronous transfer types over the same set of wires
* Support for up to 127 physical devices
* Guaranteed bandwidth and low latencies appropriate for telephony, audio and other applications
* Error-handling and fault-recovery mechanisms built into the protocol
The USB controller provides enhanced support for the Universal Host Controller Interface (UHCI). This includes support that allows
legacy software to use a USB-based keyboard and mouse. The ICH2 is USB Revision 1.1 compliant. The ICH2 contains two USB Host
Controllers. Each HostController includes a root hub with two separate USB ports each, for a total of 4 USB ports.
IDE Support
The motherboard has two independent bus-mastering IDE interfaces. These interfaces support:
* ATAPI devices (such as CD-ROM drives)
*ATA devices using the single-word DMA 0, 1, and 2 and multiword DMA 1 and 2, PIO 0-4

-20 -
The BIOS supports logical block addressing (LBA) and extended cylinder head sector (ECHS)
translation modes. The drive reports the transfer rate and translation mode to the BIOS.
The motherboard supports laser servo (LS-120) diskette technology through its IDE interfaces.
The LS-120 drive can be configured as a boot drive.
The motherboard allows connection of an LS-120 compatible drive and a standard 3.5-inch diskette drive..
The ICH2 supports the IDE controller with two sets of interface signals (Primary and Secondary). It supports
the Ultra ATA/33, Ultra ATA/66 and Ultra ATA/100 protocols. Ultra ATA66 and Ultra ATA/100 are similar to the
Ultra ATA/33 scheme and are intended to be device driver compatible. The Ultra ATA/66 logic clocks at 66
MHz and can move 16bit of data every two clocks, and the Ultra ATA/100 logic clocks at 100MHz can move
16-bit of data every two clock (for a maximum of 100 MB/s)
Real-Time Clock, CMOS SRAM, and Battery
The real-time clock is compatible with DS1287 and MC146818 components. This device provides a
time-of-day clock and a multi-century calendar with alarm features and century rollover. The real-time clock
supports 256 bytes of battery-backed CMOS RAM in two banks that are reserved for BIOS use.
The time, date, and CMOS values can be specified in the Bios Setup. The CMOS values can be returned to
their defaults by using the Bios Setup. An external coin-cell battery powers the real-time clock and CMOS
memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three
years. When the computer is plugged in, the standby current from the power supply extends the life of the
battery.
The clock is accurate to +/-13 minutes/year at 25ºC with 3 VSB applied.
