iXBlue OCTANS NANO User manual

Q u i c k S t a r t
G u i d e
OCTANS NANO

2017-04/MU/OCTNANO/AN/004/Ed. A 1
FOREWORD
OCTANS NANO Quick Start Guide
Objective
This guide describes the OCTANS NANO installation and the basic configuration.
For more information, please refer to the CD-ROM available in the product package. It contains:
the required softwares for the use of the web-based user interface
the full user manuals to get detailed technical information about the product, including product
specifications/performances. These documents will help you configuring and operating the product in specific
installation or applications.
Contents
OCTANS NANO SYSTEM OVERVIEW .................................................................................................................................2
TYPICAL ROV INSTALLATION ...........................................................................................................................................2
PACK CONTENTS VERIFYING ...........................................................................................................................................3
INSTALLING & CONNECTING OCTANS NANO ..................................................................................................................4
LAUNCHING THE WEB-BASED USER INTERFACE...........................................................................................................8
CONFIGURING THE SYSTEM.............................................................................................................................................9
CONFIGURING THE MECHANICAL PARAMETERS..........................................................................................................11
OPERATING OCTANS NANO ...........................................................................................................................................13
CONTACTING IXBLUE SUPPORT ....................................................................................................................................15
TROUBLESHOOTING .......................................................................................................................................................16

22017-04/MU/OCTNANO/AN/004/Ed. A
OCTANS NANO SYSTEM OVERVIEW
OCTANS NANO is a 4,000m depth rated fiber-optic gyrocompass and Attitude sensor for subsea applications such as
ROV or any subsea vehicle navigation as well as attitude monitoring of subsea structures. OCTANS NANO provides
true heading, roll, pitch, as well as heading, roll and pitch rates of turns and accelerations even in highly dynamic
and harsh environments.

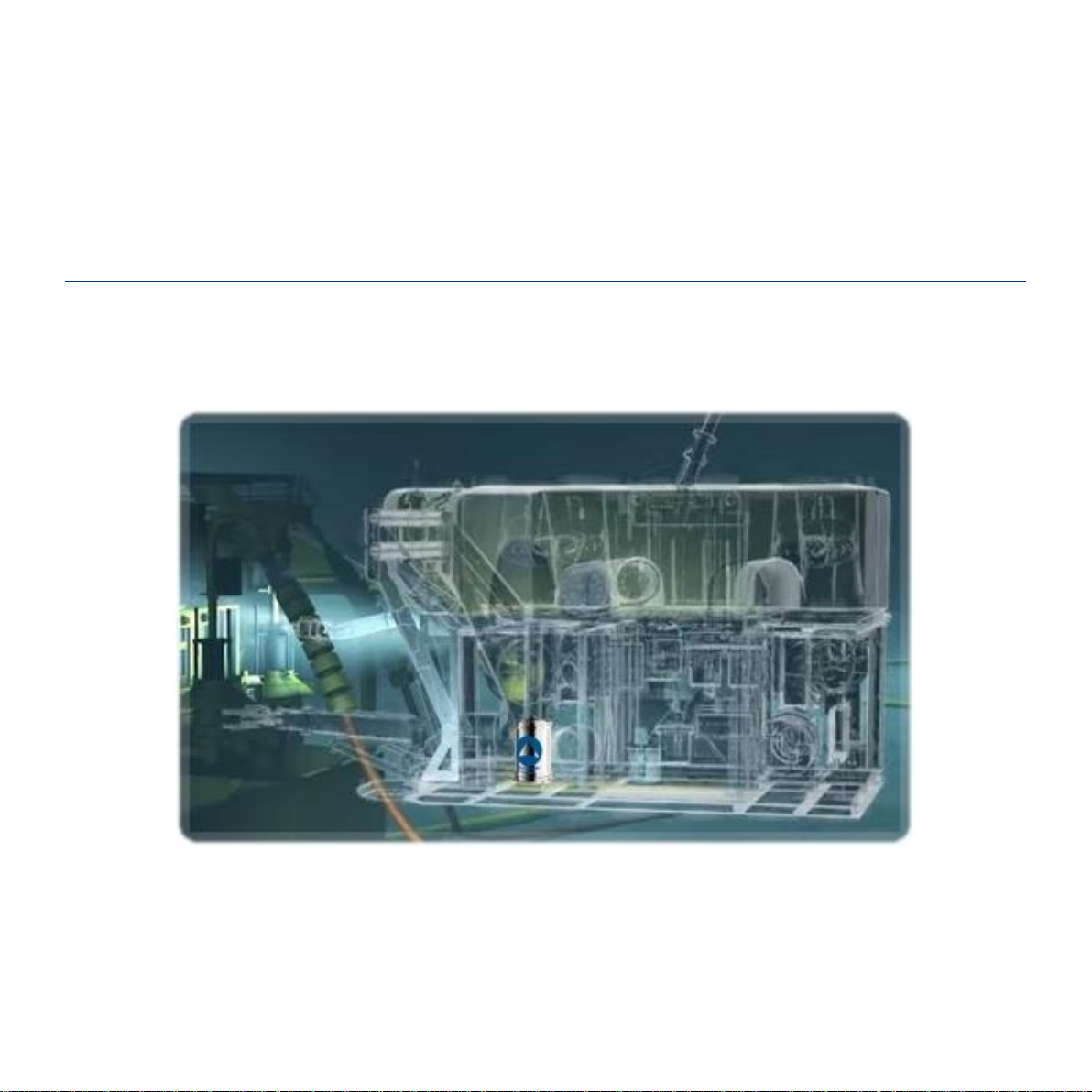

TYPICAL ROV INSTALLATION
This guide describes how to install OCTANS NANO for ROV navigation. No lever arm measurements are required.
OCTANS NANO being versatile, you have to define its configuration to insure optimal operation.

2017-04/MU/OCTNANO/AN/004/Ed. A 3
PACK CONTENTS VERIFYING
You will find in the shipping case a Packing List detailing all the items delivered.
However, we recommend checking the equipment of the pack immediately after reception against the delivery
packing list and that none has sustained damage. The below items are typical and optional.
If you observe any non-conformity or damage, please inform the carrier and iXBlue without delay by certified mail,
describing in detail the problem encountered.
OCTANS NANO
O-Ring kit
Pressure cap
Power supply converter
Tool –O-Ring insertion
Cable AC cord
1
2
3
7
Seacon 26 pin pigtail
8
Setup & Config cable
4
5
6
Certificate documents

42017-04/MU/OCTNANO/AN/004/Ed. A
INSTALLING & CONNECTING OCTANS NANO
OCTANS NANO has to be aligned either with vessel/ROV reference frame either with imagery survey
sensor. Reference frame center is defined by (P) and shown in the figure below, it is not located at the
center of the unit. iXBlue product reference frame may differ from 3rd party equipment convention.
OCTANS NANO must be mounted on a rigid
structure (plate) firmly linked/attached
to the vehicle/platform.
I.e. avoid unexpected displacement against
vehicle or third party equipment reference
frame.

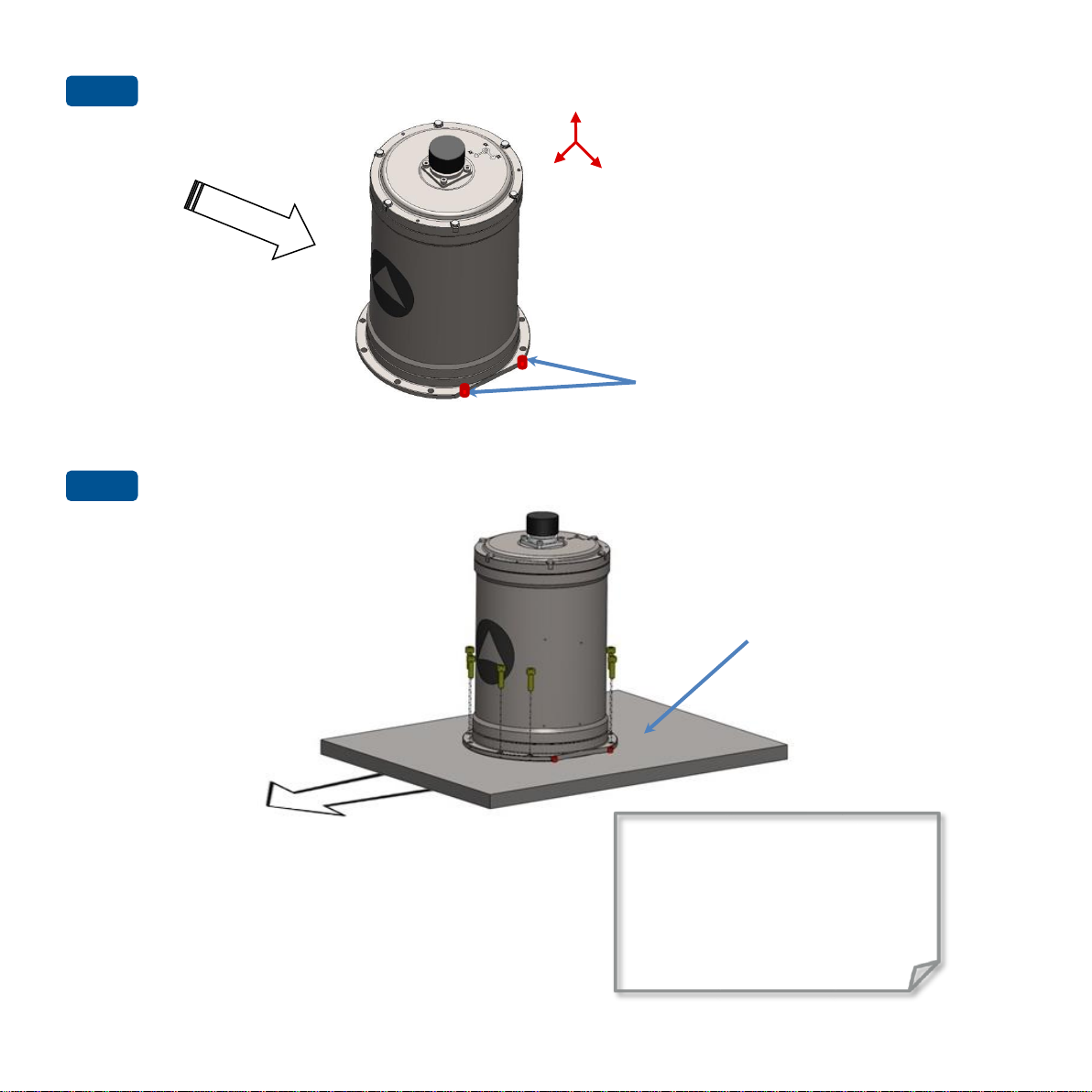

Step 1 Place OCTANS NANO on the mounting plate/surface

2017-04/MU/OCTNANO/AN/004/Ed. A 5
Step 2 Pressing the OCTANS NANO left edge against the reference baseline or pins along X2 direction
For mechanical installation
recommendations, refer to:
Inertial Products –Application
Note –Mechanical Integration
of Inertial Systems
(Ref.: MU-MECHAAPN-AN-001)
Distance from each pin for alignment:
85.7 mm maximum
Heading reference plane
Step 3 Fixing OCTANS NANO with 8 screws (not part of standard delivery).²²²²²²²²²²
Heading
X1
X2
X3

62017-04/MU/OCTNANO/AN/004/Ed. A
Important
Shield link should be done at one end only to avoid ground loops unless shield is used as an electrical ground.
It is recommended to link external cable shielding to mechanical ground.
Step 1 Wiring OCTANS NANO with the SEACON 26 pins connector
Check the presence of the O-ring before connecting:
1
8
1
2
6
11
17
22
26
5
10
16
21
25

2017-04/MU/OCTNANO/AN/004/Ed. A 7
1
Step 3 Connecting OCTANS NANO for setup and configuration
PC IP address is: 192.168.36.1
Ethernet
Link
For OCTANS NANO configuration
through the Web-Based User Interface
3
2
7
In case of DHCP network, refer
to “Inertial Products-Network
set-up guide” document.
(Ref.: MU-INS&AHRS-AN-005)

82017-04/MU/OCTNANO/AN/004/Ed. A
LAUNCHING THE WEB-BASED USER INTERFACE
Step 2 Launching the web-based user interface with Firefox
²²²²²²²²²²
Step 1 Checking the version of the required software available on the CD-ROM
²²²²²²²²²²
Firefox Flash Player Java Environment
²²²²²²²²²²
Step 2The control page is displayed with the compass.
²²²²²²²²²²
Factory default TCP/IP address
Note the two last numbers of the OCTANS
NANO serial number from product label
ID.
Type the following URL address:
192.168.36.1xx
xx is the two last numbers of the OCTANS
NANO serial number.
For example: in the screen capture the
two last numbers of the OCTANS NANO is
34 and the URL address is:
192.168.36.134
To change this URL address, refer to
“Inertial Products-Network set-up guide”
document.
Ref.: MU-INS&AHRS-AN-005

2017-04/MU/OCTNANO/AN/004/Ed. A 9
CONFIGURING THE SYSTEM
Step 2 Configuring the network
²²²²²²²²²²
Step 1 Choosing the language, if needed
²²²²²²²²²²
TCP/IP address change may
requires to change as well
your computer own TCP/IP.
For more information refer to
“Inertial Products-Network
set-up guide” document.
Ref.: MU-INS&AHRS-AN-005

10 2017-04/MU/OCTNANO/AN/004/Ed. A
Step 4 Restarting the system
²²²²²²²²²²
Accuracy required on the latitude input
is less than 1°.
Enter the vessel speed or the
estimated adrift speed.
The heading output is sensitive to the
vessel speed towards North. This error
is given by the following formula:
Heading[deg]= (Vnorth[knot]/5).seclat
The required speed input accuracy is
better than 4 knots.
Manual position can be configured via
advanced commands (i.e. ASCII
commands) on the repeater port.
For more information refer to “AHRS –
Advanced configuration” document:
Ref.: MU-AHRS-AN-002.
As soon as you have clicked on the
Restart button, OCTANS NANO starts
its alignment phase with the
manually input position.
During the initial alignment phase,
the system should be kept static or
follow constant speed and heading.
Step 3 Entering the initial latitude and vessel speed
²²²²²²²²²²

2017-04/MU/OCTNANO/AN/004/Ed. A 11
CONFIGURING THE MECHANICAL PARAMETERS
It is considered that the OCTANS NANO
is mechanically aligned with the vehicle.
However OCTANS NANO can be mounted
in any orientation and it is possible to
align the output.
For more information refer to “Web-
based interface user guide” document.
Ref.: MU-INSIII -AN-021

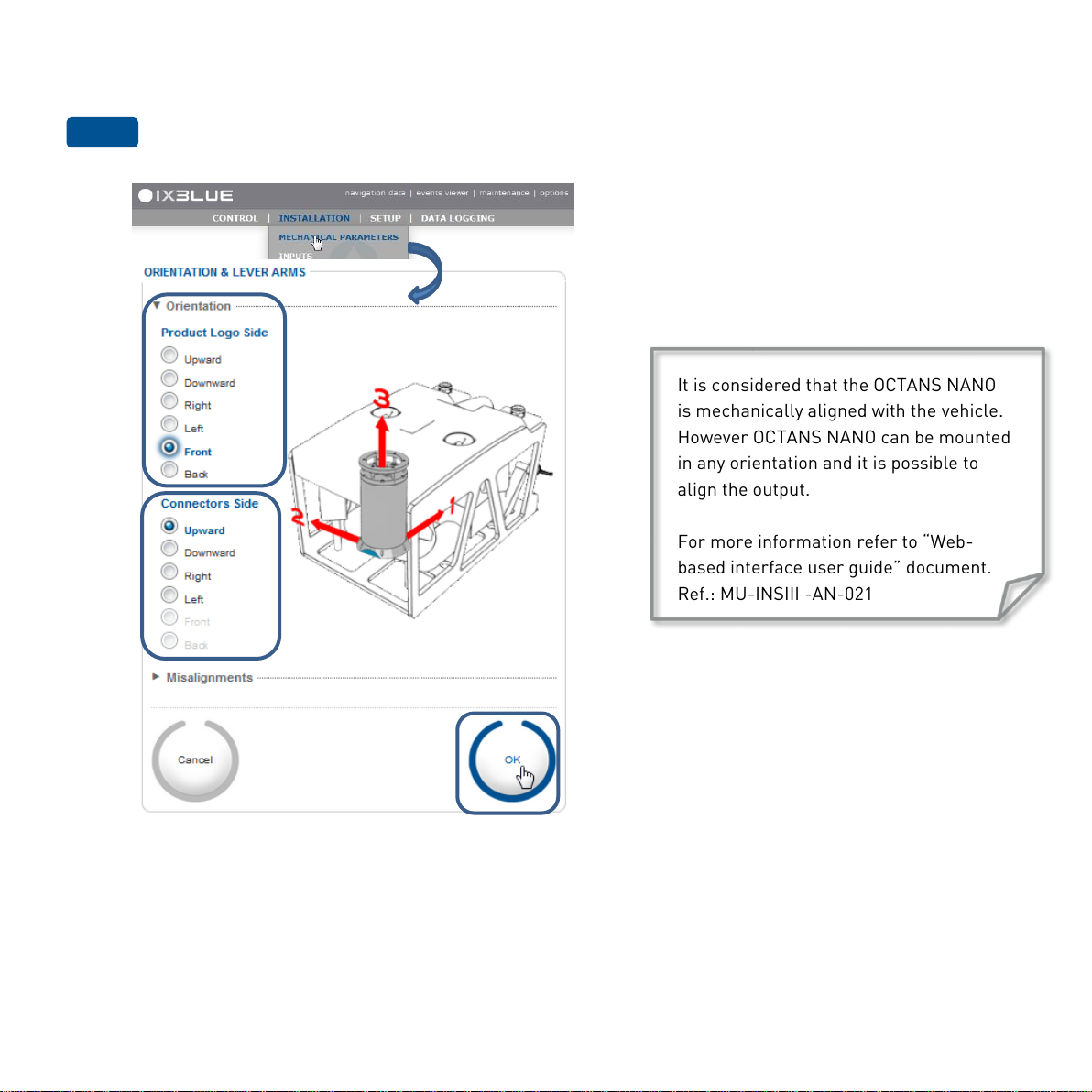

Step 1 Configuring OCTANS NANO orientation with respect to vehicle
²²²²²²²²²²

12 2017-04/MU/OCTNANO/AN/004/Ed. A

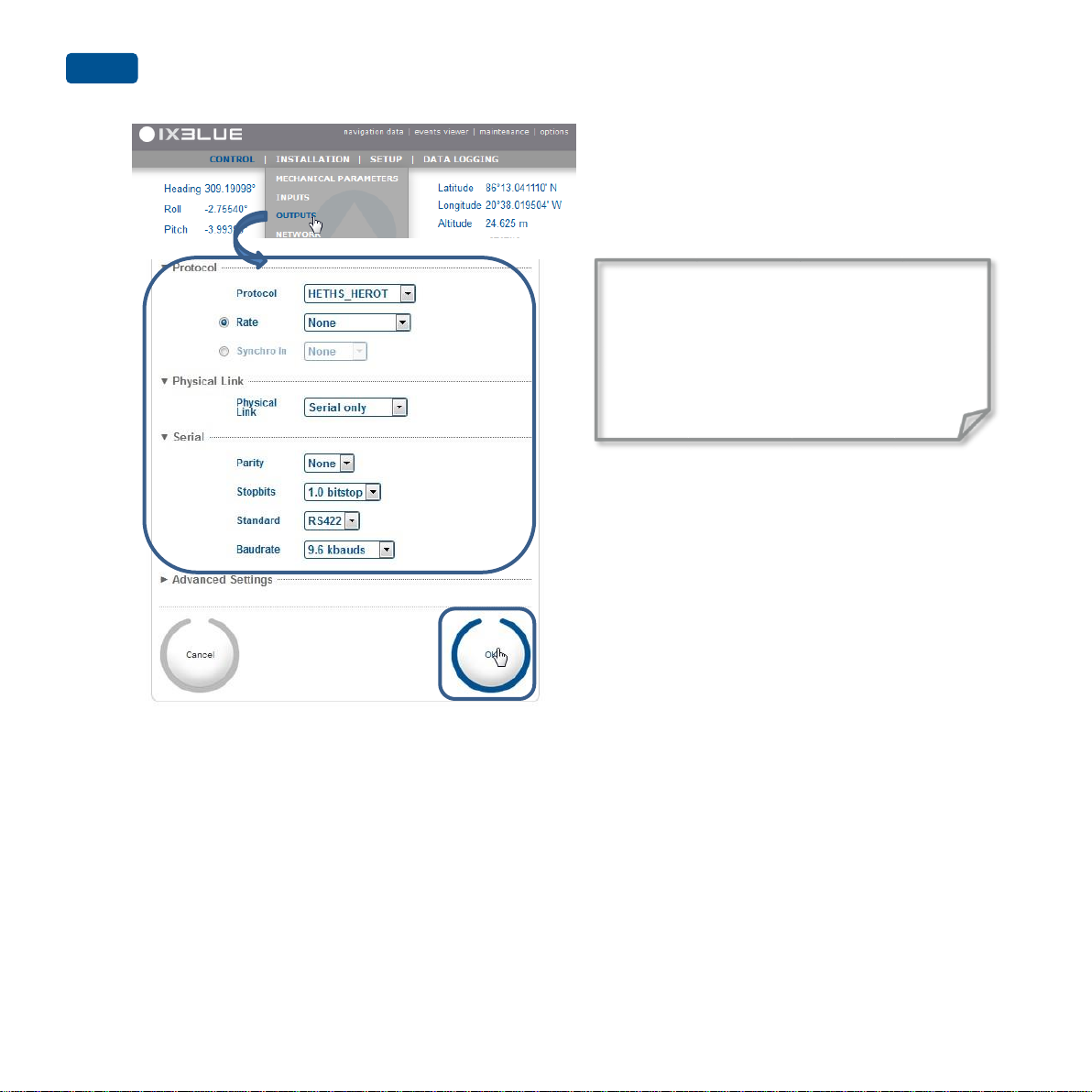

Step 2 Configuring the output parameters in the Web-Based User Interface
User can freely configure each output.
To select an UDP Protocol (User Defined
Protocol) select From the library in the Protocol
drop-down list then click on the Browse button
to reach the script file available on the CD-ROM.

2017-04/MU/OCTNANO/AN/004/Ed. A 13
OPERATING OCTANS NANO
As soon as OCTANS NANO is powered up, it starts its alignment phase.
Alignement uses as initialization parameters the "Manual position" and "Manual velocity" (see page 11) saved in the
nonvolatile memory of the system; alternatively, if available, any external input position and velocity.
During the alignment phase, heading and attitude data are available, but have not reached full accuracy.
Specified accuracy on heading, roll and pitch is reached at the end of the alignment phase.
Figure 1 –OCTANS NANO Starting Sequence
(at powering on or software restart)
Important
OCTANS NANO is delivered with default latitude set to iXBlue’s factory location.
Without user update or external GPS connected, OCTANS NANO will start seeking north with France latitude, which
may be quite different from the current latitude.
Latitude has to be modified by the user (see page 11). Once this modification is performed, it is recommended to save
it and restart the system. This procedure allows OCTANS NANO to enter the correct latitude value as an input in the
North finder algorithm as soon as computation starts. OCTANS NANO will then reach full accuracy after the
alignment phase.
Otherwise OCTANS NANO will not perform according to its specification.
At any power supply outage, OCTANS NANO restarts its full alignment process. It is recommended to secure power
supply on UPS.
Step 1 Starting OCTANS NANO
²²²²²²²²²²

14 2017-04/MU/OCTNANO/AN/004/Ed. A
Step 2 Monitoring OCTANS NANO
²²²²²²²²²²
The embedded Built In Test, also
called Status, monitors OCTANS NANO
stats warning and failures thanks to
large set of flags.
Status are displayed on the web-based
user interface with the following
colors:
Message in blue:information
message
Message in orange: warning
message
Message in red: error message
Grey:disabled
For explanation of the status, refer
to AHRS-Interface Library (ref: MU-
AHRS-AN-005).
For this example:
- OCTANS NANO is ready
- Manual Lattitude and Manual
Longiture are used
- Polar Heading is not valid

2017-04/MU/OCTNANO/AN/004/Ed. A 15
