Jøtul Scan 65-1 User guide

SCAN A/S - DK-5492 VISSENBJERG
Congratulations on your new Scan wood-burning stove
You have purchased a product by one of Europe’s leading manufacturer’s of wood-burning stoves, and we are sure that you will have years of plea-
sure with your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your stove.
Product registration number
Scan 65 - series
ASSEMBLY- AND INSTRUCTIONS MANUAL
Please indicate the product registration number at any enquiry
GB

2
Table of contents
Technical data ......................................................................................................... 3
Installation
Safety
Technical data and dimensions
Dimension sketch
Type plate
Product registration number
Additional accessories
Loose parts
Assembly .................................................................................................................. 8
Remove packaging
Positioning your wood-burning stove

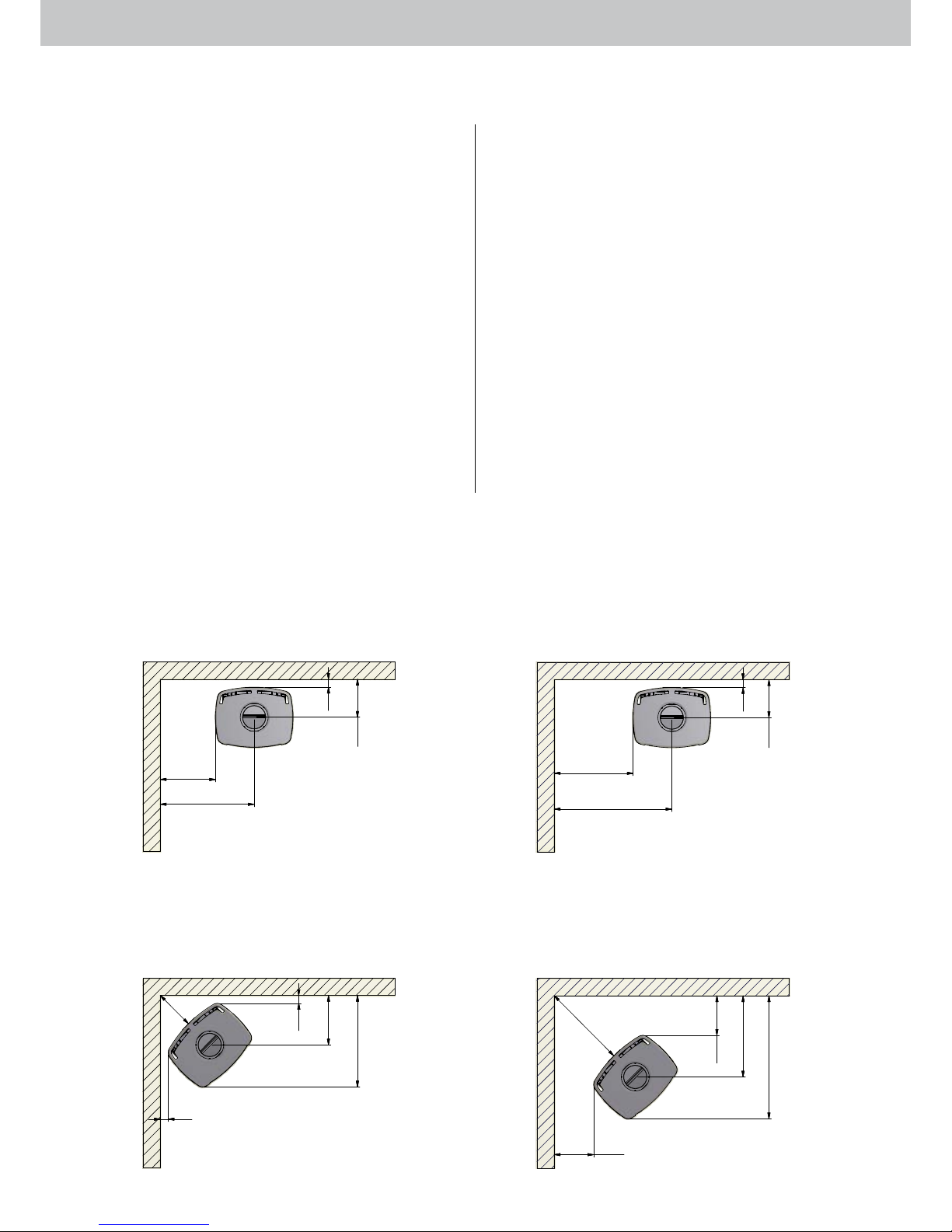

Distance to furniture
Distance to flammable materials, shown with insulated flue pipe
Distance to flammable materials, shown with un-insulated flue pipe
Distance to firewall
Height adjustment of stove
Load bearing foundation
Floor plate
Existing chimney and pre-fabricated element chimney
Connection between stove and steel chimney
Requirements for chimney
Connection with 90° elbow pipe

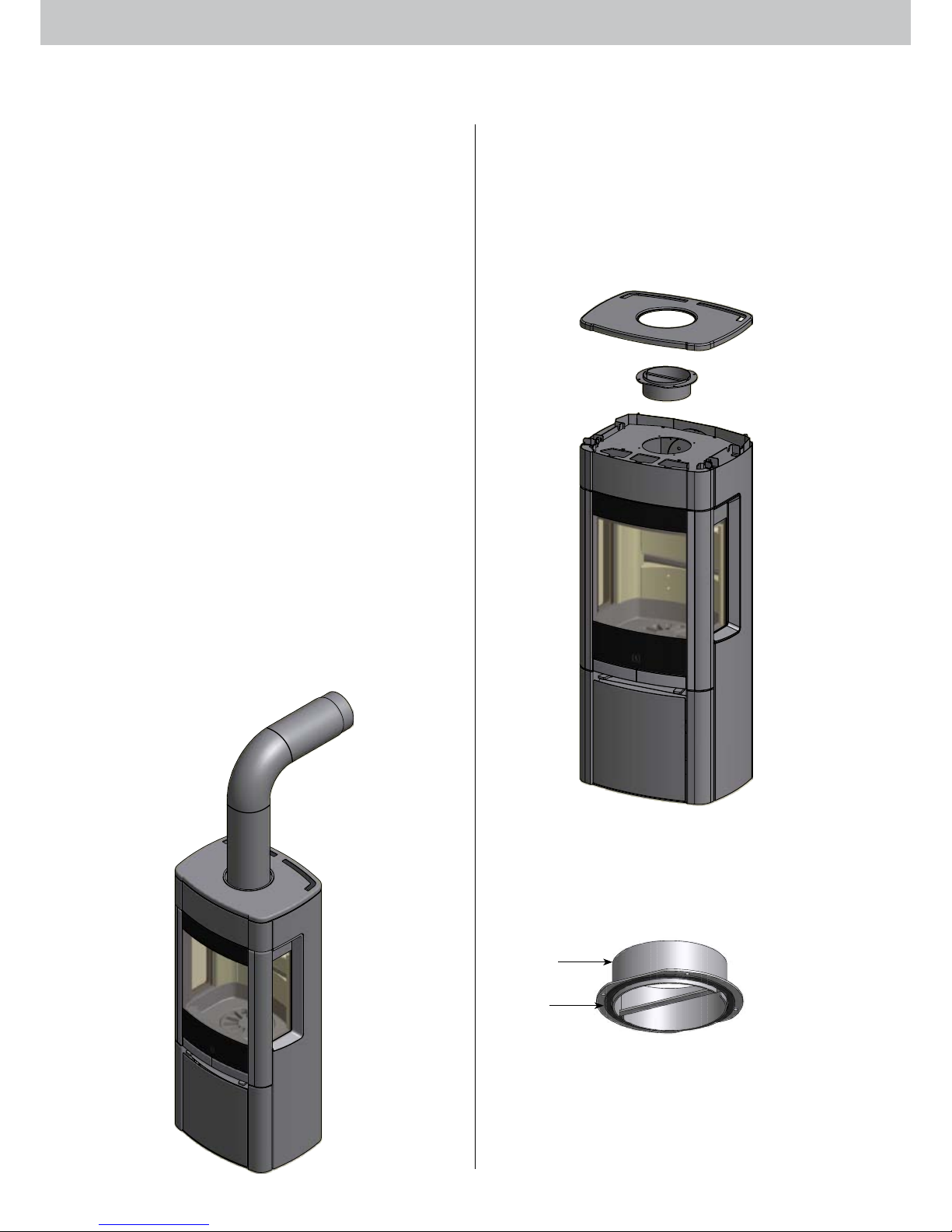

Connecting piece / top outlet

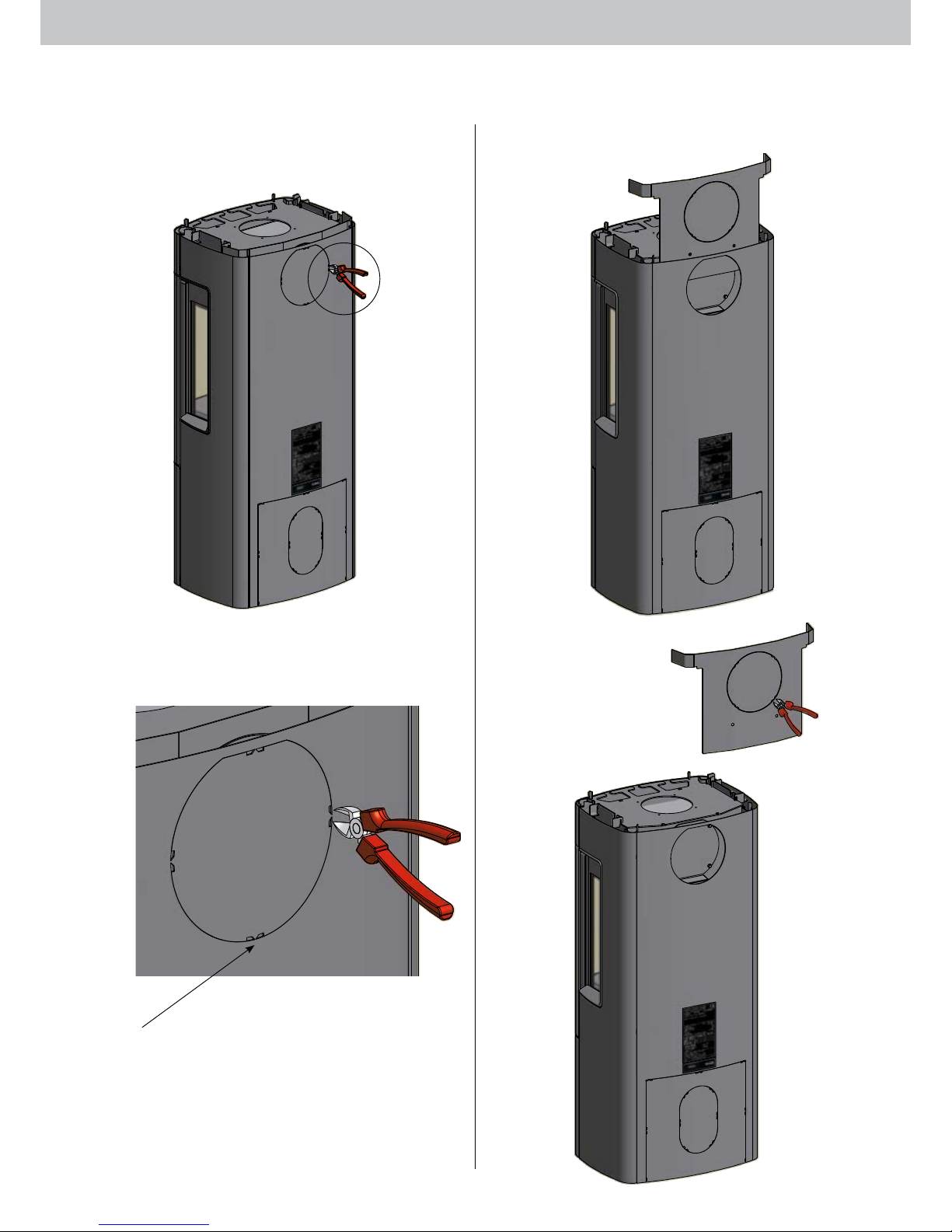

Connecting piece / rear outlet
Fitting the natural stones/tiles
Fresh air intake
Closed combustion system
Indicator for control of air supply
Scan 65 open plinth
Accessories ............................................................................................................ 19
Heat accumulating stones
Fitting the top plate of natural stones/tiles
Handle
Instruction for use .............................................................................................. 21
CB technique
Primary air
Secondary air
Baffle plates
Ash drawer
Handle for riddling grate
Instructions for heating ...............................................................................21/22
The Clean Air Act 1993
Lighting
Handling fuel
Maintenance .........................................................................................................24
Troubleshooting .................................................................................................. 26
CONTENTS

3
TECHNICAL DATA

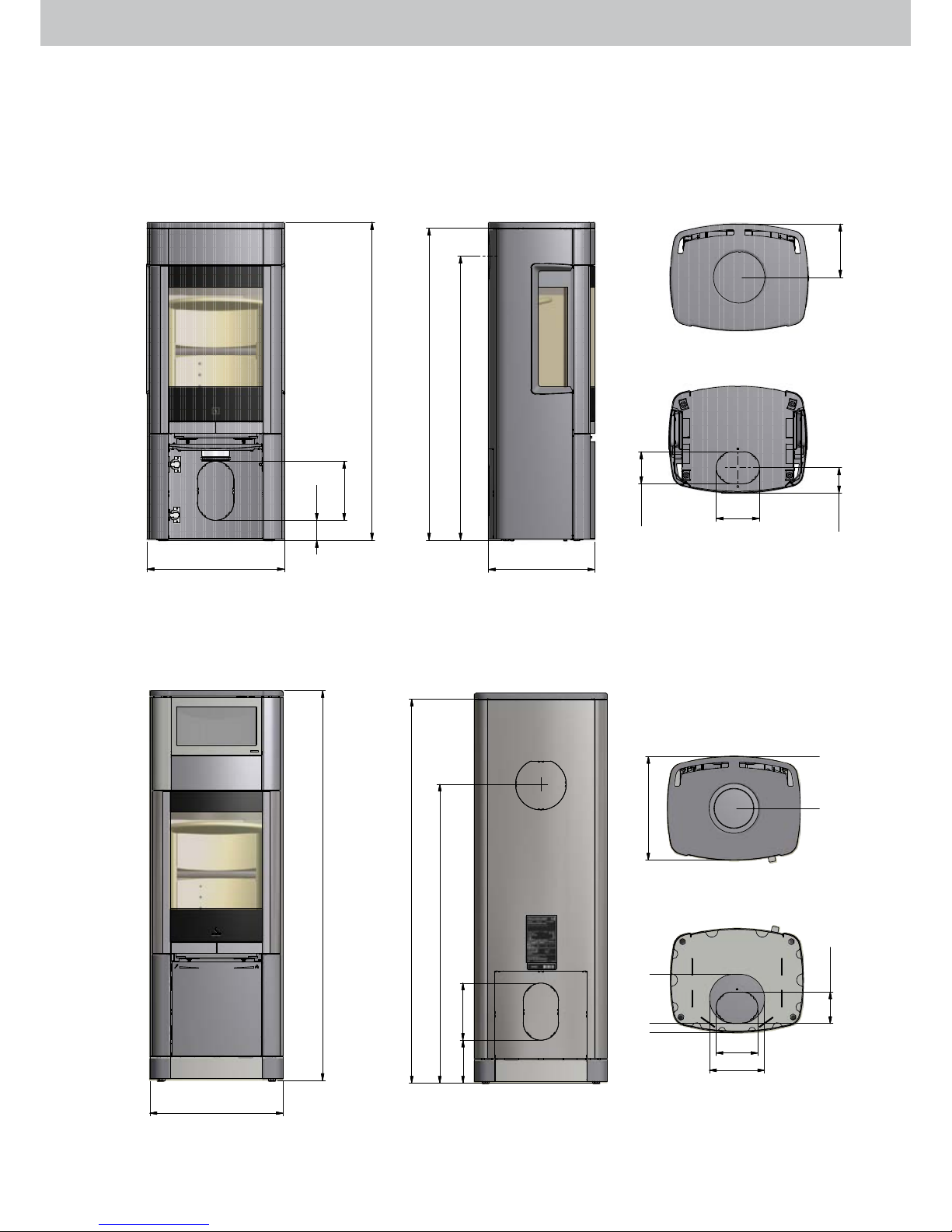

Dimension sketch
Installation
The house owner is responsible for ensuring that all necessary national and local safety measures are observed during installation and fitting
and also responsible for observing the fitting and operating instructions detailed in this manual.
When you install any kind of fireplace or stove, you must inform the local authorities. You are also responsible for calling in a chimney sweep to
inspect and authorize the installation.
To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Our Scan Dealer will be able to
recommend a qualified fitter in your area. For information on Scan Dealers, please go to http://scan.dk.
Safety
Any changes made to the product by the dealer, installer or user could result in the product and safety functions not functioning as intended.
The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary
for the operation and safety of the stove are dismantled or removed.
Scan 65-8
Scan 65-6 Scan 65-7 Scan 65-5
Scan 65-3
Scan 65-1 Scan 65-2 Scan 65-4

4TECHNICAL DATA
Scan 65-1/3/5/7 Technical data Unit
CO Emission at 13% O20,08 %
CO Emission at 13% O2975 mg/Nm3
Dust @ 13% O2< 20 mg/Nm3
Nox@ 13% O2104 mg/Nm3
Efficiency 82 %
Nominel output 6 kW
Chimney temperature EN 13240 221 °C
Temperature in connecting piece 300 °C
Amount of smoke 5 g/sek
Sub-pressure EN 13240 12 Pa
Recommended sub-pressure in connecting piece 15 - 18 Pa
Required combustion air supply 13,3 Nm3/h
Fuel Wood
Fuel consumption 2kg/h
Amount of fuel 1,5 kg
Technical data and dimensions
Materials: ...................................... Steel plate, cast iron, galvanised sheet,
vermicolite
Surface treatment: ........................................................................... Senotherm
Max. wood length: ..................................................................................... 30 cm
Weight Scan 64-1 and Scan 64-2: .................................................... ca. 123 kg
Weight Scan 64-3: ..................................................................................... ca. 180
Weight Scan 64-4: ............................................................................... ca. 168 kg
Weight Scan 64-5 and Scan 65-6: ...................................................ca. 162 kg
Weight Scan 64-7: ............................................................................... ca. 258 kg
Weight Scan 64-8: ............................................................................... ca. 246 kg
Connecting piece internal diameter: ............................................... 144 mm
Connecting piece external diameter: .............................................. 148 mm
Approval type: ................................................................ Intermittent fuelling
Intermittent fuelling means normal use of a woodstove. In other
words, you should let the fire die down until only the embers are left,
before refuelling.
The Scan 65 - series was build in compliance with the homologized
product type specified in the Assembly- and Instructions Manual
provided with the product.
The DoP declaration of performance is available from http://scan.dk
Scan 65-2/4/6/8 Technical data Unit
CO Emission at 13% O20,1 %
CO Emission at 13% O21221 mg/Nm3
Dust @ 13% O2< 20 mg/Nm3
Nox@ 13% O2117 mg/Nm3
Efficiency 79 %
Nominel output 6 kW
Chimney temperature EN 13240 240 °C
Temperature in connecting piece 305 °C
Amount of smoke 6 g/sek
Sub-pressure EN 13240 12 Pa
Recommended sub-pressure in connecting piece 15 - 18 Pa
Required combustion air supply 12,5 Nm3/h
Fuel Wood
Fuel consumption 2kg/h
Amount of fuel 1,5 kg
Test in compliance with EN 13240

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064001.idw
90064001
Målskitse Scan 64
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
380
490
1131
1110**
1011*
71
210****
190
154
90***
114
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064001.idw
90064001
Målskitse Scan 64
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
380
490
1131
1110**
1011*
71
210****
190
154
90***
114
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064001.idw
90064001
Målskitse Scan 64
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
380
490
1131
1110**
1011*
71
210****
190
154
90***
114
5
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065001.idw
90065001
målskitse bageovn
27-05-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top
Bund
1433
210****
1098*
190
380
203
181
116***
154***
33
490
158
1411**
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065001.idw
90065001
målskitse bageovn
27-05-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top
Bund
1433
210****
1098*
190
380
203
181
116***
154***
33
490
158
1411**
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065001.idw
90065001
målskitse bageovn
27-05-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top
Bund
1433
210****
1098*
190
380
203
181
116***
154***
33
490
158
1411**
1433 (Scan 65-5/6)/1448 (Scan 65-7/8)
Scan 65 - 5/6/7/8
Scan 65 - 1/2/3/4
TECHNICAL DATA
Dimension sketch
* Centre rear outlet
** Height to the begin-
ning of the connecting
piece at top outlet
*** Fresh air intake bottom
**** Fresh air intake at the
back of the stove

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
6
Scan 65-1 - 65-3 - 65-5 - 65-7
Freestanding room heater fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13240 Dop 90065600
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Certificate/Standard
EN 13240
Approved by
RWE Power AG
Teknologisk Institut
Dust at 13% O2: < 20 mg/Nm³
Flue gas temperature: 300°C
Nominal heat output: 6 kW
Efficiency: 82%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to combustible materials
Side: 350 mm - Back: 150 mm - Front: 1000 mm
CO emission at 13% O2:
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 06-2015
0,08% 975 mg/Nm³
Schweiz
Germany
RWE Power AG
RWE Power AG
Scan 65-2 - 65-4 - 65-6 - 65-8
Freestanding room heater fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13240 Dop 90065601
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Certificate/Standard
EN 13240
Approved by
RWE Power AG
Teknologisk Institut
Dust at 13% O2: < 20 mg/Nm³
Flue gas temperature: 305°C
Nominal heat output: 6 kW
Efficiency: 79%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to combustible materials
Side: 500 mm - Back: 150 mm - Front: 1000 mm
CO emission at 13% O2:
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 06-2015
0,10% 1221 mg/Nm³
Schweiz
Germany
RWE Power AG
RWE Power AG
TECHNICAL DATA
Scan 65-2, Scan 65-4, Scan 65-6 & Scan 65-8
(With side windows)
Type plates

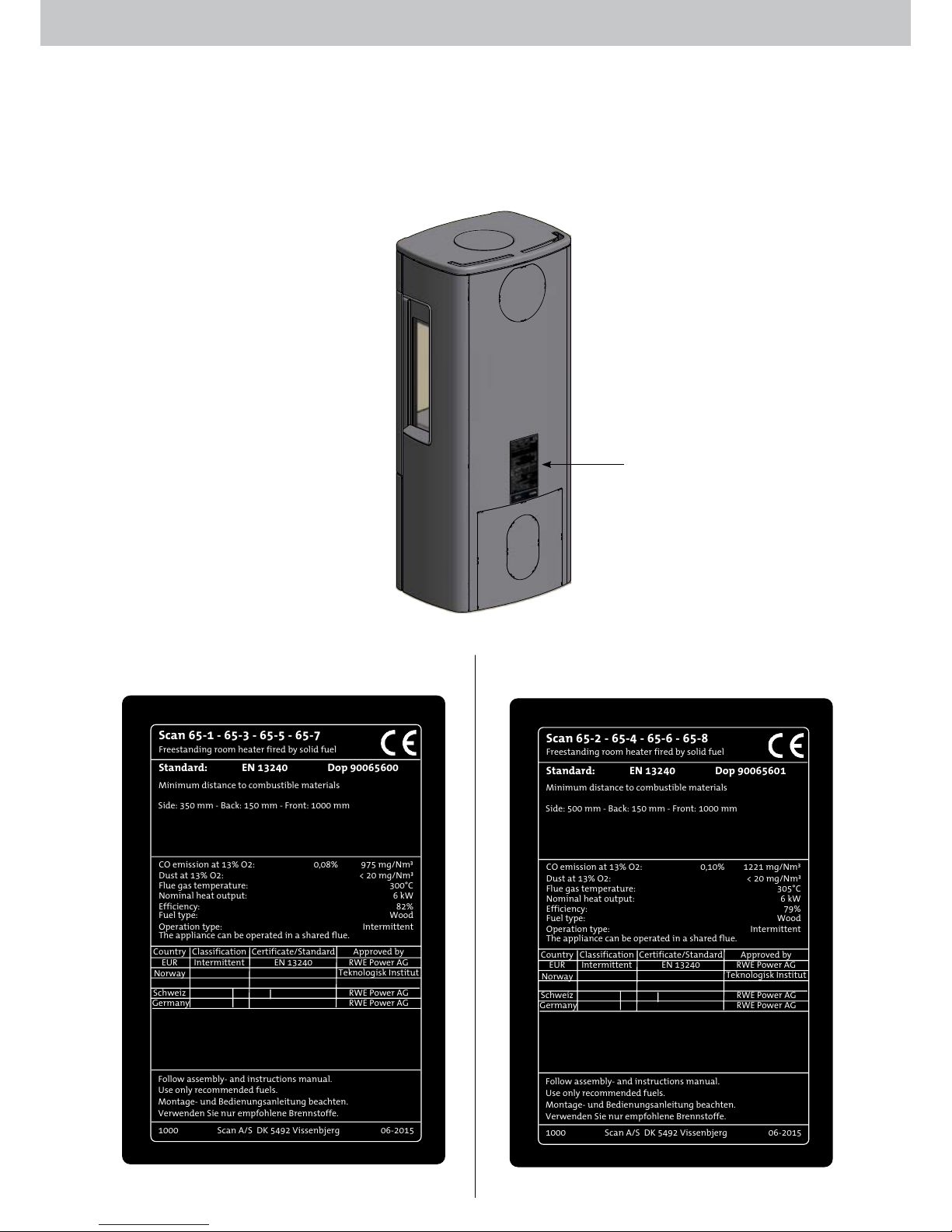

All Scan wood-burning stoves are fitted with a type plate, that specifies the approval standards and the distance to flammable materials.
The type plate is located at the back of the stove.
Scan 65-1, Scan 65-3, Scan 65-5 & Scan 65-7(Without side
windows)
Type plate

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
6500000
7
TECHNICAL DATA
Product
registration
number
Product registration number

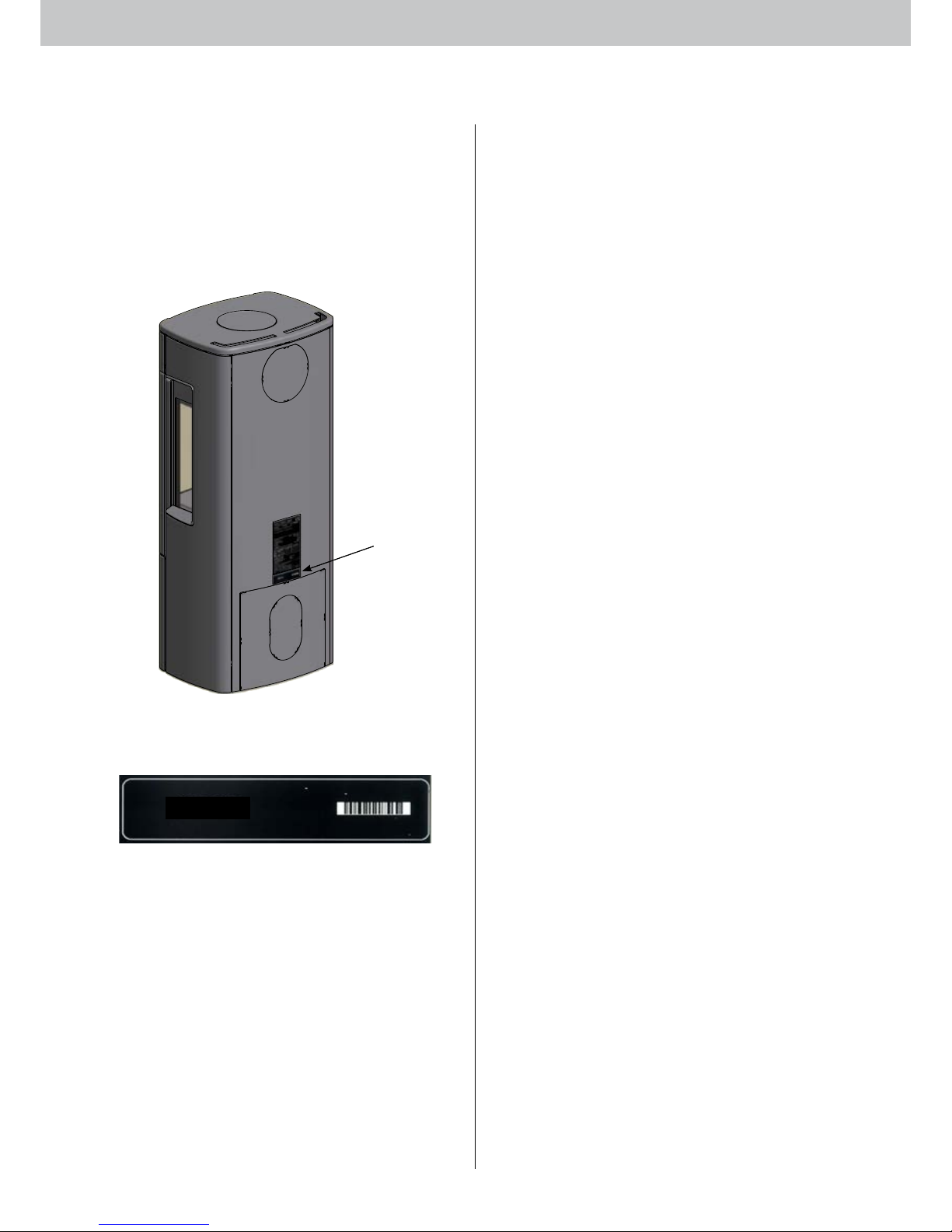

All wood-burning stoves are provided with a product registration
number.
The product registration number is located at the back of the stove.
Please make a note of this number on the front page as you will
always have to state it when contacting your dealer or Scan A/S.
Additional accessories
• Small shaped floor plate in glass or steel
• Large shaped floor plate in glass or steel
• Natural stones/tiles top plate for stove with rear outlet
• Natural stones/tiles top plate for stove with top outlet
• Heat accumulating stones
Loose parts
Parts for use on right-hung door are supplied fastened to the pallet.
Other loose parts are located in the stove's ash drawer.
Scan 65, all types:
• Glove
• Seal
• 4 pcs. screws for fastening the connecting piece
• 1 pcs. indicator for control of air supply
• 1 pcs. screw M5 x 6, must be placed for United Kingdom.
Scan 65-3 and Scan 65-4:
•4,5 m gasket
Scan 65-7 and Scan 65-8:
•7 m gasket

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064020.idw
90064020
Brændeovn påpalle
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064020.idw
90064020
Brændeovn påpalle
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064027.idw
90064027
Montage afdækningsknapper
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
A
8
Remove packaging
Check that the stove is not damaged before installing it.
Scan 65 is supplied attached to a wooden pallet. Remove the two
screws from the wood compartment store, as illustrated below, and
lift the stove off the wooden pallet.
Screws to be removed
Remove the screws that securing the stove to the pallet.
Fit the plastic plugs from the service box into the transport protection
holes.
Remove the protection between the baffle plates, before taking the
stove into use!
Protection for baffle plates
Put back the upper plate on the pins, as the protection pushes the
plate upwards.
Pin for baffle plate
ASSEMBLY

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064003.iam
90064003
Opstilling mod brændbar væg, ovn med sideruder
28-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
500
250
250
778
536
745
240
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064043.iam
90064043
Opstilling mod brændbar væg, ovn uden sideruder
22-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
350
253
595
240
50
50
313
578
9ASSEMBLY
Distance to flammable materials, shown with insulated flue pipe
Positioning your wood-burning stove
The wood-burning stove must be set up so that the stove itself, the
flue pipe, and the chimney can all be cleaned.
Distance to furniture: 1000 mm
But please check to avoid furniture or other furnishings being dried
out due to being too close to the stove.
Scan 65-2, Scan 65-4, Scan 65-6 and Scan 65-8
(with side windows)
Scan 65-1, Scan 65-3, Scan 65-5 and Scan 65-7
(without side windows)
All national and local requirements concerning safety distances for
wood burning stoves must be respected.
If you connect the stove to a steel chimney, the safety distances of the
steel chimney must also be respected.
Installation:
The distances presuppose the use of an insulated flue pipe with min. 30 insulation all the way to the stove.

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064050.iam
90064050
brændbar + uisoleret røgrør - Scan 64 med sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
500
536
250
778
250
340
745
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064049.idw
90064049
Brændbar + uisoleret røgrør - Scan 64 uden sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
350
340
595
100
363
628
100
324
10
Scan 65-2, Scan 65-4, Scan 65-6 and Scan 65-8
(with side windows)
Scan 65-1, Scan 65-3, Scan 65-5 and Scan 65-7
(without side windows)
ASSEMBLY
Distance to flammable materials, shown with un-insulated flue pipe

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064048.iam
90064048
Opstilling til brandmur, scan 64 med sideglas
25-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
800
760
700
860
860
100
100
50
300
50
324
11
Scan 65-2, Scan 65-4, Scan 65-6 and Scan 65-8
(with side windows)
Scan 65-1, Scan 65-3, Scan 65-5 and Scan 65-7
(without side windows)
ASSEMBLY
Distance to firewall
110 mm brick or other material with a corresponding insulation ability.
Flammable material
Firewall
The distances presuppose the use of an insulated flue pipe with min. 30 insulation all the way to the stove.
Flammable material
Firewall

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064004.idw
90064004
Scan 64 med lille gulvplade
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064016.idw
90064016
Scan 64 med stor gulvplade
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064044.idw
90064044
Justerskruer
10-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064044.idw
90064044
Justerskruer
10-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064053.idw
90064053
Ovn med vatterpas
04-12-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
12
B
B
ASSEMBLY
Load bearing underlay
All of the products in our portfolio are classified as light-duty firepla-
ces; in most cases, there is no need to reinforce the floor, so that you
can typically use the normal floor.
However, you should make sure that the load bearing underlay can
bear the weight of the wood-burning stove and that of the chimney.
Floor plate
If you are setting up the stove on a flammable floor, observe national
and local regulations on the size of the non-flammable underlay that
covers the floor around the stove.
Your local Scan dealer can advise you on regulations concerning
flammable materials in the vicinity of your stove.
The idea behind the floor plate is that it protects the floor and flam-
mable material against sparks.
The floor plate can be made of steel or glass, and the stove can be set
up on brick, natural stone or similar materials.
This Scan wood-burning stove has an integrated floor plate, and
can thus be set up on any flammable material without a protective
underlay.
Large shaped floor plate in glass or steel
Height adjustment of stove
The Scan 65 has four adjustment screws under the stove. Use the
adjustment screws to get the stove to stand straight and level.
Tilt the wood-burning stove and adjust the adjustment screws.
If you are using a shaped floor plate, you should adjust the stove
upwards to allow the plate to be inserted under the front of the stove.
Ajustment screw

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064019.idw
90064019
Scan 64 med knærør
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09 BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064013.idw
90064013
Afmontage topplade + røgstuds
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
13ASSEMBLY
Existing chimney and pre-fabricated element
chimney
If you intend to connect your stove to an existing chimney, it makes
sense to contact an authorised Scan dealer, or a local chimney sweep
for advice. These experts will also let you know if your flue needs
renovating.
When connecting a pre-fabricated element chimney, follow the
manufacturer’s connection instructions for the relevant chimney
type.
Connection between stove and steel chimney
Your Scan dealer, or local chimney sweep, can advise you on choosing
a make and type of steel chimney. This ensures that the chimney
will match your wood-burning stove. As a general rule, the length of
the flue should not be less than 3,5 m measured from the top of the
wood-burning stove.
Some weather or installation conditions might require another
length.
Choosing the wrong length or diameter of steel chimney could
impair functionality.
Always observe the chimney vendor‘s instructions precisely.
Requirements for chimney
The chimney must be labelled T400 and G for soot testing.
Connection with 90° elbow pipe
If you intend to use an elbow pipe with the Scan 65, we recommend
the use of a curved elbow pipe to improve the draft.
If you are connecting your stove using a sharp elbow bend, the clea-
nout door should be in the vertical section, such that the horizontal
part can be cleaned through it.

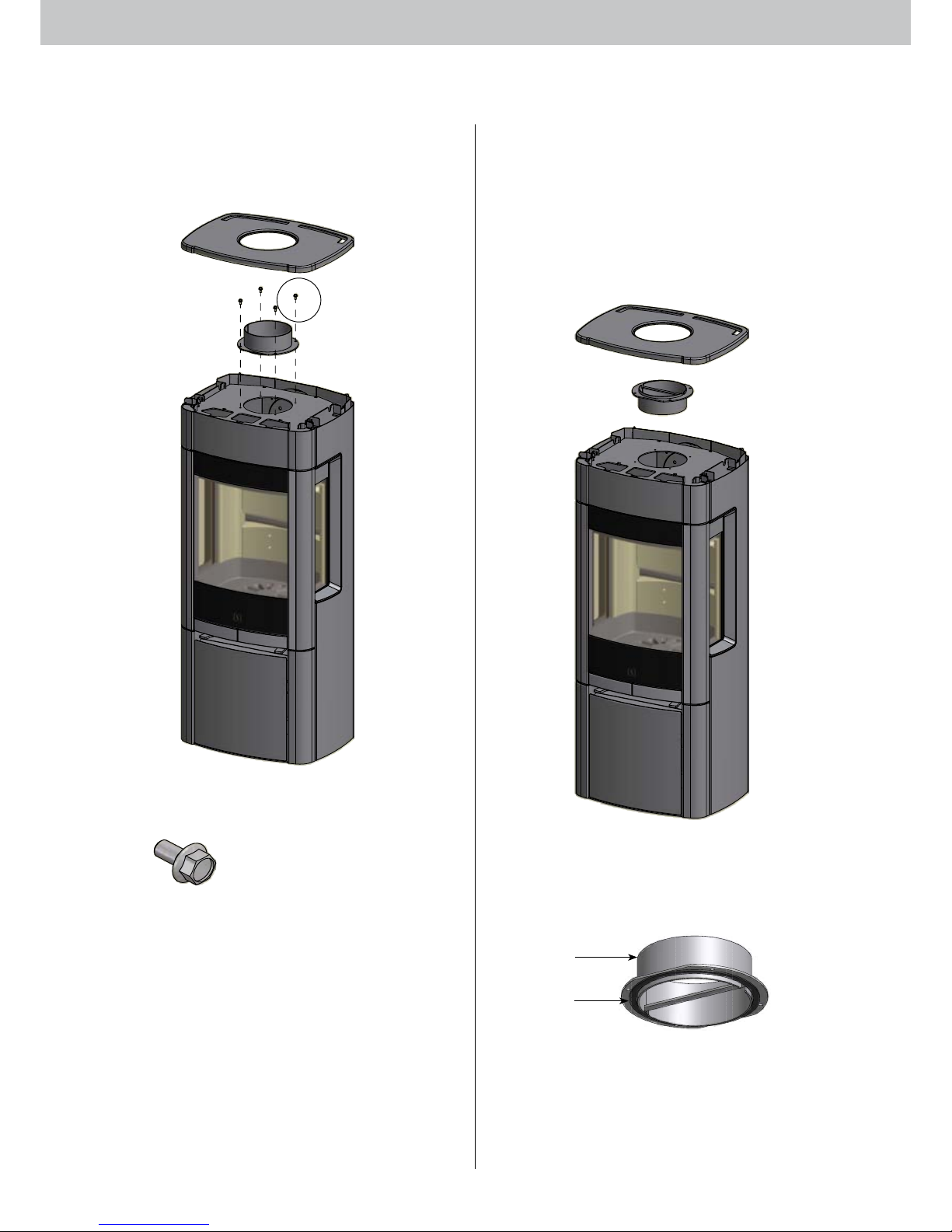

Connecting piece / top outlet
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove.
The gasket for the connecting piece is in the service box.
The screws for fastening the connecting piece are in the stove’s ash
drawer.
Lift the top plate and connecting piece off the stove.
Connecting
piece
Ceramic
gasket
Mount the ceramic gasket on the connecting piece

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09 BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064013.idw
90064013
Afmontage topplade + røgstuds
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
14
C
C
ASSEMBLY
Fasten the connecting piece with screws from the ash drawer and
replace the top plate.
4 pcs. M5x10 mm screw
Connection piece / rear outlet
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove.
The gasket for the connecting piece is in the service box.
The screws for fastening the connecting piece are in the stove’s ash
drawer.
Lift the top plate and connecting piece off the stove.
Connecting
piece
Ceramic
gasket
Mount the ceramic gasket on the connecting piece

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064024.idw
90064024
Afmontage dækplade i varmeskjold
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064052.idw
90064052
Varmeskjold løftes af ovn
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
D
D
15ASSEMBLY
Cut off the cover plate from the rear plate with cutting pliers at the
fastening points.
Fastening points
Lift the heat shield off the stove and cut the cover plate free using
cutting pliers at the fastening points and remove.

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064025.idw
90064025
Afmontage dæksel for bagafgang
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064028.idw
90064028
Montage af dæksel i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
E
E
16
Dæksel
ASSEMBLY
4 stk. M5x10 mm skrue
Fit the cover and tighten it. Replace the top plate.Remove the cover. This is to be used later as a seal and cover at the top
of the smoke outlet.
Fit the connecting piece with the four screws found in the stove’s ash
drawer. Hook the heat shield onto the stove.

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065008
fedsten pakninger m ruder
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065007
fedsten pakninger ht
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064046.idw
90064046
Scan 64-3 og Scan 64-4 m. isoleringsbånd f. fedtsten
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064046.idw
90064046
Scan 64-3 og Scan 64-4 m. isoleringsbånd f. fedtsten
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
17
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065006
fedsten u rude
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
90065009
fedsten pakninger m ruder
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90065005.idw
90065005
fedtsten ht
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
=
H
ASSEMBLY
Fitting the natural stones/tiles
Scan 65-3, Scan 65-4, Scan 65-7 and Scan 65-8 are delivered with loose
natural stone/tiles plates for mounting on the sides of the stove.
It is a natural material, wherefore there might be differences in struc-
ture and form.
Each natural stone/tile must be mounted with distance bushings and
screws which are already mounted in the stones.
The delivered gasket (4,5/7 m) should be cut in appropiate lengths
and sticked onto the sides of the stove as shown below.
Scan 65-4Scan 65-3
Gasket
Scan 65-8Scan 65-7

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064032.idw
90064032
Montage af fedtstenssider
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064032.idw
90064032
Montage af fedtstenssider
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064051.idw
90064051
Frisklufttilførsel
29-08-12 bc
Scan 64
VÆGT:
AREAL:
N/A
N/A
G
G
18
H
ASSEMBLY
Hook the natural stone/tile sides onto the stove. Fresh air intake
In a well-insulated house, the air used up by the burning process has
to be replaced. This particularly applies to houses with mechanical
ventilation. There are different ways of making sure that an air
exchange takes place. The most important thing is to ensure that
there is a supply of air to the room where the wood stove is located.
The external wall vent must be located as close to the wood stove as
possible, and you must be able to close it when you are not using the
wood stove.
National and local building regulations must be followed with regard
to the connection of fresh-air intake.
Closed combustion system
You should use the closed combustion system for the wood-burning
stove if you live in a newly-built, airtight home. Outside air for com-
bustion is connected through a ventilation pipe via the wall or floor.
It must be possible to shut off the ventilation pipe with a valve, when
the stove is not in use.
• Minimum Ø100 mm ventilation pipe, maximum length: 6 m with
a maximum of one bend
The connecting piece for external combustion air is to be found in
the packaging.
If the external combustion air is connected at the rear, the dis-
mounted plate must be mounted on the hole for external air in the
bottom of the stove.
NOTE: if the stove has a fresh air connexion or closed combustion,
the ventilation pipe must be open, when the stove is in use!
Remove the cover plate at the back of the stove or the cover plate at
the bottom of the wood compartment store, as shown on page 15.
Connect outside air to the connection piece underneath the combu-
stion chamber.
External combus-tion
air via floor
External combus-
tion air via wall

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064041.idw
90064041
Låge med gennemsynssokkel
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064017.idw
90064017
Scan 64 med fedtstensplade for topafgang
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064018.idw
90064018
Scan 64 med fedtstenstopplade for bagafgang
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
19
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\90065005.idw
90065005
varmeakkumulerende sten
15-10-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 65\10065900_Manual.iam
10065900_Manual
22-05-2015 jwa
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 65\10065900_Manual.iam
10065900_Manual
22-05-2015 jwa
VÆGT:
AREAL:
N/A
N/A
NAVN: STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068058.idw
90068058
klargøring til vægbeslag
12-05-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
ASSEMBLY / ACCESSORIES
Scan 65 with open plinth
If you want your Scan 65 with open plinth, remove the wood compart-
ment door and its stop as well as the large cover plate at the back of
the stove (see page 15).
Cover plate to
be removed
Do not remove the
radiation plate
Fitting the top plate of natural stone/tile
You can buy a natural stone/tile top as an accessory. Place the stone
top on the steel top plate.
Fitting the natural stone/tile top
Heat accumulating stones (Scan 65-7 + Scan 65-8)
The heat accumulating stones for Scan 65 are made of a special mate-
rial with a high heating capacity. The stones are heated up during the
firing and gives off the heat again after the firing, which means that
the stove stays warm for a longer time.

1
2
4 8
5
6
7
20 ACCESSORIES
Handle
Black handles are available as an option. Mount the handles on the stove as shown below.
Screws to be removed (picture 5+6)
Remove the handle screw
Remove the handle
Fit the black handle
Tighten the handle
Remove the handle
Tighten the black handle
