JAR Systems ADAPT6-USBC User manual

Adapt USB-C Charging Stations
Designed in the USA
Made in China
ADAPT6-USBC & ADAPT12-USBC User Guide
Version A
#M00020
Last Modified 11/06/2023
For a copy of the most up-to-date manual, please contact a
JAR Systems representative or visit:
JAR-Systems.com/Support

1 For Additional Support Call: 866.393.4202 or Email: [email protected]
· To remove devices from the stations with the greatest
level of charge first, disconnect devices with the
green LEDs first before you disconnect devices with
the blue LEDs.
Options
Other Charging Port Types
Devices that utilize charging port types other than
USB-C can be charged in the stations with the use of
USB-C emulator cables. Emulators are available from
JAR Systems for most common charging port types.
(Not Included, contact JAR Systems for more info)
Removable Door
The door of the station can be removed for easy
access to devices. Use the supplied box wrench to
loosen the two screws located on the inside of the
station frame.
Quick Start Normal Operation
1. Connect station to power source and turn on the
power switch
2. Plug in powered down devices
3. Connected devices will automatically charge as
efficiently as possible
4. Connect/disconnect devices any time
· Plug the power cable into a standard 15A outlet. Be
sure that the power switch on the back of the station
is in the ON position. LEDs will illuminate white to
indicate the station is connected to a power source.
· Power off devices fully before connecting them to
the station for charging.
· Connect the devices to the USB-C charging cables.
Ensure that devices are placed in the station so that the
charging ports are as close as possible to the USB-C
charging port on the station. Incorrectly connecting
devices can strain the cable over long periods of
time and lead to damage.
· The LED lights will change color according to the
power draw of the attached devices.
· The system will automatically limit power consumption
per USB-C port to avoid overconsumption. Refer to
the device for the level of charge. Connected devices
will charge as quickly and evenly as possible, up to
30W, without drawing too much power.
Do Not Overextend the Charging Cables
White: Port Ready
Blue: Device Charging
Green: Charge Level >90%
LED Charging Port Indicator Lights

2 For Additional Support Call: 866.393.4202 or Email: [email protected]
Trouble-Shooting
Always start troubleshooting with a simple reboot
Turn the station off and then on again using the switch
on the back. When the station is connected to power,
the LEDs will change color based on the power draw
of connected devices (see light indication).
Single Port or Device Issue
Ensure that both of the USB-C cable ends plug into
the station and the device correctly.
If there is still no charge, disconnect the device from
that port (A) and plug into another port (B). If it is still
not charging, it may be an issue with the device.
If charging begins when using port (B), exchange the
cable from port (B) to port (A). If it begins to charge,
the cable (A) is defective and will need to be replaced.
Entire Charging Hub/Shelf Issue
Check the back of the station to see if the power
switch is in the ON position and the power cable is
plugged in and connected correctly.
When the station is powered back on, the LED lights
will begin to illuminate.

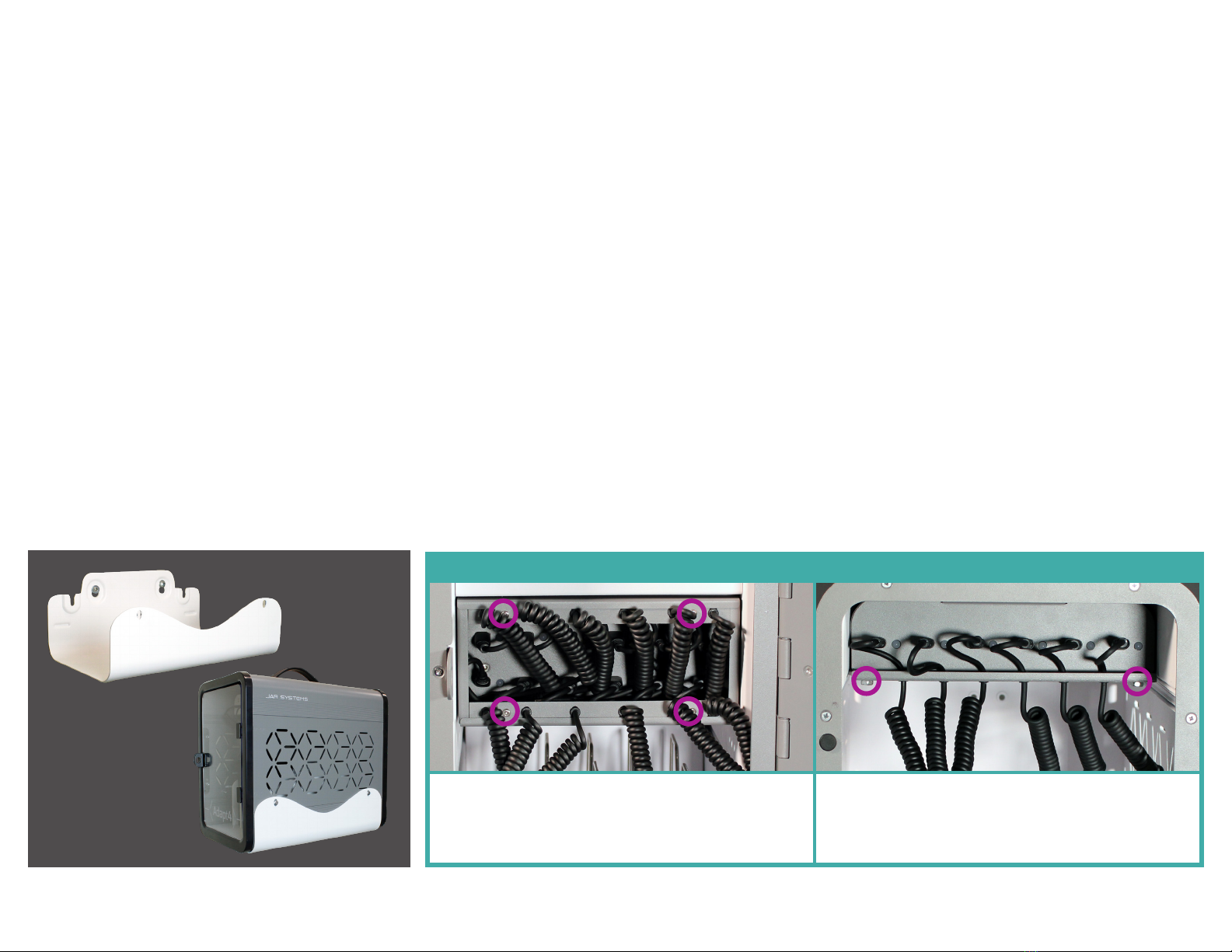

Remove/Replace USB-C Cables
Each cable lock bar may be secured with up to two
screws. Remove all screws with the supplied T10H
Torx key (Adapt12) or by hand (Adapt6). See the chart
below for details.
Remove the cable lock. Unplug the cables from the
USB-C ports and route them through the cable track.
Reverse the process to replace a cable.
REMOVING THE CABLE LOCK BAR(S)
ADAPT12 USB-C CHARGING STATION
Features an upper a lower cable lock bar, each secured
with two T10H Torx screws.
ADAPT6 USB-C CHARGING STATION
Features one lock bar secured by two thumbscrews.
Preventing the Station from Being Transported
Adapt stations feature a Kensington® Security Slot™
and a loop on the back which enables users to utilize
a locking cable to secure it in place. (Locking cables
not included)
Wall Mounting Bracket
Mount the bracket using included hardware to fasten
the taller side of the bracket to the wall. Attach the
provided hardware to one side of the station for it
to slide into notches in the mounting bracket and
secure into the bracket the with the screws through
the front. (Optional, not included)
WARNING: Failure to provide adequate structural strength for this
mounting system can result in serious personal injury or damage
to equipment. It is the installer’s responsibility to make sure the
structure to which this mounting system is attached can support
five times the combined weight of all equipment. Reinforce the
structure as required before installing the mounting system. Always
ensure that proper hardware is used for the wall surface type.
Never operate this mounting system if it is damaged. Contact JAR
Systems for replacement or repair.

Warnings
· Power down all devices prior to connecting them to the hub for charging.
· Keep away from moisture and harsh chemicals. Do not place any liquids near the
charging station.
· Any electrical equipment must be used by an adult or with adult supervision.
· Do not connect unsupported items to the charging station or use for any purpose
other than its intended use.
· Do not attempt to obstruct any ventilation openings or dismantle, open, or modify
the system in any way.
· Do not sit or stand on the station or charging hub.
· Do not use an extension cable or daisy-chain to any other devices.
· Not intended for operation at altitudes greater than 2000 m or 6561 ft above sea
level and should not be operated in extreme temperatures. For indoor use only.
Disclaimer
Failure to read, thoroughly understand, and follow all instructions can result in serious
personal injury, damage to equipment, or voiding of factory warranty. Since the use
of this information, the equipment connected, and the conditions by which any JAR
Systems product is used is beyond the control of JAR Systems, it is the obligation of
the owner and/or user to determine the correct and safe use of any equipment and
product. To the extent that the law permits, any liability which may be incurred as a
result of the use or future use of a product manufactured or sold by JAR Systems is
limited to the cost of repairing or replacing the failed product or component at the
discretion of JAR Systems either within, or outside of warranty periods, and does not
extend to any loss or damage which may be caused as a consequence of misuse or
failure of the equipment, product or the information contained herein. JAR Systems
shall not in any event be liable for economic loss of profits, indirect, special, bodily
injuries or consequential damages. Specifications and images are for illustration
purposes only. Final product may differ and is subject to change without notice.
Warranty
This product comes with a warranty that covers any defects in material or workmanship
and extends to the original consumer of the product only. JAR Systems, LLC will replace
the product with a new or refurbished product, repair the product, send replacement
parts, or refund the purchase price of the product, at JAR Systems, LLC’s discretion.
This warranty does not cover accidental damage, unreasonable use, neglect, tampering
or other causes not arising from defects in material or workmanship.
Any implied warranties last only as long as the warranty periods listed above except
where state law does not allow limitations on how long an implied warranty lasts. This
includes but is not limited to the implied warranties or merchantability and fitness.
JAR Systems, LLC’s responsibility is limited to the actions listed above and nothing else.
This warranty does not cover, and JAR Systems, LLC will not be responsible for, any
damages due to loss of use of the product, or any other costs or expenses incurred by
you or anyone else who uses the product, whether due to defects, breach of contract,
negligence, strict liability or otherwise. JAR Systems is not liable for any indirect,
special, incidental or consequential damages related to the product or this warranty.
Some states do not allow exclusions or limitations on consequential or incidental
damages, so these limitations or exclusions may not apply.
This warranty gives you specific legal rights and you may also have other rights that
vary from state to state. This warranty is governed by the laws of Florida, excluding
its conflict of laws principles, unless your state requires that its law be used.
Contact JAR Systems for information on the length of warranty on your product(s).
