JAR Systems CS-1610 User manual

Essential
Charging Station
Owner’s Manual
Version E
2021 © JAR Systems LLC reserves all rights to the copy and content of this manual
www.JAR-Systems.com | 866.393.4202
Model Numbers: CS-1610, CS-1210

Essential Charging Station
1
Essential 16 Owner’s Manual:
Table of Contents
Model #: CS-1610 and CS-1210
Before You Start: USB-C or AC? ........................................................ 2
Included with the Essential Charging Station .................................... 2
Main Components
Hardware Packet
Assembling the Station...................................................................... 3
Prepare the Chassis
Secure Chassis to a Wall or Desk (Optional)
Reversible Power Strip (AC stations only)
Install Power Strip (AC stations only)
Mount the Tray to the Chassis
Install the Quick-Sense USB-C Hub (USB-C stations only)
Install the Rubber Bumper
Install the Top Security Bar (Optional)
Insert the Dividers into the Tray
Install Locking Arms (Optional)
Cable Management (AC stations only) .................................................... 8
Warnings............................................................................................ 9
Warranty............................................................................................ 9
Disclaimer: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding
of factory warranty. It is the installer’s responsibility to make sure all mounting systems are properly assembled and installed using the instructions
provided. This information is the intellectual property of JAR Systems LLC and may not be distributed, duplicated or copied in part or full without
the written permission. Since the use of this information, the equipment connected and the conditions by which any JAR Systems product is used is
beyond the control of JAR Systems, it is the obligation of the owner and/or user to determine the correct and safe use of any equipment and product.
To the extent that the law permits, any liability which may be incurred as a result of the use or future use of a product manufactured or sold by JAR
Systems is limited to the cost of repairing or replacing the failed product or component at the discretion of JAR Systems either within, or outside of
warranty periods, and does not extend to any loss or damage which may be caused as a consequence of misuse or failure of the equipment or product
or the information contained herein. JAR Systems shall not in any event be liable for economic loss of profits, indirect, special, bodily injuries or
consequential damages. Specifications and images are for illustration purposes only. Final product may differ and is subject to change without notice.

Essential Charging Station —Owner’s Manual Version E 2
Essential Charging Stations are available in USB-C and AC configurations. Know which configuration
you are assembling ahead of time. See the parts list below for reference. Skip sections that are labeled
(USB-C stations only) or (AC stations only) if you are not assembling that configuration.
Included:
Main Components
1. (1) Chassis
2. (1) Top Locking Bar
3. (1) Tray
4. (2) Front Locking Arms
5. (1) T25H Torx Key
6. Stainless Steel Dividers (11 for CS-1210, 15 for CS-1610)
7. (1) Chassis Rubber Bumper
8. (1) Padlock with (2) Keys
9. (1) Power Strip (AC stations only)
10. (1) Quick-Sense USB-C Hub (USB-C stations only)
11. Right Angle Box Wrench (USB-C stations only)
12. (1) Power Cable (USB-C stations only)
Hardware Packet
A1. (11) Short Screws and Washers
B2. (8) Long Screws and Washers
C3. (4) Power Strip Screws with Nuts
D4. (4) Rubber Feet
E5. (4) Screws for Rubber Feet
F6. Clear Cable Holder Clips
G7. Wall Mounting Hardware
H8. Spare Hardware
I9. Tools: Drill Bit
1 2 3 4 5 6 7 8
9 10
AC Charging Stations
USB-C Charging Stations
11 12
Before You Start: USB-C or AC?

Essential Charging Station
3
Assembling the Station
Prepare the Chassis
A. Remove contents of the carton and separate the
major components. Use the T25H Torx key that is
packaged with the manual to remove the screw
and washer from the center of the tray lid and set
them aside to be replaced at the end of assembly.
Remove the contents from the tray.
B. Extend the sides of the chassis out at right angles
and tighten the pre-installed screws on corner of
each side. Each side has one on the top and one
on the bottom (4 screws total). CS-1210 ONLY:
The CS-1210 right panel is detached for shipping.
Attach with 2 [B2] screws and washers.
C. The supplied rubber feet [D4], [E5] can be
optionally installed in the four holes on the
bottom side of the station beside the holes used
for securing the station to a horizontal surface.
E
11.00
16.00
(14.00)
4X
.391
4X
.688
4X .50
(22.11) (11.66)
16.33 CLEARANCE REQUIRED 14.72 CLEARANCE REQUIRED
(13.27)
CS-1610 WALL TEMPLATE
D
Aerial view of the
bottom of the chassis
A
C
B
Bottom view of the
assembled station
Secure Chassis to a Wall or Desk (Optional)
D. If the station will be used on a table, desk, or
counter top it may be optionally secured to the
surface by inserting 4 screws appropriate for
the surface type through the bottom side of the
chassis.
E. To mount the station to a wall, use the supplied
template as a guide for your screw location on the
wall. Other tools helpful to mounting: a level, and
a stud finder, and a pencil to mark mounting points
over studs in the wall.
WARNING: Failure to provide adequate structural strength for this
mounting system can result in serious personal injury or damage to
equipment. It is the installer’s responsibility to make sure the structure
to which this mounting system is attached can support five times the
combined weight of all equipment. Reinforce the structure as required
before installing. The wall to which the mount is being attached may have
a maximum drywall thickness of 5/8” (1.6cm). Always ensure that proper
hardware is used for the wall surface type. Never operate this mounting
system if it is damaged. Contact JAR Systems for replacement or repair.

Essential Charging Station —Owner’s Manual Version E 4
REVERSIBLE POWER STRIP
The power strip can be mounted on either the front or back side
by reversing the mounting brackets. Loosen the three screws
on each side, rotate the bracket, and replace the screws.
Position #1 Position #2
REVERSIBLE POWER STRIP
The power strip can be mounted on either the front or back side
by reversing the mounting brackets. Loosen the three screws
on each side, rotate the bracket, and replace the screws.
Position #1 Position #2
Position #1
Position #2
FFGG
11
33
55
22
44

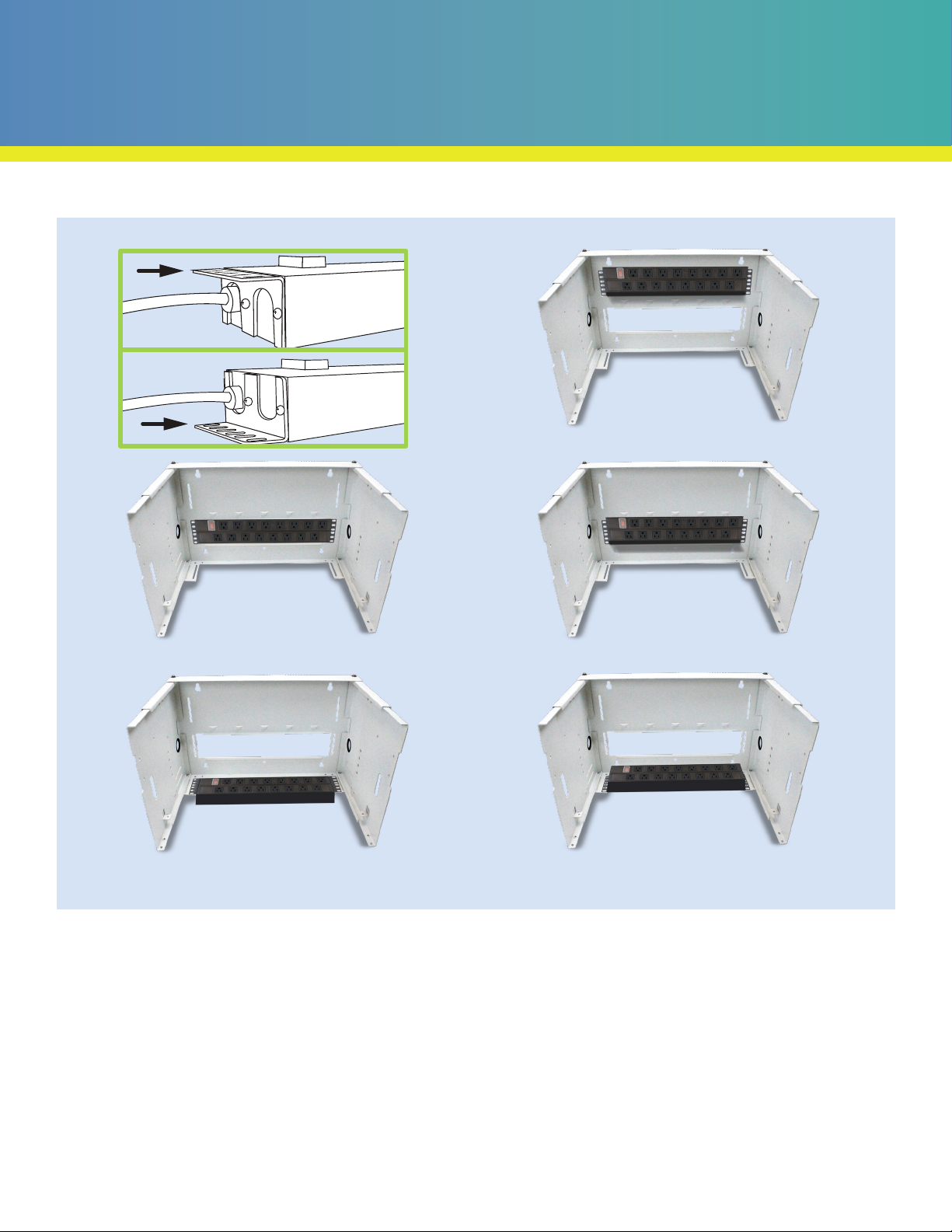

Reversible Power Strip (AC stations only)
F. The power strip can be mounted on either the front
(position #1) or back (position #2) by reversing
the mounting brackets. Loosen the three screws
on each side, rotate the bracket, and replace the
screws.
Install the Power Strip (AC stations only)
G. Install the power strip in one of the following
positions with [C3] 4 screws and nuts.
1. Recommended for smaller devices.
2. Recommended for most desktop usage.
3. Alternate position for desktop usage.
4. Recommended for most wall-mount usage.
5. Alternate position for wall-mount usage.

Essential Charging Station
5
HH
Mount the Tray to the Chassis
H. Pull out the sides of the chassis to the depth
needed for your device. Loosen the pre-installed
screws on the sides of the chassis if the sides
will not slide out. Note: To prevent unauthorized
removal of devices, do not extend the sides further
than needed to fit the devices.
I. Rest the tray on the tabs near the front of the
chassis. Insert 4 [B2] screws with plastic washers
through the chassis and into the back side of the
tray. (2 screws each side).
J. Open the tray and insert 2 [A1] screws and washers
through the tray and into the tabs on the chassis.
Install the Quick-Sense USB-C Hub (USB-C
stations only)
K. Open the tray lid and prop it up by placing a screw
or the Torx wrench in the side of the station.
L. On the inside of the tray, locate the 3 nuts that
secure the front panel of the tray to the bottom
panel. Remove them using the box wrench. Put
the nuts in a secure location. They will be used to
secure the hub onto the tray. Remove the front
panel of the tray and set aside. You will not need
this piece for the USB-C configuration.
M. Insert the power cable into the back of the hub,
route it through the tray and out of the circular
opening in the side/back of the station. Place the
USB-C hub into the tray. You may need to rotate
the hub diagonally to get it through the opening.
Align the holes in the front of the hub with the
studs where the front panel was secured. Use the
nuts that were removed in step L to secure the hub
to the tray using the box wrench.
N. Position all USB-C dongle cables forward in the
cable track so they are out of the way of the tray
lid closing. Remove your prop from the side wall
of the station and close the tray lid. Secure the
KKLLMM
JJ
II

Essential Charging Station —Owner’s Manual Version E 6
tray lid shut using the screw and washer that were
removed in step A and the Torx key.
Install Rubber Bumper
O. To protect your devices from hitting the back edge
of the chassis, utilize the supplied rubber bumper.
Install the Top Security Bar (Optional)
P. For security, place the top locking bar at the lowest
height that will fit over the devices. Use 2 [B2]
screws on the top two holes on the outside and
1 [A1] screw should be secured from the inside of
the chassis to prevent removal, on both sides.
PP
RRSS
QQ
Insert the Dividers into the Tray
Q. Remove the pre-installed divider locks from under
the shelf. Insert the dividers into the slots on the
shelf. Ensure that all dividers are properly seated
and re-install the divider locks beneath the shelf
using 6 [A1] screws.
Install Locking Arms (Optional)
R. For security, install the front locking arms using 2
[A1] screws on each side. Screws for the locking
arms should be installed from the inside of the
chassis to prevent removal.
S. Using the included padlock and keys with the front
locking arms can secure the station by looping
it through the holes when they align. Using the
padlock upside down may make the lock easily
accessible. This step completes the setup for
USB-C configurations.
NNOO

Essential Charging Station
7

Essential Charging Station —Owner’s Manual Version E 8
UUTTVV
WW
Cable Management (AC stations only)
T. Place a security screw in the side of the chassis to
hold the tray open during the wiring process.
U. Determine the length of cable that is needed to
reach from the tray to the devices.
V. Determine the best method of arranging the cables
that come with your device.
AC ADAPTERS FRONT TO BACK: Best for some
wider adapters.
AC ADAPTERS LEFT TO RIGHT: Best for some
narrower adapters.
TABLET (NO AC ADAPTER): Use provided clips [F6]
beneath shelf to secure cables in groups of 5-6.
TIP: Adapters can often be installed as they come bundled in the
box. If the cables are not bundled at all, twist ties or Velcro
ties are helpful. If the devices have larger AC adapters (5”x
2”x 1.25” or larger) the adapters will fit snugly in the tray.
In this case it may be best to arrange most of the adapters
as far back in the tray as possible from left to right, flipping
about half on their side. Contact JAR Systems for additional
assistance.
W. After AC adapters are arranged in the tray, plug them
into the power strip. For best results, bundle any
excess cable length if it is not already.
X. (OPTIONAL) Secure the tray lid shut using the
screw and washer that were removed in step A
and the Torx key to prevent adapters from being
removed or tampered with. This step completes
the setup for AC configurations.
VV(continued)(continued) XX

Essential Charging Station
9
Warnings
This station must always be used by adults or with adult
supervision. Do not leave the station unattended in areas
where children have access.
Do not operate in extreme temperatures. For indoor use
only. Liquids should not be stored in, set on, or placed
inside this station.
Do not connect unsupported items to the charging cart or
use for any purpose other than its intended use.
Exceeding the weight capacity can result in serious
personal injury or damage to equipment. It is the installer’s
responsibility to ensure that the combined weight of all of
the attached components does not exceed 100 lbs.
Do not attempt to obstruct any ventilation openings or
dismantle, open, or modify the system in any way.
If the station is being used or transported on an AV cart or
charging cart, the station must be secured to the cart.
Quick-Sense USB-C is not intended for operation at
altitudes greater than 2000 m or 6561 ft above sea level.
Warranty
This product comes with a warranty that covers any
defects in material or workmanship and extends to the
original consumer of the product only. JAR Systems,
LLC will replace the product with a new or refurbished
product, repair the product, send replacement parts, or
refund the purchase price of the product, at JAR Systems,
LLC’s discretion. This warranty does not cover accidental
damage, unreasonable use, neglect, tampering or other
causes not arising from defects in material or workmanship.
Any implied warranties last only as long as the warranty
periods listed above except where state law does not
allow limitations on how long an implied warranty lasts.
This includes but is not limited to the implied warranties
or merchantability and fitness. JAR Systems, LLC’s
responsibility is limited to the actions listed above and
nothing else.
This warranty does not cover, and JAR Systems, LLC will
not be responsible for, any damages due to loss of use of
the product, or any other costs or expenses incurred by
you or anyone else who uses the product, whether due
to defects, breach of contract, negligence, strict liability
or otherwise. JAR Systems is not liable for any indirect,
special, incidental or consequential damages related to
the product or this warranty. Some states do not allow
exclusions or limitations on consequential or incidental
damages, so these limitations or exclusions may not apply.
This warranty gives you specific legal rights and you may
also have other rights that vary from state to state. This
warranty is governed by the laws of Florida, excluding its
conflict of laws principles, unless your state requires that its
law be used.
Contact JAR Systems for information on the length of
warranty on your product(s).
