jbc PA120-A User manual

Micro Tweezers
Ref. PA120-A
www.jbctools.com

Features
2 3
C120 Cartridges
(Required but not supplied)
Control Unit
Stand
Ref. PA-SD
Manual ................................................ 1 unit
Ref. 0008846
Packing List
The following items should be included:
Micro Tweezers ...................................... 1 unit
Ref. PA120-A
Micro Tweezers
Ref. PA120-A
Micro Tweezers
Ref. PA120-A
2. Inserting
3. Aligning 4. Fixing
Align the tip of the cartridge. Use a flat
pliers in the indicated area for a correct tip
alignment.
Do not over-tighten the cartridge.

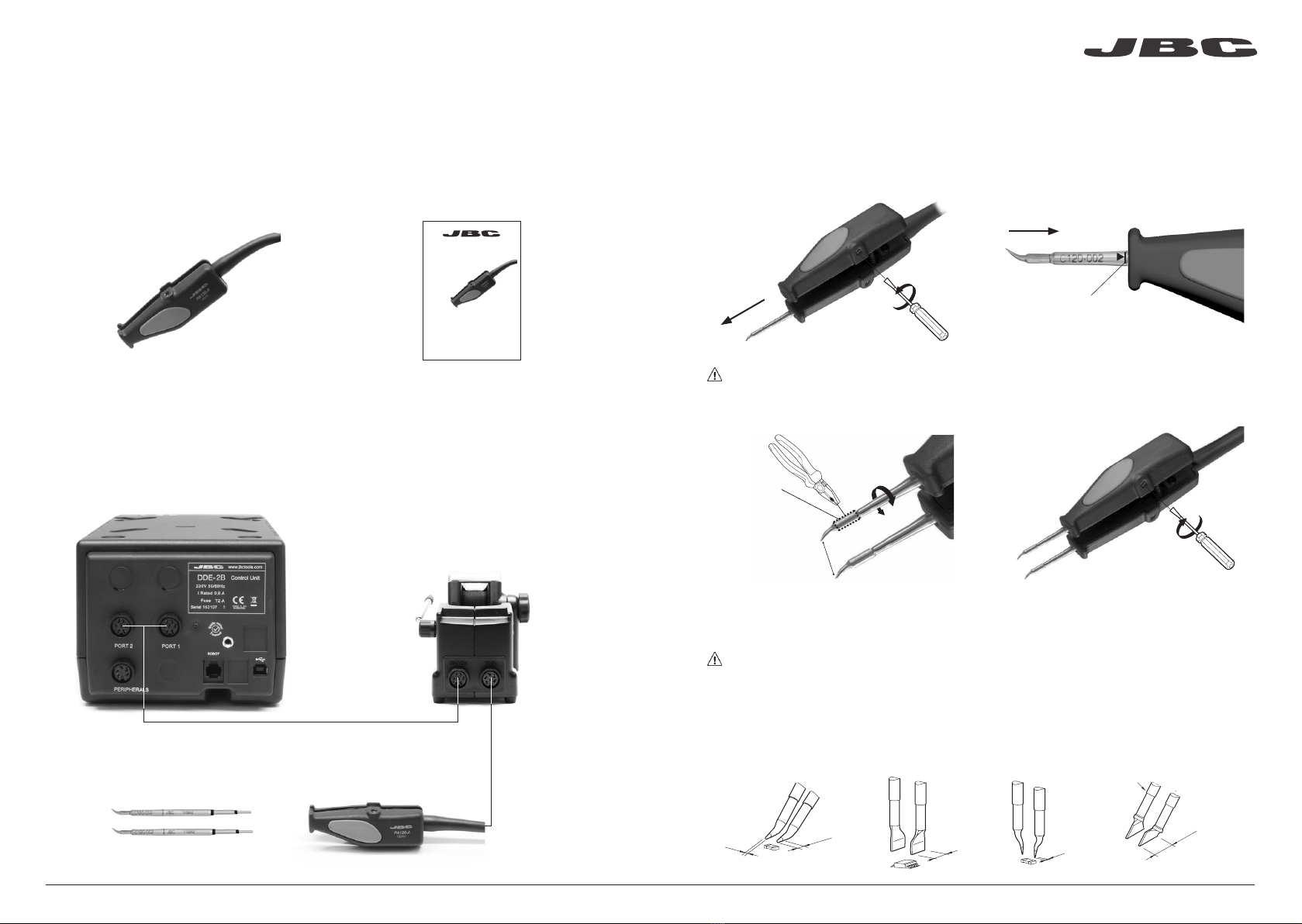

Changing cartridge
For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:
Loosen the screw and remove the cartridge.
Use a flat pliers if still hot.
1. Removing
Important: Tighten the screw again being
careful not to over-tighten. This is necessary
for the tool to function.
Important: Insert the cartridge as far as
the mark for a correct connection.
Mark
Alignment
The PA120-A Micro Tweezers works with C120 cartridge range. Find the model that best suits your
soldering needs in www.jbctools.com
ø0,7 1,5mm
ø 0,2
5mm
6mm
C120-009 C120-010
C120-004 C120-001C120-005 C120-009 C120-010
Compatible cartridges
Suitable area
for a correct
contact
between the
flat pliers
and the
cartridge
www.jbctools.com
ww w.j bc too ls.c om

- Maximum power per cartridge: 40W
- Weight without cartridges: 99 g (3.5 oz)
ESD Safe
Specifications
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
0008846-0216
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear due to use
or mis-use.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
