Jbc Cd User manual

CD

SOLDERING STATION

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

CL6210 Brass Wool

S0354 Sponge

2

CD / SOLDERING STATION

CONTROL UNIT

T210-A

SOLDERING IRON

C210001

C210008

CARTRIDGES

C245903

C245741

CARTRIDGES

MANUAL

POWER CORD

T245-A

SOLDERING IRON

MANUAL

SUPPLIED WITH

CD-2SC / CD-1SC / CD-9SC

SUPPLIED WITH

CD-2BC / CD-1BC / CD-9BC

ww w.j bct ool s.c om

CD

SOLDERING STATION

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

INSTALLATION

PART NAMES

3

Power Cord Socket

Main switch

Cable collector

Cartridge extractor

Tip cleaning system

Friendly display control

Smart stand

Equipotential connection

CONTROL UNIT T210-A or T245-A

SOLDERING IRON

USB connector to PC:

- Update station software

- Create graphs of the soldering process

- Manage and monitor parameters via PC

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

ADJUSTABLE STAND

CABLE COLLECTOR

4

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

CLEANING OPTIONS

5

Tap smoothly the cartridge on the wiper proﬁle to

remove the excess of solder

Provides a deeper cleaning on the tip.

CL6205 Inox Wool

TAPPING WIPING

Full set of clean option: sponge, metal wool and brush

S0331 Sponge S0354 Sponge

Use the slots to wipe any posible particle sticked

on the tip

More agressive on the tip than the wool.

CL6220 Brushes

The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Expected life

(hours)*

Sleep

Temp

Working

Temp

Temp (ºC)

700

600

500

400

300

200

200 225 250 275 300 325 350 375 400 425 450

100

0

QUICK TIP CHANGER

HEAT MANAGEMENT

6

JBC stations intelligently manage the tool temperature

and it helps to extended the tip life:

Work mode: Lift tool from the stand and the tool tip

heats up to the selected temperature.

Sleep mode: When the tool is in the stand, the

temperature reduces (preset sleep temperature is

180ºC / 360ºF).

Hibernation mode: After longer periods of inactivity

(pre-set to 30 minutes), the power is cut off and the

tool cools down to room temperature.

Heat management increase tip life which reduces cost of ownership.

Full set of clean option: sponge, metal wool and brush

Pull slightly to remove the cartridge Push gently and place a new one

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

0

c

Selected temp.

350

o

C

Power 10%

350

Decrease & move down Increase & move up

Tip temperature

% Instant power supplied

to the tool

Access Menu

& Conﬁrm Selection

Main menu

Counters

Tool settings

Exit

1 Reset settings

2

Station settings

3

Tool settings

1

Plugged hours 0

2

Working hours 0

3

Sleep hours 0

1

Fix one temp -----

2

Temp levels set OFF

3

Sleep delay 0 min

4 Counters

5

Program version

4

Hibernation hours 0

5

No tool hours 0

6 Sleep cycles

0

4

Sleep temp 180

0

C

5

Hibernationdelay

3

0 min

6

Temp adjust + O

O

C

Tool 245

Back

ORIGINAL PIN: 0105

Station settings

1 Temp unit

Celsius

2

Maximum temp 400

0

C

3

Minimum temp 200

0

C

4

Help text OFF

5 Beep ON

6 Power limit 130W

7

Change PIN

Back

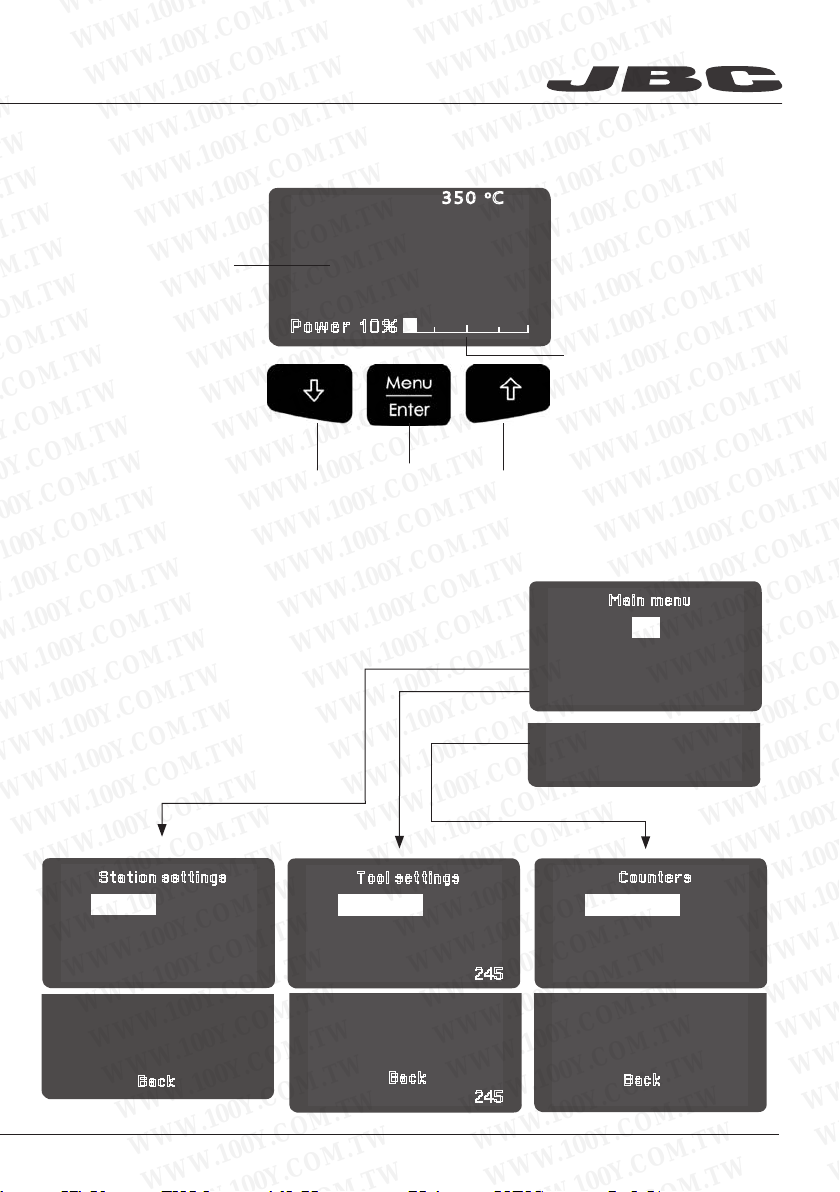

CONTROL SCREEN

SETTINGS MENU

7

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

0012760-0413

TECHNICAL SPECIFICATIONS

- Temperature selection from 90°C (190°F) to 450°C (840°F) (±5%).

- Output Peak Power CD-B: 130W.

- Output Peak Power CD-S: 40W.

- Safety transformer, mains separator and double isolation.

- CD-2BC / CD-2SC 230V 50/60Hz. Input fuse: 1A. Output: 23,5V.

- CD-1BC / CD-1SC 120V 50/60Hz. Input fuse: 2A. Output: 23,5V.

- CD-9BC / CD-9SC 100V 50/60Hz. Input fuse: 2A. Output: 23,5V.

- Total weight of unit: 2,6 Kg.

- Complies with CE standards on electrical safety, electromagnetic compatibility

and ESD protected housing “skin effect”.

- RoHS compliant.

- Equipotential connector and the tool tip are connected to station mains ground supply for ESD protection.

This product should not be

thrown in the garbage.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW
