Jimmy H10 Pro User manual

Instruction Manual Vacuum Cleaner
Instrukcja obsługi Odkurzacz Jimmy
Bedienungsanleitung Staubsauger
Manuel d'instruction Aspirateur
Manuale D’Uso Scopa elettrica senza lo
Manual de instrucciones Aspirador
Руководство по эксплуатации Пылесос
H10 Pro

1
Contents
English 2
Polski 17
Deutsch 32
Français 47
Italiano 62
Español 77
русский язык 92

2

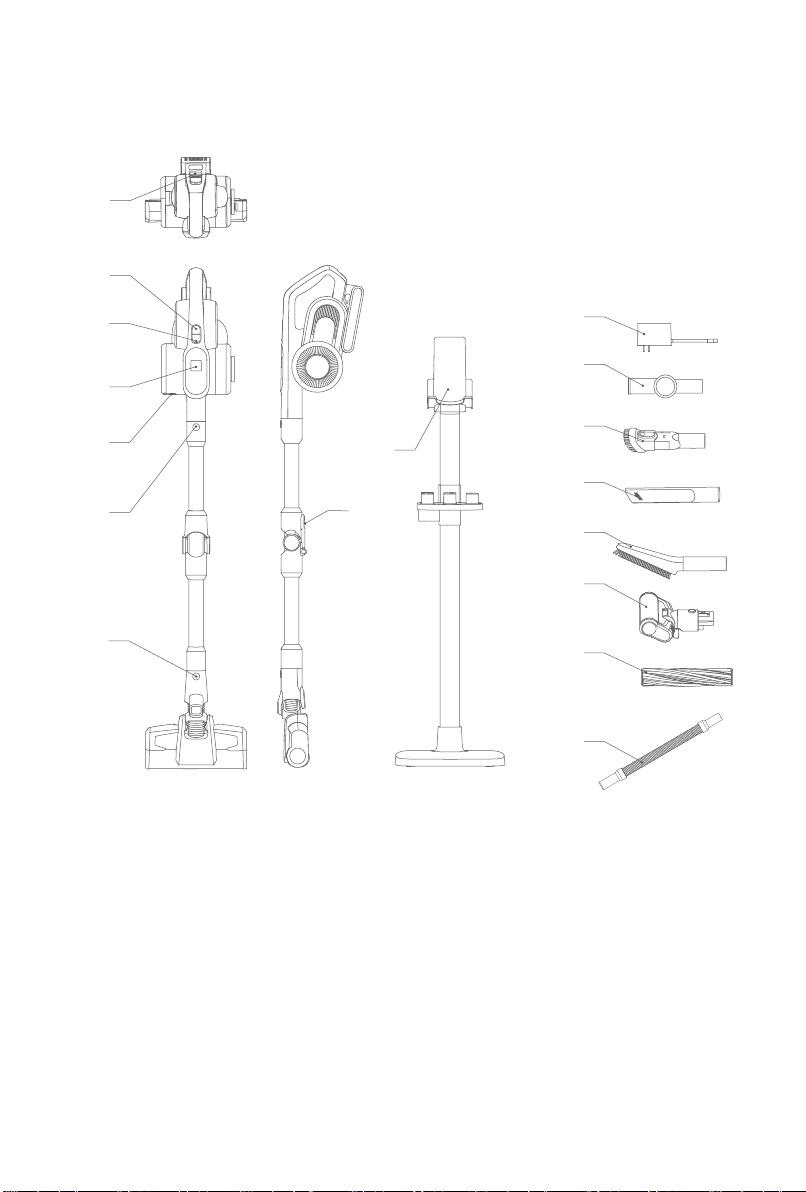

Parts Name
1.Battery pack release button
3.Mode button
5.Dust cup bottom release button
7.Floorhead release button
9.Storage holder
11.Connector
13.Crevice tool
15.Electric mattress head
17.Stretch hose
2.On/off switch
4.LCD screen
6.Metal tube release button
8.Metal tube bending release button
10.Charger
12.Upholstery tool
14.Soft brush
16.Carpet brushroll
1
2
3
4
5
68
9
10
11
12
13
14
15
16
17
7

3
1.Front cover assembly
3.Metal tube upper sleeve
5.Metal tube lower
7.Screw*8
2.Metal tube upper
4.Accessories holder
6.Base assembly
1
2
5
6
*2
*4
*2
7
3
4
Storage holder parts name
Accessories storage holder assembly
1.Put base on oor, insert metal tube lower into base and fasten 2pcs screw.
2.Insert accessories holder into top of metal tube lower,put metal tube upper and metal tube
upper sleeve assembly into accessories holder, fasten 4pcs screw as the picture.
3.Put front cover assembly into metal tube upper and fasten 2pcs screw as the picture.

4
Part name Handheld
vacuum
Electric oor
head
Flexible metal
tube Battery pack Crevice tool
Quantity 1 1 1 1 1
Part name Soft brush Connector Upholstery tool Stretch hose Carpet brushroll
Quantity 1 1 1 1 1
Part name Electric mattress
head Adapter Front cover assembly Metal tube upper Accessories holder
Quantity 1 1 1 1 1
Part name Metal tube lower Base assembly Screw User manual
Quantity 1 1 8 1
Packing List
Machine assembly
Assemble and disassemble electric
oor head with exible metal tube
Hold the oor head with left hand, use right hand
to insert the metal tube vertically into oor head,
align with the conductive needle, press the tube
until a “click” sound is heard.
Attention:Keep the handle and oor head in the same
direction, conductive needle shall align with the socket.
When packing, storing or cleaning, if the electric
oor head needs to be removed, press the
brush release button and pull the metal tube in
the direction shown in the picture to take out
oor head.
Assemble battery pack with handheld
vacuum
Hold battery pack, align with guiding slot on handheld vacuum body, slide in battery pack in the
arrow direction in the picture. And then pull the battery pack after installation to make sure it
does not get loose.
Attention: when the vacuum cleaner is long idled, please remove the battery, pack the machine and store it in a cool
and dry place, avoid direct sunlight or humid environment.
1
2

5
Assemble oor head and metal tube
assembly with handheld vacuum
First, assemble oor head and metal tube
according to the method of assembling electric
oor head with metal tube.
Then, as shown by the arrow, align the
conductive needle of the metal tube with the
coupler of the handheld vacuum suction nozzle,
push metal tube upward until a“click” sound is
heard.
Assembly of accessories
For the convenience of use, this product is specially equipped with some accessories for the
hand-held part of the vacuum cleaner. When you use the handheld vacuum cleaner alone,
you can directly connect the accessories according to your needs or connect the accessories
through the stretch hose.
3
H10 Pro
Electric mattress brush
Upholstery tool
Crevice tool
Dusting brush
Stretch hose
Connector
Carpet brushroll
model
Name

6
Accessories Connection List
4
Use of vacuum cleaner
Charging
Attention:
1.When use the product for rst time, battery power is not full. Need to charge the vacuum before using.
2.If power cord is damaged, to avoid danger, it must be replaced by a professional people of the manufacturer,
repairing agent or similar department.
The product can be charged in two ways:
1.Charge the battery pack separately: Plug one end
of charger to battery pack connector and another
end of charger to power socket to charge the battery
directly. In this way when under charging the
indicator on the side of battery pack is in red and
turns green when charging is completed.

7
On/off button
Mode button
LCD screen
5
7
8
2.Charge the battery on machine: lug one end of
charger to battery pack connector and another
end of charger to power socket to charge the battery
when battery pack is assembled in the vacuum
cleaner. Machine LCD screen will show battery
power percentage. When charging is completed it
will show 100% as the pictures shows.
Attention:
1.When battery power is below ≤20%, machine will have
voice reminding. If machine is working in Max mode
in this status, it will change to Eco mode automatically.
When battery power runs off, machine will turn off after
LCD screen and voices reminds.
2.If vacuum cleaner is long idled, charge the battery every
three months to avoid battery failure.

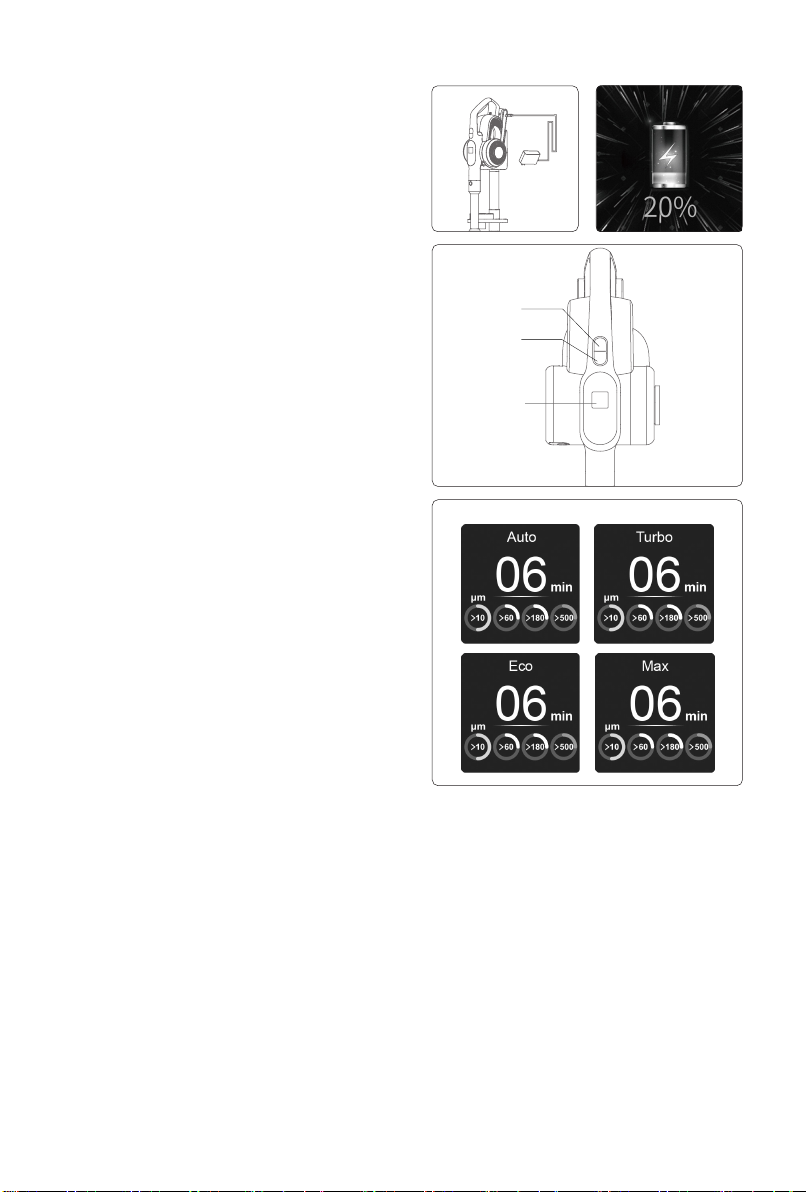

Use of handheld vacuum and LCD screen
contents
Take the vacuum cleaner off the storage holder,
press the on/off button to start or stop the vacuum
cleaner. Mode button can adjust working mode.
When machine is turned on, it works in Auto mode,
press the mode button to switch to the sequence
of Turbo- Max - Eco-Auto mode. During mode
switch the mode will be displayed in LCD screen
and there is voice reminding.
Middle of LCD screen displays product run time
left in current mode. When mode is changed, left
run time will also change accordingly.
When product works in Max mode and battery
power drops below 20%, to extend product run time, product will automatically switch from Max
to Eco mode. After battery is charged to higher than 20% power, product can work in Max mode.
When the product is working in Auto mode, it will adjust working power basing on the dust
content and the oor type it detects, in order to achieve higher cleaning efciency. Under Auto
mode, LCD screen display Auto regardless how high the working power is.
6
6

8
12
Combination brushroll Carpet brushroll
13
Bending button
11
9
10
The product is equipped with dust content
sensor. On LCD screen bottom there are 4 round
light circles to display the dust content of 4 kinds
of particles with diameter of 10μm-60μm/60μm-
180μm/180-500μm/>500μm respectively. The
circles for different dust particle size are in four
different colours: red, yellow, blue and green.
As dust content decreases from high to low, the
colour ll in the circles accordingly . Cleanness
of the cleaning surface can be visually displayed
through LCD screen.
Colour lls in circles when dust content increases
Use of exible metal tube
The exible metal tube has two modes: vertical
and bending. The vertical mode is equivalent
to the normal metal tube. The bending mode
can be used for cleaning under the sofa,
table or bed, etc. When the bending mode is
needed,press the release button and the metal
tube can achieve 0-90°bending angle.
Use of electric oor head
Electric oor head is suitable to clean all kinds of
oor like hard oor, tile and carpet etc. Product
comes with an extra carpet brushroll can be
replaced to the oor head to deep clean carpet.
Attention: During the operation of the electric oor head,
if there is a large volume of foreign matter inhaled or
too much fiber wound, or even a child in the play of
the machine mistakenly put his hand into the nozzle,
resulting in the brushroll abnormal stop, the electric oor
head will stop working, in order to protect personal safety
and brush motor.
Use of accessories
Crevice tool: suitable for cleaning crevice, door
or window corners and other narrow gaps.
Upholstery tool: suitable for cleaning closet,
windowsill, sofa and table surface.
Red Yellow Blue Green

9
Soft brush: suitable for cleaning easy to scratch
furniture like bookshelf, handicraft etc.
Stretch hose: suitable for connecting with other
tools to clean hard to reach areas.
Electric mattress head: Suitable for sofa and
bed mattress. The brushroll beats out and then
cleans the dust mite and allergen from deep sofa
or bed.
Connector: Can be connected to other tools and
bend to different angle to clean dust on top of
high cabinets or dust on the roof.
Cleaning and Replacing Parts
Attention:
1.HEPA filter is available for sale from local vacuum
cleaner distributors.
2.It is recommended to clean the dust cup after
each use; When the dust cup is full or the HEPA
filter is clogged, it needs to be cleaned and
replaced if necessary.
3.Electric floor head brushroll might be entangled
with hair after long time use. It needs to be cleaned
in time to keep the vacuum working moreefficiently.
Clean dust cup and filters
1.Press down the dust cup bottom cover to open
dust cup bottom cover. Fig 1
2.Dump dust into trash can.Fig 2
3.Hold dust cup lid and rotate anti-clockwise,
remove cyclone assembly from dust cup for
cleaning.Fig 3
4.Rotate cyclone anti-clockwise, disassemble
cyclone to clean.Fig 4
5.Hold HEPA lid and rotate anti-clockwise,
remove HEPA assembly from top cover and
then rotate HEPA lid to remove HPEA from the
lid for cleaning.Fig 5
6.If HEPA needs wash, hold the HEPA and rotate
clockwise, remove it from HEPA lid for
washing. HEPA needs completely dry before
reuse.Fig 6
7. After cleaning, assemble the parts back in the
opposite sequence of disassembly.
14
15
16
17
18
56
12
34

10
Clean brushroll
1.Move the brushroll release button along the
arrow direction remove side cover.
2.Remove one end of the brushroll and take it
out from nozzle for cleaning.
3.After cleaning or replacing brushroll, assemble
it back in opposite sequence of disassembly.
Vacuum cleaner storage
Battery pack disassembly
Press the battery release button, pull battery
pack out backward and place the battery in a
plastic bag, then store it in a dry place.
Product storage
When the vacuum is long idled, remove the
battery, pack the machine and store it in a cool
and dry place, do not put in direct sunlight or
humid environment.
Brushroll release
button
Battery release
button
19
20

11
Safety Notes
This vacuum cleaner is designed for home use. Do not use it for commercial or other purposes.
Please read this instruction manual carefully before use, properly save and store it for future use.
Do not put the vacuum close to re or other high temperature facility.
Do not use or store the machine under extreme bad conditions, for example, extreme
temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C.
Store the machine in dry place and avoid direct sunlight.
Fully charge the battery before rst use or after long storage.
Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan
blockage, causing motor burn out.
Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet
dust, water, matches, etc.
Please do not use the vacuum to pick up tiny particles such as cement,gypsum powder, wall
powder, or large objects such as paper balls, otherwise it will cause malfunctions such as
blockage and motor burnout.
Avoid blockage to air inlet or brushroll, it may cause motor failure.
Do not put your hand or foot into oorhead inlet to avoid body hurt.
Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out
the machine.
If the brushroll is not working, please check whether the brushroll is entangled with hair or other
long ber, clean it in time.
When storing the machine for a long time, ensure that the battery is fully charged before storage
and charge the machine at least every three months.
Unplug the charger to clean or repair the machine. Hold the charger when plugging or
unplugging it, and do not pull the charging cord.
Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause
crack or colour fading and cannot be used.
If the machine is not working after fully charged, it must be checked and repaired in our
designated ofce, please do not dismantle the machine on your own.

12
Trouble Shooting
Please check the following issues before sending to designated repair agent.
Discarded machine contains batteries. They should be recycled safely. Do not discard them
randomly.
If there is damage on power cord, to avoid danger, it should be replaced or repaired by
manufacturer、repairing agency or professional person.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
The appliance is only to be used with the power supply unit provided.
Trouble Possible Causes Solutions
Motor does not
work
Battery has no power Charge the vacuum cleaner
Metal tube,oorhead, battery
pack and vaccum cleaner is not
assembled correctly
Check the accessories are
assembled correctly to the vacuum
cleaner
Suction drops
Dust cup full Clean dust cup
Filter blocked Clean or replace lter
Floorhead air path blocked Clean oorhead air path
Short working time
after charging
Machine not fully charged Follow instruction manual to fully
charge the battery
Battery old aging New batteries can be bought from
local distributor
Dust content
indicator is always
red
Dust sensor covered by dust
Clean the dust on the dust sensor
which is located in the suction inlet
of the handheld vacuum cleaner

13
Warning reminding
1.When air path is clogged or dust cup is full,
LCD screen will remind to clean dust cup
and lter as below pictures. There is also voice
reminding.In this status, if product is working
in Max mode, it will automatically switch to Eco
mode until the clog is cleaned.
2.If oor head needs cleaning, LCD screen
will display brushroll and air patch cleaning
reminding.There is also voice reminding.
Continue to use will activate brushroll stall
protection and product will stop working.
Product will resume working after blockage is
cleaned.
3.If the dust content circles on LCD screen are
always red, dust sensor might be covered by
dust, please clean the dust on the dust sensor
which is located in the suction inlet of the
handheld vacuum cleaner.
4.When there is electric components
defect,which needs professional after service
person for instruction or repairing, LCD screen
will display the defect warning with error code
of F1 to F8. Please contact after service of
local agent and provide error code.
21
22
24
23
2pcs Dust sensor

14
Defect of F1 to F8 is as following:
Attention:If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be
repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices.
Technical specication
Code Defect Solutions
F1 Battery pack nickel strip broken Replace or repair battery pack
F2 Charger defect Replace charger
F3 Vacuum motor short circuit Replace vacuum motor
F4 Battery cell defect Replace or repair battery pack
F5 Vacuum motor 1st over current
protection Replace vacuum motor
F6 Vacuum motor 2nd over
current protection Replace vacuum motor
F7 PCB defect or PCB leadwire
loose Replace PCB or PCB leadwire
F8 Battery pack PCB defect Replace or repair battery pack
Model No H10 Pro
Rated voltage 28.8V
Rated power 650W
Adaptor Input Voltage 100-240V ~ 50/60 Hz 0.8A
Adaptor Output Voltage 34.2V 0.6A
Electric Floorhead Model No T-EB110VA
Electric oor head rated power 50W
Battery pack capacity 3000mAh
Charge time 4-5h

15
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of the machine into household waste!
Manufacturer Kingclean Electric Co., Ltd
Address No.1 Xiangyang Road, Suzhou New District, Jiangsu
Province 215009, China
Manufacturer Information
Circuit Diagram
PCB assembly
Lithium battery
PCB
Display screen
assembly
Infrared
transmitter PCB
Display PCB
assembly
Vacuum motor Floor head motor
Infrared receiving
PCB
Lithium battery
Speaker louder
Charger
M
+-
+-
M

16
Only for EC countries:
According to the European Guideline 2012/19/EU, machine that are no longer usable, and
according to the European Guideline 2006/66/EC, defective or used battery packs/batteries,
must be collected separately and disposed of in an environmentally correct manner.
Battery packs/batteries:
Integrated batteries may only be removed for disposal by qualied personnel.
Opening the housing shell can damage or destroy the machine.
Do not dispose of battery packs/batteries into household waste, re or water. Battery
packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an
environmental-friendly manner.
Subject to change without notice.
Warranty Information
This product enjoys two years warranty from the date of purchase.
Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as
purchased, cleaning activities, consequences of improper use or damage by the purchaser or a
third person, damage that can be attributed to external circumstances.

17
Elementy produktu
1.Przycisk zwalniający pojemnik na akumulator
3. Przycisk trybu pracy
5.Przycisk zwalniający pojemnik na kurz
7.Przycisk zwalniający szczotkę
9.Uchwyt do przechowywania
10.Złączenie
12.Szczotka szczelinowa
14.Elektryczna szczotka do materacy
16.Elastyczna rura przedłużająca
2.Przycisk zasilający
4. Wyświetlacz LCD
6.Przycisk zwalniający rurę przedłużającą
8.Przycisk zwalniający złączenie rury
przedłużającej
11.Zasilacz
13.Szczotka do tapicerki
15.Szczotka do dywanów
17.Stretch hose
1
2
3
4
5
68
9
10
11
12
13
14
15
16
17
7

18
1.Przednia część korpusu
3.Górna tuleja rury metalowej
5.Dolna część metalowej rury
7.Zestaw śrub (x8)
2.Górna część metalowej rury
4.Uchwyt na akcesoria
6.Korpus podstawy
1
2
5
6
*2
*4
*2
7
3
4
Elementy uchwytu do przechowywania
Montaż uchwytu do przechowywania
1.Połóż korpus podstawy na podłodze, wsuń metalową rurkę do podstawy i przy kręć 2 śruby.
2.Włóż uchwyt na akcesoria do dolnej części rury metalowej, włóż górną część rury metalowej
i górną tuleję rury metalowej do uchwytu na akcesoria oraz przy kręć 4 śruby (spójrz na
poniższy rysunek).
3.Włóż przednią część korpusu do górnej części metalowej rury i przykręć 2 śruby (spójrz na
poniższy rysunek).
