Jireh STIX BGG008 User manual

STIX
Magnetic Corrosion Scanner
BG0100 Rev 05.3

PAGE i of iv BG0100 Rev 05.3
SAFETY WARNINGS \ PRECAUTIONS
KEEP THIS MANUAL – DO NOT LOSE
THIS MANUAL IS PART OF THE STIX AND MUST BE RETAINED FOR THE LIFE OF
THE PRODUCT. PASS ON TO SUBSEQUENT OWNERS.
Ensure any amendments are incorporated with this document.
WARNING! MAGNETIC MATERIAL. The wheels of this device
produce a magnetic eld which may cause failure or permanent damage to
items such as watches, memory devices, CRT monitors, medical devices or
other electronics.
People with pacemakers or ICD’s must stay at least 25 cm (10 in) away at all
times.
WARNING! Do NOT operate scanner in an explosive environment.
Do NOT operate scanner in the presence of volatile substances.
The WEEE symbol indicates that the product must not be disposed of as
unsorted municipal waste, but should be collected separately.
(see Disposal on page 33)
DANGER! The STIX is designed for a specic use. Using the STIX
outside of its intended use could cause damage to the product. Read and
understand this manual before using.

PAGE ii of iv
Chapter1 IDENTIFICATION 1
1.1. Product Brand 1
1.2. Manufacturer 1
Chapter2 Product Specifications 2
2.1. Intended Use 2
2.1.1. Operating Limits 2
2.1.2. Operating environment 2
2.2. Dimensions and Weight 2
2.3. Environmental Sealing 3
2.4. Performance Specifications 3
Chapter3 Definitions 4
3.1. Definition of Symbols 4
Chapter4 System Components 5
4.1. Component Identification 5
4.2. Tools 6
4.3. Corrosion Link 7
4.4. Non-Encoded Corrosion Link 7
4.4.1. Corrosion link adjustment 8
4.4.2. Mounting a Frame Bar 9
4.4.3. Index Encoder Connection 9
4.4.4. Encoder Connection 9
4.4.5. Brake 10
4.4.6. Wheel Removal/Installation 10
4.5. Carrier 11
4.5.1. Carrier Cable Clip 11
4.5.2. Index Nuts 12
4.6. Heavy Duty Vertical Probe Holder 13
4.6.1. Probe Holder Setup 13
4.6.2. Probe Holder Vertical Adjustment 14
4.6.3. Probe Holder Left/Right Conversion 15
4.6.4. Yoke Substitution 16
4.6.5. Probe Holder 90° Adjustment 17
4.7. Frame Bar with Ruler 17
4.8. Pivot Buttons 17
TABLE OF CONTENTS

PAGE iii of iv BG0100 Rev 05.3
4.9. Index Encoder 18
4.10. Cable Clips 19
4.11. Cable Management 19
4.11.1. Cable Management Dovetail Mount 20
4.11.2. Cable Management Setup 20
4.11.3. Clamp Setup 21
Chapter5 Configuration 22
5.1. Standard Configuration 22
Chapter6 Operation 23
6.1. Setup of a STIX on a Scanning Surface 23
Chapter7 Maintenance 25
Chapter8 Troubleshooting 26
8.1. Technical Support 26
Chapter9 Spare Parts 27
9.1. Corrosion Scanner 27
9.2. Kit Components 28
9.2.1. Encoder Connector Type 29
9.2.3. Cable Management Length 29
9.3. Accessories 29
9.3.1. Magnetic Wheel Kit 29
9.3.2. Preamp Bracket 30
9.3.3. HydroFORM™ Cart 30
9.4. Heavy Duty Vertical Probe Holder 31
9.5. Probe Holder Components 32
9.5.1. Heavy Duty Yoke Style 32
9.5.2. Pivot Button Style 32
Chapter10 Disposal 33
Chapter11 Limited Warranty 34

PAGE iv of iv

PAGE 1 of 35 BG0100 Rev 05.3
Chapter 1
IDENTIFICATION
1.1. Product Brand
This user manual describes the proper safety precautions, setup and use of the STIX
manual magnetic corrosion scanner.
1.2. Manufacturer
Distributor:
Jireh Industries Ltd.
53158 Range Road 224
Ardrossan, Alberta, Canada
T8E 2K4
Phone: [phone]
jireh.com
Manufacturer:

PAGE 2 of 35
Chapter 2
PRODUCT SPECIFICATIONS
2.1. Intended Use
The STIX magnetic scanner is a manually operated scanner which provides corrosion
scanning.
2.1.1. Operating Limits
Minimum Maximum
Pipe/tube range, outer diameter
(standard)
20.3 cm (8 in) Flat
Pipe/tube range, outer diameter
(reduced)
10.2 cm (4 in)* Flat
* 10.2 cm (4 in) diameter scanning is made possible when using the reduced
width of the corrosion link (see Corrosion link adjustment on page 8).
2.1.2. Operating environment
The STIX magnetic scanner is designed for use in an industrial environment that
is between -20° C (-4° F) and 50° C (122° F).
2.2. Dimensions and Weight
Encoder cable length (standard kit) 5 m (16.4 in)
Scanner width (Fig. 1-1) 76.7 cm (30.2 in)
Scanner length (Fig. 1-2) 25.4 cm (10 in)
Scanner height (Fig. 1-3) 15 cm (5.9 in)
Scanner weight 3.9 kg (8.6 lb)

PAGE 3 of 35 BG0100 Rev 05.3
2.3. Environmental Sealing
Dust-tight, watertight (not submersible).
2.4. Performance Specifications
Scan encoder resolution 16.3 counts/mm (414.5 counts/inch)
Index Encoder resolution 40.3 counts/mm (1023.9 counts/inch)
1
2
3
Fig. 1 - Scanner dimensions

PAGE 4 of 35
Chapter 3
DEFINITIONS
3.1. Definition of Symbols
Instructions to ‘look here’ or to ‘see this part’.
Denotes movement. Instructing users to carry out an
action in a specified direction.
Indicates alignment axis.
Alerts the user that the view has changed to a reverse
angle.

PAGE 5 of 35 BG0100 Rev 05.3
Chapter 4
SYSTEM COMPONENTS
4.1. Component Identification
Fig. 2 - STIX - Corrosion scanning
BGA012-
Fig. 3 - STIX corrosion case
BGA017
Fig. 4 - J100 Encoder Cable
UMA026-
Fig. 5 - Magnetic Wheelt
BTS031
Fig. 6 - Heavy Duty Vertical Probe Holder
PHS043-
Fig. 7 - Irrigation Kit
CMG007
Fig. 8 - Cable management - dovetail mount
CES044-
Fig. 9 - 3 mm Hex Driver
EA414

PAGE 6 of 35

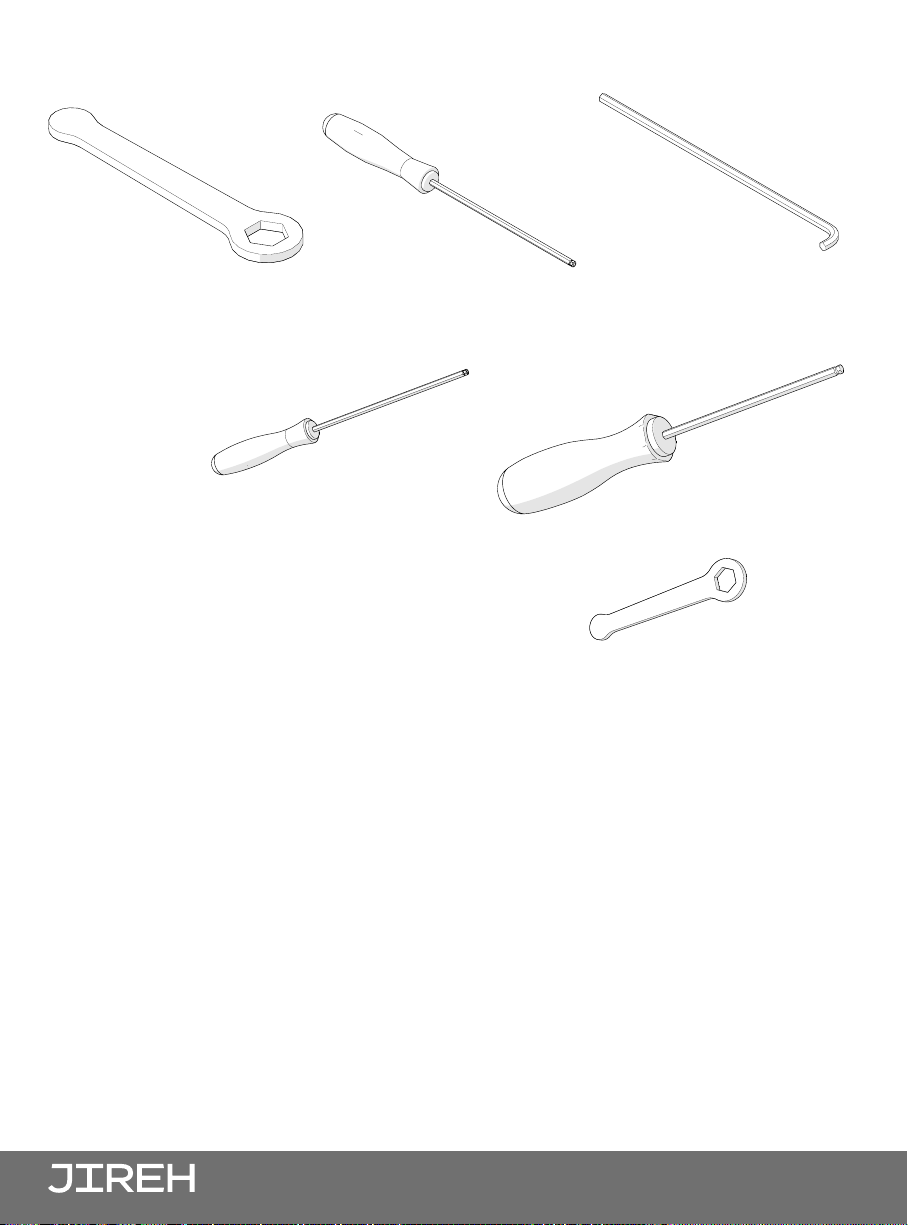

4.2. Tools
The 2 mm hex driver (Fig. 13) allows for
adjustment of the index nuts. The 3 mm
hex driver (Fig. 14) is sucient for all typical
operations and adjustments of the STIX. The
3/8 in wrench (Fig. 15) is used to remove and
install buttons on the probe holders.
Fig. 10 - 3/8 in wrench
EA470
Fig. 11 - 2 mm hex driver
EA476
Fig. 12 - Short 2 mm Hex Wrench
CE0137
Fig. 13 - 2 mm hex driver
Fig. 14 - 3 mm hex driver
Fig. 15 - 3/8 in wrench

PAGE 7 of 35 BG0100 Rev 05.3
4.3. Corrosion Link
The corrosion link
(Fig. 16) provides braking for
the system and an internal
encoder connected to the
wheels. A connection plug
exists for index encoding.
A mounting point for the frame
bar is also provided.
The corrosion link length can
be adjusted to increase the
scanner diameter range and
allow for probe clearance.
4.4. Non-Encoded Corro-
sion Link
The non-encoded corrosion
link (Fig. 17) provides braking
for the system.
A mounting point for the frame
bar is also provided.
The corrosion link length can
be adjusted to increase the
scanner diameter range and
allow for probe clearance.
Fig. 16 - Corrosion link
Fig. 17 - Non-Encoded Corrosion link

PAGE 8 of 35
4.4.1. Corrosion link adjustment
To achieve the minimum diameter pipe/tube scan range of 10.2 cm (4 in), the
corrosion link and non-encoded corrosion link must be adjusted as follows.
NOTE: The large yoke of the heavy duty probe holder must be replaced with
the standard yoke to allow the carrier to fit under the corrosion links (see
Yoke Substitution on page 16).
1. Use the supplied 2 mm hex driver
to remove the 2 shoulder screws
(Fig. 18).
2. With the 2 shoulder screws
removed, position the two halves
of the corrosion link closer
together, align the screw holes
and insert the shoulder screws
(Fig. 19).
3. Tighten the 2 shoulder screws
with the supplied 2 mm hex driver
(Fig. 20).
Fig. 18 - Remove shoulder screws Fig. 19 - Align screw holes
Fig. 20 - Tighten shoulder screws

PAGE 9 of 35 BG0100 Rev 05.3

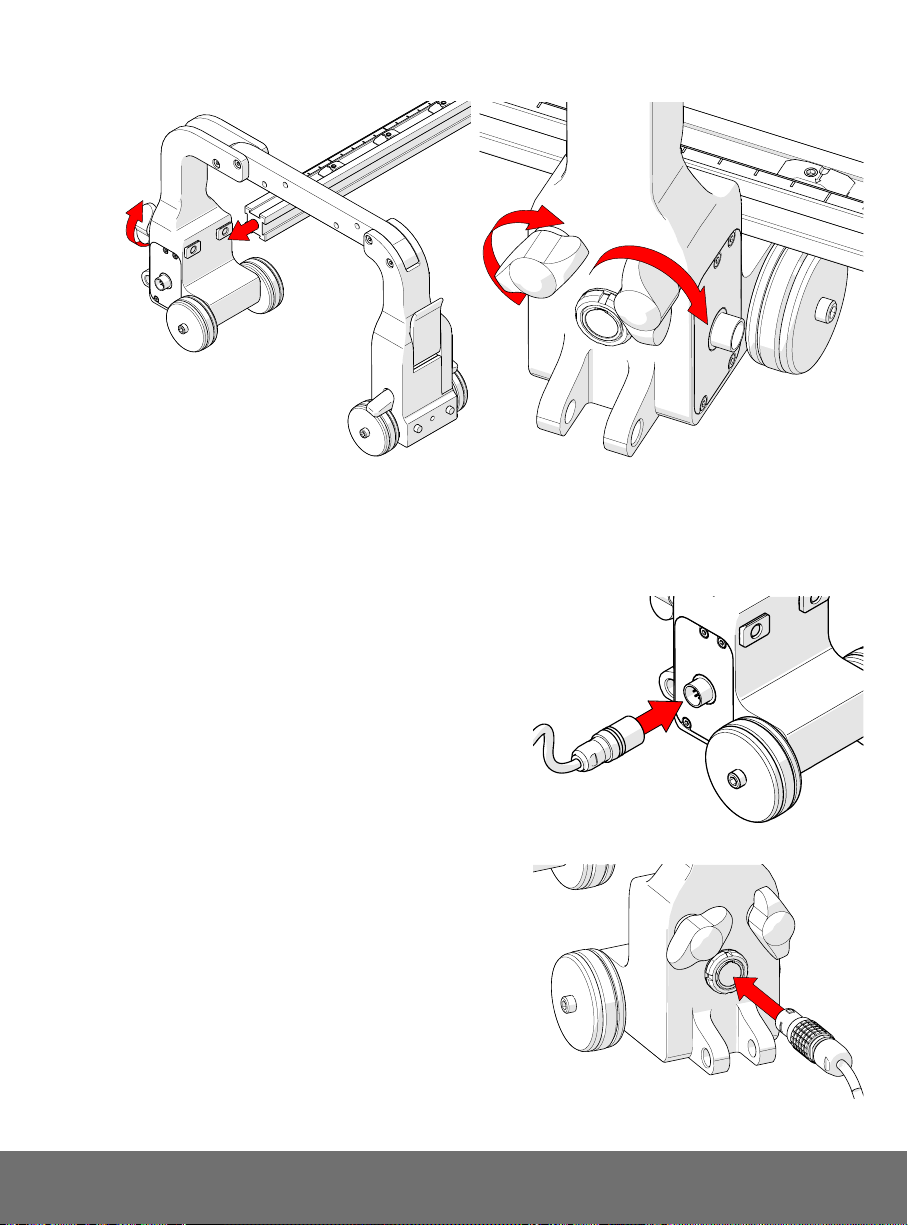

4.4.2. Mounting a Frame Bar
Ensure the two black wing knobs are loose (Fig. 21). Slide the frame bar along
the dovetail nuts of the corrosion link (Fig. 21). When the frame bar is positioned
where appropriate, tighten the two black wing knobs (Fig. 22).
4.4.3. Index Encoder Connection
The index encoder connection (Fig. 23) is
located along the side of the corrosion
link. The cable from the PPS encoder
(see Index Encoder on page 18)
connects to this point.
4.4.4. Encoder Connection
The encoder connection (Fig. 24) is
located at the rear of the corrosion link.
The encoder cable connects here. The
opposite end of the encoder cable
connects to the user’s instrument.
Fig. 21 - Loosen wing knobs Fig. 22 - Tighten wing knobs
Fig. 23 - Index encoder connection
Fig. 24 - Encoder connection

PAGE 10 of 35
4.4.5. Brake
The red lever on both the corrosion and
non-encoded corrosion links provides
braking to the system. Press the lever
down to activate the brake.
TIP: When the brake is engaged, and the
scanner is moved, this may loosen the
wheels from the axle. Grip the wheel
tightly and retighten the axle with the
3 mm hex driver.
4.4.6. Wheel Removal/Installation
Tightly grip the wheel to be removed
by hand. Loosen the wheel from the
axle using the supplied 3 mm hex driver
(Fig. 14).
Fig. 25 - Brake
Fig. 26 - Wheel removal/installation
WARNING! MAGNETIC MATERIAL. The magnetic wheel
kit produce a magnetic eld which may cause failure or permanent
damage to items such as watches, memory devices, CRT
monitors, medical devices or other electronics. People with
pacemakers or ICD’s must stay at least 25 cm (10 in) away.

PAGE 11 of 35 BG0100 Rev 05.3
4.5. Carrier
With the use of a leadscrew, the carrier can move along the length of the frame bar.
1. Loosen the leadscrew clamp knob (Fig. 27) to allow carrier movement along the
frame bar.
2. Press the latch on the carrier handle to position the carrier to the next index
location (Fig. 28).
4.5.1. Carrier Cable Clip
1. Push the cable clip flap down (Fig. 29) to insert the necessary cables and
hoses (Fig. 30).
Fig. 27 - Loosen the leadscrew clamp knob
Fig. 28 - Carrier handle latch
Fig. 29 - Carrier cable clip flap Fig. 30 - Carrier cable clip

PAGE 12 of 35

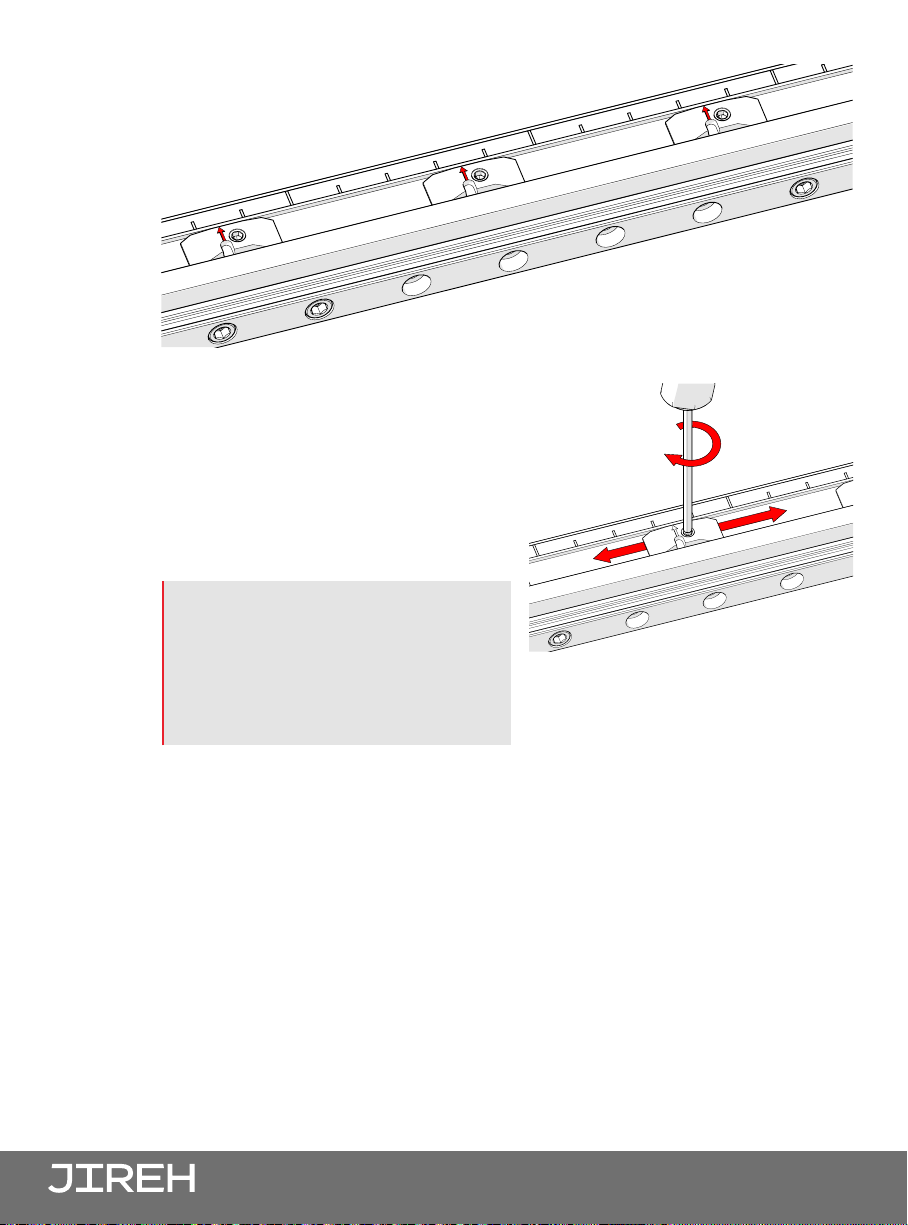

4.5.2. Index Nuts
The index nuts (Fig. 31) along the frame
bar oer index positions during scans.
The arrow found on the carrier’s
handle references the arrow on the
corresponding index nut.
Align the arrows using the ruler to set the
desired spacing.
NOTE: The index nuts can be
repositioned, and placement
of the index nuts works in
conjunction with common
probe specifications. Excessive
adjustment of the index nuts is not
recommended.
Fig. 31 - Index nuts
Fig. 32 - Position index nuts

PAGE 13 of 35 BG0100 Rev 05.3

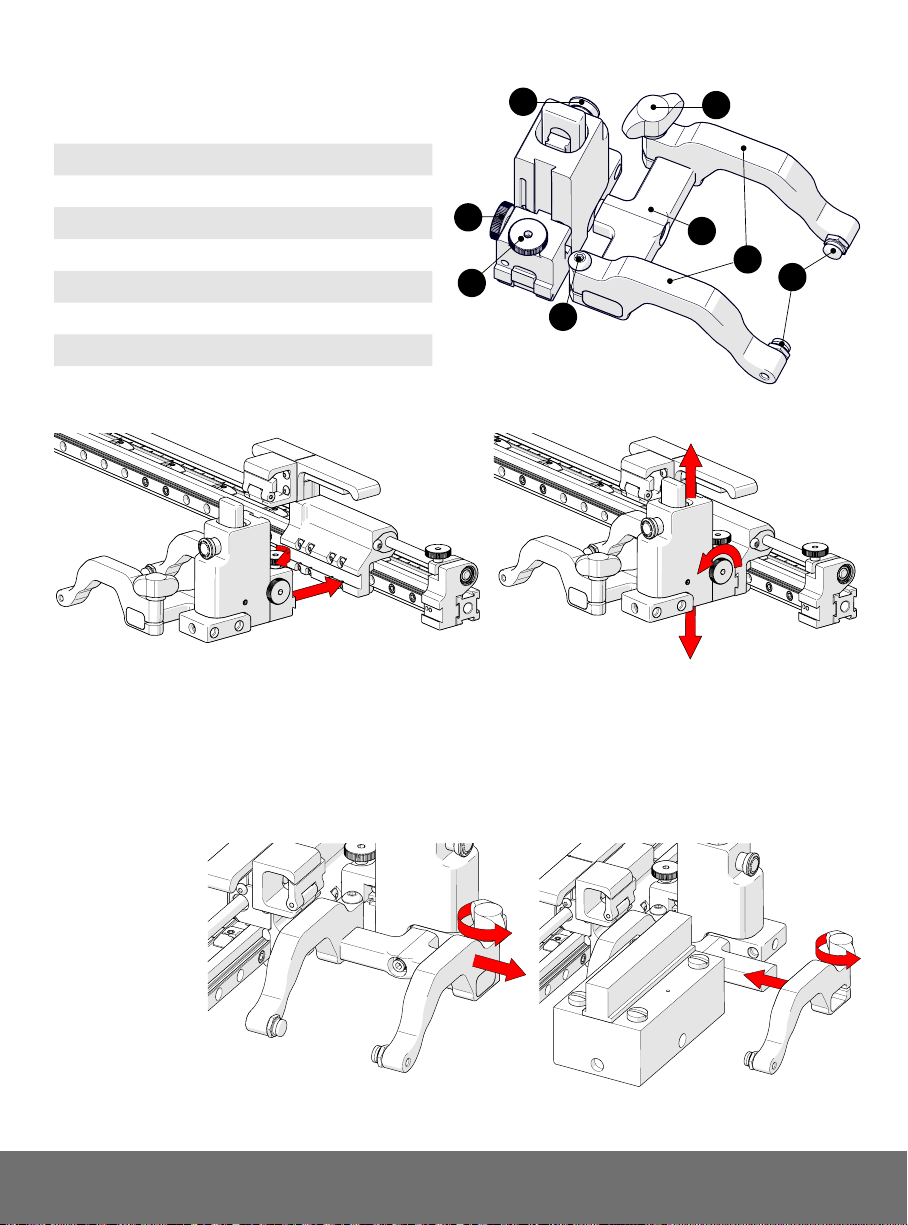

4.6. Heavy Duty Vertical Probe Holder
ALatch
BProbe Holder Arm Adjustment Knob
CYo k e
DProbe Holder Arms
EPivot Buttons
FArm Clamp Screw
GProbe Holder Adjustment Knob
HVertical Adjustment Knob
4.6.1. Probe Holder Setup
1. Loosen the probe holder adjustment knob (Fig. 34) and mount the heavy
duty vertical probe holder’s dovetail jaw to the carrier.
2. The vertical adjustment knob (Fig. 35) allows the heavy duty vertical probe
holder’s height adjustment. This adjustment also controls the probe
holder’s spring tension.
G
F
H
B
A
C
DE
Fig. 33 - Heavy duty vertical probe holder
Fig. 34 - Mount probe holder to carrier Fig. 35 - Vertical adjustment
Fig. 36 - Remove outer arm Fig. 37 - Adjust inner arm

PAGE 14 of 35
3. Loosen the probe holder adjustment knob and remove the outer probe
holder arm (Fig. 36).
4. Loosen the arm clamp screw (Fig. 37).
5. Place the wedge on the pivot button of the inner probe holder arm (Fig. 37).
6. Align the middle of the wedge with the centre of the yoke (Fig. 38).
7. Tighten both the probe holder adjustment knob and the arm clamp screw
(Fig. 39) while ensuring the wedge remains centred with the yoke.
4.6.2. Probe Holder Vertical Adjustment
1. Gently lift the heavy duty probe holder and simultaneously pull the latch
(Fig. 40). This action will unlock the probe holder. Slowly lower the probe
holder towards the scan surface (Fig. 41).
Fig. 38 - Remove outer arm Fig. 39 - Pivot buttons
Fig. 40 - Press up and pull latch Fig. 41 - Lowered toward scan surface

PAGE 15 of 35 BG0100 Rev 05.3
4.6.3. Probe Holder Left/Right Conversion
1. Using the supplied 3 mm driver, unscrew the yoke (Fig. 42).
2. Position the yoke and arms on the opposite side of the probe holder
(Fig. 43).
3. Loosen the arm clamp screw and the probe holder arm adjustment knob
allowing removal of the probe holder arms (Fig. 44).
4. Position the removed arms to the opposite sides of the yoke (Fig. 45).
Fig. 42 - Remove yoke Fig. 43 - Orient to opposite side
Fig. 44 - Remove probe holder arms Fig. 45 - Reverse position around yoke
Fig. 46 - Position pivot buttons Fig. 47 - Remove outer arm
