JK Audio BlueDriver-F3 User manual

JK Audio
BlueDriver-F3™
User Guide
Wireless Audio Interface

ii BlueDriver-F3 Wireless Audio Interface
Thank You
Thank you for purchasing the JK
Audio BlueDriver-F3 Wireless
Audio Interface. Please read this
guide for instructions on setting
up and using your new product.
Getting Assistance
If you have technical or
application questions:
In the US & Canada, call us
toll free at: 800-552-8346
All other countries dial: 815-786-2929
(M-F 8:30-5:00pm Central Time Zone)
Email us at: [email protected]
Or, check out our FAQ section
for answers to common questions.
Limited Warranty
BlueDriver is covered by a 2 year
warranty to be free from defective
workmanship and materials. To obtain
service, contact JK Audio by phone
or email for return authorization.
Once authorized, you will carefully
pack and ship the faulty product and
all accessories to us. You will pay
for shipping to us and we will pay for
return back to you.
This warranty does not cover damages
due to accident, weather, re, ood,
earthquake, misuse, unauthorized
repairs or modications, or damages
occurred in shipping, only defective
workmanship or materials.
There are no expressed or implied
warranties which extend beyond
the warranty here made.
ii
Welcome

iii
Contents
Contents
Overview 1
Getting to know your BlueDriver-F3 2
Bluetooth®Wireless Technology
4Pairing, Idle and Connected Mode
5Bluetooth Status LED
6Pairing to a Cell Phone
7Pairing to a Headset
8Disconnecting, Connection History, Reconnecting
4
Audio for Video 9
Wireless Applications 10
FAQ's 14
Technical Information 16

iv BlueDriver-F3 Wireless Audio Interface
7 kHz
* HD Voice. While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD
Voice calls o󰀨er 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives
voice a more natural sound, while the additional upper octave dramatically improves speech
clarity and intelligibility.
Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call
must support HD Voice, and both phones must be on the same carrier, in coverage areas
that support HD Voice.
HD Voice*
Trim Pot Adjusts Mic Level
Mini USB Power Jack
>6 Hours on Internal Li-Ion Battery
3 Pin Female XLR Input
1/8" (3.5 mm) Mic Level Output
Features

1
Overview
Overview
Introducing the BlueDriver-F3.
The BlueDriver-F3 wireless audio interface uses Bluetooth®wireless technology
to add wireless possibilities to your microphone or the mic level output of your
audio mixing console. BlueDriver-F3 can connect as either a Master or Slave and
provides a 2-way, full duplex voice band audio path when connected to a device
using the Hands-Free prole.
Additionally, music bandwidth stereo audio can be sent using the A2DP prole.
Be aware that the standard A2DP music prole includes a 150 millisecond
transmission latency.
HD Voice is available on many third party headsets and cell phones.
The 7 kHz audio bandwidth produces rich, natural voice clarity.
Connect
Phone
Headset
BlueDriver-F3
™
JK Audio
™

1. Connect Button
The <Connect> button is used to
turn on the BlueDriver and initialize
connections (Pages 6-7). This
button is also used to disconnect
and turn o󰀨 the BlueDriver (Page 8).
2. Role Select Switch
Before you turn the BlueDriver
on, be sure to set the Role Select
Switch to the correct position.
If you change this switch while the unit is on,
you will need to power the unit o󰀨, then power
the unit back on before the change takes e󰀨ect.
Select <Headset> if you will
be using your BlueDriver with a
Bluetooth enabled headset or any
device that emulates a headset.
BlueDriver will rst attempt to
connect using the Hands-Free
Prole. If the Hands-Free Prole
is not available, BlueDriver will
attempt to connect using the A2DP
stereo streaming Prole.
Select <Phone> if you will be using
your BlueDriver with a cell phone
or other master device. Please
note that wireless phones typically
cannot receive A2DP stereo audio
streaming.
2
Getting to know your BlueDriver-F3
BlueDriver-F3 Wireless Audio Interface
Headset
Connect
Phone
BlueDriver-F3
™
JK Audio
™

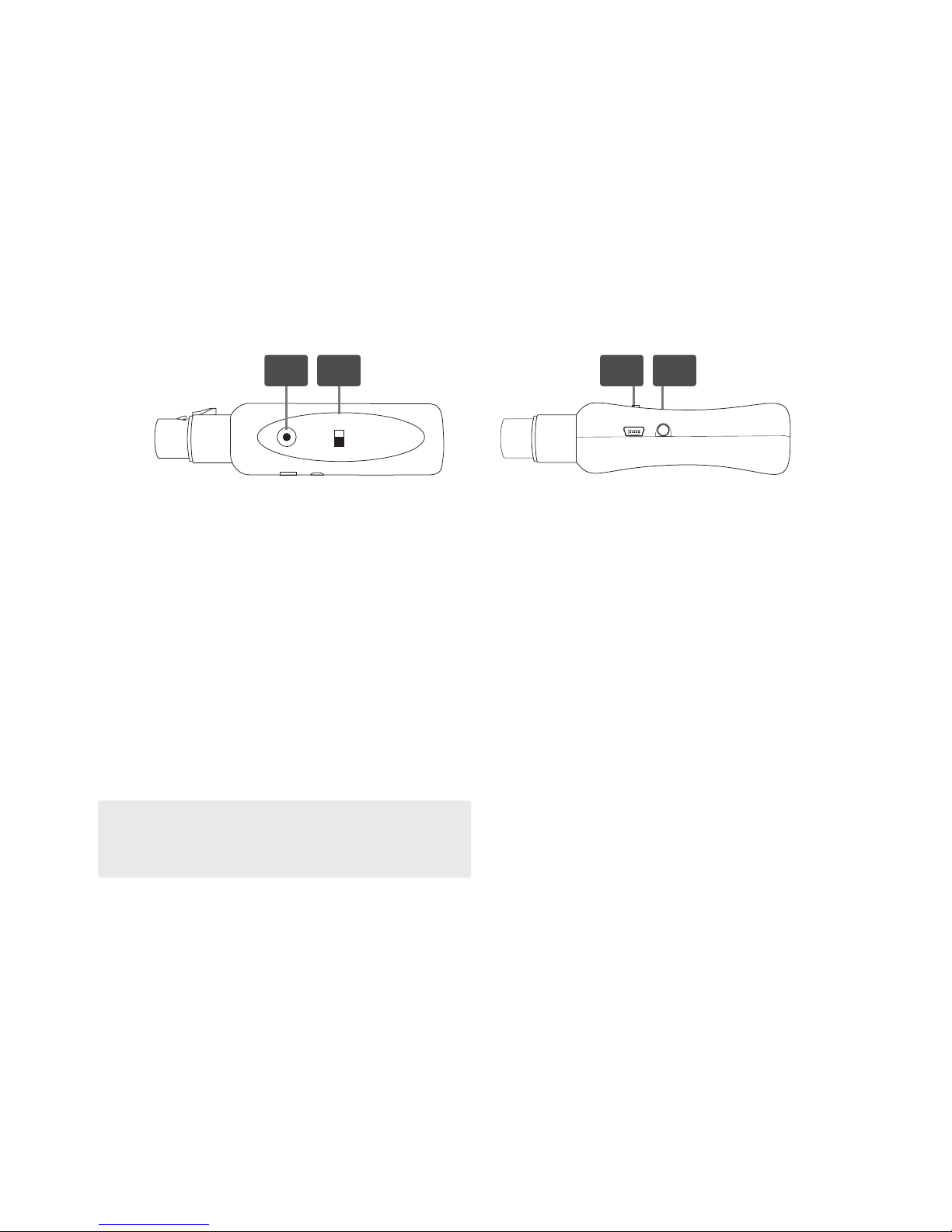

1 2
Power Rec
3 4

3. Power
BlueDriver should be fully charged
before its rst use. While this
battery will normally charge in
about 2 ½ hours, please allow 4-5
hours for this rst charge, or until
the LED turns o󰀨.
Connect the USB cable to the mini
USB connector on your BlueDriver
and a USB power source to charge
the battery. The red LED will
ash to indicate that the battery
is charging, once charging is
complete, the LED will turn o󰀨.
If the battery becomes completely
discharged for an extended period
of time, the red LED will not ash
until it can begin its charge cycle.
This may take several minutes.
If the USB cable is connected
when the unit is shut down, the
blue LED will stay lit. If the unit is
in use, the blue LED will indicate
the current connect mode. Feel
free to use your BlueDriver while it
is charging.
4. Recording Output
A 3.5 mm stereo output jack
contains a mic level signal suitable
for recording, with the clean mic
signal on the left channel and the
Bluetooth return audio on the right.
Mic Trim
A small at blade screwdriver can
be used to adjust the <Mic Trim>
pot on the back of the unit. This
adjusts the level of the audio
coming from the microphone as
it is sent to the Bluetooth enabled
device and to the recording output.
3
Getting to know your BlueDriver-F3
Getting to know your BlueDriver-F3

4
Bluetooth Wireless Technology
BlueDriver-F3 Wireless Audio Interface
Pairing Mode
From the powered-o󰀨 state*, hold the
<Connect> button for 6seconds, then
release to activate Pairing Mode.
In Pairing Mode, any Bluetooth
enabled device within range can pair
with your BlueDriver. When you're
rst connecting to a new device, you
should be in an environment with no
other Bluetooth wireless technology
enabled devices within range that
might also be in Pairing Mode.
Once the pairing process is complete
the unique device ID is stored in
Connection History. Subsequent
connections can be made from
Idle Mode.
Idle Mode
From the powered-o󰀨 state*, hold the
<Connect> button for 3seconds, then
release to activate Idle Mode.
In Idle Mode, BlueDriver searches for
paired devices.
Connected Mode
After bonding is complete, the
connection to that device is secure.
BlueDriver returns to Idle Mode when
a connection is dropped or terminated.
*See page 8 for instructions on how to turn
o󰀨 BlueDriver-F3.
For instructions on how to pair to a cell phone or headset, see pages 6-7.

5
Bluetooth Wireless Technology
Bluetooth Wireless Technology
Bluetooth Status LED
The blue LED on the front of the unit ashes in di󰀨erent
sequences to indicate the current connection status.
Pairing
100ms o, 100ms on 0 1s 2s 3s 4s 5s 6s
Idle
2s o, 200ms on 0 1s 2s 3s 4s 5s 6s
Connected
2s o, 1s on 0 1s 2s 3s 4s 5s 6s
HD Connected
2s o, 4s on 0 1s 2s 3s 4s 5s 6s
Connect
Phone
Headset
BlueDriver-F
3
™
JK Audi
o
™

6BlueDriver-F3 Wireless Audio Interface
Bluetooth Wireless Technology
Pairing to a Cell Phone
1. While BlueDriver is o󰀨, set the
Role Select Switch to <Phone>.
2. From the powered-o󰀨 state*,
hold the <Connect> button on the
BlueDriver for at least 6seconds.
Upon release, the blue LED should
ash rapidly as the BlueDriver
enters Pairing Mode.
* See page 8 for instructions on how to turn
o󰀨 BlueDriver-F3.
3. On your device, nd and select
the option to set up a connection.
When the cell phone has found
the new device, select from the list
the device ID. Depending on the
gender of model, the device ID is
"JKBDRVF3xxxx" where: xxxx =
last four digits of the serial number.
Note: Connecting via Bluetooth wireless
technology varies with di󰀨erent cell phones.
4. If asked for a pin, enter "0000".
5. When bonding is complete,
the blue LED will ash at a rate
of 2 seconds o, 1 second on.
(2so, 4s on for HD Voice).
Subsequent connections can be
made more quickly from Idle Mode
by holding the <Connect> button
for only 2 seconds before releasing.

Pairing to a Headset
1. While BlueDriver is o󰀨, set the
Role Select Switch to <Headset>.
2. Following manufacturer’s
instructions, set your headset to
Pairing Mode.
3. From the powered-o󰀨 state*,
hold the <Connect> button on the
BlueDriver for at least 6seconds.
After you release it, the blue LED
should ash rapidly if the BlueDriver
is in Pairing Mode.
* See page 8 for instructions on how to turn
o󰀨 BlueDriver-F3.
4. When bonding is complete,
the blue LED will ash at a rate
of 2 seconds o, 1 second on.
(2so, 4s on for HD Voice).
Subsequent connections can be
made more quickly from Idle Mode
by holding the <Connect> button
for only 2 seconds before releasing.
7
Bluetooth Wireless Technology
Bluetooth Wireless Technology

8BlueDriver-F3 Wireless Audio Interface
Bluetooth Wireless Technology
Disconnecting from a Device
To disconnect from a device, turn o󰀨
Bluetooth on your phone or power
o󰀨 the connected headset/device.
Alternatively, turn o󰀨 the BlueDriver.
If left unused in Idle or Pairing Mode, the
BlueDriver will automatically disconnect in
two minutes and power o󰀨.
Turning o󰀨 BlueDriver-F3
From the powered-on state, hold the
<Connect> button for 5 seconds, then
release to turn o󰀨 BlueDriver-F3.
If the blue LED continues to ash or blink after
releasing, then the <Connect> button was:
a) released too early.
b) held more than 10 seconds.
c) pressed after BlueDriver-F3 was left
unused and powered o󰀨 automatically.
Connection History
BlueDriver retains a history of the
16 most recent devices. To clear
connection history and return to
factory default, with the BlueDriver
powered o󰀨, set the switch to the
<Headset> or <Phone> position, then
hold the <Connect> button in for at
least 20 seconds. After resetting, the
BlueDriver will return to Pairing Mode.
Reconnect to Paired Devices
To reconnect to a device saved in
Connection History, the BlueDriver
should be in Idle Mode (see page 4)
and the Role Select Switch in the
correct position. BlueDriver-F3 will
automatically connect to a paired
device that is Bluetooth-enabled,
powered-on and within range.
Note: Connecting via Bluetooth wireless
technology varies with di󰀨erent cell phones.

9
Audio for Video
Audio for Video

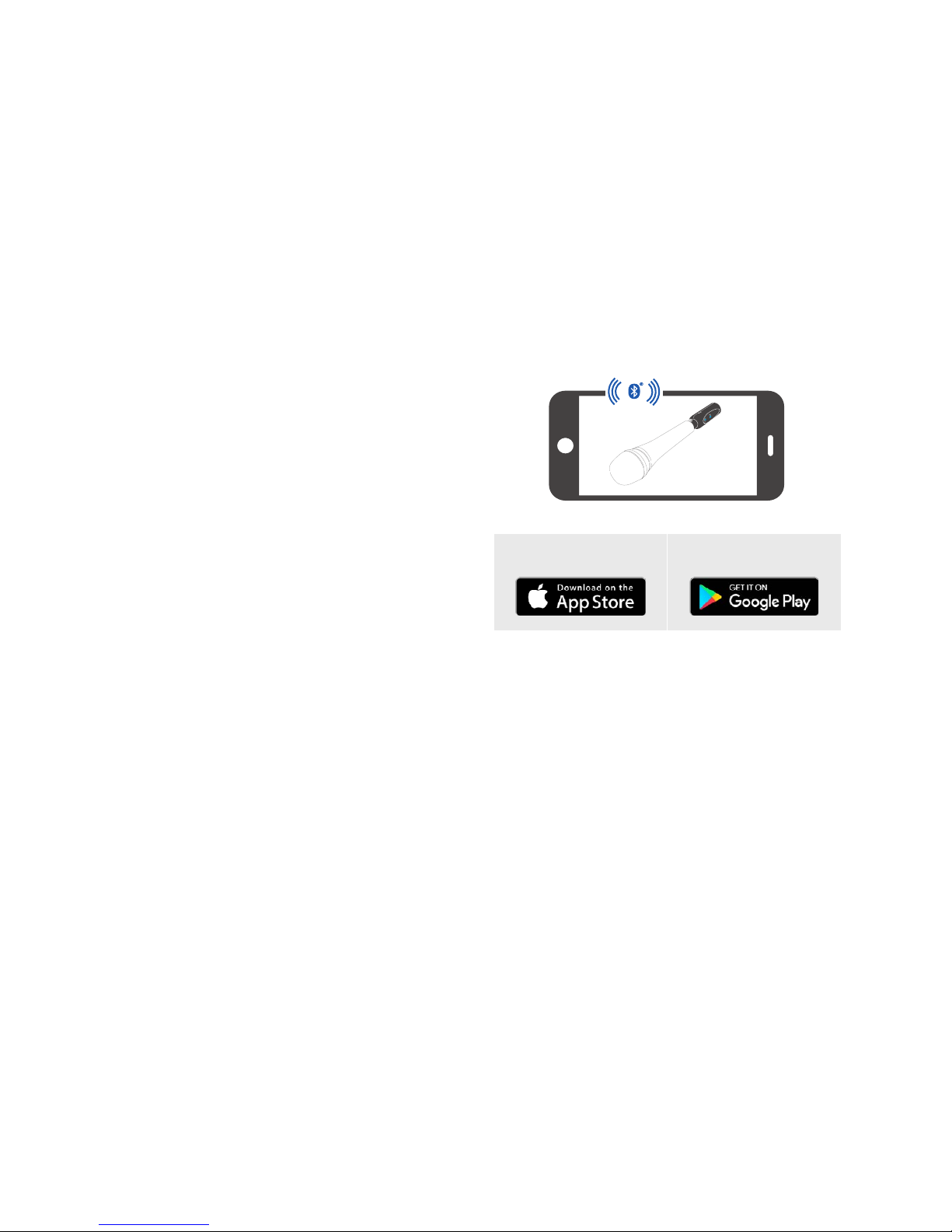

Record Better Audio for Video
Wirelessly connect any dynamic
microphone to your smartphone and
record broadcast-worthy interviews
while adding professionalism by
placing a real microphone in the
subject's hand.
While a smartphone's built-in mic
picks up every sound in the area,
BlueDriver-F3 isolates the audio
you want and allows Bluetooth
audio recording directly into your
smartphone or tablet using your
existing professional dynamic mic.
Simply plug BlueDriver-F3 into the
bottom of a dynamic microphone,
then pair to a cell phone. Your built-in
camera app may not currently support
a Bluetooth microphone.
The following video recording apps
support a Bluetooth microphone input.
MoviePro Cinema FV-5
Enable the Bluetooth-Mic input in the
in-app settings and start recording.
During playback, your smartphone
may attempt to play audio through
BlueDriver-F3 as if it were a headset.
Disable the Bluetooth-Mic input if
you don't hear audio playing from
the speakers or headphones during
playback.
Connect
Phone
Headset
BlueDriver-F3
™
JK Audio
™

10 BlueDriver-F3 Wireless Audio Interface
Wireless Applications
Backup Audio for
Remote Broadcasts
You may have the nest IP CODEC
available, but if the internet goes
down, there goes the remote. Simply
plug BlueDriver-F3 into the mic-level
master audio output of your mixer or
CODEC. Pair to your cell phone which
is dialed into the station. This setup
allows voice band audio, through your
cell phone, back to the station.
The mini cable provided with your
BlueDriver allows you to connect the
<REC> output from the BlueDriver-F3
to a mic-level 3.5 mm input on
your mixer (if available) to allow for
monitoring the return audio from
the station. Be sure to use a
mix-minus setup to ensure that the
caller's audio is not returned to them
through the master output.
STATION
Power Rec

11
Wireless Applications
Wireless Applications
Record Phone Interviews
Record high quality phone
interviews using your favorite mic
and headphones. Simply plug
BlueDriver-F3 into the bottom of
a dynamic microphone, then pair
to a cell phone and place a call as
usual. This setup allows voice
band, bi-directional audio to and
from your cell phone.
The mini cable provided with your
BlueDriver allows you to connect the
<REC> output from the BlueDriver-F3
to a stereo mic level input on a
portable recorder to capture a full
bandwidth recording of your voice on
one channel, and the caller’s voice
on the other channel. The headphone
output on your recorder can then
provide an outlet for listening to your
voice as well as the return audio from
the cell phone.
Connect
Phone
Headset
BlueDriver-F3
™
JK Audio
™
00:00:00
L
R
MENU
PLAY/REC
MIC
Power Rec

12 BlueDriver-F3 Wireless Audio Interface
Wireless Applications
OR

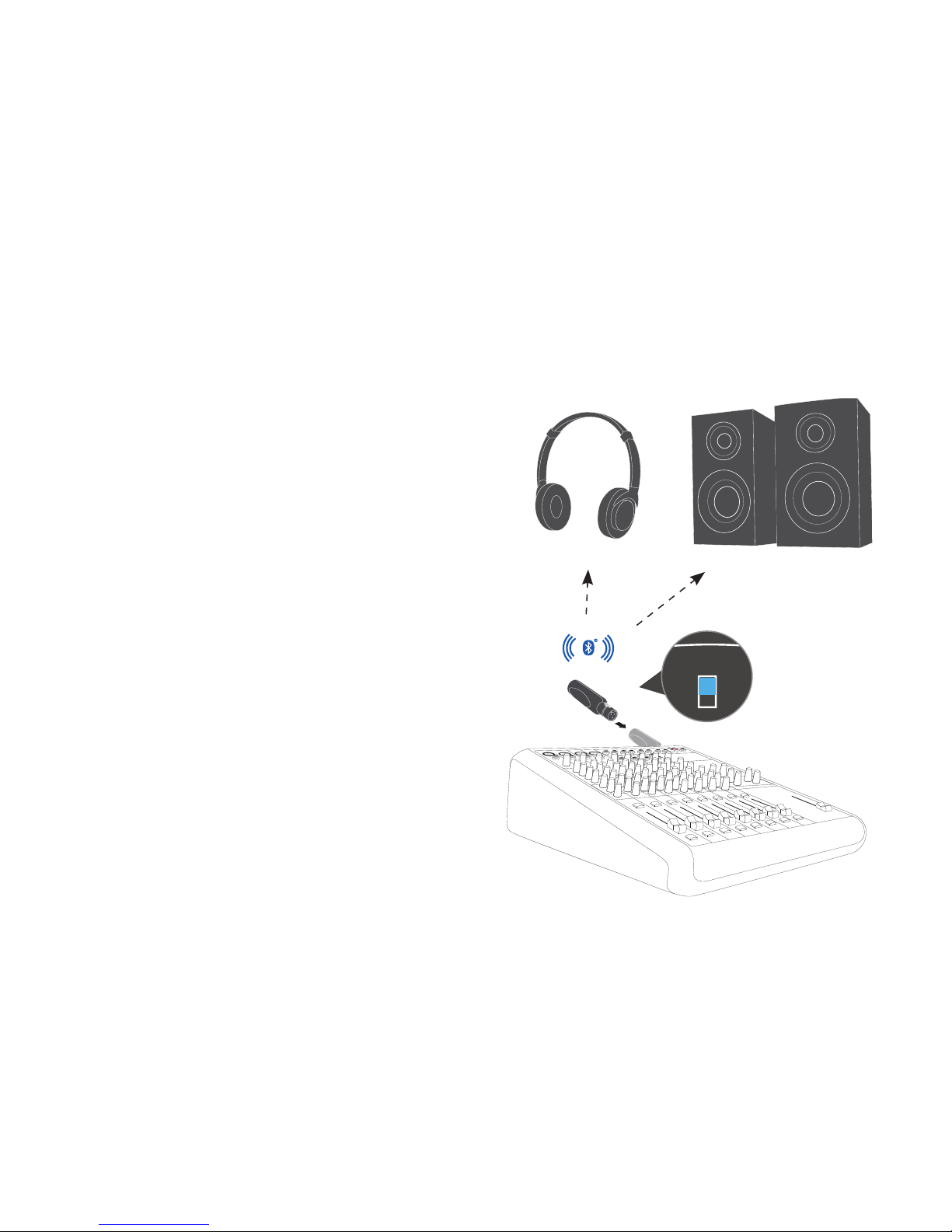

Transmit A2DP Audio
The “Headset” mode of BlueDriver-F3
connects to Bluetooth headphones
or wireless speakers, and provides
full bandwidth A2DP audio. Simply
plug BlueDriver-F3 into the mic-level
master audio output of your mixer or
playback system, then pair to your
headphones or speaker. Also keep in
mind that the 3 pin XLR is a balanced
mono connection. BlueDriver-F3
sends the mono XLR signal to both
left and right channels of the Stereo
A2DP Bluetooth signal. A2DP is a
one-way transmission, with nothing
coming back on the return channel.
Be aware that the standard A2DP
music prole includes a 150
millisecond transmission latency.
Headset
Connect
Phone
BlueDriver-F3
™
JK Audio
™

13
Wireless Applications
Broadcast High Quality Audio
Through Our Wireless Link
Our BlueDriver-F3 (<Headset> mode)
and BlueDriver-M3 (<Phone> mode)
can be paired together to create a
full A2DP music bandwidth wireless
link. Range is limited to 66 feet, but
this may be just enough for your
application. A2DP is a one-way
transmission, with nothing coming
back on the return channel.
Be aware that the standard A2DP
music prole includes a 150
millisecond transmission latency.
Headset
Connect
Phone
BlueDriver-M3
™
JK Audio
™
Headset
Connect
Phone
BlueDriver-F3
™
JK Audio
™
Wireless Applications

14 BlueDriver-F3 Wireless Audio Interface
FAQ's
What is the range of the
transmitter/receiver?
BlueDriver-F3 transmits and receives
audio signals up to 66 feet from your
Bluetooth wireless technology enabled
device. The maximum range of this
product is achieved when a clear
line of sight is maintained between
connected devices, but may also be
limited by interference due to the
environment. While this product o󰀨ers
extended range capabilities, maximum
usable range is limited by the
weaker of the two paired/connected
devices. Transmitting signals over
longer distances will require more
power, therefore you should keep
BlueDriver-F3 as close as possible
to your Bluetooth device to conserve
battery power.
Why won't the BlueDriver-F3
pair with my phone?
If this is the rst time you are trying to
pair to this cell phone, you might be
in Idle Mode instead of Pairing Mode
and your BlueDriver-F3 is not being
recognized.
Make certain that the Role Select
switch is set to <Phone>. If the
BlueDriver is set to <Headset>, it
might be discovered by the phone,
but will be unable to connect when
selected.
Why won't BlueDriver
connect to my device?
Ideally, the master device will
search for the headset device. If the
BlueDriver isn't pairing with your
device, try turning the second device
on rst from your initial attempt to
connect.

15
FAQs
FAQ's
Why doesn’t the BlueDriver-F3
change connections when I
move the switch from
Headset to Phone?
If you change this switch while the
unit is on, you will need to power the
unit o󰀨 (see page 8), then power the
unit back on before the change takes
e󰀨ect.
How long will the charge on
the battery last?
Based on tests with BlueDriver-F3
about 1 meter from a Bluetooth device,
the battery should last for >6 hours
under normal use. As an indicator of
low battery, the blue LED will grow
dim and then extinguish a short
while before the battery is completely
exhausted and the unit shuts down.
How long does it take to
recharge the battery?
BlueDriver-F3 can fully charge
the internal battery in about 2 ½
hours. These batteries do not have
a “charging memory” and they can
be recharged at any time without
changing their life expectancy.
How do I replace the battery
in this unit?
This is not a user replaceable battery.
Please contact JK Audio or a factory
authorized service center for battery
replacement.
Will BlueDriver-F3 work with
my condenser mic?
BlueDriver-F3 does not provide
phantom power to condenser
microphones.

16 BlueDriver-F3 Wireless Audio Interface
Battery Information
BlueDriver contains a rechargeable
Lithium-Ion battery. These batteries
do not have a “charging memory”
and can be recharged at any time
without changing their life expectancy.
All rechargeable batteries have a
limited life and will gradually lose
their capacity to hold a charge. This
loss of capacity is irreversible. To get
the most from your BlueDriver, the
battery should not be allowed to fully
discharge. If this unit is not in use, the
battery should be recharged at least
every 90 days. The Lithium-Ion battery
in this device is not user replaceable.
Please contact JK Audio or a factory
authorized service center for battery
replacement.
Safety Precautions
This unit should only be charged
at temperatures of 0º to 45°C
(32º to 113°F).
Operating temperatures for these
devices is -10º to 60ºC (14º to 140ºF).
When not in use, they should be
stored at -20º to 45ºC (-4 to 113ºF) to
prolong battery life.
While BlueDriver was designed to
be very rugged and durable, it is not
waterproof and care should be taken
to keep the unit dry.
Technical Information
