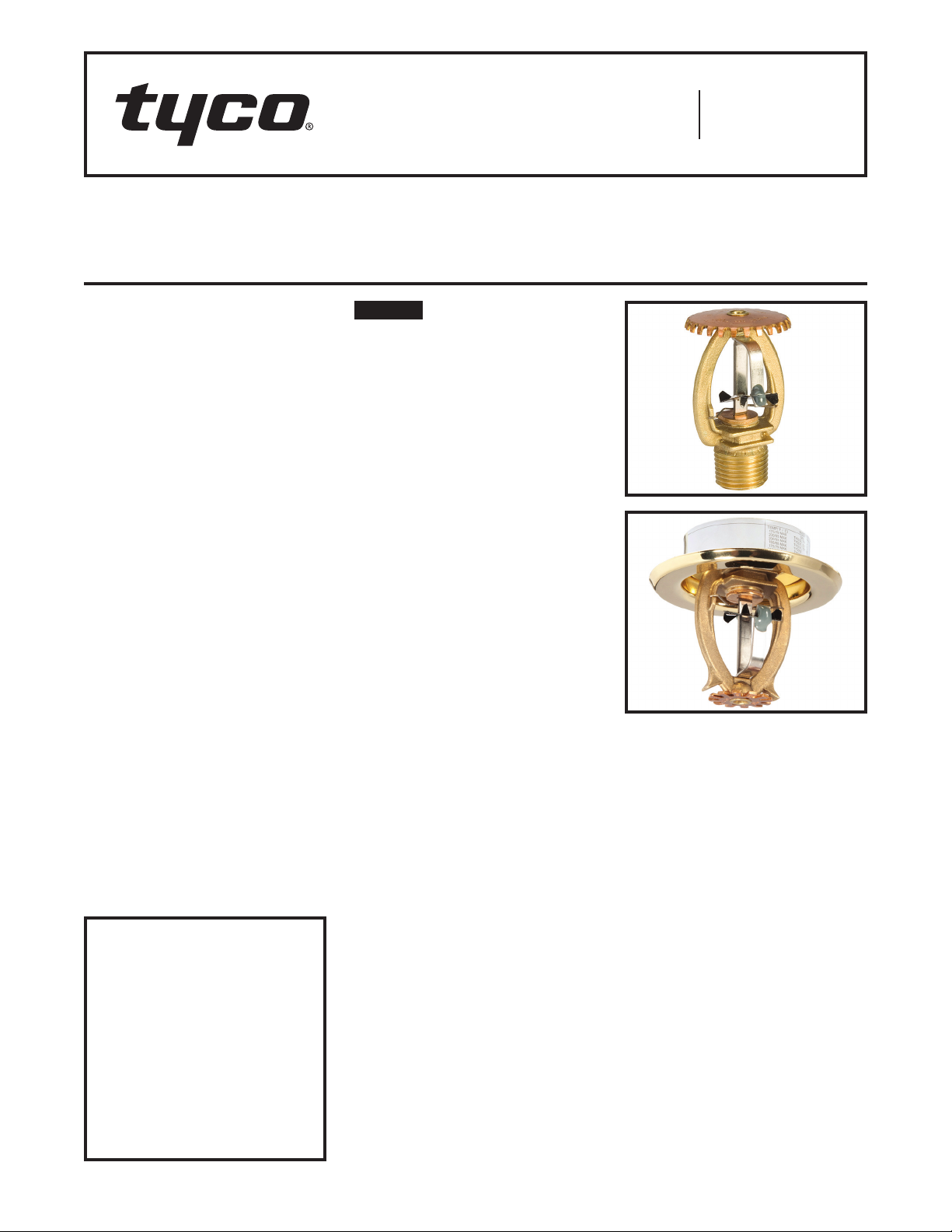

Series TY-FRL — 2.8, 5.6, and 8.0 K-factor
Upright, Pendent, and Recessed Pendent Sprinklers
Quick Response, Standard Coverage
Page 1 of 6 AUGUST 2018 TFP130
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Worldwide
Contacts
www.tyco-fire.com
NOTICE
The Series TY-FRL Sprinklers
described herein must be installed
and maintained in compliance with
this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers
T Y1121 ........... Upright 2.8K, 1/2 in. NPT
TY1221 ...........Pendent 2.8K, 1/2 in. NPT
TY3121 ........... Upright 5.6K, 1/2 in. NPT
TY3221 ...........Pendent 5.6K, 1/2 in. NPT
TY4121 ........... Upright 8.0K, 3/4 in. NPT
TY4221 ...........Pendent 8.0K, 3/4 in. NPT
TY1121 is a redesignation for S1879
and G8973.
TY1221 is a redesignation for S1880
and G8971.
TY3121 is a redesignation for S1864
and G8974.
TY3221 is a redesignation for S1865
and G8972.
TY4121 is a redesignation for S1866
and G8174.
TY4221 is a redesignation for S1867
and G8172.
General
Description
The TYCO Series TY-FRL, 2.8, 5.6,
and 8.0 K-factor, Upright and Pendent
Sprinklers described in this data sheet
are quick response, standard coverage,
solder type spray sprinklers designed
for use in light and ordinary hazard
commercial occupancies such as
banks, hotels, shopping malls, schools,
hospitals, etc.
The recessed version of the 2.8 and 5.6
K-factor, Series TY-FRL Pendent Sprin-
kler, where applicable, is intended for
use in areas with a finished ceiling. It
uses a two-piece Style 20 (1/2 in. NPT)
Recessed Escutcheon. The Recessed
Escutcheon provides 1/4 in. (6,4 mm)
of recessed adjustment or up to 1/2 in.
(12,7 mm) of total adjustment from the
flush pendent position. The adjustment
provided by the Recessed Escutcheon
reduces the accuracy to which the fixed
pipe drops to the sprinklers must be
cut.
An intermediate level version of the
5.6 and 8.0 K-factor, Series TY-FRL
Pendent Sprinkler can be obtained by
utilizing the Series TY-FRL Pendent
Sprinkler in combination with the Model
S4 Shield.

TFP130
Page 2 of 6
*
* **
**
*
*
*
UPRIGHT PENDENT CROSS SECTIONRECESSED PENDENT
7/16"
(11,1 mm)
NOMINAL
MAKE-IN
WRENCH
FLANGES
ESCUTCHEON
PLATE SEATING
SURFACE
WRENCH
AREA
STYLE 20
RECESSED
ESCUTCHEON
Pipe thread connections per
ISO 7-1 can be provided on
special request.
Temperature rating
is indicated on
Deector.
DEFLECTOR 2-7/8" (73,0 mm) DIA.
5
6
3
2
4
7
8
1
1
2
Deector
Strut
Frame
-
-
Link
Assembly Seal
Button
-
7
1/2" NPT
3-
5
-
Hook4 -
6-Ejection
Spring
-
8
DEFLECTOR
2-11/16"
(68,3 mm)
2"
(50,8 mm)
2-11/16"
(68,3 mm)
*
* **
**
*
*
*
UPRIGHT PENDENT CROSS SECTIONRECESSED PENDENT
7/16"
(11,1 mm)
NOMINAL
MAKE-IN
WRENCH
FLANGES
ESCUTCHEON
PLATE SEATING
SURFACE
WRENCH
AREA
STYLE 20
RECESSED
ESCUTCHEON
Pipe thread connections per
ISO 7-1 can be provided on
special request.
Temperature rating
is indicated on
Deector.
DEFLECTOR 2-7/8" (73,0 mm) DIA.
5
6
9
3
2
4
7
8
1
1
2
Deector
Strut
Frame
-
-Link
Assembly Seal
9-
Bushing
Button
-
7
1/2" NPT
3-
5-
Hook4 -
6-Ejection
Spring
-
8
DEFLECTOR
2-11/16"
(68,3 mm)
2"
(50,8 mm)
2-11/16"
(68,3 mm)
FIGURE 1
QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY1121) AND PENDENT (TY1221) SPRINKLERS
2.8 K-FACTOR, 1/2 INCH NPT
FIGURE 2
QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY3121) AND PENDENT (TY3221) SPRINKLERS
5.6 K-FACTOR, 1/2 INCH NPT

TFP130
Page 3 of 6
Technical
Data
Approvals
UL and C-UL Listed
FM and NYC Approved
Refer to Table A for complete approval
information
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K = 2.8 GPM/psi1/2 (40,3 LPM/bar1/2)
K = 5.6 GPM/psi1/2 (80,6 LPM/bar1/2)
K = 8.0 GPM/psi1/2 (115,2 LPM/bar1/2)
Temperature Ratings
Refer to Table A
Finishes
Sprinkler: Refer to Table A
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Strut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Monel
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Monel
Link Assembly. . . . . . . . . . . . . . . . . . . . . . Nickel
Ejection Spring . . . . . . . . . . . . . . . . . . . . Inconel
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TEFLON
Bushing (2.8K only). . . . . . . . . . . . . . . . . . .Brass
Operation
The fusible link (heat collector) assem-
bly is comprised of two halves that
are joined together by a thin layer of
solder. When the rated temperature is
reached, the solder melts and the two
link halves separate, allowing the sprin-
kler to operate.
Design Criteria
The TYCO Series TY-FRL Pendent
and Upright Sprinklers are intended
for fire protection systems designed in
accordance with the standard installa-
tion rules recognized by the applicable
Listing or Approval agency (e.g., UL
Listing is based on the requirements
of NFPA 13, and FM Approval is based
on the requirements of FM’s Loss Pre-
vention Data Sheets). Only the Style 20
Recessed Escutcheon, as applicable,
is to be used for recessed pendent
installations.
Installation
The TYCO Series TY-FRL Sprinklers
must be installed in accordance with
this section.
A leak tight 1/2 in. NPT sprinkler joint
should be obtained with a torque of
7 to 14 lb-ft (9,5 to 19,0 N·m). A leak
tight 3/4 in. NPT sprinkler joint should
be obtained with a torque of 10 to 20
lb-ft (13,4 to 26,8 N·m). Higher levels
of torque may distort the sprinkler inlet
and cause leakage or impairment of the
sprinkler.
Do not attempt to make-up for insuf-
ficient adjustment in the escutcheon
plate by under-or over-tightening the
sprinkler. Readjust the position of the
sprinkler fitting to suit.
Series TY-FRL Pendent and Upright
Sprinkler Installation
The Series TY-FRL Pendent and
Upright Sprinklers must be installed in
accordance with this section.
Step 1. Pendent sprinklers are to be
installed in the pendent position, and
upright sprinklers are to be installed in
the upright position.
Step 2. With pipe thread sealant
applied to the pipe threads, hand
tighten the sprinkler into the sprinkler
fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
9 Sprinkler Wrench (Ref. Figure 6).
With reference to Figures 1, 2, and 3,
the W-Type 9 Sprinkler Wrench is to be
applied to the wrench area.
*
**
*
*
*
*
**
UPRIGHT PENDENT CROSS SECTION
WRENCH
AREA
Pipe thread connections
per ISO 7-1 can be
provided on special
request.
Temperature rating is
indicated on Deector.
1
2
Deector
Strut
Frame
-
-
Link
Assembly
Seal
Button
-
7
WRENCH
FLANGES
3-
5-
Hook4 -
6-Ejection
Spring
-
8
DEFLECTOR
CEILING PLATE
SEATING SURFACE
2-3/16"
(55,6 mm)
DEFLECTOR
2-13/16"
(71,4 mm)
1/2"
(12,7 mm)
NOMINAL
MAKE-IN
2-15/16"
(74,6 mm)
5
6
2
4
3
7
8
1
3/4" NPT
FIGURE 3
QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY4121) AND PENDENT (TY4221) SPRINKLERS
8.0 K-FACTOR, 3/4 INCH NPT

TFP130
Page 4 of 6
Series TY-FRL Recessed Pendent
Sprinkler Installation
The Series TY-FRL Recessed Pendent
Sprinklers must be installed in accor-
dance with the following instructions.
Step A. After installing the Style 20
Mounting Plate, as applicable, over the
sprinkler threads and with pipe thread
sealant applied to the pipe threads,
hand tighten the sprinkler into the
sprinkler fitting.
Step B. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
12 Recessed Sprinkler Wrench (Ref.
Figure 7). With reference to Figure 1,
or 2, the W-Type 12 Recessed Sprinkler
Wrench is to be applied to the sprinkler
wrenching flanges.
Step C. After the ceiling has been
installed or the finish coat has been
applied, slide on the Style 20 Escutch-
eon over the Series TY-FRL Sprinkler
and push the Escutcheon over the
Mounting Plate until its flange comes
in contact with the ceiling.
SPRINKLER FINISH
KTYPE TEM P.
RATING
FRAME
COLOR
CODE
NATURAL
BRASS CHROME PLATED
2.8
1/2 in.
NPT
PENDENT
(TY1221)
165°F (74°C) Unpainted
1, 2, 5
212°F (100°C) White
UPRIGHT
(T Y1121)
165°F (74°C) Unpainted
212°F (100°C) White
RECESSED
PENDENT
(TY1221 w/Style 20)
165°F (74°C) Unpainted
212°F (100°C) White
5.6
1/2 in.
NPT
PENDENT
(TY3221)
165°F (74°C) Unpainted 1, 2, 3, 4, 5
212°F (100°C) White 1, 2, 3, 5
UPRIGHT
(TY3121)
165°F (74°C) Unpainted 1, 2, 3, 4, 5
212°F (100°C) White 1, 2, 3, 5
RECESSED
PENDENT
(TY3221 w/Style 20)
165°F (74°C) Unpainted
1, 2, 5
212°F (100°C) White
8.0
3/4 in.
NPT
PENDENT
(TY4221)
165°F (74°C) Unpainted
1, 2, 3, 5
212°F (100°C) White
UPRIGHT
(TY4121)
165°F (74°C) Unpainted
212°F (100°C) White
NOTES:
1. Listed by Underwriters Laboratories, Inc. (UL) as Quick Response Sprinklers.
2. Listed by Underwriters Laboratories, Inc. for use in Canada (C-UL) as Quick Response Sprinklers.
3. Approved by Factory Mutual Research Corporation (FM) as Quick Response Sprinklers.
4. Approved by the Loss Prevention Certication Board (LPCB Ref. No. 094a/03) as Quick Response Sprinklers.
5. Approved by the City of New York under MEA 112-04-E.
TABLE A
LABORATORY LISTINGS AND APPROVALS

TFP130
Page 5 of 6
Care and
Maintenance
The TYCO Series TY-FRL Sprinklers
must be maintained and serviced in
accordance with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Absence of an escutcheon, which is
used to cover a clearance hole, may
delay the time to sprinkler operation in
a fire situation.
Sprinklers that are found to be leaking
or exhibiting visible signs of corrosion
must be replaced.
Automatic sprinklers must never be
painted, plated, coated or otherwise
altered after leaving the factory. Modi-
fied or over-heated sprinklers must be
replaced.
Care must be exercised to avoid
damage to the sprinklers -before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced.
The owner is responsible for the
inspection, testing, and maintenance of
their fire protection system and devices
in compliance with this document, as
well as with the applicable standards
of the National Fire Protection Asso-
ciation (e.g., NFPA 25), in addition to
the standards of any other authorities
having jurisdiction. Contact the install-
ing contractor or product manufacturer
with any questions.
It is recommended that automatic
sprinkler systems be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
CLOSURE
MOUNTING
SURFACE
FACE OF
SPRINKLER
FITTING
1/2±1/8"
(12,7±3,2 mm) 1/4" (6,4 mm)
TY-FRL
2-1/4" DIA.
(57,2 mm)
1-1/2" (38,1 mm)
1-3/4" (44,5 mm)
MOUNTING
PLATE
1/8"
(3,2 mm)
2-7/8" DIA.
(73,0 mm)
1/2" (12,7 mm)
CLOSURE
MOUNTING
SURFACE
FACE OF
SPRINKLER
FITTING
1/2±1/8"
(12,7±3,2 mm) 1/4" (6,4 mm)
TY-FRL
2-1/4" DIA.
(57,2 mm)
1-1/2" (38,1 mm)
1-3/4" (44,5 mm)
MOUNTING
PLATE
1/8"
(3,2 mm)
2-7/8" DIA.
(73,0 mm)
1/2" (12,7 mm)
WRENCH
RECESS
PUSH WRENCH UP TO
ENSURE ENGAGEMENT
WITH SPRINKLER
WRENCHING AREA
WRENCH
RECESS
FIGURE 4
SERIES TY-FRL (TY1221) RECESSED PENDENT SPRINKLER
ASSEMBLY WITH TWO-PIECE 1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON 2.8 K-FACTOR, 1/2 INCH NPT
FIGURE 5
SERIES TY-FRL (TY3221) RECESSED PENDENT SPRINKLER
ASSEMBLY WITH TW0-PIECE 1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON 5.6 K-FACTOR, 1/2 INCH NPT
FIGURE 6
W-TYPE 9 SPRINKLER
WRENCH
FIGURE 7
W-TYPE 12 RECESSED
SPRINKLER WRENCH

TFP130
Page 6 of 6
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;
TEFLON is a registered trademark of DuPont
1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone [phone]
© 2018 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-fire.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
Sprinkler Assemblies with NPT
Thread Connections
Specify: Series TY-FRL (specify SIN),
(specify K-factor), (specify Upright,
Pendent, or Recessed Pendent) Sprin-
kler Quick Response, (specify) temper-
ature rating, (specify type of finish), P/N
(specify from Table B)
Recessed Escutcheon
Specify: Style 20 Recessed Escutch-
eon with (specify*) finish, P/N (specify*)
*Refer to Technical Data Sheet TFP770
Sprinkler Wrench
Specify: W-Type 9 Sprinkler Wrench,
P/N 56-000-1-849
Specify: W-Type 12 Sprinkler Wrench,
P/N 56-798-1-0 01
P/N 58 - XXX - X - XXX
SIN
973 2.8K UPRIGHT (1/2 in. NPT) T Y1121
981 2.8K PENDENT (1/2 in. NPT) TY1221
974 5.6K UPRIGHT (1/2 in. NPT) TY3121
982 5.6K PENDENT (1/2 in. NPT) TY3221
174 8.0K UPRIGHT (3/4 in. NPT) T Y4121
172 8.0K PENDENT (3/4”NPT) T Y4221
SPRINKLER
1NATURAL BRASS
9CHROME PLATED
TEMPERA-
TURE RATING
165 165°F (74°C)
212 212°F (100°C)
TABLE B
SERIES TY-FRL PENDENT AND UPRIGHT SPRINKLERS
PART NUMBER SELECTION
