Johnson Controls tyco ULTRA K17 User manual

Ultra K17 — 16.8 K-factor
Upright Control Mode Specific Application Sprinkler
Standard Response, 155°F (68°C) & 200°F (93°C)
Page 1 of 4 AUGUST 2018 TFP330
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Worldwide
Contacts
www.tyco-fire.com
General
Description
The TYCO 16.8 K-factor, Ultra K17,
Standard Response, Upright Control
Mode Specific Application Sprinkler
(Ref. Figure 1) is an automatic sprin-
kler of the frangible bulb type. It is
intended for use with National Fire Pro-
tection Association Control Mode Spe-
cific Application installation criteria for
the protection of high piled storage. It
may also be utilized as a 16.8 K-fac-
tor, upright, standard response storage
sprinkler in accordance with Factory
Mutual Loss Prevention Data Sheets.
See FM 2-0 and 8-9 for specific design
and installation criteria.
The Ultra K17 Sprinkler can provide a
higher level of protection than other
standard spray sprinklers and, in some
cases, it can provide an economi-
cal advantage by eliminating in-rack
sprinklers.
Applications for the Ultra K17 Upright
Control Mode Specific Application
Sprinkler are expanding beyond the
current specific application listings/
approvals. For information regard-
ing research fire tests which may be
acceptable to an authority having juris-
diction, please contact the Technical
Services Department.
NOTICE
The Ultra K17, Standard Response,
Upright Control Mode Specific Applica-
tion Sprinkler described herein must be
installed and maintained in compliance
with this document and with the appli-
cable standards of the National Fire
Protection Association, in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
Refer to Table A for sprinkler identification
number.
Technical
Data
Approvals
UL and C-UL Listed
FM and NYC Approved
Refer to Table C for specific details on
laboratory listings and approvals. The
approvals apply to the service conditions
indicated in the Design Criteria section.
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Sealing Assembly ..Beryllium Nickel w/TEFLON
Bulb (5 mm). . . . . . . . . . . . . . . . . . . . . . . . .Glass
Compression Screw . . . . . . . . . . . . . . . . . .Brass
Deflector ..............Chrome Plated Brass
Additional Technical Data
Refer to Table A for additional technical
data.
Operation
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and flow water.

TFP330
Page 2 of 4
Design
Criteria
UL and C-UL Listing Requirements
The TYCO 16.8 K-factor, Ultra K17,
Standard Response, Upright Control
Mode Specific Application Sprin-
kler may be installed in accordance
with NFPA 13 “Control Mode Specific
Application Sprinkler (for Storage Use)”
requirements to provide ceiling only
protection (that is, no in-rack sprin-
klers) for high piled storage occupan-
cies (Solid-piled, palletized and rack
storage including but not limited to
Class I-IV and Group A plastics) using
the criteria from NFPA 13. Refer to
Table B for additional information.
FM Approval Requirements
The TYCO 16.8 K-factor, Ultra K17
Sprinklers may be installed with the
applicable storage sprinkler guide-
lines provided by Factory Mutual. (FM
guidelines may differ from UL and C-UL
Listing criteria.)
Item Description
Sprinkler Identication Number (SIN) TY7153 TY7153 is a redesignation for C7153,
G1887, and S8042.
K-factor, gpm/psi½(lpm/bar½)16.8 gpm/psi½(241,9 lpm/bar½)
Temperature Rating ºF (ºC)1155ºF (68ºC)1
200ºF (93ºC)
Thread Size 3/4 in. NPT
Sprinkler Orientation Upright
Maximum Working Pressure, psi (bar) 175 psi (12 bar)
Note:
1. Refer to Table C for laboratory listings and approvals.
*
*
*
UPRIGHTCROSS SECTION
1
2
3
4
5
6
-
2
Button
Compression
Screw
Bulb
Sealing Assembly
-
6
-
4
5
-
3
-
Frame
1
-
Deector 2-3/8"
(60,3 mm)
WRENCH
FLAT
Temperature rating is
indicated on deector.
1/2"
(12,7 mm)
NOMINAL
MAKE-IN
3/4"
NPT
FIGURE 1
ULTRA K17, 155°F (68°C) & 200°F (93°C),
UPRIGHT SPRINKLER (TY7153)
TABLE A
ULTRA K17 UPRIGHT SPRINKLER
TECHNICAL DATA

TFP330
Page 3 of 4
SPRINKLER FINISH
TYPE TEMPERATURE BULB
LIQUID NATURAL BRASS WITH CHROME DEFLECTOR
UPRIGHT K16.8 (TY7153)
155ºF (68ºC) Red 3, 4
200ºF (93ºC) Green 1, 2, 3, 4
NOTES:
1. Listed by Underwriters Laboratories, Inc. (UL Listed)
2. Listed by Underwriters Laboratories, Inc. for use in Canada (C-UL Listed)
3. Approved by Factory Mutual Research Corporation (FM Approved)
4. Approved by the City of New York under MEA 177-03-E
Storage Type NFPA FM Global
Sprinkler Type CMSA Storage
Response Type SR SR
System Type Wet and Dry Wet and Dry
Temperature Rating ºF (ºC)1155ºF (68ºC)1
200ºF (93ºC)
155ºF (68ºC)1
200ºF (93ºC)
Open Frame (i.e., no solid shelves)
Single, Double, Multiple-Row, or Portable Rack Storage of
Class I-IV and Group A or B Plastics
Refer to NFPA 13 Refer to FM 2-0 and 8-9
Solid Pile or Palletized Storage of
Class I-IV and Group A or B Plastics Refer to NFPA 13 Refer to FM 2-0 and 8-9
Idle Pallet Storage Refer to NFPA 13 Refer to FM 2-0, 8-9, and 8-24
Rubber Tire Storage Refer to NFPA 13 Refer to FM 2-0 and 8-3
Roll Paper Storage (Refer to the Standard) Refer to NFPA 13 Refer to FM 8-21
Flammable/Ignitable Liquid Storage (Refer to the Standard) Refer to NFPA 30 Refer to FM 7-29
Aerosol Storage (Refer to the Standard) Refer to NFPA 30B Refer to FM 7-31
Automotive Components in Portable Racks
(Control mode only; refer to the Standard) Refer to NFPA 13 N/A
Notes:
1. Refer to Table C for laboratory listings and approvals.
N/A – Not Applicable
TABLE C
LABORATORY LISTINGS AND APPROVALS
(Refer to the Design Criteria section)
TABLE B
ULTRA K17 UPRIGHT SPRINKLER
COMMODITY SELECTION AND DESIGN CRITERIA OVERVIEW

TFP330
Page 4 of 4
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;
TEFLON is a registered trademark of DuPont
1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone [phone]
© 2018 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Installation
The TYCO 16.8 K-factor, Ultra K17,
Standard Response, Upright Control
Mode Specific Application Sprinkler
must be installed in accordance with
this section.
General Instructions
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontal, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 in.
(1,6 mm).
A leak-tight 3/4 in. NPT sprinkler joint
should be obtained by applying a min-
imum-to-maximum torque of 7 to 14
lb-ft (9,5 to 19,0 N∙m). Higher levels of
torque can distort the sprinkler Inlet
with consequent leakage or impairment
of the sprinkler.
Step 1. With pipe thread sealant
applied to the pipe threads, hand
tighten the Ultra K17 Sprinkler into the
sprinkler fitting.
Step 2. Using the W-Type 8 Sprinkler
Wrench (Ref. Figure 2) applied to the
sprinkler Wrench Flats (Ref. Figure 1),
tighten the Ultra K17 Sprinkler into the
sprinkler fitting.
Care and
Maintenance
The TYCO 16.8 K-factor, Ultra K17,
Standard Response, Upright Control
Mode Specific Application Sprinkler
must be maintained and serviced in
accordance with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection systems must
be obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Sprinklers that are found to be leaking
or exhibiting visible signs of corrosion
must be replaced.
Automatic sprinklers must never be
painted, plated, coated, or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Care must be exercised to avoid
damage to the sprinklers before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced. Also, replace any sprinkler
that has a cracked bulb or that has lost
liquid from its bulb. Refer to Installation
section for additional information.
The owner is responsible for the inspec-
tion, testing, and maintenance of their
fire protection system and devices in
compliance with this document, as
well as with the applicable standards
of the National Fire Protection Associ-
ation, such as NFPA 25, in addition to
the standards of any other authorities
having jurisdiction. Contact the install-
ing contractor or product manufacturer
with any questions.
Automatic sprinkler systems are rec-
ommended to be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-fire.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
Sprinkler Assemblies with NPT
Thread Connections
Specify: Ultra K17 (TY7153), K = 16.8,
Upright Control Mode Specific Appli-
cation Sprinkler, Standard Response,
(specify) temperature rating, P/N
(specify):
155°F ( 68°C).................. 51-887-1-155
200°F (93°C) .................51-887-1-200

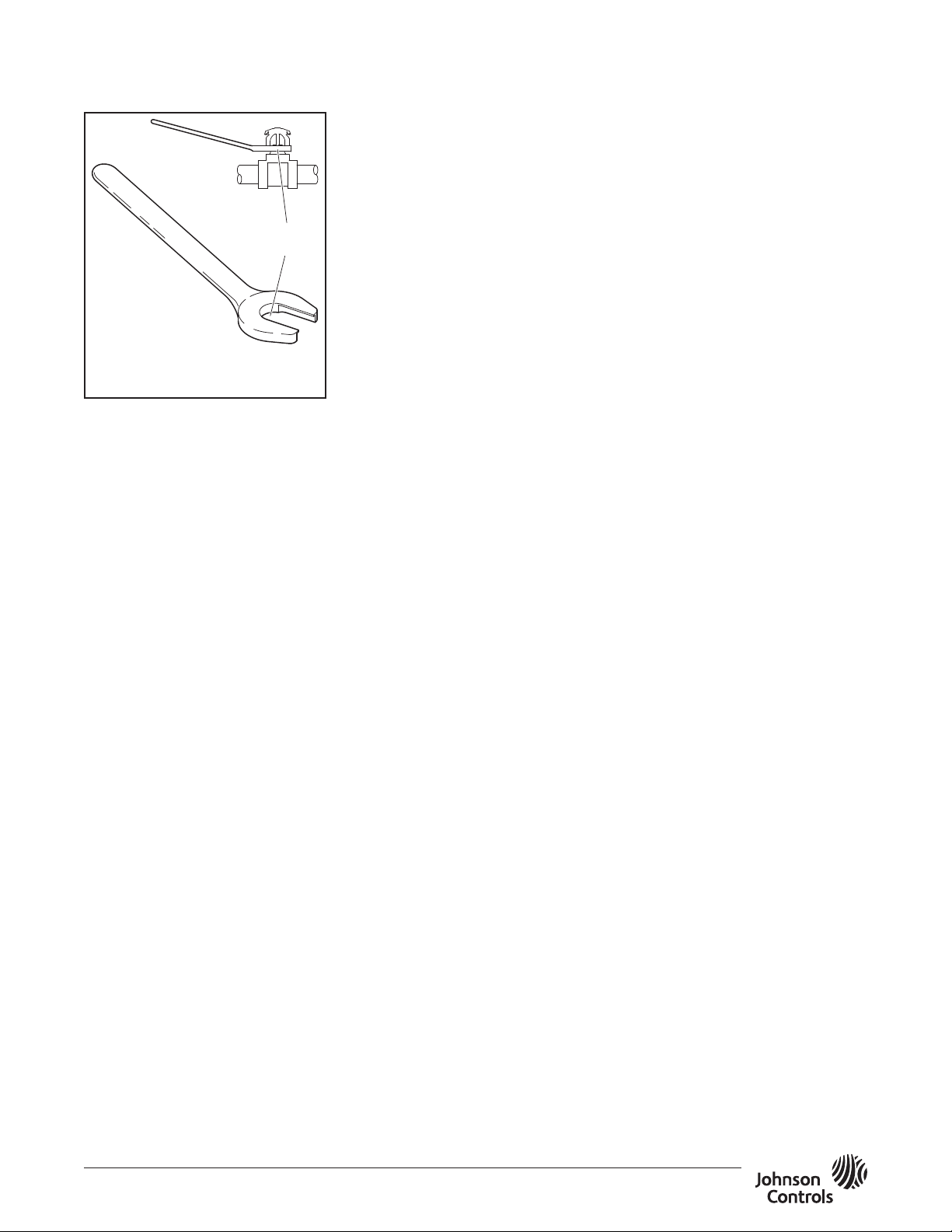

Sprinkler Wrench
Specify: W-Type 8 Sprinkler Wrench,
P/N 56-892-1-001
WRENCH
RECESS
FIGURE 2
W-TYPE 8
SPRINKLER WRENCH
