JVC KW-V230BT User manual
B5A-1566-10 (E/Q)© 2016 JVC KENWOOD Corporation
MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
KW-V230BT
KW-V235DBT
KW-V330BT
This instruction manual is used to describe models listed below. Model availability and features
(functions) may differ depending on the country and sales area.
• Region 2 (DVD Region Code 2 area)
• Region 5 (DVD Region Code 5 area)
2017_KW-V_Entry_E.indb 12017_KW-V_Entry_E.indb 1 6/1/2017 11:31:05 AM6/1/2017 11:31:05 AM
2
CONTENTSCONTENTS
BEFORE USE............................................................ 2
How to reset your unit.................................................... 3
INITIAL SETTINGS .................................................. 4
Initial setup......................................................................... 4
Clock settings .................................................................... 4
BASICS .................................................................... 5
Component names and functions............................. 5
Common operations....................................................... 6
Common screen operations......................................... 8
Selecting the playback source...................................10
Using the pop-up short-cut menu...........................11
DISCS .................................................................... 12
USB........................................................................ 16
Android ................................................................ 18
iPod/iPhone ......................................................... 20
APPs...................................................................... 24
Spotify .................................................................. 25
TUNER................................................................... 27
DIGITAL RADIO (DAB).......................................... 32
OTHER EXTERNAL COMPONENTS ...................... 36
Using the rear view camera........................................36
Using external audio/video players—AV-IN ........38
BLUETOOTH ......................................................... 39
SETTINGS.............................................................. 48
Settings for using applications of iPod touch/
iPhone/Android..............................................................48
Sound adjustment.........................................................49
Adjustment for video playback.................................52
Changing the display design.....................................53
Customizing the Home screen..................................55
Customizing the system settings.............................56
Setting menu items.......................................................57
REMOTE CONTROLLER ........................................ 61
CONNECTION/INSTALLATION ............................ 63
REFERENCES......................................................... 68
Maintenance....................................................................68
More information...........................................................68
Error message list...........................................................72
Troubleshooting.............................................................72
Specifications...................................................................75
BEFORE USEBEFORE USE
IMPORTANT
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual. Please keep the
manual in a safe and accessible place for future
reference.
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
How to read this manual:
• Illustrations of KW-V230BT Region 2 are mainly used for explanation. The displays and panels shown in
this manual are examples used to provide clear explanations of the operations. For this reason, they may
be different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the separately purchased remote controller (available only for KW-V230BT Region 2/
KW-V235DBT/KW-V330BT), see page61.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Settings> menu. (Page60)
• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available
from <http://www.jvc.net/cs/car/>.
2017KW-VEntryE.indb22017KW-VEntryE.indb2 2016/09/2717:402016/09/2717:40
ENGLISH 3

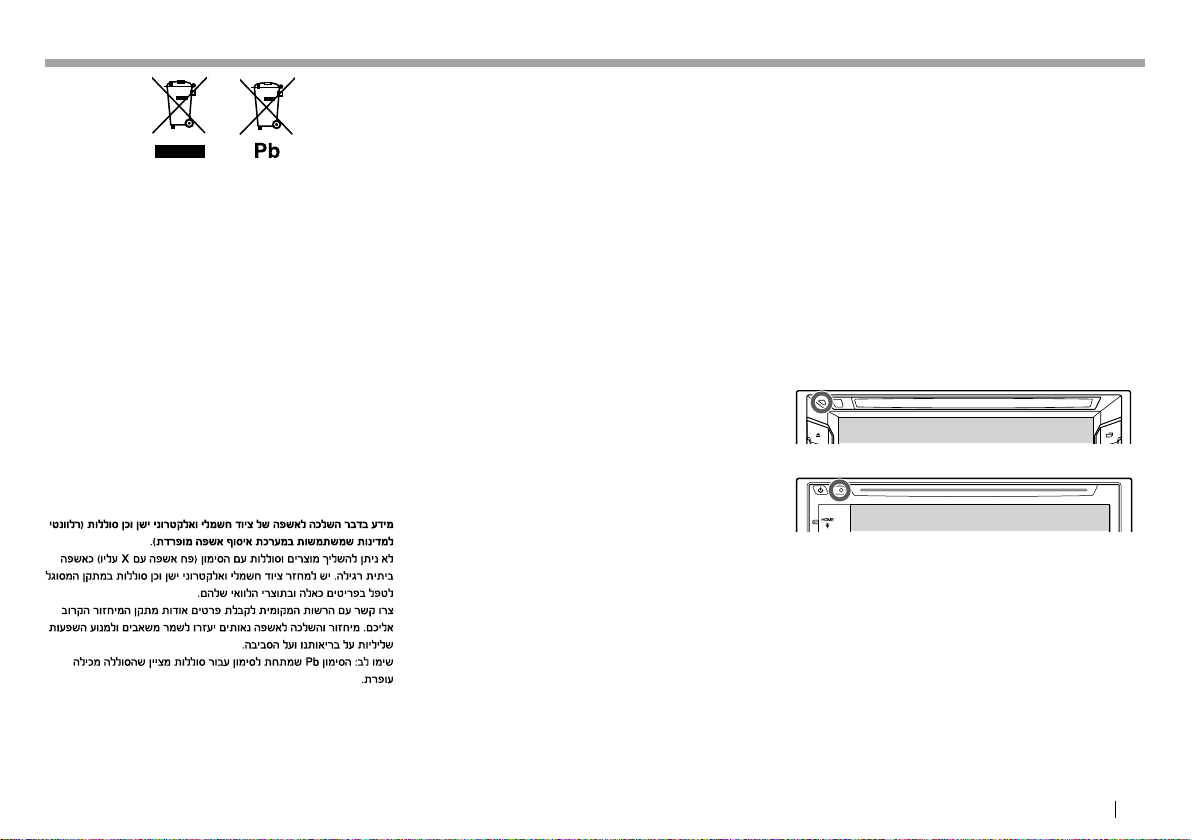

Information on Disposal of Old Electrical and
Electronic Equipment and Batteries (applicable
for countries that have adopted separate waste
collection systems)
Products and batteries with the symbol (crossed-
out wheeled bin) cannot be disposed as household
waste.
Old electrical and electronic equipment and
batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help
conserve resources whilst preventing detrimental
effects on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries
indicates that this battery contains lead.
For Israel
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
❏How to reset your unit
If the unit fails to operate properly, press the reset
button.
KW-V230BT/KW-V235DBT
KW-V330BT
BEFORE USEBEFORE USE
2017KW-VEntryE.indb32017KW-VEntryE.indb3 2016/09/2717:402016/09/2717:40
4
INITIAL SETTINGSINITIAL SETTINGS
Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the
<Settings> screen. (Page57)
1Perform the initial settings.
<Demonstration>
(Page59)
Activate or deactivate the
display demonstration.
<Language>
(Page60)
Select the text language
used for on-screen
information.
• Set <GUI Language>
to display the operation
buttons and menu items
in the selected language
([Local]) or English
([English]).
<Rear Camera>
(Page36)
Configure the settings to
display the picture from
the connected rear view
camera.
<User
Customize>
(Page53)
Change the display design.
<Viewing Angle>
(Page59)
Select the viewing angle
in relation to the monitor
panel to make the panel
easier to see.
2Finish the procedure.
The Home screen is displayed.
Clock settings
1Display the Home screen.
On the monitor panel:
KW-V330BTKW-V230BT
KW-V235DBT
2Display the <Settings> screen.
KW-V330BTKW-V230BT
KW-V235DBT
3Display the <System> setting screen.
4Display the <Clock> screen.
• You can also display the <Clock> setting
screen by touching the clock area on the
Home screen.
2017KW-VEntryE.indb42017KW-VEntryE.indb4 2016/09/2717:402016/09/2717:40
ENGLISH 5
BASICSBASICS
Component names and functions
VCaution on the volume setting:
Digital devices produce very little noise compared
with other sources. Lower the volume before
playing these digital sources to avoid damaging
the speakers by sudden increase of the output
level.
KW-V230BT/KW-V235DBT
1Reset button
Resets the unit. (Page 3)
2Loading slot
3M(Eject) button
Ejects the disc. (Press) (Page 12)
4Volume +/– button
Adjusts the audio volume. (Page 7)
5USB input terminal (Page 65)
6Monitor panel
7Screen (touch panel)
8button
• Switches the screen. (Press)
– The screen switched to depends on the
<Navigation Input> setting. (Page59)
• Turns off the screen. (Hold) (Page 7)
• Turns on the screen. (Hold) (Page 7)
9HOME/ button
• Displays the Home screen. (Press) (Page 8)
• Turns on the power. (Press) (Page 6)
• Turns off the power. (Hold) (Page 6)
pFNC/ button
• Pops up the short-cut menu. (Press)
(Page 11)
• Activates the voice dialing. (Hold) (Page 45)
qEQ button
Displays the <Equalizer> screen. (Page 49)
INITIAL SETTINGSINITIAL SETTINGS
5Set the clock time.
<Radio Data
System>*1
Synchronizes the clock time with
FM Radio Data System.
<DAB>*2Synchronizes the clock time with
Digital Audio Broadcast.
<OFF> Sets the clock manually. (See
below.)
When selecting <OFF>:
Adjust the hour (1), then adjust the minute (2).
• Press [Reset] to set the minute to “00”.
6Finish the procedure.
*1Only for KW-V230BT/KW-V330BT.
*2Only for KW-V235DBT.
Continued on the next page...
2017KW-VEntryE.indb52017KW-VEntryE.indb5 2016/09/2717:402016/09/2717:40
6
BASICSBASICS
KW-V330BT
1button
• Turns on the power. (Press) (See the far right
column.)
• Turns off the power. (Hold) (See the far right
column.)
• Pops up the short-cut menu. (Press)
(Page 11)
2Reset button
Resets the unit. (Page 3)
3Loading slot
4HOME/ button
• Displays the Home screen. (Press) (Page 8)
• Activates the voice dialing. (Hold) (Page 45)
5button
• Switches the screen. (Press)
– The screen switched to depends on the
<Navigation Input> setting. (Page 59)
• Turns off the screen. (Hold) (Page 7)
• Turns on the screen. (Hold) (Page 7)
6Volume +/– button
Adjusts the audio volume. (Page 7)
7Monitor panel*
8Screen (touch panel)
* You can change the color of the buttons on the monitor panel.
(Page 53)
Common operations
❏Turning on the power
KW-V230BT
KW-V235DBT
KW-V330BT
❏Turning off the power
KW-V230BT
KW-V235DBT
KW-V330BT
(Hold)
(Hold)
2017KW-VEntryE.indb62017KW-VEntryE.indb6 2016/09/2717:402016/09/2717:40
ENGLISH 7
BASICSBASICS

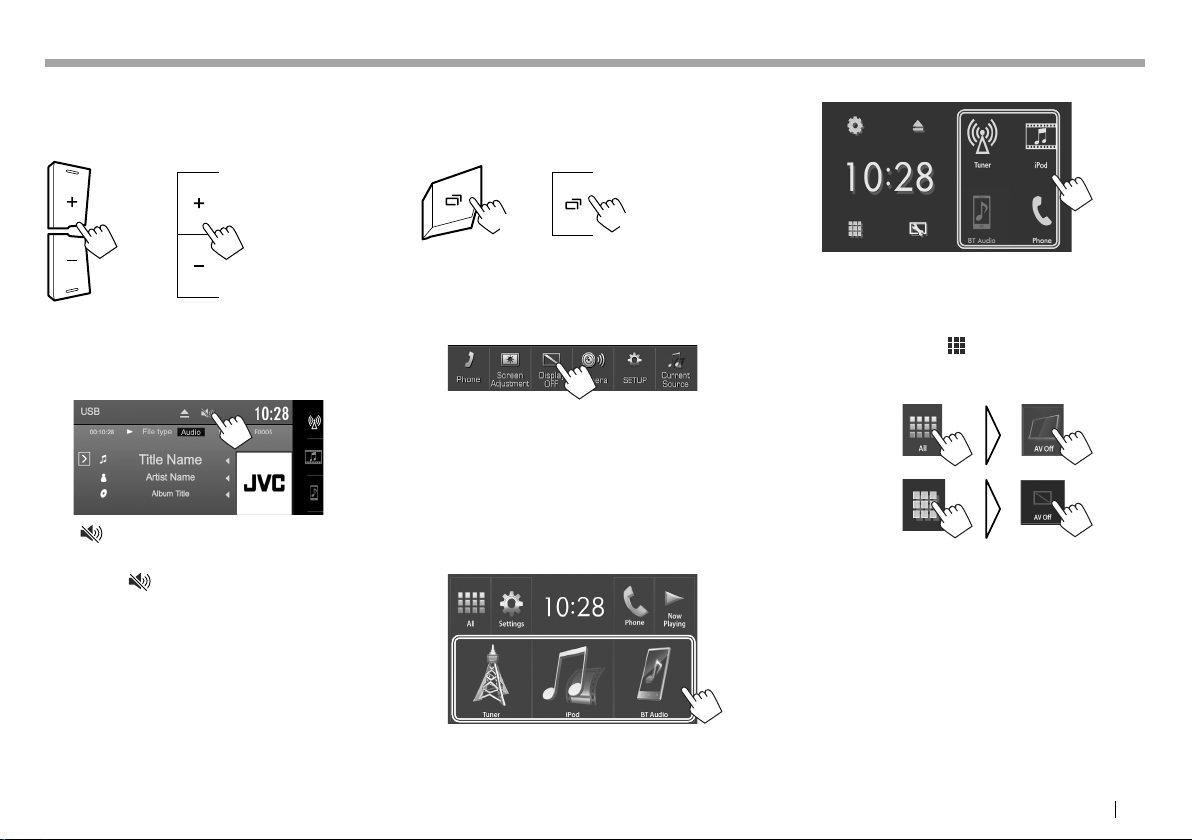

❏Adjusting the volume
To adjust the volume (00 to 35)
KW-V230BT
KW-V235DBT
KW-V330BT
Press + to increase, and press − to decrease.
• Holding + increases the volume continuously to
level 15.
To attenuate the sound (only for KW-V330BT)
The [ ] button becomes blue.
To cancel the attenuation: Press the same button
again. (The [ ] button becomes white.)
❏Turning off the screen
On the monitor panel:
(Hold)
KW-V330BT
(Hold)
KW-V230BT
KW-V235DBT
On the pop-up short-cut menu (Page11) (only for
KW-V230BT/KW-V235DBT):
Display the pop-up short-cut menu by pressing FNC
on the monitor panel, then select [Display OFF].
To turn on the screen: Press and hold the same
button, or touch the display.
❏Turning on/off the AV source
You can activate the AV function by selecting a
source on the Home screen.
KW-V230BT/KW-V235DBT
KW-V330BT
To select a source not displayed on the Home
screen:
For KW-V230BT/KW-V235DBT: Press [All].
(Page 10)
For KW-V330BT: Press [ ]. (Page 10)
To turn off the AV source:
KW-V330BT
KW-V230BT
KW-V235DBT
2017KW-VEntryE.indb72017KW-VEntryE.indb7 2016/09/2717:402016/09/2717:40
8
BASICSBASICS
Common screen operations
❏Common screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons and information displayed
vary depending on the selected source.
KW-V230BT/KW-V235DBT
1
2
KW-V330BT
3
1
4
Common operating buttons:
1Displays the other operation button window.*
2Only for KW-V230BT/KW-V235DBT: Displays the
<Equalizer> screen. (Page49)
3Only for KW-V330BT: Pops up the short-cut
menu. (Page 11)
4Only for KW-V330BT: Changes the playback
source. (Page 11)
• The source buttons shown on the Home screen
are displayed. (See the right column.)
*Does not appear when there are no other operation buttons other
than those currently shown on the source control screen.
Gesture control on the source control screen:
You can also control playback by moving your finger
on the touch panel as follows (for some sources, the
gesture control is not available).
• Sliding the finger towards up/down: Functions
same as pressing [ ] [ ]/[ ] [ ]*.
• Sliding the finger towards left/right: Functions
same as pressing [S]/[T].
• Moving your finger clockwise or counter-
clockwise: Increases/decreases the volume.
*The appearance of the buttons differs depending on the model.
Home screen
Displays the source control screen and settings
screen.
• To display the Home screen, press HOME on the
monitor panel.
• You can arrange the items to display on the Home
screen.(Page 55)
KW-V230BT/KW-V235DBT
12 543
6
KW-V330BT
• You can change Home screen design (icons
and layout) on the <User Customize> screen.
(Page53)
27 6
4183
2017KW-VEntryE.indb82017KW-VEntryE.indb8 2016/09/2717:412016/09/2717:41
ENGLISH 9
BASICSBASICS
Common operating buttons:
1Displays all playback sources and items.
(Page10)
2Displays the <Settings> screen. (See the right
column.)
3Displays the <Clock> setting screen. (Page4)
4Displays the phone control screen. (Page43)
5Only for KW-V230BT/KW-V235DBT: Displays the
source currently played back.
6Changes the playback source. (Page 11)
7Only for KW-V330BT: Ejects the disc. (Press)
(Page 12)
8Only for KW-V330BT: Displays the <User
Customize> screen. (Page 53)
<Settings> screen
Changes the detailed settings. (Page 57)
1
2
3
4
Common operating buttons:
1Selects the menu category.
2Changes the page.
3Closes the current setting screen and returns to
the current source control screen.
4Returns to the previous screen.
❏Touch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component.
2017KW-VEntryE.indb92017KW-VEntryE.indb9 2016/09/2717:412016/09/2717:41
10
BASICSBASICS
Selecting the playback source
1Display all playback sources and items.
On the Home screen:
KW-V230BT
KW-V235DBT
KW-V330BT
2KW-V230BT/KW-V235DBT
KW-V330BT
• You can change the icon design on the <User
Customize> screen. (Page53)
[DAB]*1Switches to the digital audio
broadcast (DAB). (Page32)
[Tuner] Switches to the radio broadcast.
(Page 27)
[Disc] Plays a disc. (Page 12)
[USB] Plays files on a USB device.
(Page 16)
[iPod] Plays an iPod/iPhone. (Page 20)
[Android™] Plays an Android device.
(Page18)
[BT Audio] Plays a Bluetooth audio player.
(Page 46)
[AV-IN]*2Switches to an external
component connected to the
iPod/AV-IN input terminal.
(Page 38)
[Apps] Switches to the App screen from
the connected iPod touch/iPhone/
Android device. (Page 24)
[Spotify] Switches to the Spotify
application. (Page 25)
[AV Off] Turns off the AV source.
(Page 7)
[Camera] Switches to a camera connected
to the rear view camera input.
(Page 36)
[Now Playing]*3Displays the source currently
played back.
[Phone]*4Displays the phone control screen.
(Page 43)
To return to the Home screen
KW-V230BT
KW-V235DBT
KW-V330BT
*1Only for KW-V235DBT.
*2Selectable only when connection method other than [USB +
AV-IN] is selected for <iPod Setup>. (Page21)
*3Only for KW-V230BT/KW-V235DBT.
*4Only for KW-V330BT.
2017KW-VEntryE.indb102017KW-VEntryE.indb10 2016/09/2717:412016/09/2717:41
ENGLISH 11
BASICSBASICS

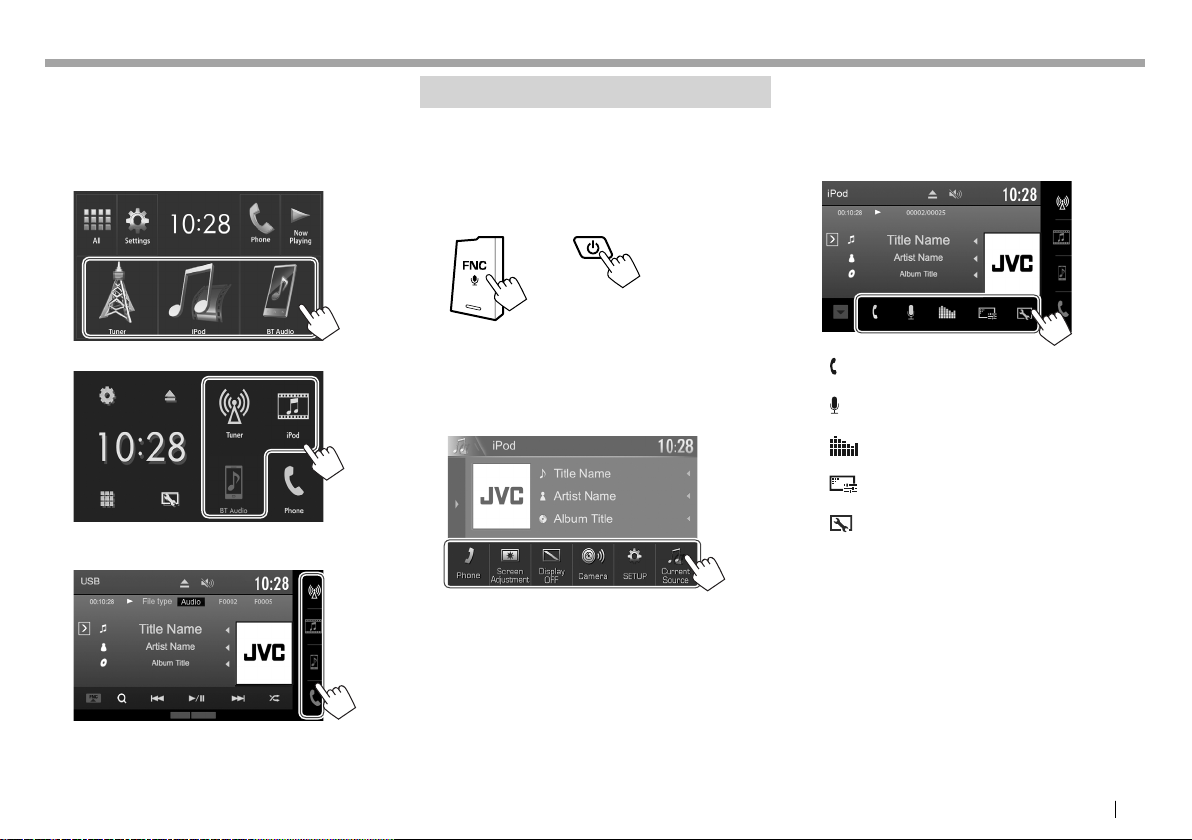

❏Selecting the playback source on the
Home screen
• You can arrange the items to display on the Home
screen. (Page55)
KW-V230BT/KW-V235DBT
KW-V330BT
• You can also select the playback source on the
source control screen.
Using the pop-up short-cut menu
While displaying the source control screen, you can
jump to another screen from the pop-up short-cut
menu.
1Display the pop-up short-cut menu.
KW-V230BT
KW-V235DBT
KW-V330BT
• Only for KW-V330BT: You can also display the
pop-up short-cut menu by pressing [FNC] on
the source control screen.
2Select an item to jump to.
KW-V230BT/KW-V235DBT
[Phone] Displays the phone control
screen. (Page43)
[Screen
Adjustment]
Displays the picture adjustment
screen. (Page52)
[Display OFF] Turns off the screen.
(Page7)
[Camera] Displays the picture from the
rear view camera. (Page36)
[SETUP] Displays the <Settings> screen.
(Page57)
[Current
Source]
Displays the current source
control screen.
KW-V330BT
[ ] Displays the phone control
screen. (Page43)
[ ] Activates the voice dialing.
(Page 45)
[ ] Displays the <Equalizer>
screen. (Page 49)
[ ] Displays the picture adjustment
screen. (Page52)
[ ] Displays the <User Customize>
screen. (Page 53)
To close the pop-up menu:
For KW-V230BT/KW-V235DBT: Touch the screen
anywhere other than the pop-up short-cut menu.
For KW-V330BT: Press [K]or touch the screen
anywhere other than the pop-up short-cut menu.
2017KW-VEntryE.indb112017KW-VEntryE.indb11 2016/09/2717:412016/09/2717:41
12
DISCSDISCS

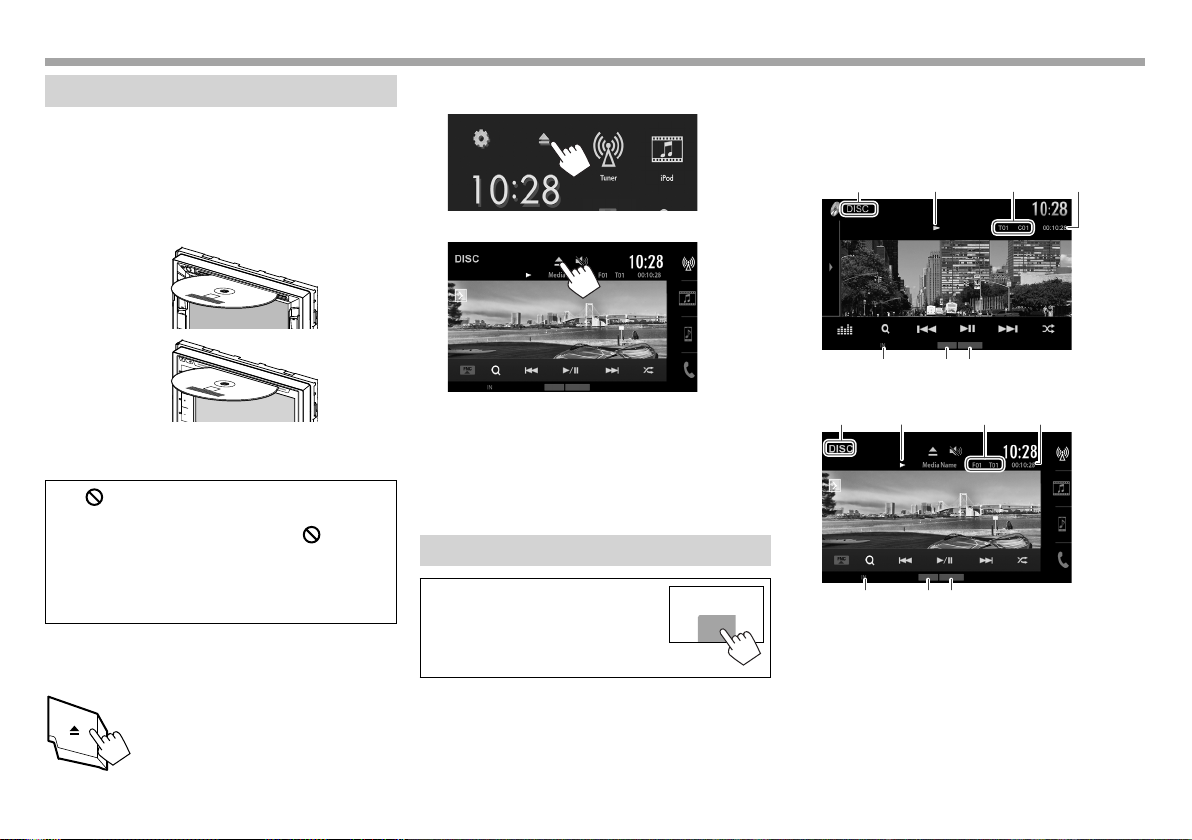

Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 69.
❏Inserting a disc
Insert a disc with the label side facing up.
KW-V330BT
KW-V230BT
KW-V235DBT
The source changes to “DISC” and playback starts.
• The IN indicator lights up while a disc is inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
❏Ejecting a disc
KW-V230BT/KW-V235DBT
KW-V330BT
On the Home screen:
On the source control screen:
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page52.
• The information and available operation buttons
on screen differ depending on the type of disc/file
being played back.

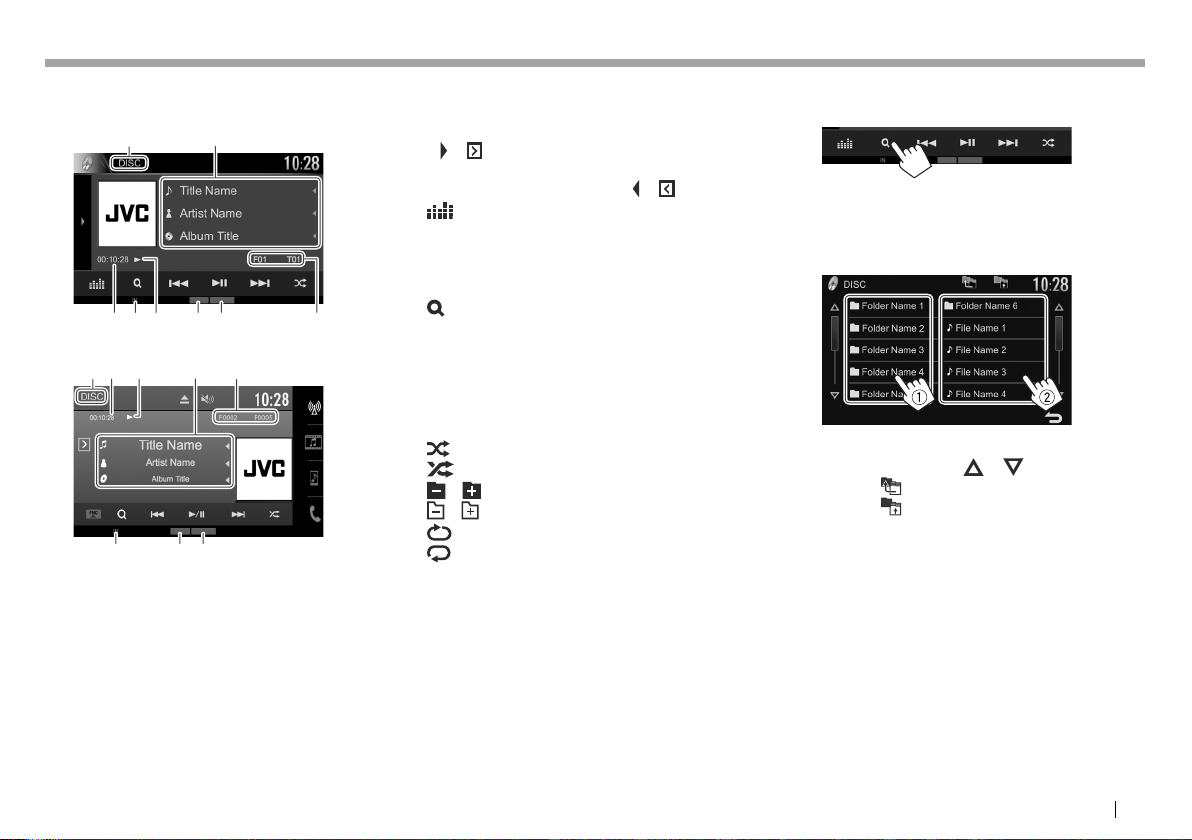

❏Playback information on the source
control screen
For video playback
KW-V230BT/KW-V235DBT
32
567
41
KW-V330BT
567
1324
1Media type
2Playback status
3Current playback item information (title no./
chapter no./folder no./file no./track no.)
4Playing time
5IN indicator
6Playback mode (Page15)
7File type
2017KW-VEntryE.indb122017KW-VEntryE.indb12 2016/09/2717:412016/09/2717:41
ENGLISH 13
DISCSDISCS
For audio playback
KW-V230BT/KW-V235DBT
2
54673
1
8
KW-V330BT
2
467
1835
1Media type
2Track/file information
• Pressing [H]scrolls the text if not all of the text
is shown.
3Playing time
4IN indicator
5Playback status
6Playback mode (Page15)
7File type
8Current playback item information (folder no./file
no./track no.)
❏Operation buttons on the source
control screen
• To display all available operation buttons, press
[ ]/[ ]*1. All the other available buttons are
shown.
– To hide the window, press [ ]/[ ]*1.
[ ]*2Displays the <Equalizer> screen.
(Page49)
[FNC J]*3Displays the pop-up short-cut menu.
(Page11)
• To close the menu, press [K].
[ ] Displays the folder/track list. (See the
right column.)
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search. (Hold)
• Plays in slow-motion during pause
for video playback. (Hold)
[IW]Starts/pauses playback.
[ ]/
[ ]*1
Selects Random playback mode.
(Page15)
[ ] [ ]/
[ ] [ ]*1
Selects a folder.
[ ]/
[ ]*1
Selects Repeat playback mode.
(Page15)
[o]Stops playback.
[MODE] Changes the settings for disc playback
on the <DISC Mode> screen.
(Page15)
*1The appearance of the buttons differs depending on the model.
*2Appears only for KW-V230BT/KW-V235DBT.
*3Appears only for KW-V330BT.
❏Selecting a folder/track on the list
1Display the folder/track list.
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
2017KW-VEntryE.indb132017KW-VEntryE.indb13 2016/09/2717:412016/09/2717:41
14
DISCSDISCS
❏Video menu operations
You can display the video control menu during
video playback.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
For video playback except VCD
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.

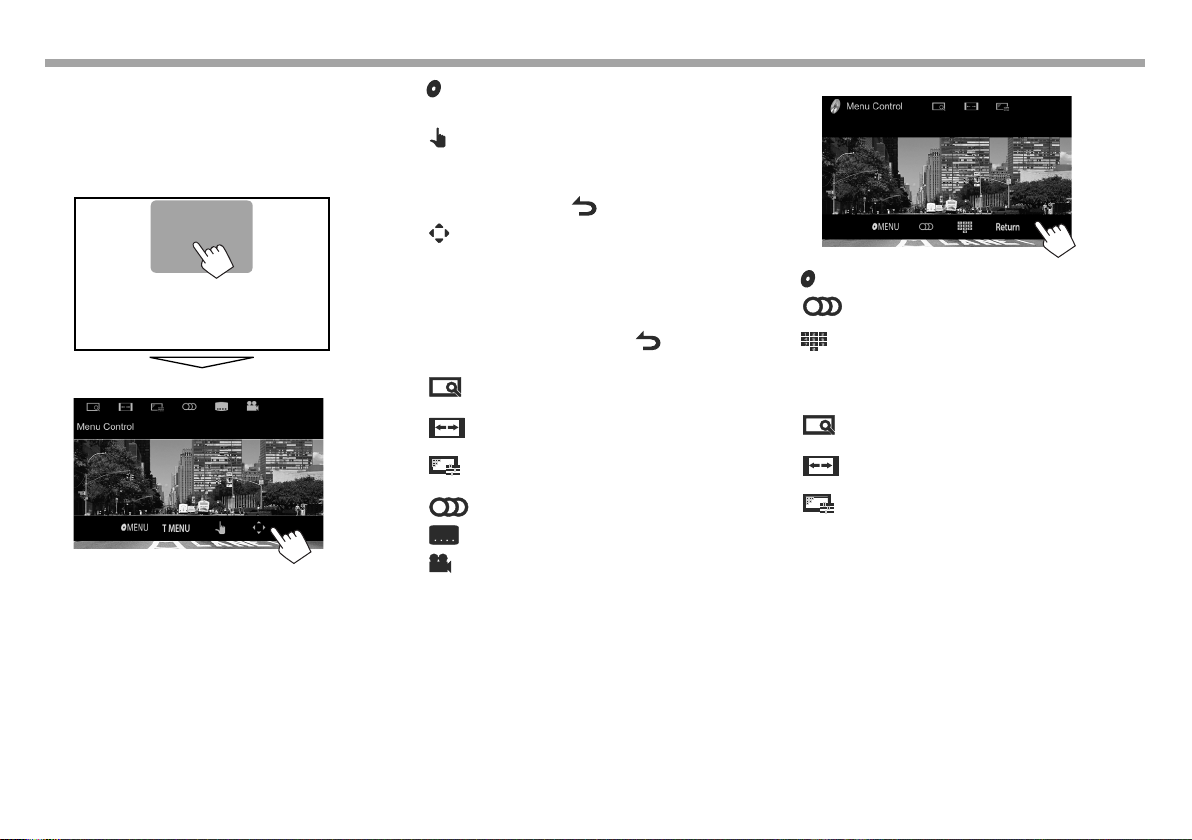

[ MENU] Displays the disc menu (DVD).
[T MENU] Displays the disc menu (DVD).
[]Switches to the direct disc menu
mode. Touch the target item to
select.
• To restore the screen, press
[ ].
[]Displays the menu/scene
selection screen.
• [J][K][H][I]: Selects an
item.
• [Enter]: Confirms the
selection.
• [Return]/[ ]*: Returns to
the previous screen.
[]Displays the picture size
selection screen. (Page53)
[]Selects the aspect ratio.
(Page52)
[]Displays the picture adjustment
screen. (Page52)
[]Selects the audio type.
[]Selects the subtitle type.
[]Selects the view angle.
*The appearance of the buttons differs depending on the model.
For VCD
[ MENU] Displays the disc menu.
[]Selects the audio channel (ST:
stereo, L: left, R: right).
[ ] Displays/hides the direct
selection buttons. (Page15)
[Return] Displays the previous screen or
menu.
[]Displays the picture size
selection screen. (Page53)
[]Selects the aspect ratio.
(Page52)
[]Displays the picture adjustment
screen. (Page52)
2017KW-VEntryE.indb142017KW-VEntryE.indb14 2016/09/2717:412016/09/2717:41
ENGLISH 15
DISCSDISCS
To select a track directly on a VCD
• When playing a VCD with PBC activated, stop
playback to deactivate the PBC function, then
use the direct selection buttons to select a track
number.
• When you enter a wrong number, press [DIR/CLR]
to delete the last entry.
❏Selecting playback mode
To select Repeat playback mode
• The locations of the buttons differ depending on
the type of disc/file being played back.
– When [ ]/[ ]* is not displayed, display the
other operation button window by pressing
[ ]/[ ]*.
To select Random playback mode
• Available playback modes differ depending on the
type of disc/file being played back.
• You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)*
– Available items differ depending on the type of
disc/file being played back.
Chapter/
Chapter
Repeats current chapter.
Title/
Title
Repeats current title/program.
/ Repeats current track.
Folder/
Folder
Repeats all tracks of the current
folder.
Folder/
Folder
Randomly plays all tracks of the
current folder, then tracks of the
next folders.
/Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
*The appearance of the buttons/indicators differs depending on the
model.
Settings for disc playback—<DISC
Mode>
1
2
• You can change the page to display more
items by pressing [ ]/[ ].
• Available items shown on the <DISC Mode>
screen differ depending on the type of disc/file
being played back.
2017KW-VEntryE.indb152017KW-VEntryE.indb15 2016/09/2717:412016/09/2717:41
16
DISCSDISCS
❏Setting items
<Menu
Language>
Select the initial disc menu language.
(Initial: English for KW-V230BT
Region 2/KW-V235DBT/KW-V330BT/
Руccĸий for KW-V230BT Region 5)
(Page71)
<Subtitle
Language>
Select the initial subtitle language
or turn subtitles off (Off). (Initial:
English for KW-V230BT Region 2/
KW-V235DBT/KW-V330BT/Руccĸий
for KW-V230BT Region 5) (Page71)
<Audio
Language>
Select the initial audio language.
(Initial: English for KW-V230BT
Region 2/KW-V235DBT/KW-V330BT/
Руccĸий for KW-V230BT Region 5)
(Page71)
<Dynamic
Range
Control>
You can change the dynamic range
while playing using Dolby Digital
software.
• Wide: Select this to enjoy a
powerful sound at a low volume
level with its full dynamic range.
• Normal: Select this to reduce the
dynamic range a little.
• Dialog (Initial): Select this to
reproduce movie dialog more
clearly.
<Down Mix> When playing back a multi-channel
disc, this setting affects the signals
reproduced through the front and/or
rear speakers.
• Dolby Surround: Select this to
enjoy multi-channel surround
sound by connecting an amplifier
compatible with Dolby Surround.
• Stereo (initial): Normally select
this.
<Screen
Ratio>
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9 (Initial) 4:3 LB 4:3 PS
<File Type>* Select the playback file type when a
disc contains different types of files.
• Audio: Plays back audio files.
• Still Image: Plays back picture files.
• Video: Plays back video files.
• Audio&Video (initial): Plays back
audio files and video files.
*For playable file types, see page 69.
If the disc contains no files of the selected type, the existing files are
played in the following priority: audio, video, then still picture. You
can change these settings only while playback is stopped.
USBUSB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player, etc. to
the unit.
• For details about connecting USB devices, see
page 65.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• You cannot connect a USB device via a USB hub.
• For playable file types and notes on using USB
devices, see page 70.
When a USB device is connected...
The source changes to “USB” and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
2017KW-VEntryE.indb162017KW-VEntryE.indb16 2016/09/2717:412016/09/2717:41
ENGLISH 17
USBUSB
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page52.
• The information and available operation buttons
on screen differ depending on the type of file
being played back.
❏Playback information on the source
control screen
KW-V230BT/KW-V235DBT
21
4563 7
KW-V330BT
2
56
734 1
1Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
2Track/file
information
• Pressing [H]scrolls the text if not all of the text
is shown.
3Playing time
4Playback status
5Playback mode (See the right column.)
6File type
7Current playback item information (folder no./file
no.)
❏Operation buttons on the source
control screen
• To display all available operation buttons, press
[ ]/[ ]*1.All the other available buttons are
shown.
– To hide the window, press [ ]/[ ]*1.
[Audio]/
[Video]/
[Photo]
Selects the playback file type.*2
• Audio: Plays back audio files.
• Video: Plays back video files.
• Photo: Plays back picture files.
[ ]*3Displays the <Equalizer> screen.
(Page49)
[FNC J]*4Displays the pop-up short-cut menu.
(Page11)
• To close the menu, press [K].
[ ] Displays the folder/track list.
(Page18)
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
[IW]Starts/pauses playback.
[ ]/
[ ]*1
Selects random playback
mode.*5*6
• Folder/ Folder*1: Randomly
plays all tracks/files in the folder.
• / *1: Randomly plays all
tracks/files.
[ ] [ ]/
[ ] [ ]*1
Selects a folder.
[ ]/
[ ]*1
Selects repeat playback mode.*5*6
• / *1: Repeats the current
track/file.
• Folder/ Folder*1: Repeats all
tracks/files in the current folder.
[MODE] Changes the settings for USB
playback on the <USB Mode> screen.
(Page18)
*1The appearance of the buttons/indicators differs depending on the
model.
*2For playable file types, see page 70.
If the USB contains no files of the selected type, the existing files are
played in the following priority: audio, video, then still picture. You
can change these settings only while playback is stopped.
*3Appears only for KW-V230BT/KW-V235DBT.
*4Appears only for KW-V330BT.
*5To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*6You cannot activate the repeat mode and the random mode at the
same time.
2017KW-VEntryE.indb172017KW-VEntryE.indb17 2016/09/2717:412016/09/2717:41
18
USBUSB
❏Settings for USB playback—<USB
Mode>
1
2
<Screen
Ratio>
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9 (Initial) 4:3 LB 4:3 PS
<Drive
Select>
Switches between internal memory
and the memory source of the
connected device (such as mobile
phone). Press [Next].
❏Selecting a folder/track on the list
1Display the folder/track list during
playback.
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
AndroidAndroid
Preparation
❏Installing JVC Music Play
Install the Android™ application JVC Music Play on
your Android device beforehand.
• When a compatible Android device is connected,
“Press [VIEW] to install JVC MUSIC PLAY APP”
is shown on the Android device. Follow the
instructions to install the application. You can
also install the latest version of the JVC Music
Play application on your Android device before
connecting.
About JVC Music Play
• This unit supports the Android™ application JVC
Music Play.
• When you use JVC Music Play, you can search for
audio files by Genre, Artist, Album, Playlist, and
Song.
• JVC Music Play is available on the following web
site: <http://www.jvc.net/cs/car/>
2017KW-VEntryE.indb182017KW-VEntryE.indb18 2016/09/2717:412016/09/2717:41
ENGLISH 19
AndroidAndroid
❏Connecting an Android device
Connect an Android device with a cable.
• For details about connecting Android devices, see
page65.
Compatible Android devices
• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above)
may not fully support Android Open Accessory
(AOA) 2.0.
• If the Android device supports both mass storage
class device and AOA 2.0, this unit always plays
back via AOA 2.0 as priority.
• For more information and the latest compatible
list, see: <http://www.jvc.net/cs/car/>
❏Starting playback
1Start JVC Music Play on your Android
device.
2Select “Android™” as the source.
(Page10)
Playback operations
❏Playback information on the source
control screen
KW-V230BT/KW-V235DBT
21
4653
KW-V330BT
2
5
634 1
1Artwork (Shown if the song contains artwork)
2Track information
• Pressing [H]scrolls the text if not all of the text
is shown.
3Playing time
4Playback status
5Playback mode (See the right column.)
6Track no./Total track number
❏Operation buttons on the source
control screen
• To display all available operation buttons, press
[ ]/[ ]*1.All the other available buttons are
shown.
– To hide the window, press [ ]/[ ]*1.
[ ]*2Displays the <Equalizer> screen.
(Page49)
[FNC J]*3Displays the pop-up short-cut menu.
(Page11)
• To close the menu, press [K].
[ ] Displays the audio menu. (Page20)
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
[IW]Starts/pauses playback.
[ ]/
[ ]*1
Selects random playback mode.*4
• / *1: Randomly plays all tracks.
• Album/ Album*1: Randomly
plays all tracks in the current album.
[ ]/
[ ]*1
Selects repeat playback mode.
• 1/ 1*1: Repeats the current
track.
• All/ All*1: Repeats all tracks.
• / *1: Cancels the repeat
mode.
[MODE] Changes the settings for Android
playback on the <Android Mode>
screen. (Page20)
*1The appearance of the buttons/indicators differs depending on the
model.
*2Appears only for KW-V230BT/KW-V235DBT.
*3Appears only for KW-V330BT.
*4To cancel random mode, press the button repeatedly until the
indicator disappears.
2017KW-VEntryE.indb192017KW-VEntryE.indb19 2016/09/2717:412016/09/2717:41
20
AndroidAndroid
❏Selecting a track from the menu
1Display the audio menu.
2Select a category (1), then a desired item
(2).
• To list the items in alphabetical order, press
[ A-Z], then select the first character on the
keypad.
– Alphabet search is not available when the
playlist is selected.
• Select an item in each layer until you reach
and select the desired file.
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the top layer.
• Press [ ] to return to the upper layer.
❏Settings for playback on the Android
device—<Android Mode>
1
2
<Artwork> Shows/hides artwork of the
Android device.
<Android
Setup>
• AUTO MODE:Controls from
the unit (using the JVC Music
Play application).
• AUDIO MODE: Controls other
media player applications from
the Android device (without
using the JVC Music Play
application).
– You can play/pause or skip
files from the unit.
iPod/iPhoneiPod/iPhone
Preparation
❏Connecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page65.
• For playable iPod/iPhone types, see page70.
Connect your iPod/iPhone according to your
purpose or the type of iPod/iPhone.
Wired connection
• To listen to music:
– For Lightning connector models: Use USB Audio
cable for iPod/iPhone—KS-U62.
– For 30-pin connector models: Use 30-pin to USB
cable (accessory of iPod/iPhone).
• To watch video and listen to music (only for
30-pin connector models): Use USB Audio and
Video cable for iPod/iPhone—KS-U59 (optional
accessory).
– For Lightning connector models: You cannot
watch video with KS-U59.
Bluetooth connection
Pair the iPod/iPhone through Bluetooth. (Page39)
• You cannot watch video with a Bluetooth
connection.
2017KW-VEntryE.indb202017KW-VEntryE.indb20 2016/09/2717:412016/09/2717:41
Other manuals for KW-V230BT
1
This manual suits for next models
2
Table of contents
Other JVC Car Video System manuals
