Kübler codix 130 Instruction manual

LCD Pulse Counters – Codix 130
• ow-price and high efficiency
• arge 8-digit CD display, height of the
figures 8 mm [0.315”]
• Optional backlighting
• Simple counter for fast and slow count
pulses, counting direction switchable via
control input
• High voltage input for 10 ... 260 V AC/DC
voltage pulses
• Unified Codix design, matches the
extensive Codix family
• IP 65
• Screw terminals, RM 5 mm [0.197“]
• ifetime of the battery
approximately 8 years
• ocking of the reset key via the input
‘Reset Enable’
• Ambient temperature –10 ... +60 °C
[14 ... 140 °F]
• For positive and negative count edges,
depending on version
• Filter function for bounce-free counting
with mechanical contacts.
Technical data:
Power supply: internal lithium battery,
approx. 8 years at 20 °C (68 °F)
Backlighting: external electrical source
24 V DC +/-20 %, 50 mA
Display: CD, 8 digits, height of the figures 8 mm [0.315]
Mode: adding or subtracting (selectable)
Display range: –9999999 ... 99999999, with overflow display
Reset: manual and electrical
EMC: Emitted interference EN55011 Cl ss B
Immunity to interference: EN61000-6-2
Device s fety: design to: EN61010 P rt 1
protection: Cl ss: 2
pplic tion re : Soiling Level 2
Housing: d rk grey RAL 7021
Oper ting temper ture: –10 ... +55 °C [14 ... 131 °F] non-condensing
Ambient temper ture: –10 ... +60 °C [14 ... 140 °F] non-condensing
Stor ge temper ture: –20 ... +70 °C [–4 ... 158 °F]
Altitude: to 2000 m
Protection: IP 65 front
UL certified: file: E128604
Weight: approx. 50 g [1.764 oz]
Counting inputs:
Counting input of the DC-versions (max. 30 V DC)
Slow counting input: max. 30 Hz NPN
Fast counting input: max. 12 kHz (PNP), 7 kHz (NPN)
Switching level: NPN: low: 0 ... 0.7 V, high:
3 ... 30 V DC
PNP: low: 0 ... 0.7 V, high: 4 ... 30 V DC
Counting input of the high voltage versions (10 ... 260 V DC/V AC)
Counting input: optocoupler input, max. 30 Hz
Min. pulse time: 16 ms
Switching level: ow: 0 ... 2 V DC/V AC, High: 10 ... 260 V DC/V AC
Counting direction switching (only DC-version)
Mode: see order table
Contact input: open collector NPN (switching at 0 V DC)
Switching level: NPN: low: 0 ... 0.7 V, high: 3 ... 5 V DC
Reset Input (only DC and high voltage)
Minimum pulse time: DC: 50 ms, high voltage: 16 ms
Contact input DC: NPN: low: 0 ... 0.7 V, high: 3 ... 30 V DC
High voltage input: 10 ... 260 V DC/V AC
Electrical reset key locking (for DC and AC)
Contact input: open collector NPN (switching at 0 V)
Switching level: NPN: low: 0 ... 0.7 V, high: 3 ... 5 V DC
Pulse Counters, electronic
Connection diagram:
(-) BL
(+) BL
INPA
INP B
Reset
Mode
GND
1
2
3
4
5
6
7
8
Reset
Enable
max. 5 V DCmax. 30 V DC
24 V DC ±20 %, 50 mA
DC type:
6.130.012.8x2
(-) BL
(+) BL
INPA
INP B
Reset
Mode
GND
1
2
3
4
5
6
7
8
Reset
Enable
max. 5 V DCmax. 30 V DC
24 V DC ±20 %, 50 mA
DC type:
6.130.012.8x0
max. 5 V DC
10 .. 260
10 .. 260
VAC/VDC
VAC/VDC
(-) BL
(+) BL
INPA
INP B
Common
AC/DC
GND
n.c.
1
3
2
4
5
6
7
8
Reset
Enable
24 V DC ±20 %, 50 mA
AC type:
6.130.012.8x3
B = backlight
RoHS
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

www.kuebler.com 57
6/2009
Pulse Counters, electronic
Type Input type Count input
INP A INP B
6.130.012.8x0* Count1) 0 ... 0.7 V DC count NPN 7 kHz 0 ... 0.7 V DC count NPN 30 Hz
6.130.012.8x2* 4 ... 30 V DC count PNP 12 kHz 0 ... 0.7 V DC count NPN
6.130.012.8x3* 10 ... 260 V AC/DC count AC/DC 30 Hz 10 ... 260 V AC/DC reset AC/DC –
24 [0.945]
48 [1.89]
47.7 [1.878] 3 [0.118]
2.8[0.11]
max. 19.3 [0.76]
22 x 45 [0.866 x 1.772]
Dimensions:
22.2+0.3 [0.874+0.012]
45+0.6 [1.772+0.024]
53 [2.087]
[1.103]
28
[0.984 x 1.969]
25 x 50
1 [0.039]
4 [0.158]
[0.984+0.02]
25+0.5
[1.969+0.024]
50+0.6
Panel cut-out
Panel cut-out
Dimensions for bezels (included in delivery):
LCD Pulse Counters – Codix 130
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
Countersinking Af3, DIN 74
1
– Digital display
– Panel mounting clip
– Bezel for screw mounting
(56 x 40 mm) [2.205 x 1.575“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Bezel for clip mounting
(53 x 28 mm) [2.087 x 1.103“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Gasket
– Operating instructions
Delivery specification:
X: 5 = no backlight
X: 6 = with backlight
1): one-channel, adding or subtracting counting
* standard stock model
Order information:
Pulse Counters
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

LCD Pulse Counters – Codix 131
• ow-price and high efficiency
• arge 8-digit CD display, height of the
figures 8 mm [0.315”]
• Optional backlighting
• Various counting modes such as
Totalizing, Up/ Down and Difference.
• High voltage input for 10 ... 260 V AC/DC
voltage pulses
• Unified Codix design, matches the
extensive Codix family
• IP 65
• Screw terminals, RM 5 mm [0.197“]
• ifetime of the battery
approximately 8 years
• ocking of the reset key
• Ambient temperature –10 ... +60 °C
[14 °F ... 140 °F]
• For positive and negative count edges,
depending on version
• Filter function for bounce-free counting
with mechanical contacts.
Technical data:
Power supply: non-replaceable lithium battery
(lifetime approximately 8 years at 20°C [68 °F])
Backlighting: external electrical source
24 V DC +/-20 %, 50 mA
Display: CD, 8 digits, height of the figures 8 mm [0.315]
Mode: adding or subtracting (selectable)
counting direction
differential counting or
Display range: –9999999 ... 99999999, with overflow display
Reset: manual and electrical
EMC: Emitted interference EN55011 Cl ss B
Immunity to interference: EN61000-6-2
Device s fety: design to: EN61010 P rt 1
protection Cl ss: 2
pplic tion re : Soiling Level 2
Housing: dark grey RA 7021
Operating temperature: –10 ... +55 °C [14 ... 131 °F] non-condensing
Ambient temperature: –10 ... +60 °C [14 ... 140 °F] non-condensing
Storage temperature: –20 ... +70 °C [–4 ... 158 °F]
Altitude: to 2000 m
Protection: IP 65 front
U certified: File: E128604
Weight: approx. 50 g [1.764 oz]
Counting inputs:
Counting input of the DC-versions (max. 30 V DC)
Fast counting input: max. 12 kHz (PNP), 7 kHz (NPN)
Switching level: NPN: low: 0 ... 0.7 V, high:
3 ... 30 V DC
PNP: low: 0 ... 0.7 V, high: 4 ... 30 V DC
Counting input of the high voltage versions (10 ... 260 V DC/V AC)
Counting input: optocoupler input, max. 30 Hz
Min. pulse time: 16 ms
Switching level: low: 0 ... 2 V DC/V AC, high: 10 ... 260 V DC/V AC
Counting direction switching (only DC-version)
Mode: see order table
Contact input: open collector NPN (switching at 0 V DC)
Switching level: NPN: low: 0 ... 0.7 V, high: 3 ... 5 V DC
Reset Input (only DC and high voltage)
Minimum pulse time: DC: 50 ms, high voltage: 16 ms
Contact input DC: NPN: low: 0 ... 0.7 V, high: 3 ... 30 V DC
High voltage input: 10 ... 260 V DC/V AC
Electrical reset key locking (for DC and AC)
Contact input: open collector NPN (switching at 0 V)
Switching level: NPN: how: 0 ... 0.7 V, high: 3 ... 5 V DC
max. 5 V DC
(-) BL
(+) BL
INPA
INP B
GND
1
3
2
4
5
6
7
8
Reset
Reset
Enable
10 .. 260
10 .. 260
VAC/VDC
VAC/VDC
Common
AC/DC
24 V DC ±20 %, 50 mA
AC type:
6.131.012.8x3
B = backlight
(-) BL
(+) BL
INPA
INP B
Reset
Mode
GND
1
2
3
4
5
6
7
8
Reset
Enable
max. 5 V DCmax. 30 V DC
24 V DC ±20 %, 50 mA
(-) BL
(+) BL
INPA
INP B
Reset
Mode
GND
1
2
3
4
5
6
7
8
Reset
Enable
max. 5 V DCmax. 30 V DC
24 V DC ±20 %, 50 mA
DC type:
6.131.012.8x1
DC type:
6.131.012.8x0
Connection diagram:
Pulse Counters, electronic
RoHS
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

24 [0.945]
48 [1.89]
47.7 [1.878] 3 [0.118]
2.8[0.11]
max. 19.3 [0.76]
22 x 45 [0.866 x 1.772]
Dimensions:
22.2+0.3 [0.874+0.012]
45+0.6 [1.772+0.024]
53 [2.087]
[1.103]
28
[0.984 x 1.969]
25 x 50
1 [0.039]
4 [0.158]
[0.984+0.02]
25+0.5
[1.969+0.024]
50+0.6
Panel cut-out
Panel cut-out
Dimensions for bezels (included in delivery)
LCD Pulse Counters – Codix 131
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
56 [2.205]
1 [0.039]
14 [0.158]
M3
40 [1.575]
32 [1.26]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
Countersinking Af3, DIN 74
1
– Digital display
– Panel mounting clip
– Bezel for screw mounting
(56 x 40 mm) [2.205 x 1.575“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Bezel for clip mounting
(53 x 28 mm) [2.087 x 1.103“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Gasket
– Operating instructions
Delivery specification:
X: 5 = no backlight
X: 6 = with backlight
2): counting input with counting direction input
3): one adding and one subtracting counting input
(differential mode)
* standard stock model
Order information:
Type Input type Count inputs
INP A INP B
6.131.012.8x0* Cnt.Dir2)/Up.Dn3) 0 ... 0,7 V DC count NPN 7 kHz 0 ... 0,7 V DC count/direction NPN 7 kHz
6.131.012.8x1* 4 ... 30 V DC count PNP 12 kHz 4 ... 30 V DC count/direction PNP 12 kHz
6.131.012.8x3* Up.Dn3) 10 ... 260 V AC/DC count AC/DC 30 Hz 10 ... 260 V AC/DC count AC/DC 30 Hz
Pulse Counters, electronic
Pulse Counters
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

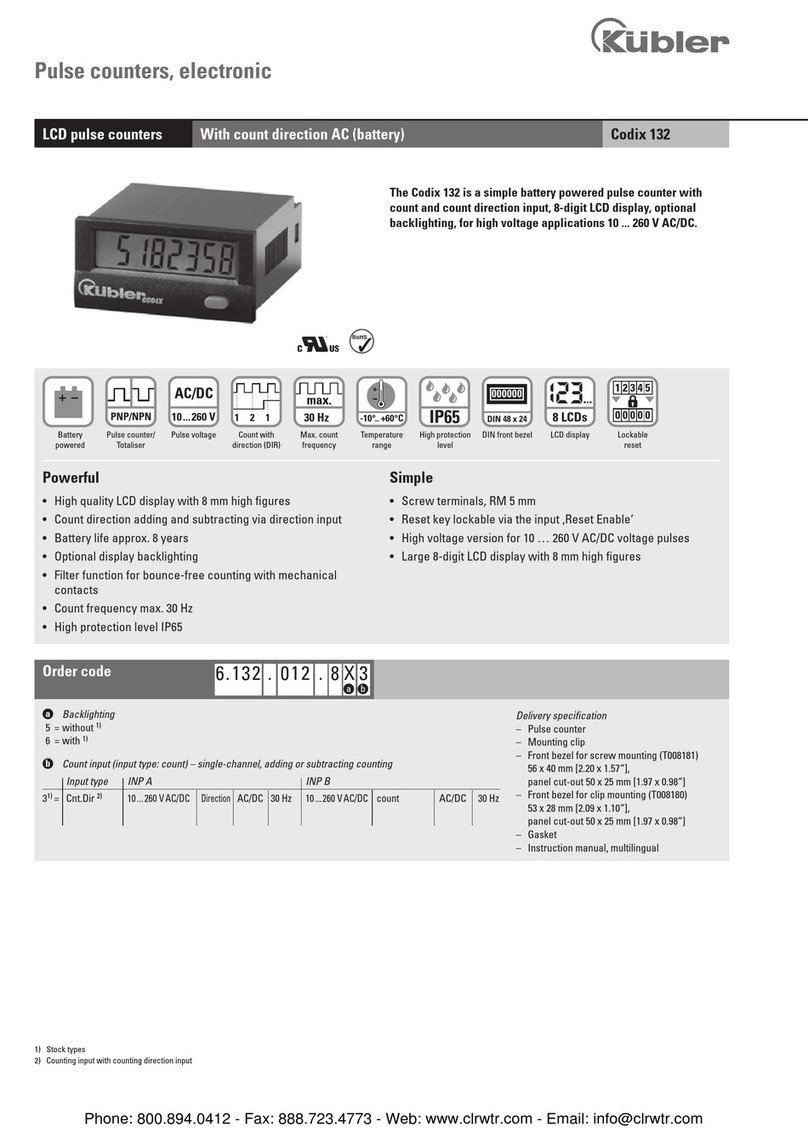

LCD Display counter CODIX 132
• Low-price and high efficiency
• Large 8-digit LCD display, height of the
figures 8 mm [0.315”]
• Optional backlighting
• Counting mode up /down,
• High voltage input for 10 ... 260 V AC/DC
voltage pulses
• Unified Codix design, matches
the extensive Codix family
• IP 65
• Screw terminals, RM 5 mm [0.197“]
• Lifetime of the battery
approximately 8 years
• Locking of the reset key
• Ambient temperature –10 ... +60 °C
[14 ... 140 °F]
• All versions for positive or negative
counting edge
• Filter function for bounce-free counting
with mechanical contacts.
Technical data:
Power supply: non-replaceable lithium battery
(lifetime approximately 8 years at 20 °C [68 °F])
Backlighting: external electrical source
24 V DC +/-20 %, 50 mA
Display: LCD, 8 digits, height of the figures 8 mm [0.315]
Mode: adding or subtracting (selectable)
counting direction
differential counting or
phase discriminator single or
dual evaluation, selectable
Display range: –9999999 ... 99999999, with overflow display
Reset: manual and electrical
UL certified: File: E128604
Interference emissions: EN 55011 Class B, EN 61000-6-2
EN 61010 Section 1 (only AC versions)
Housing: dark grey RAL 7021
Operating temperature: –10 ... +55 °C [14 ... 131 °F]
Ambient temperature: –10 ... +60 °C [14 ... 140 °F]
Storage temperature: –20 ... +70 °C [–4 ... 158 °F]
Protection: IP 65 front side
Weight: approx. 50 g [1.764 oz]
Counting inputs:
Counting input of the high voltage versions (10 ... 260 V DC/V AC)
Counting input: Optocoupler input, max. 30 Hz
Min. pulse time: 16 ms
Switching level: Low: 0 ... 2 V DC/V AC, High: 10 ... 260 V DC/V AC
Reset Input (only DC and high voltage)
Minimum pulse time: DC: 50 ms, high voltage: 16 ms
Contact input DC: NPN: Low: 0 ... 0.7 V, High: 3 ... 30 V DC
High voltage input: 10 ... 260 V DC/V AC
Electrical reset key locking (for DC and AC)
Contact input: Open Collector NPN (switching at 0 V)
Switching level: NPN: Low: 0 ... 0.7 V, High: 3 ... 5 V DC
Display counter electronic
max.5VDC
(-) BL
(+) BL
INP A
INP B
GND
1
3
2
4
5
6
7
8
Reset
Reset
Enable
10 .. 260
10 .. 260
VAC/VDC
VAC/VDC
Common
AC/DC
24 V DC ±20 %, 50 mA
AC type:
6.132.012.8x3
BL = backlight
Connection diagram:
RoHS
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

Display counters
24 [0.945]
48 [1.89]
47.7 [1.878] 3 [0.118]
2.8 [0.11]
max. 19.3 [0.76]
22 x 45 [0.866 x 1.772]
Dimensions:
22.2+0.3 [0.874+0.012]
45+0.6 [1.772+0.024]
53 [2.087]
1 [0.039]
4 [0.158]
28 [1.103]
25 x 50 [0.984 x 1.969]
25+0.5
[0.984+0.02]
50+0.6 [1.969+0.024]
Panel cut-out
Panel cut-out
Dimensions for bezels (included in delivery)
LCD Display counter CODIX 132
Display counter electronic
56 [2.205]
1
1
40 [1.575]
32 [1.26]
1 [0.039]
4 [0.158
]
25 x 50 [0.984 x 1.969]
]
M3
25+0.5 [0.984+0.02]
32±0.1
[1.26±0.004]
50+0.6 [1.969+0.024]
Countersinking Af3, DIN 74
1
– Digital display
– Panel mounting clip
– Bezel for screw mounting
(56 x 40 mm) [2.205 x 1.575“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Bezel for clip mounting
(53 x 28 mm) [2.087 x 1.103“], panel cut
out 50 x 25 mm [1.969 x 0.984“]
– Seal
– Operating instructions
Delivery specification:
Type Input type Count inputs
INP A INP B
6.132.012.8x3* Cnt.Dir2) 10 ... 260 V AC/DC direction AC/DC 30 Hz 10 ... 260 V AC/DC count AC/DC 30 Hz
X: 5 = no backlight
X: 6 = with backlight
2): counting input with counting direction input
* standard stock model
Order information:
Clearwater Tech - Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]
