Kärcher KB 5 User manual

KB 5
OPERATOR MANUAL
Cordless Sweeper. . . . . . . . . . . . . .2
MANUAL DE USUARIO
Barredora inalámbrica. . . . . . . . .12
MANUEL D’UTILISATION
Balayeuse sans fil . . . . . . . . . . . .24
59682240 2018.07

2 English
CORDLESS SWEEPER OPERATOR MANUAL
IMPORTANT SAFETY IN-
STRUCTIONS . . . . . . . . . . EN 4
READ ALL INSTRUCTIONS
BEFORE USING THIS AP-
PLIANCE . . . . . . . . . . . . . . EN 4
MODEL OVERVIEW . . . . . EN 6
START UP . . . . . . . . . . . . . EN 7
OPERATING INSTRUC-
TIONS . . . . . . . . . . . . . . . . EN 8
CARE AND MAINTENANCE
INSTRUCTIONS . . . . . . . . EN 1
0
TROUBLESHOOTING . . . . EN 1
0
Specifications
Operating time with full
charge
Low pile carpets
max.
20
min
Operating time with full
charge
Hard floors
max.
30
min
Working voltage of the
battery
3,7 V
Charging time for
empty battery
180 min
Voltage of the charger 5,5 V
Charging current 600 mA
Weight (incl. battery) 2,65 lbs
(kg)
Battery type Li-Ion
Part No. 1.258-009.0
1.258-015.0
1.258-019.0

English 3
–This battery operated appliance is
for indoor and household use only,
use only the accessories and spare
parts approved by KÄRCHER.
–The appliance is not suitable for
cleaning deep-pile carpets and wet
floors/surfaces.
–The appliance is not suitable for
cleaning concrete, gravel, etc.
The manufacturer is not responsible
for any damages that may occur on ac-
count of improper use or wrong opera-
tions.
The owner and/or user must have an
understanding of the manufacturer’s
operating instructions and warnings
before using this appliance.
Warning information should be empha-
sized and understood.
If the operator is not fluent in English,
the manufacturer’s instructions and
warnings shall be read to and dis-
cussed with the operator in the opera-
tor’s native language by the purchaser/
owner, making sure that the operator
comprehends its contents.
Owner and/or user must study and
maintain for future reference the man-
ufacturers’ instructions.
The scope of delivery of your appliance
is illustrated on the packaging. Check
the contents of the appliance for com-
pleteness when unpacking.
In the event of missing accessories or
any transport damage, please contact
your dealer.
To register this product, please visit:
www.karcher-register.com
For technical support, go to:
www.karcher-help.com
If you need to file a warranty claim,
please call: 1-800-537-4129
You will need to fax or email your re-
ceipt to a customer service agent. All
other information can be found at:
www.karcherresidential.com
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
Proper use
Owner/User Responsibility
Scope of delivery
Customer Support
USA and Canada
Customer Support Mexico

4 English
When using this product basic precau-
tions should always be followed, in-
cluding the following:
For household use only!
Use indoors only.
Do not use on wet surfaces.
몇WARNING
To reduce the risk of fire, electric
shock, or injury:
Unplug from outlet when not in use
and before servicing.
몇WARNING
To reduce the risk of electric shock:
Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
Use only as described in this manu-
al. Use only manufacturer’s recom-
mended attachments.
Do not use with damaged battery
charger output cord or plug. If appli-
ance is not working as it should, has
been dropped, damaged, left out-
doors, or dropped into water, return
it to a service center.
Do not pull or carry by the battery
charger output cord, do not use bat-
tery charger output cord as a han-
dle, do not close a door on the bat-
tery charger output cord, or pull bat-
tery charger output cord around
sharp edges or corners. Do not run
appliance over battery charger out-
put cord. Keep battery charger out-
put cord away from heated surfac-
es.
Prevent unintentional starting. En-
sure the switch is in off-position be-
fore picking up or carrying the appli-
ance. Carrying the appliance with
your fingers on the switch or ener-
gizing appliance that have the
switch on invites accidents.
Have servicing performed by a
qualified repair person using only
identical replacement parts. This
will ensure that the safety of the
product is maintained.
Do not modify or attempt to repair
the appliance or the battery pack
(as applicable) except a indicated in
the instructions for use and care.
Do not unplug by pulling battery
charger output cord. To unplug,
grasp plug.
Do not handle battery charger or
appliance with wet hands.
Do not put any objects into open-
ings. Do not use if openings are
blocked; keep free of dust, lint, hair,
and anything that may reduce air
flow.
Keep hair, loose clothing, fingers,
and all parts of the body away from
openings and moving parts.
Use extra care when cleaning on
stairs.
Do not use to pick up flammable or
combustible liquids, such as gaso-
line, or use in areas where they may
be present.
Do not charge the unit outdoors.
Use only the charger supplied by
the manufactures to recharge.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL
INSTRUCTIONS
BEFORE USING
THIS APPLIANCE

English 5
Do not incinerate the appliance
even if it severely damaged. The
batteries can explode in fire.
Do not use to pick up toxic material
(chlorine bleach, amonia, drain
cleaner, etc).
Do not pick up anything that is burn-
ing or smoking such as cigarettes,
matches, or hot ashes.
Do not immerse. Use only on sur-
faces moistened by the cleaning
process.
Short circuit hazard! Do not insert
conductive objects (such as screw-
drivers or similar) into the charger
plug.
You may recharge the battery using
only the original charger provided
with the appliance or a charger ap-
proved by KÄRCHER.
In case of visual damage, replace
the charger with original manufac-
turer suggested parts.
Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact accidental-
ly occurs, flush with water. If liquid
contacts eyes, additionally seek
medical help. Liquid ejected from
the battery may cause irritation or
burns.
Do not use a battery pack or appli-
ance that is damaged or modified.
Damaged or modified batteries may
exhibit unpredictable behavior re-
sulting in fire, explosion or risk of in-
jury.
Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type
of battery pack may create a risk of
fire when used with another battery
pack.
Follow all charging instructions and
do not charge the battery pack or
appliance outside of the tempera-
ture range specified in the instruc-
tions. Charging improperly or at
temperatures outside of the speci-
fied range may demage the battery
and increase the risk of fire.
The voltage indicated on the type
plate must correspond to the supply
voltage.
Store and use the charger in dry
rooms only.
Do not expose a battery pack or ap-
pliance to fire or excessive temper-
ature. Exposure to fire or tempera-
ture above 265°F (130°C) may
cause explosion.
Store and use the charger in dry
rooms only, ambient temperature
41 - 104°F (5 - 40°C)
Store and operate the appliance at
temperatures from 32 - 104°F
(0 - 40 °C).
Never touch the mains plug with
wet hands.
The battery has been tested as per
the relevant directives for interna-
tional transport and can be trans-
ported/shipped.
Appliance type:
1.258-009.0
1.258-015.0
1.258-019.0
Use the following adaptor:
6.654-353.0
Symbols on the machine
SAVE THESE
INSTRUCTIONS

6 English
1 Handle
2 Struts (3x)
3 Connection pieces (2x)
4 Dirt container, detachable
5 Brush roller, detachable
6 Flexible double joint on the appli-
ance an ON/OFF switch
7 Battery indicator
8 Charging socket
9 Charger with charging cable
MODEL OVERVIEW
2
3
1
4
54
5
6
6
7
8
9

English 7
Insert the handle on the strut.
Insert the struts and the connection
pieces.
Insert the fully assembled handle
on the flexible double joint
Note
Look for the correct orientation of the
grid mark of the struts and connection
pieces.
Insert the charger delivered with the
appliance into a proper socket.
Insert the connector plug into the
appliances's charging socket.
The LED indicator will flash.
The LED indicator will light up con-
stantly once charged fully (approxi-
mately more than 90 minutes be-
fore first use).
The unit is now ready for use.
The battery service life in carpet clean-
ing is max. 20 minutes.
The battery service life in hard floor
cleaning is max. 30 minutes.
START UP
Installing the handle, struts and
connection pieces
6.
Charge the battery
Battery service life
Low pile carpets
Hard floors

8 English
During battery charging:
LED blinks green.
The battery is charged:
LED illuminates constantly in green.
LED lights up until the mains plug is re-
moved from the socket.
Operating mode:
LED illuminates constantly in green.
The battery must be charged:
The LED blinks slowly in red approx. 5
minutes before the battery has to be
charged.
Battery is empty:
LED illuminates constantly in red.
Motor blockade:
LED blinks red fast.
Put the device in the parking position
for at least 3 seconds (switch off de-
vice) for troubleshooting.
The appliance is switched off, when
the handle is in an upright position.
Switch on the appliance; press the
handle down.
Move the appliance forward and
backward to clean.
LED indicator OPERATING INSTRUCTIONS
Starting the work
OFF
ON

English 9
The flexible double joint allows a
simple guiding of the appliance.

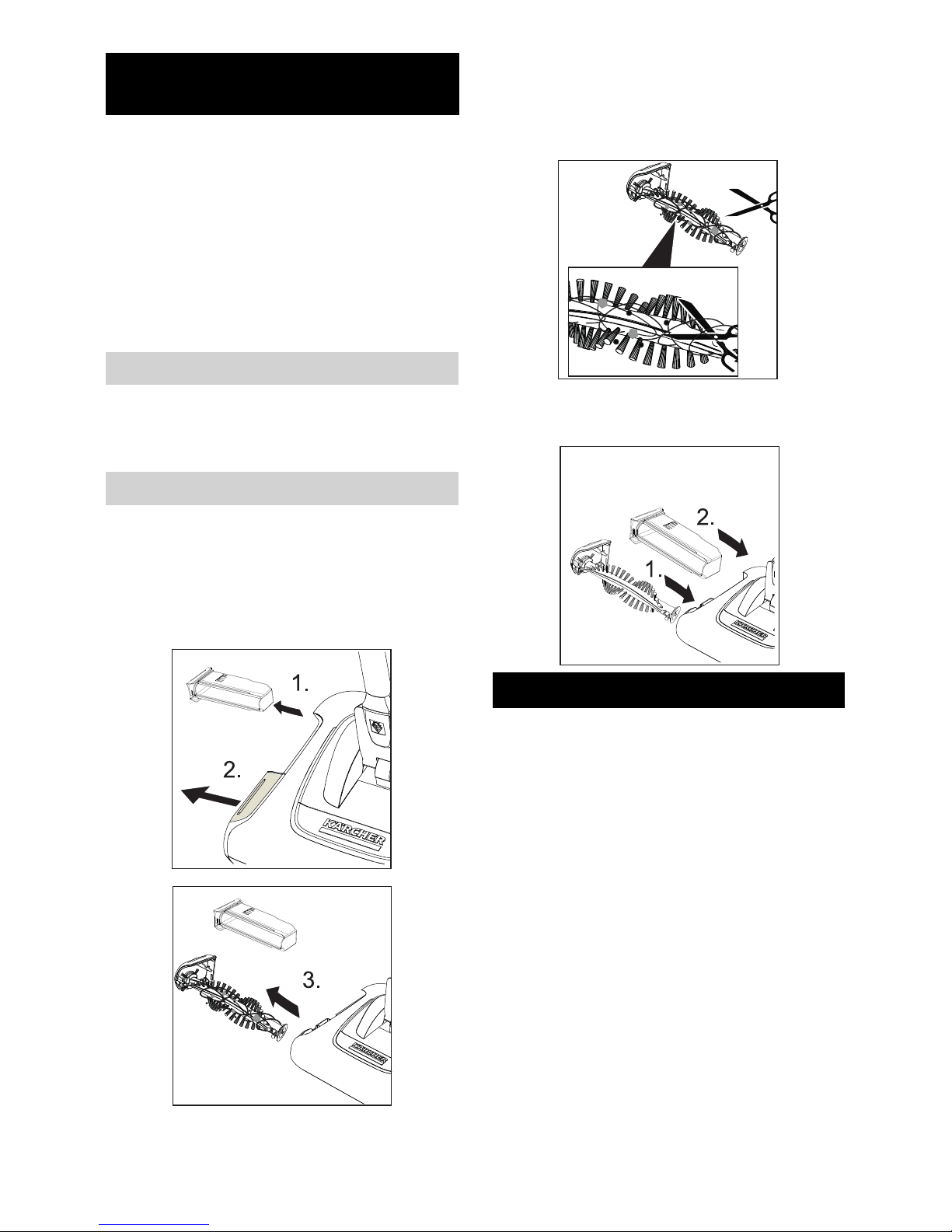

To switch off the appliance, bring
the handle in an upright position.
To switch off the appliance, bring
the handle in an upright position.
Empty dirt container after each
cleaning.
To switch off the appliance, bring
the handle in an upright position.
Remove the dirt container from the
appliance.
Empty the dirt container.
Re-insert the dirt container
Store the cleaned appliance an up-
right position in a clean, dry place
that is protected from dust.
Charge the battery.
Interrupting the work
Finishing your work
P
OFF
Emptying the dirt container
Storing the appliance

10 English
WARNING
To reduce the risk of fire, electric
shock or injury, turn power OFF and
disconnect plug from electrical out-
let before performing maintenance
or troubleshooting.
Never clean the appliance under
running water.
Wipe the appliance using a damp
cloth. Do not use any aggressive
agents, such as cleaning powder.
To switch off the appliance, bring
the handle in an upright position.
Remove the dirt container from the
appliance.
Remove the brush roller.
Remove wound up hair using a
knife or scissors. Move the knife
along the defined cutting edge and
then remove the loosened hair.
Insert the cleaned or new brush roll-
er and ensure that it sits properly.
Charge the battery or remove the
motor blockade (refer chapter
"Charging the battery“).
Clean or replace the brush rollers
(refer chapter "Replace/ clean
brush roller").
Charge the battery (refer chapter
"Charging the battery“).
Empty the full dirt container (refer
chapter "Empty dirt container").
CARE AND MAINTENANCE
INSTRUCTIONS
Cleaning the device
Change / clean the brush roller
TROUBLESHOOTING
LED indicator blinks slowly/fast or
illuminates constantly red
Appliance does not clean
properly
Dirt is being thrown out of the
appliance

English 11
THE RBRCTM SEAL
The RBRC™ (Rechargeable Battery
Recycling Corporation) Seal on the LI-
ION (or battery pack) indicates that the
costs to recycle the battery (or battery
pack) at the end of its useful life have
already been paid by KÄRCHER.
RBRC™ in cooperation with KÄRCH-
ER and other battery users, has estab-
lished programs in the United States to
facilitate the collection of spent LI-ION.
Help protect our environment and con-
serve natural resources by returning
the spent LI-ION battery to an author-
ized KÄRCHER service center or to
your local retailer for recycling. You
may also contact your local recycling
center for information on where to drop
off the spent battery. RBRC™ is a reg-
istered trademark of the Rechargeable
Battery Recycling Corporation.
Note
The battery of the appliance is not re-
placeable.
Note
Disconnecting the battery will destroy
the appliance and invalidate the war-
ranty.
The battery should be removed
from the appliance before disposal.
Recycle is possible, because
KÄRCHER appliances are made
from high grade recycable materi-
als.
Recycle of or dispose the battery in
accordance with local regulations
or ordinances.
DISPOSAL INFORMATION
WARNING
This appliance contains
Lithium Ion rechargeable
batteries. According to Fed-
eral and State regulations,
removal and proper dispos-
al of Lithium Ion batteries is
required.
Please note the RBRC™
SEAL information below.
