1
1 Overview
Thank you for choosing our product. The product is a Wireless VDSL router
combining an VDSL modem, an 802.11n wireless router ,a 4-port switch and an USB
port in one unit, bringing high-speed wireless Internet connection to a home or office.
1.1 Features
1.1.1 Data Rate
 Downstream data rate up to 100 Mbps
 Upstream data rate up to 50Mbps
1.1.2 VDSL Compliant
 ITU G.992.1 (G.DMT)
 ITU G.993.2 (G.vdsl2) (Profile 8a, 8b, 8c, 8d, 12a,12b and 17a)
 ITU G.992.2 (G.Lite)
 ITU G.994.1 (G.hs)
 ITU G.992.3 (G.DMT.BIS)
 ITU G.992.4 (G.lite.bis)
 ITU G.992.5
 Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
1.1.3 Wireless
 Fully IEEE 802.11n compatible.
 Wireless data rate up to 300Mbps
 Operating in the unlicensed 2.4 GHz ISM band
 Multi-SSID
 Supports 64/128 bits WEP security and user authentication
1.1.4 Network Protocol & Features
 Ethernet to ADSL Self-Learning Transparent Bridging
 Internet Control Message Protocol (ICMP)

WLANVDSLRouter  UserManual
2
 IP Static Routing
 Routing Information Protocol (RIP, RIPv2)
 Network Address Translation (NAT)
 Virtual Server, Port Forwarding
 Dynamic Host Configuration Protocol (DHCP)
 DNS Relay, DDNS
 IGMP Proxy
 Simple Network Time Protocol (SNTP)
 VPN pass-through (IPSec/PPTP/L2TP)
 Parent control
1.1.5 ATM Capabilities
 RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
 RFC 2364 PPP over ATM compliant
 RFC 2516 PPP over Ethernet compliant
 ATM Forum UNI3.1/4.0 PVC – Support up to 16 PVCs
 VPI Range: 0-255
 VCI Range: 32-65535
 UNI 3.0 & 3.1 Signaling
 ATM AAL5 (Adaption Layer type 5)
 OAM F4/F5
1.1.6 FIREWALL
 Built-in NAT
 MAC Filtering
 Packet Filtering
 Stateful Packet Inspection (SPI)
 Denial of Service Prevention (DoS)

WLANVDSLRouter  UserManual
3
 DMZ
1.1.7 Management Support
 Web Based GUI
 Upgrade or update via FTP/HTTP
 Command Line Interface via Telnet
 Diagnostic Test
 Firmware upgradeable for future feature enhancement
1.1.8 Operating System Support
 WINDOWS 98/98 SE/ME/2000/XP/VISTA/7
 Macintosh
 LINUX
1.1.9 Environmental
 Operating humidity: 10%-90% non-condensing
 Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
 ADSL ROUTER x 1
 External Splitter x 1
 Power Adapter x 1
 Telephone Line x 1
 Ethernet Cable x 1
 Antenna x 2
 Base x 1
 CD x 1
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:

WLANVDSLRouter  UserManual
4
 Subscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
 One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
 A hub or switch, if you are connecting the device to more than one
computer.
 For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
 IP Address: 192.168.1.1
 Subnet Mask: 255.255.255.0
 Encapsulation: RFC 2516 LLC
 VPI/VCI: According to local information
1.5 Warnings and Cautions
 Never install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightening.
 Do not install telephone jacks in wet locations and never use the product
near water.
 To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
 Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet.

WLANVDSLRouter  UserManual
5
2 Hardware Description
Front Panel

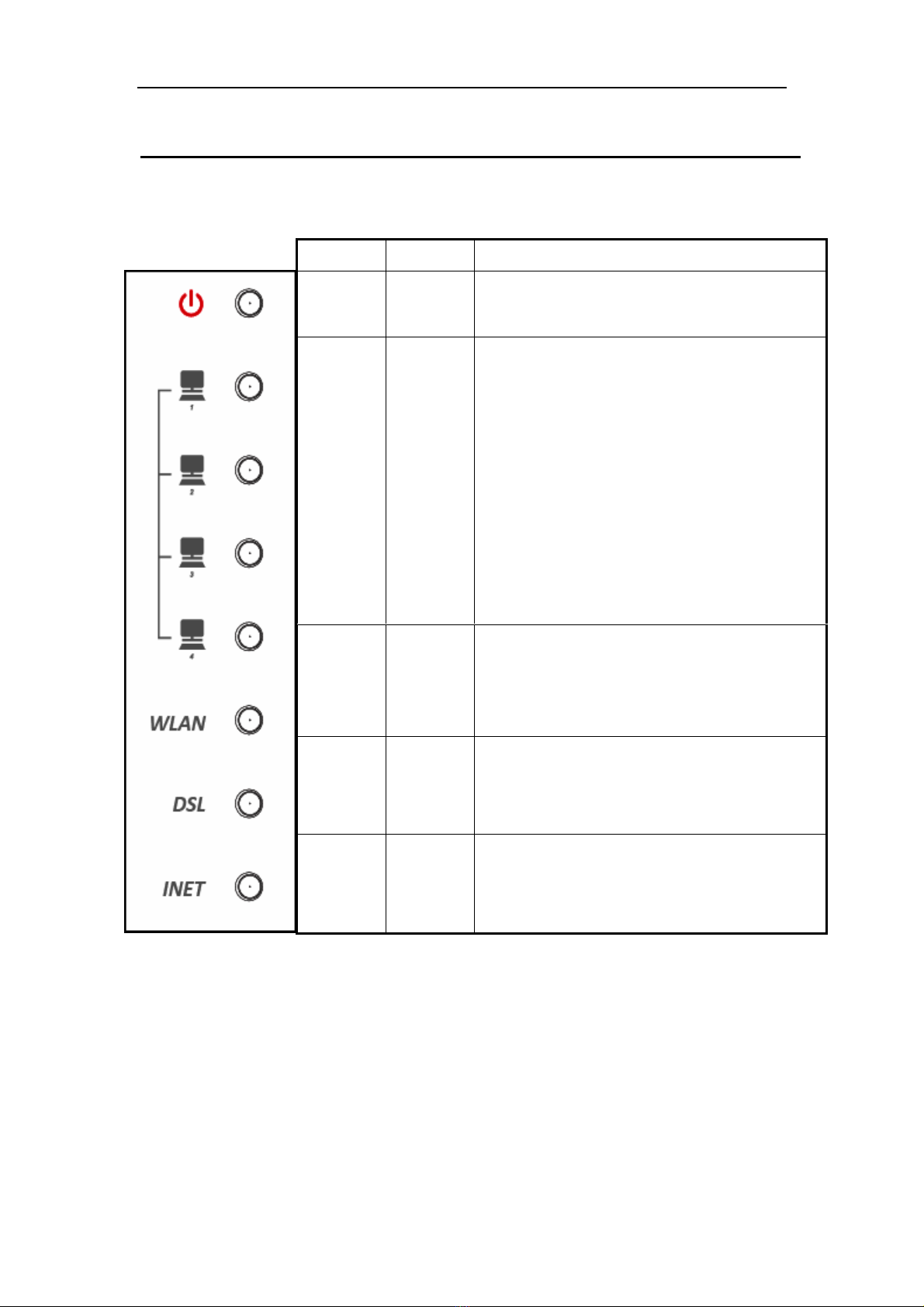

LED Color Function
PWR Green On: Power on
Off: No power
LAN1,2,3,4 Green
On: LAN link established and active via LAN port
Blinking: DSL data activity occurs
Off: No LAN link via LAN port
WLAN Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over
WLAN
Off: The wireless function is off
DSL Green
On: DSL link established and active
Quick Blinking: DSL is trying to establish a
connection
Slow Blinking: No DSL link
INET Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru
this device
Off: ADSL connnetion is not present

WLANVDSLRouter  UserManual
6
Rear panel
Side panel
WIFI button: Enable or disable wireless function.
Reset button: System reset or reset to factory defaults.
WPS button: A convenient way for WPS set.
Port Function
DSL Connect the device to an DSL telephone jack or
splitter using a RJ-11 telephone cable
ETH1,2,3,4
Connect the device to your PC's Ethernet port,
or to the uplink port on your hub/switch, using a
RJ-45 cable
USB Connect the device to a printer
ON/OFF Switch it on or off
POWER Connect to the supplied power adapter

WLANVDSLRouter  UserManual
7
3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.

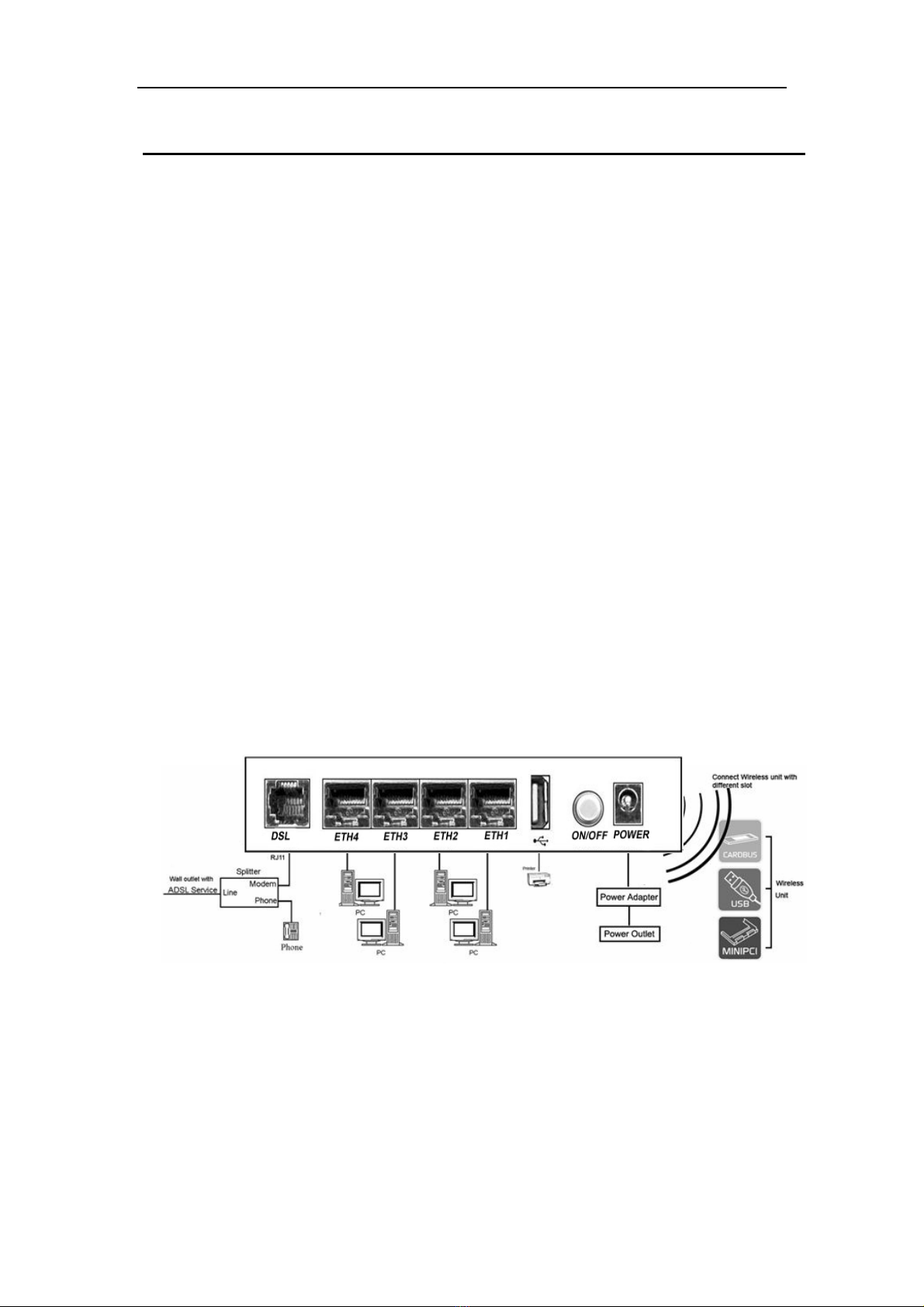

1. Using a telephone line to connect the DSL port of ROUTER to the MODEM
port of the splitter, and using a other telephone line connect your telephone
to the PHONE port of the splitter, then connect the wall phone jack to the
LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
MODEM: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this
from happening, a small external splitter must be connected to
each telephone.
