Kasda KW55193 User manual

KW55193 Wireless Router
User Manual

KW55193 Wireless Router User Manual
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.

KW55193 Wireless Router User Manual
1
Content
1 INTRODUCTION .......................................................................................................................2
1.1 MAIN FEATURES.............................................................................................................. 2
1.1.1 Wireless ..........................................................................................................................2
1.1.2 Network Protocol and Features......................................................................................2
1.1.3 Firewall ...........................................................................................................................2
1.1.4 Management Support ....................................................................................................3
1.1.5 Operating System Support .............................................................................................3
1.1.6 Environmental ................................................................................................................3
1.2 PACKET CONTENTS......................................................................................................... 3
1.3 SYSTEM REQUIREMENTS.................................................................................................. 3
1.4 FACTORY DEFAULTS...................................................................................................... 4
1.5 WARNINGS AND CAUTIONS............................................................................................. 4
2 HARDWARE DESCRIPTION...................................................................................................5
3HARDWARE INSTALLATION.................................................................................................7
4LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP,7.......................................8
5 CONFIGURING THE ROUTER................................................................................................9
5.1 WEB-BASED MANAGEMENT GUIDE ..................................................................................... 9
5.1.1 Login ............................................................................................................................... 9
5.1.2 Network (WANSettings) ...............................................................................................12
5.1.3 DHCP .....................................................................................................................................12
5.1.4 Static IP .................................................................................................................................13
5.1.5 PPPOE ...................................................................................................................................14

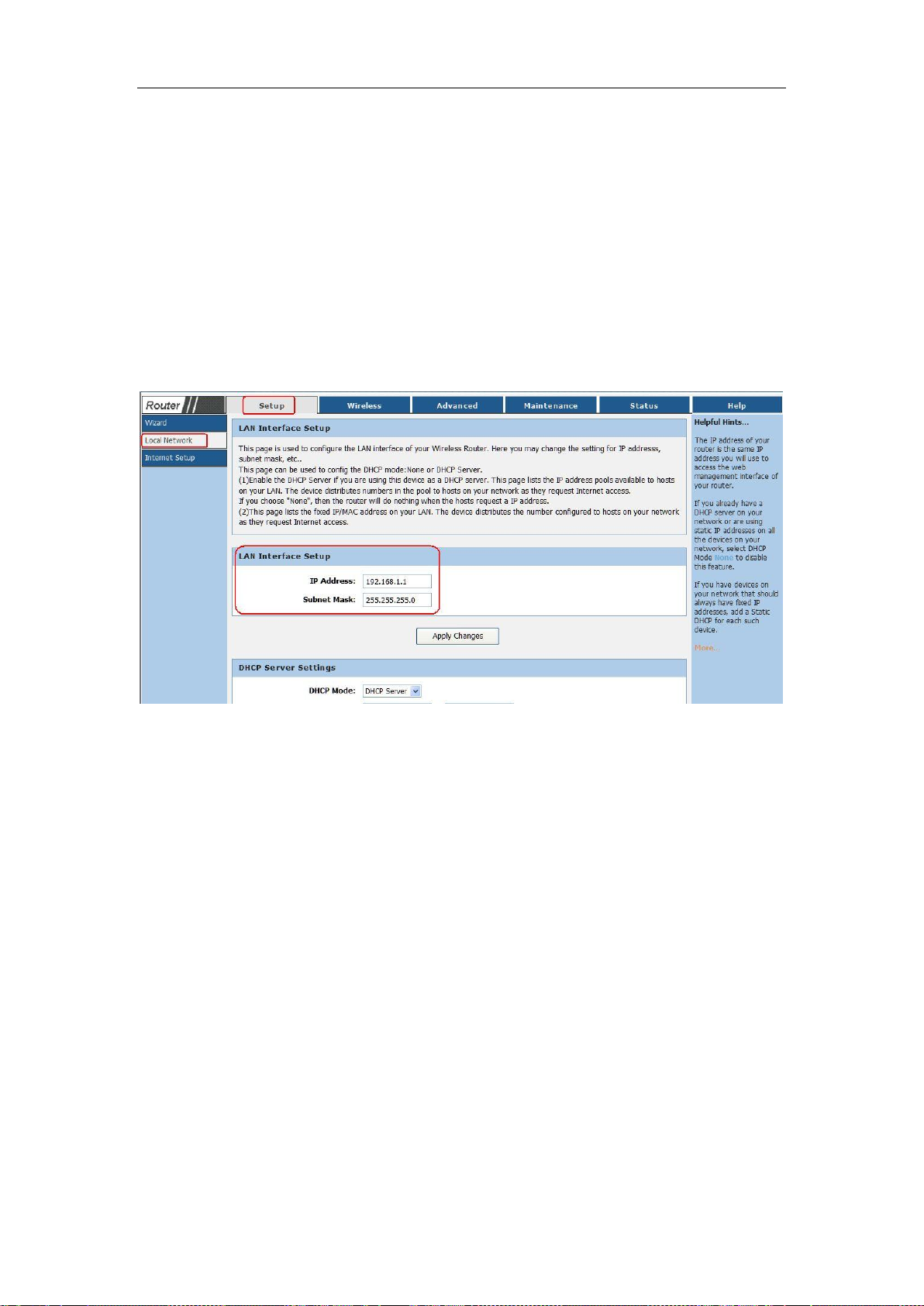

5.1.6 LAN Settings..........................................................................................................................15
5.2 WIRELESS SETTINGS..................................................................................................... 16

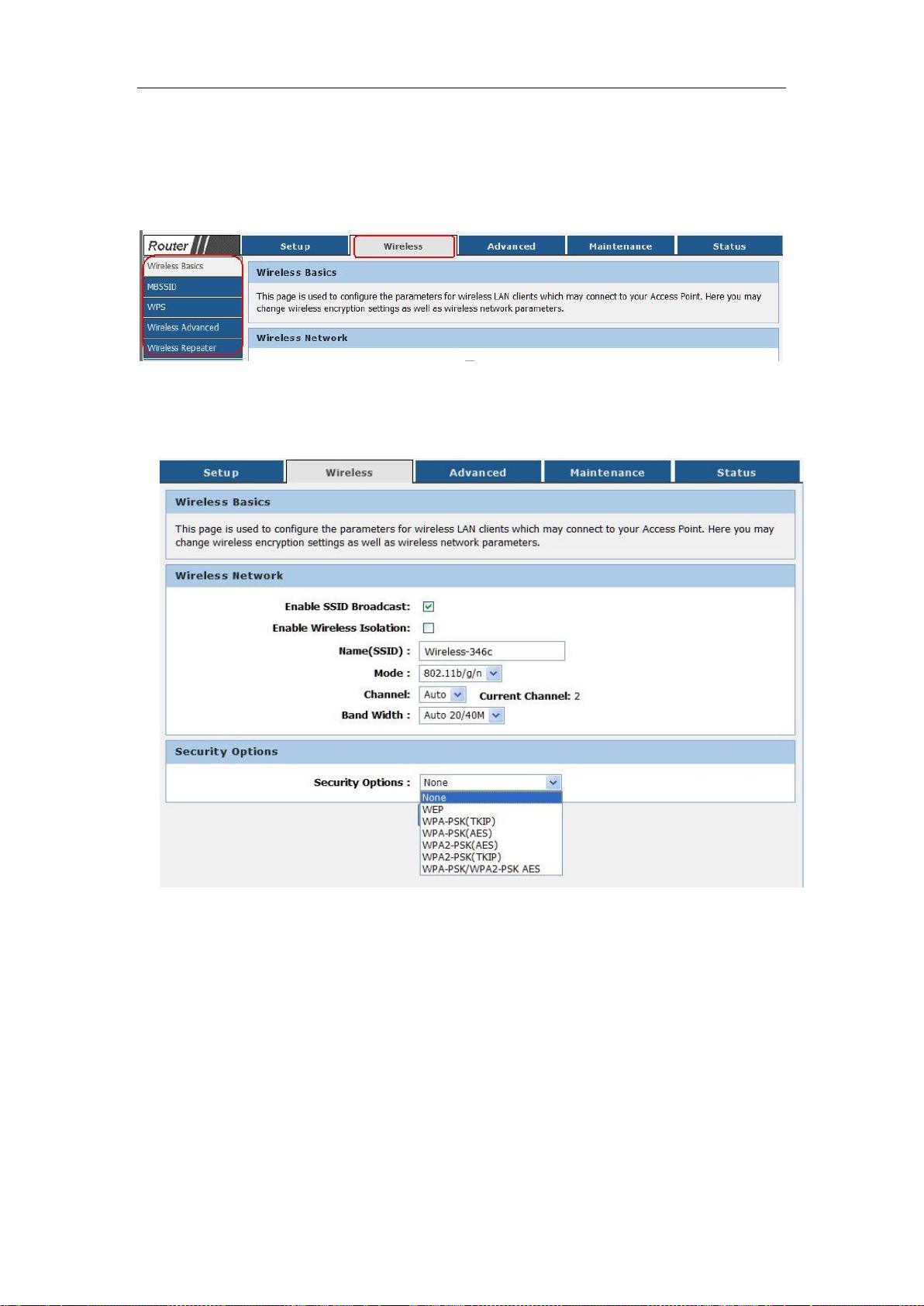

5.2.1 Basic Wireless Settings..........................................................................................................16

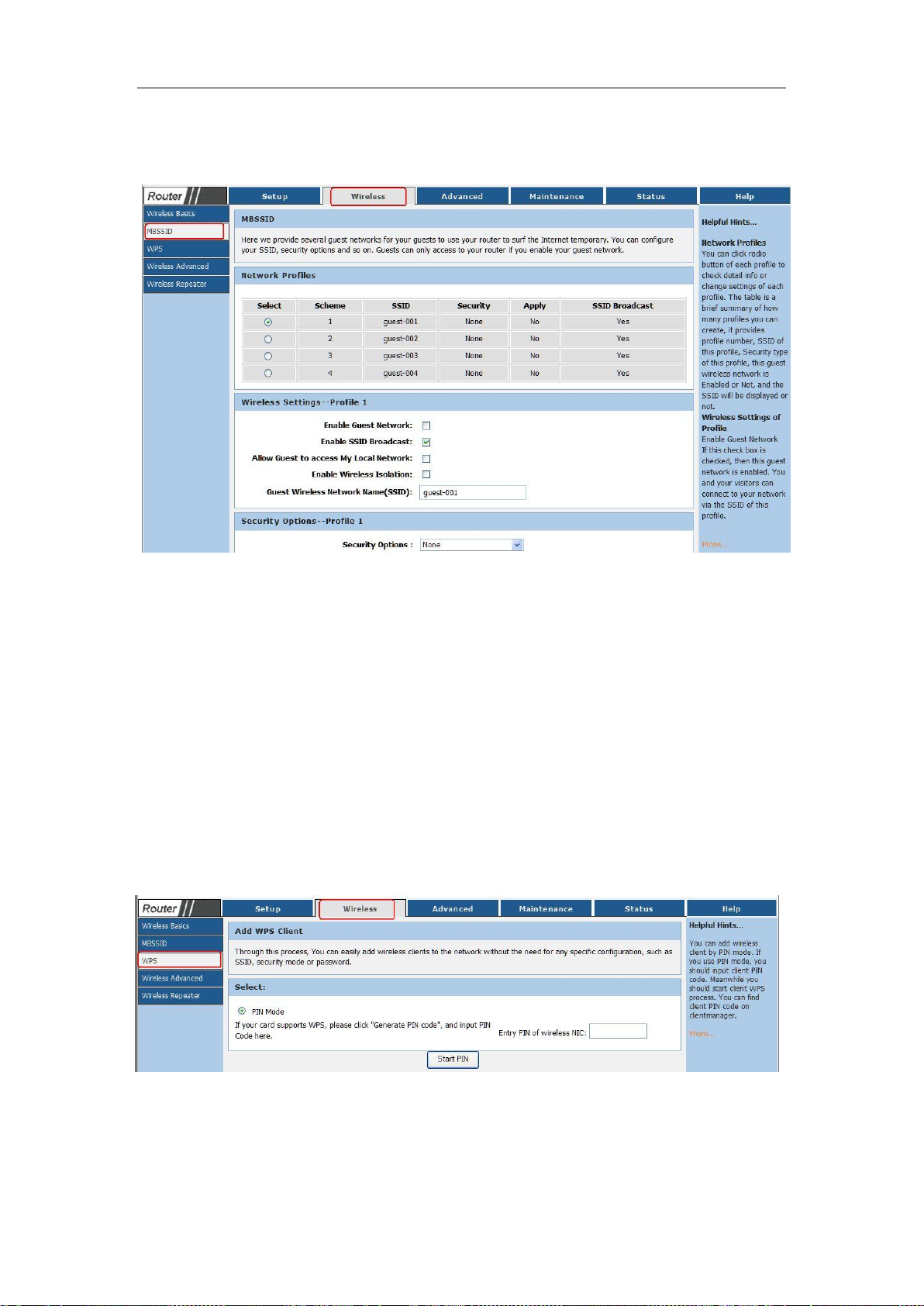

5.2.3 MBSSID..................................................................................................................................18
5.2.3 WPS 18
5.2.4 Wireless Advanced................................................................................................................19
5.3 DHCP SETTINGS........................................................................................................... 20
5.4 FACTORY DEFAULT.......................................................................................................... 21
APPENDIX: FREQUENT ASKED QUESTIONS ..................................................................... 22

KW55193 Wireless Router User Manual
2
1 Introduction
Thank you for choosing our product. The KW55193 Wireless Router uses
REALTEK’s CPE solution that fully complies with IEEE802.11b/g/n standards. It will
provide your SOHO with convenient Internet.
1.1 Main Features
1.1.1 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 150 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK,
802.1x
1.1.2 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.3 Firewall
Built-in NAT
MAC Filtering
Packet Filtering

KW55193 Wireless Router User Manual
3
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.4 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.5 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7/8
Macintosh
LINUX
1.1.6 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ROUTER x 1
Power Adapter x 1
CD x 1
1.3 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not
necessary if the Router is connected directly to the Ethernet)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45
TCP/IP protocol on each PC

KW55193 Wireless Router User Manual
4
Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or
Apple Safari
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
1.5 Warnings and Cautions
never use the product near water.
To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet. Under the above condition, if you also install
telephone with anti-cheat-dial device, please pull out this kind of
telephone, otherwise ADSL Router may occur frequently off-line.

KW55193 Wireless Router User Manual
5
2 Hardware Description
Front Panel
LED
Color
Function
Green
On: Power on
Off: No power
Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
Green
On: The WAN port has detected a link with an attached device
Blinking: Data is being transmitted or received bythe WAN port
Off: No WAN link via theWAN port
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection

KW55193 Wireless Router User Manual
6
Rear panel
Port
Function
WAN
Connect the device to a cable or DSL modem
ETH1,2,3,4
Connect the device to your PC's Ethernet port, or to the
uplink port on your hub/switch, using a RJ-45 cable
RESET
System reset or reset to factory defaults
WPS
A convenient way for WPS set.
ON/OFF
Switch it on or off
POWER
Connect to the supplied power adapter

KW55193 Wireless Router User Manual
7
3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using an Ethernet Cable to connect the WAN port of the ROUTER to a
cable or DSL modem.
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the AC power outlet, and then press the on-off button.

KW55193 Wireless Router User Manual
8
4 Local PC Configuration in Windows 95, 98, ME, XP,7
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.

KW55193 Wireless Router User Manual
9
5 Configuring the Router
5.1 Web-based Management Guide
In order to use the web-based management software, it will be necessary to use a
computer that occupies the same subnet as the Router. The simplest way to do
this for many users will be to use DHCP server that is enabled by default on the
Router.
5.1.1 Login
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting pages. Enter username “Admin”
Then click “Login”button login.
After log on ,you will see the following screen :

KW55193 Wireless Router User Manual
10
3.2 Quick Installation Guide
After successfully log in, you can click “Setup”configure your router, we can select
“Manual”or “Next”button setup KW55193,Next will guide us for a basic setting step
by step,and the Manual will guide us to home page for more detailed setup.here we
Choose next enter quick setup mode to quickly configure your Router.
Then WAN Connection Type page will appear, shown as bellow. The Router provides
three popular ways PPPoE ,Dynamic IP, Static IP to connect to the Internet. If you are
sure of what kind of connection type your ISP provides, you can select the very type
and click Next to go on configuring.
After finishing WAN Connection Type selection, Click “Next”to continue. Configure the
basic parameters for wireless network in the following screen as shown:

KW55193 Wireless Router User Manual
11
Enter the SSID what you want to use, and configure the security settings of your wireless
network. then click Next.

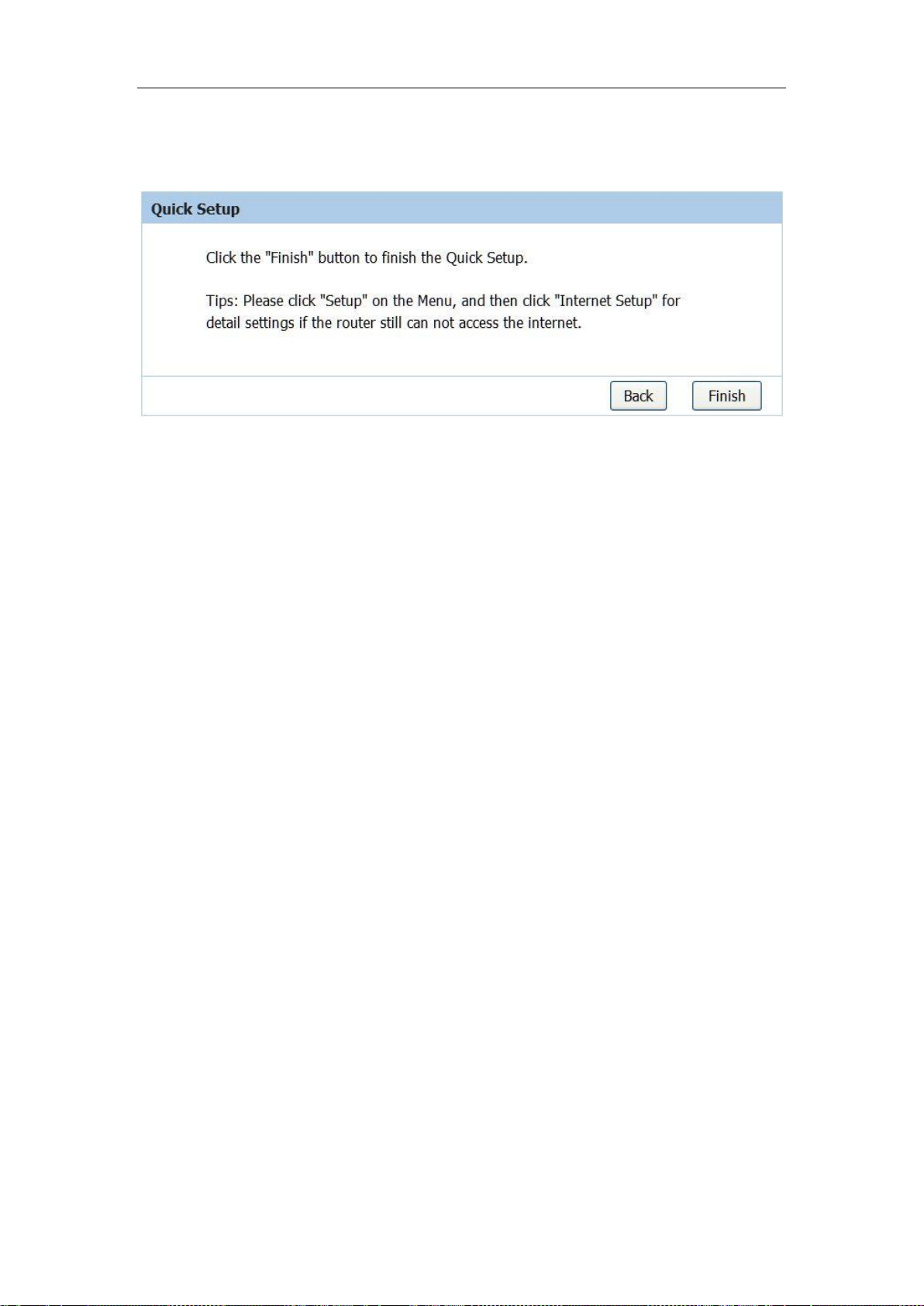

Click Finish to save you settings.

KW55193 Wireless Router User Manual
12
5.1.2 Network (WANSettings)
KW55193 supports three types WAN connection.they are DHCP,Static
IP,PPPOE, Select any of them you will be able to configure the corresponding
connection of WAN. Choose menu “Setup →Internet Setup”, you can
configure the IP WAN parameters
5.1.3 DHCP
If your ISP provides the DHCP service, please choose Dynamic IP type, and the
Router will automatically get IP parameters from your ISP. You can see the page
as follows . This page displays the WAN IP parameters assigned dynamically by
your ISP, including IP address, Subnet Mask, Default Gateway,
Host Name -This option specifies the Host Name of the Router.
Domain Name - If your ISP gives you one or two DNS addresses,enter the
addresses into the correct fields. Otherwise, the DNS servers will be assigned
dynamically from your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
Click the Apply Changes button to save your settings.

KW55193 Wireless Router User Manual
13
5.1.4 Static IP
If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS
setting, select Static IP. The Static IP settings page will appear.
IP Address: Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask: Enter the subnet Mask in dotted-decimal notation provided by your
ISP, usually is 255.255.255.0.
Default Gateway:(Optional) Enter the gateway IP ddress in
dotted-decimal notation provided by your ISP.
Host Name -This option specifies the Host Name of the Router.
Domain Name - If your ISP gives you one or two DNS addresses,enter the addresses
into the correct fields. Otherwise, the DNS servers will be assigned dynamically from
your ISP.
MTU Size :The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU
Size unless required by your ISP.
DNS1/DNS2(Optional) /DNS3(Optional) : Enter one or two DNS addresses in
dotted-decimal notation provided by your ISP.
Click the Apply Changes button to save your settings.

KW55193 Wireless Router User Manual
14
5.1.5 PPPOE
If your ISP provides a PPPoE connection, select PPPoE option. And you should
enter the following parameters.
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Connection Type:there are three connection ways,as following:
Continuous:Conncted all the time
Connect on Demand :In this mode, the Internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-established
when you attempt to access the Internet again. If you want your Interne t connection
keeps active all the time, please enter “0” in the Max Idle Time field. Ot herwise,
enter the number of minutes you want to have elapsed before your Internet
access disconnects.
Manually - You can click the Connect/Disconnect button to connect/disconnect
immediately. This mode also supports the Max Idle Time function as Connect on
Demand mode. The Internet connection can be disconnected automatically after
a specified inactivity period and re-established when you attempt to access the
Internet again. Click the Connect button to connect immediately. Click the
Disconnect button to disconnect immediately.
Server Name -This option specifies the Server Name of the Router.

KW55193 Wireless Router User Manual
15
Domain Server - If your ISP gives you one or two DNS addresses,enter the addresses into
the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is
1500 Bytes. It is not recommended that you change the default MTU Size unless required by
your ISP.
Click the Apply Changes button to save your settings.
5.1.6 LAN Settings
Choose menu “ Setup → Local Network ”, you can configure the IP parameters of
the LAN on the screen as below.
IP Address:Enter the IP address of your Router or reset it in dotted-decimal notation
(factory default: 192.168.0.1).
Subnet Mask:An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Click the Apply Changes button to save your settings.
Note:
1) If you change the IP Address of LAN, you must use the new IP Address to log in
the Router.
2) If the new LAN IP Address you set is not in the same subnet, the IP
Address pool of the DHCP server will change accordingly at the same
time，while the Virtual Server and DMZ Host will not take effect until they
are re-configured.

KW55193 Wireless Router User Manual
16
5.2 Wireless Settings
There are five submenus under the Wireless menu (shown as bellow): Wireless Basic
MBSSID ,WPS, Wireless Advanced, Wireless Repeater. Click any of them, and you
will be able to configure the corresponding function.
5.2.1 Basic Wireless Settings
Choose menu “Wireless→Wireless Basics”, you can configure the basic settings
for the wireless network on this page.
Name（SSID）：Also called the SSID. Enter a value of up to 32 characters. The same
name must be assigned to all wireless devices in your network .
Band Width :Select the channel width from the drop-down list. The default setting is
40MHz in Both Bands, which can adjust the channel width for your clients automatically.
Channel:This field determines which operating frequency will be used. The default
channel is set to Auto, so the AP will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
SSID Broadcast: When wireless clients survey the local area for wireless networks to
associate with, they will detect the SSID broadcast by the Router. If you select the Enable
SSID Broadcast checkbox, the Wireless Router will broadcast its name (SSID) on the air.

KW55193 Wireless Router User Manual
17
Security Option: You can configure the security settings of your wireless network. There are
six wireless security modes supported by the Router: WEP,802.1X,WPA, WPA2-PSK, WPA2,
WPA2-PSK. Different item leads different web page settings. Please read the following
information carefully:
Done :If you do not want to use wireless security, check this radio button. But it’s strongly
recommended to choose one of the following modes to enable security.
WEP open and WEP shared —WEP is an encryption scheme that is used to protect user’s
wireless data communications. WEP uses a combination of 64-bit keys or 128-bit keys to
provide access control to user’s network and encryption security for every data transmission.
To decode a data transmission, each wireless client on the network must use an identical
64-bit or 128-bit key. WEP is an older wireless encryption method that is not as hard to
break as the more-recent WPA.
802.1x —In 802.1x (also known as RADIUS), a separate machine called an authentication
server receives a user ID and password. It grants or denies access based on whether the ID
and password match any entries in its account list. User can optionally enable WEP
encryption with this option. Because it requires a separate machine acting as the
authentication server, 802.1x is most often used in business environments.
WPA —WPA is a more recent encryption method that addresses many of the weaknesses in
WEP. Any client capable of WPA encryption should use it instead of WEP.
WPA (PSK) —This is WPA encryption combined with a pre-shared key (PSK), which is a text
string known only to the gateway and authorized wireless clients. The gateway rejects the
login if the client's PSK does not match.
WPA2 —WPA2 is a more advanced encryption method than WPA. Because it is a more
recent standard, some of user’s wireless devices might not be able to use it.
WPA2 (PSK) —This option uses WPA2 with a pre-shared key.
WPA2 and WPA —This option supports WPA2/WPA encryption for devices capable of one
or the other standard. The gateway automatically detects whether a particular device can
use WPA2 or WPA.
WPA2 AND WPA (PSK) —This has WPA2 or WPA encryption based on client abilities, as well
as a pre-shared key.
Click the Apply Changes button to save your settings.

KW55193 Wireless Router User Manual
18
5.2.3 MBSSID
Choose menu “Wireless→MBSSID”, you can configure the Guest Network Wireless Settings
on the page as shown:
Enable Guest Network :You can on or off MBSSID function
Total Guest Allowed:You can configure the number of guest
Enable SSID Broadcast:Enable or Disable the SSID Broadcast
Allow Gust to access My Local Netword:If enabled, guests can communicate with hosts.
Security Option:Can set password for guest network
Click the Save Changes button to save your settings.
5.2.3 WPS
Choose menu “Wireless→WPS”, you can configure the WPS Settings on the page as shown:
WE can enter PIN code in the area of PIN then click Start Pin enabled the WPS function.
Click the Apply Changes button to save your settings.
