Kasda KW5863 User manual

KW5863 Wireless ADSL Router
User Manual

Wireless ADSL Router User Manual
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2012
All rights reserved.

Wireless ADSL Router User Manual
Content
1 OVERVIEW................................................................................................................................ 1
1.1 FEATURES................................................................................................................................... 1
1.2 PACKET CONTENTS................................................................................................................... 4
1.3 SYSTEM REQUIREMENTS..........................................................................................................4
1.4 FACTORY DEFAULTS................................................................................................................. 4
1.5 WARNINGS AND CAUTIONS....................................................................................................... 5
2 HARDWARE DESCRIPTION................................................................................................... 6
3HARDWARE INSTALLATION................................................................................................. 8
4PC CONFIGURATION GUIDE ............................................................................................... 9
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP.....................................................9
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000 ...................................................................... 9
5 WEB-BASED MANAGEMENT GUIDE ................................................................................. 10
5.1 LAN SETTING PAGE .................................................................................................................. 10
5.2 INTERNET ACCESS CONFIGURATION........................................................................................ 11
5.3 WIRELESS SETTING...................................................................................................................23
5.4VOIP CONFIGURATION .............................................................................................................31
5.5PRINTER SERVER INSTALLATIONS ..........................................................................................34
5.6RESET ROUTER...........................................................................................................................36
APPENDIX: FREQUENT ASKED QUESTIONS ..................................................................... 37

Wireless ADSL Router User Manual
1
1 Overview
Thank you for choosing our product. The KW5863 is a Wireless ADSL router
combining an ADSL modem, an 802.11n wireless router, a 4-port switch, and two
FXS ports in one unit, bringing high-speed wireless Internet connection to a home or
office.
1.1 Features
1.1.1 Data rate
Downstream data rate up to 24 Mbps
Upstream data rate up to 3.5Mbps (With Annex M enabled)
1.1.2 ADSL Compliant
ITU G.992.1 (G.DMT)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
1.1.3 Wireless
Fully IEEE 802.11b & IEEE 802.11g & IEEE 802.11n
compatible.
Wireless data rate up to 300Mbps
Operating in the unlicensed 2.4 GHz ISM band
Multi-SSID
Supports 64/128 bits WEP security and user authentication

Wireless ADSL Router User Manual
2
1.1.4 Network Protocol & Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DNS Relay, DDNS
IGMP Proxy
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC - Up to 16 PVCs
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5

Wireless ADSL Router User Manual
3
1.1.6 VoIP
SIP
Voice codecs: G.711A/µ, G.723, G.726, G.729
Call waiting
Call forwarding
1.1.7 FIREWALL
Built-in NAT
MAC Filtering
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.8 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.9 Operating System Support
WINDOWS 98/98 SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.10 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing

Wireless ADSL Router User Manual
4
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
External Splitter x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
Antenna x 2
Base x 1
CD x 1
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
Subscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: RFC 2516 LLC
VPI/VCI: According to local information

Wireless ADSL Router User Manual
5
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet. Under the above condition, if you also install
telephone with anti-cheat-dial device, please pull out this kind of
telephone, otherwise ADSL Router may occur frequently off-line.

Wireless ADSL Router User Manual
6
2 Hardware Description
Front Panel
LED
Color
Function
PWR
Green
On: Power on
Off: No power
LAN1,2,3,4
Green
On: LAN link established and active via LAN port
Blinking: Data activity occurs
Off: No LAN link via LAN port
WLAN
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
DSL
Green
On: ADSL link established and active
Quick blinking: ADSL is trying to establish a connection
Slowblinking: No ADSL link
INET
Green
On: IP connected
Blinking: IP traffic is passing thru this device
Off: No ADSL connection is present
VOIP1,2
Green
On:A telephone connected to the phone port has its
receiver off of the hook .
Off: The handset of telephone connected to the phone
port is on-hook.

Wireless ADSL Router User Manual
7
Rear panel
Side Panel
WIFI: The switch of wireless function
RESET: System reset or reset to factory defaults
WPS: A convenient way to set wireless security
Port
Function
DSL
Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
FXS1,0
Connect thedevice to your normal phone
USB
Connect the device to your printer
LAN1,2,3,4
Connect the device to your PC's Ethernet port, or to the
uplink port on your hub/switch, using a RJ-45 cable
ON/OFF
Switch it on or off
POWER
Connectto the suppliedpower adapter

Wireless ADSL Router User Manual
8
3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using a telephone line to connect the DSL port of ROUTER to the MODEM
port of the splitter, and using a other telephone line connect your telephone
to the PHONE port of the splitter, then connect the wall phone jack to the
LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
MODEM: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the AC power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this
from happening, a small external splitter must be connected to
each telephone.

Wireless ADSL Router User Manual
9
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local
Area Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address
as 192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet
mask as 255.255.255.0 and the default gateway as 192.168.1.1. Then click
“OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.

Wireless ADSL Router User Manual
10
5 Web-based Management Guide
In order to use the web-based management software it will be necessary to use
a computer that occupies the same subnet as the Router. The simplest way to
do this for many users will be to use DHCP server that is enabled by default on
the Router.
5.1 LAN setting page
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting pages.
After log on ,you will see the following screen :
Click OK
Enter username ‘admin’
and password ‘adslroot’

Wireless ADSL Router User Manual
11
We can select wizard setup or advanced setup mode to setup KW5863.the wizard
set up will guide us for a basic setting,and the advanced setup will guide us to home
page for more detailed setup.
5.2 Internet Access Configuration
5.2.1 ADSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click ATM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL ATM
interfaces.
2. Click Add to configure PVC identifier, select DSL latency and select
connection mode according to your local occasion. After the configuration,
you need to click Apply/Save.
3. Click WAN Service from the left menu.

Wireless ADSL Router User Manual
12

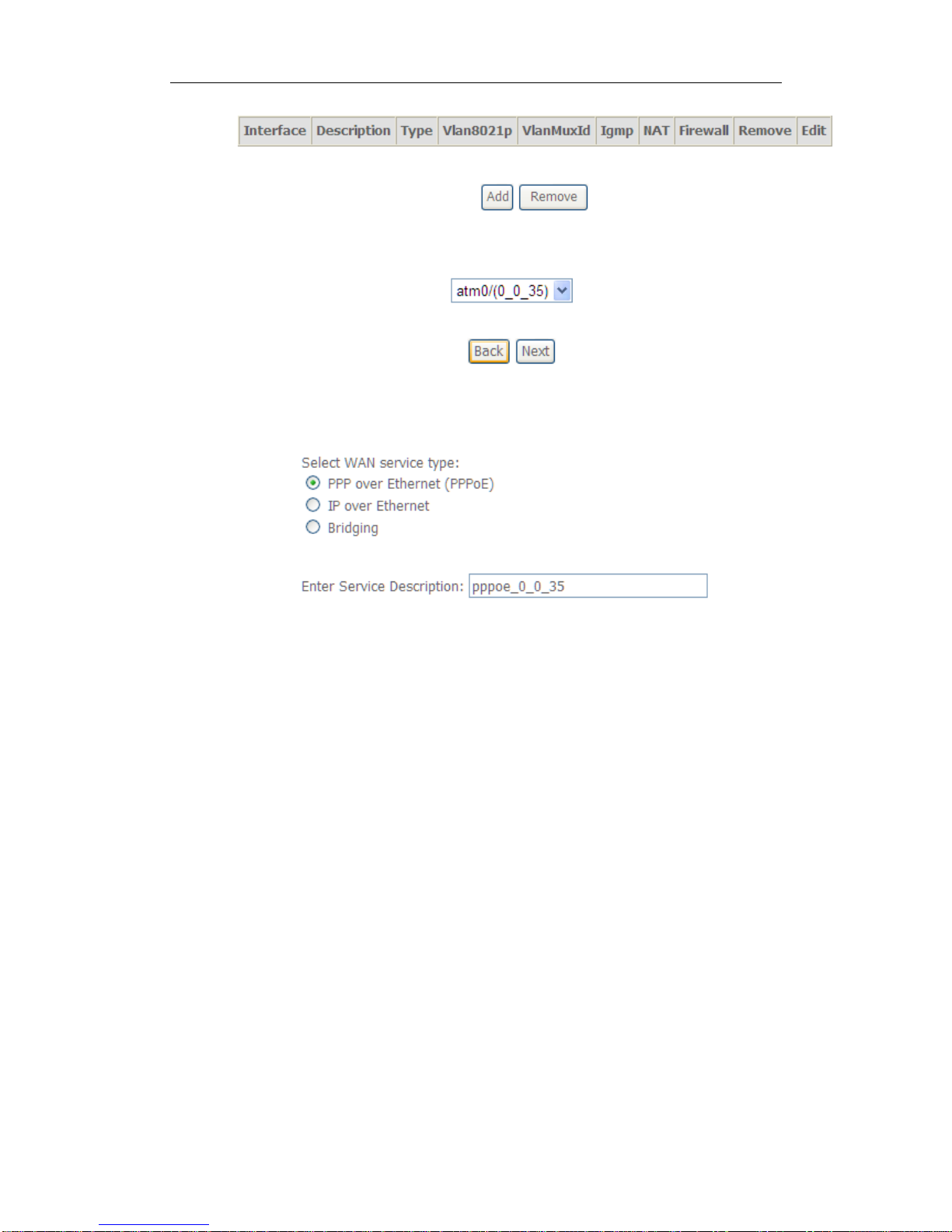

4. Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.

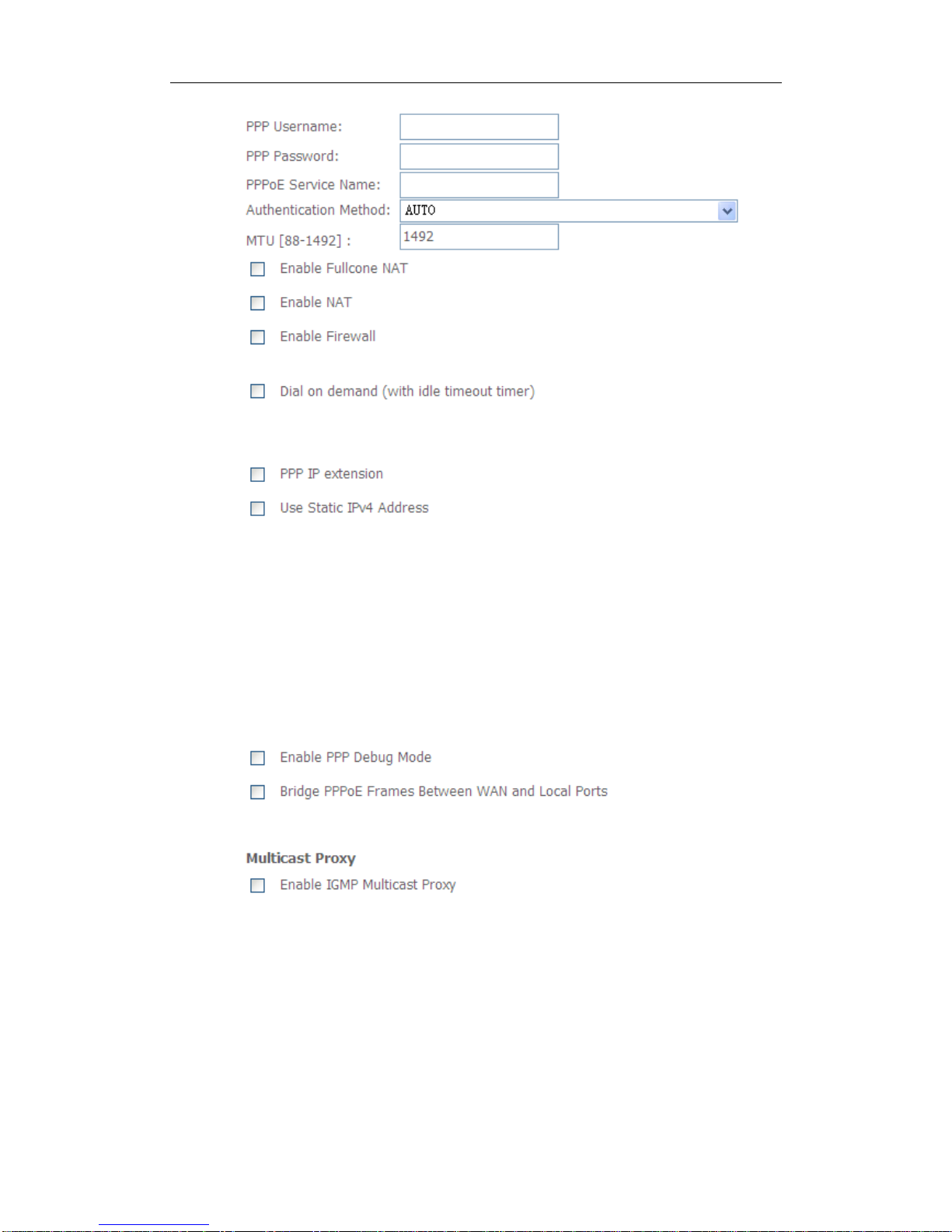

6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a
maximum of 32 characters in the password.

Wireless ADSL Router User Manual
13
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.

Wireless ADSL Router User Manual
14
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.
7. Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again.

Wireless ADSL Router User Manual
15
8. Get DNS server information from the selected WAN interface or enter static
DNS server IP addresses. If only a single PVC with IPoA or static MER
protocol is configured, you must enter static DNS server IP addresses.
9. Make sure that the settings below match the settings provided by your ISP.
Click on the Apply/Save button to save your configurations. Now reboot the
ADSL Gateway.

Wireless ADSL Router User Manual
16
5.2.2 Router Mode Setup
1. From Advanced Setup, click Layer2 Interface and select ETH Interface.
Before you configure ETH WAN interface, you’d better remove all PVC
settings from ATM interface.
2. Click Add and you’ll see the following screen.
3. Select a ETH port as you will. You can select ENET1, ENET2, ENET3 or
ENET4 port as the WAN interface and MSC mode as connection mode.
4.Click Apply/Save and you’ll see the following screen.
5. From Advanced Setup, click WAN Service to configure a WAN service
over the interface you selected.

Wireless ADSL Router User Manual
17
6. Click Add and you’ll see the following screen.
7. Click Next and you’ll see the following screen. Select PPPoE as WAN service
type for example. Click Next.
8. Enter the user name and password that your ISP has provided to you. Click
Next.
