Kasda KW5829 User manual

KW5829 Wireless ADSL Router
User Manual

Wireless ADSL Router USER MANUAL
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all environments
and applications, and makes no warranty or representation, either expressed or implied,
with respect to the quality, performance, merchantability, or fitness for a particular purpose
of the software or documentation. The manufacturer reserves the right to make changes to
the hardware, software, and documentation without obligation to notify any person or
organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2013
All rights reserved.

Content
1 OVERVIEW................................................................................................................................1
1.1FEATURES................................................................................................................................1
1.1.1 Data rate............................................................................................................................ 1
1.1.2 ADSL Compliance............................................................................................................. 1
1.1.3 Wireless............................................................................................................................. 1
1.1.4 Network Protocol and Features ....................................................................................... 2
1.1.5 ATM Capabilities............................................................................................................... 2
1.1.6 FIREWALL......................................................................................................................... 2
1.1.7 Management Support....................................................................................................... 3
1.1.8 Operating System Support............................................................................................... 3
1.1.9 Environmental ................................................................................................................... 3
1.2 PACKET CONTENTS ...............................................................................................................3
1.3 SYSTEM REQUIREMENTS .......................................................................................................4
1.4 FACTORY DEFAULTS..............................................................................................................4
1.5 WARNINGS AND CAUTIONS ....................................................................................................4
2 HARDWARE DESCRIPTION...................................................................................................5
3HARDWARE INSTALLATION.................................................................................................7
4 PC CONFIGURATION GUIDE.................................................................................................8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP...................................................8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000...................................................................8
4.3LOCAL PC CONFIGURATION IN WINDOWS VISTA ..................................................................9
4.4LOCAL PC CONFIGURATION IN WINDOWS 7..........................................................................9
5 WEB-BASED MANAGEMENT GUIDE..................................................................................10
5.1 LANSETTING PAGE...............................................................................................................10
5.2ADSL SETUP.........................................................................................................................10
5.2.1 PPPoE(PPP over Ethernet) ................................................................................................... 11
5.2.2 PPPoA(PPP over ATM)......................................................................................................... 13
5.2.3 Bridged............................................................................................................................... 15
5.2.4 LAN Settings ....................................................................................................................... 16
5.2.4.0 IPv4 LAN Interface......................................................................................................... 16
5.2.4.1 IPv6 LAN Interface......................................................................................................... 18
5.3WLANSETTING.................................................................................................................... 20
5.3.1 Basic................................................................................................................................... 20
5.3.2 Advanced Settings.......................................................................................................... 22
5.3.3 Security............................................................................................................................ 24
5.4MANAGEMENT .......................................................................................................................28
5.4.1 TR069................................................................................................................................. 28
5.4.2 Port Mapping ..................................................................................................................... 29
5.4.3 Reset Router ....................................................................................................................... 31
APPENDIX FREQUENT ASKED QUESTIONS.......................................................................32

Wireless ADSL Router USER MANUAL
1
1 Overview
Thank you for choosing our product. The KW5829 Wireless ADSL Router uses
Broadcom’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+ and
IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet
access.
1.1 Features
1.1.1 Data rate
Downstream data rate up to 24 Mbps,
Upstream data rate up to 3.5Mbps (With AnnexM enabled)
1.1.2 ADSL Compliance
ITU G.992.1 (G.DMT)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
TR-069 compliant with ACS
Support IPv6
1.1.3 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 300 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x

Wireless ADSL Router USER MANUAL
2
1.1.4 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering

Wireless ADSL Router USER MANUAL
3
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
External Splitter x 1
CD x 1

Wireless ADSL Router USER MANUAL
4
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
Subscription for ADSL service. Your ADSL service provider should provide
you with at least one valid IP address (static assignment or dynamic
assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: LLC/SNAP-BRIDGING or VC/MUX
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone during
an electrical storm. There might be a risk of electric shock from lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about the
designed maximum power load ratings. Not to follow the rating guideline
could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line that
directly outputs from junction box. Do not connect Router to extension
phone. In addition, if your house developer divides a telephone line to multi
sockets inside the wall of house, please only use the telephone that has
connected with the splitter of ADSL Router when you access the Internet.
Under the above condition, if you also install telephone with anti-cheat-dial

Wireless ADSL Router USER MANUAL
5
device, please pull out this kind of telephone, otherwise ADSL Router may
occur frequently off-line.
2 Hardware Description

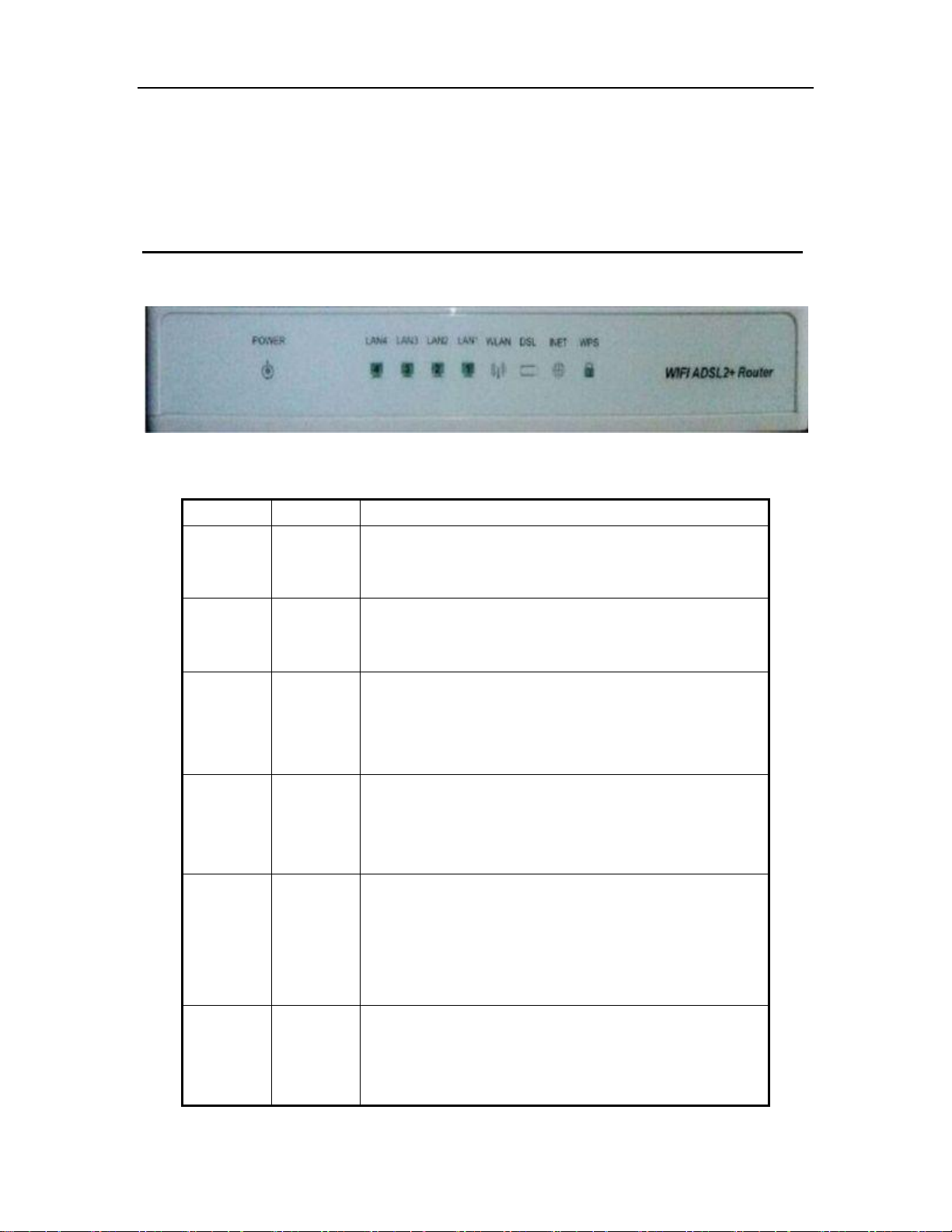

Front Panel
LED
Color
Function
POWER
Green
On: Power on
Off: No power
LAN1-4
Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
WLAN
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
DSL
Green
On:ADSL link established and active
Quick Blinking: ADSL is trying to establish a connection
Slow Blinking: No ADSL link
INET
Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru the
device
Off: Modem power off or ADSL connection not present
WPS
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection

Wireless ADSL Router USER MANUAL
6
Rear panel
Port
Function
DSL
Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
LAN1-4
Connect the device to user’s PC's Ethernet port, or to the
uplink port on user’s hub/switch, using a RJ-45 cable
RESET
System reset or reset to factory defaults
WIFI
Enable or disable wireless function.
WPS
A convenient way for WPS set.
ON/OFF
Switch it on or off
POWER
Connect to the supplied power adapter

Wireless ADSL Router USER MANUAL
7
3 Hardware Installation
This chapter shows user how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using a telephone line to connect the DSL port of ROUTER to the Modem port
of the splitter, and using a other telephone line connect user’s telephone to the
PHONE port of the splitter, then connect the wall phone jack to the LINE port of
the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
ROUTER: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to user’s LAN
or a PC with network card installed. Or using an USB cables to connect the USB
port of the ROUTER to user’s PC.
3. Connect the power cable to the POWER connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this from
happening, a small external splitter must be connected to each
telephone.
