1 Introduction
This manual is valid for P30 x-series.
The user must ensure that this document is valid for his present product.
1.1 Representation of safety instructions
At various points in this manual, you will see notes and precautionary warn-
ings regarding possible hazards. The symbols used have the following
meaning:
DANGER!
indicates an imminently hazardous situation, which will result in death or se-
rious bodily injury if the corresponding precautions are not taken.
WARNING!
indicates a potentially hazardous situation, which can result in death or seri-
ous bodily injury if the corresponding precautions are not taken.
CAUTION!
means that if the corresponding safety measures are not taken, a potentially
hazardous situation can occur that may result in slight bodily injury.
Caution
means that damage to property can occur if the corresponding safety mea-
sures are not taken.
ESD
This symbol reminds you of the possible consequences of touching electro-
statically sensitive components.
Information
Identifies practical tips and useful information. No information that warns
about potentially dangerous or harmful functions is contained.
1.2 Purpose of the document
This document describes how to perform a software update at P30 x-series.
The software update can be installed on the charging station via the web in-
terface, the OCPP backend or via USB.

P30 Introduction
Software Update Instructions V1.14 5
© KEBA
The latest software is available on the KEBA website:
www.keba.com/emobility-downloads
Information
This document is an extension to the supplied manuals of P30.
You must comply with all instructions and safety instructions in the
supplied manuals!
1.3 Requirements
This document contains information for persons who have technical knowl-
edge in the field concerned and are qualified to carry out the necessary op-
erations.
1.4 Warranty
Only general maintenance work that is expressly permitted by KEBA may be
performed. Any other tampering to the device will result in a loss of the war-
ranty claim.
A device with a broken manufacturer's seal or removed lead seal may no
longer be put into operation. The necessary steps must be taken for having
the charging station replaced or repaired by a specialist dealer or service
partner.
1.5 Notes on this document
The instructions contained in this manual must be followed precisely. Failure
to do so could result in the creation of potential sources of danger or the dis-
abling of safety devices. Apart from the safety instructions given in this man-
ual, the safety precautions and accident prevention measures appropriate to
the situation in question must also be observed.
This document reflects the current state of knowledge at the time of publica-
tion. It is subject to changes in content due to technical developments. It is
therefore recommended that you check regularly on the KEBA website to
see whether a more recent version of the document is available for the prod-
uct in question.
1.5.1 Contents of the document
● Performing a software update
1.5.2 Not contained in this document
● Commissioning and deinstallation of the charging station

P30 Introduction
Software Update Instructions V1.14 6
© KEBA
● Operating behavior of the charging station
● Operation of the charging station
● Configuration of the charging station
1.6 Further documentation
Manuals and additional information are available on our website:
www.keba.com/emobility-downloads

P30 About the update
Software Update Instructions V1.14 7
© KEBA
2 About the update
The update is available via file P30x_SW_[x_xx].keb, where [x_xx] corre-
sponds to the version number.
Example of update file:
P30x_SW_1_10.keb or P30x_SW_1_10_0.keb
This update installs the current software version on the charging station. To
install this update, the previous software version must be installed on the
charging station.
Information
No version can be skipped. If the software on the charging station is older,
the update will fail.
2.1 Determine software version
Before updating, check which software version is on the charging station.
The current software version can be seen in the web interface of the charg-
ing station. The description for accessing the web interface can be found in
the "Configuration Manual".

P30 Update via web interface
Software Update Instructions V1.14 8
© KEBA
3 Update via web interface
The description for accessing the web interface can be found in the "Config-
uration Manual".
Information
To access the web interface remotely (e.g. via WLAN, mobile communica-
tions, VPN, etc.), port 80 must be available in the network.
If the mobile communications connection is weak, an update via mobile
communications is not recommended due to the file size.
For a software update via the web interface, proceed as follows:
1) Open the page "Software Update" in the web interface. This page is lo-
cated in the main menu under "System".
2) Using the button "Choose a file ..." select the file P30x_SW_x_xx.keb.
3) Start the update process using the button "Upload & Install".
All software components are updated. The status can be seen in the web in-
terface display. After a few minutes, the update process is indicated on the
charging station by the LED bar pulsing orange.
After a successful update, the new versions of the installed software compo-
nents are visible in the web interface. You can compare these versions with
the information in the "Software Release Notes".
Caution
During the software update, the power supply must not be interrupted under
any circumstances and the charging station must not be restarted. Other-
wise the software update will not be completed correctly and normal opera-
tion of the charging station is no longer guaranteed.

P30 Update via OCPP
Software Update Instructions V1.14 9
© KEBA
4 Update via OCPP
For a software update via the OCPP backend the following FTP link is re-
quired:
ftp://keba-update:[email protected]/P30x_SW_[x_xx].keb
Information
The FTP link above cannot be accessed if the charging station is in a
closed network and has no Internet connection.
Information
Details on using the FTP link can be found in the OCPP backend manual or
can be obtained from the OCPP backend provider.
For a software update via the OCPP backend proceed as follows:
1) Use the FTP link above.
2) Wait until all software components have been updated.
After a few minutes, the update process is indicated on the charging sta-
tion by the LED bar pulsing orange.
3) At the end of the update, the versions of the installed software compo-
nents can be seen in the web interface. You can compare these ver-
sions with the information in the "Software Release Notes".
4) After the software update, the charging station restarts automatically.
The LED bar flashes blue or green, depending on the authorization set-
ting.
Caution
During the software update, the power supply must not be interrupted under
any circumstances and the charging station must not be restarted. Other-
wise the software update will not be completed correctly and normal opera-
tion of the charging station is no longer guaranteed.

P30 Update via USB
Software Update Instructions V1.14 10
© KEBA
5 Update via USB
The following steps are necessary for an update via USB:
● Remove covers
● Perform update
● Mount covers
5.1 Remove covers
The USB interface is located in the connection panel of the charging station.
To make the USB interface accessible, the housing cover and the connec-
tion panel cover must be removed. Proceed as follows:

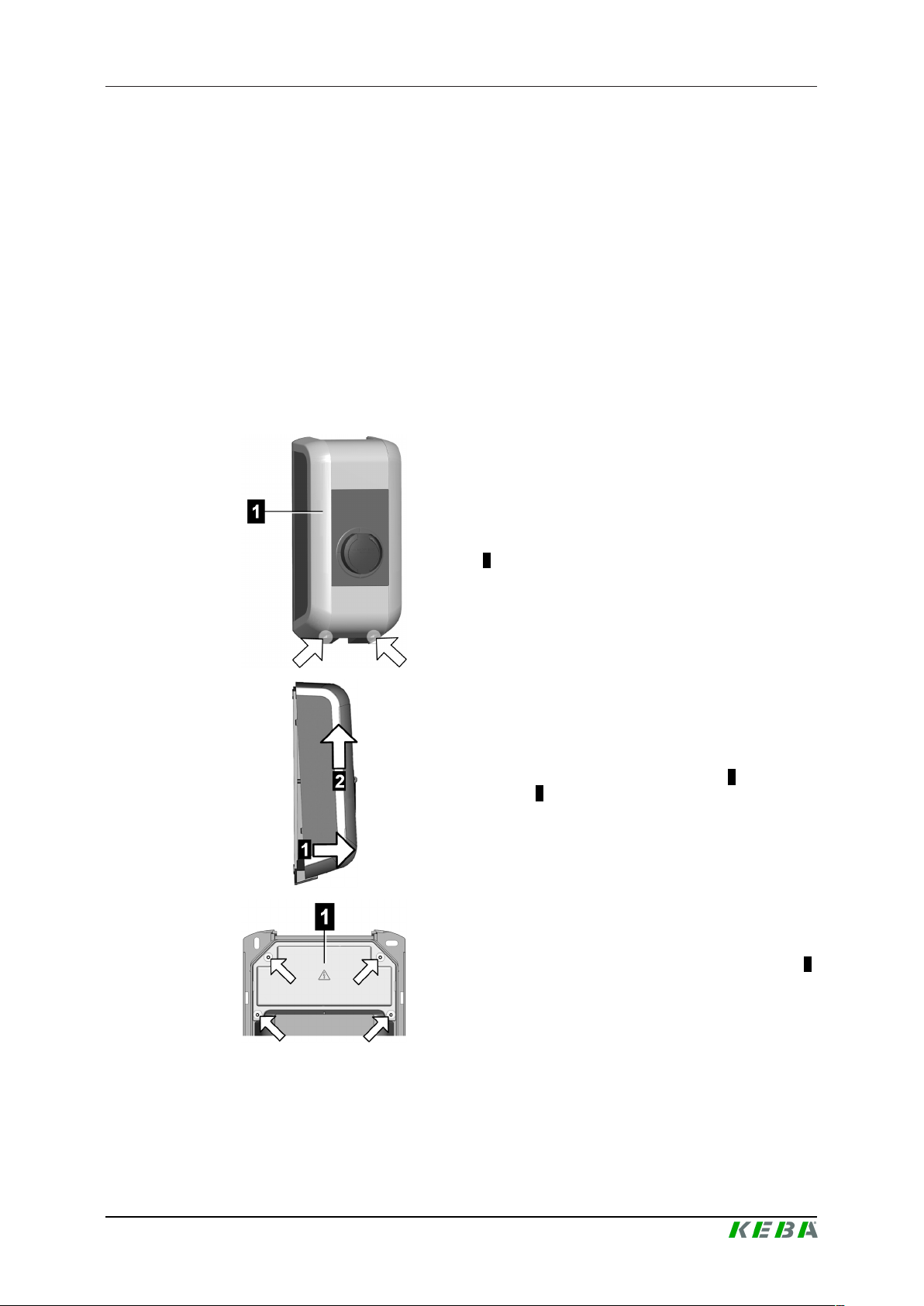

1) Unscrew the two screws on the bottom of the housing
cover 1.
2) Lift the housing cover at bottom max. 1 cm 1 and then
push upwards 2.
3) Unscrew the four screws of the connection panel cover 1
and remove the connection panel cover upwards.

P30 Update via USB
Software Update Instructions V1.14 11
© KEBA
The USB interface USB in the connection panel is now ac-
cessible.
5.2 Perform update
An empty USB stick formatted with FAT32 is required.
To perform the software update via USB, proceed as follows:
1) Create a new directory on the USB stick with the name "UPD".
2) Copy the software update file "P30x_SW_[x_xx].keb" into the directory
"UPD".
3) Connect the USB stick to the USB interface of the charging station.
4) The update starts automatically. The display shows "USB...Updating
P30x_SW_[x_xx]".
5) Wait until all software components have been updated.
The update process is indicated by orange pulsing of the LED bar.
6) Unplug the USB stick when the display shows "Remove USB".
The update will continue even after the USB stick is disconnected.
7) At the end of the update, the versions of the installed software compo-
nents can be seen in the web interface. These versions can be com-
pared with the information in the "Software Release Notes".
8) After the software update, the charging station restarts automatically.
The LED bar flashes blue or green, depending on the authorization set-
ting.
Caution
During the software update, the power supply must not be interrupted under
any circumstances and the charging station must not be restarted. Other-
wise the software update will not be completed correctly and normal opera-
tion of the charging station is no longer guaranteed.
5.3 Mount covers
In order to operate the charging station correctly, all covers must be inserted
and screwed tight. Proceed as follows:

P30 Update via USB
Software Update Instructions V1.14 12
© KEBA
1) Insert connection panel cover 1 and tighten with 4
screws with 2 Nm. The tabs on the connection panel cover
must be flush with the enclosing housing. Only then will the
device be properly sealed.

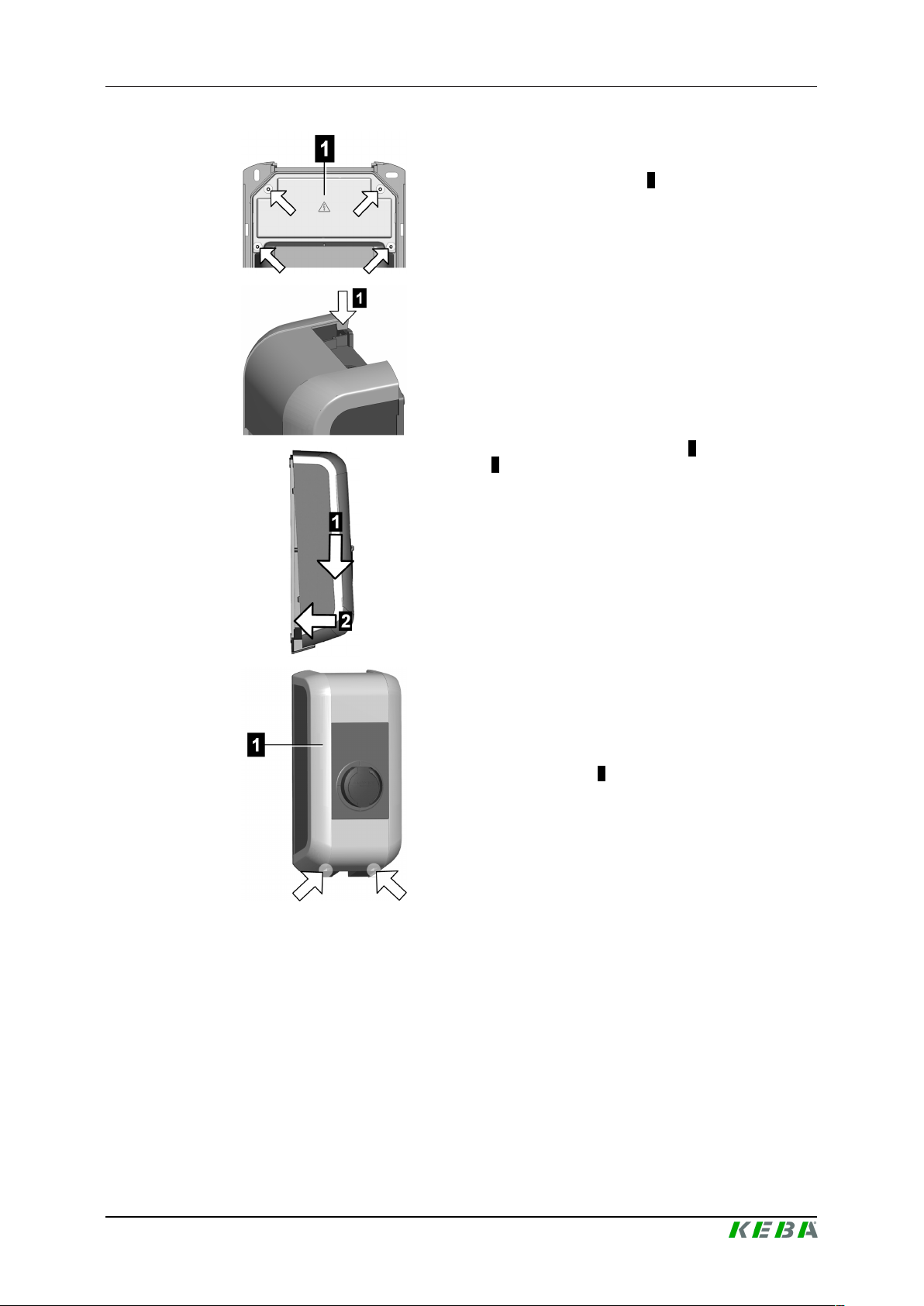

2) Hook in the housing cover at the top 1 and close it at the
bottom 2. The housing cover must glide into the guides
without considerable resistance. The housing cover must
be correctly seated in the housing guide on all sides.
3) Fix the housing cover 1 with 2 screws at the bottom.
4) Check that the charging station is functioning properly.
