Kendall howard Esdw-6030-1000 User manual

Page | 1

Save This Manual for Future Reference

Owner’s Manual

Part Number: ESDW-6030-1000

For Your Safety

Read and understand the entire manual before use

60” ESD WORKBENCH

Page | 2

Save This Manual for Future Reference

TABLE OF CONTENTS

Contents

SUPPORT ............................................................................................................................................................................... 2

DISCLAIMER ........................................................................................................................................................................... 2

DIMENSIONAL DRAWING........................................................................................................................................................ 3

SPECIFICATIONS ...................................................................................................................................................................... 3

TOOLS NEEDED........................................................................................................................................................................ 3

COMPONENT IDENTIFICATION ................................................................................................................................................ 4

INSTALLATION......................................................................................................................................................................... 5

INSTALLATION CONTINUED..................................................................................................................................................... 6

ESD ELECTRICAL CIRCUIT ......................................................................................................................................................... 7

CARE AND CLEANING............................................................................................................................................................... 7

TROUBLESHOOTING................................................................................................................................................................ 8

WARRANTY............................................................................................................................................................................. 9

Support

Support is available through the following methods:

By Phone from 8:00 AM to 5:00 PM CST. 651.213.1333

By Email customerservice@kendallhoward.com

By Mail 10152 Liberty Lane, Chisago City, MN 55013

By Web www.kendallhoward.com

Disclaimer

DISCLAIMER: Kendall Howard LLC. endeavors to make this manual accurate and complete. However, Kendall

Howard LLC makes no representations or warranties of any kind, expressed or implied, about whether the use of

products contained herein would infringe any rights or the correctness, accuracy or reliability of the information

contained herein or that said information covers all details, conditions, or variations. The information herein does

not provide for every possible contingency in connection with the installation or use of the product(s). The

information contained in this document is subject to change without notice or obligation. Kendall Howard LLC

assumes no responsibility for the accuracy, completeness or reliability of the information contained in this

document. Any reliance placed on the information is therefore strictly at your own risk.

Page | 3

Save This Manual for Future Reference

Dimensional Drawing

Specifications

Overall Dimensions

60” Wide x 30” Deep x 30” Tall (at lowest setting)

Worksurface Dimensions

30” Deep x 60” Long

Weight

132 lbs. (290 kg)

Workbench Support Color

Gloss Black Powder Coat

Worksurface Color

Cloudy Gray

Tools Needed

Phillips Screwdriver or Cordless Drill

Page | 4

Save This Manual for Future Reference

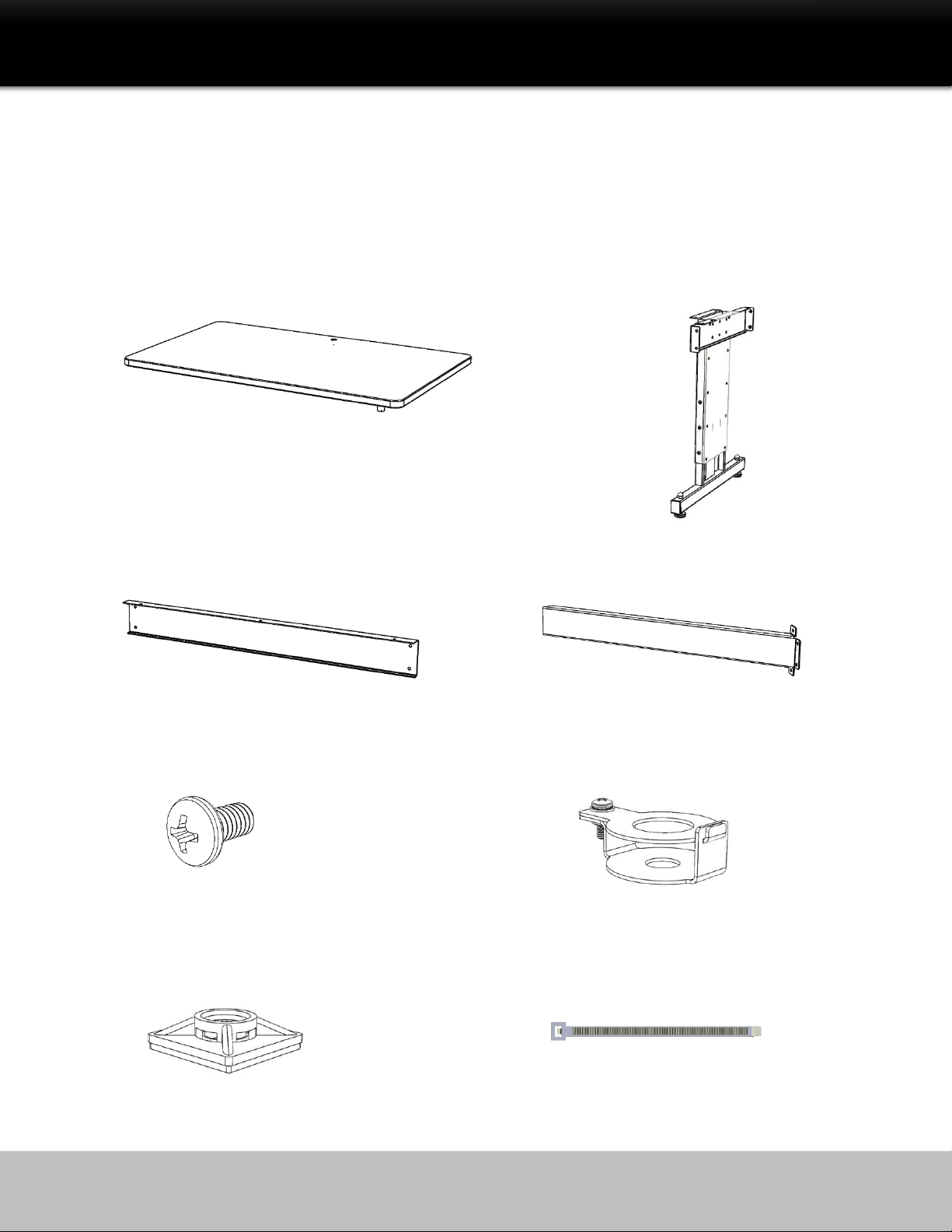

Component Identification

What’s included?

Work Surface 60” x 30” (1) Leg Assembly (2)

Part Number: A-1081 Part Number: A-1075

Cross Bar (2) Gusset (2)

Part Number: A-1078 Part Number: A-1080

Pan Head Screw (40) ESD Grounding Boot (1)

Part Number: HW-PHS-006 Part Number: A-1084

Self-Adhesive Cable Tie Mount (5) 6” Cable Tie (5)

Part Number: CP-1045 Part Number: CP-1019

Page | 5

Save This Manual for Future Reference

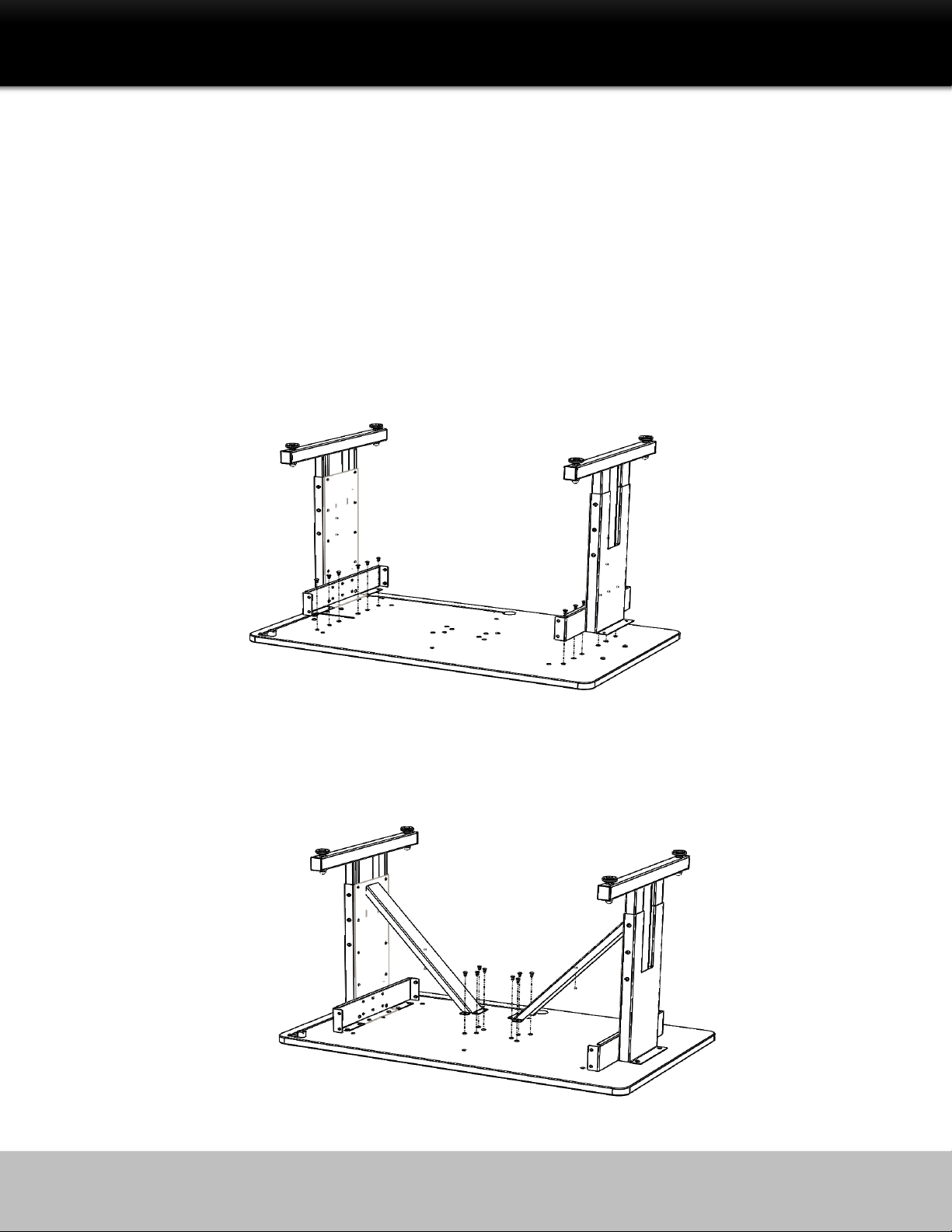

Installation

Step 1:

Cut and remove the two plastic banding and any shrink wrap material, remove top from crate

packaging & remove components.

Step 2:

Place the Work Surface on its top on a clean and sturdy working area. Locate the two leg

assemblies and 16 Pan Head Screws. Install the screws 6 into the inside of each Leg Assembly

and 2 on the outer side.

Step 3:

Locate the Gussets. Place the bottom of the slotted end of the Gusset in to the slot guide of the

Leg Assembly, Locate 8 Pan Head Screws. Install Screws through the Gusset and into the Work

Surface

Page | 6

Save This Manual for Future Reference

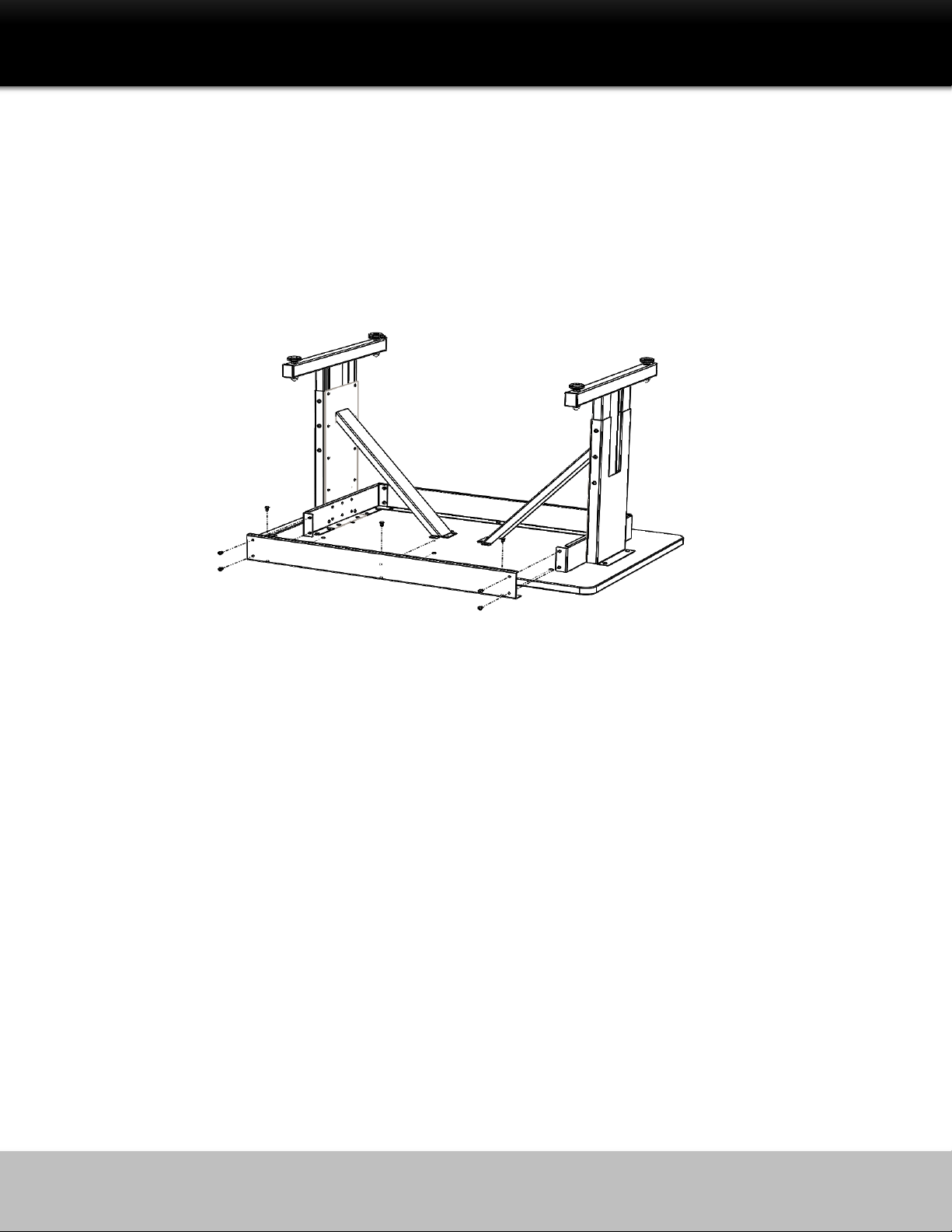

Installation Continued

Step 4:

Locate the Cross Bars and 16 Pan Head Screws. Install 8 screws into each cross bar as shown

below.

Step 5:

Determine how the Workbench will be grounded. If using the ESD Grounding Boot, proceed to

step 6. If an Earth ground is needed proceed to step 7.

Step 6:

Install the Grounding Boot on the right rear Leg Leveler. Locate the ESD Grounding Boot, and

the short, pre-installed grounding wire. Remove the Philips head screw from the Ground Boot,

place the lever stem through the bottom of the Grounding Boot, latch the top of the Grounding

Boot, strip and install the ground wire between the boot halves. Reinstall the Phillips screw. Flip

table over and adjust the leg levelers until workbench is level. Use the provided cable tie

mounts to secure the ground wire to the table leg.

Step 7:

Locate the 10’ pre-installed grounding wire. Determine where the Workbench will be installed.

Flip table over and adjust the leg levelers until workbench is level. Connect the 10’ Earth ground

wire to a safe common grounding point. Use the provided cable tie mounts to secure the

ground wire to the table leg.

Page | 7

Save This Manual for Future Reference

ESD Electrical Circuit

Work Surface

A wire connects the conductive aluminum boot to a common ground located in worksurface. A

wire is connected from the common ground to an external Earth ground wire. A wire is

connected from the common ground to the wrist strap ground point.

Care and Cleaning

Painted Surfaces

All painted surfaces can be cleaned with a non-abrasive, non-ammonia or non-bleached based

cleaner. Do not use soap or detergents on exposed metal surfaces, leg levelers or on the work

surface. The soap may leave a residue that will insulate the surface from ESD grounding. Wipe

down all cleaned surfaces with a lint free soft cloth.

Leg levelers

Three of the four leg levelers are adjustable and non-conductive. They can be cleaned with any

non-ammonia or bleached based cleaner. The fourth Leg leveler is equipped with an aluminum

conductive boot. This can be cleaned with any non-ammonia or bleached based cleaner.

Approved cleaning solutions for ESD surfaces

•Desco 10446 Reztore Surface & Mat Cleaner

•3M 8001 Antistatic Mat & Table Top Cleaner

NOTE: Do not use petroleum-based solvents or alcohol to clean any surfaces on this ESD

Workbench.

Page | 8

Save This Manual for Future Reference

Troubleshooting

ESD non-compliant on work surface & common grounds

•Verify that the flooring has a RTT value of 10⁵<10⁹ Ohms resistance.

•Verify that the ESD surface has a RTT value of 10⁵<10⁹ Ohms resistance. If it does not,

clean and repeat test. If it still does not pass then the surface will need to be replaced.

•Verify that that the resistance from the surface to the conductive aluminum boot has a

RTG value of 10⁵<10⁹ Ohms resistance. If this RTG value fails proceed to the next step.

•Check the RTG value of 10⁵<10⁹ Ohms resistance from the common ground on the work

surface to the conductive aluminum boot. If this test passes, replace the ESD surface. If

this RTG value fails proceed to the next step.

•Check the RTG value of 10⁵<10⁹ Ohms resistance from the ESD wrist strap connection

point to the conductive aluminum boot. If this test passes, replace the ESD surface. If

this RTG value fails proceed to the next step.

•Check the built-in cable to see if it connected or broken. Replace if damaged. Retest

RTG value.

•Check ground wire connection to the conductive aluminum boot (this is visible

underneath the bottom shelf). Replace if damaged. Retest the RTG value.

Glossary:

•RTT = Resistance to table

•RTG = Resistance to ground

Page | 9

Save This Manual for Future Reference

Warranty
