Know your Kenwood Stand Mixer
Congratulations on buying a Kenwood. With such a wide range of attachments
available, it’s more than just a mixer. It’s a state-of-the-art Stand Mixer. We hope
you’ll enjoy it.
Robust. Reliable. Versatile. Kenwood.
2
Safety
lRead these instructions carefully and retain for future
reference.
lRemove all packaging and any labels.
lIf the plug or cord is damaged it must, for safety reasons, be
replaced by Kenwood or an authorised Kenwood repairer in
order to avoid a hazard.
lTurn the speed control to ‘O’ OFF position and unplug before
fitting or removing tools/attachments, after use and before
cleaning.
lKeep your fingers away from moving parts and fitted
attachments.
lNever leave the Stand Mixer unattended when it is operating.
lNever use a damaged appliance. Get it checked or repaired:
see ‘Service and customer care’ section.
lNever operate the Stand Mixer with the head in the raised
position.
lNever let the cord hang down where a child could grab it.
lNever let the power unit, cord or plug get wet.
lNever use an unauthorised attachment or more than one
attachment at once.
lNever exceed the quantities stated in the maximum capacity
chart.
lWhen using an attachment, read and follow the safety
instructions that are supplied with it.
lTake care when lifting this appliance as it is heavy. Ensure the
head is correctly latched in the down position and that the
bowl, tools, outlet covers and cord are secure before lifting.
lDo not move or raise the mixer head with an attachment fitted
as the Stand Mixer could become unstable.
English

lWhen moving the appliance always pick up by the pedestal
base and mixer head. Do not lift or carry the appliance by the
bowl handle.
lDo not operate your appliance near the edge or overhanging
the work surface or apply force to an attachment when fitted,
as this may cause the unit to become unstable and tip over,
which may result in injury.
lTake care when removing bowl tools after extended use as
they may get hot.
lEnsure the cord is fully unfolded from the cord storage
compartment bm before using the Stand Mixer.
lChildren should be supervised to ensure that they do not play
with the appliance.
lDo not operate your appliance near the edge of a work
surface.
lThe short power-supply cord is used to reduce risk resulting
from becoming entangled in or tripping. Extension cords
may be used if care is exercised in their use. If an extension
cord is used: 1) The marked electrical rating of the extension
cord should be at least as great as the electrical rating of the
appliance; and 2) The cord should be arranged so that it will
not drape over the countertop or tabletop where it can be
pulled on by children or tripped over unintentionally. 3) The
extension cord should be an earthed-type 3-wire cord. The
electrical rating of the appliance is listed on the bottom of the
unit.
lAppliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
lMisuse of your appliance can result in injury.
lThis appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
lThe maximum rating is based on the mini chopper/mill
attachment that draws the greatest load. Other attachments
may draw less power.
lOnly use the appliance for its intended domestic use.
Kenwood will not accept any liability if the appliance is subject
to improper use, or failure to comply with these instructions.
3

4

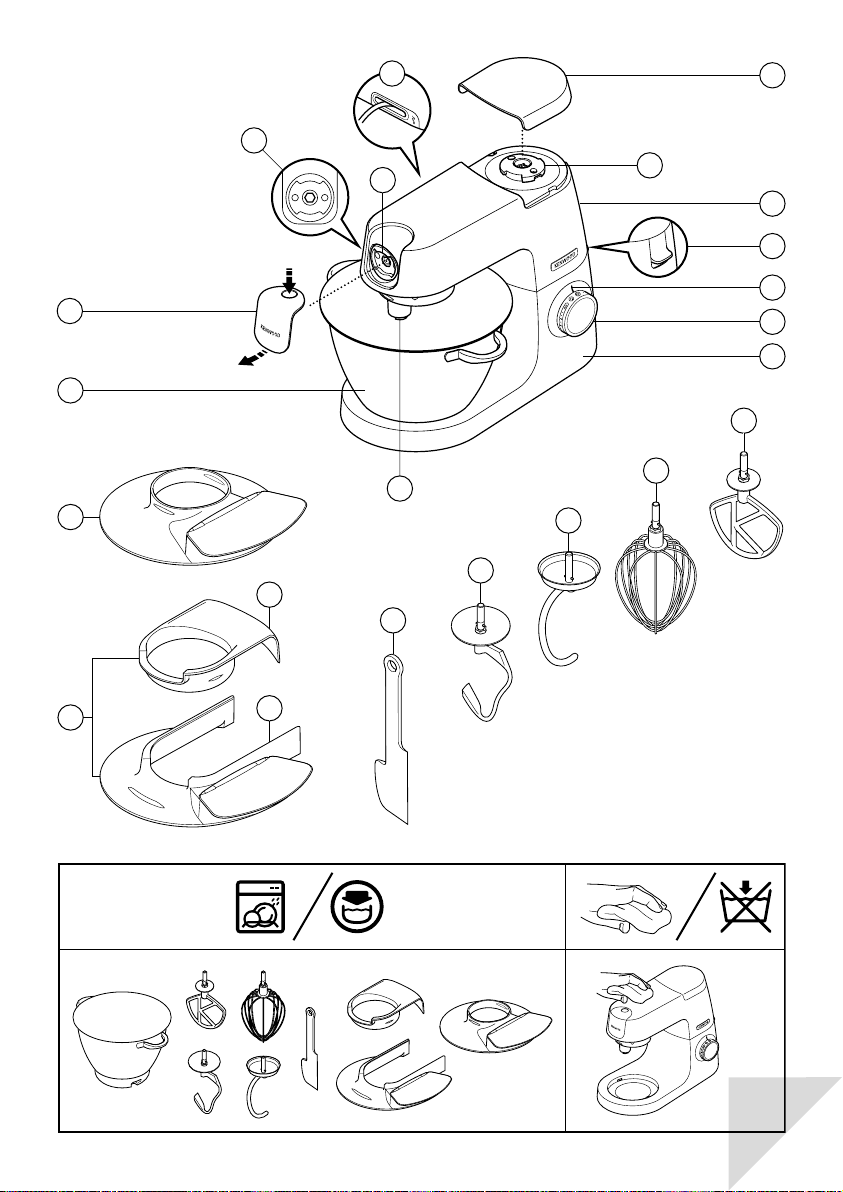

Know your Stand Mixer
Key
Attachment outlets
1high-speed outlet
2slow-speed outlet
3bowl tool socket
Mixer
4high speed outlet cover
5mixer head
6head release lever
7mixer ready indicator light
8on/off and speed control
9power unit
bk bowl
bl slow speed outlet cover
bm cord storage compartment
bn K-beater
bo whisk
bpadough tool (if supplied)
bpbspiral dough tool (if supplied)
bq spatula
br splashguard (if supplied)
bs splashguard (if supplied)
Ahead shield
Bsplashguard
Note: Spanner bn shown is for illustration
purposes only and is not supplied in pack.
Optional attachments
There are a range of optional attachments
available to use with your Stand Mixer.
See the attachment leaflet included in your
pack or visit www.kenwoodworld.com
Before plugging in
• Make sure your electricity supply is the same as the one shown on the underside of your
appliance.
Important – Plug and Fuse Information
• The wires in the cord are coloured as follows:
Blue = Neutral
Brown = Live
l If the plug supplied with your appliance has a fuse fitted and the fuse fails it must be
replaced with one of the same rating.
• If the plug or cord requires replacing a new cord set should be fitted by an Authorised
Kenwood Repairer.
Note:
• For non-rewireable plugs the fuse cover MUST be refitted when replacing the fuse. If the
fuse cover is lost then the plug must not be used until a replacement can be obtained.
The correct fuse cover is identified by colour and a replacement may be obtained from
your Kenwood Authorised Repairer (see Service).
• If a non-rewireable plug is cut off it must be DESTROYED IMMEDIATELY. An electric
shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into
a socket outlet.
• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended
to come into contact with food.
before using for the first time
• Wash the parts: see ‘Care and cleaning’ section.

5
to see the full range and how to buy an
attachment not included in your pack.
Note: Slow Speed outlet attachments
The slow speed outlet on your Stand
Mixer model features the Twist Connection
System. It is designed to accept Twist
Connection System attachments.
When purchasing new attachments for
the slow speed outlet you should check
compatibility with your Stand Mixer. All
Twist Connection System attachments can
be identified by the product code which
starts with KAX and also by the Twist logo
which is visible on packaging. For more
information visit
www.kenwoodworld.com/twist.
If you own attachments featuring the Bar
Connection System you will need to
use the KAT002ME adaptor to connect
these to the Twist Connection System
on your Stand Mixer.
For more information visit
www.kenwoodworld.com/twist.
The bowl tools and some of their uses
K-beater
For making cakes, biscuits, pastry, icing,
fillings, éclairs and mashed potato.
Whisk
For eggs, cream, batters, fatless sponges,
meringues, cheesecakes, mousses,
soufflés. Do not use the whisk for heavy
mixtures (e.g. creaming fat and sugar) -
you could damage it.
Dough Hook
For yeast mixtures only
To use your bowl tools
Ensure the cord is fully unfolded from the
cord storage compartment bm before
using the Stand Mixer.

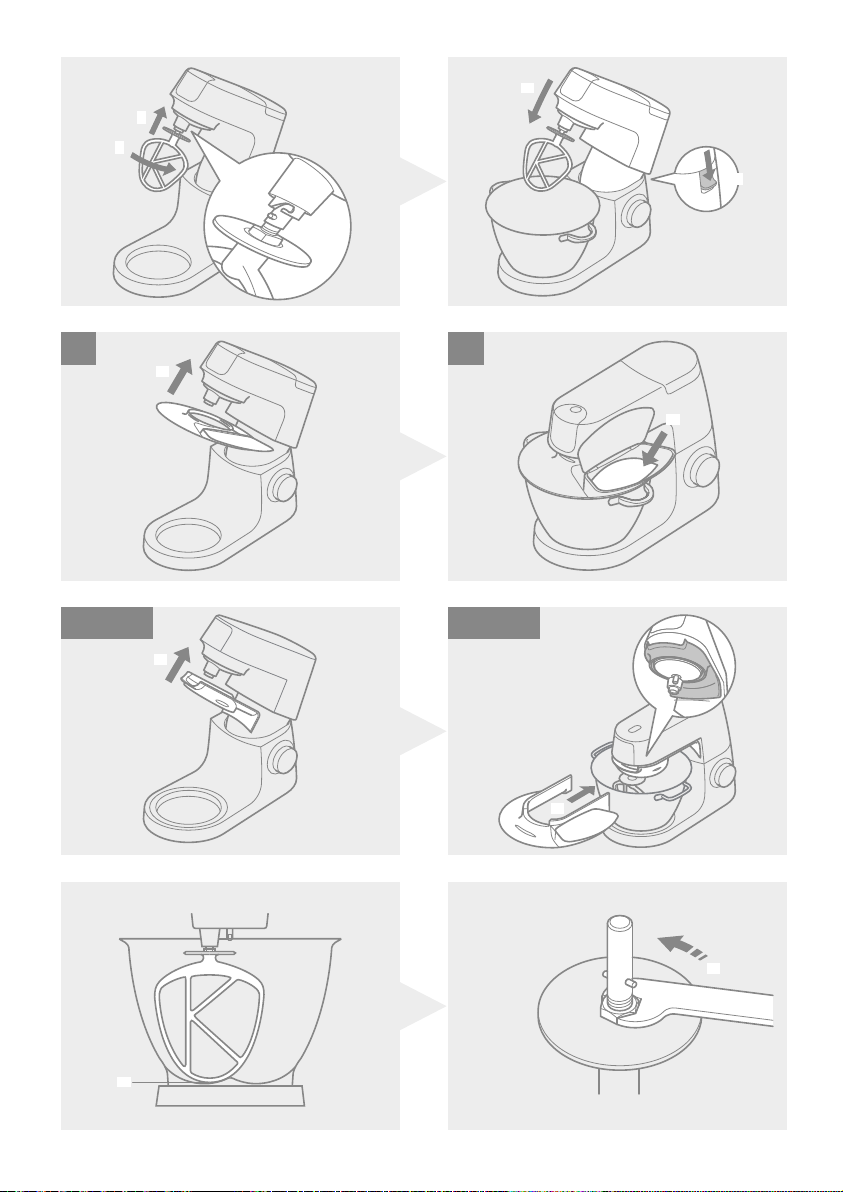

1 Push the head-lift lever 1down and
raise the mixer head until it locks 2.
2 Fit the bowl on the base and turn
clockwise 3to secure in position .
3 Place the required tool into the socket.
Then push up 4and turn 5the tool to
lock into position.
Note: If the K-beater or Whisk are
not picking up ingredients from the
bottom of the bowl refer to the “Tool
Adjustment” section.
4 Lower the mixer head by pushing the
head release lever down 6and lower
the mixer head until it locks 7.
5 Plug into the power supply and the
‘mixer ready indicator light’ will illuminate.
6 Start the machine by turning the speed
control to the desired speed setting. Use
the pulse (P) position for short bursts of
maximum speed.
7 After use, return the speed control to
‘O’ OFF position and unplug your Stand
Mixer.
8 Release the tool by turning clockwise
to unlock from the tool socket and then
remove.
Hints
• The fold function can be used for
folding light ingredients into heavier
mixtures for example meringues,
mousses, fruit fools, Genoese sponges
and soufflés, and to slowly incorporate
flour and fruit into cake mixtures. The
mixer will operate at a constant slow
speed.
Important
Ensure that no bowl tools are fitted or
stored in the bowl when using other
outlets.

6
Recommended Usage Chart
Tool Recipe/ Process Maximum Capacities
* (Minutes)
Hints and Tips
Chef Chef XL
K-beater Creaming butter/margarine and
sugar
2.72kg
(9 Egg mix)
4.55kg
(15 Egg
mix)
Min Max 4 • To avoid splashing of ingredients
gradually increase the speed.
• When creaming fat and sugar for
cake mixes, always use the fat at room temperature or soften it first.
• To fully incorporate the ingredients
stop mixing and scrape down the bowl with the spatula frequently.
• Use cold ingredients for pastry unless
your recipe says otherwise.
Beating eggs into cake mixes Min Max 1 – 4 Folding in flour, fruit etc Fold 130 – 60 secs
Pastry & Biscuits – rubbing fat into flour
Flour Weight 680g 910g Min 22
All In one cake mixes
Total Weight 2kg 5kg Min Max 45 – 60 secs
Whisk Egg whites 12 (455g) 16 (605g) Min Max 1½ – 2 Important
• To avoid splashing of ingredients
gradually increase the speed.
• The whisk is not suitable for
making all in one cake mixes as these mixes are too heavy and will damage it.
• Best results achieved when eggs are
at room temperature.
• Before whisking egg whites, make
sure there is no grease or egg yolk on the whisk or the bowl.
Fatless sponges 620g
(6 Egg Mix)
930g
(9 Egg Mix)
4
–
6
Cream (Fresh whipping Cream used, 38% fat content. Processing times may vary, depending on fat content of cream)
1L 2L Min 4-6 1½ – 3
Mayonnaise Egg yolk 2 Max 1 – 1½ • For best results scrape down the
bowl after the addition of the oil and run for a further 10 secs at max speed.
Mustard 10g Vegetable Oil 200ml
Pancake Batter Flour 250g
‘Min’ speed for
10 secs. Then
increase to
max speed for
45 – 60 secs
1 • Add flour to the bowl first, followed
by the wet ingredients.
• Mix on minimum speed to
incorporate ingredients.
Milk 500g Eggs 200g
Eggs sizes used = medium sized (Weight 53 – 63g) * This is for guidance only and will vary depending on the exact recipe and ingredients being processed

7
Tool Recipe/ Process Maximum Capacities
* (Minutes)
Hints and Tips
Chef Chef XL
Dough
Hook (For
Yeasted
Dough
Mixes)
Bread Dough (stiff yeasted)
Flour Weight
350g –
1.36kg
350g –
1.6kg
Min 60 secs Important
• Never exceed the maximum
capacities stated – you may overload the machine.
• If you hear the machine labouring,
switch off, remove half the dough and do each half separately.
• The ingredients mix best if you put
the liquid in first.
Yeast • Dried yeast (the type that needs
reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy.
• Fresh yeast: crumble into the flour. • Other types of yeast: follow the
manufacturer’s instructions.
• Put the dough into a greased
polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size.
1 3
–
4
Total Weight
564g – 2.18kg
564g – 2.58kg
Re-knead
Speed 1
60 secs
Soft yeasted dough (enriched with butter and eggs
Flour Weight 250g –
1.3kg
250g –
1.6kg
Min 60 secs
Total Weight 478g –
2.5kg
478g –
3.1kg
1 3
–
4
Re-knead
Speed 1
60 secs
Eggs sizes used = medium sized (Weight 53 – 63g) * This is for guidance only and will vary depending on the exact recipe and ingredients being processed

Splashguard br
1 Raise the mixer head until it locks.
2 Fit the bowl onto the base.
3 Push the splashguard onto the underside
of the mixer head 8until fully located.
The hinged section should be positioned as
shown.
4 Insert required tool.
5 Lower the mixer head.
• During mixing, ingredients can be added
directly to the bowl via the hinged
section of the splashguard 9.
• You do not need to remove the
splashguard to change tools.
6 Remove the splashguard by raising the
mixer head and pushing it down.
Splashguard bs
The splashguard assembly consists of
2 pieces: the head shield Aand the
splashguard B.
• The splashguard cannot be fitted to the
bowl unless the shield is fitted.
1 Clip the head shield upwards onto the
underside of the mixer head bk until fully
located.
2 Rest the splashguard on the bowl rim
and then slide forward until fully located
bl.
K-beater & Whisk
The tools are set to the correct height for
the bowl supplied in the factory and should
not require adjustment.
However, if you wish to adjust the tool use
a suitable sized spanner:
TYPE KVC51 = 15mm
TYPE KVL61 = 19mm
Then follow the instructions below:
1 Unplug the appliance.
2 Raise the mixer head and insert the
whisk or beater.
3 Lower the mixer head. If the clearance
needs to be adjusted, raise the mixer
head and remove the tool. Ideally the
whisk and K-beater should be almost
touching the bottom of the bowl bm.
4 Using a suitable spanner loosen the nut
sufficiently to allow adjustment of the
shaft bn. To lower the tool closer to the
bottom of the bowl, turn the shaft anti-
clockwise. To raise the tool away from
the bottom of the bowl turn the shaft
clockwise.
5 Re-tighten the nut.
6 Fit the tool to the mixer and lower the
mixer head. (Check its position see
points above).
7 Repeat the above steps as necessary
until the tool is set correctly. Once this is
acheived tighten the nut securely.
• Note: Spanner bn shown is for
illustration purpose only.
Dough Hook
This tool is set at the factory and should
require no adjustment.
8
To fit and use your
Splashguard
Tool Adjustment

9
Care & Cleaning Recipe
• Always switch off and unplug before
cleaning.
• A little grease may appear at the slow
speed outlet 2when you first use it.
This is normal – just wipe it off.
Power Unit And Outlet Covers
• Wipe with a damp cloth, then dry.
• Never use abrasives or immerse in water.
• Store excess cord into the cord storage
compartment bm at the back of the
machine.
Bowl
• Wash by hand, then dry thoroughly or
wash in the dishwasher.
• Never use a wire brush, steel wool or
bleach to clean your stainless steel bowl.
Use vinegar to remove limescale.
• Keep away from heat (cooker tops,
ovens, microwaves).
Whisk & Splashguard
•Wash by hand, then dry thoroughly or
wash in the dishwasher.
K beater & Dough Tool
•Wash by hand, then dry thoroughly or
wash in the dishwasher.
chilli marinade
200g cold clear runny honey (refrigerated
overnight)
1 chilli (whole)
20g (1tsp) crunchy peanut butter
Seasoning
1 Place all the ingredients into the mini
chopper/mill.
2 Fit the attachment to the Stand Mixer
and allow the ingredients to settle around
the blade.
3 Switch to pulse for 4 seconds.
4 Use as required.

If you experience any problems
with the operation of the appliance,
before calling for assistance refer
to the troubleshooting guide or visit
www.kenwoodworld.com.
If you need help with:
• using your appliance
• servicing or repairs (in or out of
guarantee)
Zcall Kenwood customer care on
0345 222 0458. Have your model
number (e.g. KVC51, or KVL61) and
date code (5 digit code e.g. 21T04)
ready. They are on the underside of the
power unit.
• spares and attachments
Zcall 0844 557 3653.
other countries
• If you experience any problems with
the operation of your appliance, before
requesting assistance refer to the
“Troubleshooting guide” section in the
manual or visit www.kenwoodworld.com.
• Please note that your product is covered
by a warranty, which complies with
all legal provisions concerning any
existing warranty and consumer rights
in the country where the product was
purchased.
• If your Kenwood product malfunctions
or you find any defects, please send it
or bring it to an authorised KENWOOD
Service Centre. To find up to date
details of your nearest authorised
KENWOOD Service centre visit
www.kenwoodworld.com or the website
specific to your Country.
• Made in China.
IMPORTANT INFORMATION FOR
CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE
WITH THE EUROPEAN DIRECTIVE
ON WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT (WEEE)
At the end of its working life, the product
must not be disposed of as urban waste.
It must be taken to a special local authority
differentiated waste collection centre or to
a dealer providing this service.
Disposing of a household appliance
separately avoids possible negative
consequences for the environment and
health deriving from inappropriate disposal
and enables the constituent materials to be
recovered to obtain significant savings in
energy and resources. As a reminder of the
need to dispose of household appliances
separately, the product is marked with a
crossed-out wheeled dustbin.
10
Service and Customer Care

11
Troubleshooting guide
Problem Cause Solution
The whisk or K-beater Tool at the wrong Adjust the height using a suitable
knocks against the bottom height and needs spanner – see “Tool Adjustment”
of the bowl or not reaching adjusting. section.
the ingredients in the
bottom of the bowl.
Slow speed attachment Check your attachment Attachment must have the KAX
cannot be fitted. is compatible for twist connection system to fit
use with your model. the outlet.
Twist connection If you own attachments featuring
system required the Bar Connection System
(Model KAX) you will need to use the
KAT002ME adaptor to connect
these to the Twist Connection
System on your Stand Mixer.
For more information visit
www.kenwoodworld.com/twist
‘Mixer ready indicator light’ Speed control not Check and turn speed control
flashing when Stand Mixer in the ‘O’ position. to the ‘O’ position.
first plugged in.
Mixer head in the raised Check Stand Mixer head
position or not locked is locked down correctly.
down correctly.
The Stand Mixer Overload protection or Unplug and check for
stops during operation. overheat system obstruction or overloading.
‘Mixer ready indicator light’ activated. Turn the speed control to “O”
flashing rapidly. Maximum capacity and then restart.
exceeded. If the machine will not operate,
remove some of the ingredients to
reduce the load and restart.
If this still does not resolve the
problem, unplug and allow to
stand for 15 minutes. Plug in and
reselect the speed.
If the machine does not restart
following the above procedure
contact “ customer care” for
further advice.
‘Mixer ready indicator light’ Stand Mixer has been Turn the speed control to ‘min’
off whilst machine plugged left plugged in for more then return to ‘O’ to reset the
in. than 30 minutes without machine.
being operated and has
gone into Standby mode.

02









.»«-




Twist
connection system
()(KAX)
twistKAX
 connection system

Bar
 Connection System

KAT002ME
twist connection system
 :
www.kenwoodworld.com/twist


.»O«




.»O«














»O«









”“







“
”



“
”


»min«
»O«

«
»


91

  •

 •
2
-
)(
 •
 •
 •
bm


 •

 •



) •
.(

 •

K
 •



)
(
()
()

/ 
 

 

 
•ÅMl ≠w «∞BOs.
≠w ≤NU¥W «∞FLd «∞∑AGOKw ∞KπNU“, ¥πV ´b «∞∑ªKh ±s
«∞πNU“ ≠w ≤HU¥U‹ «∞LMU©o «∞∫Cd¥W.
°q ¥πV √îcÁ ≈∞v ±dØe ¢πLOl îU’ °πNW ±∫KOW ±∑ªBBW
≠w «∞∑ªKh ±s ≥cÁ «∞MHU¥U‹ √Ë ≈∞v ¢U§d ¥Ib ≥cÁ «∞ªb±W.
«∞∑ªKh ±s «_§Ne… «∞LMe∞OW ´Kv ≤∫u ±MHBq, ¥πMV «ü£U¸
«∞ºK∂OW «∞L∫∑LKW ´Kv «∞∂OµW Ë«∞B∫W Ë«∞∑w ¢M∑Z ´s «∞∑ªKh
±s ≥cÁ «∞MHU¥U‹ °Dd¥IW ¨Od ±MUß∂W, ØLU √Ê ≥cÁ «∞FLKOW
¢ºL` °Uß∑dœ«œ «∞Lu«œ «∞LJu≤W «_±d «∞cÍ ¥∑O` «∞∫Bu‰ ´Kv
Ë≠u¸«‹ Ø∂Od… ≠w ±πU‰ «∞DUÆW Ë«∞Lu«¸œ. ∞K∑cØOd °Cd˸…
«∞∑ªKh ±s «_§Ne… «∞LMe∞OW ´Kv ≤∫u ±MHBq, ¥u§b ´Kv
«∞πNU“ Åu¸… ±ADu°W ∞ºKW ÆLU±W –«‹ ´πö‹.
 •
«
»
www.kenwoodworld.com
  •



Kenwood 
•

KENWOOD
KENWOOD 
 
www.kenwoodworld.com




(WEEE)

81
br
 K





=TYPE KVC51
=TYPE KVL61
:





K/
.bm 

bn 


 



)
.(



bn: •






1 «¸≠Fw ¸√” •∑v ¢º∑Id ≠w ±u{l «∞d≠l.
2 ¸Ø∂w ´Kv «∞IU´b….
3 «œ≠Fw ±U≤l «∞d–«– ≈∞v «∞πU≤V «∞ºHKw ±s ¸√” «∞ªö◊
8
•∑v ¥∑r ¢dØO∂t. ¥πV √Ê ¥JuÊ ±u{l «∞πe¡
«∞LHBKw ØLU ≥u ±∂Os.
4 ¸Ø∂w «_œ«… «∞LDKu°W.
5 «îHCw ¸√” «∞ªö◊.
•√£MU¡ , ¥LJs ≈{U≠W «∞LJu≤U‹ ±∂U®d… ≈∞v
´s ©d¥o «∞πe¡ «∞LHBKw ±s ±U≤l «∞d–«–
9
.
• ∞s ¢∫∑U§w ù“«∞W ±U≤l «∞d–«– ´Mb ¢GOOd «_œË«‹.


 


bs

:
.BA
 •

 
bk
 

.bl

71

  / 
Chef XL Chef
 •

»Min« •

 "Min"

"Max"


   
   

– •

 •


 •


( •
:)



: •
: •

 •



 "Min" 





 
(
)


(

)

–
 
 
 







 "Min" 





 
(
)



–
  





 

)(=
 *
* ()

16
61


 / 
Chef XL Chef
 •

 •


 •


 •

"Max" "Min" 

(
)


(
)
/ K
– "Max" "Min" 
-  

"Min"    
–

– "Max" "Min"   
 


 •

 •



 


 •


– ½"Max" "Min" (
) 
)( 

–

(
)

(
)


– ½-"Min"   
(


)
 •



½ – "Max"   
 
 
)(=
 *

* ()
