Kichler Lighting 35166 User manual

ITEM #0883799
MODEL #35166
CEILING FAN
1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Français p. 17
Español p. 33
Distributed by Kichler® LLC. All Rights Reserved.

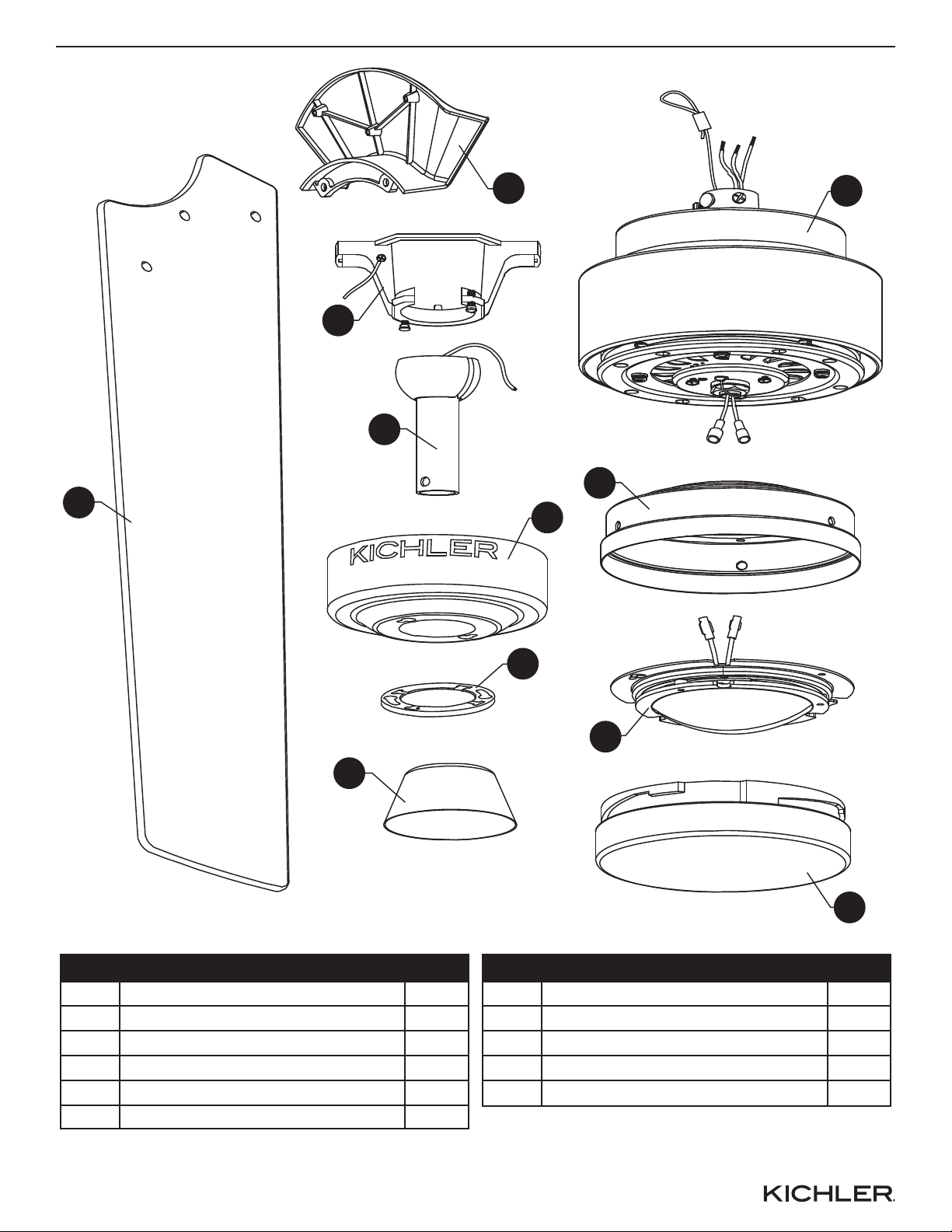

PACKAGE CONTENTS
2
A Hanging Bracket
Down Rod
Canopy
Blade Iron
Motor Coupling Cover
Motor Assembly
B
C
D
E
F
1
1
1
4
11
1
PART DESCRIPTION QTY
Light Kit Housing
Light Kit
Shade
Canopy Hole Cover
Blade
G
H
I
J
K
1
1
1
1
4
PART DESCRIPTION QTY
A
E
H
B
KG
C
J
I
F
D

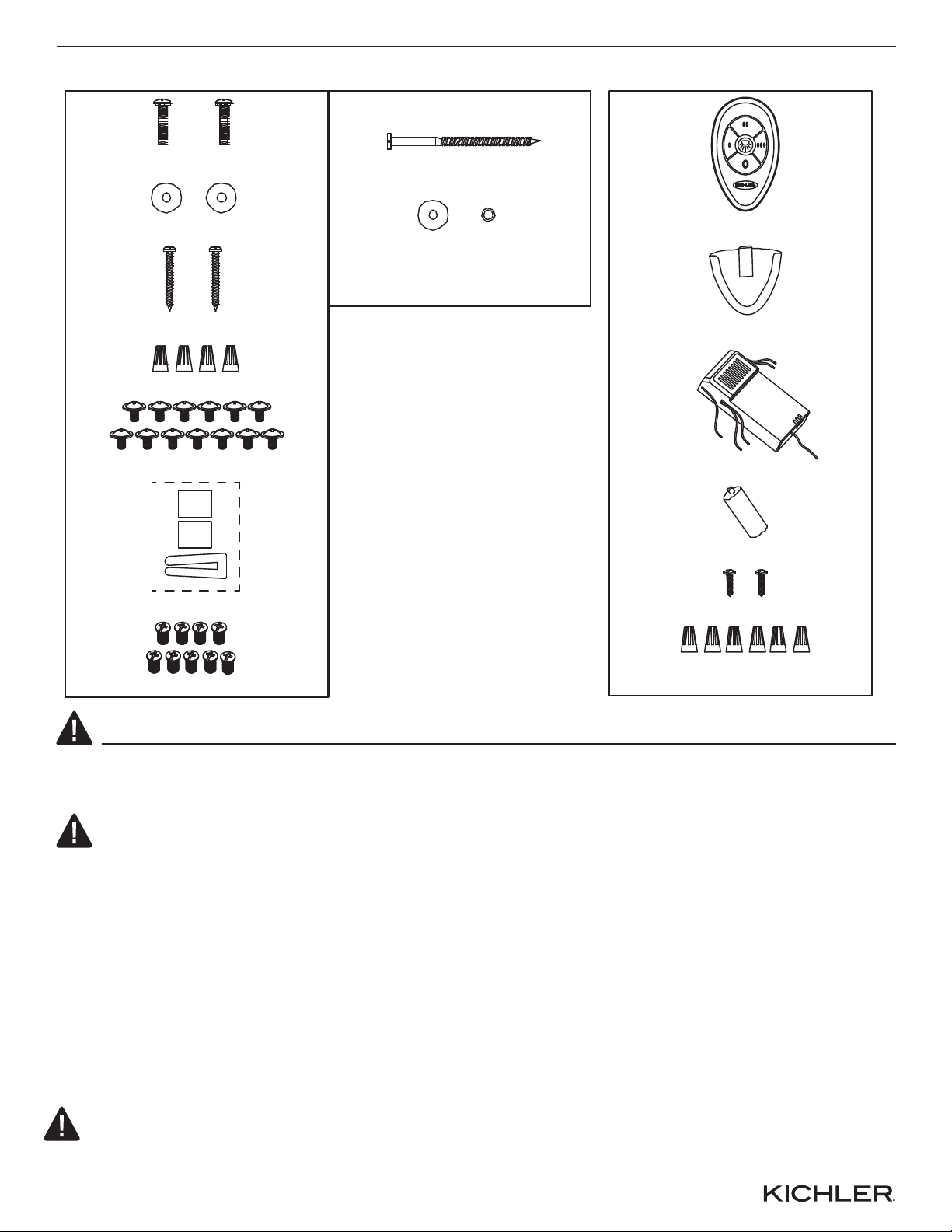

HARDWARE CONTENTS
3
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Balance Kit
HARDWARE BAG REMOTE CONTROL
Remote Control
Remote Control Holder
Receiver
Battery
Wood Screw
Wood Screw
Lag Screw
Wire Connector
Blade Iron Screws
Flat Washer + Spring Washer
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the
“OFF” position and unscrew the fuse(s), or switch “OFF” the circuit breaker switch(es), that control
the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull
chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent
looking directly at the LEDs with unaided eyes for more than a few seconds.
• California Proposition 65
WARNING: This product can expose you to lead, which is known to the State of
California to cause cancer, birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov

PREPARATION
4
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses.
A B C
ASSEMBLY INSTRUCTIONS

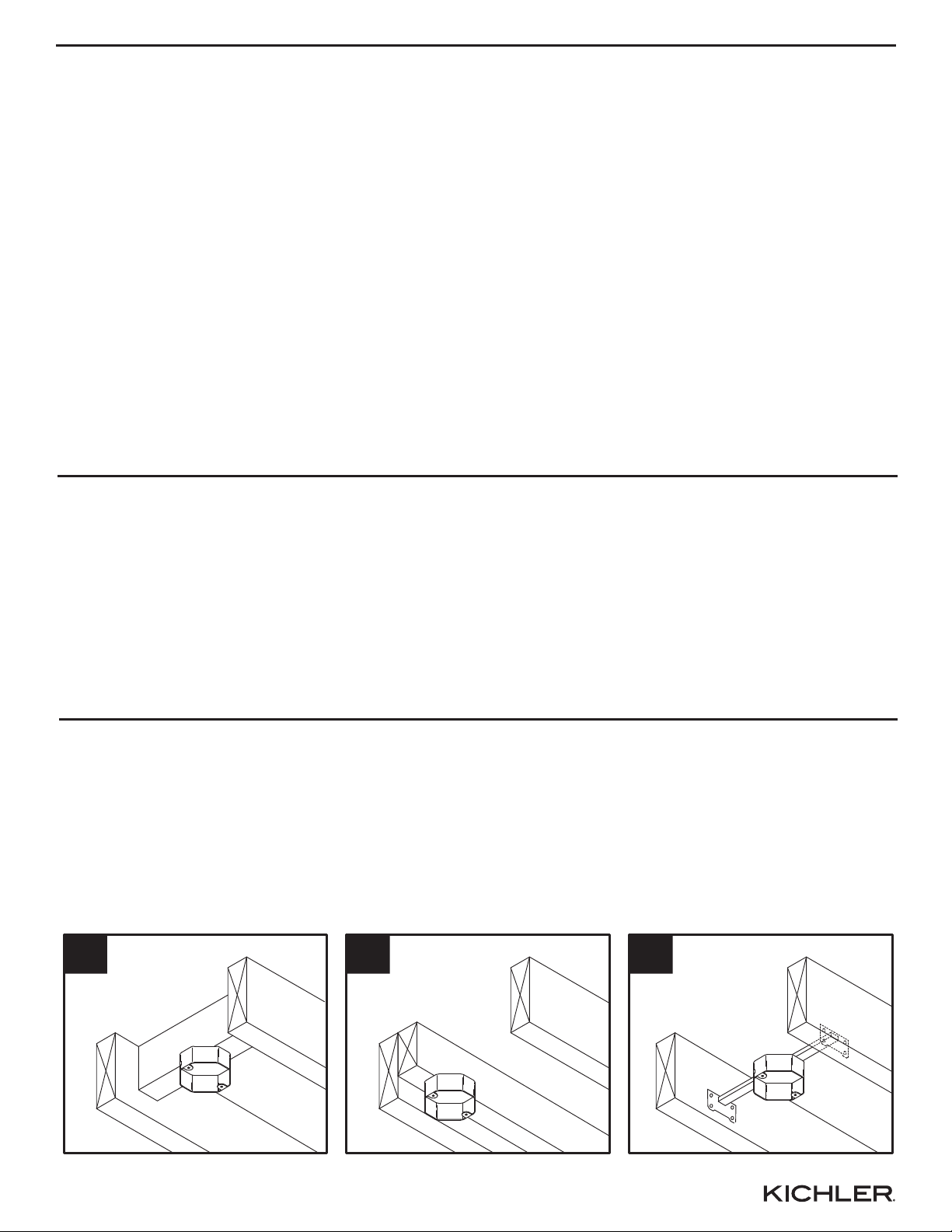

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
SAFETY INFORMATION (continued)
CAUTION
• Read and understand all instructions and illustrations completely before proceeding with assembly
and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all
local code specifications.
• This fixture is for indoor use only.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.
• This fixture is dimmable when using an electronic low voltage (ELV) dimmer. Note: dimmers
that specify use with LED, but are not ELV, are NOT sufficient. They are designed to work with
LED “bulbs” not integrated LED fixtures.

ASSEMBLY INSTRUCTIONS
5
1. Secure the hanger bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 18°.
2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair
and clevis pin that will be used on a later step.
1
A
Outlet Box
Hair Pin
Safety Cable
Clevis Pin
2
F
Coupling
Hardware Used
x 2
x 2
Hanging Bracket
Screw
Hanging Bracket
Washer

6
ASSEMBLY INSTRUCTIONS

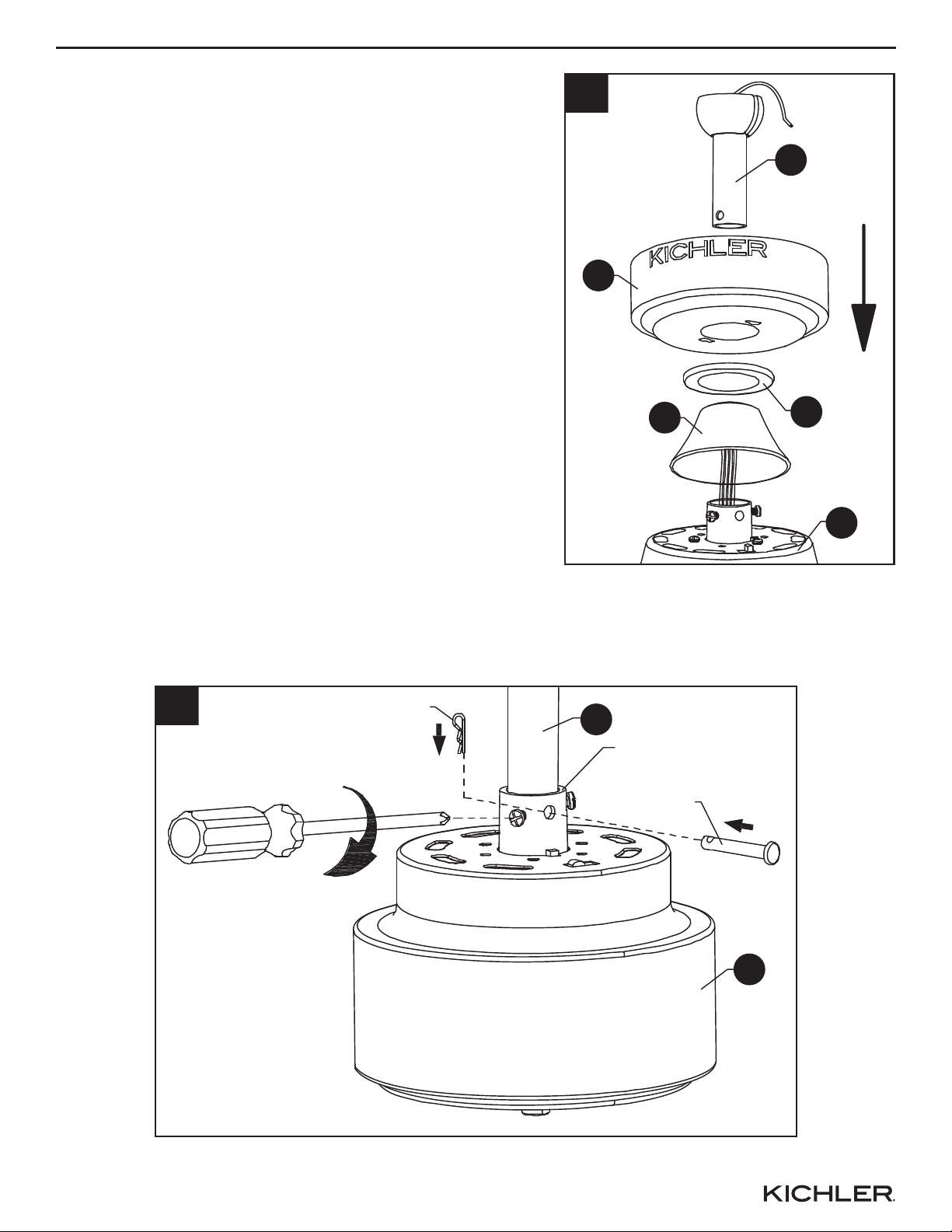

3. Insert down rod (B) through canopy (C), canopy hole
cover (J), and motor coupling cover (E). Feed wires
from the motor assembly (F) through the down rod
(B), then insert the down rod (B) into the coupling
found on top of the motor assembly (F).
4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
F
J
3
C
E
B
Hair Pin
Clevis Pin
Coupling
B
F
4

7
ASSEMBLY INSTRUCTIONS

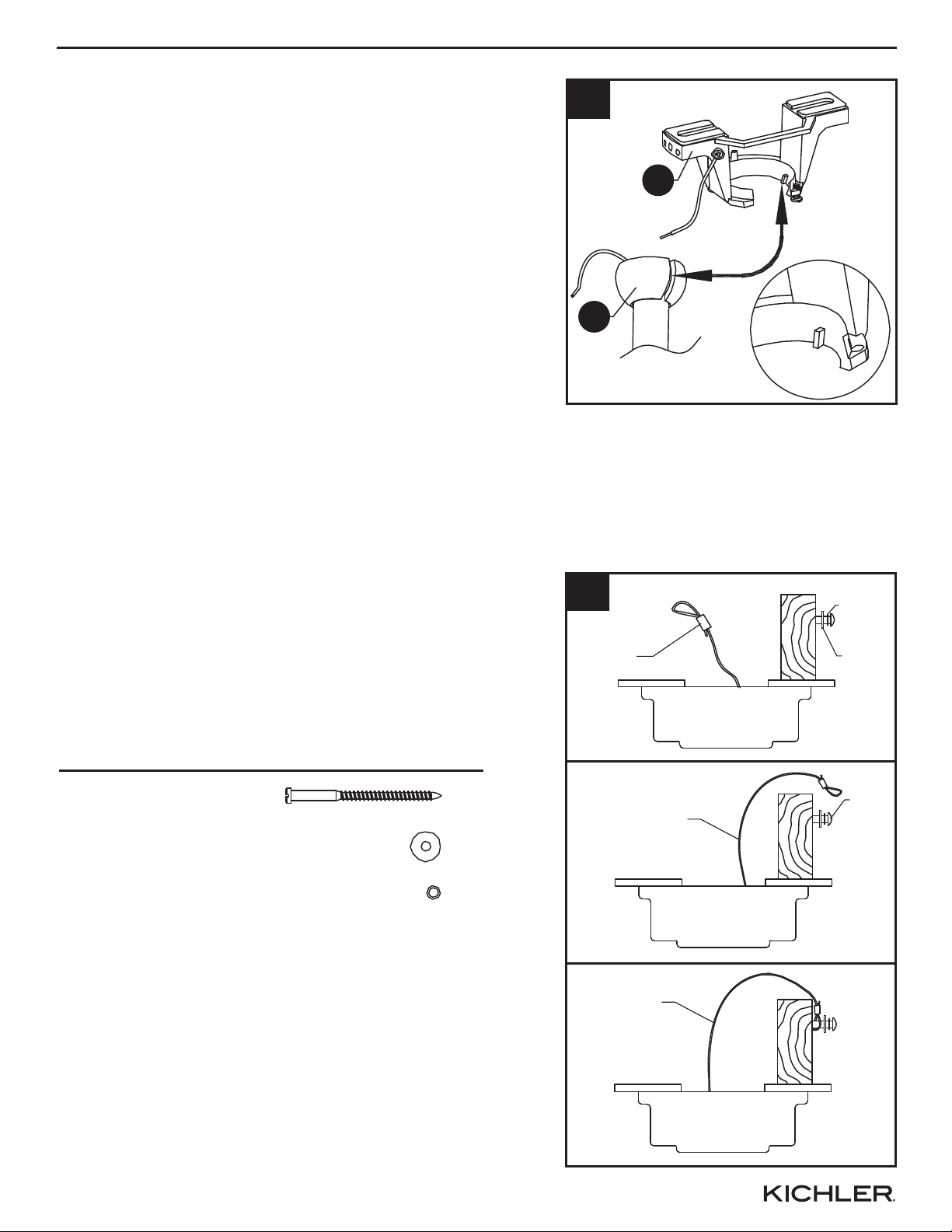

5. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanger bracket (A). Be sure the
groove in the ball is lined up with the tab on the
hanger bracket (A).
B
A
5
6. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw. Make sure
that when the safety cable is fully extended the lead
wires are longer than the cable and no stress is
placed on the lead wires.
Safety
Cable
Lag
Screw
Safety
Cable
Flat
Washer
Spring
Washer
6
Safety
Cable
Hardware Used
x 1
x 1
x 1
Lag Screw
Flat Washer
Spring Washer

ASSEMBLY INSTRUCTIONS
8

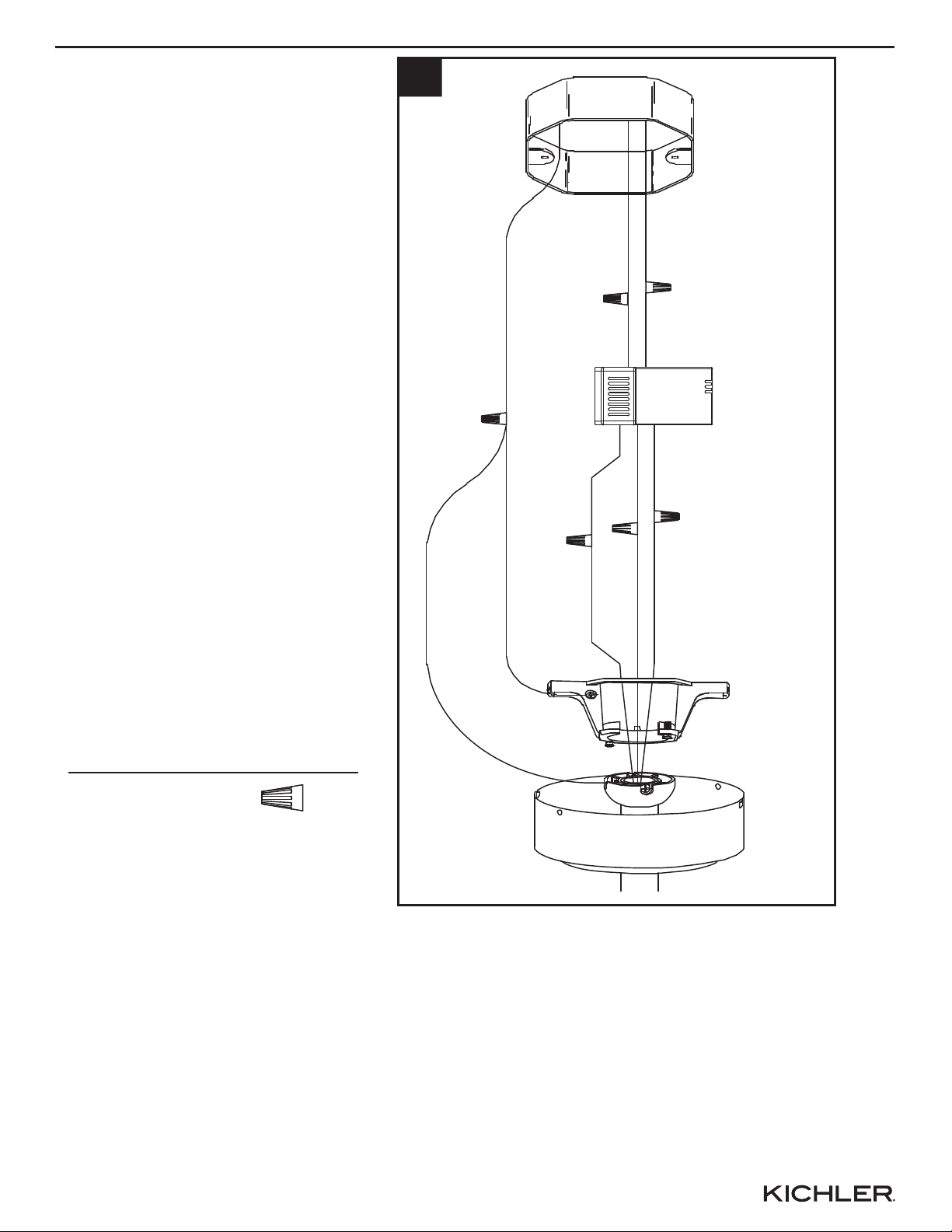

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
OUTLET BOX
BLACK
(LIVE)
BLACK
(AC
INPUT)
WHITE
(NEUTRAL)
WHITE
(AC
INPUT)
BARE COPPER
(GROUND)
BLUE
WHITE
BLACK
BLUE (LIGHT)
WHITE
(NEUTRAL)
BLACK
(MOTOR)
GREEN (BRACKET)
GREEN (DOWNROD)
Hardware Used
x 6Wire Connector

ASSEMBLY INSTRUCTIONS
9
9. Once wiring step has been completed, slide the
wired remote receiver in between the hanging
bracket (A) and the top of the downrod ball (B) with
the flat side of the receiver facing the ceiling. Turn
lead wires upward and carefully push them into the
outlet box, with the white and green wires to one
side of the box and the black wires toward the other
side.
9
A
B
8. There are 16 combinations of code for setting up the
remote control. If you do not use the dip switch set
up by manufacture then you will need to use the set
up procedures listed below.
Remove the remote control battery cover to expose
the remote dip switches. Use a small ballpoint pen
(not included) to set the dip switches to either up or
down.
a.) Install the 23A 12V battery (included) and replace the
battery cover you previously removed.
b.) After installing the unit and restoring power to the
fan, press and hold the “Light” button until the light
flashes (on/off) 3 times and will stay on, then the
control and speed setting process is complete. You
must press the “Light” button within 30 seconds of
restoring power to the fan.
c.) If programming is unsuccessful, retry the above
instructions.
The remote control comes with a cradle that may be
attached to the wall with the included screws.
REMOTE
CONTROL
8
RECEIVER
NOTE: Remove batteries if remote has
not been used for a long period of time
in order to avoid damage. Store remote
away from excessive heat or humidity.

ASSEMBLY INSTRUCTIONS
10
12. Attach blade irons (D) to the motor assembly (F)
with the screws provided.
11.Attach blade iron (D) to blade (K) with blade screws.
Do not tighten blade screws until each screw has
been started. Then, tighten each screw starting with
the center screw.
Repeat for remaining blades
10.Loosen the two shoulder screws without fully
removing the hanger bracket (A). Assemble canopy
(C) by rotating keyhole slot in canopy over shoulder
screws in hanger bracket (A). Tighten shoulder
screws. Securely attach and tighten the canopy hole
cover (J) over the shoulder screws in the hanger
bracket (A) utilizing the keyhole slot twist-lock
feature.
10
A
C
J
Shoulder
Screw
11
D
K
F
D
12
Hardware Used
x 12Blade Screw
Hardware Used
x 8Blade Iron Screw

ASSEMBLY INSTRUCTIONS
11
13.Remove the mounting screw marked with a dot label from the motor assembly (F) and loosen but
do not remove the other 2. Feed the wires from the motor assembly (F) through the center hole in
the light kit housing (G). Position keyhole slots around the screws and twist clockwise. Insert the
screw that you had previously removed. Tighten all screws.
NOTE: In order to prevent damage during shipping,
the motor assembly is secured with four shipping
retainers and screws. You will need to discard these
retainers and screws before install the light kit
housing.
13
F
G

ASSEMBLY INSTRUCTIONS
12
14.Connect wires from the motor assembly (F) to the light kit (H). Remove 1 of 3 screws from the
light kit housing (G) and loosen the other 2. Place light kit (H) to light kit housing (G) by aligning 3
notches on light kit (H) with 3 protructions on the light kit housing (G) together. Position keyhole
slots around the screws and twist clockwise. Insert the screw that you had previously removed.
Tighten all screws.
15. Screw shade (I) onto light kit housing (G).
H
G
14
F
15
I
G
Notch
Protrusion

OPERATION
13
Remove remote battery door, connect battery (included) with plug pressing the battery inside and
replace the battery door. If not used for long periods of time, remove the battery to prevent
damage to the transmitter.
Fan control :
Low speed
Medium speed
High speed
To turn off the fan
Press light key quickly to turn light on or off
For DIMMER function: press and hold button to dim the light. The light will cycle from bright to
dim to bright until button is released. Light will maintain last setting if turned off.
This remote has a memory function. The remote stores the fan speed and light setting when the
fan is turned off. When the fan is turned on again, it starts with the most recent setting.

Use the fan reversing switch to optimize your fan for seasonal performance.
Note: Wait for fan to stop before reversing the switch.
• In warmer weather, counterclockwise movement of the fan will result in downward airflow
creating a wind chill effect. Push switch to the left.
• In cooler weather, clockwise movement of the fan will result in upward airflow that can help move
stagnant hot air off the ceiling area. Push switch to the right.
14
OPERATION (continued)
STEPS TO BALANCING THE CEILING FAN
• Tighten screws on the mounting bracket, outlet box, the downrod , fan blades to blade holders,
and blade holders to the motor housing.
• Measure the distance from the tip of each blade to the ceiling. All blades should have the same
vertical distance from the ceiling. Adjust any bent blade holder, by gently pressing up or down on
the brackets, until all blades are at an equal distance from the ceiling.
If wobbling persists, you may need a blade balancing kit to stabilize the ceiling fan. A blade
balancing kit consists of a plastic clip and two balancing weights.
Determining the blade that needs to be balanced is a trial-and-error task.
1. Place a numbered piece of masking tape on each blade so you don't lose track of which blade is
which.
2. One blade at a time, attach the slotted plastic clip over the center of the blade edge and turn the
fan on. Observe which blade has the clip on when the ceiling fan wobbles the least.
3. Place the plastic clip on the edge of the blade, halfway between the blade holder and the blade
tip. Turn fan on and determine improvement.
4. If there is no improvement, turn off the fan again. Slide the clip along the length of the blade to
locate the source of instability.
5. Once you've found the faulty blade, press a balancing weight on the centerline. The weight
should be parallel to the clip.
Reverse Switch

15
CARE AND MAINTENANCE
At least twice a each year tighten all screws and lower canopy to check mounting bracket screws
and downrod assembly. Clean fan housing with only a soft brush or lint free cloth to avoid
scratching the finish. Clean blades with a lint free cloth. Shut off main power supply before
beginning any maintenance. Do not use water or a damp cloth to clean the ceiling fan.
STEPS TO BALANCING THE CEILING FAN (continued)
FCC WARNING
Balancing Weight
Plastic Clip
5G
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna, increase the separation between the equipment and
receiver, and connect the equipment into an outlet on a circiut different from that to which the fan is
connected.

16
WARRANTY
Rev. 08-20-18
This warranty does not apply to any products that have been subjected to misuse, mishandling,
misapplication, connected to voltage at more than 5% above standard North American voltage,
unusual use (including but not limited to use in an environment where the annual average ambient
operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited
to improper maintenance), accident, acts of god such as high winds, improper installation or care,
failure to follow the Product’s written instructions for normal use and care, improper packaging of
products returned to Kichler, modification (including but not limited to use of unauthorized parts or
attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt
water or salt air will void any and all warranties on exterior finishes. This warranty only applies when
all components, including transformers, have been provided by Kichler. Substituting another
manufacturer’s product and/or components will render the warranty completely void.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR
PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED
TO, AND KICHLER LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS
OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO
REPUTATION AND/OR LOSS OF CUSTOMERS.
The Kichler warrants that its products will be free from defects in material and workmanship for three
(3) year from the date of purchase by the Original Purchaser.
To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly
defective parts or products to the authorized Distributor the product was purchased from with PROOF
OF PURCHASE, Original Purchaser’s name and return address and a description of the claimed
product defect.
If any of the warranted products are found by Kichler, in its sole discretion, to be defective, such
products will, at Kichler’s sole option and cost, be replaced, repaired or refunded less an amount
directly attributable to Original Purchaser’s prior use of the product. Distributor will return the repaired
or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to
remove or install any defective, repaired or replaced product.
The parties hereto expressly agree that Original Purchaser’s sole and exclusive remedy against
Distributor shall be for the repair, replacement or refund of defective products as provided herein.
This warranty extends only to product ownership by the Original Purchaser; is not transferable
whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to
own the product.

ARTICLE #0883799
MODÈLE #35166
VENTILATEUR DE PLAFOND
17
Distribue par Kichler® LLC. Tous droits réservés.
Des questions, des problèmes, des pièces manquantes? Avant de retourner le produit à
votre détaillant, appelez notre service à la clientèle au 1-800-554-6504, entre 8 h et 16 h 30
(HNE) du lundi au vendredi.
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat

CONTENU DE L’EMBALLAGE
18
A Support de suspension
Tige
Pavillon
Support des pales
Cache raccord du moteur
Ensemble moteur
B
C
D
E
F
1
1
1
4
1
1
Logement kit d'éclairage
Kit d'éclairage
Cache-trou du pavillon
Abat-jour
Pale
G
H
I
J
K
1
1
1
1
4
A
E
H
B
KG
C
J
I
F
D
PIÈCE DESCRIPTION QTÉ PIÈCE DESCRIPTION QTÉ

QUINCAILLERIE INCLUSE
19
Vis du support de suspension
Rondelle du support de suspension
Capuchon de connexion
Vis de pale
Ensemble d'équilibrage
SACHET DE QUINCAILLERIE TÉLÉCOMMANDE
Vis à bois
Tire-fond
Capuchon de connexion
Vis à bois
Support de la télécommande
Pile
Télécommande
Vis du support des pales
Rondelle plate + rondelle ressort
CONSIGNES DE SÉCURITÉ
Veuillez lire et assurez-vous d'avoir compris l’intégralité du présent guide avant d’assembler, d’utiliser ou
d’installer ce produit. Conservez ce manuel lorsque vous avez terminé.
AVERTISSEMENT
• IMPORTANT : Ne faites JAMAIS de travail sans couper l'électricité.
• Rendez-vous au coffre de fusibles principal ou au disjoncteur de votre demeure. Placez
l'interrupteur principal en position d'arrêt (« OFF ») et dévissez le(s) fusible(s), ou placez en
position d’arrêt (« OFF ») l'(les) interrupteur(s) des disjoncteurs qui alimentent le luminaire ou la
pièce dans laquelle vous travaillez.
• Placez l’interrupteur mural en position d’arrêt (« OFF »). Si le luminaire à remplacer est doté d’un
interrupteur ou à chaîne, placez-le en position d’arrêt « OFF ».
• Ne touchez pas de DEL chaude.
• Le rendement lumineux de la DEL est assez fort pour blesser les yeux. Il faut prendre des
précautions pour éviter de regarder directement les DEL sans protéger les yeux pendant plus de
quelques secondes.
• Proposition 65 de la Californie
AVERTISSEMENT: ce produit peut vous exposer au plomb, ce qui est reconnu par l'État de Californie
comme cause de cancer, d'anomalies congénitales ou d'autres dommages à la reproduction. Pour plus
d'informations, visitez www.p65warnings.ca.gov
Récepteur

PRÉPARATION
20
Avant de commencer l’assemblage du produit, assurez-vous que toutes les pièces sont présentes.
Comparez les pièces avec la liste du contenu de l’emballage et la liste de la quincaillerie. En cas de
pièces manquantes ou endommagées, ne tentez pas d’assembler le produit.
Temps d’assemblage approximatif : de 30 à 60 minutes.
Outils nécessaires pour l’assemblage (non inclus) : tournevis cruciforme, tournevis à tête plate,
pinces à dénuder, ruban isolant, escabeau, lunettes de sécurité.
A B C
INSTRUCTIONS POUR L'ASSEMBLAGE
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
AVERTISSEMENT (suite)
MISE EN GARDE
• Prenez soin de lire et de comprendre toutes les instructions et illustrations avant de commencer
l’assemblage et l’installation de ce luminaire.
• Si vous avez des doutes à propos de l’installation, ou si le luminaire ne fonctionne pas
correctement, veuillez communiquer avec un électricien qualifié.
• Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez
pas les pièces, n'en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le
non-respect de ces instructions peut annuler l’homologation UL, la certification CSA et/ou
l'homologation ETL de ce luminaire.
• Ce luminaire est pour une installation conformément au Code national de l'électricité (CNE) et
toutes les spécifications locales du code.
• Ce luminaire est réservé à une utilisation intérieure.
• Utilisez UNIQUEMENT le pilote de DEL fourni pour faire fonctionner le luminaire.
• Le câble du pilote n'est pas conçu pour une utilisation à travers les murs, les sols ou les plafonds, ou
dissimulée derrière ceux-ci.
• L’intensité lumineuse de ce luminaire est réglable à l’aide d’un gradateur électronique à basse tension
(ÉBT/ELV en anglais). Remarque : les gradateurs prévus pour être utilisés avec des DEL mais qui ne sont
pas ÉBT, ne conviennent PAS. Ils sont prévus pour fonctionner avec des ampoules à DEL, mais pas avec
des luminaires à DEL intégrés.
