Instruction Manual
52” Canfield Pro
TM
A Kichler® Select™ceiling fan
Includes our Basic Function
CoolTouch
TM
Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the grounded conductor and the
equipment-grounding conductor on one
side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX
MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR
AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES

2
3. PACKAGE CONTENTS

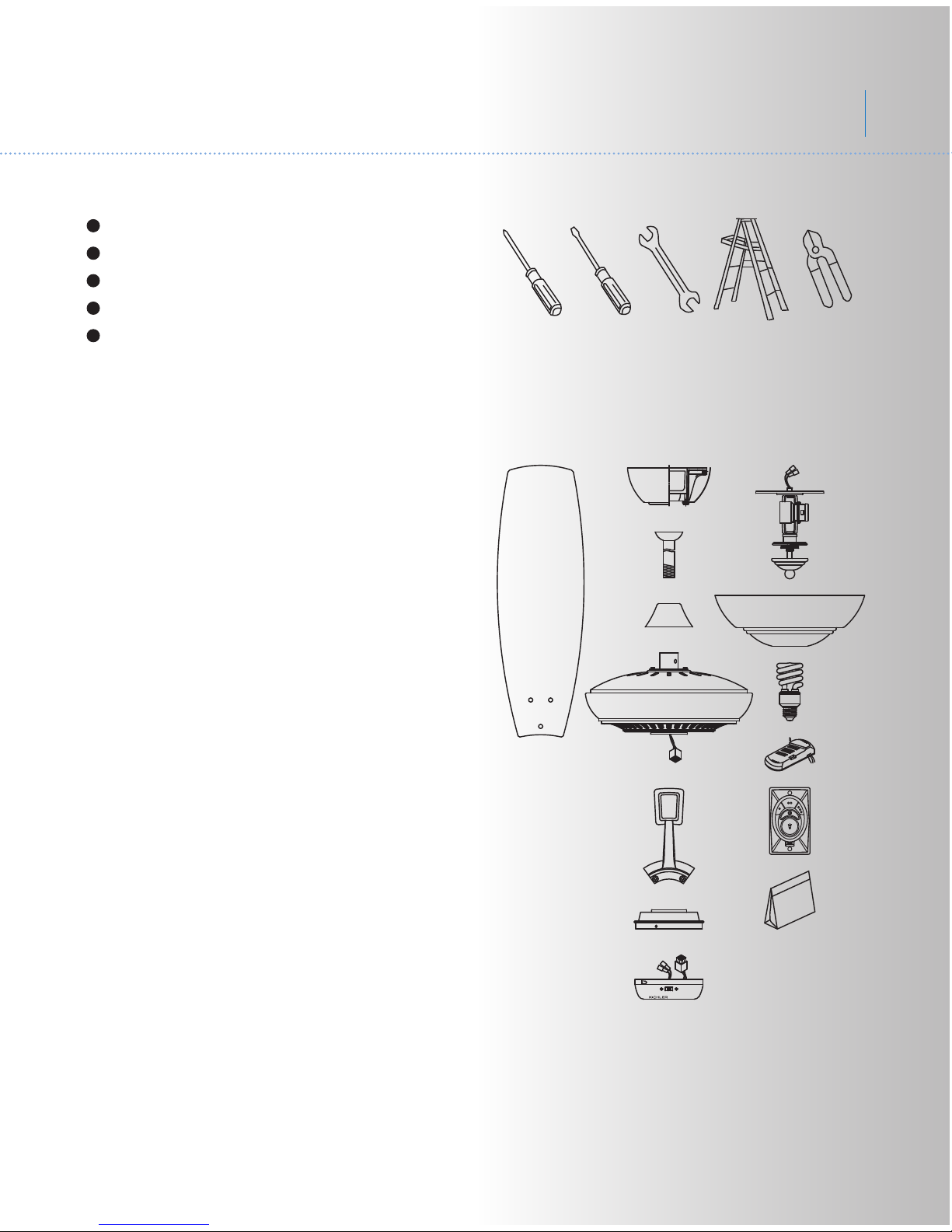

Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of 5 blade brackets and Pre-Installed
mounting screws
g. Mounting plate
h. Switch housing
i. Light fixture
j. Glass shade
k. E27, 13 Watt Tospo compact fluorescent
lamps (2)
l. CoolTouch™ Receiver
m. Basic Function CoolTouch™ Control
System
n. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (17), fiber washers (17)
3) Blade bracket attachment hardware:
screws (2)
4) Safety cable hardware:
wood screw, spring washer, flat washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
f
i
g
h
k
l
m
n
j
TOSPO
52” CanfieldTM Pro

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.

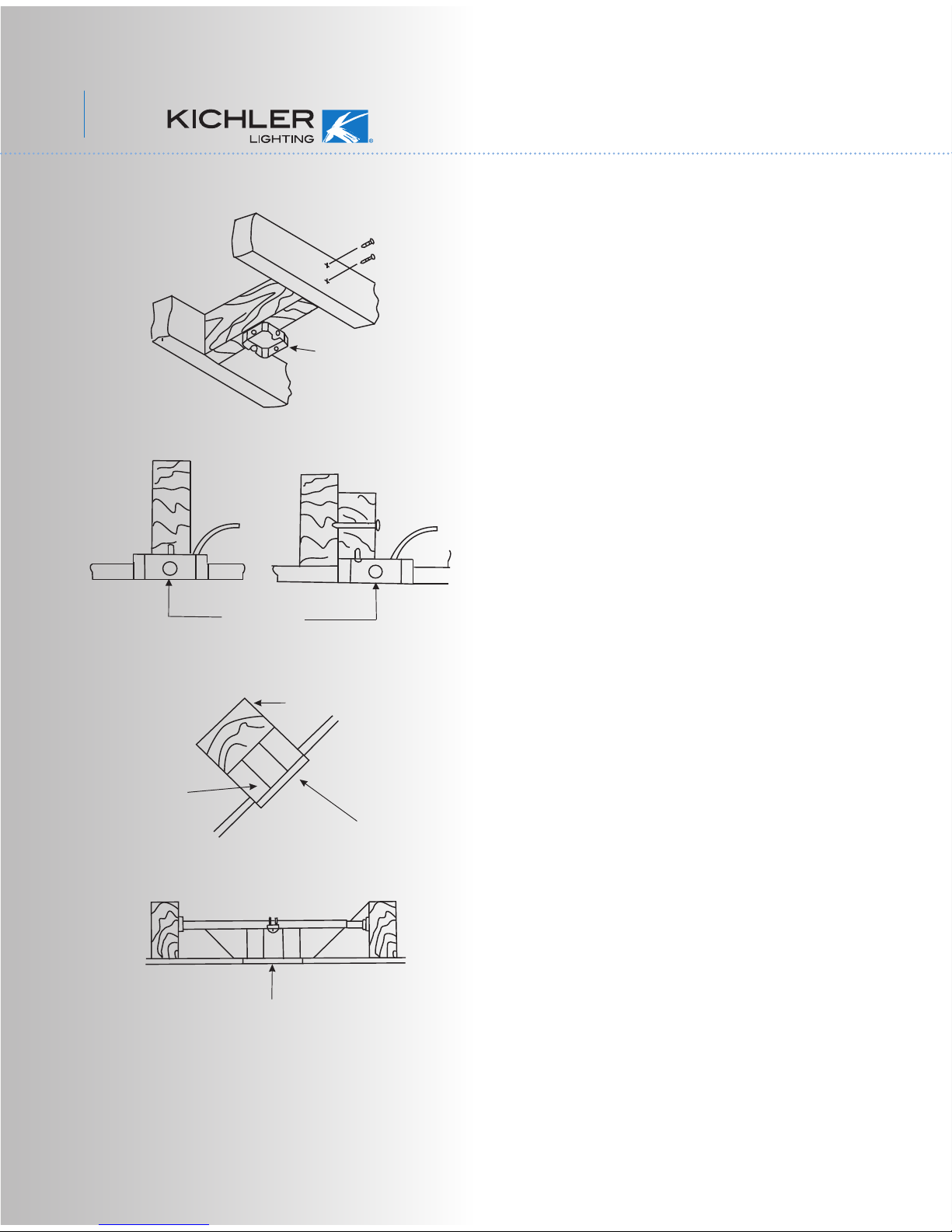

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE

4
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
UL Listed
outlet box
120V Wires
Washers
Fig. 6
5. HANGING THE FAN
Supply wires
Downrod
Hitch pin Retaining
clip
Set screwSet screw
Coupling
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.

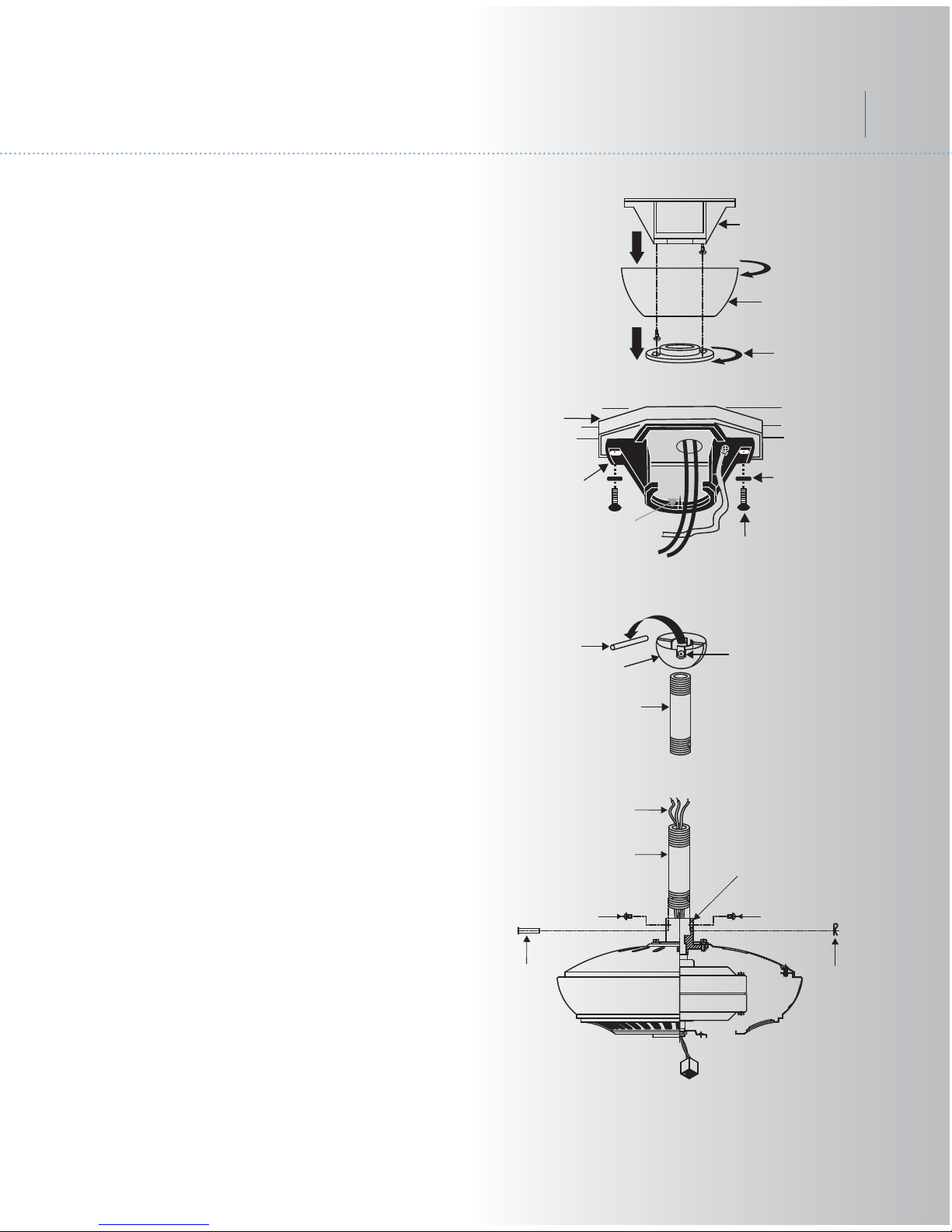

Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counterclockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save) one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
Fig. 5
Ceiling mounting
bracket
Canopy
Canopy
cover
Cross pin
Hanger ball Set screw
Downrod
52” CanfieldTM Pro

5
Fig. 9
Fig. 10
Registration slot
Check tab
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan to
fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Canopy
Canopy cover
Coupling cover
Coupling
Downrod
Cross pin
Hanger ball
Hanger ball

6
Fig. 11
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer
7. ELECTRICAL CONNECTIONS
Fig. 12
Fig. 13
Receiver
Ceiling Mounting
Bracket
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.

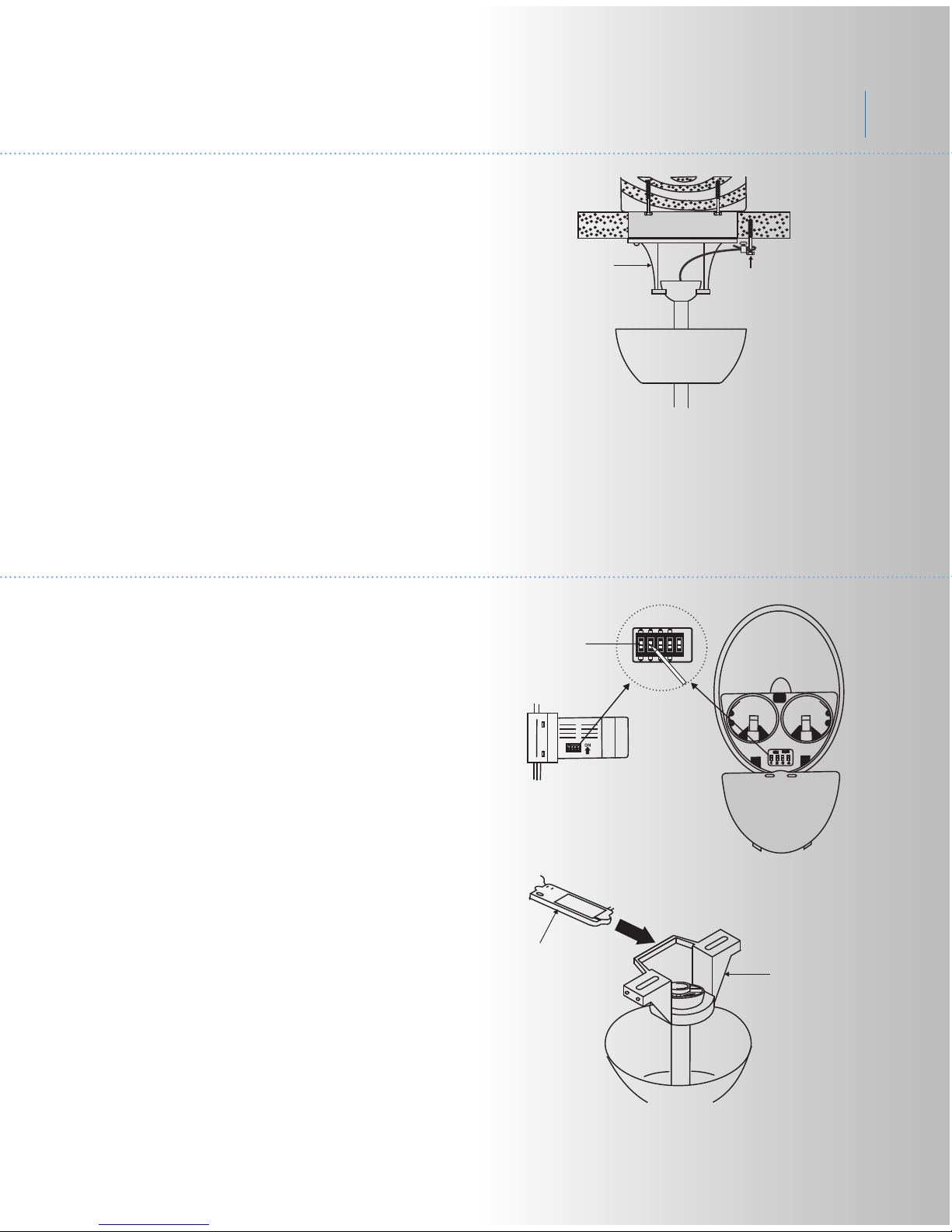

NOTE: In the Transmiter, Set Dip Switch #5 on
the X position. This disables the dimming
function because your ceiling utilizes CFL lamps
that can NOT be dimmed. (Fig.12)
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or with
other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling
mounting bracket with the flat side of the receiver
facing the ceiling. (Fig. 13) For best
performance, make sure the Black Antenna, on
the end of the receiver, remains extended and
not tangled with any of the electrical wires.
Step 2. Motor to Receiver Electrical
Connections: (Fig. 14) Connect the black wire
from the fan to the black wire marked "TO
MOTOR L" on the receiver.
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
52” CanfieldTM Pro
Dip switch
ON
1 2 3 4
D
X
ON

7
Fig. 14
Fig. 15
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 15.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 15)
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "FOR LIGHT" from the
receiver. Secure all the wire connections with
the plastic wire nuts provided.
Step 3. (Fig. 14) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N" from
the Receiver. Secure the wire connections
with the plastic wire nuts provided.
Step 4. (Fig. 14) If your outlet box has a
ground wire (green or bare copper) connect it
to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting
bracket. Secure the wire connection with a
plastic nut provided. After connecting the
wires, spread them apart so that the green
and white wires are on one side of the outlet
box and black and blue wires are on the other
side. Carefully tuck the wire connections up
into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
8. FINISHING THE INSTALLATION
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)

8
Fig. 16
10. INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 17)
Step 2. Place the key hole slots on the
mounting plate over the two screws previously
loosened on the mounting ring.
Turn the mounting plate until is locks in place
at the narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
Fig. 17
Mounting plate
Screws
Mounting ring
Blades
Screws
Blade brackets
Fiber
washers
Screws

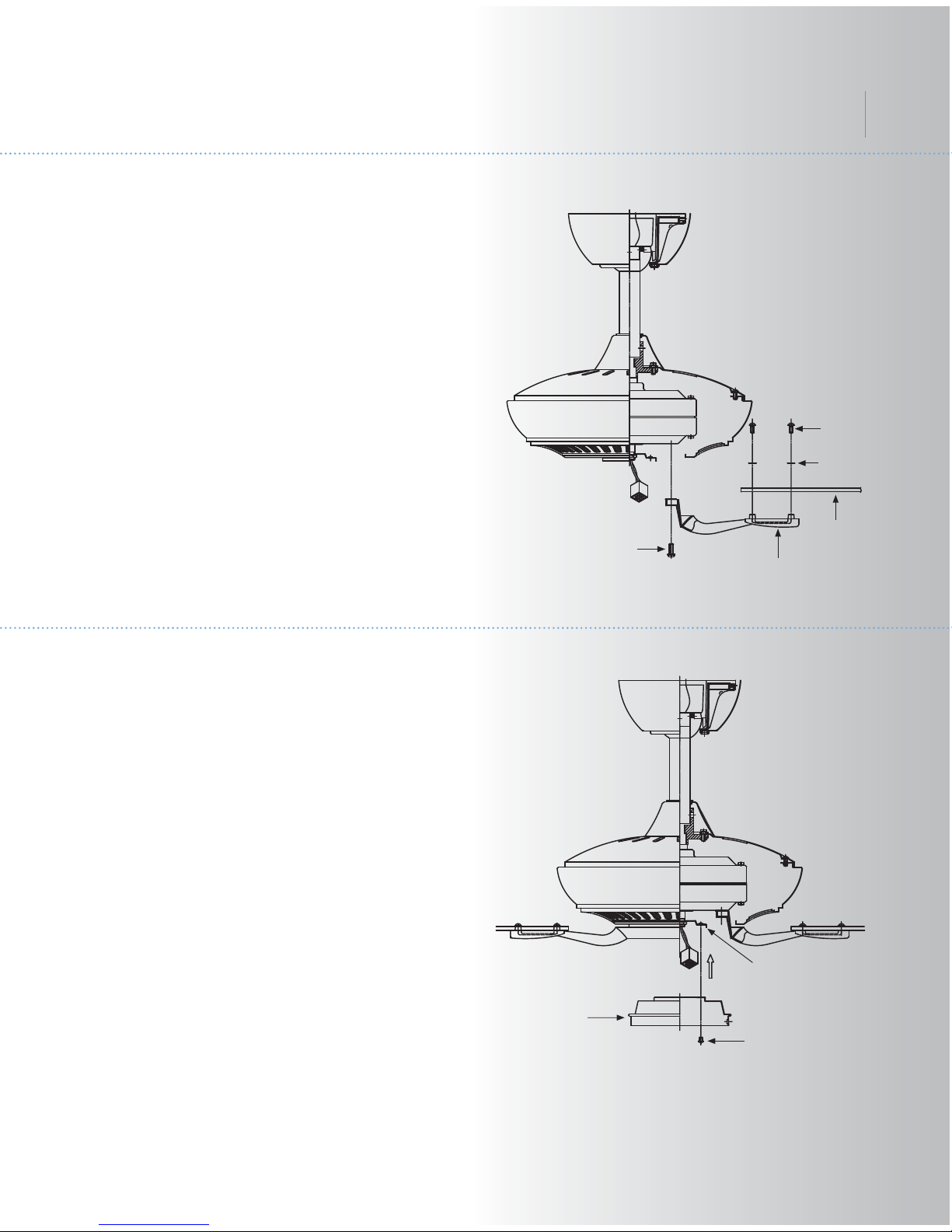

9. ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor. These
blocks keep the motor from shifting during
shipping and MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket using
the screws and fiber washers provided.
(Fig.16)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the "Pre-Installed" mounting
screws in the blade bracket. (Fig 16)
52” CanfieldTM Pro

9
Fig. 18
Fig. 19
11. INSTALLING THE LIGHT FIXTURE
Light fixture
Wire connectors
Switch housing
Nut
Lock washer
Plug
Screws
Wire connector
light fixture/
switch housing
assembly
Mounting plate
Step 1. Remove the plastic plug from the
center of the switch housing. Attach the light
fixture to the switch housing by feeding the
light fixture wires (black & white) through the
hole in the center of the switch housing, then
screw the light fixture stem into the center
hole. On the inside of the switch housing,
place a lock washer and a nut on the light
fixture stem and tighten. (Fig. 18)
Step 2. Locate the white and blue wires inside
the switch housing labeled FOR LIGHT.
Attach the wires from the light fixture to the
wires inside the switch housing by pushing the
polarized connections together. (Fig. 18)
- White wire to White wire
- Black wire to Blue wire
Step 3. While holding the light fixture/switch
housing assembly under your ceiling fan, push
the square wire connectors together. One from
the fan and one from the switch housing. (Fig.
19)
NOTE: These connectors are color coded and
will ONLY engage when the colored strips are
matched (aligned).
Step 4. Carefully push all the wires into the
switch housing on the light fixture/switch
housing assembly.
Attach the light fixture/switch housing
assembly to the mounting plate with the three
screws provided. Make sure each screw is
tight. (Fig. 19)
TOSPO

10
Fig. 20
Glass shade
Lamps
Light fixture/switch
housing assembly
Metal nut
Decorative glass cap
Decorative nut
12. INSTALLING THE LAMPS AND
GLASS SHADE
Step 1. Install 2, 13 Watt, E27 compact
fluorescent lamps (included). (Fig. 20)
Step 2. Remove the decorative nut, glass cap
and metal nut from the light fixture stem. Place
the glass shade over the light fixture stem and
secure the shade with a metal nut (rubber side
touching the shade). (Fig. 20)
Step 3. Fit the decorative glass cap onto the
light fixture stem, while holding the decorative
glass cap, thread the decorative nut onto the
light fixture stem securely. DO NOT OVER
TIGHTEN.
NOTE: Make sure to leave enough space
between the fan pull chain and the fluorescent
lamp so the chain doesn't rub against any of
the lamp.
TOSPO
52” CanfieldTM Pro

11
Fig. 21
Fig. 22
Fig. 23
Slide switch
14. OPERATING INSTRUCTIONS
Remove the battery compartment cover on the
back of the CoolTouch™ Transmitter and insert
both batteries provided. Make sure the + sign is
facing up.
Take care during this procedure NOT TO move the
frequency dip switches inside this compartment.
The settings MUST remain the same as the
settings on the receiver for proper communication
with the control system.
It's a good idea to remove these batteries if your
fan is not used for extended periods of time,
(months).
NOTE: Make sure Dip Switch #5 is set to the X
position. This disables the dimming function. You
light fixture utilizes CFL lamps that can NOT be
dimmed.
13. INSTALLING THE BATTERIES
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= High speed
= Medium speed
= Low speed
B. button:
This button turns the fan off.
C. The " " button: turns the light fixture On
or Off. Press and release once for either
On or Off.
DO NOT substitute Incandescent Lamps for
Fluorescent Lamps. You will damage your fan.
This control is designed for use with
"Fluorescent Lamps". It is NOT designed to
control dimming of the light fixture.
This control system is NOT designed to
"Reverse" the rotation of the blades. To set
the fan blades in reverse, the reverse slide
switch is located on the top of the Switch
housing. See Fig. 23.
ON
1 2 3 4
D
X
ON
Code Switch

12
52” CanfieldTM Pro
Fig. 24
Fig. 25
15. OPERATING INSTRUCTIONS
The Black Slide Switch on the side of the
switch housing controls the direction of the
blades "Forward and Reverse".
Warm weather - Forward (counter clockwise)
A downward airflow creates a cooling effect
as shown in Fig. 24. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - Reverse (clockwise) An
upward airflow moves warm air off the ceiling
area as shown in Fig. 25. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
NOTE: To change the direction of rotation for
the fan blades, locate the reverse switch
located on the side of the switch housing.

13
16. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
17. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from
this location or you can remove the transmitter
and use as a "Hand Held" device. (Fig. 28)
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch, or install the transmitter
on ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.

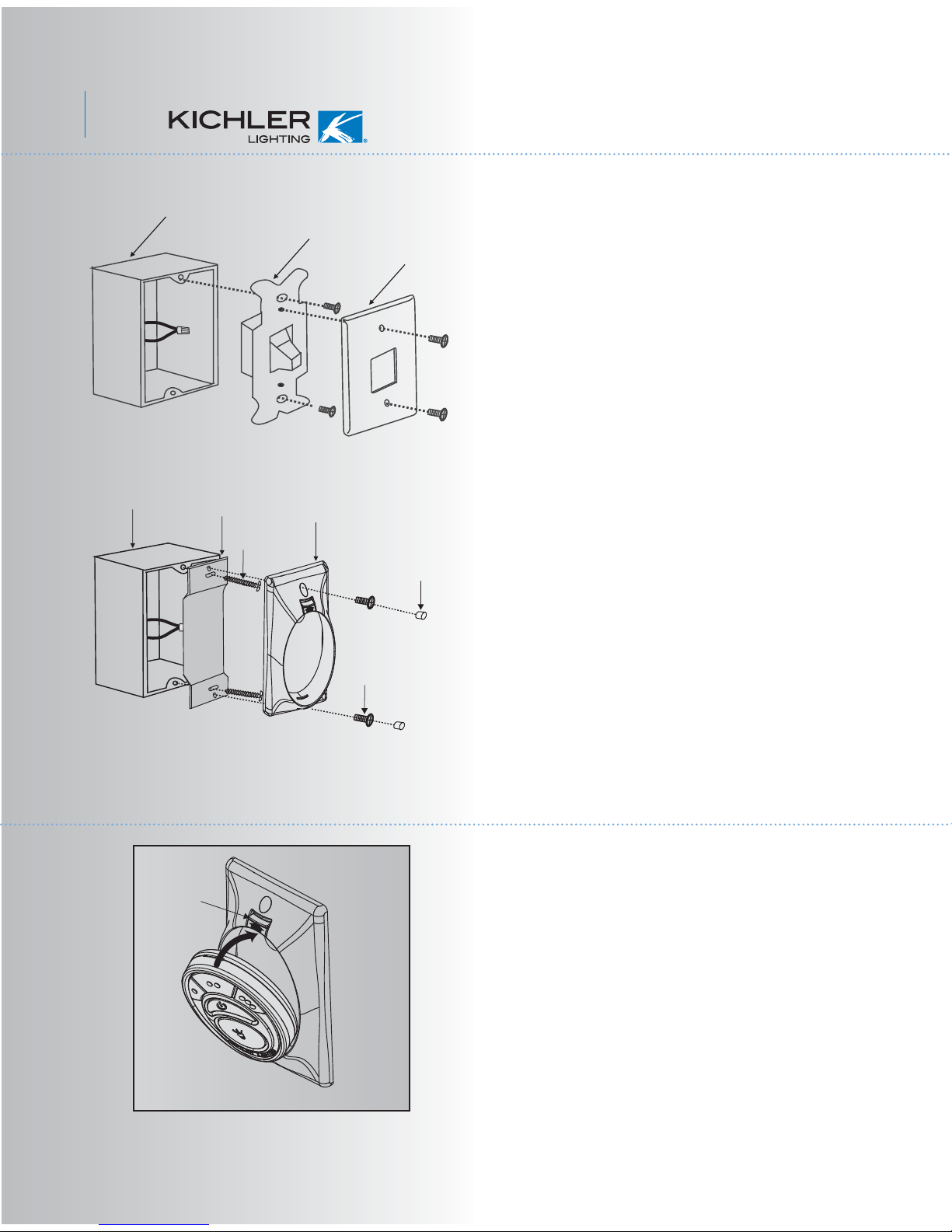

Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 26)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 27)
Option 2: Install the control system on ANY
flat surface.
Select the desired location and use the
CootTouch™ wall plate to mark the location for
the mounting holes.
Plastic wall anchors and screws are provided
for this type of installation.
After installing the wall anchors, attached the
CoolTouch™ wall plate with the mounting
screws and then insert the plastic plugs to
finish the installation.
Fig. 26
Fig. 27
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
Release
button
Fig. 28

14
19. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures attached
to the ceiling fan.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have
identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
18. TROUBLESHOOTING
1.65'
7.90
kgs
8.99
kgs
0.55
0.38
0.24
65
31
10
164
111
57
6151
3940
1982
94
129
191
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts
Amps Watts
Low
Medium
High
52” CanfieldTM Pro
