Kichler Lighting Golden Iridescence User manual

Golden IridescenceTM
Includes our new
CoolTouchTM Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
A Kichler®Décor™ceiling fan
Designed to coordinate with a popular Kichler Lighting collection.
Instruction Manual
KHA9090101

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
2.
3. WARNING: To reduce the risk of electrical
4.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
12. Electrical diagrams are for reference only.
Light kits that are not packed with the fan
must be marked suitable for use with the
Instructions packaged with the light kits and
switches for proper assembly.
1. SAFETY RULES
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED "ACCEPTABLE FOR FAN
WARNING
1
All wiring must be in accordance with the
National Electrical Code, ANSI/NFPA70-1999
and local electrical codes. Electrical installa-
tion should be performed by a qualified
licensed electrician.
WARNING: To reduce the risk of fire,
electric shock, or personal injury, mount
this fan to outlet box marked "Acceptable
for Fan Support" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the sup-
port of light fixtures are not acceptable for
fan support and may need to be replaced.
Due to the complexity of the installation of
this fan, a qualified licensed electrician is
strongly recommended.
conductor of a fan identified as grounded
condutor to be connected to a grounded
conductor of power supply, conductor of fan
identified as ungrounded conductor to be
connected to an ungrounded conductor of
power supply,conductor of fan identified for
equipment grounding to be connected to an
equipment-grounding conductor.
breaker or fuse box before cleaning and
shock and fire, do not use this fan with
any solid-state fan speed control device.
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS WHEN
INSTALLING THE BRACKETS, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN BETWEEN ROTAT-
ING FAN BLADES.
SUPPORT."
pounds. Use the outlet boxes marked
"FOR FAN SUPPORT."
model fan you are installing. Refer to the
maintenace, or attempting installation.

2

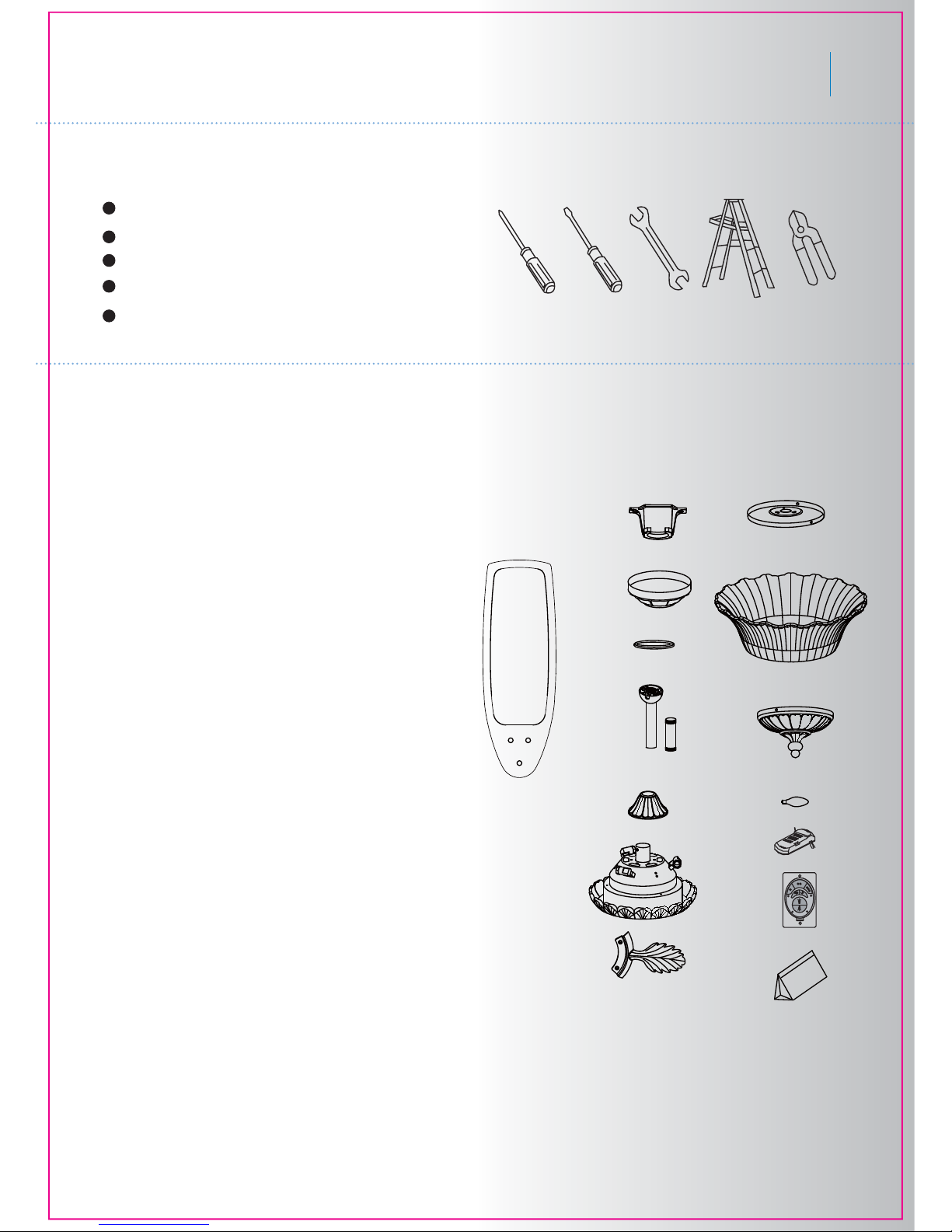

3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
Philips screw driver
Slot screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
Golden IridescenceTM
a. Fan blades (5)
b. Mounting bracket(1)
c. Canopy (1)
d. Canopy Cover (1)
e. Ball/downrod assembly (1)
& extra downrod (1)
f. Coupling cover (1)
g. Fan assembly (1)
h. Set of blade brackets (5)
i. Mounting plate (1)
j. Upper glass bowl (1)
k. Light plate ASM (1)
l. Bulb (4)
m. Receiver +7 wire nuts
n. CoolTouch™ Control System
o. Parts Bag Contents
1) Mounting hardware:
a. wood screws (2), flat washers (2),
screws (2),wire nuts (4)
2) Blade attachment hardware:
a. screws (16), flat washers (16),
fiber washers (16)
3) Blade bracket hardware:
a. screws (1)
4) Safety cable hardware:
a. wood screw (1), spring washer (1),
flat washer (1)
5) Mounting plate for glass hardware:
a. mounting plates for upper glass (3),
manual nuts (3)
6) Balance kit
m
n
a
b
c
d
e
f
g
h
k
o
j
i
l

3

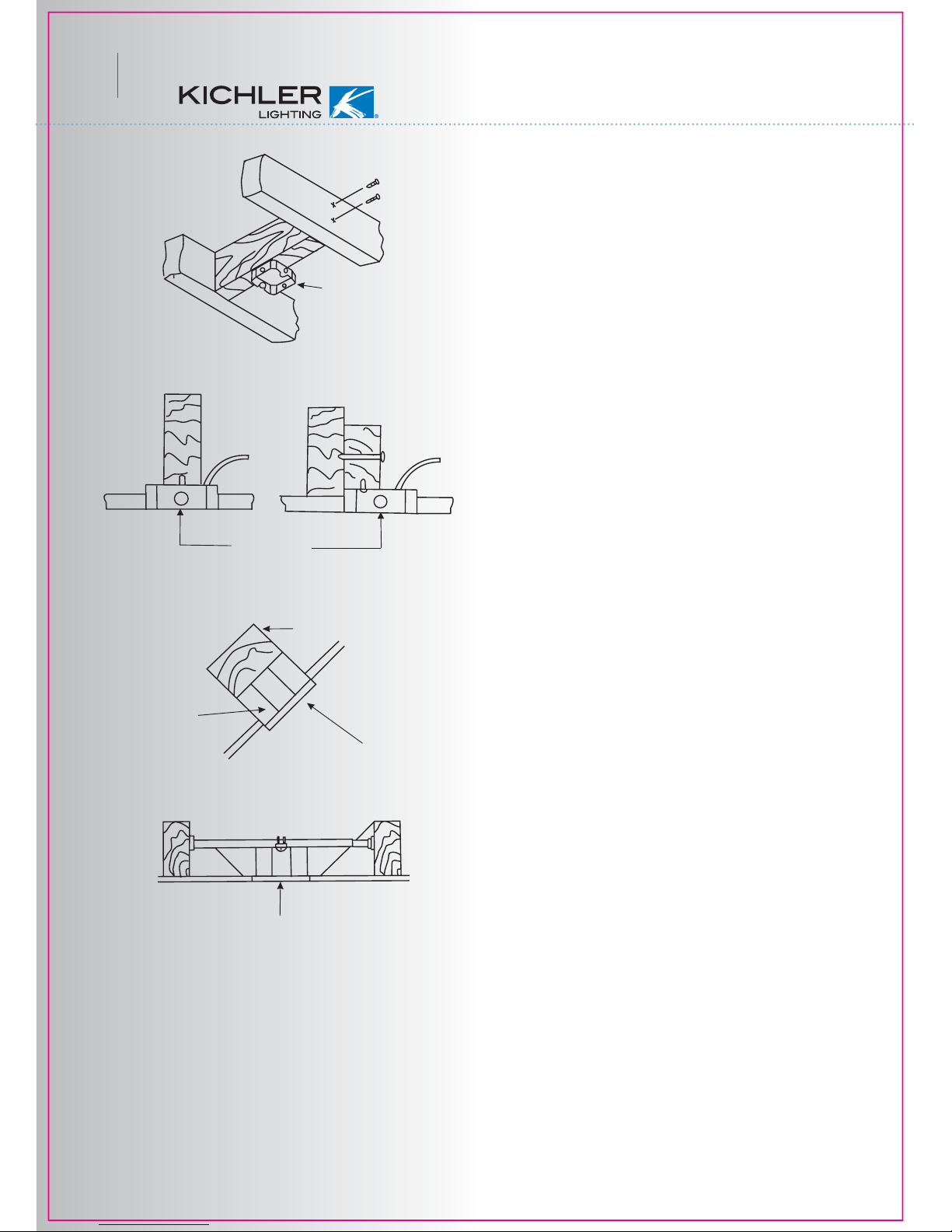

4. MOUNTING OPTIONS
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
If there isn't an exsiting UL (CUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need a
joist hanging bracket as shown in Fig. 4.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and build-
ing materials. The outlet box and its support
must be able to fully support the moving weight
of the fan (at least 50 lbs). Do not use plastic
outlet boxes.

4
Golden IridescenceTM

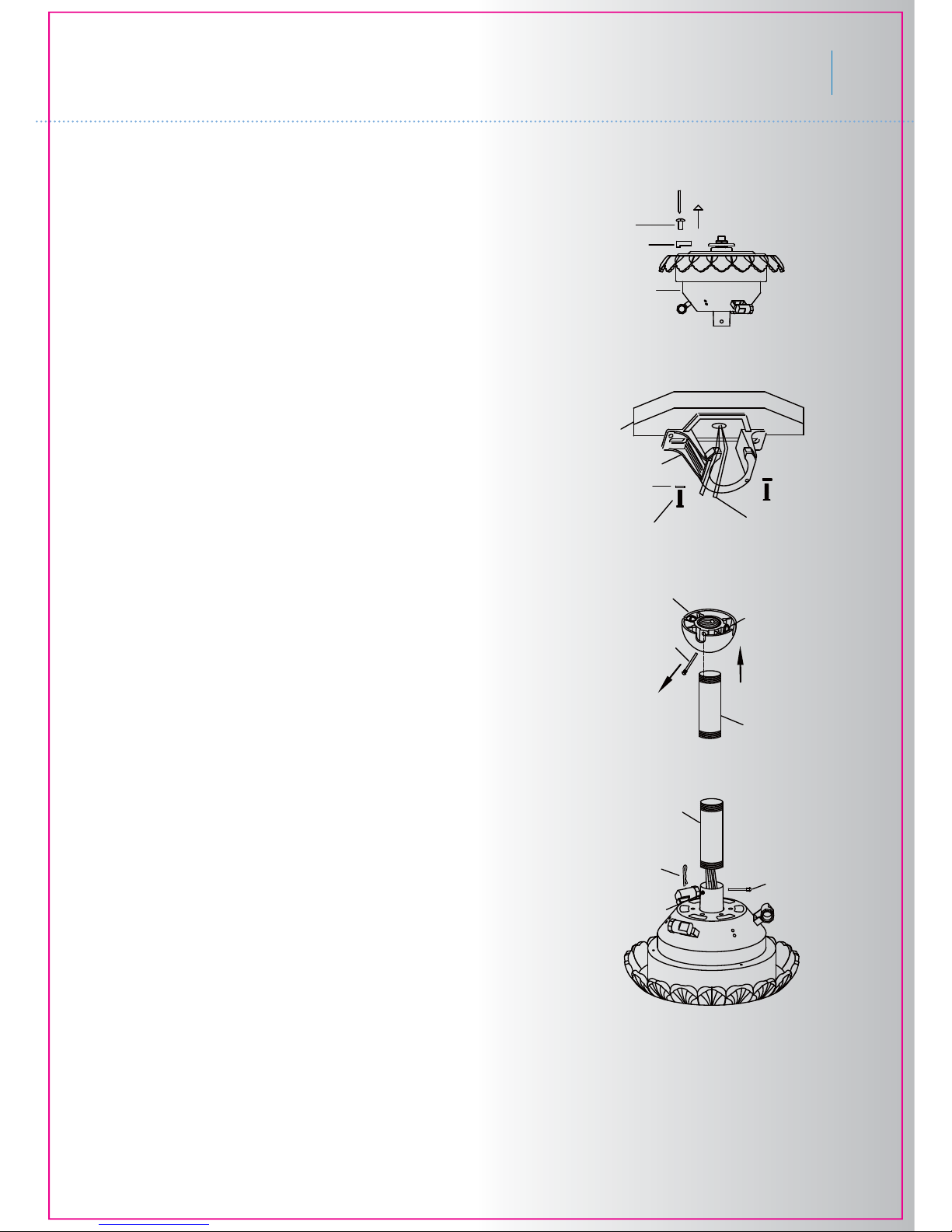

5. HANGING THE FAN
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 2. Secure the mounting bracket to the
ceiling outlet box using screws and washers
provided with the outlet box. (Fig. 6)
Step 4. Loosen the two set screws and
remove the hitch pin and lock pin from the top
coupling of the motor assembly. (Fig. 8)
Step 1. Remove the fan motor and housing
assembly from the protective plastic bag
and take the lower styrofoam packing pad
out of the carton. Place the styrofoam pad
on the floor. Then place the fan assembly
into the styrofoam pad with the bottom of the
motor facing up.(The lower foam pad serves
as a holder for the fan during the first stages
of assembly). Remove the plastic motor
shipping block and discard. (Fig. 5)
Step 5. Carefully feed fan electrical wires up
through the downrod. Thread the downrod
onto the motor coupling until the hitch pin
holes are aligned. Next, replace hitch pin and
lock pin, and tighten both set screws.(Fig. 8)
Step 3. Use a screwdriver to loosen the cross
pin and remove it from downrod assembly.
Loosen the set screw and rotate the hanger
ball off the downrod. (Fig. 7)
Fan housing
Screw
shipping block
Fig. 7
Fig. 5
Fig. 6
Fig. 8
CUL listed
electrial box
Mounting bracket
Mounting screw 120V wires
Washer
Hitch pin
Set screw
Lock pin
Downrod
Downrod
Hanger Ball
Cross Pin
Set Screw

5
Fig. 10
Fig. 9
Fig. 11
Registration slot

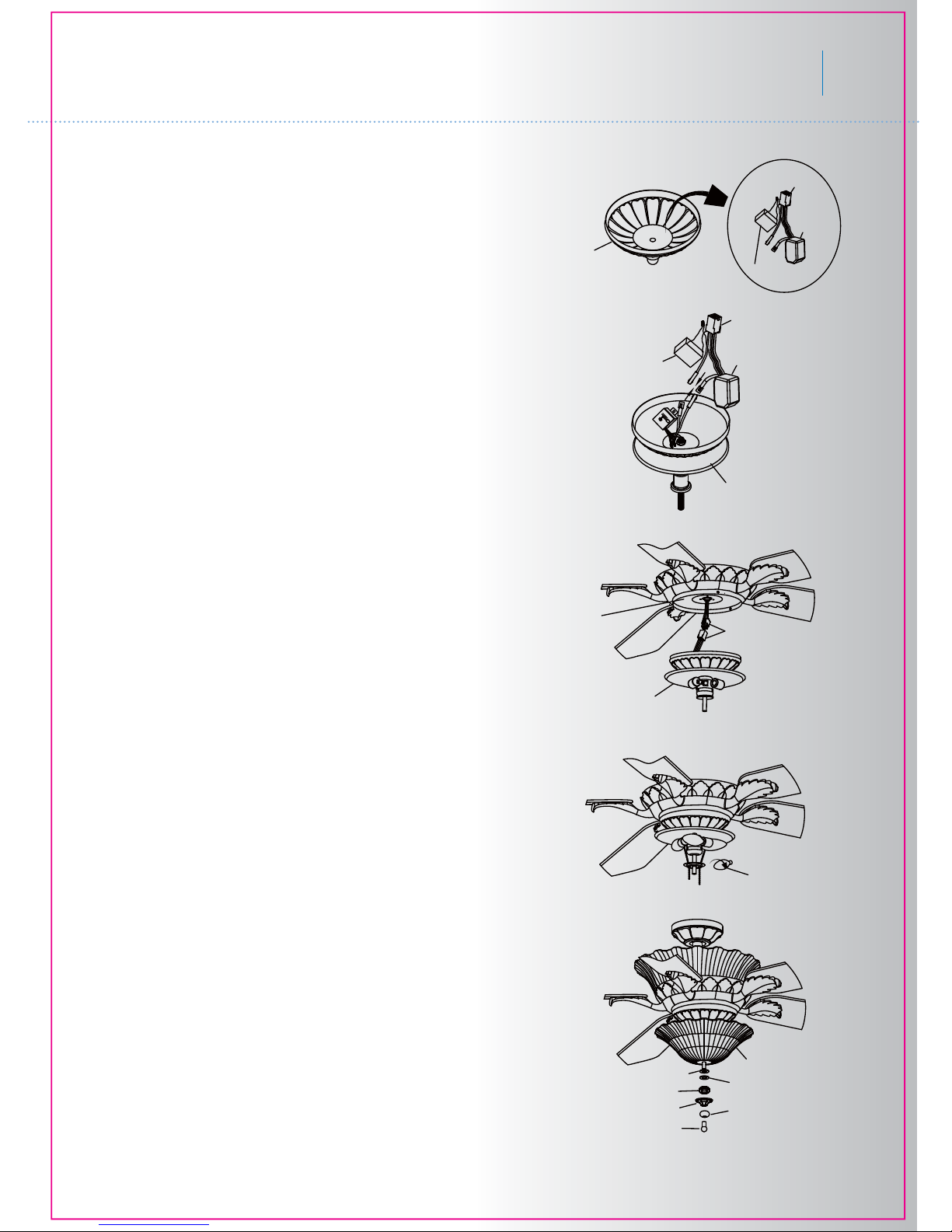

Step 6. Slip coupling cover, canopy cover and
canopy onto the downrod. Carefully reinstall
the hanger ball onto the dowrod. Make sure
set screw on hanger ball is tight. (Fig. 9)
Step 8. Now lift motor assembly into position
Rotate motor assembly until the “check
groove” has dropped into the “registration
slot” and seats firmly. (Fig. 11)
Step 7. Carefully pass the upper glass bowl
over the downrod and let it rest on top of the
motor housing. (Fig. 10) Align the slot on the
mounting plate with the screw stem on the
motor housing. Set the mounting plate so the
screw stem comes through slot on the mounting
plate with the bottom curled end of the mount-
ing plate resting against the side of the glass
bowl. Tighten the manual nut provided. Repeat
this process for the remaining two mounting
plates. Install four (4) lamps 15W (included),
one in each sochet.
NOTE: The entire motor assembly should not
rotate if this is done correctly.
NOTE: Please make sure all set screws are in
place and tight before installation the following
steps.

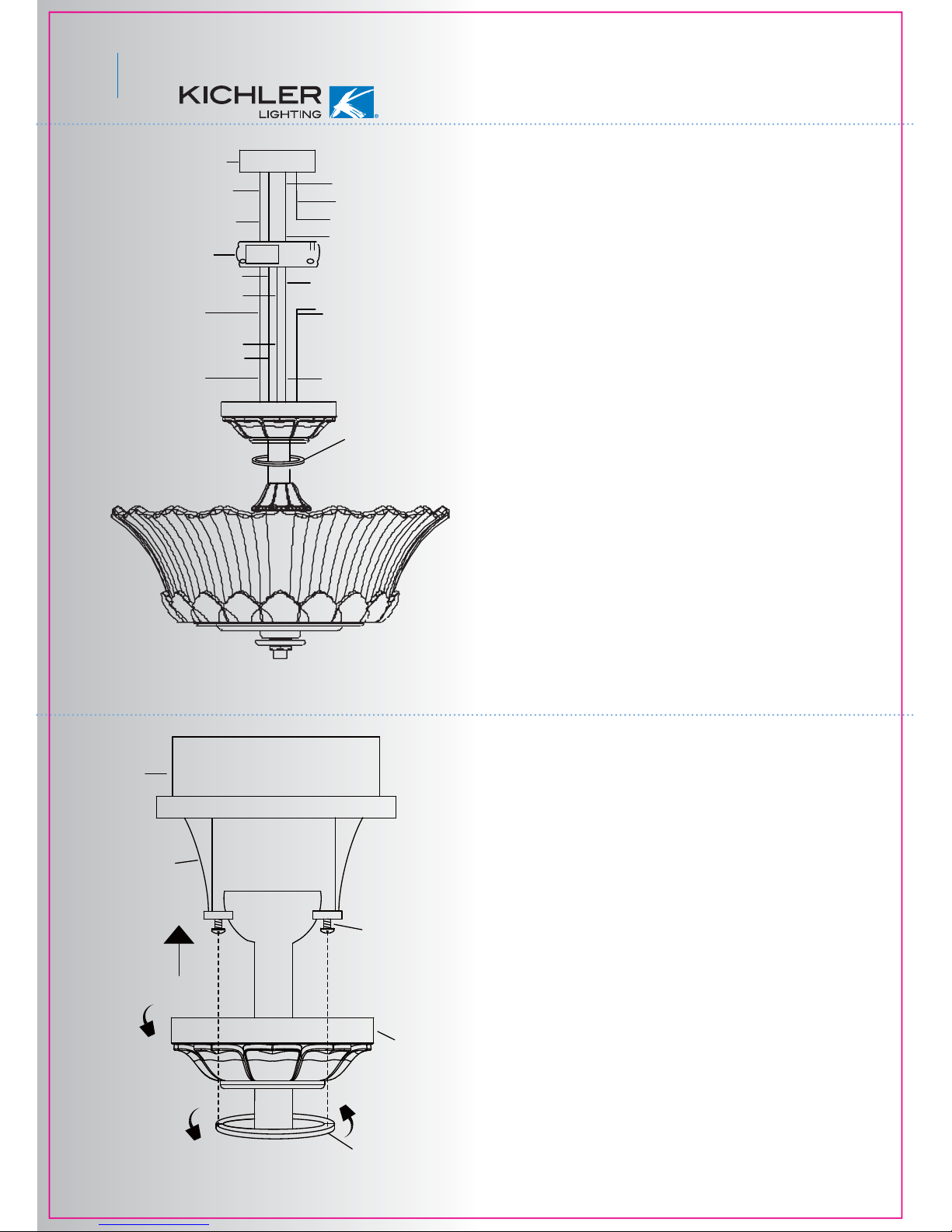

Canopy
Coupling cover
Downrod Canopy cover
Glass bowl
Manual nut
Mounting plate
the cross pin is in the correct position and the
and place hanger ball into the hanger bracket.

6
Golden IridescenceTM
6. INSTALLATION OF SAFETY SUPPORT
( For Canadian Installation ONLY )
Fig. 12-2
Fig. 12-1
Fig. 13
Fig. 14
7. MAKE THE ELECTRIC CONNECTIONS
Code switch
Receiver
Hanger
bracket
Battery Compartment
A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 12-1)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the extra
cable through the cable clamp until the overall
length is correct, put the end of the cable back
through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the
safety cable over the wood screw and under the
washer. Tighten the wood screw securely. See
Fig. 12-2
WARNING: To avoid possible electrical shock,
be sure the electricity is turned off at the main
circuit breaker or fuse box before wiring.
WARNING: If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is recom-
mended to determine proper wiring.
NOTE: The CoolTouch™ Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your receiver
and transmitter have been preset at the factory.
Please recheck to make sure the switches on
the transmitter and receiver are set to the same
position, any combination of setting will operate
the fan as long as each switch on the transmitter
and receiver are set to the same opposition.
(Fig. 13) Changing the order of switches on
each switch block, changes the operational
frequency.
Step 1. Insert the receiver into the mounting
bracket, with the flat toward the ceiling. (Fig. 14)
Step 2. Motor to Receiver Electrical Connec-
tions:
NOTE: Make all of the following connections
with “Wire Nut” connectors.
Connect the black wire from the fan to black
wire marded “TO MOTOR L” from the receiver.
Connect the white wire from the fan to the white
wire marked “TO MOTOR N” from the receiver.
Connect the blue wire from the fan to the blue
wire marked “FOR BOTTOM LIGHT” from the
receiver. Connect the orange wire from fan to
the orange wire marked “FOR UPPER LIGHT”
receiver. Secure all the wire connections with
the plastic wire nut provided. (Fig. 15 on the
next page)
Ceiling
Support Brace
Outlet Box
Wood Screw
Flat Washer
Spring Washer
Wood Screw
Safety Cable bolt

7
Fig. 15
Fig. 16
8. INSTALLING THE CEILING CANOPY
Step 2. Slide the canopy up to ceiling fan and
onto the two screws on hanger bracket.
Rotate the canopy clockwise and tighten the
two screws. Next, while holding the canopy
with one hand, slide the canopy cover over the
screws and rotate clockwise until tight.
Step 3. Receiver to House Supply Wires
Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect
the white(neutral) wire from the ceiling to the
white wire marked "AC in N" from the Receiver.
Secure the wire connections with the plastic
wire nuts provided. (Fig. 15)
Step 4. If your outlet box has a ground wire
(green or bare copper) connect it to the fan
ground wiresSecure the wire connection with
a plastic nut provided.
NOTE: Carefully tuck the wire connections up
into the outlet box. (Fig. 15)
Warning: One last time, make sure the “Check
Tab” at the bottom of the hanger bracket is
properly seated in the “Registration Slot” on the
side of the hanger ball before attaching the
canopy to the bracket. Failure to properly seat
the “Check Tab” could damage the electrical
wires when to ceiling fan blade direction is
changed while the fan is running.
NOTE: The transmitting unit must be installed
at a maximum distance of 30 feet from the
ceiling fan for proper signal transmission
between the transmitting unit and the fan's
receiving unit.
Step 1. Make sure all of the electrical connec-
tions are tucked neatly into ceiling outlet box.
NOTE: You may need to adjust the canopy
mounting screws as necessary until the
canopy and canopy cover are have a snug fit.
(Fig.16)
white (neutral)
Ground Wire
White("AC IN N")
Copper (ground)
White("to motor N")
Green or bare
White (neutral)
Black (motor)
Orange
(For upper light)
Blue (for bottom light)
Black ("to motor L")
Receiver
Black("AC" IN L")
Black (hot)
Outlex box
Canopy cover
Orange
Blue
Outlet box
Hanger bracket
Screw
Canopy
Canopy cover

8
Golden IridescenceTM
9. ASSEMBLYING AND ATTACHING
THE FAN BLADES
Fig. 17
Fig. 19
Fig. 18
10. INSTALLATING THE MOUNTING PLATE
Step 2. Make sure the blade is straight and
tighten each screw until the fiber washer is
slightly compressed and all three screws are
secure.
Step 3. Attach each completed blade assem-
mounting screws in each blade bracket. (Fig.
18) Make sure each mounting screw is
Step 1. Attach the blade to the blade
bracket using the screws, washers and
fiber washers provided. Refer to Fig. 17 as
needed. Start each screw into the bracket.
Repeat for the two (2) remaining screws.
1. Remove 1 of the 3 screws on the mount-
ing ring and loosen the other 2 screws. Do
2. Place the key holes on the mounting
plate over the 2 screws previously loos-
ened and turn the mounting plate until it
locks in place at the narrow section of the
key holes. Secure by tightening the 2
screws previously loosened and reinstall
the one removed. (Fig. 19)
Blade
Screws
Blade
Blade bracket
Mounting plate
Screw
Mounting ring
Screw
Metal washer
Fiber washer
比例
1.000
Blade bracket
not remove the mounting ring located on
the motor shaft.
securely tightened.
bly to the face of the motor using the “pre-installed”

9

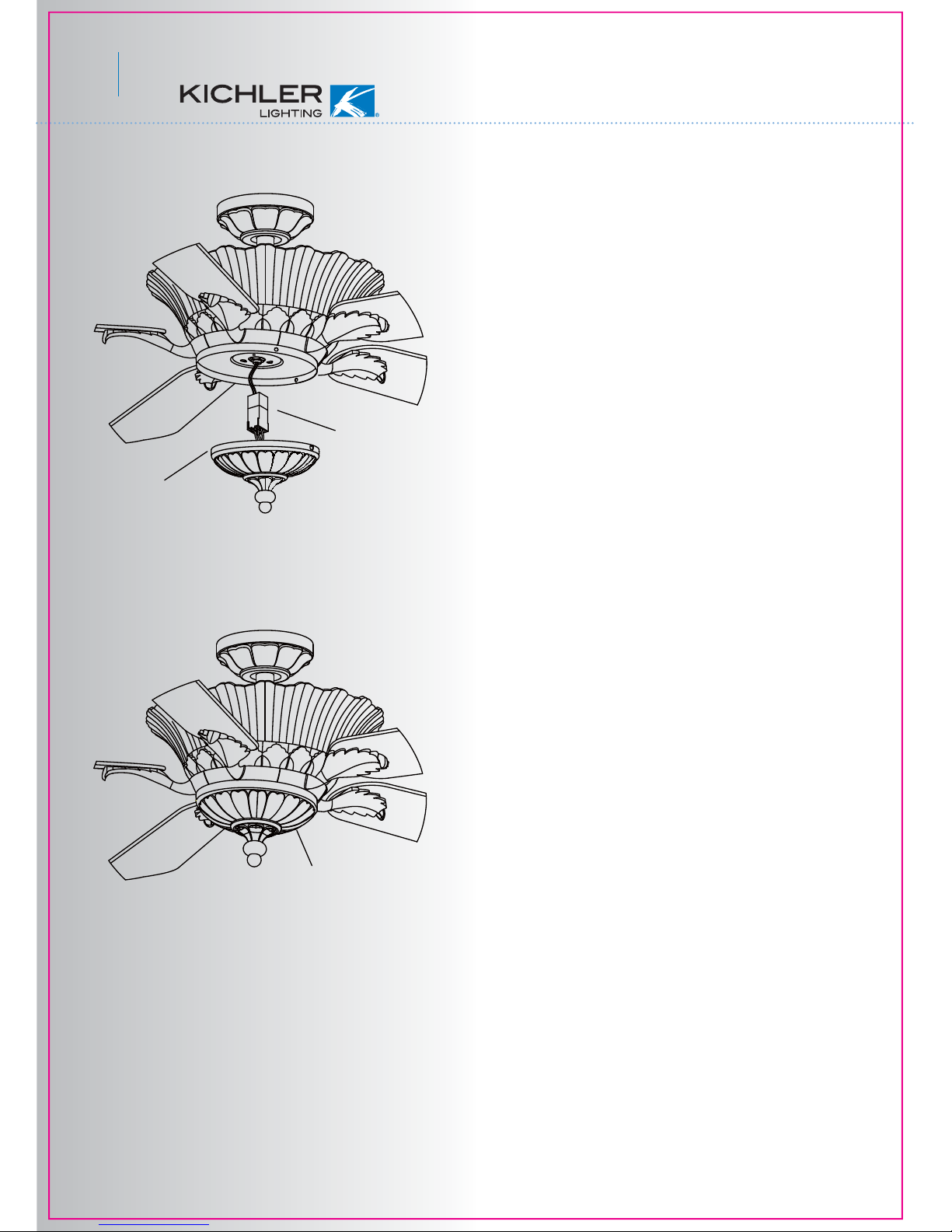

Fig. 21
Fig. 20
11. INSTALLING THE LIGHT PLATE
NOTE: Before continuing, make sure the power
is disconnected by turning off the circuit breaker
Step 1. Loosen the 3 screws from the mounting
plate.
Step 2. The square plastic wiring connectors
will only fit together one way. Match up the color
on the side of each connector, then push them
together until the snap engages. (Fig. 20)
Step 3. Tuck the new connections neatly into
light plate assembly, place the light plate key
holes over the 3 screws previously loosened on
the mounting plate, turn light plate until it locks
in place at the narrow section of the key holes.
Secure by tightening the 3 screws previously
loosened. (Fig. 21)
YOUR NEW KICHLER CEILING FAN IS NOW
REDAY TO USE. REMEMBER TO RESTORE
ALL POWER.
connector
Light Plate Assembly
or removing the fuse at the circuit box.
from the ceiling fan and the switch housing
Switch Housing

10

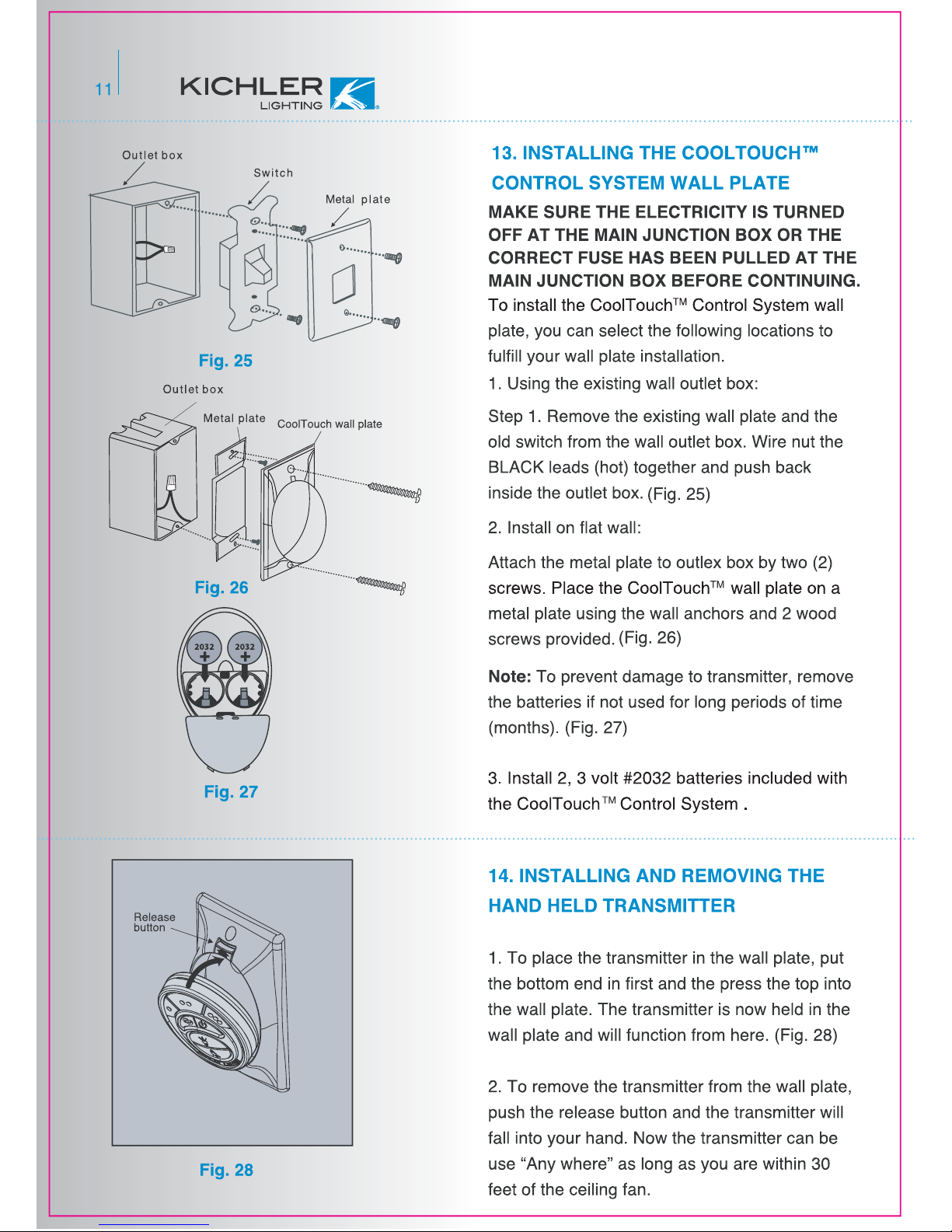

Golden IridescenceTM
Fig. 22

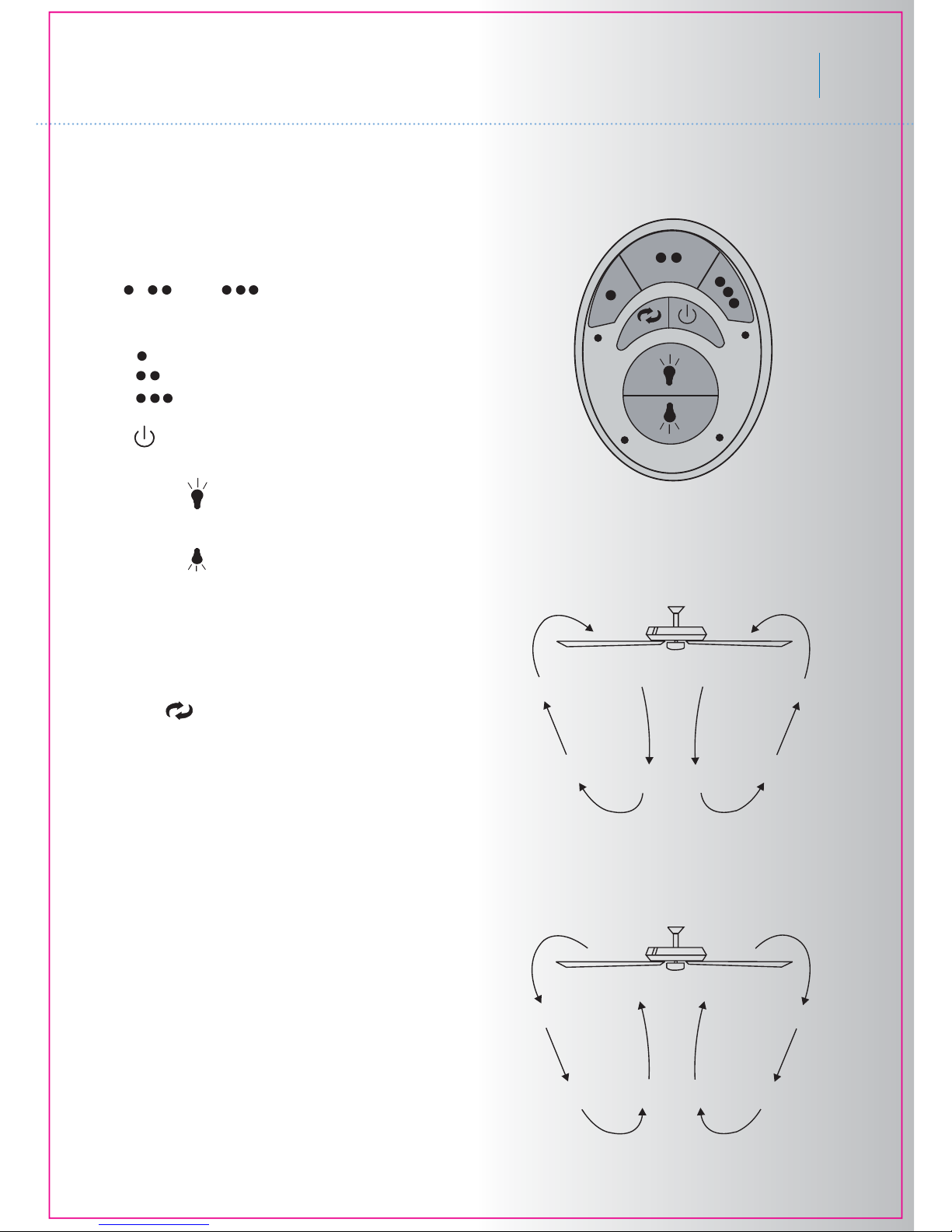

12. OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= low speed
= medium speed
= high speed
B. button:
This button turns the fan off.
Press the button to turn the upper light on.
D. The " " button:
C. The " " button:
Press and release the button to turn the
light ON or OFF. Press and hold the button to
set the desired brightness. The light key has
an auto-resume, it will stay at the same
brightness as the last time it was turned off.
(for warm weather) or reverse (for cool
weather).
Fig. 23
Fig. 24
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
running.
Warm weather-(Forward) A downward airflow
creates a cooling effect as shown in Fig. 23.
This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 24. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.
E. . The " " button is used to set the fan
forward or reverse. Press the button for forward

12
Golden IridescenceTM
15. LIGHT FIXTURE INSTALLATION
NOTE: Two (2) light fixtures are available for
this ceiling fan. If you purchased one, please
select the appropriate set of installation
instructions below.
BOWL FIXTURE
Step 1. Remove the Wiring Harness from
the Ceiling Fan “Switch Housing”. This
includes the Reverse Module, Capacitor and
9 Pin Connector. Refer to Fig. 29.
Step 2. Connect the Black wire from the
Light Fixture to the blue wire from the Wiring
Harness by pushing them together. Repeat
this procedure for the White wires. Now,
remove the paper from the double sided
tape on each of the components of the
Wiring Harness and attach them to the
inside of the Light Fixture Switch Housing.
Refer to Fig. 30.
Step 3. Attach the Light Fixture wiring to the
Ceiling Fan wiring by taking the “Square 9
Pin Connector” from the Light Fixture and
pushing it into the “Square 9 Pin Connector”
from the Ceiling Fan until the snap engages.
Please note each connector is Color Coded
and will fit together one way only. Refer to
Fig. 31.
Step 4. Now tuck the wiring connections
neatly into the switch housing. Align the key
hole slots on the side of the switch housing
to the three (3) screws on the side of the
mounting plate. Turn the Light Fixture until it
locks in place at the narrow end of the key
holes. Secure by tightening the three (3)
screws previously loosened. Install the
proper size and wattage lamps (provided).
Refer to Fig. 32.
Step 5. Feed the light fixture stem through
the hole in the center of the glass bowl. Slip
the silicon washer, metal washer and
manual nut onto the light fixture stem and
tighten. Slip the decorative plate and deco-
rative ball onto the light fixture stem, then
thread the finial nut onto the stem and
tighten snugly but do not over tighten. Refer
to Fig. 33.
Fig. 29
Fig. 30
Fig. 31
Fig. 32
Fig. 33
Glass bowl
Light fixture
Connector
Mounting plate
Light fixture
Metal washer
Silicon washer
Manual nut
Decorative ball
Finial
Decorative plate
Bulb
ModelNo:PL-190B
AC120V 60HZ
AC IN L/RED
AC IN N/WHITE
PowerLimit
Max.190W(ON/OFF)
IncandescentorBallast
LIGHT/BLACK
9-pin connection
Reverse module
Capacitor
Capacitor
9-pin
connection
Reverse
module
Light plate
assembly

13
THREE LIGHT FIXTURE
Fig. 34
Fig. 35
Fig. 36
Fig. 37
9-pin connection
Capacitor Reverse module
9-pin connection
LIGHT/BLACK
PowerLimit
Max.190W(ON/OFF)
Incandescentor Ballast
AC IN L/RED
AC IN N/WHITE
ModelNo: PL-190B
AC120V 60HZ
Light plate
assembly
Reverse
module
9-pin
connection
Capacitor
Socket ring
tooling
Bulb
Light fixture
Glass shade
Mounting plate
Light fixture
Step 1. Remove the Wiring Harness from the
Ceiling Fan “Switch Housing”. This includes the
Reverse Module, Capacitor and 9 Pin Connec-
tor. Refer to Fig. 34.
Step 2. Connect the Black wire from the Light
Fixture to the blue wire from the Wiring Har-
ness by pushing them together. Repeat this
procedure for the White wires. Now, remove
the paper from the double sided tape on each
of the components of the Wiring Harness and
attach them to the inside of the Light Fixture
Switch Housing. Refer to Fig. 35.
Step 3. Attach the Light Fixture wiring to the
Ceiling Fan wiring by taking the “Square 9 Pin
Connector” from the Light Fixture and pushing
it into the “Square 9 Pin Connector” from the
Ceiling Fan until the snap engages. Please
note each connector is Color Coded and will fit
together one way only. Refer to Fig. 36.
Step 4. Now tuck the wiring connections neatly
into the switch housing. Align the key hole slots
on the side of the switch housing to the three
(3) screws on the side of the mounting plate.
Turn the Light Fixture until it locks in place at
the narrow end of the key holes. Secure by
tightening the three (3) screws previously
loosened. Refer to Fig. 36.
Step 5. Remove the Socket Nut from each of
the lamp sockets. Place a glass shade over a
socket and replace the socket nut using the
plastic socket nut tool provided. Repeat for
each socket. Finally install the proper size and
wattage lamps (provided). Refer to Fig. 37.
Special Notice: This appliance is equipped
with a “Wattage Limiting Device” required by
the United States Department of Energy. The
device has been installed at the factory and
can not be removed.
Installing Lamps in excess of 190 total watts
will disable the unit’s light fixture. If this should
happen, you will need to reset the lighting
fixture by turning the power off to the ceiling
fan and /or light fixture, reinstalling lamps
totaling less than 190 watts and then turning
the power back on.
