Kichler Lighting Terna 300215 User manual

Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
15" TernaTM
A Kichler
®
Decor
™
ceiling fan
300215
3066708
Includes our new
CoolTouch Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
TM

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. WARNING: To reduce the risk of fire,
electric shock, or Personal Injury, mount
directly to a structural framing member or
to an outlet box marked 'Acceptable for
Fan Support of 15.9 kg (35 lbs) or less'. For
outlet box mounting, use mounting screws
provided with the outlet box.
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural
framing member or to an outlet box marked
'Acceptable for Fan Support of 15.9 kg(35 lbs)
or less'. For outlet box mounting, use mounting
screws provided with the outlet box.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2

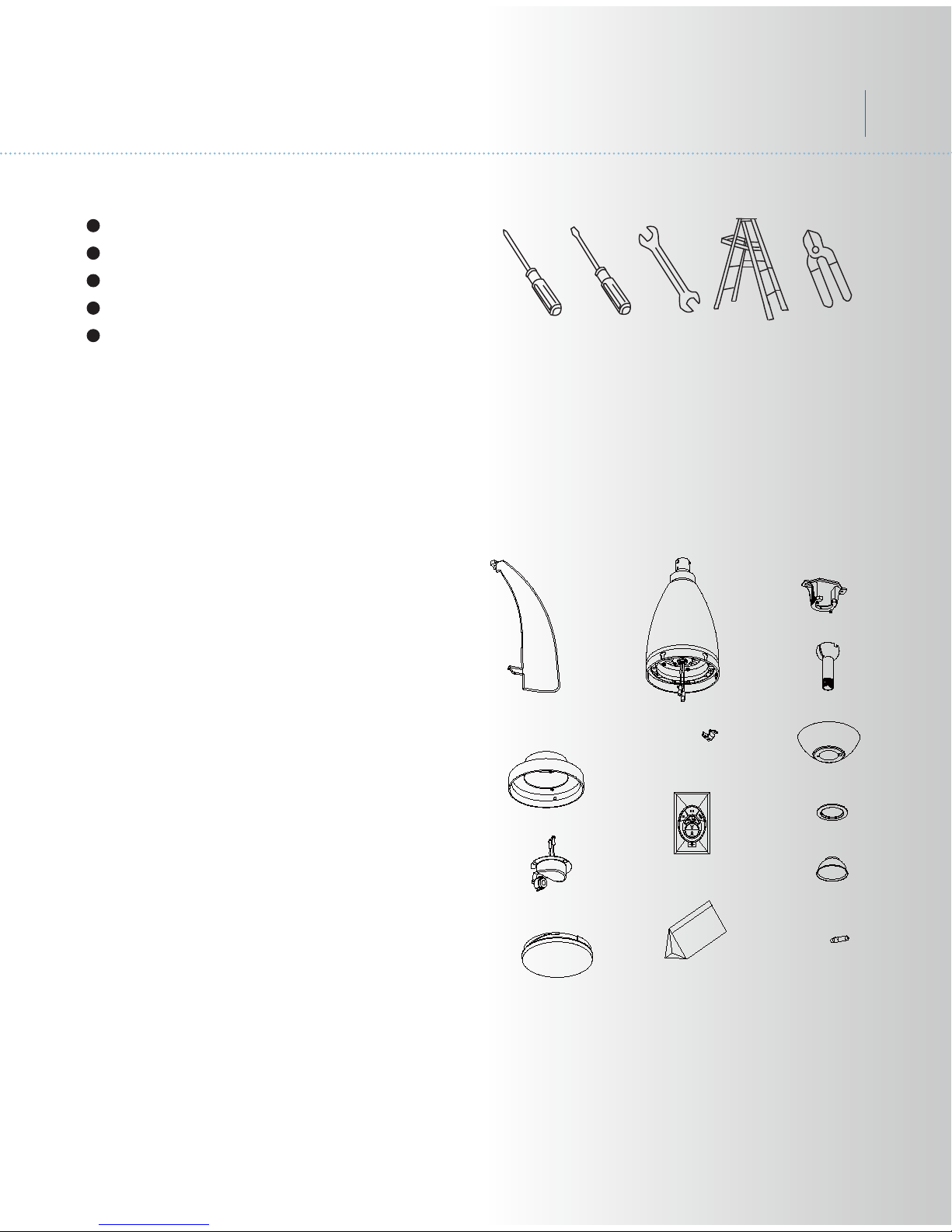

3. PACKAGE CONTENTS
Unpack your fan and check the contents .
You should have the following items:
a. Mounting bracket
b. Ball / downrod assembly (1)
c. Canopy
d. Canopy Hole Cover
e. Coupling cover
f. Motor Body
g. Blades (5)
h. Blade Arms (5)
j. Light Kit
k. Fan Lamp
l. Glass Bowl
n. Package hardware
1)Mounting hardware :
Wood screws (2) , flat washers (2) ,
screws (2) , lock washers (2),
wire nuts (3)
2) Blade attachment hardware :
Flat head screws (12) ,
truss head screws (12)
3) Safety cable hardware :
Wood screw (1) , spring washer (1),
flat washer (1)
4)Balance kit
5)Screw hardware:
Screw (3)
m. Cool Touch Control System
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
15" TernaTM
i. Switch Housing
TM
j
a
b
c
d
e
f
g
h
i
k
l
m
n

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
5. ASSEMBLE YOUR CEILING FAN
6. ASSEMBLY THE BLADE
Step 3. Remove the cardboard from the
motor body. ( Fig. 7)
Step 1. Remove the hanger ball from downrod
assembly by loosening set screws , removing the
cross pin, and sliding ball off the rod. ( Fig. 5)
Step 1. Place the fan assembly into the styrofoam
pad. (The styrofoam pad serves as a holder for the
fan during the first stages of assembly). Insert the
blade into one of the slots on the flywheel, as
shown. Attach the top of blade to the ring with two
flat head blade screws provided in hardware bag.
Do not tighten screws. (Fig. 8)
Step 2. Remove the fan motor and housing
assembly from the protective plastic bag and
take the lower styrofoam packing pad out of the
carton. Place the styrofoam pad on the floor.
Loosen the two set screws and remove the clip
and cross pin from the top coupling of the motor
body.
Carefully feed the fan wires up through the downrod.
Thread the downrod onto the motor coupling until
the cross pin holes are aligned. Next, replace the
cross pin and clip, and tighten both set screws.
(Fig. 6)
15" TernaTM
Fig. 7
Fig. 8
Fig. 5
Downrod
Cross Pin Set Screw
Hanger Ball
Fig. 6
Cross Pin
Set Screw
Clip
Clip
Cross Pin
Motor Body
Cardboard
Blade
Blade Screw
Blade
Blade Screw
Ring

5
Step 2. Carefully turn over the motor body with
the bottom of motor facing up. Attach the blade
arm to the flywheel and let the tab on the blade
leg pass through the hole on the blade arm, as
as shown (Fig. 9). Align the two mounting holes
on both side of blade arm with the holes on the
flywheel and tighten them with truss head blade
screws provided. Finally, tighten the two flat head
blade screws in the ring. Repeat this procedure
for the remaining Four (4) blades. (Fig. 9)
Step 2. Slip the coupling cover, canopy hole cover
and canopy onto the downrod. Carefully reinstall
the hanger ball onto the downrod . Make sure the
cross pin is in the correct position and the set
screws are tight and the wires are not twisted.
(Fig. 11)
Step 3. Now lift the motor body into position
and place the hanger ball into the hanger bracket.
Rotate until the "Check Tab" has dropped into the
"Registration Slot " and seats firmly. ( Fig. 12) The
entire motor body should not rotate if this is done
correctly.
Fig. 11
Canopy
Canopy Hole Cover
Coupling Cover
Motor Body
REMEMBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programming of the
control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Before attaching fan to outlet box (not
included), ensure the outlet box is securely
fastened to at least two points to a structural
ceiling member (a loose box will cause the fan
to wobble). Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. Install mounting
bracket to outlet box in ceiling using the screws
and washers included with the outlet box or
screws and washers in the hardware bag. (Fig. 10)
Fig. 10
Flat Washer
Screw
Ceiling Mounting Bracket
ETL Listed Outlet Box
Screw
Fig. 9
7. HANGING YOUR CEILING FAN
Fig. 12
Check Tab Registration Slot
Blade
Blade Arm
Blade Screw
Tab

6
8 . INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
9. ELECTRICAL CONNECTIONS
A safety support cable is provided to help
prevent the ceiling fan from failing, please install
it as follows.
Step2. Insert the safety cable through the
mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of
the safety cable to reach the screw and washers
by pulling the extra cable through the cable
clamp until the overall lenght is correct, put the
end of the cable back through the cabel clamp,
forming a loop at the end of the cable. Tighten
the cable clamp securely. Now, put the loop in
the end of the safety cabel over the wood screw
and under the washer. Tighten the wood screw
securely. (Fig. 14)
NOTE:Although the safety support cable is
required for Canadian installations only. It’s a
good idea to make the attachment with any
installation.
WARNING:To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel before wiring.
WARNING:If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is
recommended to determine proper wiring.
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts supplied with your fan. Secure the
connector with electrical tape. Make sure there
are no loose wire stands or connections.
Step 1.Drive a wood screw and washers into
the side of the brace that holds the outlet box.
Leave 3mm (1/8") of space between the support
brace and the washer. (Fig. 13)
15" TernaTM
Fig. 14
Fig. 13
Safety Cable Bolt
Wood Screw
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling

7

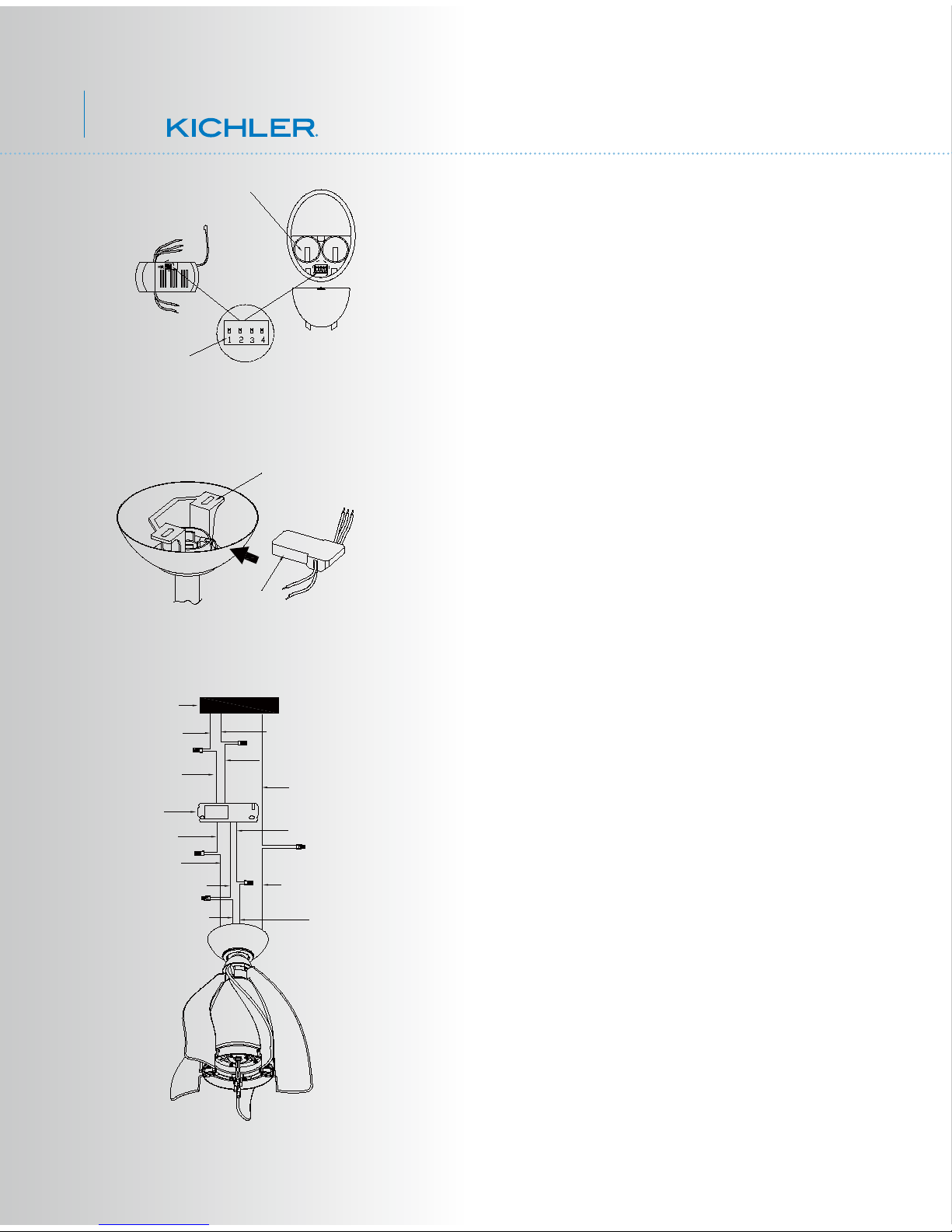

Step 3. Remote Receiver to Outlet Box Electrical
Connections: Connect the BLACK (hot) wire from
the ceiling to the BLACK wire marked “AC in L”
from the receiver . Connect the WHITE ( neutral )
wire from the ceiling to the WHITE wire marked
“ AC in N” from the Receiver . Secure the wire
connections with the plastic wire nuts provided .
( Fig. 17)
Step 1. Insert the receiver into the mounting
bracket, and keep flat in opposition of ceiling.
(Fig. 16)
Step 2. Motor to Receiver Electrical
Connections: Connect the BLACK wire from
the fan to BLACK wire marked "TO MOTOR L"
from the receiver. Connect the WHITE wire from
the fan to the WHITE wire marked "TO MOTOR N"
from the receiver. Connect the BLUE wire from
the fan to the BLUE wire marked "FOR LIGHT "
from the receiver. Secure all the wire connections
with the plastic wire nuts provided. ( Fig. 17)
NOTE: The CoolTouch Control System is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Remove the transmitter
battery cover and make sure the switches
are set to the same position. This must be
done so that your fan will communicate
properly. If you are using more than one fan
in the same area and want to control them
separately, change one fan’s dip switch
settings in the transmitter and remote to a
new pattern.
NOTE: If not using for long periods of time,
remove battery to prevent damage to
transmitter. Store the remote away from
excessive heat or humidly. ( Fig. 15)
Step 4. If your outlet box has a ground wire
( green or bare copper ) connect it to the fan
ground wires : otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and black and
blue wires are on the other side. ( Fig. 17)
NOTE: Carefully tuck the wire connections up
into the outlet box.
NOTE: Fan must be installed at a maximum
distance of 30 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan’s receiving unit.
TM
Fig. 15
ON ECE
ON ECE
Battery Compartment
Code Switch
Fig. 16
Mounting Bracket
Receiver
Fig. 17
White (For common)
Blue(FOR LIGHT) Ground wire
White("AC IN N")
White("TO MOTOR N")
Green or bare copper (ground)
Black (For motor)
Black ("TO MOTOR L")
Black ("AC IN L")
Receiver
Black (hot)
Outlex box
White (Neutral)
Blue(FOR LIGHT)

8
15" TernaTM
10 . FINISHING THE INSTALLATION
9 . INSTALLING THE SWITCH HOUSING
Step 1. Remove one of the two shoulder screws
in the mounting bracket. Loosen the second
shoulder screw without fully removing it. (Fig. 18)
Step 2. Assemble canopy by rotating
key slot in canopy over shoulder screw in
mounting bracket. Tighten shoulder screw.
Fully assemble and tighten second shoulder
screw that was previously removed. (Fig. 19)
Step 3. Securely attach and tighten the canopy
hole cover over the shoulder screws in the
mounting bracket utilizing the keyslot twist-lock
feature. (Fig. 20)
Step 1. Remove one of the screws preinstalled
on mounting plate and loosen the other two
(do not remove). Place the two slot holes on the
switch housing over the 2 screws previously
loosened from the mounting plate. Rotate the
switch housing until it locks in place at the
narrow end of the key holes. Securely by
tightening the 2 screws previously loosened
and the one previously removed. (Fig. 21)
Fig. 18
Shoulder Screw
Mounting Bracket
Fig. 19
Shoulder Screw
Fig. 20
Shoulder Screw
Canopy Hole Cover
Fig. 21
Mounting Screw
Switch Housing

9
Step 1. Remove 1 of the 3 screws from the
switch housing and loosen the other 2
screws (do not remove). (Fig. 22)
Step 1. Install the 1, 50 Watt halogen bulb
(provided).
Caution: Do not touch the glass part of bulb
with bare hands.
Step 2. Hold the light kit close to the
mounting plate and connect the WHITE
wires from the mounting plate and fan by
pushing the connectors together. Follow
the same procedure with the BLACK wires.
(Fig. 22)
Step 2. Assemble the glass shade to the
light kit by twisting in a clockwise direction.
Do not overtighten. (Fig. 24)
NOTE: Before continuing installation,
conrm that the power is still turned off at
the main circuit breaker or by removing the
correct fuse. Turning the power off using a
wall switch is not sufcient to prevent
electrical stock.
12. INSTALLING THE LIGHT KIT
13. INSTALLING THE LAMP AND
GLASS SHADE
Fig. 23
Fig. 24
Fig. 22
Step 3. Tuck the connections neatly into
the light kit. Align the key holes on the light
kit with the 2 screws on the mounting plate.
Turn the light kit until it locks in place at the
narrow end of the key holes. Securely by
tighten all three screws. (Fig. 23)
Switch Housing
Light Kit
Screw
Switch Housing
Light Kit
Screw
Switch Housing
Glass Bowl
Bulb

10
15" TernaTM

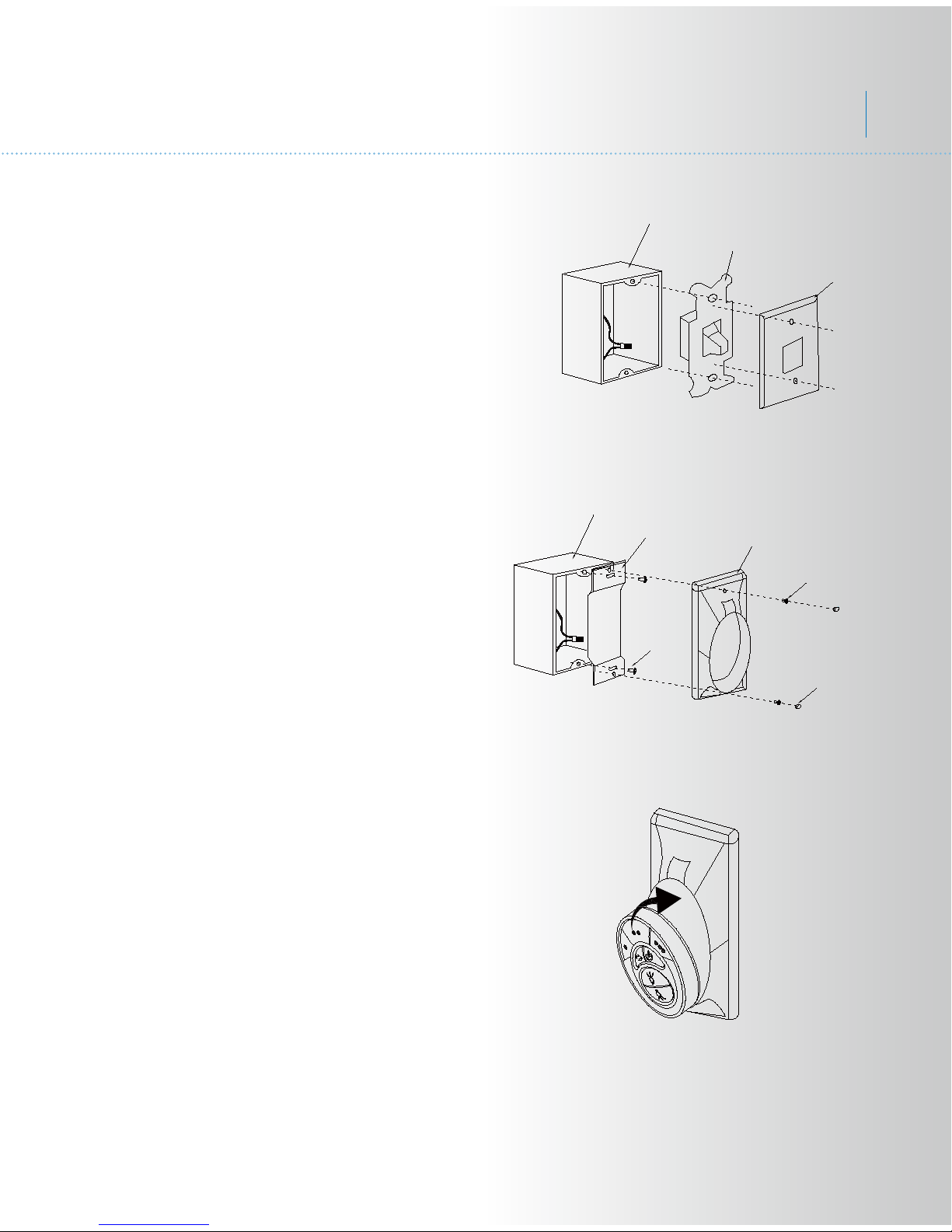

Option 1: Install the control system using an
existing wall switch outlet box. Make sure the
electrical power is TURNED OFF at the main
panel before continuing.
Option 2: Install the control system on ANY flat
surface.
Step 1: Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 25)
Fig. 27
Fig. 25
Fig. 26
15. INSTALLING THE TRANSMITTER
14. INSTALLING THE COOLTOUCH
CONTROL SYSTEM WALL PLATE
TM
All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed electrician.
Select a location to install your CoolTouch
Control System Transmitter. You can replace
an existing wall switch, or install the
transmitter on ANY flat surface.
Note: SWITCH INSTALLATION MUST COMPLY
WITH ALL LOCAL AND NATIONAL ELECTRIC
CODE .
TM
Select the desired location and use the
CoolTouch wall plate to make the location for the
mounting holes. Plastic wall anchors and screws
are provided to this type of installation. After
installing the wall anchors, attach the CoolTouch
wall plate with the mounting screws and then
insert the plastic plugs to finish the installation.
TM
TM
Step 1: To place the transmitter in the wall plate ,
put the bottom end in first and then press the top
into the wall plate. The transmitter is now held in
the wall plate and will function from here . ( Fig. 27)
Step 2: Install the metal plate and CoolTouch
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 26)
TM
Step 2: To remove the transmitter from the wall
plate. Push the release button and the transmitter
will fall into your hand.
CoolTouch Wall Plate
Screw
TM
Plastic Plug
Outlet Box
Metal Plate
Screw
Outlet Box
Switch
Wall Plate

11

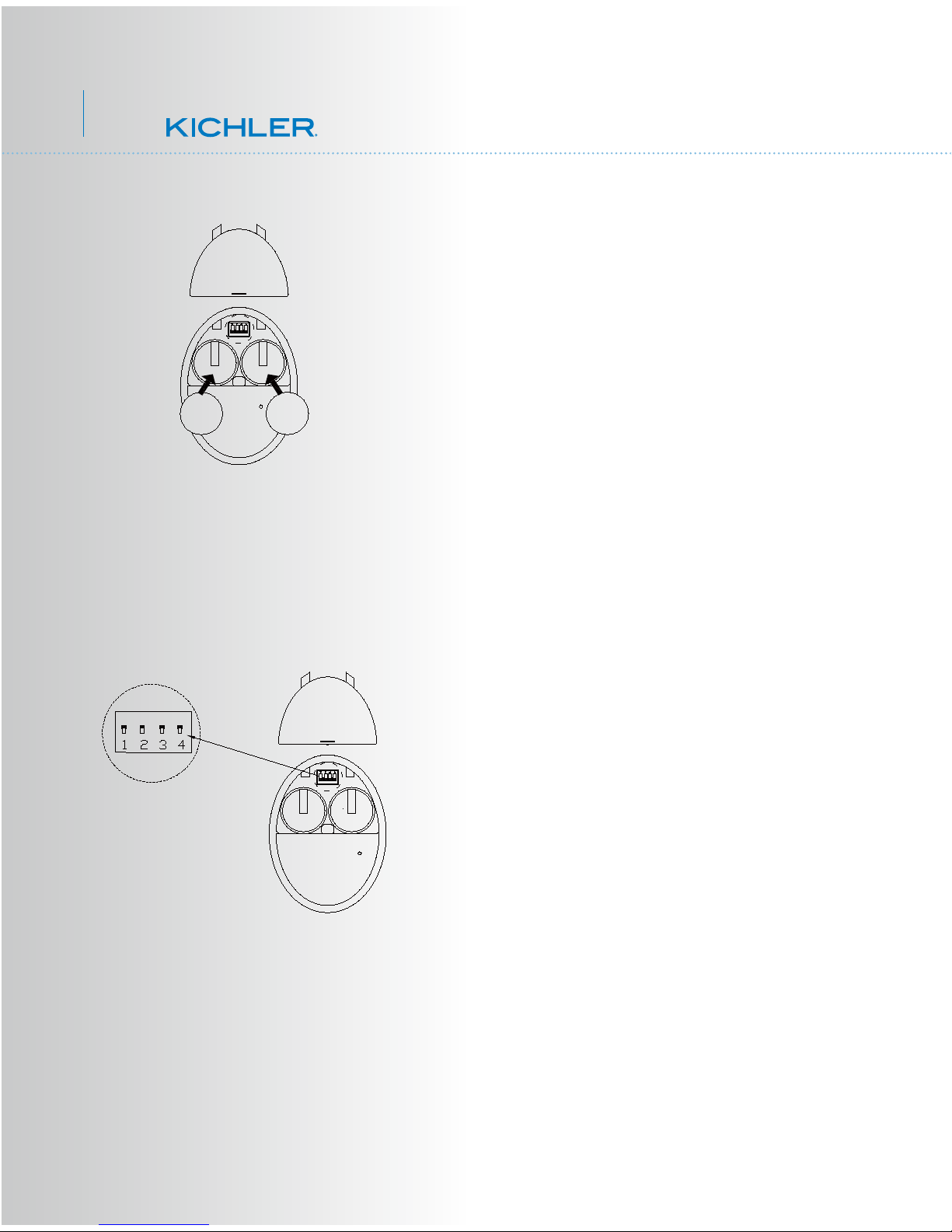

16. CONTROL SYSTEM SET-UP
Fig. 29
Fig. 28
NOTE: Make sure the power is completely
disconnected before you begin this
procedure.
NOTE: To prevent damage to transmitter ,
remove the batteries if not used for long
periods of time ( months ).
Read all of these steps before preceeding.
Each step must be followed exactly to
properly program the control system.
Step 1. Install 2,3 volt # 2032 battery
included with the CoolTouch Control
system and make sure they are seated
correctly in each recess with the Positive +
Sign facing up. Replace the battery cover .
(Fig. 28)
TM
Step 2. Test the transmitter by
pushing and releasing ANY button. A Blue
Light should illuminate, if not, check to
make sure the batteries are inserted and
seated correctly. (Fig. 28)
Step 3. You can leave the frequency
switches at the factory setting or move them
to any combination of up or down. Use a
small at bladed screwdriver to move the
switches. (Fig. 29)
ONECE
2032
+
2032
+
CHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM
ON ECE
ON
ECE
Dip Switch
KICHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM

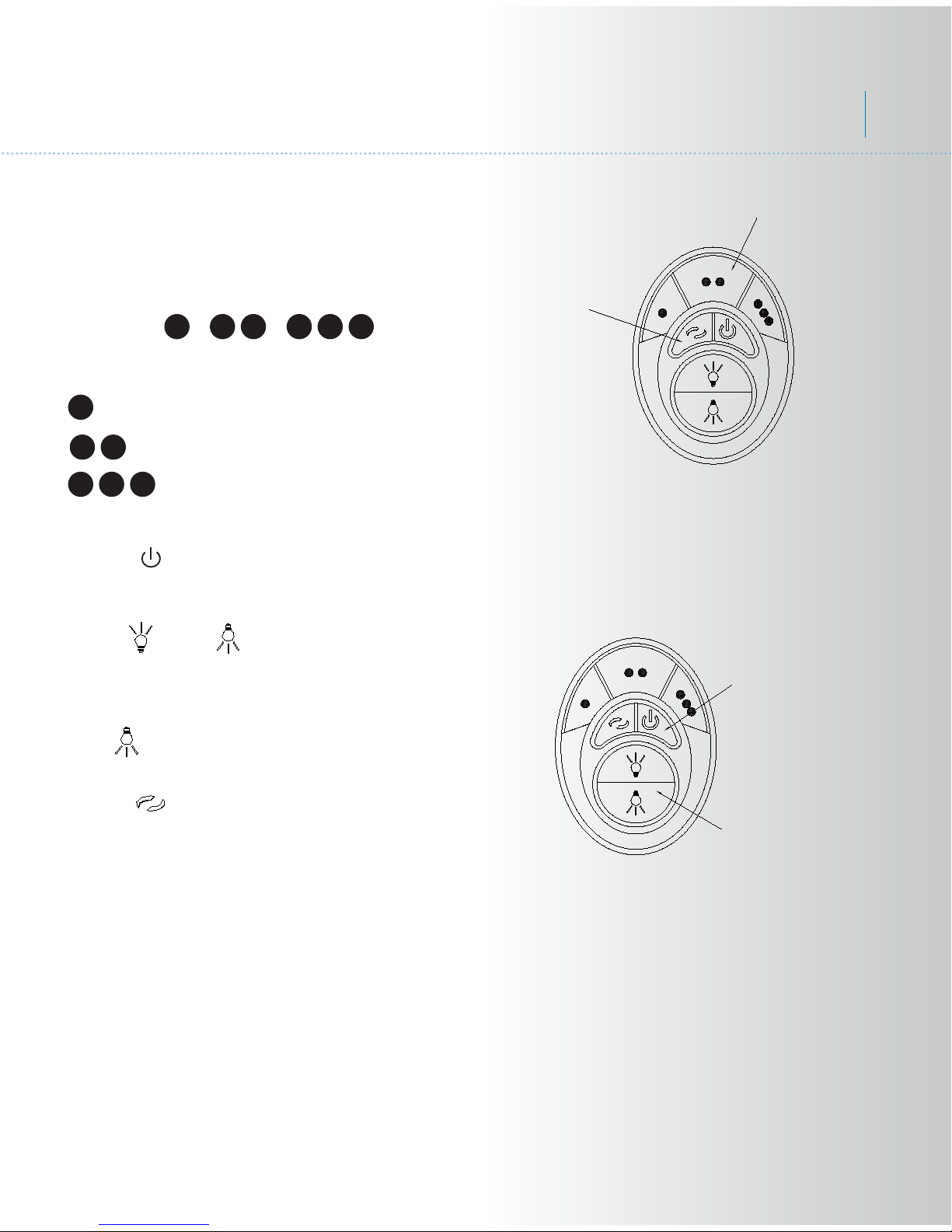

Figure 30:
Figure 31:
1. Buttons , , :
These three buttons are used to set the fan
speed as follows:
17. OPERATING INSTRUCTIONS:
= Low Speed
= Medium Speed
= High Speed
1. The " " buttons:
This button turns the fan motor off and is also
used in the program procedure.
2. The " " and " " button:
These two buttons turn the light ON or OFF
and also controls the brightness setting.
Your fan only have downlight and press
the " " to control your light.
3. The " " button: controls fan direction,
forward or reverse
Speed setting for warm or cool weather depend
on factor such as th room size. Ceiling height,
number of fans and so on.
Warm Weather Operation:
Forward (counterclockwise) A downward airflow
creates a cooling effect . This allows you set your
air conditioner on a warmer setting without
affecting your general comfort.
Cool Weather Operation:
Reverse (clockwise) An upward airflow creates a
warm air off the ceiling areas. This allows you set
your air conditioner on a cooler setting without
affecting your general comfort.
Restore power to ceiling fan and test for
proper operation.
Fig. 31
Motor Off Button
Light Control Buttons
Fig. 30
Speed Buttons
Forward/Reverse Button
12
15" TernaTM

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
18. TROUBLESHOOTING
13
