Instruction Manual
80” LehrTM
A Kichler®Decor™ ceiling fan
6 Speed remote with reverse
function included

1. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved. Cleaning
and maintenance shall not be undertaken
by children without supervision.
2. Children should be supervised to ensure
that they do not play with the appliance.
3. An all-pole disconnection switch must be
incorporated into the fixed wiring, in
accordance with local wiring rules.
4. Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities. Contact your local
government for information regarding the
collection systems available. If electrical
appliances are disposed of in landfills or
dumps, hazardous substances can leak
into the groundwater and get into the food
chain, damaging your health and
well-being.
5. The structure to which the fan is to be
mounted must be capable of supporting a
weight of 40kg.
6. The fan should be mounted so that the
blades are at least 2.3 metres above the
floor In Europe.
7. This fan is suitable for indoor use only.
8. Only an authorized electrician should
execute the installation.
1
1. SAFETY RULES

2
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters

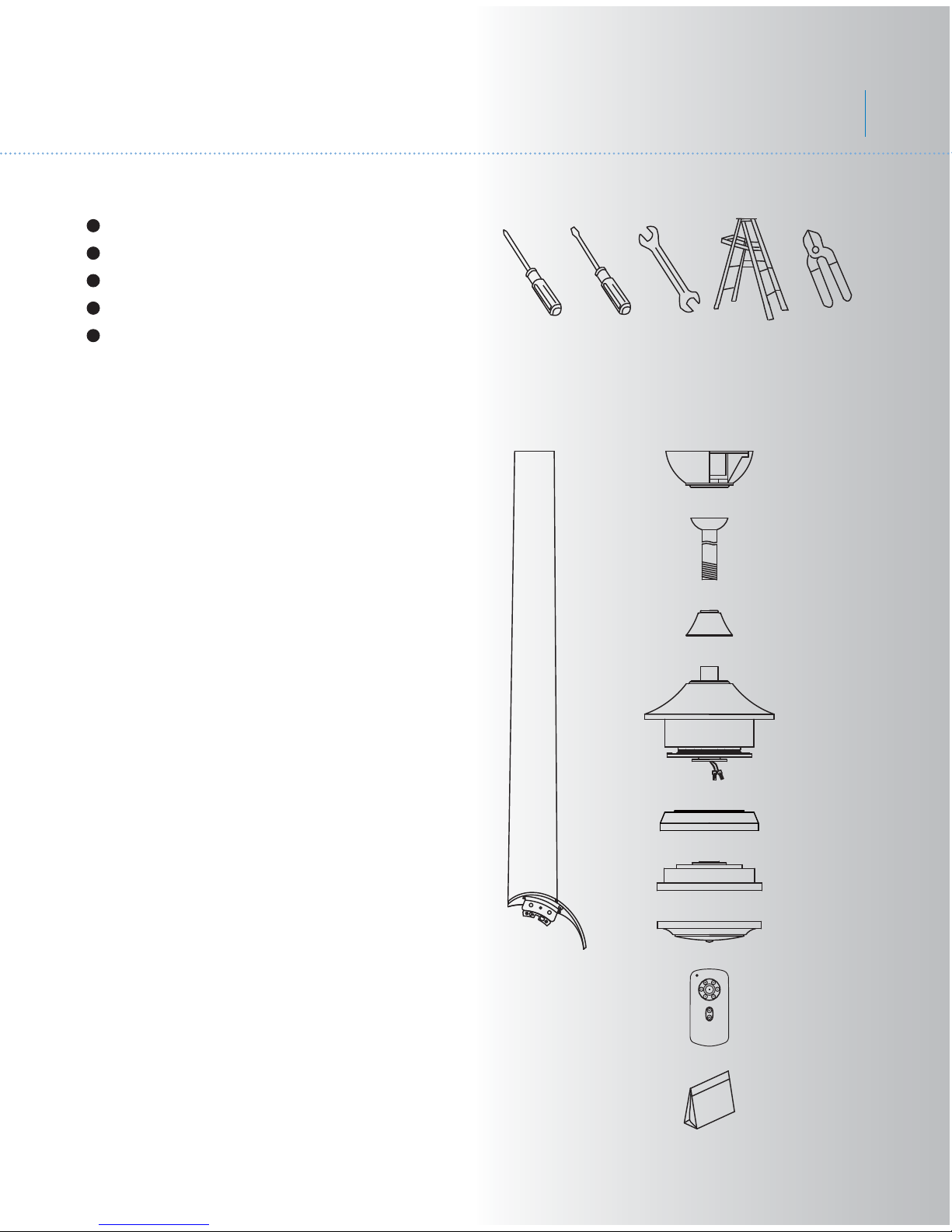

2. TOOLS AND MATERIALS REQUIRED
80” LehrTM
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blade assembly (7)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Blade support plate
g. Mounting plate
h. Motor bottom housing
i. Transmitter+holder+2 mounting screws
j. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
expansion screws (2), water proof
junction box (1)
2) Blade brackets hardware:
screws (2)
3) Balance Kit
b
c
d
e
f
g
h
i
j
a

3
4. INSTALLING THE MOUNTING BRACKET
Fig. 1
The ceiling fan must be installed in a location
so that the blades are 300mm spacing from
the tip of the blade to the nearest objects or
walls. (Fig. 1)
Secure the hanging bracket to the ceiling joist
or structure that is capable of carrying a load
of at least 40kg, with two long screws
provided. Ensure at least 30mm of the screw
is threaded into the support. (Fig. 1)
NOTE: The bracket screws provided are for
use with wooden structures only. For
structures other than wood, the appropriate
screw type MUST be used.
5. ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum
30° degree angled ceiling installation. (Fig. 2)
BEAM
MUST BE ABLE
TO SUPPORT UP
TO 40KGS
NOTE:PICTURE IS FOR REPRESENTATION ONLY AND
DO NOT REPRESENT THE ACTUAL BRACKET.
30°
Fig. 2

4
Fig. 4
Fig. 5
Fig. 6
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Fig. 3
Hanger bracket
Ceiling
canopy
Canopy
cover
6. HANGING THE FAN
80” LehrTM
Mounting screws
Ceiling
Hook
Ceiling
mounting
bracket
Washers
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counterclockwise. (Fig. 3)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save) one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 3)
Step 3. Pass the supply wires from the ceiling
through the center of the ceiling mounting
bracket. (Fig.4)
Step 4. Attach the ceiling mounting bracket to
the ceiling using the appropriate screws
provided . (Fig.4)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set
screw, removing the cross pin and
unscrewing the ball off the rod. (Fig.5)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 6)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 6)

5
Fig. 7
Fig. 8
Registration slot
Downrod
Canopy
Canopy cover
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 7)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats rmly. (Fig. 8)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Set screws
Hitch pin Retaining clip
Coupling cover

6
80” LehrTM

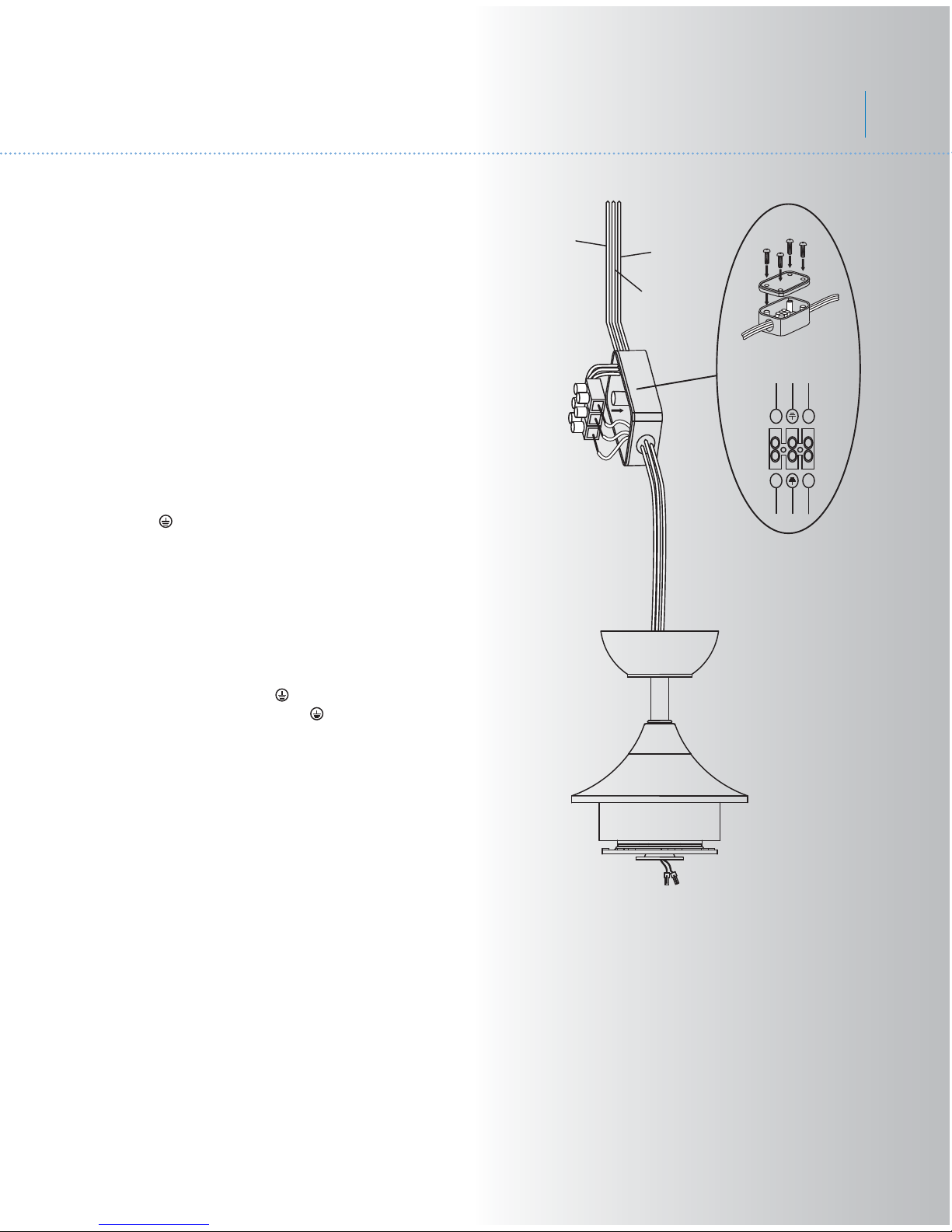

7. ELECTRICAL CONNECTIONS
To disconnect the power, follow the steps
below to connect the fan to your household
wiring. Make sure there are no loose strands
or connections before make the wire
connection. Prepare screwdriver for the below
wire connection.
Step 1. Remove the cover of water proof
junction box by loosening the 4 screws. Insert
the power cords from ceiling through the 3
holes of junction box. (Fig. 9)
Step 2. Connect the household supply (Live)
wire to the terminal block marked “L”. Secure
the wire with screwdriver. Connect the
household ground wire to the terminal block
marked “ ”. Secure the wire with
screwdriver. Connect the household supply
(Neutral) wire to the terminal block marked
“N”. Secure the wire with screwdriver. (Fig. 9)
Step 3. Connect the motor wire (brown)
labeled “L” to another end of the terminal
block marked “L”. Secure the wire with
screwdriver. Connect the ground wire
(Yellow/green) labeled ( ) to another end of
the terminal block marked “ ”. Secure the
wire with screwdriver. Connect the motor
neutral wire (blue) labeled “N” to another end
of the terminal block marked “N”. Secure the
wire with screwdriver. (Fig. 9)
Step 4. Secure back the cover to the junction
box by 4 screws. Put the junction box in the
mounting bracket. (Fig. 9)
Fig. 9
POWER CORD FROM CEILING
LIVE
EARTHING
NEUTRAL
NL
NL

7
Step 1. Tuck all the connection neatly into
the canopy.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 10.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting
screw heads by inserting the screw heads into
the bottom side of the canopy cover and
rotating the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 10)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly
seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the
"Check Tab" could damage the electrical
wires when to ceiling fan blade direction is
changed while the fan is running.
8. FINISHING THE INSTALLATION
Fig. 10
Ceilling
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws

8
80” LehrTM

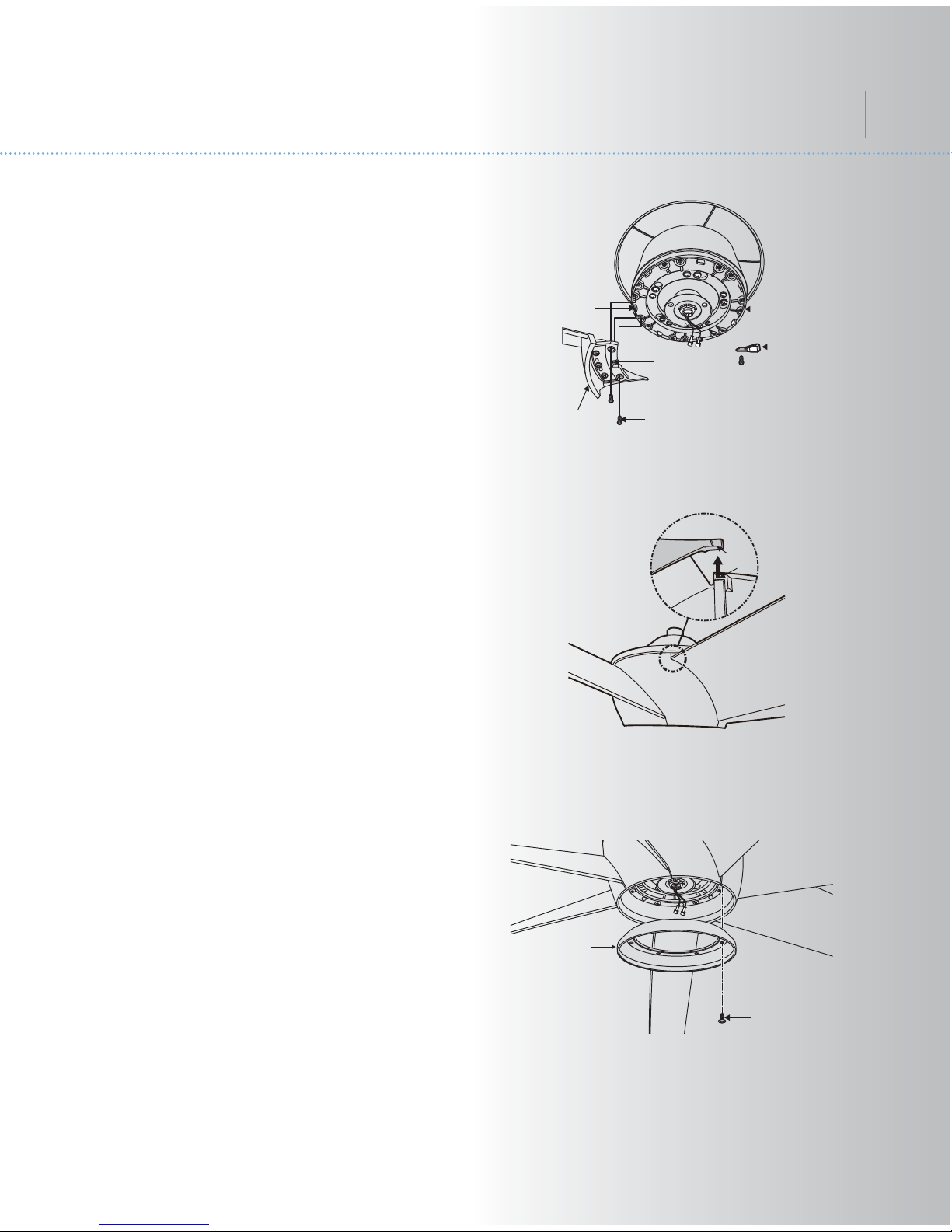

9. ATTACHING THE FAN BLADES
10. ATTACHING THE BLADE
SUPPORT PLATE
Attach the blade support plate onto the blade
arms using the screws(7) provided after
completed installing all blades with arms onto
motor in order to secure the wall of blades
well. (Fig. 13)
Fig. 12
Fig. 13
Fig. 11
Screws
Blade
support
plate
Blade
assembly Screws
Motor
Tab
Slot
Slot
Tab
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw until the rubber washer is slightly
compressed. Repeat this procedure for each
blade.
Step 1 Attach the rst blade assembly to the
fan motor by lining up the slot of the blade
assembly with the tab on the motor. Fasten
the blade assembly to the motor using two
screws and washer provided. (Fig. 11)
Step 2 Remove the seven rubber packing mounts
from the fan motor assembly and discard prior to
attaching the blade arms. (Fig. 11)
Step 3 Installing the second blade assembly
to the fan motor; lining up the slot of the blade
assembly with the tab on the motor, Insert the
tab in the second blade assembly to the slot
on the top of rst blade assembly (see the
drawing circled in Fig. 12)
Step 4 Follow the step 1 procedure for the
remaining blade assemblies.
Rubber
packing
mounts

9
Fig. 15

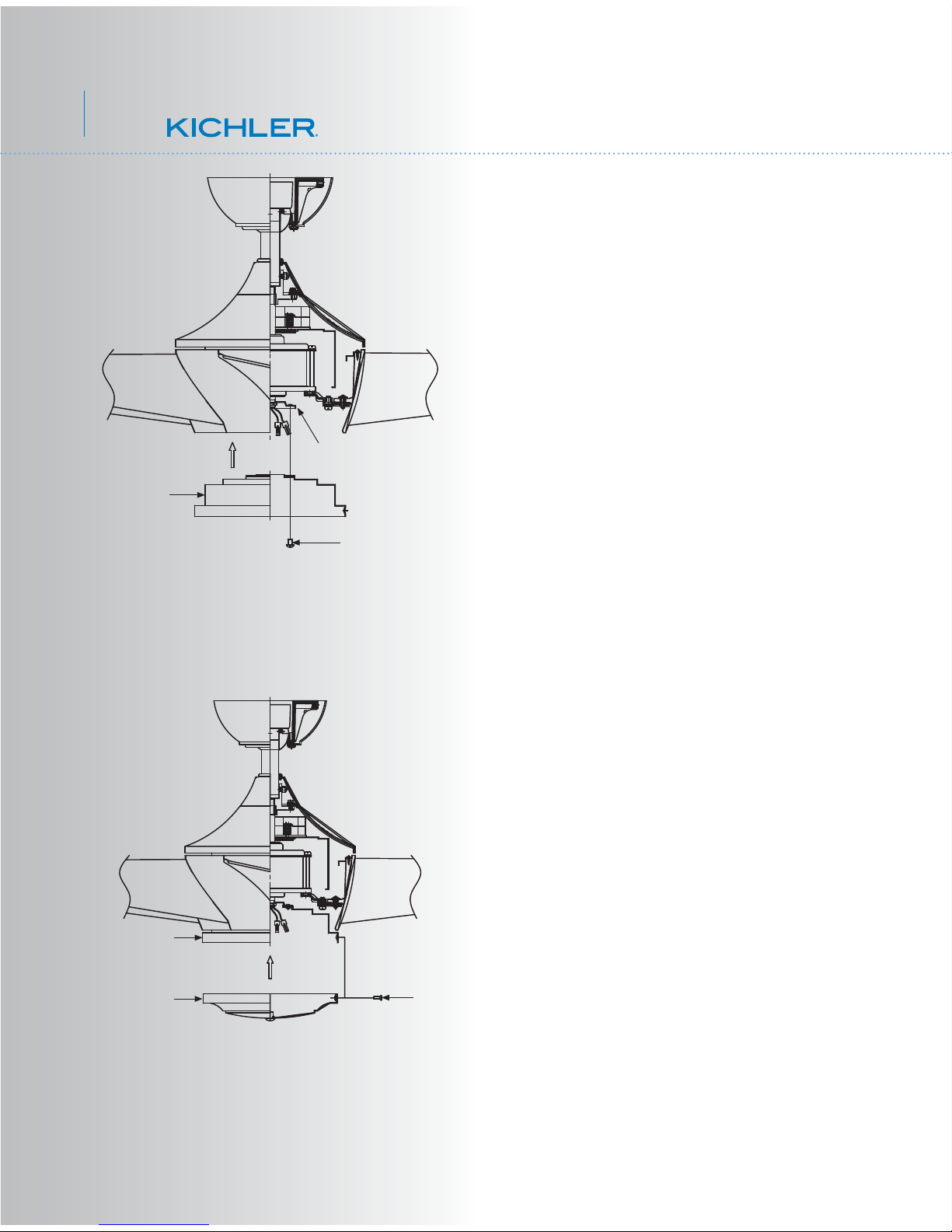

12. INSTALLING THE MOTOR
BOTTOM HOUSING
Step 1. Loosen the three mounting screws on
the inside of the motor bottom housing. (Fig.
15)
Step 2. Place the key holes on the motor
bottom housing over the 2 screws previously
loosened from the mounting plate, turn the
motor bottom housing until it locks in place at
the narrow section of the key holes. Secure by
tightening all three screws. (Fig.15)
Mounting
plate
Screws
Motor
bottom
housing
11. INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 14)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 14)
Fig. 14
Mounting
plate
Screws
Mounting ring

10
80” LehrTM
Fig. 16
Fig. 17
Your DC brushless motor is equipped with a
automatically learned type remote control.
Restore power to ceiling fan and test the
transmitter as below for proper operation:
Install one 23A/12V battery (included). To
prevent damage to transmitter, remove the
battery if not used for long periods of time
A. I, II, III, IV, V and VI button:
These six buttons are used to set the fan
speed as follows:
I = minimum speed
II = low speed
III = medium low speed
IV = medium speed
V = medium high speed
VI = high speed
B. button:
This button turns the fan off.
C. Reverse button:
This button is to control fan direction.
D. SET code setting button:
Follow the below steps to set the remote
control:
The auto learning function will only mandate
within 60 seconds when turning the fan’s AC
power ON.
a) Select desired frequency from the back of
transmitter.
b) From the back of the transmitter, press the
“SET” button, and hold the “SET” button for
over 5 seconds. Once the receiver has
detected the frequency, the light will flash
twice, and the fan will automatically begin to
operate and start to rotate in the
counterclockwise direction and on the highest
RPM for 3 minutes. When counterclockwise
rotation has finished, the fan will automatically
reverse to clockwise direction again to the
highest RPM for 3 minutes. Fan will shut off
when the self calibration test has finished. The
total self calibration test will last about 6
minutes.
NOTE: If the self calibration test failed, turn
the AC power off; restore power and process
13. USING YOUR CEILING FAN the self calibration test again.
NOTE: During self calibration test, the remote
is non-fuctional.
NOTE: The learning frequency function and
self calibration test will continue to retain the
last set frequency and calibration set even
when the AC power is shut off. If the
frequency is changed the self calibration test
will occur again.
ON ECE
1234
ON
D
ON ECE
ON
D

11

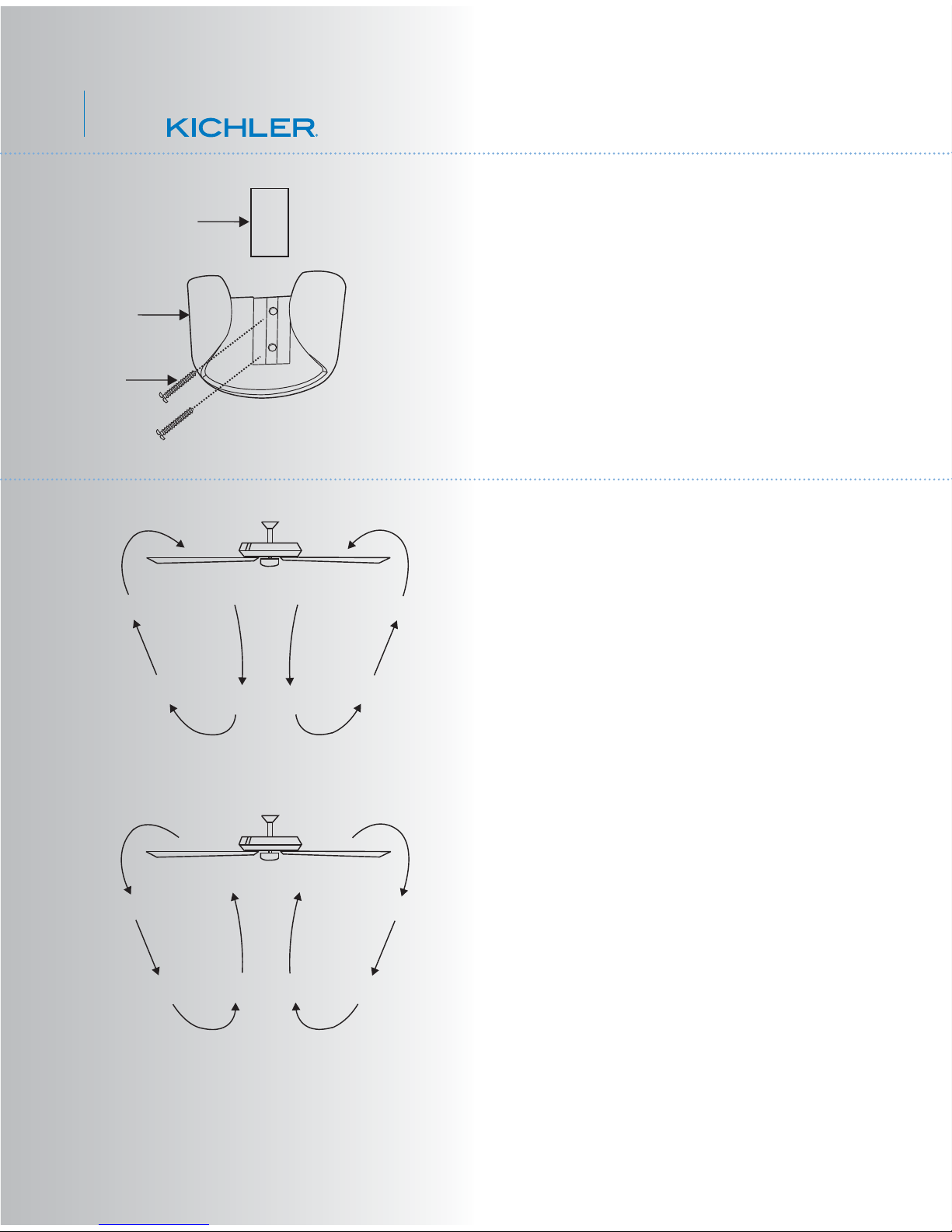

Fig. 19
Fig. 18
Fig. 20
Remove the cover from the holder. Attach the
holder with the two screws provided. Replace
the cover into holder. (Fig. 18)
NOTE: Please remember your control system
is an RF (Radio Frequency) control system.
You may occasionally experience control
problems because of other radio frequency
interference, i.e. fan turns off, light turns off or
won't turn on, speed changes, etc. If this
should happen, just change the “Control
Frequency” by turning the power off and
repeating steps 1 through 6 under System
Programming.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 19. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse (clockwise).
An upward airflow moves warm air off the
ceiling areas as shown in Fig. 20. This allows
you to set your heating unit on a cooler setting
without affecting your general comfort.
14. INSTALLING THE TRANSMITTER
HOLDER
15. OPERATING INSTRUCTIONS
Cover
Holder
Screws

12
16. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
80” LehrTM
18. WARRANTY CONDITION
Please contact the retail outlet where the fan was purchased for a warranty service.
17. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures
attached to the ceiling fan.
30.8
kgs
N.W.
33.0
kgs
G.W.
3.97'
C.F.RPM
66
59
51
45
37
31
CFM
7407.77
6260.83
5364.05
4699.72
3955.96
3309.54
CFM/W
233.68
327.79
406.37
484.51
618.12
769.66
Fan Size
80"
220-240
220-240
220-240
220-240
220-240
220-240
Volts
0.45
0.28
0.20
0.15
0.11
0.07
Amps
31.70
19.10
13.20
9.70
6.40
4.30
WattsSpeed
Extra-High
High
Medium High
Medium
Medium Low
Low
