Instruction Manual
A Kichler®
LoganTM
Décor™ceiling fan

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate the reversing switch while
fan blades are in motion. The Fan must be
turned off and the blades stopped before
sliding the reverse switch located on the
side of the fan motor housing.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of 5 blade brackets and Pre-Installed
mounting screws
g. Light plate
h. Socket plate assembly
i. Glass shade
j. E12, 40 Watt T3, Krypton lamps (3)
k. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (17), fiber washers (17)
3) Blade bracket attachment hardware:
screws (2)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Pull chains and fobs (2)
6) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
j
f
g
h
k
i
LoganTM

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE
3
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
UL Listed
outlet box
120V Wires
Washers
Fig. 6

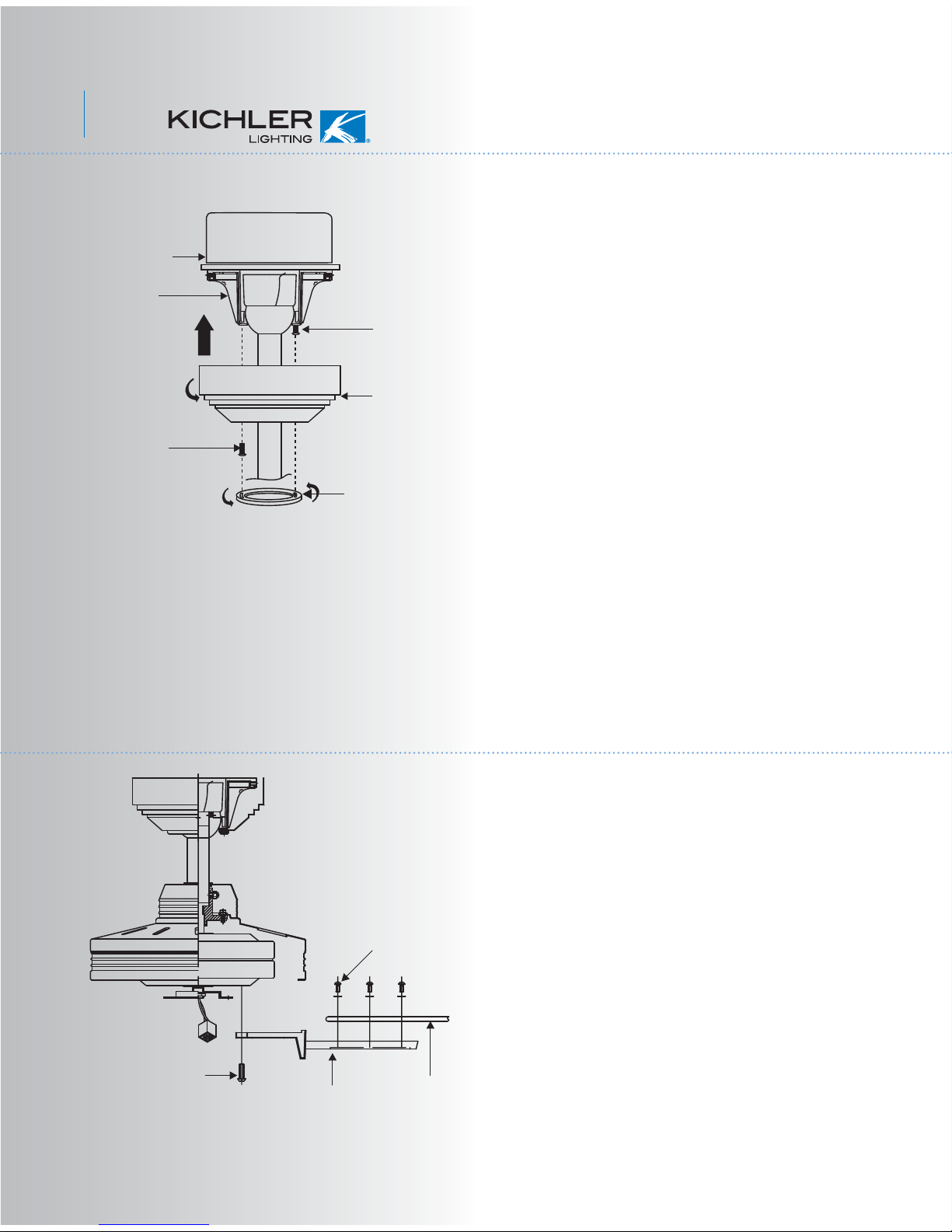

5. HANGING THE FAN
Supply wires
Downrod
Hitch pin Retaining clip
Set screws
Coupling
Set screws
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counterclockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save) one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
Fig. 5
Ceiling mounting
bracket
Canopy
Canopy
cover
Cross pin
Hanger ball Set screw
Downrod
LoganTM

5
Fig. 9
Fig. 10
Registration slot
Check tab
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan to
fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Canopy
Canopy cover
Coupling cover
Coupling
Downrod
Cross pin
Hanger ball
Hanger ball

6
Fig. 11
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer
Fig. 12
7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there
are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to
the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to
the household ground wire.
Step 4. After connecting the wires, spread them
apart so that the green and white wires are on
one side of the outlet box and the black wires is
on the other side.
Step 5. Turn the connecting nuts upward and
push the wiring into the outlet box.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR OTHER PERSONAL
INJURY, MOUNT YOUR CEILING FAN ON A
OUTLET BOX OR SUPPORTING SYSTEM
MARKED "ACCEPTABLE FOR FAN
SUPPORT".
BLK
BLUE
BLK
WH
WH
GRN
Wiring
box
Ground to
mounting
bracket
or downrod
Power lines 120v
Green ground
LoganTM

7
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 13.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 13)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly
seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the
"Check Tab" could damage the electrical wires
when to ceiling fan blade direction is changed
while the fan is running.
8. FINISHING THE INSTALLATION
9. ATTACHING THE FAN BLADES
Step 1. Attach a blade to a blade bracket using
the screws and fiber washers provided.
(Fig.14)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the "Pre-Installed" mounting
screws in the blade bracket. (Fig 14)
Fig. 13
Fig. 14
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
Blades
Blades brackets
Screws and fiber
washers
Screws

8
Fig. 15
Fig. 16
Light plate
Screws
Mounting ring
Socket plate assembly Screws
Light plate
9P wire connectors
4P wire connectors
LoganTM
10. INSTALLING THE LIGHT PLATE
11. INSTALLING THE SOCKET PLATE
ASSEMBLY
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light
plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until is locks in place at the
narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
Step 1. Loosen the two mounting screws on
the inside of the light plate then remove and
save the third screw.
Step 2. While holding the socket plate
assembly under your ceiling fan, push the nine
pin square wire connectors together. One from
the fan and one from the socket plate
assembly. Follow the same procedure with the
four pin square wire connectors. (Fig. 16)
NOTE: These connectors are color coded and
will ONLY engage when the colored strips are
matched (aligned).
Step 3. Tuck the connections neatly into the
light plate. Place the key holes on the socket
plate assembly over the 2 screws previously
loosened from the light plate, turn the socket
plate until it locks in place at the narrow
section of the key holes. Secure by tightening
all three screws. (Fig. 16)

9
Fig. 17
Fig. 18
12. INSTALLING THE LAMP AND
GLASS SHADE
Lamps
Metal nut
Socket plate
assembly
Glass shade
Light
plate
Glass
shade
Beaded pull chain
Glass cap
Decorative nut
Step 1. Install the 3, 40 Watt/E12 T3 Krypton
lamps (provided). (Fig. 17)
Step 2. Remove the decorative nut, glass cap
and metal nut from the light fixture stem. Place
the glass shade over the light fixture stem,
while holding the glass shade, slip the beaded
pull chain into the outside hole in the glass
shade, and then secure the shade with a metal
nut (rubber side touching the shade). (Fig. 17)
Step 3. Slip the beaded pull chain into the hole
on the side of the decorative glass cap.
Fit the glass cap onto the light fixture stem.
Feed the beaded pull chain from the light
fixture stem through the hold in the decorative
nut and thread the decorative nut on securely.
DO NOT OVER TIGHTEN. (Fig. 18)
Step 4. Attache one pull chain fob to each of
the beaded pull chains.
NOTE: Make sure to leave enough space
between the fan pull chain and the bulbs so
the chain doesn't rub against any of the lamps.

10
13. OPERATING INSTRUCTIONS
Fig. 20
Fig. 21
Fig. 19
Turn the power on and check the operation of
your ceiling fan.
The "center" pull chain turns the light fixture
On and Off.
The "outside" pull chain controls the 3 speeds
of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low
and the 4th pull turns the motor off.
The Black Slide Switch on the side of the light
plate controls the direction of the blades
"Forward and Reverse". (Fig. 19)
Warm weather - Forward (counter clockwise)
A downward airflow creates a cooling effect
as shown in Fig. 20. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - Reverse (clockwise) An
upward airflow moves warm air off the ceiling
area as shown in Fig. 21. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
Slide switch
LoganTM

11
15. SPECIFICATIONS
2.51 '11.39
kgs 12.90 kgs
0.54
0.39
0.25
66
34
13
163
116
68
5277.47
3767.40
2350.66
79.96
110.81
180.82
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts Amps Watts
High
Medium
Low
These are approximate measurements. They do not include data for any lamps or fixtures attached
to the ceiling fan.
14. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check that all fuses or circuit breakers are installed or in the ON position.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed
controls. If you have installed this type of control, choose and install another
type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO INUSRE THE
PROPER OPERATION OF YOUR CEILING FAN. NEVER ATTACH THE BLADE
ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN MOUNTING ON THE CEILING.
DO NOT BEND THE BLADE ARMS WHILE INSTALLING, BALANCING OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
