Kingfisher KI6501 User manual

Revision: 4 Date: 18 Jun 2020 Page 1 of 28
User Manual
KI6501 Optical CWDM Power Meter
Warranty:
Information in this manual is given in good faith for the benefit of the user.
It cannot be used as the basis for claims against Kingfisher International
or its representatives, if accidental damage or inconvenience results from
use or attempted repair of the equipment.
This Kingfisher International product is guaranteed against defective
components and workmanship for a period of 1 year from the date of
delivery, unless specifically stated in the original purchase contract or
agreement. This warranty excludes optical connectors or incorrect use.
The warranty will be voided if the following instance happens:-
1) Dismantling the instrument.
2) The instrument has been immersed in water or subjected to
extreme environmental conditions.
Liability is limited solely to repair of the equipment.

Revision: 4 Date: 18 Jun 2020 Page 2 of 28
CONTENTS
1. Summary.................................................................................................3
2. Main Instrument Features.....................................................................4
3. Specifications ........................................................................................5
4. Safety ......................................................................................................6
5. Instrument Layout .................................................................................7
6. Operation instructions ..........................................................................8
6.1 General functions of instrument keys..............................................8
6.2 Switching Instrument ON/OFF ........................................................9
6.3 PM (Power Meter) Mode ...............................................................10
6.4 CWDM Mode.................................................................................12
6.5 SCAN Mode...................................................................................12
6.6 Measurement unit (dB/dBm) selection..........................................13
6.7 Graphical Display Mode ................................................................14
6.8 Saving Scanned Data in Instrument’s Memory .............................14
6.9 Retrieving Data Save in Instrument...............................................15
6.10 Instrument Setup options ............................................................16
7. Charging of Instrument........................................................................27
8. Packaging Content ...............................................................................28
9. Maintenance ..........................................................................................28

Revision: 4 Date: 18 Jun 2020 Page 3 of 28
1. Summary
KI6501 is an easy and economical handheld CWDM Power Meter for
testing multi-λ single mode fiber optic systems. It scans and stores the
absolute or relative power levels of all 18 CWDM λ in 0.8 seconds. Test
data can be viewed in graphical or numerical form, and reference values
can be stored for easy loss testing. The instrument has good ergonomics
which features a large, sunlight readable and backlit colour display, and a
well laid out and easy to use front panel. Data Management Software
enables stored test data to be downloaded to PC.
Applications of KI6501 CWDM Power Meter include the following:
•Wavelength selective Power Meter for systems with CWDM
channel spacing.
•Quickly determine active channels.
•Diverse FTTx systems, RFoG etc.
For application support, please visit www.kingfisherfiber.com to see our
comprehensive Application Notes written to support instrument users or an
updated version of this manual. FAQ can be found in the “Support”
section of our website.
Look at ww.kingfisherfiber.com to find distributor and service centre details
from the Contact Us section.
Otherwise, if you are having difficulties, please feel free to contact
[e-mail] for application support.

Revision: 4 Date: 18 Jun 2020 Page 4 of 28
2. Main Instrument Features
•Compact, rugged & light weight
•Simple to use
•Fast measurement speed
•Scan range of 18 calibrated wavelengths
•Larger, sunlight readable, backlit colour display
•Simultaneous 9 wavelengths loss display
•Tabular and graphical display modes
•Internal memory for 1000 test records
•Test data transfer via USB port
•Programmable auto shut off
•External power / charger via mini USB port
•LED indicator for battery charging status
•12 months warranty
•Low cost

Revision: 4 Date: 18 Jun 2020 Page 5 of 28
3. Specifications
Parameters
Value
Technical
Calibrated λ (nm)
1270,1290, 1310, 1330, 1350, 1370, 1390, 1410,
1430, 1450, 1470,1490, 1510, 1530, 1550, 1570,
1590, 1610
Number of channels
18
Channel spacing (nm)
20
Measurement speed (sec)
< 0.8
Measurement range (dBm)
-40 ~ 10
Measurement accuracy (dB)
±0.51
Damage level (dBm)
27 (Composition of 18 λ)
Fiber type
Single Mode
General
Optical connector/ interface
SC/PC
Display
2.8” Colour LCD with backlight
Display unit
dBm, dB
Display resolution
0.01 dB
Memory
1000 records of 18-λ tests in internal memory
PC interface
Data transfer via USB
Battery type
Built-in rechargeable Li-Polymer
Battery life
7 hours
Auto off function
Programmable (5~600 min after last key pressed)
Charging time
180 min
Flat battery performance
Unit works when charging a flat battery
External power /charging
Via USB port
Operate / Storage / Relative
humidity
-20 ~ 55 °C / -10 ~ 50 °C / ~90% @0~40°C
Size / Weight
155 x 78 x 34 mm (6.10 x 3.07 x 1.34”) / 0.35 kg
(0.77 lb)
Note 1: At -20dBm, -10 ~ 50 °C, ±4nm from centre of pass-band, 9.5/125 fiber

Revision: 4 Date: 18 Jun 2020 Page 6 of 28
4. Safety
Take appropriate eye-safe precautions when
handling live fibre.
Avoid condensation
The instrument is resistant to normal dust and moisture, however it is not
waterproof. If moisture gets into the instrument, remove the batteries and
dry it out carefully for at least one hour before using it again.
Storage
The equipment can be stored at the specified temperatures and relative
humidity. Protect the unit from temperature extremes that may cause
condensation within it.
Make sure to switch off the instrument whenever it is not in use. Keep the
optical connector covered with the dustcover at all time.

Revision: 4 Date: 18 Jun 2020 Page 7 of 28
5. Instrument Layout
Instrument keys
Optical Connector
Charging status
LED
Mini-USB
connector
Color LCD Display

Revision: 4 Date: 18 Jun 2020 Page 8 of 28
6. Operation instructions
6.1 General functions of instrument keys
Key
Function
[Backlight]
ON/OFF Instrument, ON/OFF LCD display backlight
[PM]
AUTO/MANUAL Power Meter Mode
[CWDM]
Scan & present dBm in single-wavelength display mode
[SCAN]
Scan & present dBm in multiple-wavelength display mode
[dB/dBm]
Toggle between measurement units
[Graph]
Present scanned dBm/wavelength in graphical format
[Save]
Save scanned data to instrument’s memory
[Recall]
Retrieve saved data from instrument’s memory
[ENTER]
Enter
[ESC]
Cancel/quit
[Menu]
Instrument Setup
[▲]
Scroll up
[▼]
Scroll down

Revision: 4 Date: 18 Jun 2020 Page 9 of 28
6.2 Switching Instrument ON/OFF

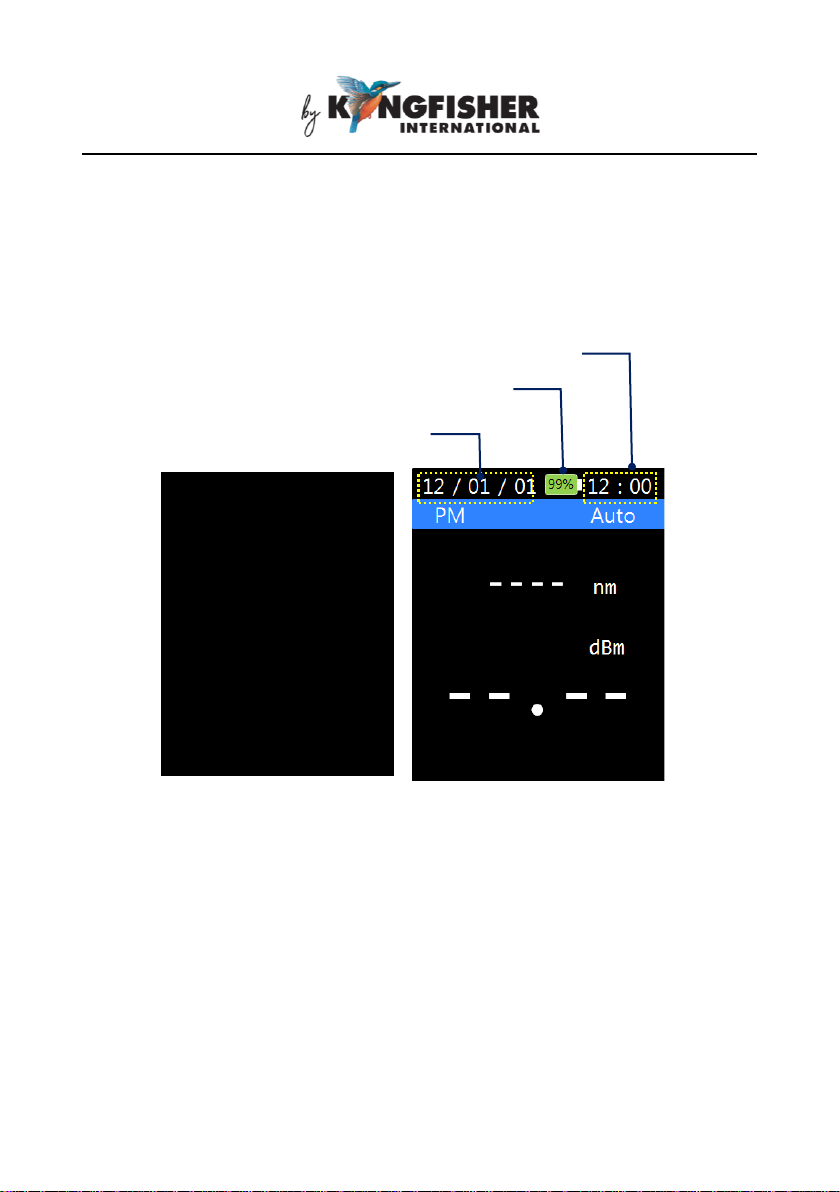

To switch ON instrument, press and hold [Backlight] for 2 seconds. The
instrument will be defaulted to PM Auto (Auto Power Meter) Mode upon
initialization; see pictures below for instrument displays.
When the instrument is switched ON, its LCD backlight can be toggled ON
or OFF by pressing [Backlight]. Backlight will turn off automatically approx
30 seconds after the last key-press.
To switch OFF instrument, press and hold [Backlight] for 2 seconds. The
instrument will switch OFF a few second after the display shown below.
Time
Battery charge indicator
Date
KI 6501
Initializing

Revision: 4 Date: 18 Jun 2020 Page 10 of 28
6.3 PM (Power Meter) Mode

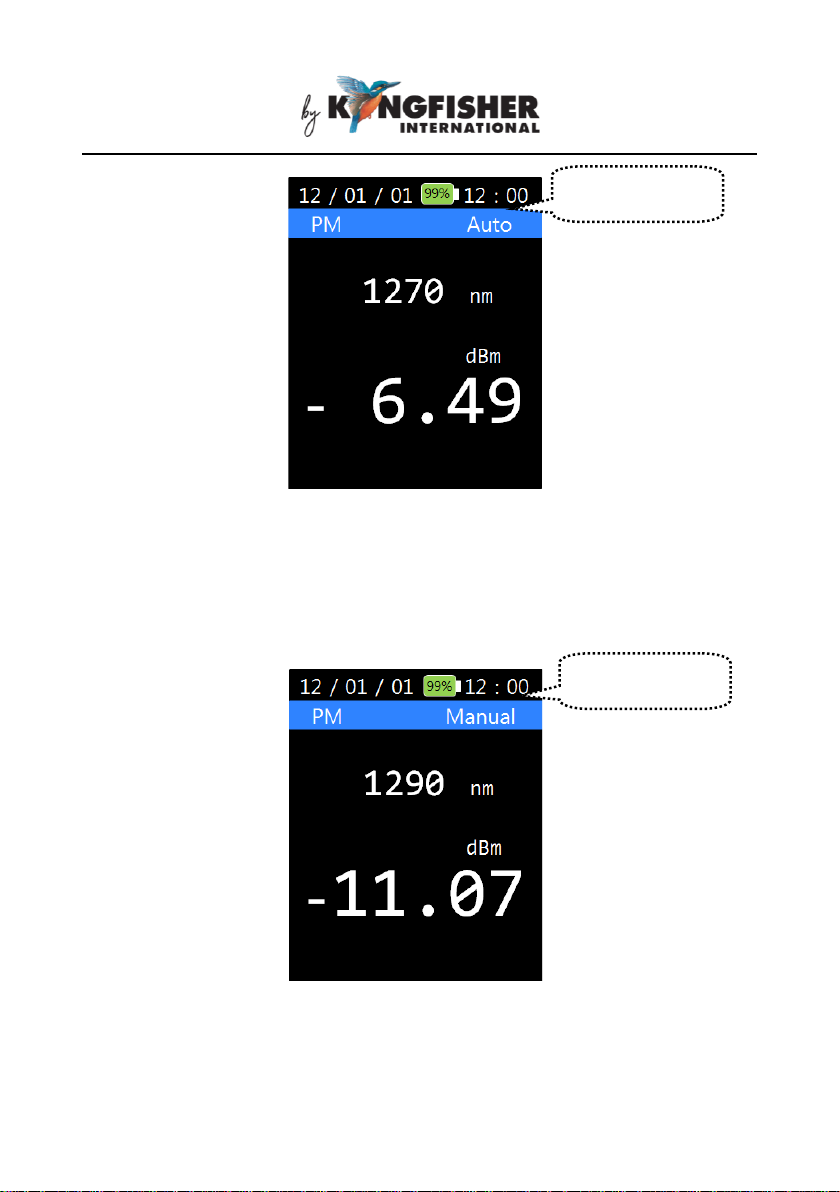

Power Meter can be operated either in PM Auto Mode or PM Manual
Mode. PM Manual mode displays real time power measurement values.
PM Auto Mode:
In this operation mode, the instrument automatically scans the optical
input and displays the wavelength (along with its corresponding measured
power value) which has been detected with the highest level of power.
The instrument is defaulted to PM Auto Mode upon power-ON; otherwise it
can be switched from other operation modes to this by pressing [PM], see
picture below for instruments user interface.
KI 6501
Powering
down

Revision: 4 Date: 18 Jun 2020 Page 11 of 28
PM Manual Mode:
Use this operation mode to manually select and display real time power
values of the wavelengths available at the optical input. See picture below
for user interface of this mode.
In PM auto Mode, press [PM] once to switch to PM Manual Mode. Use [▲,
▼] to select the desired wavelengths for power values displays.
Press [PM] again to return the instrument to PM Auto Mode.
PM Auto Mode
PM Manual Mode

Revision: 4 Date: 18 Jun 2020 Page 12 of 28
6.4 CWDM Mode

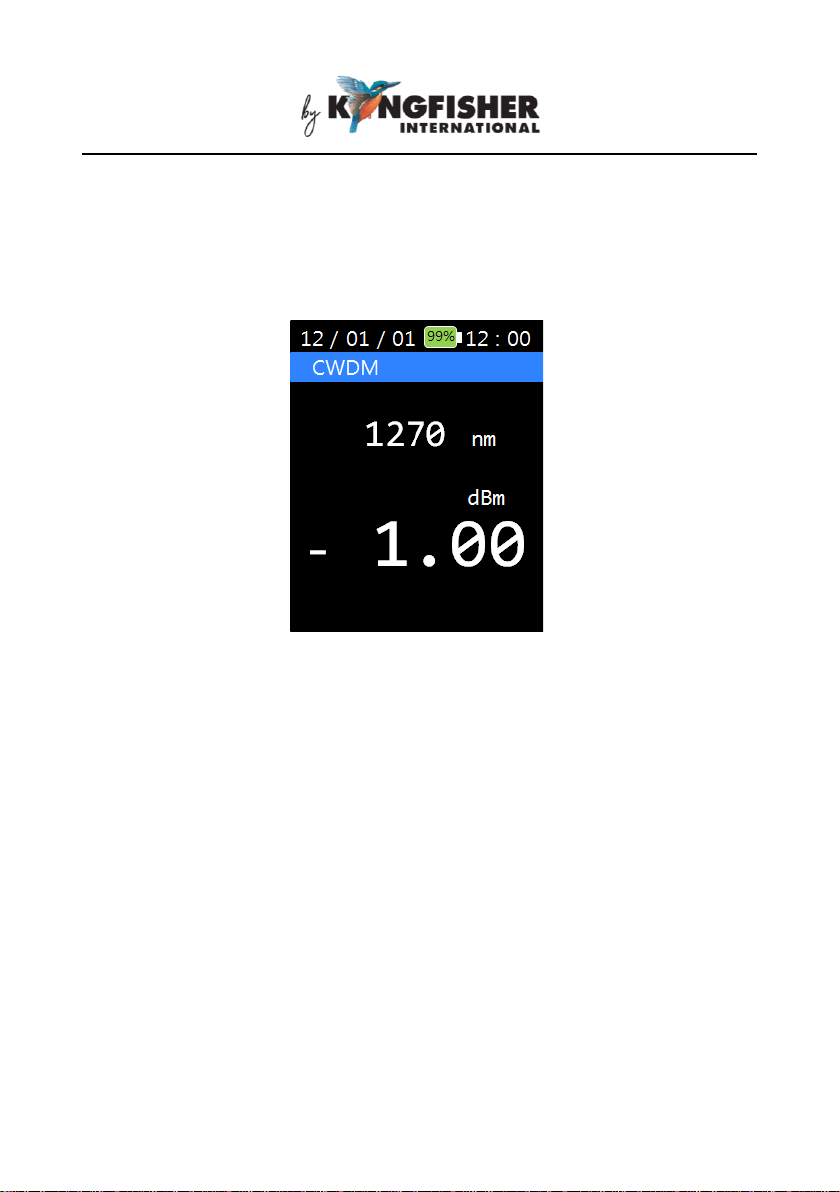

Press [CWDM] to scan optical input once and display power values in
single-wavelength display mode. See picture below for CWDM user
interface.
Use [▲, ▼] to display the power values of other wavelengths scanned at
the optical input.
6.5 SCAN Mode
When [SCAN] is pressed, the wavelengths and their corresponding power
values scanned at the optical input will be displayed in multiple-
wavelength format. A max of 9 wavelengths can be displayed
simultaneously. Use [▲, ▼] to scroll between available display pages. See
picture below for SCAN Mode User Interface.

Revision: 4 Date: 18 Jun 2020 Page 13 of 28
6.6 Measurement unit (dB/dBm) selection
Press [dB/dBm] to toggle between the measurements units of dB and dBm
in PM (Power Meter) Modes.
The displayed power will be become “0.00 dB” when [dB/dBm] is pressed;
see figure below.

Revision: 4 Date: 18 Jun 2020 Page 14 of 28
6.7 Graphical Display Mode

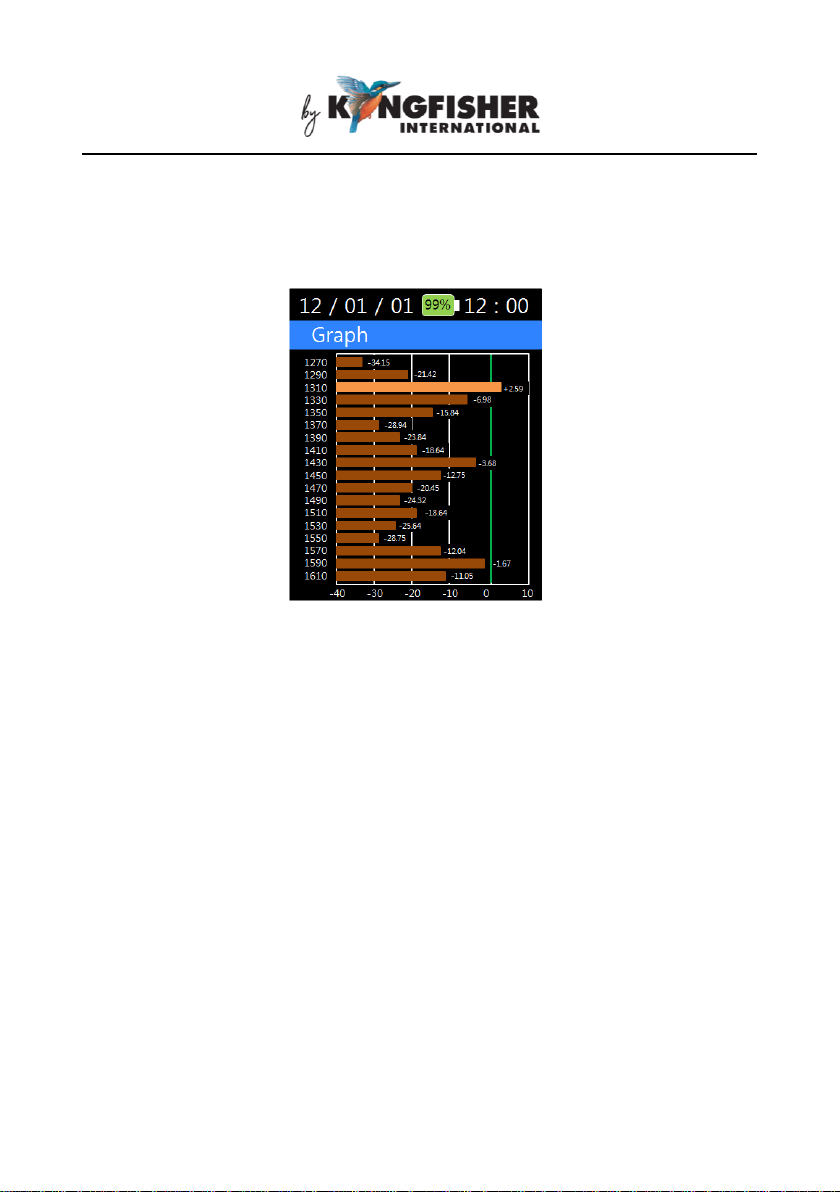

Press [Graph] to display the wavelengths/power values scanned at the
optical input in graphical format, see picture below for an example.
Press [Graph] again will switch the display to the multiple-wavelength
format shown in example of section 6.5.
6.8 Saving Scanned Data in Instrument’s Memory

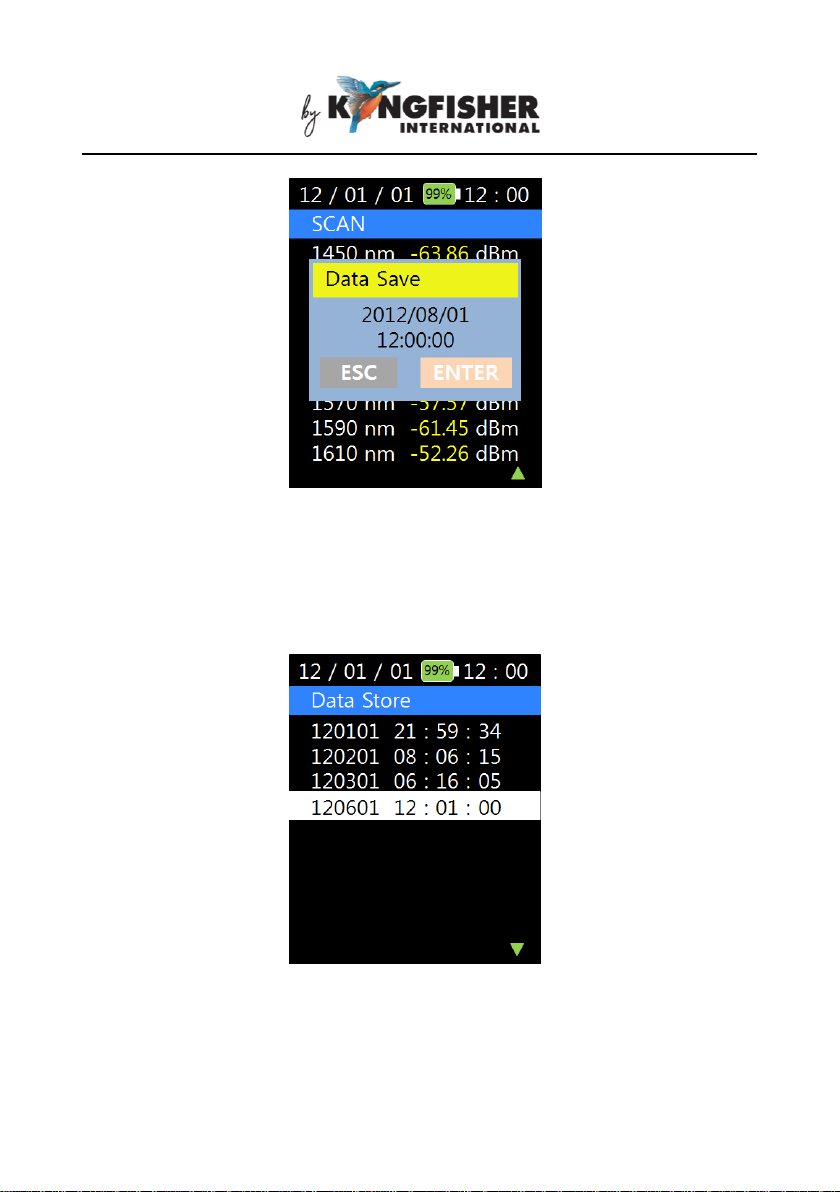

In SCAN Mode, press [Save] to save the scanned optical input data into
memory, see below user interface. Press [ENTER] to continue with the
data saving process or press [ESC] to quit without saving.
A maximum of 1000 test data record file can be saved.

Revision: 4 Date: 18 Jun 2020 Page 15 of 28
6.9 Retrieving Data Save in Instrument
Press [Recall] and the user interface below will be displayed.
Use [▲, ▼] to highlight the desired file (in which data was saved) followed
by pressing [ENTER]. The data will be retrieved and displayed on LCD as
shown in picture below.

Revision: 4 Date: 18 Jun 2020 Page 16 of 28
Use [▲, ▼] to scroll between the available displays pages to read all data
in the retrieved file.
Toggle [Graph] to display the retrieved data in graphical or tabular
(multiple-wavelength) format.
6.10 Instrument Setup options
Press [Menu] to display the available instrument setup options in the Menu
Option List. Pictures below show the Menu Option list (in 2 display pages).
Use [▲, ▼] to scroll between available pages and to highlight the desired
option. Press [ENTER] to select the highlighted option.

Revision: 4 Date: 18 Jun 2020 Page 17 of 28

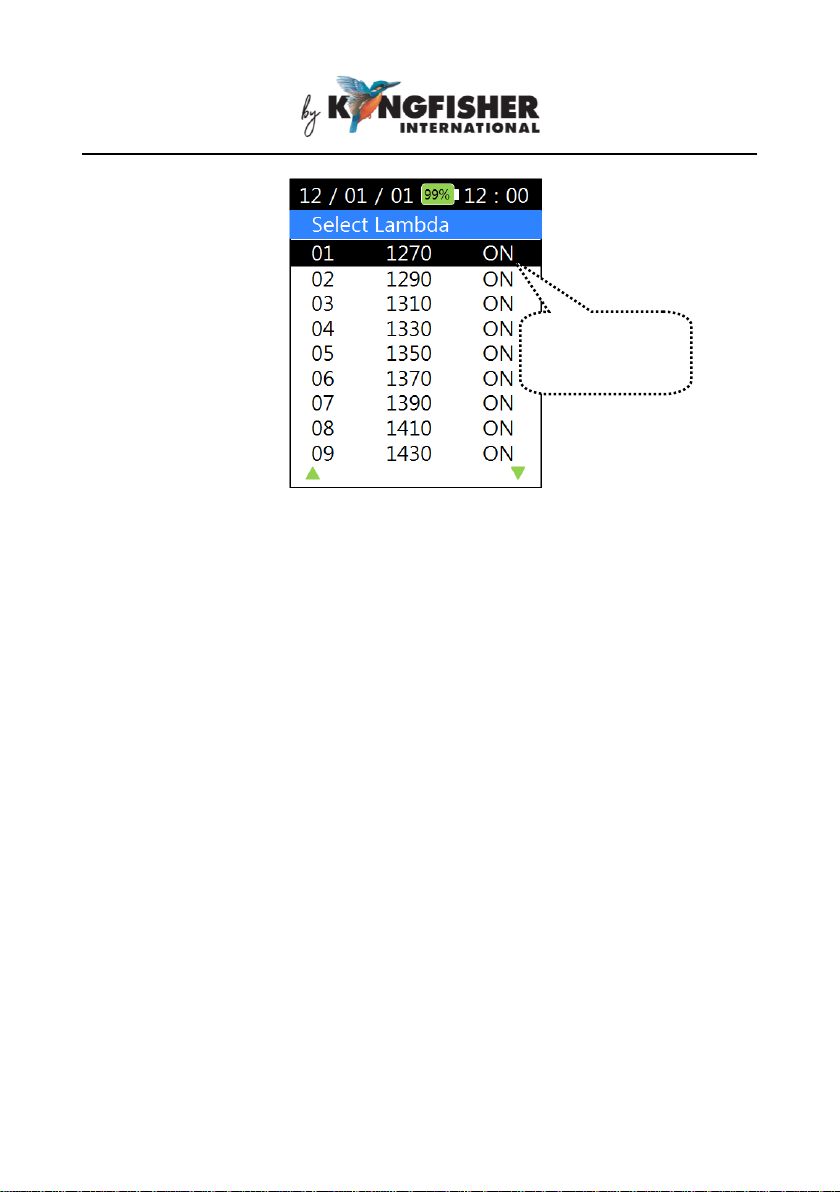

6.10.1 SCAN Set option:

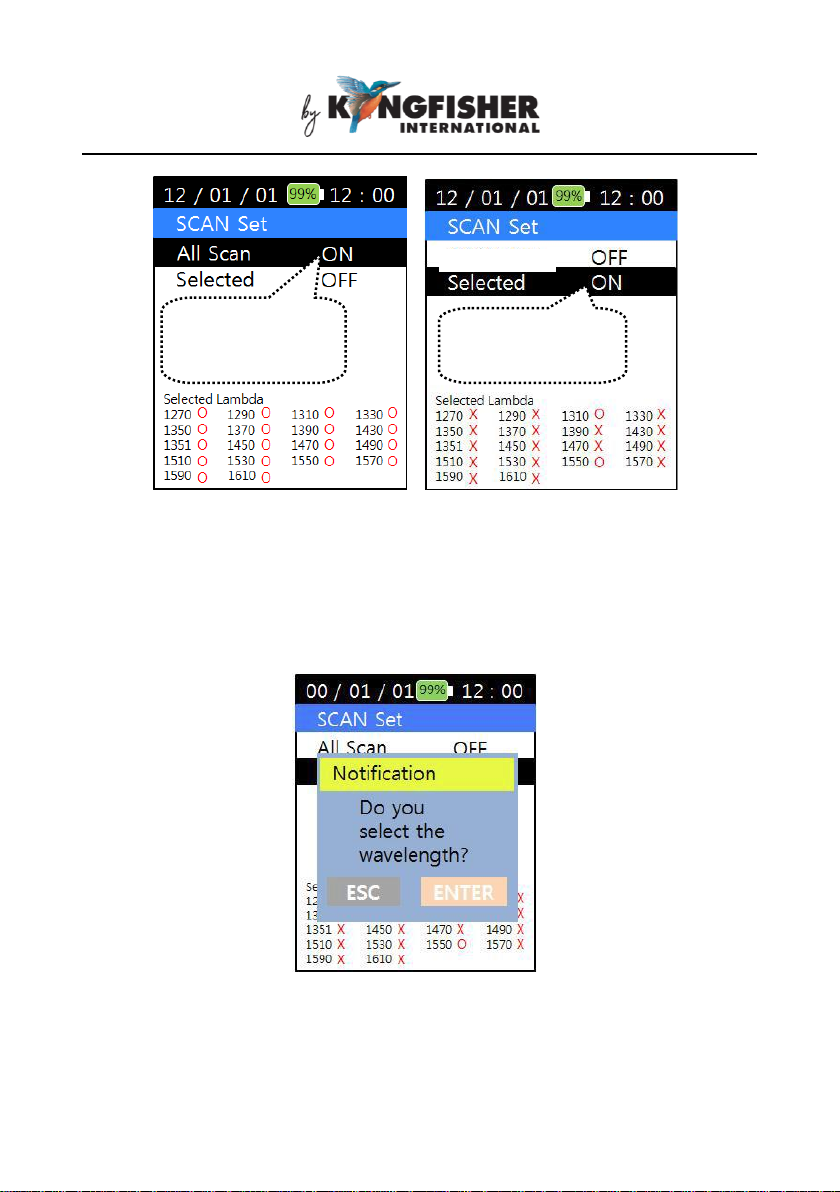

This option provide user with the choice of turning the “All Scan” function
ON or OFF. See picture below for the user interface.
When “All Scan” is “ON”(“Selected” is “OFF”): The instrument scans its
optical input for all 18 wavelengths despite of the wavelengths selected in
Select Lambda option (see section 6.10.2).
When “”All Scan” is “OFF”(“Selected” is “ON”): The instrument scans its
optical input for the wavelengths selected only.
Use [▲,▼] to highlight “Selected” or “All Scan” and press [ENTER] to ON.
When “All Scan” is ON, “Selected” will be automatically set to OFF and
vise versa.
Menu Option list, page 1/2
Menu Option list, page 2/2

Revision: 4 Date: 18 Jun 2020 Page 18 of 28
“O” indicates the selected wavelengths
“X”or "–“ indicates the unselected wavelengths.
To select the wavelength/s, press [ENTER] on the display below;
Use [▲, ▼] to highlight the desired wavelengths from the available 18
wavelengths displayed in 2 pages. Press [ENTER] to toggle ON (select)
or OFF (unselect) the highlighted wavelength. Press [ESC] to return to the
option list of Menu.
Press [ENTER] to
ON
Press [ENTER] to
ON
All Scan

Revision: 4 Date: 18 Jun 2020 Page 19 of 28
6.10.2 Offset option
In PM (Power Meter) Modes, the displayed power measurements of all
wavelengths are offset by the value pre-programmed in this option. See
picture below for this option’s user interface.
Press [ENTER], use the numerical keys to input the desired offset values
(between -25.99 ~ +25.99 dBm). Use [▲ or ▼] to select “+” or “–“ sign.
Press [ENTER] to save the saving or press [ESC] to return to option list of
Menu without saving.
Press [ENTER] to
toggle ON or OFF

Revision: 4 Date: 18 Jun 2020 Page 20 of 28
6.10.3 Auto Power Off
Use this option to program the time elapsed before the instrument is
automatically switched off after the last key-press. See picture below for
this option’s user interface.
Press [ENTER], use numerical keys to input a time (between 5 ~ 600
minutes) and press [ENTER] again to save setting or press [ESC] to return
to Menu Option list without saving.
