Kogan KAVWAC26YA User manual

VERTICAL WINDOW AIR
CONDITIONER (REVERSE CYCLE)
2.6KW
KAVWAC26YA

2
Safety & Warnings 3
Components 5
Before First Use 6
Installation 8
Control Settings 26
Operation 30
Cleaning & Care 32
Troubleshooting 34
Specifications 37
Notes 38

3
Ensure to read all instructions in this user guide prior to first use. Retain this user guide for
future reference. Misuse may cause injuries to people and damage property.
READ ALL INSTALLATION INSTRUCTIONS BEFORE MOUNTING THE STANDARD
FRAME ONTO YOUR WINDOW TO PREVENT FROM FALLING.
WARNING: This air conditioner can be used by children aged 8 years and above and by
persons with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Children should be supervised to ensure they do not play with this product.
•Install the equipment correctly to ensure the required space size, including the
minimum allowable distance to adjacent structures. (Note: Refer to the installation
manual).
•Please follow the correct wiring connection type when operating or repairing.
•If the power cord is damaged, cease use immediately and contact help.Kogan.com for
support.
•Do not use the device in an explosion-hazardous room.
•Do not use the device in a corrosive environment.
•Stand the device upright and stable.
•After cleaning, allow the device to dry completely before resuming operation. Do not
operate when wet.
•Do not use the device with wet hands.
•Do not spray water directly on the device.
•Never insert any objects or limbs into the device.
•Do not cover or transport the device during operation.
•Do not sit on the device.
•This product is not a toy. Keep away from children and animals. Do not leave the
device unattended during operation.
•Electrical connections must meet technical requirements.
•Insert the power plug into a properly secured power outlet.
•When selecting an extension cord for a power cord, pay attention to the power input of
the device, the cable length and the intended use. Fully extend the extension cord
during operation. Avoid electrical overload.
•Before performing any maintenance, unplug the power cord from the electrical outlet.
Hold the power plug when doing this.
SAFETY & WARNINGS

4
•When not in operation, turn off the device and unplug the power cord from the
electrical outlet.
•If you notice damage to the power plug or power cord, cease use immediately and
contact help.Kogan.com for support.
•When placing the device, pay attention to the minimum distance from walls and other
objects and the storage and operating conditions specified in the "Maintenance"
section.
•Ensure that air inlets and outlets are not blocked.
•Ensure the suction side is free of dust and loose objects.
•Do not remove any safety signs, stickers or labels from the device. Keep all safety signs,
stickers and labels clearly visible.
•Drain the collected condensed water before transportation and storage. Do not drink
the water as it may be hazardous to your health.

5
1 Front panel 8 Outdoor air inlet
2 Vertical blade (auto swing) 9 Outdoor water outlet
3 Level blade (manually swing) 10 Outdoor air outlet
4 Indoor air inlet 11 Standard mounting bracket
5 Operation panel 12 Base plate
6 Indoor water outlet 13 Automatic drain outlet
7 Back panel
COMPONENTS

6
Drain outlet
Automatic drain
During cooling/dehumidification operation, the machine has self-evaporation technology,
Condensed water helps dissipate heat, when the water full indicator "FL" appears in ultra-
high humidity weather, you can manually open one of the drain outlets or automatically
drain after shutting down (Delay 15 minutes to start smart drainage after shutdown)
Drain hose
Automatic drain outlet
Note:
When installing install the automatic drain hose, then the machine will automatic
drain through the drain outlet according to the program setting.
BEFORE FIRST USE

7
Automatic drainage during the heating operation
Installation instructions of automatic drain.
Machine
Back
Front
Automatic drain
l
Drain hose
Note:
As shown in the figure, when installing the drain hose;
•firmly insert the hose to the drain outlet
•ensure the drain hose is inclined downward
•ensure the inclination angle is more than 1 degree
•ensure the drain hose is free of dents and wrinkles and there is no foreign matter in
it. Otherwise, the drain hose may be blocked.

8
Before installation
Install Location
1. Use in special places such as factories, coasts and hot springs may cause
malfunctions.
2. Do not install it where flammable gases leak, such as propane / acetylene.
3. Install it near the entrance and exit where there is no obstruction to airflow and the
entire room can be cooled.
4. Keep electronic devices such as televisions and radios away from air conditioners
by at least 1m.
Noise
1. During installation, choose a place that can withstand the weight of the air
conditioner without increasing noise and vibration.
2. Be sure that the hot/cold air and noise won't disturb your neighbours.
3. Do not place anything near the air outlet, which will reduce performance and
increase noise.
4. If you hear abnormal sounds while using the air conditioner, consult your dealer.
Electrical safety
Qualifications must be made for electrical and groundwork. For more information, consult
help.Kogan.com for support.
Installation of earth and earth leakage circuit breakers Grounding work and earth
leakage breakers are required to prevent electric shock.
INSTALLATION
Do not connect the ground wire in the following places:
Gas pipe: danger of explosion or fire.
Water pipe: plastic part, there is no grounding effect.
Lightning rod and telephone ground: It is dangerous if a large current flows during a
lightning strike.

9
Power safety
•Avoid using an extension cord or connect the power cord to other electrical equipment
which may cause danger.
•Even if there are 2 power sockets, use them separately and check if the outlet is 220V
16A or higher
•The electrical capacity of the indoor wiring exceeds the allowable capacity, which may
cause fire, electric shock or overheating of the power plug.

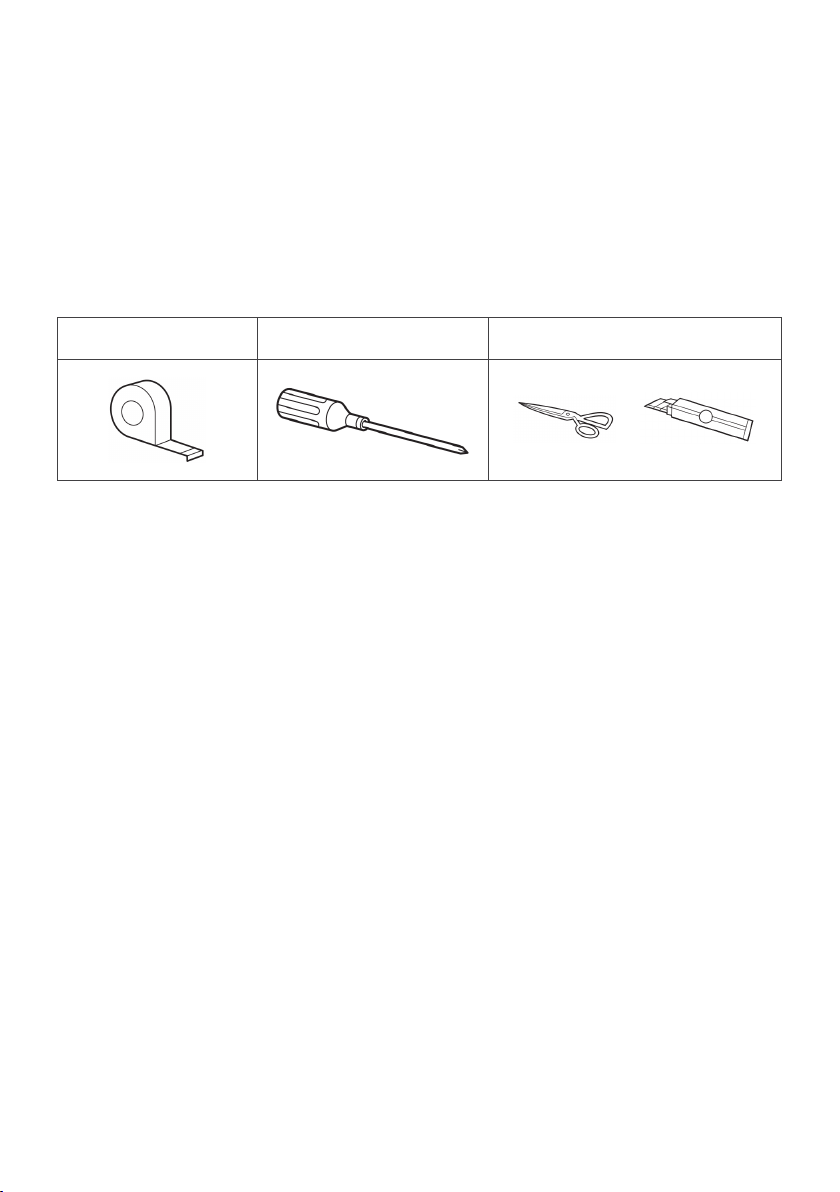

Tools required
Tape measure Screwdriver Scissors or utility knife
or

10
Frame parts description
2 Fix plate: (x2) up & down frame each 1pcs
4 Body fixing screw (M4X14):fix unit and frame.
7 Frame fix screw (M4X30):(x4) each 2pcs screws on up & down fix plate which
used to install frame on the window.
10 Slide fixing screw (M4X16):(x4) 2pcs on the inside frame to fix slide distance.
⑨ Sealed stretch skin
⑧ Flexible side panel
⑦ Frame screws
③ Sealing skin
② Fix plate
⑩ Slide fixing screw
⑥ Fixed side plate
⑤ Machine lock
④Body fixing screw
indoor
outdoor
①Standard frame

11
⑪ Sealing Sponge: Used in places where air leaked is possible
after installation is completed to make it more sealed.
⑫ Window Production Board: Used to install the bracket
between the window and the screw to prevent the screw from
directly contacting the window and causing damage to the
window.
⑬Corrugated Drainage Pipe
Annex;
To drain water.
⑭Window Fixing Lock
Annex;
It is used to fix position of the window to better maintain the
seal between the bracket and the window.
Window Installation Instructions
Window Type
•Window frames should have grooves.
•If there are no grooves, or the location is difficult to install, contact help.Kogan.com for
support.
Notes:
When accessories and parts are not in use, please keep them in safe place.

12

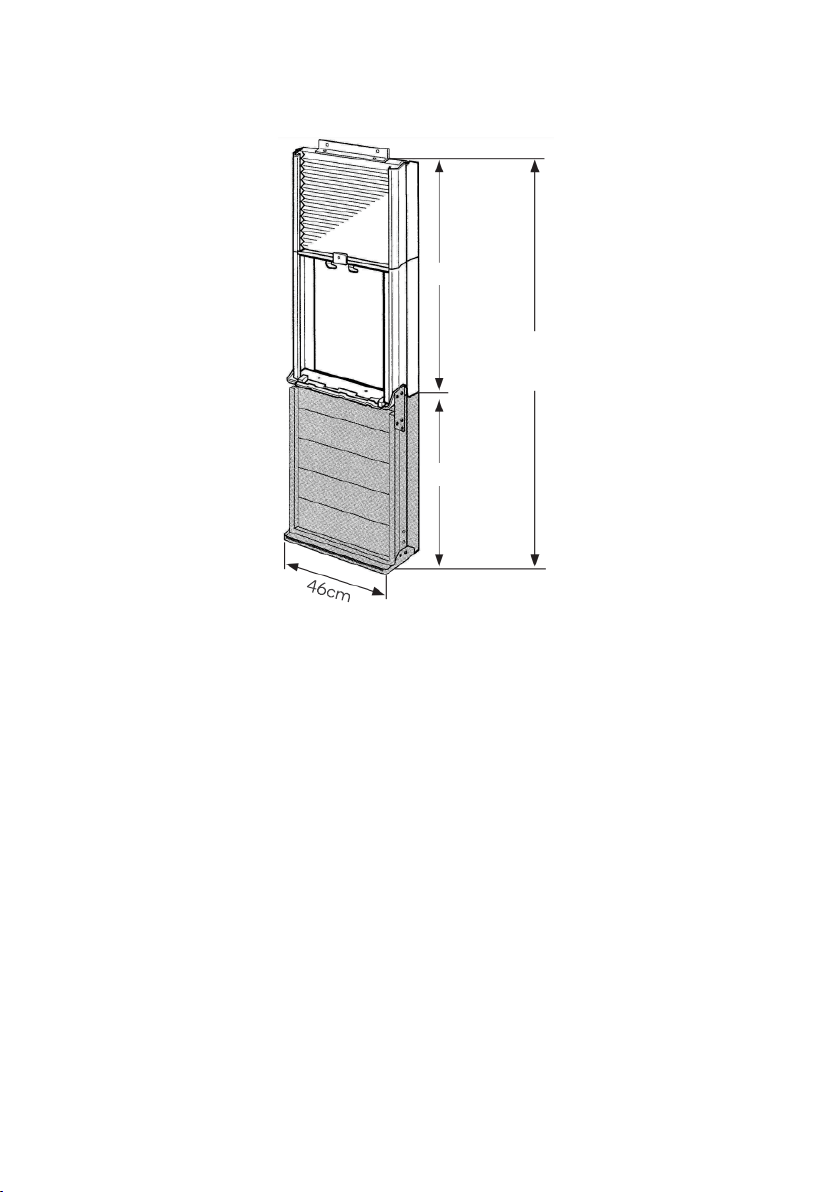

Window Size Requirements
1. Standard frame:
(1) The opening width of the window should be more than 46 cm.
(2) The height of the window opening must be more than 90 cm and the maximum
cannot exceed 145 cm.
2. Standard frame + 60cm extension bracket:
(1) The opening width of the window should be more than 46 cm.
(2) The height of the window opening must be more than 90 cm and the maximum
cannot exceed 145 cm.
3. Standard frame + 90cm extension bracket:
(1) The opening width of the window should be more than 46 cm.
(2) The height of the window opening must be more than 180 cm and the maximum
cannot exceed 235 cm.
90 ~ 145cm
60 (90) cm
150 ~ 205
(180~ 235) cm

13

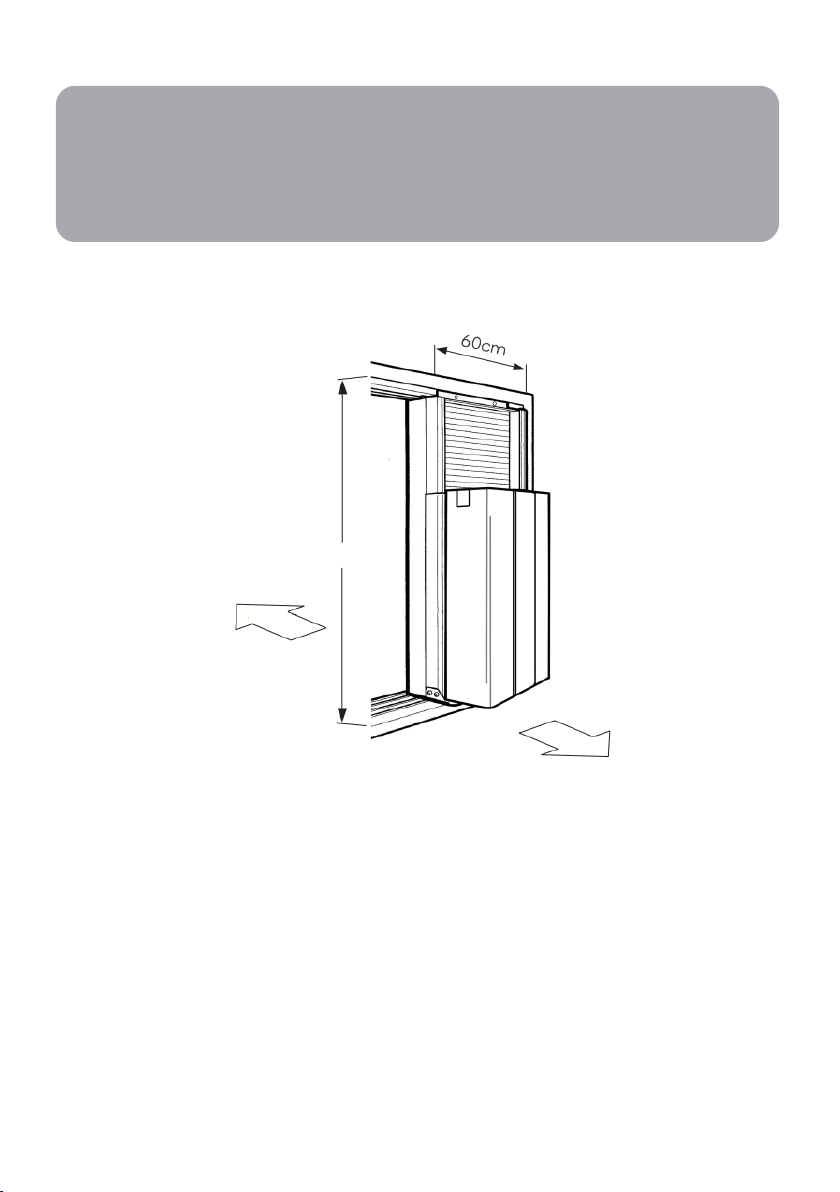

Complete Diagram
Choose installation location
1. There is no obstruction in front of the cold air outlet and the cold air spreads
throughout the room.
2. Ensure there is no hot air beside unit.
3. Windows are strong and difficult to spread vibration.
4. Avoid placing the device directly under the rain gutter.
5. Hot air from the back does not blow into windows of adjacent houses and is
difficult to spread noise.
6. Where flammable gases are not present.
Notes:
1. The size of the installation window should not exceed the size that can be
installed on the window frame;
2. For the connection between the extension bracket and the standard bracket, see
the extension bracket installation instructions.
Outdoor
Indoor
90 ~ 145cm

14
Consider noise during installation
1. When installing, choose a location that can withstand the weight of the air
conditioner without increasing operating noise or vibration.
2. Choose a location so that hot air and driving noise from the outdoor air outlet of
the air conditioner do not disturb the neighbours
3. If an object is placed near the outdoor air outlet of the air-cooled air conditioner,
the function will be weakened and the noise will increase.
4. If you hear abnormal sound during use, consult your dealer.

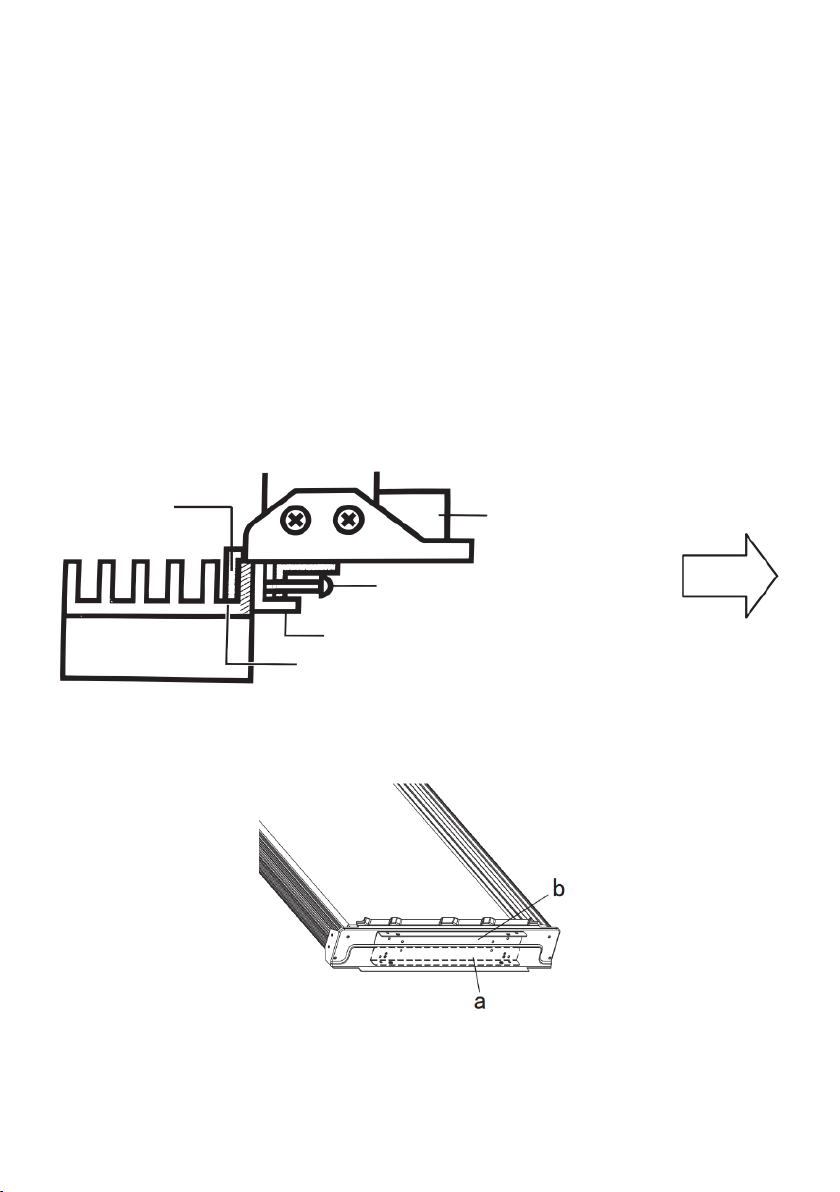

Bracket Installation Method and Steps

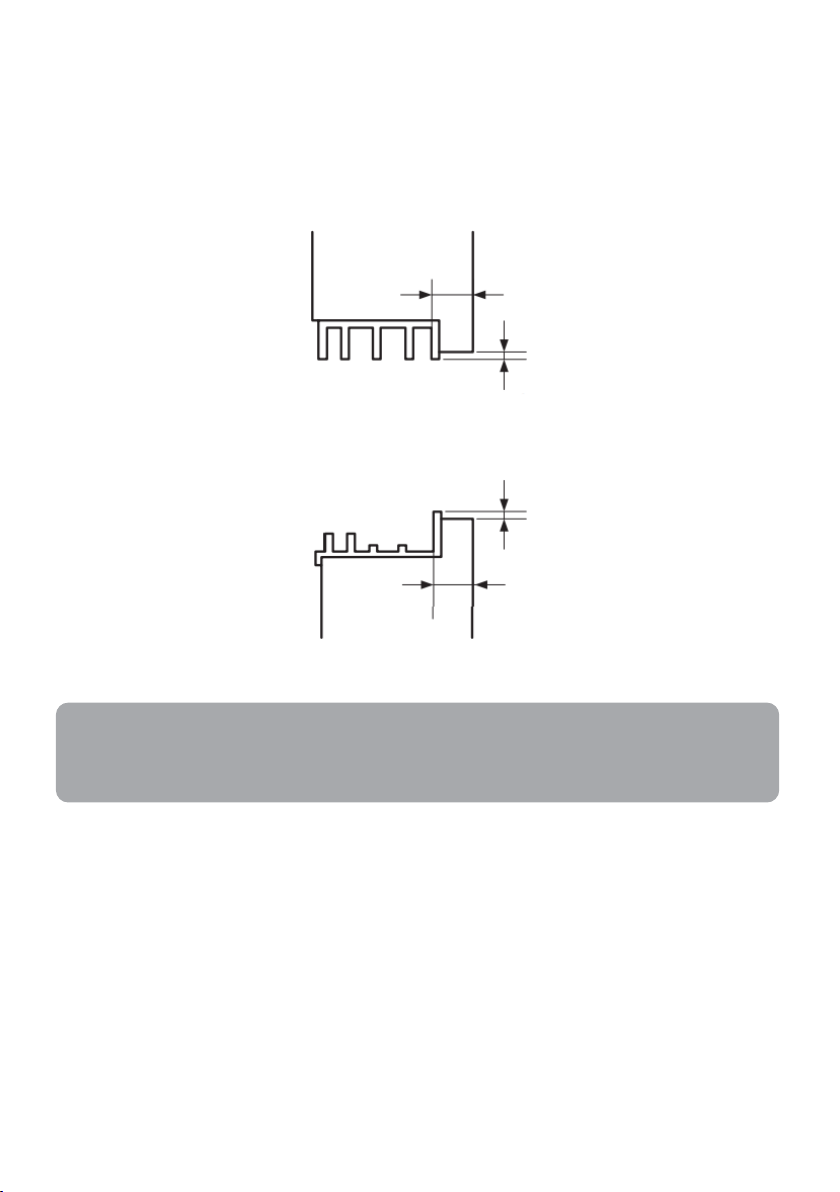

Installation Window Position
1. Open the window to be installed
a. The thickness of the convex groove of the window between the brackets is 1-10mm.
(As shown in diagonal line)
b. The thickness of the convex groove of the window between the brackets is 10-63mm.
(As shown in diagonal line)
2. Remove the fixing plate ② at position a. and install it at position b. according to the
illustration.
Frame Fixing Screw
Production Board
Product Installation Location
Bracket Card
Indoor

15

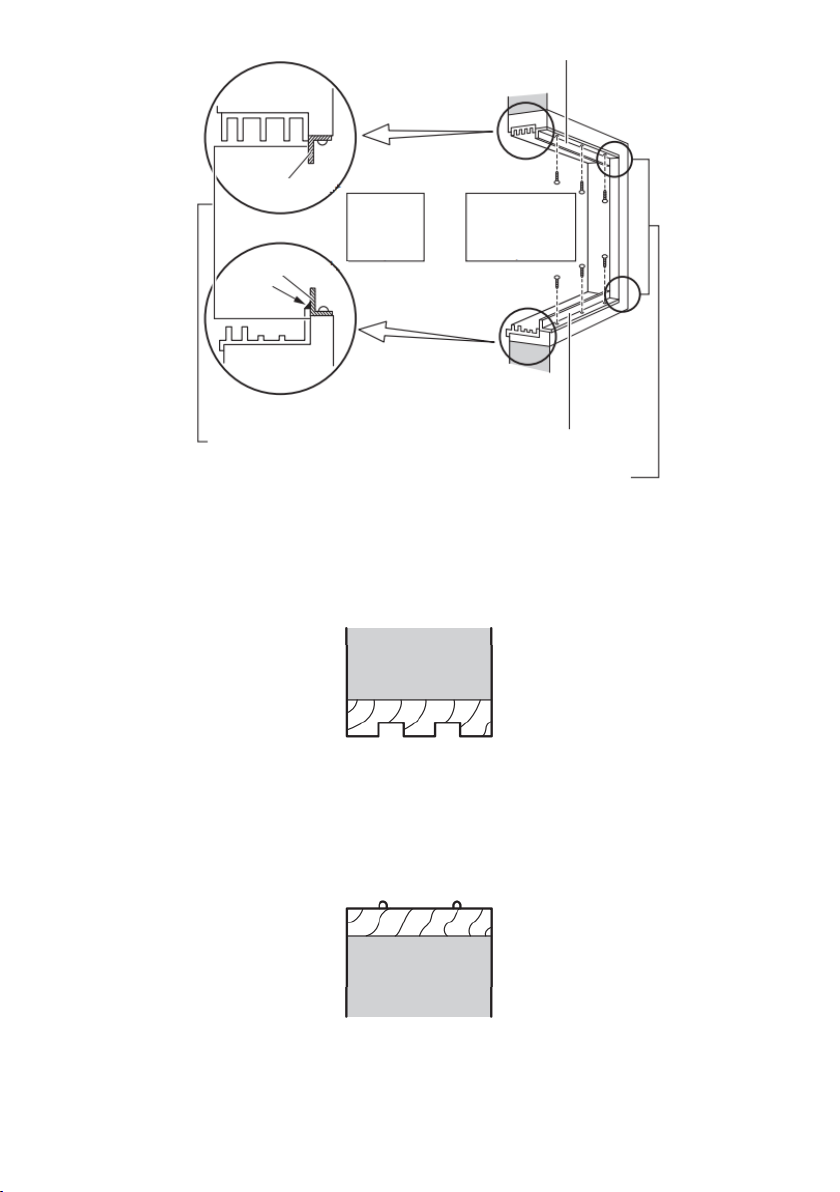

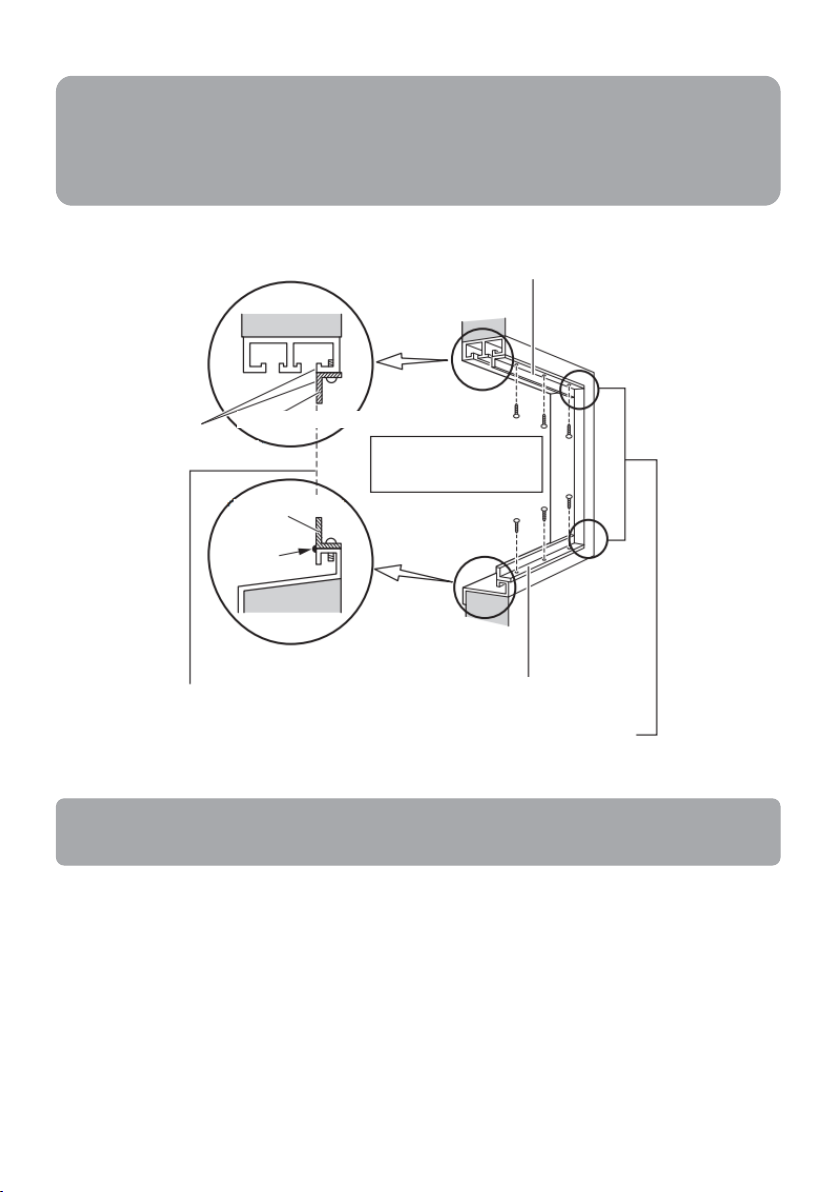

Bracket Installation Steps
Bracket Card Product Installation Location
Bracket Fixing Screw
Production Board
Indoor
First groove in window
Note:
After the mounting bracket is stretched, the upper mounting position is the same as
this figure.
⑩Slide
Fixing
Screw
① Standard
Frame
⑧ Internal Frame

16
1. When the standard mounting frame is placed on the window, the bracket
retaining plate of the mounting frame is installed in the first groove of the window
(see the installation window location diagram).
2. To increase the height of the mounting frame, stretch the inner frame ® upward to
ensure that the bracket retaining plate above the mounting bracket is installed in
the first groove above the window.
3. Push the standard mounting bracket to the side of the window to the edge of the
side.
4. On the inner side of the mounting frame, there are two sliding fixing screws on
each side. After confirming the extension height of the mounting bracket, use a
Phillips screwdriver to fasten the four sliding fixing screws. After the fixing is firm,
put the protective plate ⑫into the gap between the top and bottom of the
window frame and the standard mounting frame (see the installation window
location diagram) and then tighten the upper and lower bracket fixing screws to
ensure that the standard mounting frame is firmly fixed to the window.
5. After the mounting bracket is installed, move the open window to the sealing skin
of the mounting bracket, make the edge of the window fit the sealing skin and cut
the sealing sponge of suitable length with the height of the window to seal the
gap.
Note:
Standard installation frame. When installing, it is necessary to cover the entire window
frame.

17
Special Installation Method
Installation methods that require window production panels
Aluminium Window
Note:
Attach the sealing glue between the window protection plate and the window frame
on the underside of the window to make it waterproof.
More
than
63mm
Indoor
Outdoor
Upper window frame
Less than 8mm
Less than 8mm
Lower window
frame
More
than
63mm

18
Wooden Window
Window production plate
Window production plate: Install
near the edge of the window
Close to window frame
glue
Sealing
Production plate
Production plate
Wood screws
4 X 20 (6 Pcs) ST4 X 12 (6 pcs)
Self-tapping
screws
OR
Outdoor Indoor
Top of the window frame
Bottom of the window frame

19
Iron Window
Window production plate
Production plate
Sealing glue
Production plate
Wood screws
4 X 20 (6 Pcs)
Align the side
Window production plate: Install
near the edge of the window
Note:
Install the window protection panel in a position where you can open and close the
window. Attach the sealing glue between the window protection plate on the
underside of the window and the window frame to make it waterproof.
Outdoor Indoor
Upper window frame
Lower window frame
Note: Due to the special shape of
the actual window, the window
may not be closed.

20
Notes:
•If the window cannot be closed after proper installation, install it on the left side.
•Attach the sealing glue between the window protection plate on the underside of
the window and the window frame to make it waterproof.
Window production plate: Install
near the edge of the window
Align vertically with
dotted lines
Sealing
glue
Production plate
Self-tapping screws
ST4 X 12 (6 Pcs)
Align this side
Window production plate
Note:
Drill pilot holes (diameter 3. 2-3. 4mm)
Production plate
