Kogan SMARTERHOME KASHSAC80TA User manual

KOGAN SMARTERHOMETM
INVERTER SPLIT SYSTEM
(8.2KW REVERSE CYCLE AIR CONDITIONER)
KASHSAC80TA

2
Safety & warnings
3
Overview
6
Installation
11
Before first use
28
Connect to SmarterHomeTM app
30
Google Home control
37
Amazon Alexa control
40
Operation
43
Cleaning & care
53
Troubleshooting
62
Notes
65

3
SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER
The air conditioner must be installed by professional or qualified persons.
• Read this guide before installing and using the appliance.
• During the installation of the indoor and outdoor units, access to the working area
should be forbidden to children. Unforeseeable accidents could happen.
• Make sure that the base of the outdoor unit is firmly fixed.
• Check that air cannot enter the refrigerant system and check for refrigerant leaks when
moving the air conditioner.
• Carry out a test cycle after installing the air conditioner and record the operating data.
• Protect the indoor unit with a fuse of suitable capacity for the maximum input current
or with another overload protection device.
• Ensure that the mains voltage corresponds to that stamped on the rating plate. Keep
the switch or power plug clean. Insert the power plug correctly and firmly into the
socket, thereby avoiding the risk of electric shock or fire due to insufficient contact.
• Check that the socket is suitable for the plug, otherwise have the socket changed.
• The appliance must be fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under over
voltage category III conditions and these means must be incorporated in the fixed
wiring in accordance with the wiring rules.
• Do not install the appliance at less than 50 cm from inflammable substances (alcohol,
etc.) Or from pressurized containers (e.g., spray cans).
• If the appliance is used in areas without the possibility of ventilation, precautions must
be taken to prevent any leaks of refrigerant gas from remaining in the environment and
creating a danger of fire.
• The packaging materials are recyclable and should be disposed of in the separate
waste bins. Take the air conditioner at the end of its useful life to a special waste
collection centre for disposal.
• Only use the air conditioner as instructed in this booklet. These instructions are not
intended to cover every possible condition and situation. As with any electrical
household appliance, common sense and caution are therefore always recommended
for installation, operation and maintenance.
• The appliance must be installed in accordance with applicable national regulations.
• Before accessing the terminals, all the power circuits must be disconnected from the
power supply.
SAFETY & WARNINGS

4
• The appliance shall be installed in accordance with national wiring regulations.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Cleaning and maintenance must be carried out by licenced professional. Disconnect
the appliance from the mains electricity supply before carrying out any cleaning or
maintenance.
• Ensure that the mains voltage corresponds to that stamped on the rating plate. Keep
the switch or power plug clean. Insert the power plug correctly and firmly into the
socket, thereby avoiding the risk of electric shock or fire due to insufficient contact.
• Do not pull out the plug to switch off the appliance when it is in operation, since this
could create a spark and cause a fire, etc.
• This appliance has been made for air conditioning domestic environments and must
not be used for any other purpose, such as for drying clothes, cooling food, etc.
• Always use the appliance with the air filter installed. The use of the conditioner without
air filter could cause an excessive accumulation of dust or waste on the inner parts of
the device with possible subsequent failures.
• The user is responsible for having the appliance installed by a qualified technician, who
must check that it is earth in accordance with current legislation and insert a thermos
magnetic circuit breaker.
• The batteries in the remote controller must be recycled or disposed of properly. For
disposal of scrap batteries, please discard the batteries as sorted municipal waste at
the accessible collection point.
• Never remain directly exposed to the flow of cold air for a long time. The direct and
prolonged exposition to cold air could be dangerous for your health. Care should be
taken in the rooms where there are children, old or sick people.
• If the appliance gives off smoke or there is a smell of burning, cease use immediately
and contact help.Kogan.com for support.
• The prolonged use of the device in such conditions could cause fire or electrocution.
• Have repairs carried out only by an authorised technician recommended by
Kogan.com. Incorrect repair could expose the user to the risk of electric shock, etc.
• If the air conditioner is not being used for an extended period, unhook the automatic
switch. The airflow direction must be properly adjusted.
• The flaps must be directed downwards in the heating mode and upwards in the
cooling mode.
• Selecting the most suitable temperature can prevent damage to the appliance.

5
SAFETY RULES AND PROHIBITIONS
• Do not bend, tug or compress the power cord since this could damage it. Electrical
shocks or fire are probably due to a damaged power cord.
• If the power cord shows any sign of damage, cease use immediately and contact
help.Kogan.com for support.
• Do not use extensions cords or power boards.
• Do not touch the appliance when barefoot or parts of the body are wet or damp.
• Do not obstruct the air inlet or outlet of the indoor or the outdoor unit. The obstruction
of these openings causes a reduction in the operative efficiency of the conditioner with
possible consequent failures or damages.
• In no way alter the characteristics or modify the appliance.
• Do not install the appliance in environments where the air could contain gas, oil or
sulphur or near sources of heat.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Do not climb onto or place any heavy or hot objects on top of the appliance.
• Do not leave windows or doors open for long when the air conditioner is operating.
• Do not direct the airflow onto plants or animals.
• A long direct exposition to the flow of cold air of the conditioner could have negative
effects on plants and animals.
• Do not put the conditioner in contact with water. The electrical insulation could be
damaged and thus causing electrocution.
• Do not climb onto or place any objects on the outdoor unit.
• Never insert a stick or similar object into the appliance. It could cause injury.
• Children should be supervised to ensure that they do not play with the appliance.
Caution: Risk of fire
Operating instructions
Read User Guide

6

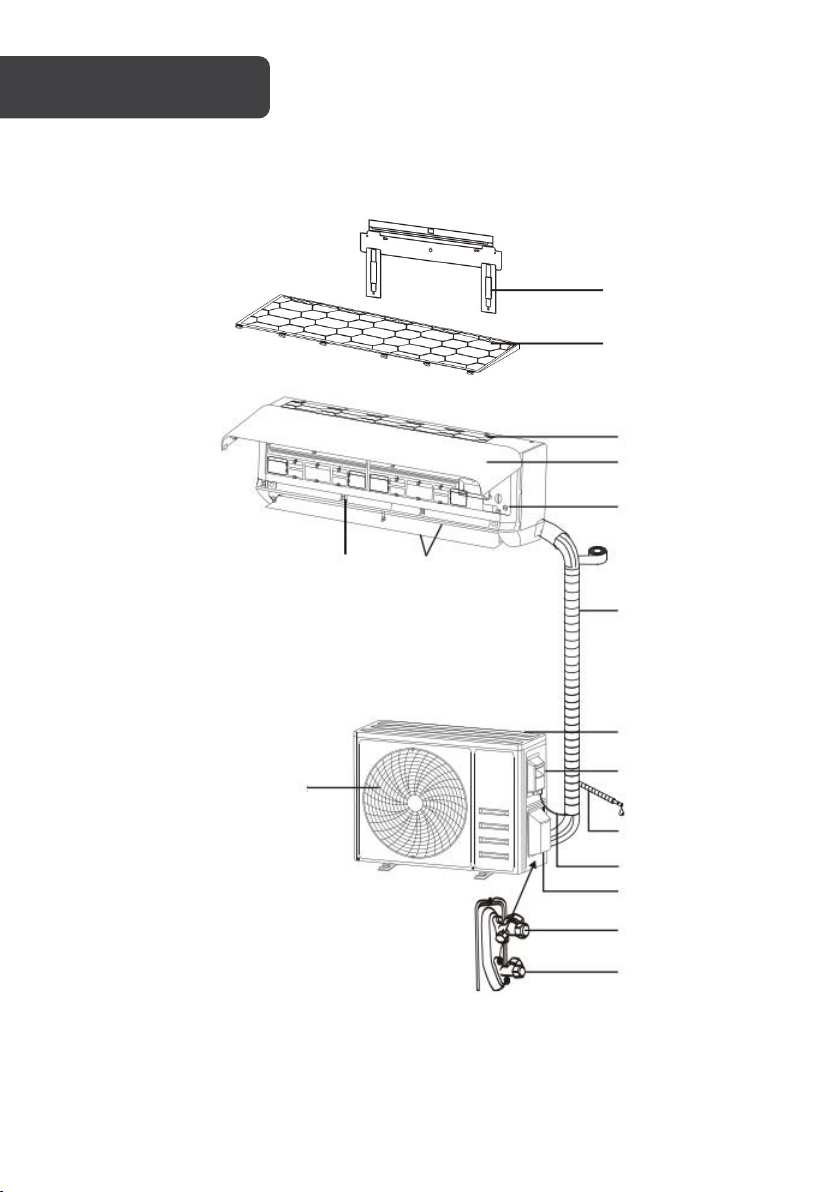

Indoor Unit & Outdoor Unit
OVERVIEW
Mounting Plate
Air filter
Liquid valve (High
pressure valve)
Gas valve (Low
pressure valve)
Valve protective cover
Connection wiring
Drainage pipe
Wiring cover
Air outlet
Air inlet
Refrigerant
connecting pipe
Air deflector
and flap
Air outlet
Emergency button
Front panel
Air inlet

7
Indoor Display
No.
LED
Function
1
Indicator for timer, temperature and error code
2
Lights up during timer operation.
3
Sleep mode
The shape and position of switches and indicators may be different
according to the model, but their function is the same.
Note:
This figure shown may be different from the actual object. Please take the latter as
the standard.

8
Remote Control
Display
Symbol
Function
Battery indicator
Auto mode
Cooling mode
Dry mode
Fan only mode
Heating mode
ECO mode
Timer

9
Temperature indicator
Fan speed: Auto/ low/ low-mid/ mid/ mid-high/
high
Mute
TURBO function
Up-down auto swing
Left-right auto swing
SLEEP function
Health function
I FEEL function
Signal indicator
Gentle wind
Child-Lock
Display ON/OFF
Anti-mildew
The display and some functions of the remote control may vary according
to the model.

10
Button
Function
To turn the air conditioner ON/OFF
To increase temperature or Timer setting hours.
To decrease temperature or Timer setting hours
MODE
To select the mode of operation (AUTO, COOL,
DRY, FAN, HEAT).
ECO
To activate/deactivate the ECO function.
Long press to activate/deactivate the 8-heating
function (depending on models).
TURBO
To activate/deactivate the TURBO function.
FAN
To select the fan speed of auto/low/mid/high.
TIMER
To set the time for timer on/off.
SLEEP
To switch-on/off the function SLEEP.
DISPLAY
To switch-on/off the LED display.
SWING
To stop or start horizontal louver movement or set
the desired up/down air flow direction.
SWING
To stop or start horizontal louver movement or set
the desired left/right air flow direction.
I FEEL
To switch the ‘I FEEL’ function ON/OFF.
MUTE
To switch the ‘MUTE’ function ON/OFF.
Long press to activate/deactivate the GEN
function (depending on models).
ANTI-MILDEW
To switch the ‘ANTI-MILDEW’ function ON/OFF.
MODE + TIMER
To activate/deactivate the CHILD-LOCK function
SWING + SWING
To activate/deactivate the SELF-CLEAN function
(depending on models).
FAN + MUTE
To activate/deactivate the GENTLE WIND
function (depending on models).
SLEEP + DISPLAY
To activate/deactivate the HEALTH function
(depending on models).
The display and some functions of the remote control may vary
according to the model.
The shape and position of buttons and indicators may vary according
to the model, but their function is the same.
The unit confirms the correct reception of each button with the beep.

11
Important Considerations
• The air conditioner must be installed by licenced professional and the Installation
manual is used only for the professional installation personnel! The installation
specifications should be subject to our after-sale service regulations.
• Take care, when filling the combustible refrigerant, incorrect handling may cause
serious injury or injuries to human body and objects.
• A leak test must be done after the installation completed.
• It is a must to do the safety inspection before maintaining or repairing an air conditioner
using combustible refrigerant to ensure that the fire risk is reduced to minimum.
• It is necessary to operate the machine under a controlled procedure to ensure that any
risk arising from the combustible gas or vapor during the operation is reduced to
minimum.
• Requirements for the total weight of filled refrigerant and the area of a room to be
equipped with an air conditioner (are shown as in the following Tables 1 and 2)
The maximum charge and the required minimum floor area:
m1 = (4 m3) x LFL, m2= (26 m3) x LFL, m3= (130 m3) x LFL
Where LFL is the lower flammable limit in kg/ m3, R32 LFL is 0.038 kg/ m3.
For the appliances with a charge amount m1< M = m2:
The maximum charge in a room shall be in accordance with the following:
mmax = 2.5 x (LFL)5/4 x h0x (A)1/2
The required minimum floor area Amin to install an appliance with refrigerant charge M (kg)
shall be in accordance with following: A = (M/ (2.5 x (LFL)5/4 x h0 )2
INSTALLATION

12

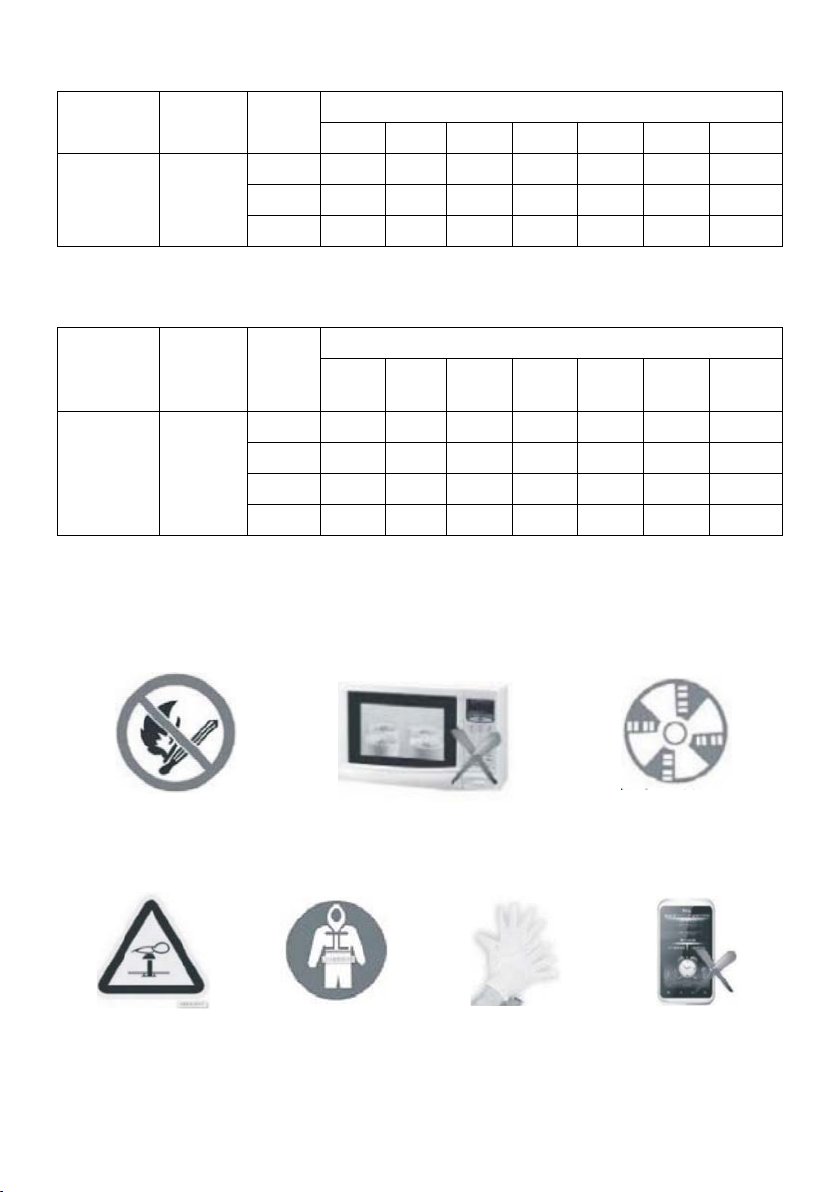

Where: Table 1 - Maximum charge (kg)
Category
LFL
(kg/m)3
h0(m)
Floor area (m)2
4
7
10
15
20
30
50
R32
0.306
1
1.14
1.51
1.8
2.2
2.54
3.12
4.02
1.8
2.05
2.71
3.24
3.97
4.58
5.61
7.254
2.2
2.5
3.31
3.96
4.85
5.6
6.86
8.85
Table 2 - Minimum room area (m)2
Category
LFL
(kg/m)3
h0(m)
Charge amount (M) (kg) Minimum room area (m)2
1.224
kg
1.83
6kg
2.44
8kg
3.672
kg
4.89
6kg
6.12k
g
7.956
kg
R32
0.306
0.6
29
51
116
206
321
543
1
10
19
42
74
116
196
1.8
3
6
13
23
36
60
2.2
2
4
9
15
24
40
Installation Safety Principles
1. Site Safety
Open Flames Prohibited
Ventilation Necessary
2. Operation Safety
Mind Static
Electricity
Must wear protective clothing & anti-
static gloves
Don`t use mobile
phone

13
3. Installation Safety
• Refrigerant Leak Detector
• Appropriate Installation Location
Note:
• The installation site should be well-ventilated.
• The sites for installing and maintaining an air conditioner using Refrigerant R32 should
be free from open fire or welding, smoking, drying oven or any other heat source higher
than 548 which easily produces open fire.
• When installing an air conditioner, it is necessary to take appropriate anti-static
measures such as wear anti-static clothing and/or gloves.
• It is necessary to choose the site convenient for installation or maintenance wherein the
air inlets and outlets of the indoor and outdoor units should be not surrounded by
obstacles or close to any heat source or combustible and/or explosive environment.
• If the indoor unit suffers refrigerant leak during the installation, it is necessary to
immediately turn off the valve of the outdoor unit and all the personnel should go out
till the refrigerant leaks completely for 15 minutes. If the product is damaged, it is a
must to carry such damaged product back to the maintenance station and it is
prohibited to weld the refrigerant pipe or conduct other operations on the user's site.
• It is necessary to choose the place where the inlet and outlet air of the indoor unit is
even.
• It is necessary to avoid the places where there are other electrical products, power
switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under
the lines on two sides of the indoor unit.

14
Tools Required
Spanner
Pipe cutter
Vacuum
pump
Adjustable
wrench
Screw
drivers
Safety
glasses
Torque
wrench
Manifold
and gauges
Work
gloves
Allen keys
Spirit level
Refrigerant
scale
Drill &
drill bits
Flaring tool
Micron
gauge
Hole saw
Clamp on amp meter
Pipe Length and Additional Refrigerant
Inverter Models
Capacity (Btu/h)
9K-12K
18K-36K
Length of pipe with
standard charge
5m/16ft
5m/16ft
5m/16ft
5m/16ft
Length of pipe with
standard charge (Like:
North American, etc.)
7.5m/24ft
7.5m/24ft
7.5m/24ft
7.5m/24ft
Maximum distance
between indoor and
outdoor unit
15m/49ft
15m/49ft
25m/82ft
25m/82ft
Additional refrigerant
charge
20g/m
15g/m
30g/m
25g/m
Max. diff. in level
between indoor and
outdoor unit
10m/32ft
10m/32ft
10m/32ft
10m/32ft
Type of refrigerant
R22/R410A
R32
R22/R410A
R32

15
ON-OFF Models
Capacity (Btu/h)
9K-12K
18K-36K
Length of pipe with
standard charge
5m/16ft
5m/16ft
5m/16ft
5m/16ft
Maximum distance
between indoor and
outdoor unit
15m/49ft
15m/49ft
15m/82ft
15m/82ft
Additional refrigerant
charge
20g/m
15g/m
30g/m
25g/m
Max. diff. in level between
indoor and outdoor unit
5m/32ft
5m/32ft
5m/32ft
5m/32ft
Type of refrigerant
R22/R410A
R32
R22/R410A
R32
Torque Parameters
PIPE Size
Newton meter [N x
m]
Pound-force foot
(Ibf-ft)
Kilogram-force meter
(kgf-m)
1/4 (ø6.35)
18 - 20
24.4 - 27.1
2.4 - 2.7
3/8 (ø9.52
30 - 35
40.6 - 47.4
40.6 - 47.4
1/2 (ø12)
45 - 50
61.0 - 67.7
6.2 - 6.9
5/8 (ø 15.88)
60 - 65
81.3 - 88.1
8.2 - 8.9
Dedicated Distribution Device and Wire for Air Conditioner
Maximum Operating
Current of Air
Conditioner (A)
Minimum Wire
Cross-sectional
2 Area (mm)2
Specification of
Socket or Switch
(A)
Fuse
Specification
(A)
≤8
0.75
10
20
>8 and ≤10
1.0
10
20
>10 and ≤15
1.5
16
32
>15 and ≤24
2.5
25
32
>24 and ≤28
4.0
32
64
>28 and ≤32
6.0
40
64
Note: This table is only for reference, the installation shall meet the requirements of
local laws and regulations.

16
INDOOR UNIT INSTALLATION
Step 1: Select Installation location
1. Ensure the installation complies with the installation minimum dimensions (Figure 1.)
and meets the minimum and maximum connecting piping length and maximum
change in elevation as defined in the System Requirements section.
2. Air inlet and outlet will be clear of obstructions, ensuring proper airflow throughout the
room.
3. Condensate can be easily and safely drained.
4. All connections can be easily made to outdoor unit.
5. Indoor unit is out of reach of children.
6. A mounting wall strong enough to withstand four times the full weight and vibration of
the unit.
7. Filter can be easily accessed for cleaning.
8. Leave enough free space to allow access for routine maintenance.
9. Install at least 10 ft. (3 m) away from the antenna of TV set or radio. Operation of the
air conditioner may interfere with radio or TV reception in areas where reception is
weak. An amplifier may be required for the affected device.
10. Do not install in a laundry room or by a swimming pool due to the corrosive
environment
11. For ETL certification area, Caution: Mount with the lowest moving parts at least 8 ft.
(2.4 m) above floor or grade level.

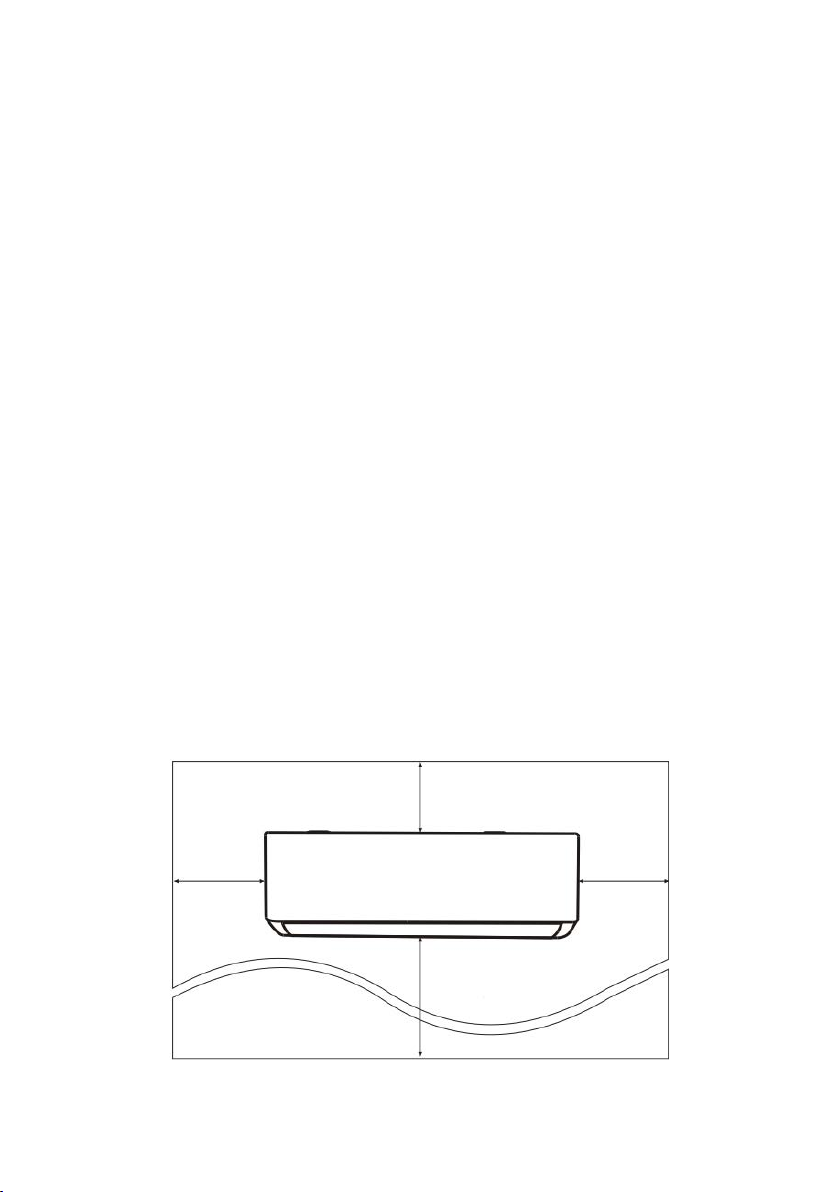

Minimum Indoor Clearances
Figure 1.
Floor
≥250cm / 8ft.
≥13cm / 5 in.
≥13cm / 5 in.
Ceiling
≥20cm / 8 in.

17
Step 2: Install Mounting Plate
1. Take the mounting plate from the rear of the indoor unit.
2. Ensure to meet the minimum installation dimension requirements as step 1, according
to the size of the mounting plate, determine the position and stick the mounting plate
close to the wall.
3. Adjust the mounting plate to a horizontal state with a spirit level, then mark out the
screw hole positions on the wall.
4. Put down the mounting plate and drill holes in the marked positions using a drill.
5. Insert expansion rubber plugs into the holes, then hang the mounting plate and fix it
with screws.

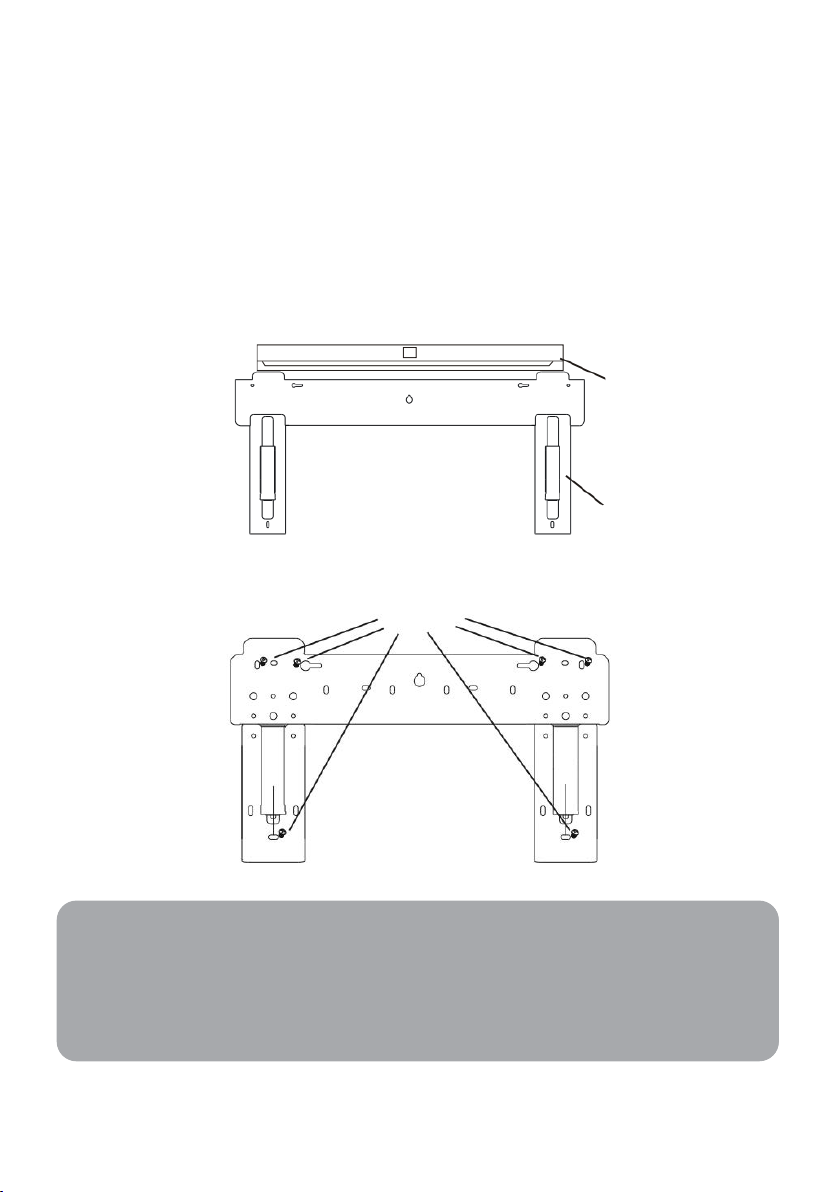

Mounting plate
Spirit level
Reference screw positions
Note:
• Make sure the mounting plate is firm enough and flat against the wall after
installation.
• This figure shown may be different from the actual object, please take the latter
as the standard.

18
Step 3: Drill Wall Hole
A hole in the wall should be drilled for refrigerant piping, the drainage pipe and connecting
cables.
1. Determine the location of wall hole base on the position of mounting plate.
2. The hole should have a 70mm diameter at least and a small oblique angle to
facilitate drainage.
3. Drill the wall hole with 70mm core drill and with small oblique angle lower than the
indoor end about 5mm to 10mm.
4. Place the wall sleeve and wall sleeve cover (both are optional parts) to protect the
connection parts.
Caution: When drilling the wall hole, ensure to avoid wires, plumbing and other sensitive
components.
Step 4: Connecting Refrigerant Pipe
1. According to the wall hole position, select the appropriate piping mode. There are
three optional piping modes for indoor units as shown in the illustration below:
• In Piping Mode 1 or Piping Mode 3, a notch should be made by using scissors
to cut the plastic sheet of piping outlet and cable outlet on the corresponding
side of the indoor unit.
Outdoor
Small oblique
angle
Wall sleeve
(Optional)
Indoor
5-10mm
Wall sleeve Cover
(Optional)
70mm
Note: When cutting off the plastic sheet at the outlet, the cut should be trimmed to
smooth.

19

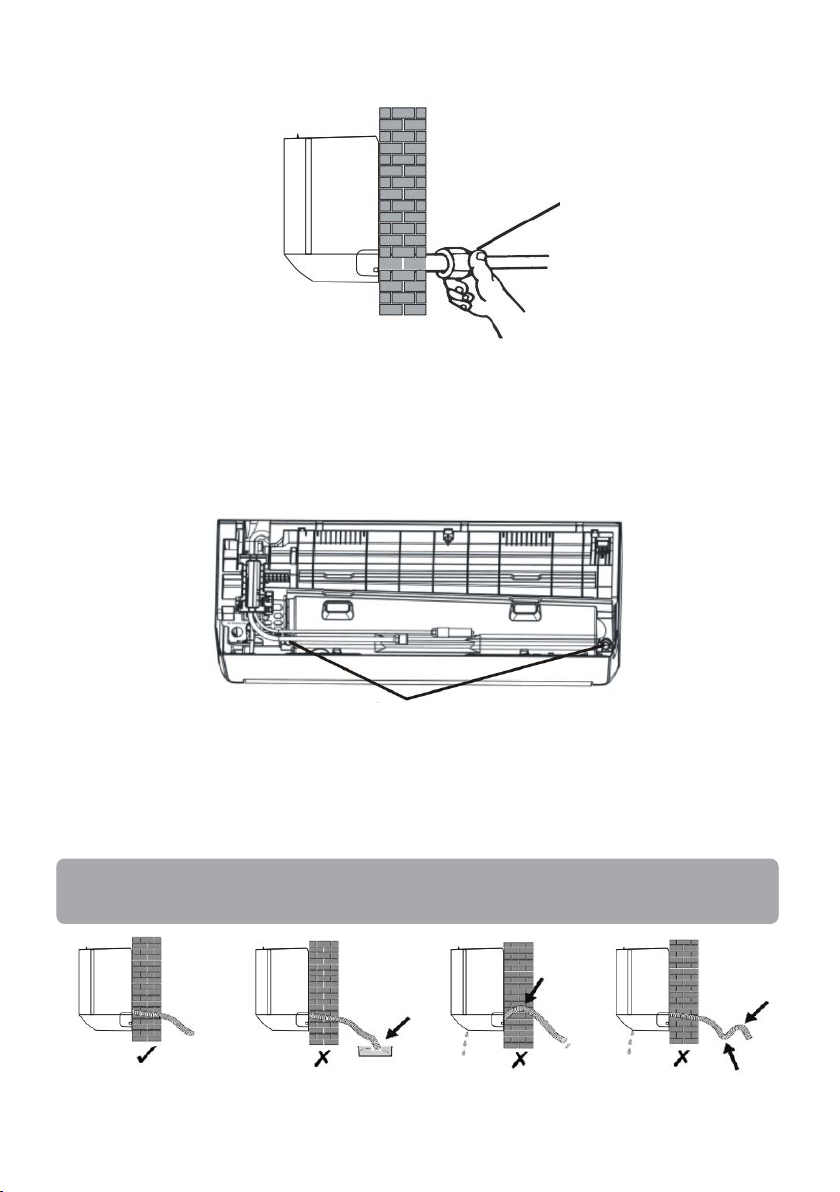

2. Bending the connecting pipes with the port facing up as shown in the figure
3. Take off the plastic cover in the pipe ports and take off the protective cover on the
end of piping connectors.
4. Check whether there is any sundry on the port of the connecting pipe and make
ensure the port is clean.
5. After aligning the centre, rotate the nut of the connecting pipe to tighten the nut
as tightly as possible by hand.
6. Use a torque wrench to tighten it according to the torque values (refer to the
torque requirements table).
7. Wrap the joint with the insulation pipe.
Cable outlet
Piping outlet
No
Yes
Note: For R32 refrigerant, the connector should be placed outdoors.

20
Step 5: Connect Drainage Hose
1. Adjust the drainage hose (if applicable) In some model, both sides of the indoor
unit are provided with drainage ports, you can choose one of them to attach the
drainage hose. Plug the unused drain port with the rubber attached in one of the
ports.
2. Connect the drainage hose to the drainage port, ensure the joint is firm and the
sealing effect is good.
3. Wrap the joint firmly with Teflon tape to ensure no leaks.
The connector should be outdoor
Indoor
Outdoor
Drainage ports
Note: Ensure there is no twists or dents and the pipes should be placed obliquely
downward to avoid blockage, to ensure proper drainage.
