Kogan SMARTERHOME KAWFPAC07JA User manual

KOGAN SMARTERHOME™ 2.0KW
PORTABLE AIR CONDITIONER
7,000 BTU
KAWFPAC07JA

2
Safety & Warnings 3
Overview 5
Installation 6
Before Use 11
Operation 12
Connect to SmarterHome™ App 14
Google Home Control 17
Amazon Alexa Control 20
Cleaning & Care 23
Maintenance 26
Troubleshooting 32
Specifications 35
Schematic Diagram 36
Electric Wiring Diagram 37
Notes 38

3
Ensure to read all instructions and warnings in this user guide prior to assembly and first use.
Retain this user guide for future reference.
•The air conditioner can be used by children aged 8 years and above and by persons
with reduced physical, sensory, or mental capabilities if they have been given
supervision or instruction concerning the use of the air conditioner in a safe way and
understand the hazards involved.
•Do not allow children to play with the air conditioner.
•Constant adult supervision is required of cleaning and maintenance is performed by
children.
•This air conditioner is suitable for indoor use. Do not use this air conditioner outdoors.
•The operating environment of this air conditioner is between 7–35°C.
•Follow local grid interconnection rules while installing the air conditioning and ensure
that it is properly grounded. If there are questions on electrical installation, ask a
professional electrician to install the air conditioner.
•The air conditioner shall be installed in accordance with national wiring regulations.
•Ensure there is at least a 50cm clearance between the air conditioner and walls or
other obstructions.
•Do not use this air conditioner near gasoline, flammable gas, stoves, or other heat
sources.
•Do not use the air conditioner in humid environments (for example, bathroom, or
laundry).
•Do not insert any objects into the air inlet and air outlet.
•Keep the air inlet and outlet free from obstructions.
SAFETY & WARNINGS
WARNING:
•Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of
professionals in the use of flammable refrigerants.
•Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority which authorises their
competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
•This air conditioner uses flammable R290 refrigerant.

4
•Keep any required ventilation openings clear of obstructions.
•Do not touch the water or any parts of the air conditioner that are covered by water
while it is on or plugged in.
•Do not place cups or other objects on the air conditioner body to prevent water or
other liquids from spilling onto the air conditioner.
•Do not use any means to accelerate the defrosting process or clean the air
conditioner other than those recommended in this user guide.
•Ensure the area in which the air conditioner is installed, operated, and stored has a
floor area larger than 7m².
•Do not store this air conditioner in an area with continuously operating ignition
sources (for example, open flames, an operating gas appliance, or an operating
electric heater).
•Do not pierce or burn the air conditioner.
•Be aware that refrigerants may not contain an odour.
•Servicing shall be performed only as recommended in this user guide.
•Ensure the power cord is always visible to avoid a tripping hazard.
•When drainage pipes are installed, ensure that the drainage pipes are properly
connected and are not distorted or bent.
•If adjusting the slats of the air outlet, handle them gently with your hands to avoid
damage.
•Do not disassemble or modify the air conditioner yourself.
•If the air conditioner is damaged, stop use immediately and contact help.Kogan.com
for assistance.
•If the power cord is damaged, stop use immediately and contact help.Kogan.com for
assistance.
•Do not use extension pipes or use different pipes than those provided as this may
result in a malfunction.
•Do not directly pull on the power cord to turn off the air conditioner.
•Do not use insecticide sprays or other flammable substances near the air conditioner.
•Do not wipe or wash the air conditioner with chemical solvents (for example, gasoline
and alcohol).

5
AAir conditioner (x1) BWindow seal connector (x1) CExhaust pipe (x1)
DDuct interface (x1) EWindow sealing plate (x1) F1m drainage pipe (x1)
GRemote control (x1) HAAA battery (x2) I User guide (x1)
COMPONENTS

6

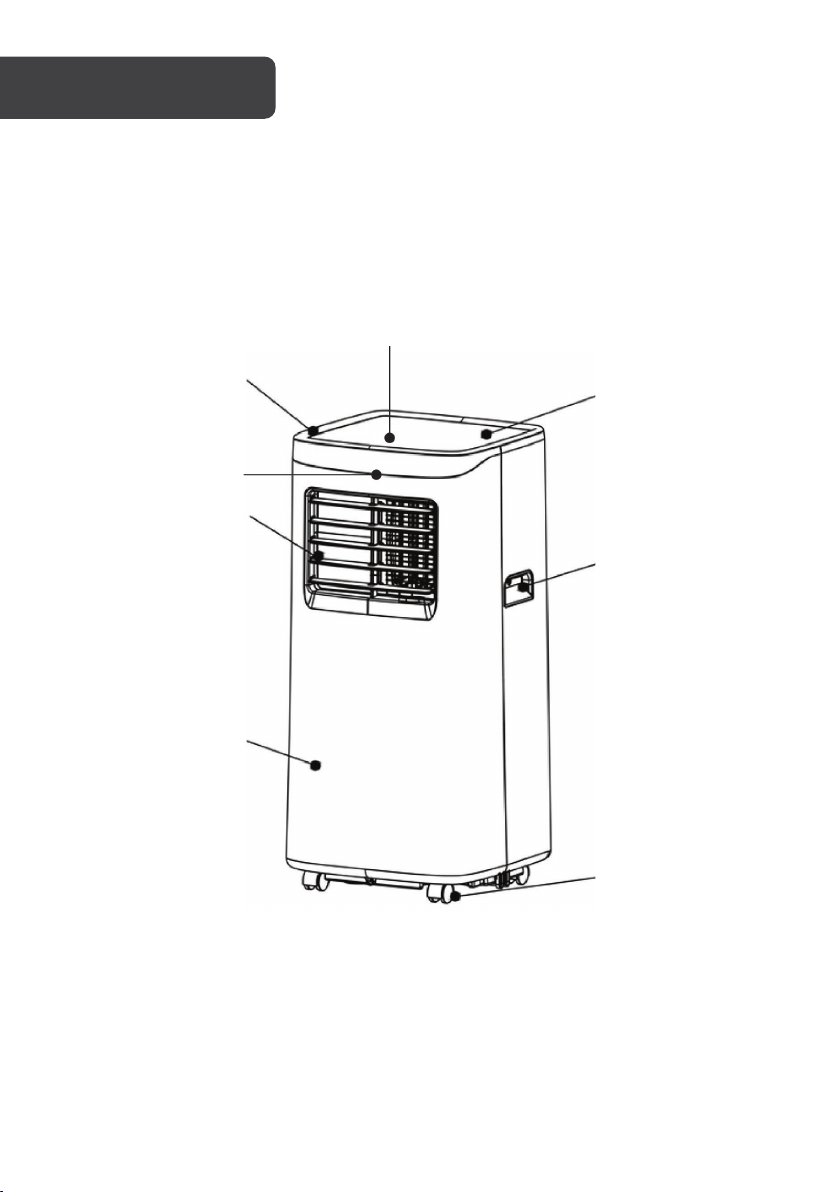

Front view
OVERVIEW
Air outlet
Castors
Front housing
Handle
Decorative ring
Top cover
Control panel
Signal receiver

7
Side view
EVA filter
Upper drainage cover
Handle
Air inlet
Rear housing
CON filter
Lower drainage cover

8
Control panel
Remote control
1 Indicator lights 6Swing button 11 Decrease button
2 Fan speed indicators 7Timer button 12 Mode button
3 Mode indicators 8Fan speed button 13 Sleep mode button
4 Indicator lights 9Increase button 14 Power button
5 Full indicator 10 Display
15 Fan speed button 19 Sleep mode button
16 Increase button 20 Swing button
17 Mode button 21 Timer button
18 Decrease button 22 Power button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

9
Installing the exhaust pipe assembly
1. Remove the packaging from the duct interface, exhaust
pipe, and window seal connector.
2.Straighten one end of the folded exhaust pipe and
screw the duct interface clockwise into the exhaust
pipe.
3.Secure the window seal connector onto the other end
of the exhaust pipe, completing the exhaust pipe
assembly.
4.Insert the duct interface end of the exhaust pipe
assembly into the air inlet on the rear panel, pushing it
to the left.
Installing the window sealing plate
1. Open the window that is closest to where you would like to locate the air conditioner.
2.Mount the window sealing plate assembly to the window by pulling the sealing plate
to ensure it fits snugly onto the ends of the window frame. The sealing plate can be
mounted both horizontally or vertically.
3.Close the window so the window sealing plate touches the window.
INSTALLATION
Notes:
•The exhaust pipe joints must be snapped into place.
•The pipe cannot be distorted nor has substantial turning (greater than 45°).
Keep the ventilation of the exhaust pipe unblocked.
Notes:
•Ensure the air conditioner is kept upright.
•Do not install the air conditioner in humid areas.

10
Placing the air conditioner
1. Place the air conditioner on a dry, flat surface. Ensure there is at least a 50cm
clearance away from any walls or obstructions.
2.Elongate the exhaust pipe assembly and snap the window seal connector into the
hole of the window sealing plate.
Notes:
•The pipe cannot be distorted nor be turned greater than 45°. Keep the ventilation
of the exhaust pipe unblocked.
•The length of the exhaust pipe shall be 280–1500mm and this length is based on
the specifications of the air conditioner.
•Do not use extension tubes or replace it with other tubes as this may cause a
malfunction.
•The exhaust pipe must be not blocked otherwise it may cause overheating.
50cm
50cm

11
Remote control battery
The remote control of air conditioner requires batteries to operate.
1. Remove the back cover of the remote control.
2.Noting the polarity markings (+, –), insert x2 AAA batteries into the remote control.
3.Resecure the back cover.
Powering on/off
1. Ensure that the power cord is intact, then plug it into the power outlet. Turn on the
outlet. On first use, the air conditioner will emit a beeping sound. It will then enter
standby.
2.Press the power button on the remote control or control panel to turn on the air
conditioner. An indicator light will illuminate above the power button on the control
panel.
3.Press the power button again on the remote control or control panel to turn off the air
conditioner.
Selecting the mode
This air conditioner features three modes:
•Cooling – Used primarily in hotter conditions to lower the temperature of an area.
•Dehumidifying – Used to decrease the humidity of an area.
•Fan – Used to bring greater ventilation to an area.
OPERATION
WARNING: Before use, keep the air conditioner upright for at least two
hours to allow the refrigerant to settle.
BEFORE USE

12
To switch between the modes, press the mode button on the remote control or control
panel. The modes will cycle through and the relevant indicator lights below the mode
indicators will illuminate.
Adjusting the temperature
In cooling mode, press the increase and decrease buttons to adjust to the desired
temperature (16–31°C). This will be reflected on the display.
Adjusting the fan speed
This air conditioner features a low and high fan speed setting. To adjust the fan speed,
press the fan speed button on the remote control or control panel. The relevant indicator
lights below the fan speed indicators will then illuminate.
Swing button
Press the swing button on the remote control or control panel to activate the fan to oscillate
left and right. The indicator light above the swing indicator will be illuminated.
Press the swing button again to turn the oscillation off.
Cooling mode indicator
Dehumidifying mode indicator
Fan mode indicator
Low fan speed indicator
High fan speed indicator
Notes:
•The fan speed cannot be adjusted in dehumidifying mode. In
this mode, the air conditioner will always run on a low fan speed.
•If the temperature is too cold, the air conditioner may not run at
the set speed.
Note:
The temperature cannot be adjusted in the dehumidifying or fan modes.

13
Timer
If the air conditioner is on standby, the timer can be set to turn on the air conditioner after a
user-specified period.
If the air conditioner is currently operating, the timer can be set to turn off the air conditioner
after a user-specified period.
To set the timer:
1. Press the timer button on the remote control or control panel.
2.When the timer button on the control panel starts flashing, press the increase and
decrease buttons to adjust the desired time for the timer (1–24 hours). Each press will
adjust the time by one hour.
3.Wait for 5 seconds and the display will stop flashing, confirming the timer has been
set.
Sleep mode
As our bodies get colder at night when sleeping, the sleep mode will gradually increase the
temperature over the night, keeping you warm.
•When the air conditioner is in cooling mode, press the sleep mode button on the
remote control or control panel to activate sleep mode.
Frost protection
In cooling mode, if the temperature of the exhaust pipe is below 0°C for more than three
minutes, the air conditioner will automatically enter frost protection. Once the temperature
of the exhaust pipe rises to an optimal temperature, the air conditioner will automatically
continue operating.
Overflow protection
Water will be condensed within the air conditioner over extended use. When enough water
is condensed needing it to be emptied, the air conditioner will emit an alarm and the full
indicator will start flashing.
Refer to the drainage details in the ‘Cleaning & Care’ section of this user guide for more
information.
Compressor protection
To increase the service life of the compressor, it has a three-minute delay booting protection
function after the compressor is turned off.
Notes:
To minimise the risk of this occurring, ensure the air conditioner is operating in an
environment with an ambient temperature between 7–35°C.

14

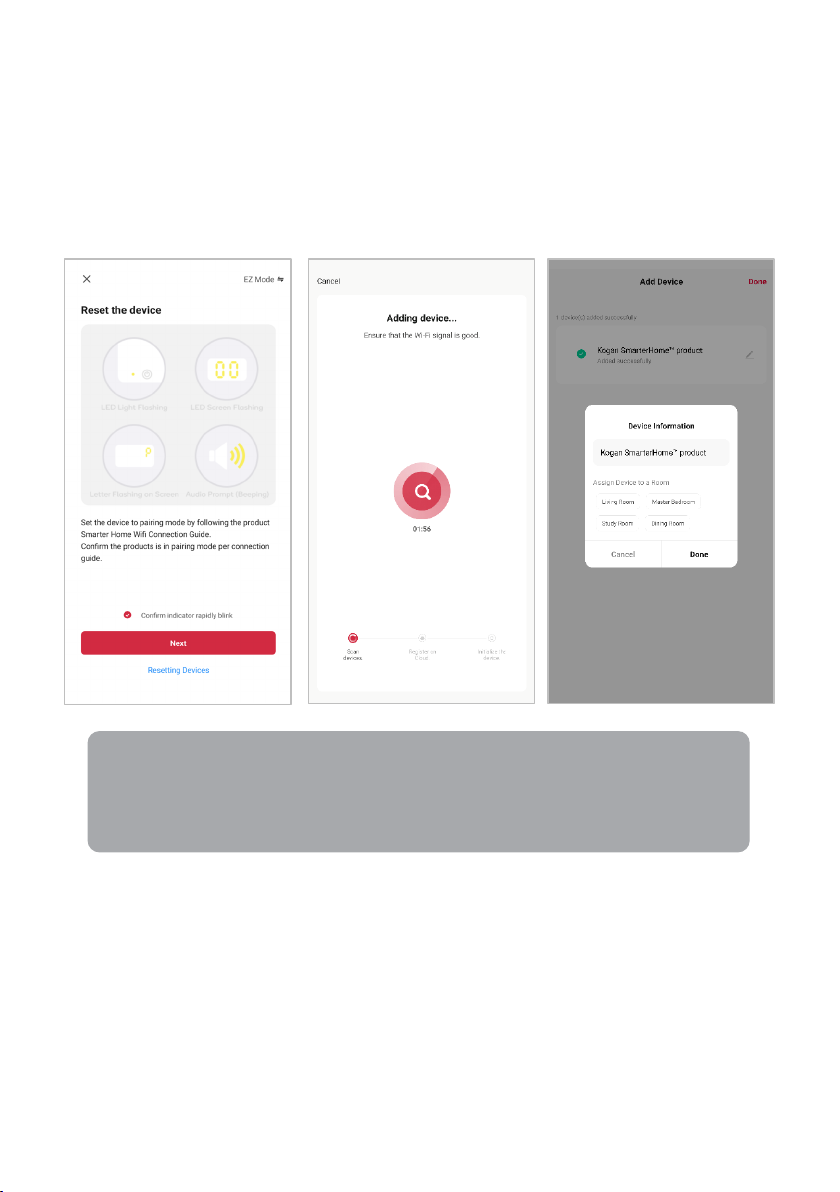

Install App
Download the ‘Kogan SmarterHome’ app from the Play Store (Android) or App Store (iOS).
Play Store (Android)
App Store (iOS)
To register:
1. If you already have a SmarterHome account, select ‘Log In’. To register a new
account, select ‘Sign Up’.
2.The system will automatically recognise your country. If needed, you can manually
select your country from the drop-down box. Enter your email address and tap ‘Get
Verification Code’ to continue.
3.A 6-digit code will be sent to the submitted email address. Enter this code before the
one-minute timer expires.
4.Continue to the next page and complete your SmarterHome profile.
CONNECT TO SMARTERHOME™ APP

15
Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (power button
on the control panel is flashing rapidly).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by pressing and holding the fan speed button for five seconds until power
button on the control panel is flashing rapidly.
If the power button is flashing slowly, press and hold the fan speed button for five seconds
again, and the power button will be flashing rapidly.
Add device through network
1. Once registered, tap “Add Device” on the app’s home page, or the “+” in the upper
right corner, to add a new device through the network.
2.Select the product type from the list of options in the app (Heating & Cooling > Air
Conditioners).
3.Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app
are connected to the same Wi-Fi network during setup.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.

16
4.Ensure that the device is in pairing mode, with the power button on the control panel
flashing rapidly, and tap “Confirm light is rapidly flashing”.
5.The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
6.After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Note:
Once connected, you can select Create Scene from the “+” in the upper right
corner (or from the Scene tab) to group connected SmarterHome™ products
and automate their functions.

17
Adding ‘SmarterHome’ to the Google Home app
1. From the home page of the Google Home app, select the ‘+’ icon (top left corner, see
arrow in the below screenshot) to access the ‘Add and manage’ page.
2.Select ‘Set up device’, then select the ‘Works with Google’ option.
GOOGLE HOME CONTROL
Note:
You will need to have set up a Google Home account prior to linking your
Kogan SmarterHome™ device.

18
3.Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™
service.
4.From here, you will be prompted to sign into your SmarterHome™ account using either
your email or mobile phone number, depending on which method you used to register your
account.
5.Select ‘Kogan SmarterHome™’ from the app options.

19
6.Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and your
devices.
7. Once connected, the app will display any compatible devices linked to your
SmarterHome™ account. From here you can assign them to rooms and set up any
routines. Tap on any of the devices to view a list of available commands.
Note:
Please note that Google Home can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.

20
Adding ‘SmarterHome’ to the Alexa app
1. From the home page of the Alexa app, select the ‘ ’ icon in the bottom-right and
select ‘Skills & Games’ from the sidebar.
2.Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™
skill.
AMAZON ALEXA CONTROL
Note:
You will need to have set up an Alexa account prior to linking your Kogan
SmarterHome™ device.
