Kohler BELAY K-156T-LCP User manual

·
·
·
·
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning,
and warranty information-
Please provide adequate available space for the
bath unit in accordance with roughing-in. Arrange
the location of drain in advance.
All installations must comply with council and local
authority by-laws. It is the responsibility of the installer
to ensure that the waste is made watertight by means
of silicone sealant or caulking compound.
please leave these
instructions for the consumer.
IMPORTANT:
·
·
·
·
BEFORE YOU BEGIN
BELAY
INSTALLATION INSTRUCTIONS
WALK IN WP
1.3m
K-156T-LCP/K-156T-RCP
K-23769T-LCP/K-23769T-RCP
-1-
SHANGHAI KOHLER LTD., NO.368, MIN LE ROAD,
FENG XIAN DISTRICT, SHANGHAI, CHINA POST CODE: 201419
368 201419
©
©
Copyright Kohler China Investment Co., Ltd. 2019
2019
60 (1524 )
L
K-156T-LCP/RCP
K-23769T-LCP/RCP
CAUTION: Risk of personal injury.
CAUTION: Risk of personal injury.
CAUTION: Risk of personal injury.
CAUTION: Risk of product damage.
NOTICE:
Note:
This bath is
extremely heavy. Obtain sufficient help to
carefully lift or move the bath.
To reduce
the risk of injury, children or people with
infirmities should not be allowed to use this
product without close, continuous supervision.
Do not
remove, adjust, or alter any factory-installed
components of this product unless explicitly
directed to within this installation guide.
Do not
support the bath by the rim.
This bath is designed for either a new
three-wall alcove or an existing alcove for a
standard 60" (1524 mm) bath. For installation in
an existing alcove, gap panels are provided and
will likely require cutting to fit.
K-156T-LCP/RCP is designed for below-
the-floor drain installation. K-23769T-LCP/RCP is
designed for above-the-floor drain installation.
1397340-T01-A

INSTALLATION INSTRUCTIONS
-2-
30mA
·
·
·
·
·
·

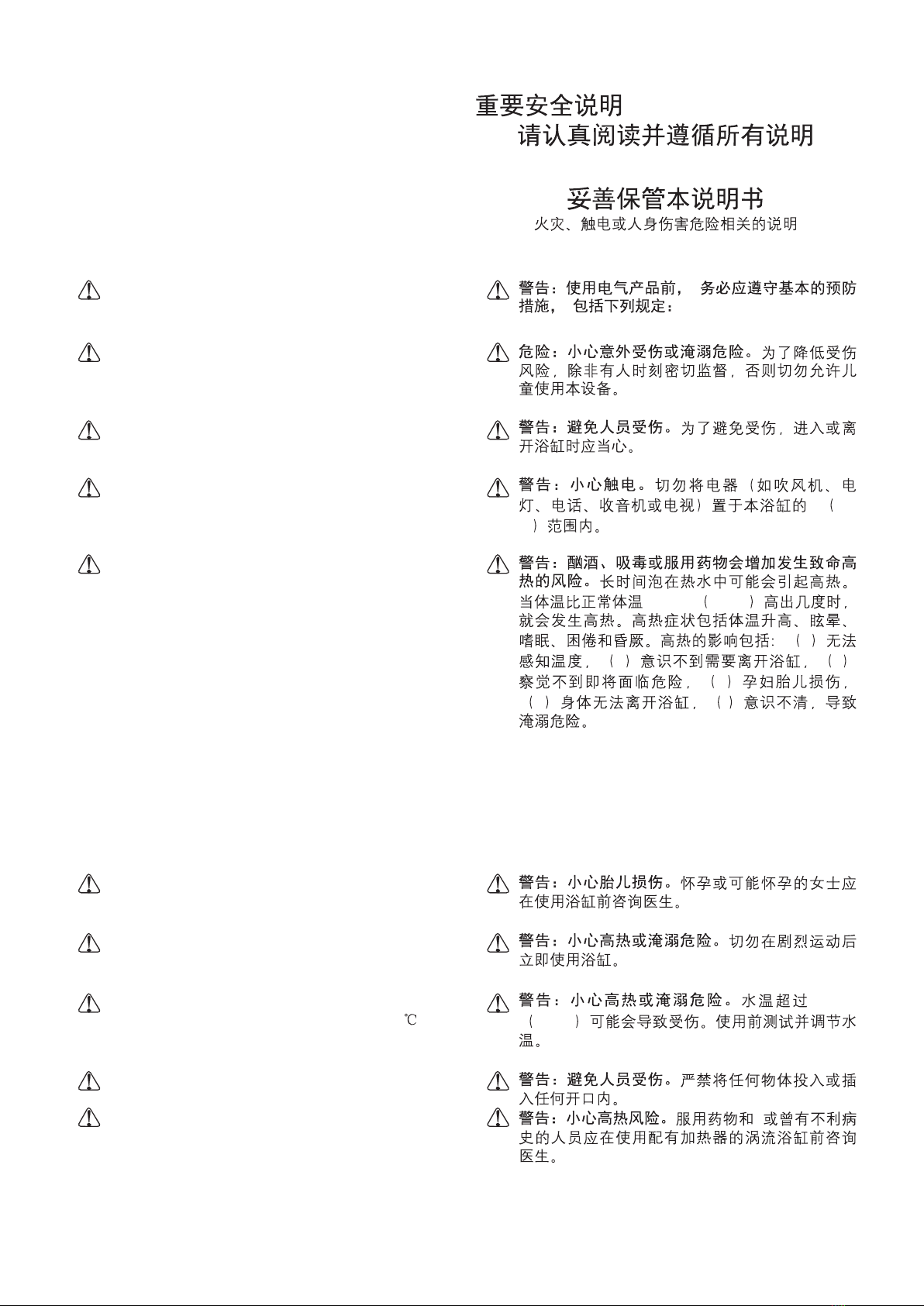

WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
WARNING: Risk of electric shock.
Grounding is required.
WARNING: Risk of injury or property damage.
WARNING: Risk of electric shock.
WARNING: Risk of electric shock.
NOTICE: Follow all local plumbing and electrical
codes.
Connect
only to a circuit protected by a Residual Current
Device (RCD) with residual current less than
30mA.
Building materials and wiring should be routed away
from the whirlpool pump, blower motor, and other
heatproducing components of the unit.
Install to permit access for servicing.
A pressure wire connector marked "Earth/Ground" is
provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to
the grounding terminal of your electric service or
supply panel with copper wire equivalent in size to
the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the
exterior of the junction box or control within this unit
to permit connection of a bonding conductor
between this unit and all other exposed metal in the
vicinity, as needed to comply with local
requirements.
An equipment grounding terminal is provided in the
field wiring compartment. To reduce the risk of
electric shock, this terminal must be connected to
the grounding means provided in the electric supply
panel with a conductor equivalent in size to the
circuit conductors supplying this equipment.
The unit should be installed
by a qualified service representative, and grounded.
Please read all instructions thoroughly before
beginning installation.
A qualified
electrician should make all electrical
connections.
Disconnect
power before servicing.
·
·
·
·
·
·
1397340-T01-A

30mA
(RCD) 220 V 30A
50Hz
·
RCD
·
Electrical Requirements
Product Notices
·The installation must have one Residual Current
Device (RCD). The 's protect against line-to-
ground shock hazards.
Do not relocate the
whirlpool pump or blower motor, or make other
modifications to the bath system, as this could
adversely affect the performance and safe
operation of the product. Kohler Co. shall not be
liable under its warranty or otherwise for
personal injury or damage caused by any such
unauthorized modification.
Use one 220V, 30A, 50Hz
dedicated services for the bath.
WARNING: Unauthorized modification may
cause unsafe operation and poor
performance of the bath.
RCD
NOTICE: Keep the area around the blower motor clean
and free of sawdust, insulation, dirt, or other small
loose debris. Such material could plug the blower motor
air intake and reduce the air flow through the blower.
Before installation, ensure proper access to the final
connections.
Connections and Service Access
·
PRODUCT INFORMATION
-3-
12V
30mA (RCD)
WARNING
WARNING:
WARNING:
WARNING:
WARNING:
WARNING
WARNING
:
:
:
The supply cord cannot be replaced.
If the cord is damaged the appliance should be
scrapped.
Parts incorporating electrical
components, except remote control devices,
must be located or fixed so that they cannot fall
into the bath.
The appliance should be supplied
through a residual current device (RCD) with a
rated tripping current not exceeding 30 mA.
The appliance is not to be used by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction.
Children being supervised not to
play with the appliance.
Parts containing live parts, except
parts supplied with safety extra-low voltage not
exceeding 12 V, must be inaccessible to a
person in the bath.
Earthed appliances must be
permanently connected to fixed wiring.
1397340-T01-A

A.
K-156T-LCP/RCP
K-23769T-LCP/RCP
·
·
·
·

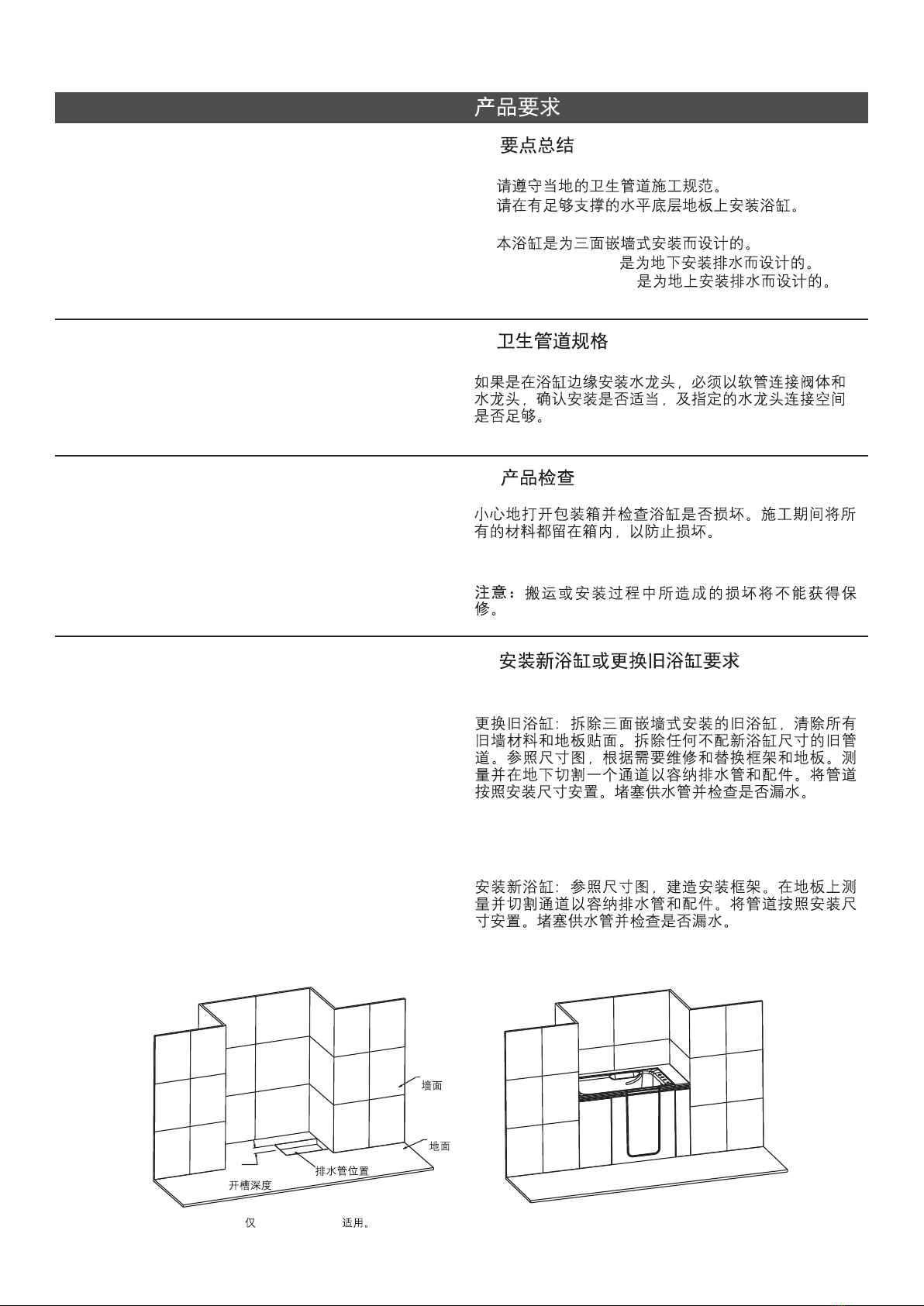

A. Summary Of Key Requirements
Observe all local plumbing codes.
Install the bath to an adequately supported, level
subfloor.
K-156T-LCP/RCP is designed for below-the-floor
drain installation. K-23769T-LCP/RCP is designed
for above-the-floor drain installation.
·
·
·
·The bath is designed for alcove installation.
PRODUCT REQUIREMENTS
B. Plumbing Specifications
If using a rim-mounted bath faucet, flexible connections
between the valves and spout may be required.
Confirm adequate mounting, connection of
specified faucet for your installation.
space
B.
C. Product Inspection
Uncrate and inspect bath for damage. Leave all
materials in the crate during construction to prevent
damage.
C.
NOTE: Damage occurred during transport or
installation shall not be covered by warranty.
D. New or Replacement Installation
Requirements
For replacement: Remove the old bath from the alcove,
and remove all old wall material and floor covering from
the area. Remove any old plumbing that does not
conform to the roughing-in requirements. Refer to the
roughing-in, and repair or replace the stud framing and
subfloor, as need. Measure and cut a channel in the
subfloor to accommodate the drain pipe and fittings.
Position the plumbing according to the roughing-in
dimensions. Cap the suppliers, and check for leaks.
For new installation: Refer to the roughing-in, and
construct the stud framing. Measure and cut a channel
in the subfloor to accommodate the drain pipe and
fittings. Position the plumbing according to the
roughing-in dimensions. Cap the suppliers, and check
for leaks.
D.
80
Channel Depth
Water Pipe Location
Wall
Ground
-4-
For K-156T-LCP/RCP only.
K-156T-LCP/RCP
1397340-T01-A

·
·
·
·
·
·
·
·
·
·
Adjustable pipe
wrench
Rule
Level
Safety shoes
Safety glasses
Square
Screwdriver
Pliers
Utility knife
Adjustable wrench
·Plumbers putty
·
·
·
·
·
·
·
·
Wall coverings(as necessary)
Silicone sealant
Gypsum cement(optional)
Construction adhesive
(optional)
Protective covering for
bathtub
Nails
Conventional woodworking
tools and materials
Drop cloth
B. Materials RequiredA. Tools Required
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
()
()
()
B.
A.
INSTALLATION REQUIREMENTS
C. Installation Note C.
Read the entire installation instructions included with
fixture before beginning the installation.
SITE REQUIREMENTS
A.
·
·
·K-156T-LCP/RCP
A. Site Preparation
NOTICE: Measure your product for site preparation.
Check the roughing-in for additional information.
Make sure the flooring offers adequate support for
your bath. Verify the subfloor is flat and level
Make sure the drain location correspond to the bath
outlet.
K-156T-LCP/RCP is designed for below-the-floor
drain installation. For below-the-floor drain
installations, measure and cut a channel in the
subfloor to accommodate the drain pipe and fittings.
Refer to the roughing-in sheet.
·
·
·
D.
D. Clearance Requirements
Check the roughing-in and room dimensions to provide
adequate available space for the bath unit.
BEFORE INSTALLATION
A.A. Protect the Bath Unit
Cover the bath with a protective layer or similar
material. Be careful not to scratch the bath surface.
-5-
1397340-T01-A

INSTALL THE BATH

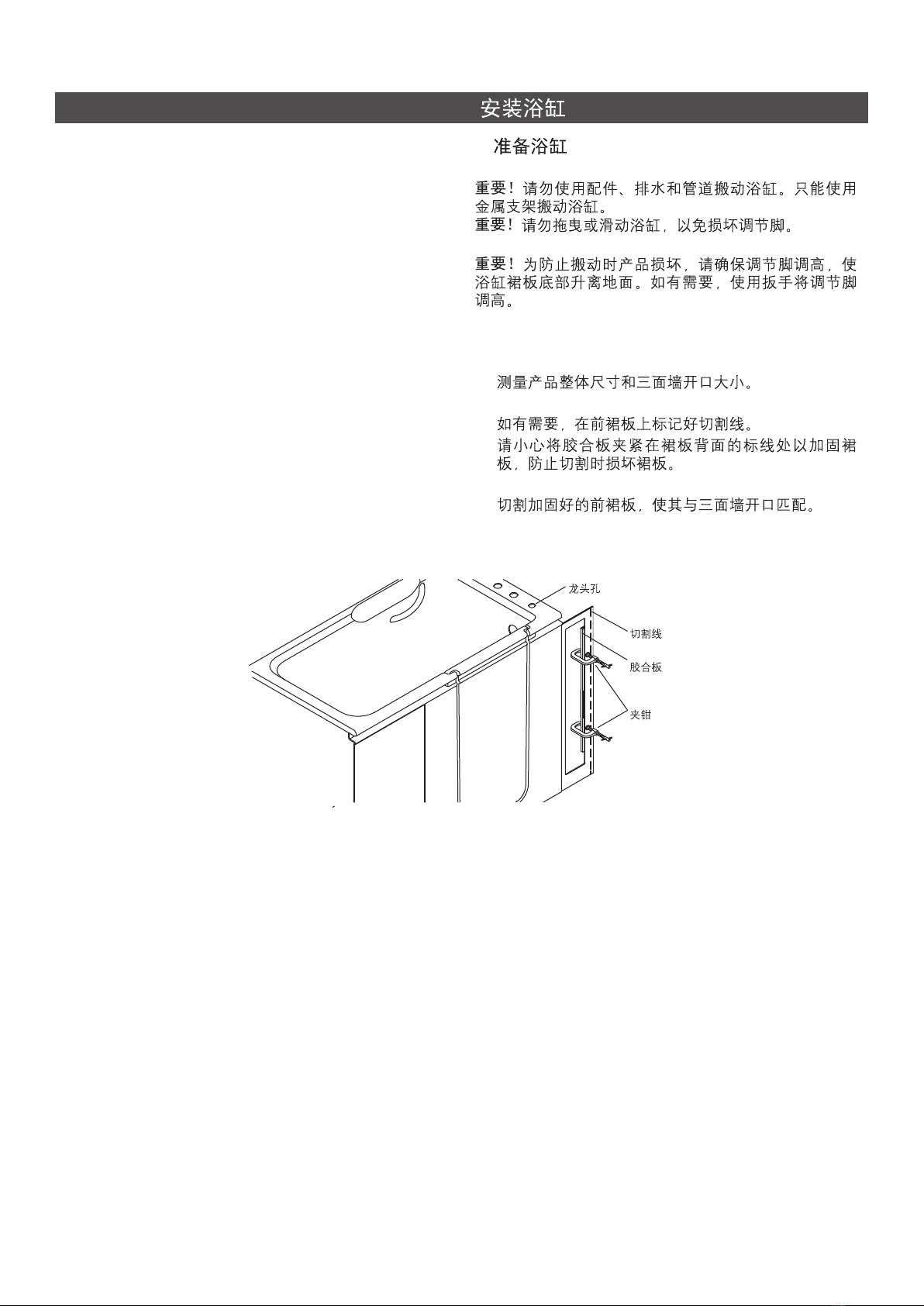

1. Prepare the Bath
IMPORTANT!
IMPORTANT!
IMPORTANT!
Do not lift the bath by the fittings, drain
and pipe. Lift only by the metal frame.
Do not damage the adjustable feet by
dragging or sliding the bath across the floor.
To prevent product damage while
moving the bath, make sure the adjustable feet are fully
extended to raise the bottom of the bath apron off the
floor. Use a wrench to fully extend the adjustable feet, if
necessary.
Measure the overall product dimensions as well as
the alcove opening.
Mark a cut line on the front bath apron, if needed.
Carefully clamp a strip of plywood behind the apron
at the marked location to reinforce the apron and
prevent damage to the apron during cutting.
Use a cutter to trim the reinforced front bath apron
so it will fit into the alcove.
·
·
·
·
1.
·
·
·
·
Faucet Holes
Cutline
Plywood Strip
Clamps
-6-
1397340-T01-A

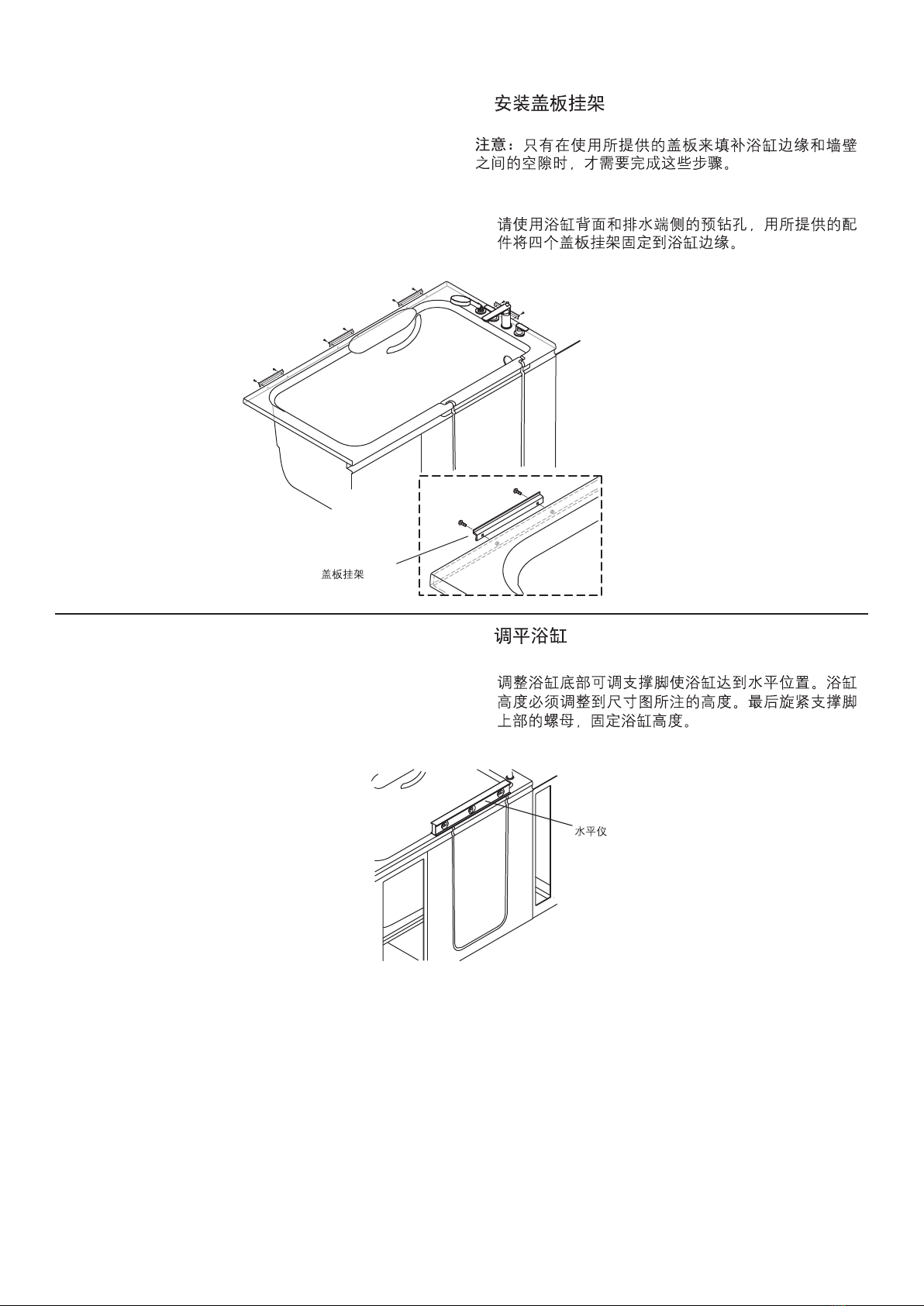

2. Install the Gap Panel Clips
NOTICE: Complete these steps only if you will use the
provided gap panel to fill a gap between the bath rim
and the walls.
Use the hardware provided to secure the four gap
panel clips to the bath rim. Use the pre-drilled holes
in the back and drain-end rim.
·
2.
·
3. Level the Bath
Adjust the feet under the bath to make it level.
Adjust the height of the bath to the height marked in
the Roughing-In. Tighten the nut on the adjustable
feet to settle the height of the bath.
·
3.
·
Gap Panel Clip
Level
-7-
1397340-T01-A

·
·
·
Raise the bath by positioning 2 pieces of wood
blocks under the metal frame and ensure there is
enough space for the drain. (For K-156T-LCP/RCP)
Install the drain to the bath according to the
installation instructions included in the box
containing the product.
Carefully push the bath into the alcove confirm that
the drain connections line up with the drain, and
then remove the wood blocks.
·
·
·
2
( K-156T-LCP/RCP)
Wood Blocks
( K-156T-LCP/RCP)
(For K-156T-LCP/RCP)
4. Install Gap Panel Supports
NOTICE: Complete these steps only if you will use the
provided gap panel to fill a gap between the bath rim
and the walls.
Draw a line on the back and drain-end alcove walls,
even with the top of the bath rim.
Measure the thickness of the gap panel, then
measure and mark this distance underneath the first
set of lines drawn on the walls. You will use this
bottom set of lines to position 2 support pieces.
Cut two straight pieces of 2 lumber, one to fit along
the back wall and another along the drain-end wall.
Or use bracket panel K-23772T (the options)
mounting on the wall.
Using a fastening method appropriate for the wall
and framing materials, secure the 2X4's firmly or
bracket panel K-23772T in place at the bottom set of
pencil lines.
·
·
·
·
4.
2
2
K-23772T
()
2
K-23772T( )
·
·
·
·
Carpenter's Square
First Line First Line
Gap Panel
Thickness
Gap Panel
Thickness
Second Line Second Line
Lumber Bracket Panel(K-23772T-*)
(K-23772T-*)
-8-
1397340-T01-A

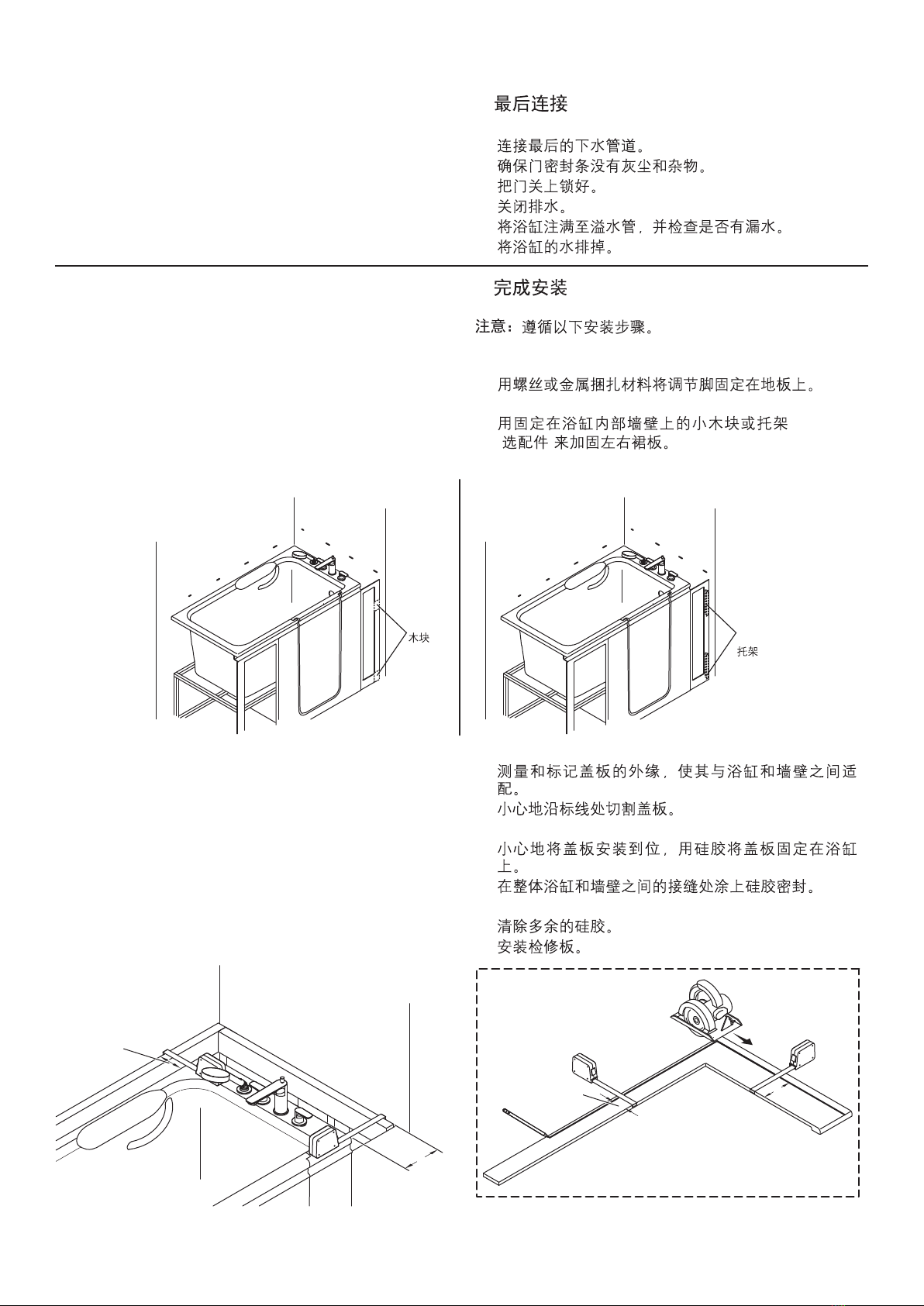

5. Make the Final Connections
Make the final drain line connections.
Make sure the door seal is free of dirt and debris.
Close and latch the door.
Close the bath drain.
Fill the bath to the overflow, and check for leaks.
Drain the bath.
·
·
·
·
·
·
5.
·
·
·
·
·
·
6. Complete the Installation
NOTICE: Follow the steps that apply to your
installation.
Secure the adjustable feet to the floor with screws or
metal strapping material.
Reinforce the left and right apron edges with small
pieces of blocking or bracket panel K-23772T (the
options) secured to the alcove walls.
·
·
6.
K-23772T
()
·
·
·
·
·
·
·
·
Measure and mark the outside edges of the gap
panel so it will fit between the bath and the walls.
Use a cutter to carefully cut the gap panel at the
marked lines.
Carefully install the gap panel into place, fix the gap
panel on the bath with silicone sealant.
Apply a bead of silicone sealant into the gap
between the bath and walls.
Wipe away any excess silicone sealant.
Install the access panels.
·
·
·
·
·
·
yx
y
x
Blocks Bracket Panel
(K-23772T-*)
(K-23772T-*)
-9-
1397340-T01-A

MAKE ELECTRICAL CONNECTIONS
(RCD)
WARNING: Risk of electric shock.
WARNING: Risk of electric shock.
Disconnect
the power before performing the following
procedures.
Connect
bathtub to properly grounded, grounding-type
power line protected by Residual Current Device
(RCD).
-10-
NOTICE:
1. A qualified electrician must install one RCD-
protected, 220 V, 30 A, grounded outlets for the
system. No other load should be on these circuits.
2. Equipotential position is near water pump bracket to
connect to the construction ground.
For corner installation or peninsular installation:
Select the corresponding side panel. If the side
panel on the side of the faucet is selected, the side
frame K-23771T (the options) should also be
selected.
Carefully install the gap panel in place, align the
side frame with the inner edge of the gap panel,
mark the position of the fixing holes on the wall,
remove the side frame, drill holes in the wall and
install the anchor, then install the side frame again
and tighten the screws. Apply the silicone sealant
into the gap between side frame and front apron.
·
·
1. RCD
220 V 30 A
2.
K-23771T( )
·
·
Screw
Frame Side
100%
Silicone Sealant
Heated Back Heater Air Pump Water Pump
Power Input
220-240V
1397340-T01-A

·
·
Install the access panels.
Install the bracket on the corresponding frame and
adjust the position.
·
·
Bracket
-11-
Side Panel LH
Side Panel RH
·
·
·
·
Install the side panel on the bath, make the side
panel and bath closely.
Fix the gap panel and side panel on the bath with
silicone sealant.
Apply a bead of silicone sealant into the gap
between the bath and walls.
Wipe away any excess silicone sealant.
·
·
·
·
100%
Silicone Sealant
100%
Silicone Sealant
1397340-T01-A

-12-

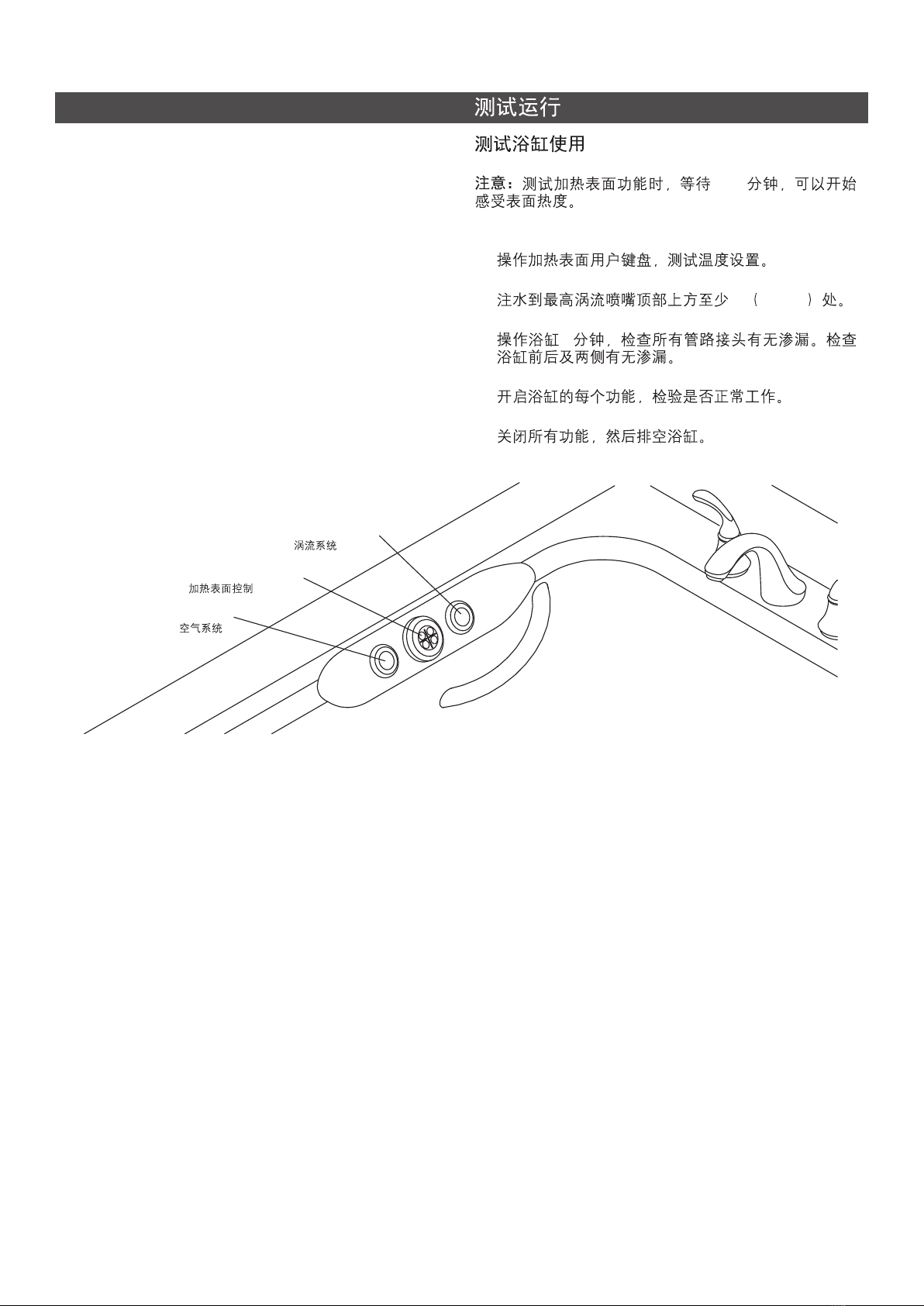

TEST OPERATION
5-10
2" 51 mm
5
·
·
·
·
·
Test Run the Bath
NOTICE: When testing the heated surface functions,
allow 5 to 10 minutes to begin feeling heat on the end
wall.
Operate the heated surface user keypad to test the
temperature settings.
Fill the bath at least 2" (51 mm) above the top of the
highest whirlpool jet.
Operate the bath for 5 minutes and check all piping
connections for leaks. Check for leakage along the
front, sides, and back of the bath.
Turn on each of the bath features, and verify proper
function.
Turn off the features, then completely drain the
water from the bath.
·
·
·
·
·
Whirlpool System
Heated Surface Control
Air System
1397340-T01-A

-13-
100
38
/
°F
°C
WARNING: Risk of fetal injury.
WARNING: Risk of hyperthermia or drowning.
WARNING: Risk of hyperthermia or drowning.
WARNING: Risk of personal injury.
WARNING: Risk of hyperthermia.
Pregnant or
possibly pregnant women should consult a
physician before using the bath.
Do not use the bath immediately following
strenuous exercise.
Water temperature in excess of 100 (38 )
may cause injury. Test and adjust the water
temperature before use.
Never drop
or insert any object into any opening.
People using
medications and/or having an adverse medical
history should consult a physician before using a
whirlpool equipped with a heater.
°F
5' 1.5
m
98.6 37
a
bc
d
ef
°F °C
WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
DANGER: Risk of accidental injury or
drowning.
WARNING: Risk of personal injury.
WARNING: Risk of electric shock.
To reduce the risk of injury, do not
permit children to use this unit unless they are
closely supervised at all times.
To avoid
injury, exercise care when entering or exiting the
bath.
Do not
permit electric appliances (such as a hair dryer,
lamp, telephone, radio, or television) within 5'
(1.5 m) of this bath.
WARNING: The use of alcohol, drugs, or
medication can greatly increase the risk of
fatal hyperthermia. Prolonged immersion in hot
water may induce hyperthermia. Hyperthermia
occurs when the internal temperature of the body
reaches a level several degrees above the
normal body temperature of 98.6 (37 ). The
symptoms of hyperthermia include an increase in
the internal temperature of the body, dizziness,
lethargy, drowsiness, and fainting. The effects of
hyperthermia include: (a) failure to perceive heat,
(b) failure to recognize the need to exit the bath,
(c) unawareness of impending hazard, (d) fetal
damage in pregnant women, (e) physical inability
to exit the bath, and (f) unconsciousness
resulting in the danger of drowning.
°F °C
Important Safety Instructions
READ AND FOLLOW ALL
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS
1397340-T01-A

-14-
(RCD)
RCD
RCD RCD
RCD
RCD RCD
·
·
·
·
·
·
CAUTION: Risk of personal injury. To reduce
the risk of injury, people with infirmities should
not be allowed to use this product without close,
continuous supervision.
Use this bath only for its intended purpose as
described in this guide. Do not use attachments not
recommended by Kohler Co.
The bath must be connected only to a supply circuit
that is protected by a Residual Current Device
(RCD). Such a RCD should be provided by the
installer and should be tested on a routine basis. To
test the RCD, press the test button. The RCD
should interrupt power. Press the reset button.
Power should be restored. If the RCD fails to
operate in this manner, the RCD is defective. If the
RCD interrupts power to the bath without the test
button being pressed, a ground current is flowing,
indicating the possibility of an electric shock. Do not
use this bath. Disconnect the bath and have the
problem corrected by a qualified service
representative before using.
Flush your whirlpool system twice a month or more
depending upon usage, as described in the "Flush
the System" section of this guide.
Do not operate this unit without the guard (cover)
over the suction fitting.
Repeated use of personal care products containing
oils can damage plastic whirlpool components.
Avoid using bath oils.
Whirlpool hydro-massage action can cause even a
small amount of bubble bath, bath soap, shampoo,
or bath oil to foam excessively. For this reason,
please do not use these products during whirlpool
operation.
·
·
·
·
·
·
OPERATING THE AIR SYSTEM
·
·
·
·
·
4" 102 mm
·
NOTE:
NOTE:
This is a combination airbath and whirlpool
bath, and includes a heated back surface. For
information on using the whirlpool features, refer to the
"Operating the Whirlpool System" section. Refer to the
"Operating the Heated Surface" section to use the
heated surface feature.
If the unit does not function properly, please
refer to the "Troubleshooting" section.
Before entering the bath, make sure the seal is free
of dirt and debris.
Enter the bath, then close and latch the door.
Use your hand to test the water temperature before
closing the drain and filling the bath.
Fill the bath at least 4" (102 mm) above the top of
the airjets.

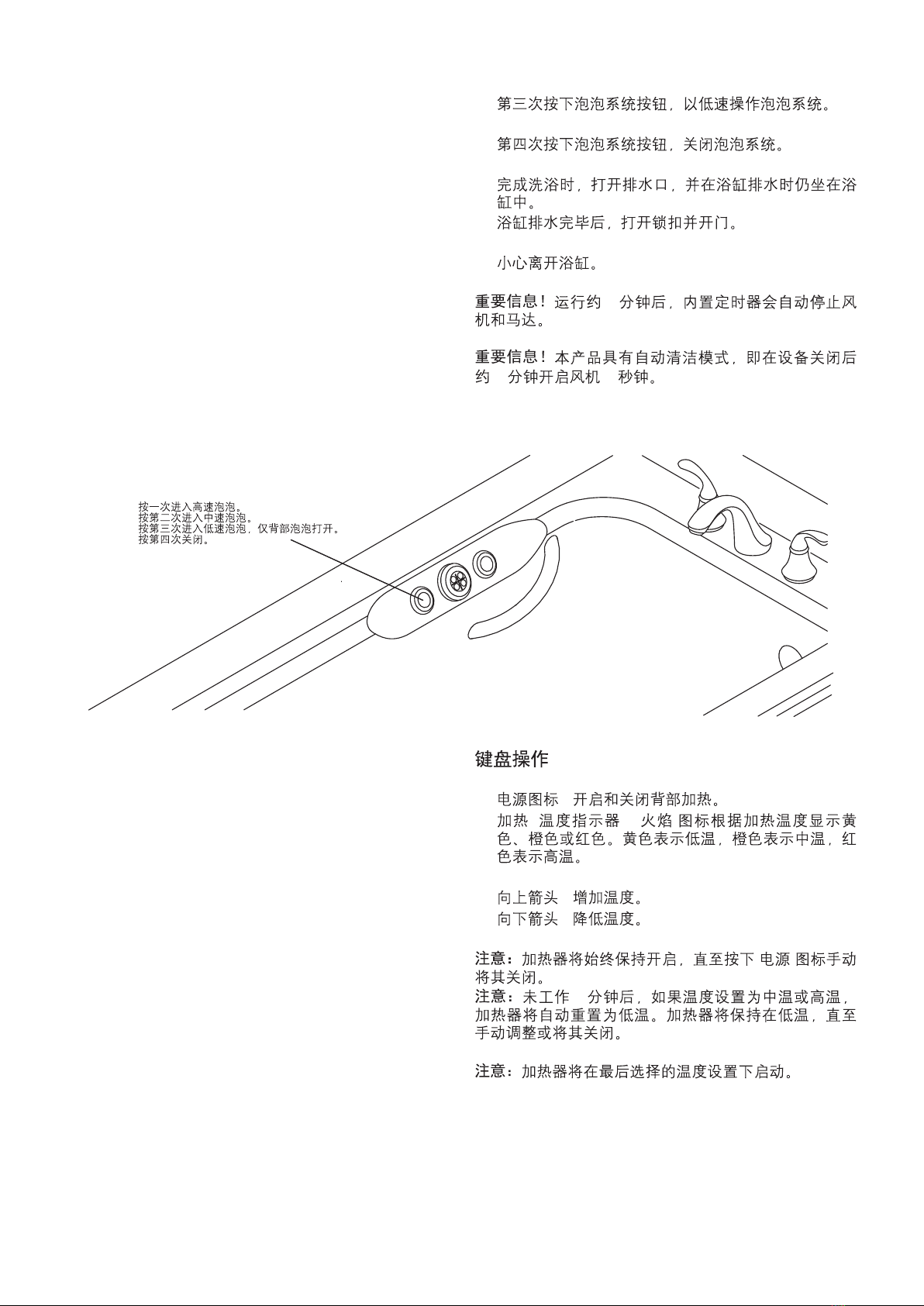

Press the three-speed air system button once to
start the air system at high speed.
Press the air system button a second time to
operate the air system at medium speed.
·
·
·
·
·
·
1397340-T01-A

-15-
·
·
·
·
·
20
15 15
·
·
·
·
·
Press the air system button a third time to operate
at low speed.
Press the air system button a fourth time to shut off
the air system.
When you are done bathing, open the drain and
remain seated while the water drains from the bath.
When the water has drained from the bath, unlatch
and open the door.
Carefully exit the bath.
A built-in timer automatically stops the
blower and motor after approximately 20 minutes of
operation.
This product contains an automatic
water purge mode that turns the blower on for 15
seconds approximately 15 minutes after the unit is
turned off and drained.
IMPORTANT!
IMPORTANT!
Press once for high flow.
Press a second time for medium flow.
Press a third time for low, "Back Only" flow.
Press a fourth time to turn off.
-
/-[]
-
-
[]
60
·
·
·
·

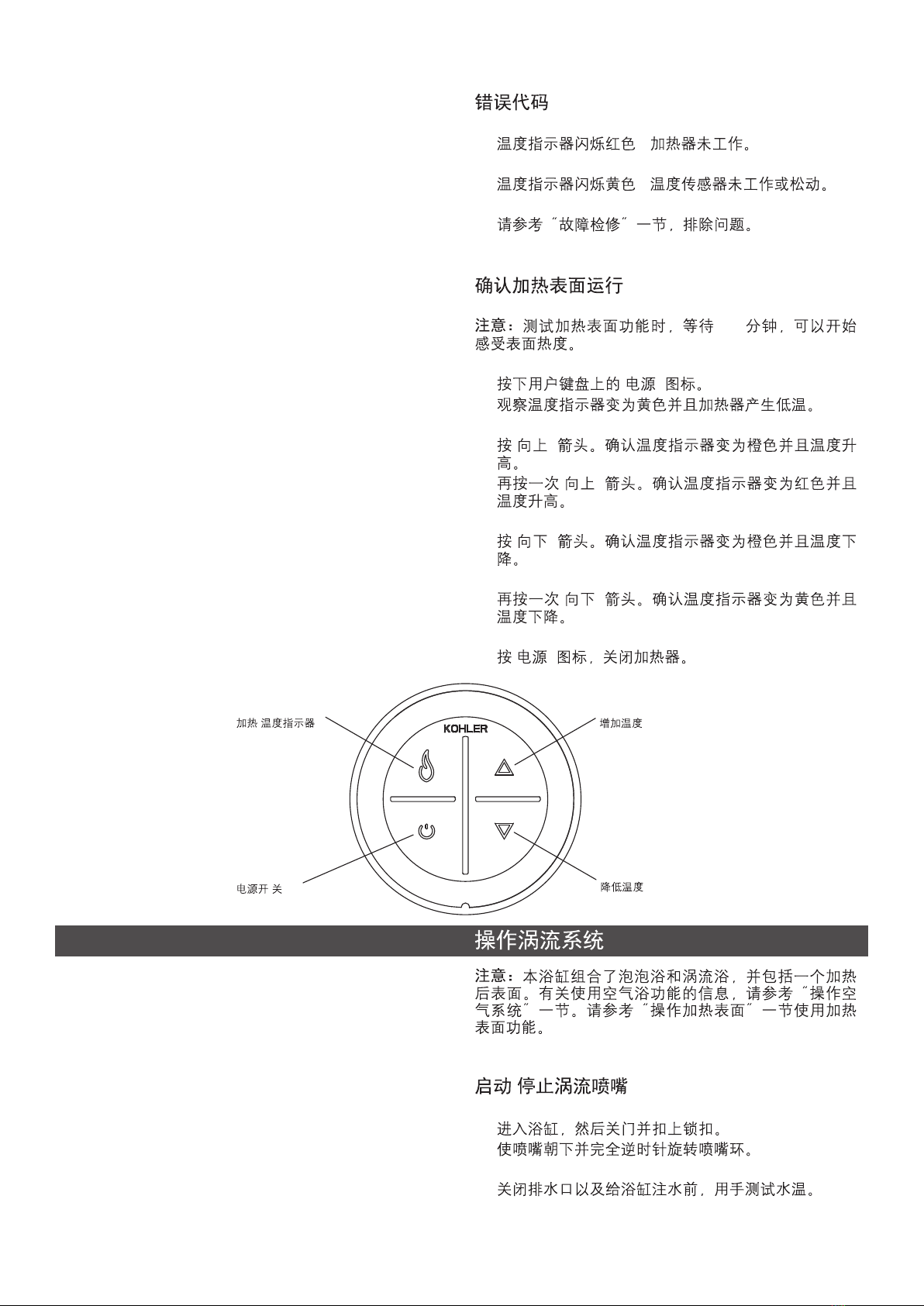

Keypad Operation
Power Icon - Turns the heater on and off.
Heat/Temperature Indicator - The [Flame] icon
illuminates yellow, orange, or red depending on the
heat level. Yellow indicates low heat, orange
indicates medium heat, and red indicates high heat.
Up Arrow - Increases the temperature.
Down Arrow - Decreases the temperature.
The heater will remain on until it is manually
turned off by pressing the [Power] icon.
After 60 minutes of inactivity, the heater will
automatically reset to low heat if the temperature was
set to medium or high. The heater will remain on at low
heat until it is manually adjusted or turned off.
The heater will turn on at the last selected
temperature setting.
NOTICE:
NOTE:
NOTE:
·
·
·
·
1397340-T01-A

-
-
·
·
·
5-10
[]
[]
[]
[]
[]
[]
·
·
·
·
·
·
·
Error Codes
Heat indicator blinking red - The heater is not
functioning.
Heat indicator blinking yellow - The temperature
sensor is not functioning or is loose.
Refer to the "Troubleshooting" section to
troubleshoot any problems.
·
·
·
Confirm Heated Surface Operation
NOTICE: When testing the heated surface functions,
allow 5 to 10 minutes to begin feeling heat on the end
wall.
Press the [Power] icon on the user keypad.
Observe that the heat indicator turns yellow and the
heater produces low heat.
Press the [Up] arrow. Verify that the heat indicator
turns orange and the temperature increases.
Press the [Up] arrow a second time. Verify that the
heat indicator turns red and the temperature
increases.
Press the [Down] arrow. Verify that the heat
indicator turns orange and the temperature
decreases.
Press the [Down] arrow a second time. Verify that
the heat indicator turns yellow and the temperature
decreases.
Press the [Power] icon to turn the heater OFF.
·
·
·
·
·
·
·
-16-
Heat/Temperature Indicator
/
Power On/Off
/
Increase Temperature
Decrease Temperature
OPERATING THE WHIRLPOOL SYSTEM
/
·
·
·
NOTE: This is a combination whirlpool and airbath, and
includes a heated back surface. For information on
using the airbath features, refer to the "Operating the
Air System" section. Refer to the "Operating the Heated
Surface" section to use the heated surface feature.
Enter the bath, then close and latch the door.
Position the jet nozzles downward and turn the jet
trim rings fully counterclockwise.
Use your hand to test the water temperature before
closing the drain and filling the bath.
Start/Stop the Whirlpool Jets
·
·
·
1397340-T01-A

-17-
·
·
·
·
·
·
2" 51 mm·
·
·
·
·
·

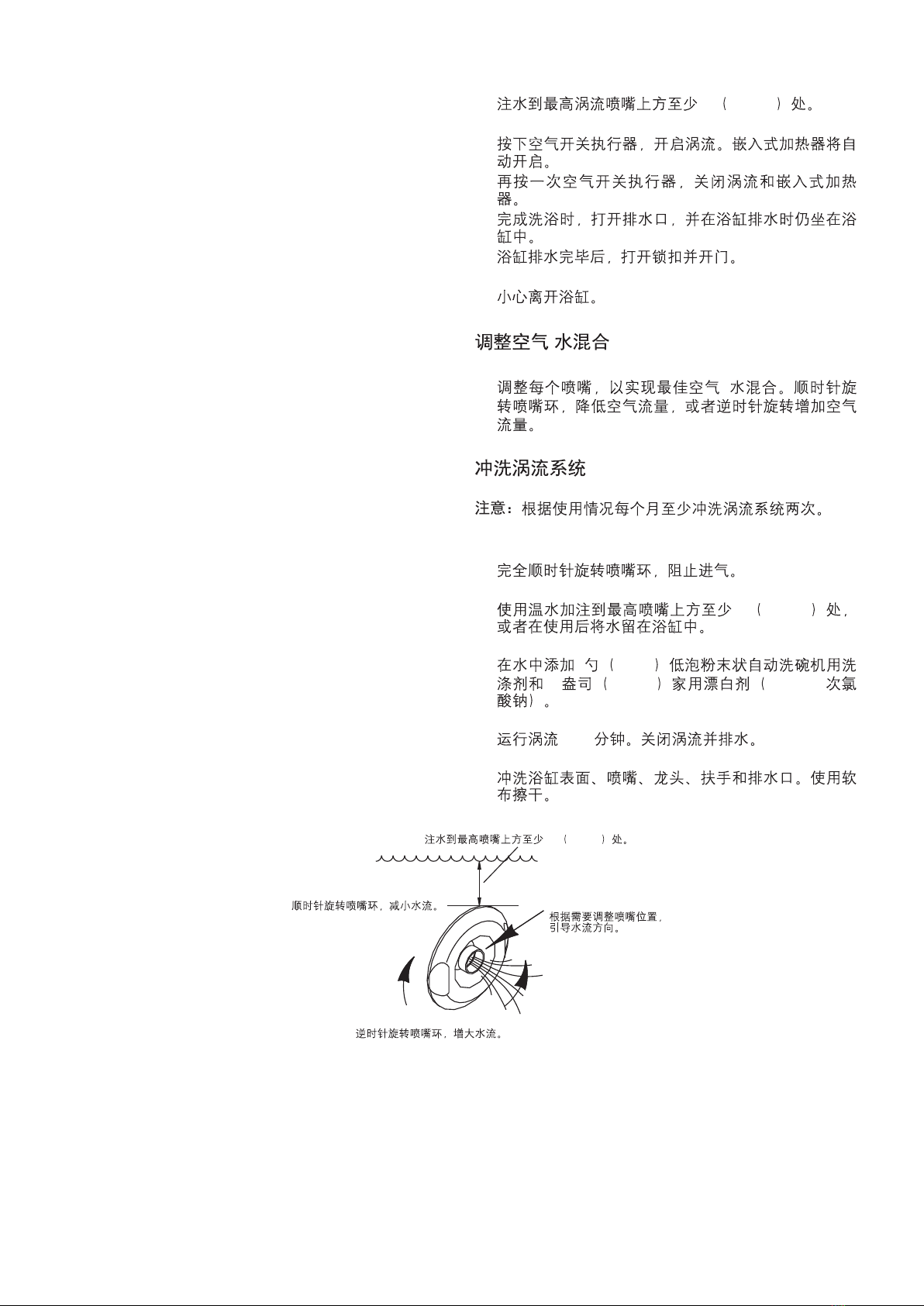

Fill the bath at least 2" (51 mm) above the highest
whirlpool jets.
Press the air switch actuator to turn the whirlpool on.
The in-line heater will turn on automatically.
Press the air switch actuator a second time to turn
the whirlpool and in-line heater off.
When you are done bathing, open the drain and
remain seated while the water drains from the bath.
When the water has drained from the bath, unlatch
and open the door.
Carefully exit the bath.
/
/·
Adjust Air/Water Mix
Adjust each jet for optimum air/water mixture. Turn
the jet trim clockwise to reduce air flow, or
counterclockwise to increase air flow.
·
·
Flush the Whirlpool System
NOTE: Flush the whirlpool system twice a month or
more, depending on usage.
Turn the jet trim rings fully clockwise to block air
induction.
·
·
·
·
·
2" 51 mm
210ml
20 590 ml 5% - 6%
5-10
·
·
·
·
Fill the bath with warm water at least 2" (51 mm)
above the highest jets, or leave water in the bath
after use.
Add 2 teaspoons (10 ml) of a low-foaming, powder
automatic dishwasher detergent and 20 ounces
(590 ml) of household bleach (5% - 6% sodium
hypochlorite) to the water.
Run the whirlpool for 5 to 10 minutes. Turn off the
whirlpool and drain.
Rinse the surfaces of the bath, jets, faucet,
handrails, and drain. Wipe dry with a soft cloth.
Fill with water at least 2" (51 mm) above the highest jet.
2" 51 mm
Turn the jet trim ring clockwise
to decrease the flow. Position the jet nozzles to
direct the water flow as desired.
Turn the jet trim ring counterclockwise to increase the flow.
1397340-T01-A

-18-
100%
·
·
·
·
·
·
·
·
·
·
·

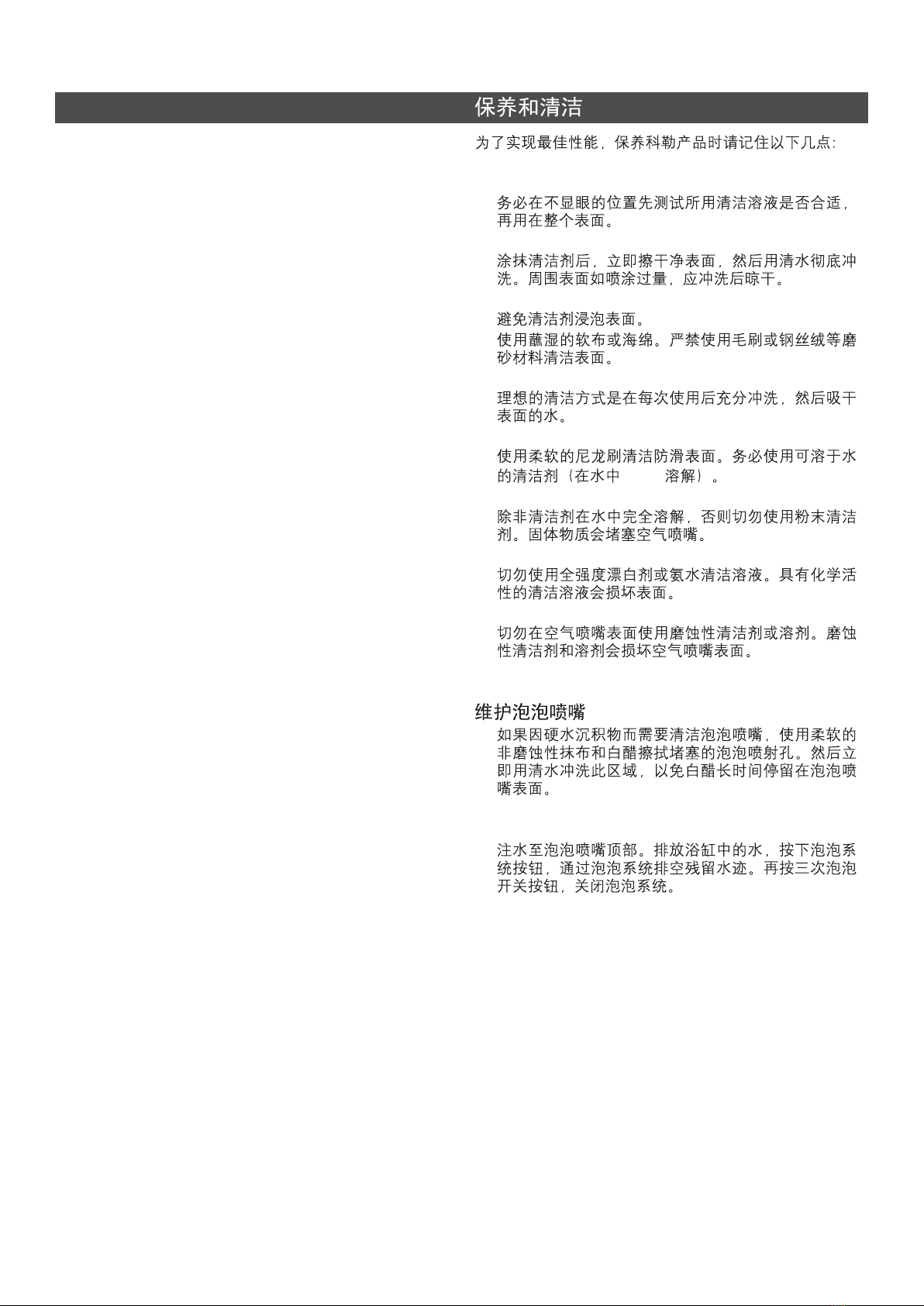

For best results, keep the following in mind when caring
for your KOHLER bath:
Always test your cleaning solution on an
inconspicuous area before applying to the entire
surface.
Wipe surfaces clean and rinse completely with water
immediately after applying cleaner. Rinse and dry
any overspray that lands on nearby surfaces.
Do not allow cleaners to soak on surfaces.
Use a soft, dampened sponge or cloth. Never use
an abrasive material such as a brush or scouring
pad to clean surfaces.
The ideal cleaning technique is to rinse thoroughly
and blot dry any water from the surface after each
use.
Use a soft nylon brush on slip-resistant surfaces. Be
sure to use a water-soluble cleaner (dissolves 100%
in water).
Do not use powdered cleaners unless the cleaner is
fully dissolved in water. Solid substances can block
the airjets.
Do not use full strength bleach or ammonia cleaning
solutions. Chemically active cleaning solutions can
damage the surface.
Do not use abrasive cleansers or solvents on airjet
surfaces. Abrasive cleaners and solvents can
damage the airjet surface.
·
·
·
·
·
·
·
·
·
Maintaining the Airjets
If cleaning the airjets is necessary due to hard water
deposits, wet a soft, non-abrasive cloth with white
vinegar and wipe the plugged airjet holes.
Immediately rinse the area with clean water to avoid
long-term exposure of the vinegar to the airjet
surface.
Fill the bath with water to the top row of airjets.
Drain the bath, and press the air system button to
purge retained water from the air system. Press the
air switch button three more times to turn off the air
system.
·
·
CARE AND CLEANING
1397340-T01-A

-19-
Note: The section is for general aid only. A Kohler Co.
Authorized Representative should correct any electrical
problems.
TROUBLESHOOTING
Air System
Symptoms Probable Causes Recommended Action
1. Blower motor does not
start or stop.
2. Blower motor runs, but
not all airjets are
functioning.
A. No power to the blower
motor.
B. Air actuator tubing is loose
or disconnected.
C. Air actuator tubing is
pinched or kinked.
D. Air system button assembly
is damaged.
E. Air system button assembly
has grease or debris in the
bleed area.
F. Air actuator tubing is
damaged.
G. Blower motor does not work.
A. Airjets located below the
user's knees do not function
when the blower is run at low
speed.
B. Airjets are blocked.
C. Insufficient voltage to the
blower motor.
A. Set or reset the . Check and repair the
wiring.
B. Check that the air actuator tubing is connected
to the air switch actuator, and to the air switch
button. Reconnect if needed.
C. Adjust the air actuator tubing to clear the
pinched or kinked area.
D. Replace the air system button assembly.
E. Disassemble the air system button assembly,
and wipe away any excess grease or debris.
Reassemble the air system button assembly,
and test operation.
F. Replace the air actuator tubing.
G. Replace the blower motor.
RCD
A. Normal operation. No action is required.
B. Remove the blockage.
C. Adjust the blower motor voltage: Unplug the
blower motor from the outlet. While holding
down the air system button, plug the blower
motor into the outlet. Continue to hold the air
system button down for an additional 2 seconds.
The blower will confirm the voltage change by
cycling on for 2 seconds, off for 2 seconds, then
on again for 2 seconds. To return to the
previous setting, repeat these steps.
3. Blower motor stops
suddenly.
A. Circuit for the outlet has
tripped.
B. Blower motor has
overheated due to blockage
at the suction, airjets, and/or
blower vents. This caused
the blower motor protection
device to activate.
A. Set or reset the RCD. Check and repair the
wiring.
B. Remove the blockage. Then allow the blower
motor to cool.
1397340-T01-A

-20-
Heated Surface
Symptoms Probable Causes Recommended Action
1. Heated surface does
not turn on.
2. Bath is turned on, but
there is little or no
heat.
3. Temperature does not
automatically reset to
low after 1 hour.
4. Heat indicator is
blinking red.
5. Heat indicator is
blinking yellow.
A. No power to power supply.
B. User keypad cable is loose
or damaged.
C. User keypad is loose or
damaged.
D. Power supply does not work.
A. Heated surface cable is
loose or damaged.
B. Heater or insulation is loose.
C. Heated surface indicator is
yellow or orange.
D. Heated surface does not
work.
E. Temperature sensor does
not work.
A. Temperature sensor does
not work.
A. Heating system needs to be
reset.
B. Heated surface does not
work.
A. Heating system needs to be
reset.
B. Temperature sensor does
not work.
A. Make sure nothing except the pump and
blower/heated surface are plugged into their
shared duplex outlet. Set or reset the or
RCD. Check and repair the wiring.
B. Check the wire connections. If necessary,
replace the user keypad cable.
C. Check the wire connections. If necessary,
replace the user keypad.
D. Replace the power supply.
RCD
A. Check the wire connections. If necessary,
replace the heated surface cable.
B. Secure the heater or insulation to the bath.
C. Press the [Up] arrow to increase the
temperature.
D. Replace the heater.
E. Replace the heater.
A. Replace the heater and/or keypad.
A. Press the [Power] icon to turn the power off.
Wait 10 seconds, then turn the power on.
B. Replace the heater.
A. Press the [Power] icon to turn the power off.
Wait 10 seconds, then turn the power on.
B. Replace the heater.
1397340-T01-A
