Kohler ENGLEFIELD K-78221X Assembly instructions

Installation and Care Guide
Multi Point Electric Shower


1287791-X2-C ©2017 Kohler Co.
K-78221X, K-78222X

Thank You For Choosing Engleeld
We appreciate your commitment to Engleeld quality. Please take a few minutes
to review this manual before you start installation. If you encounter any
installation or performance problems, please call 0-2204-6222 for Call Center
(Thailand) and our website are listed on the back cover.
All the information in this guide is based upon the latest product information
available at the time of publication. At Kohler Company, we strive to fulll
our mission of improving the level of gracious living for each person who is
touched by our products and services. We reserve the right to make changes in
product characteristics, packaging, or availability at any time without notice.
Thanks again for choosing Engleeld.
Product Notice
Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The product pictured in the installation steps may dier from the
model being installed.
NOTICE: Follow all local plumbing and electrical codes.
NOTICE: Children should be supervised to ensure that they do not play with
the appliance.
WARNING: Risk of electrical shock. A licensed electrician should make
all electrical connections.
DANGER: Risk of re, electric shock, or injury to persons. Read important
safety instructions included in these instructions.
WARNING: Risk of electrical shock. To reduce the risk of electrical
shock, connect the water heater to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electrical shock. Disconnect power supply before
servicing.
WARNING: Risk of injury or property damage. Please read all instructions
thoroughly before beginning installation, including the following product
requirements.
1287791-X2-C 2 Kohler Co.

Safety Information
¨ Products manufactured by Engleeld are safe provided they are installed,
used and maintained in good working order in accordance with our
instructions and recommendations. Always refer to this manual if you have
any doubt.
¨ The appliance must be earthed. Improper grounding could cause electrical
shock. The earth continuity conductor of the electrical installation must be
eectively connected to all exposed metal parts of other appliances and
services in the room, which in the heater is to be installed to conform to local
regulations and ensure proper earthing/grounding for ELCB to be eective.
¨ If any of the following conditions occur, immediately switch o the mains
and contact the Call Center. Never aempt to repair the unit by yourself:
• If the heater begins to make an odd noise, smell or smoke.
• If ELCB trips and power indicator does not light up.
• Water temperature cannot be controlled.
• If the heater shows signs of a distinct change in performance.
• If water leaks from inside.
¨ When the shower is used by someone such as child, elderly person, sick
person and physically handicapped person, the person concerned is kindly
requested to pay aention and check the shower temperature by hand from
time to time. User is advised to test and adjust the water temperature before
using.
¨ During lightning/thunder, switch o the electric supply to the shower unit
in advance to protect the shower unit against possible damage.
¨ Installation must be carried out by a qualied personnel and in compliance
local authority regulations.
¨ This heater must be permanently connected to the direct main line supply.
A plug and a socket are not recommended to use.
¨ For the correct size of wire conductor corresponding to dierent electrical
loadings, please refer to cable size table on page 9.
¨ The heater will not function if there is insucient water ow (min 3 litres/
min) to trigger the ow switch.
¨ The built-in ELCB will automatically cut o the power supply in case there is
a current leakage over 15 mA.
¨ The thermostat will automatically cut o the power supply if it has sensed
an abnormal rise in water temperature.
¨ A pressure relief valve must be installed to inlet of this product.
¨ Do not allow the children use this product alone.
NOTE: When removing the unit from package, a small amount of water may be
found inside. This is normal as the unit is tested during manufacturing process.
Kohler Co. 3 1287791-X2-C

5
6
1
4
23

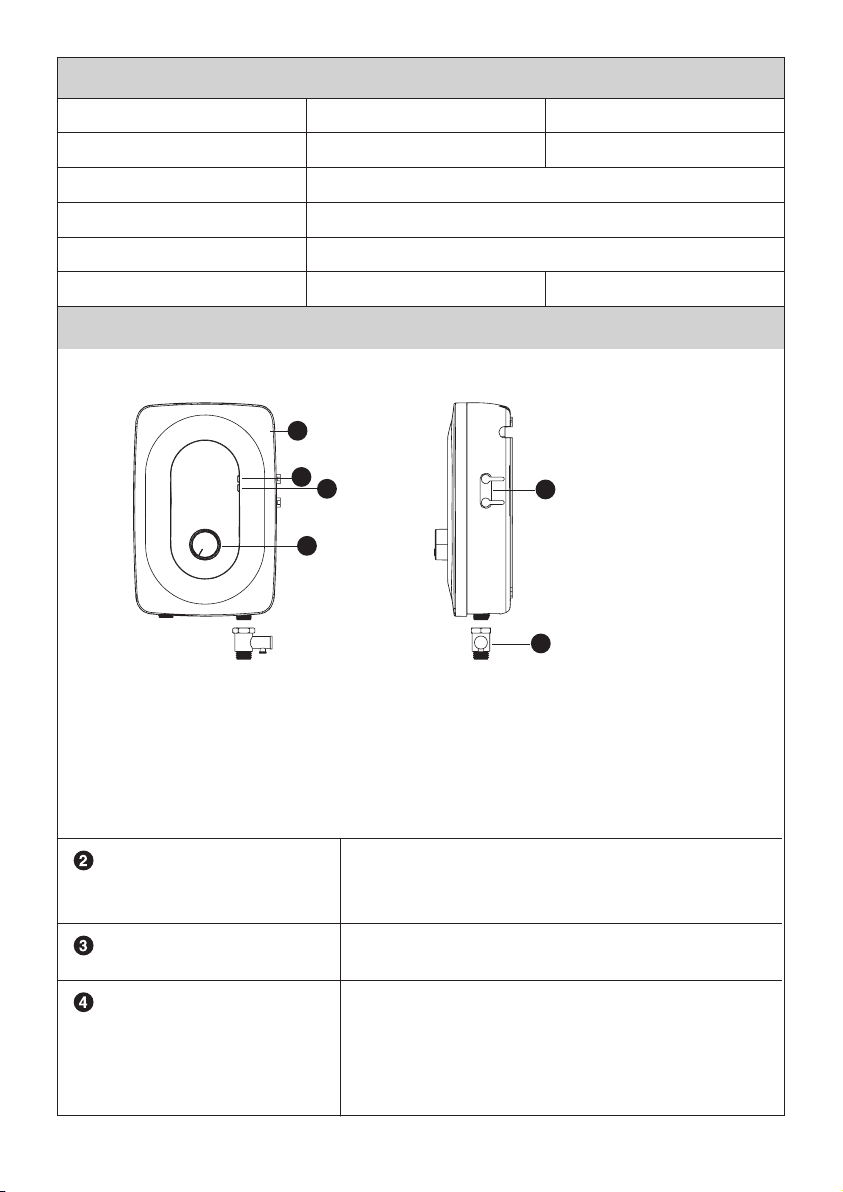

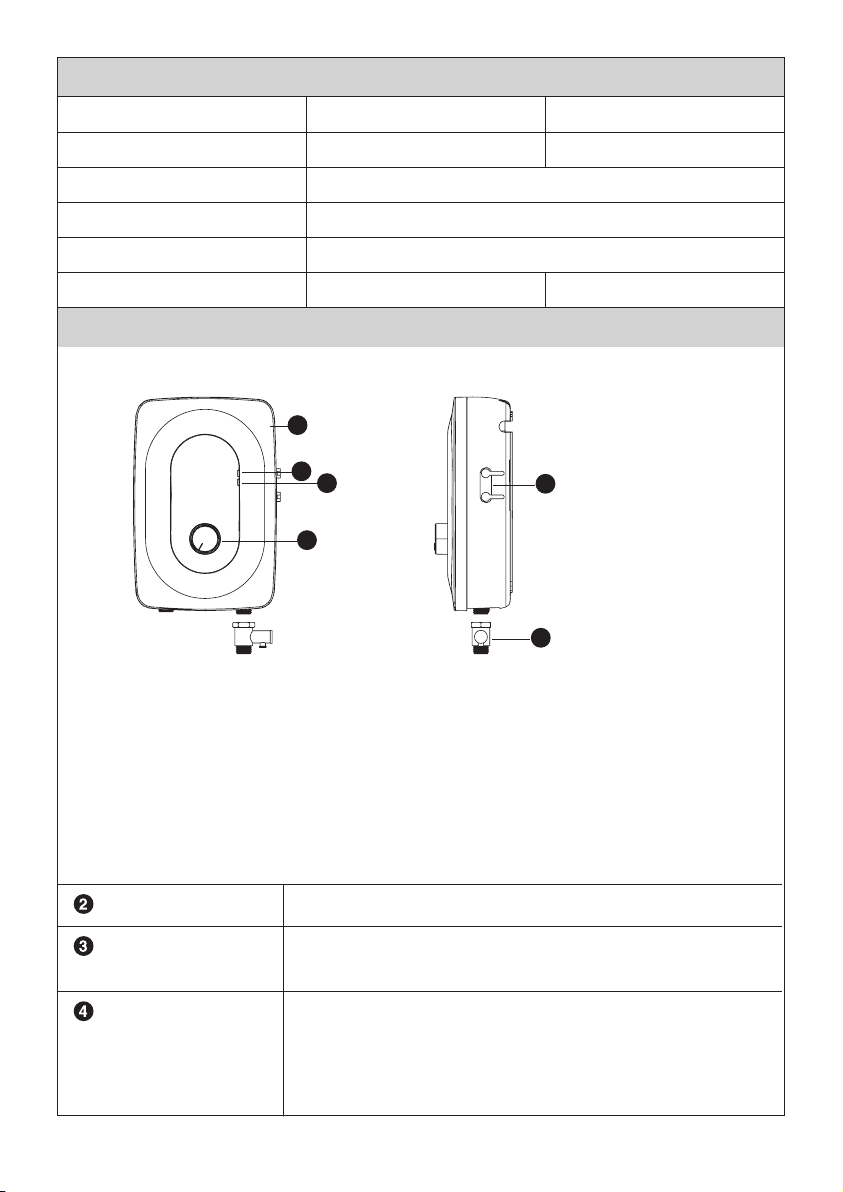

Specied Product
Model K-78221X K-78222X
Power output 6500 Wa 8000 Wa
Voltage AC 220 V, 50/60 Hz
Minimum pressure 0.3 Bar (30 kPa)
Dimension (W x D x H) 187 x 100 x 279 mm
Weight 1.78 kg 1.78 kg
Power Indicator When turning the temperature control knob
clockwise, the POWER indicator (red) will
light up.
ELCB Indicator The ELCB indicator (green) will light up
when the ELCB is in normal condition.
Temperature Control Knob Increase water temperature by turning the
temperature control knob clockwise to “MAX”
position. Decrease water temperature and turn
o the heater by turning the temperature control
knob counterclockwise to “OFF” position.
Description of Control Panel
1. Front Plate
2.
Power Indicator
3.
ELCB Indicator
4.
Temperature Control Knob
5. ELCB Test and Reset lever
6. Pressure Relief Valve
Simplied Diagram
K-78221X/K-78222X
1287791-X2-C 4 Kohler Co.

N L
E
TRIAC
T2
G
N1
T1
FS
FS
30A/40A
15mA, <0.1s
2P Mechanical ELCB
Voltage ~ 220V
50/60 Hz
Flow Switch
Main Board PCB
LED
Display
Board
Heater Elements
Thermostat
(double action)
TEST Pull down the “TEST” lever to test ELCB.
Note: Test the ELCB regularly (at least once
a month).
RESET Pull up the “RESET” lever to reset ELCB.
After pull down this lever, the power and
ELCB will resume normal operation.
Before You Begin
¨ Observe all local plumbing, electrical and building codes.
¨ Prior to installation, unpack the new product and inspect it for damage.
¨ The walls and the oor must be square, plumb, and level.
¨ Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.

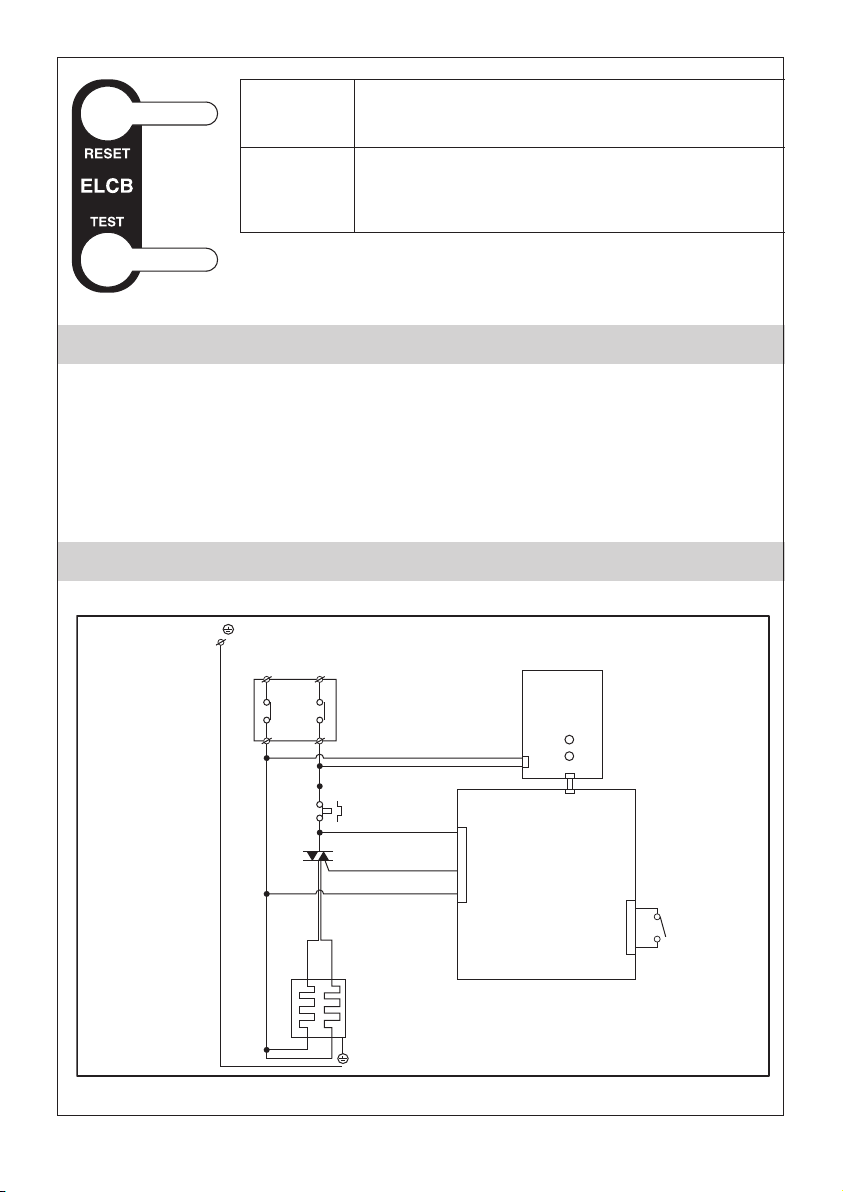

Electrical Diagram
Kohler Co. 5 1287791-X2-C

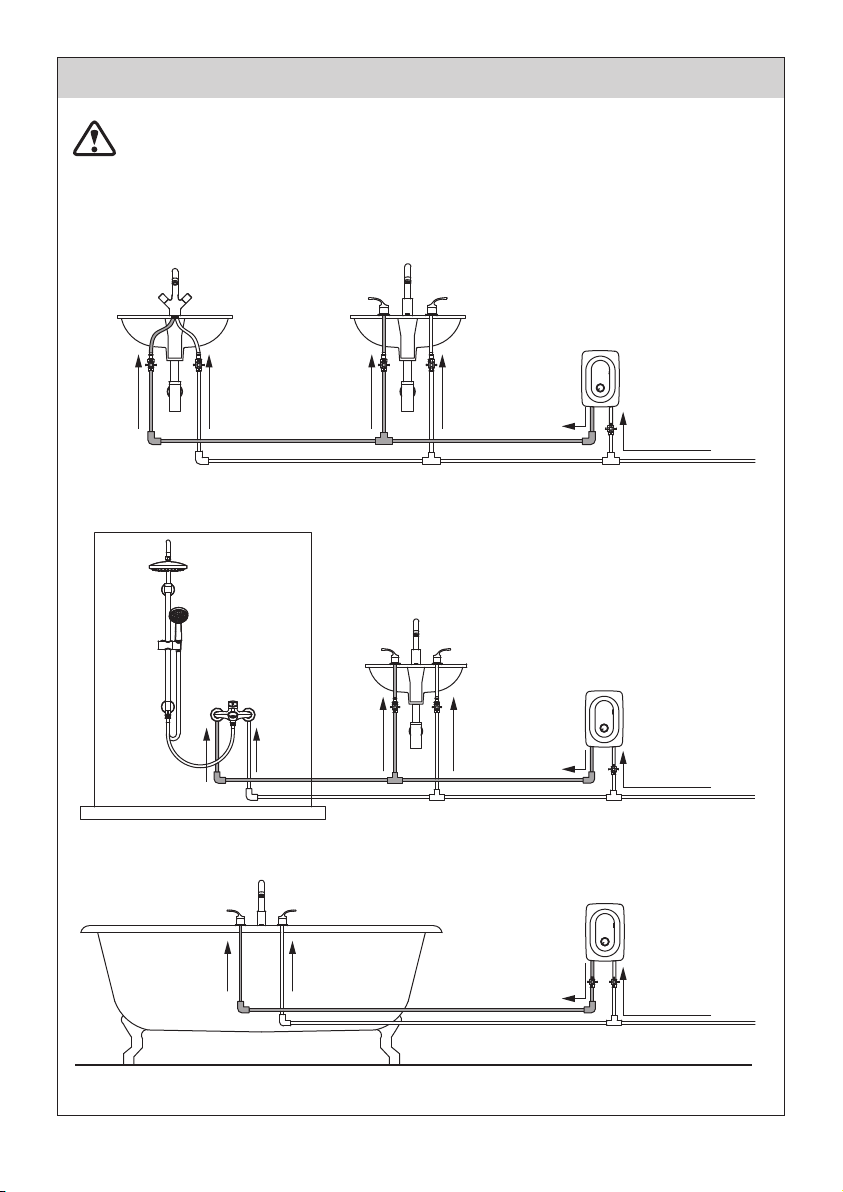

Hot Cold
Installed underside of the lavatory.
Installed inside shower room and outer bathroom.
Installed with Bathtub.
Hot
Hot
Hot
Hot
Cold
Hot
Hot
Cold
Cold
Hot Cold
Cold
Cold
Cold
Preparation
CAUTION: Risk of product damage. Do not use plastic exible hose.
Recommended galvanize pipe, stainless pipe, steel pipe, PVC pipe or
special pipe for hot water.
1287791-X2-C 6 Kohler Co.

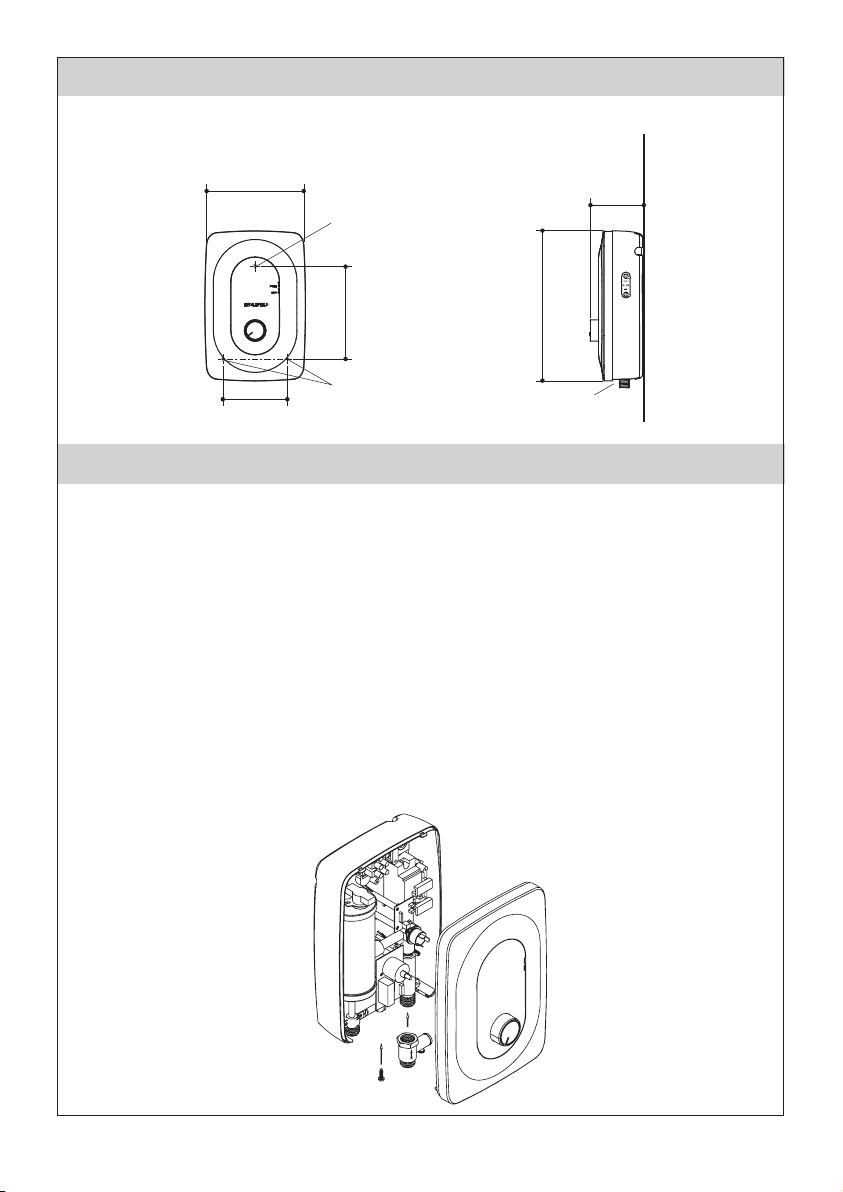

Dimensions are approximate.
Unit: mm
A KOHLERCOMPANY
100
279
G1/2"
175
187
120
Finished Wall
Mounting Hole
Mounting Hole
Roughing-In

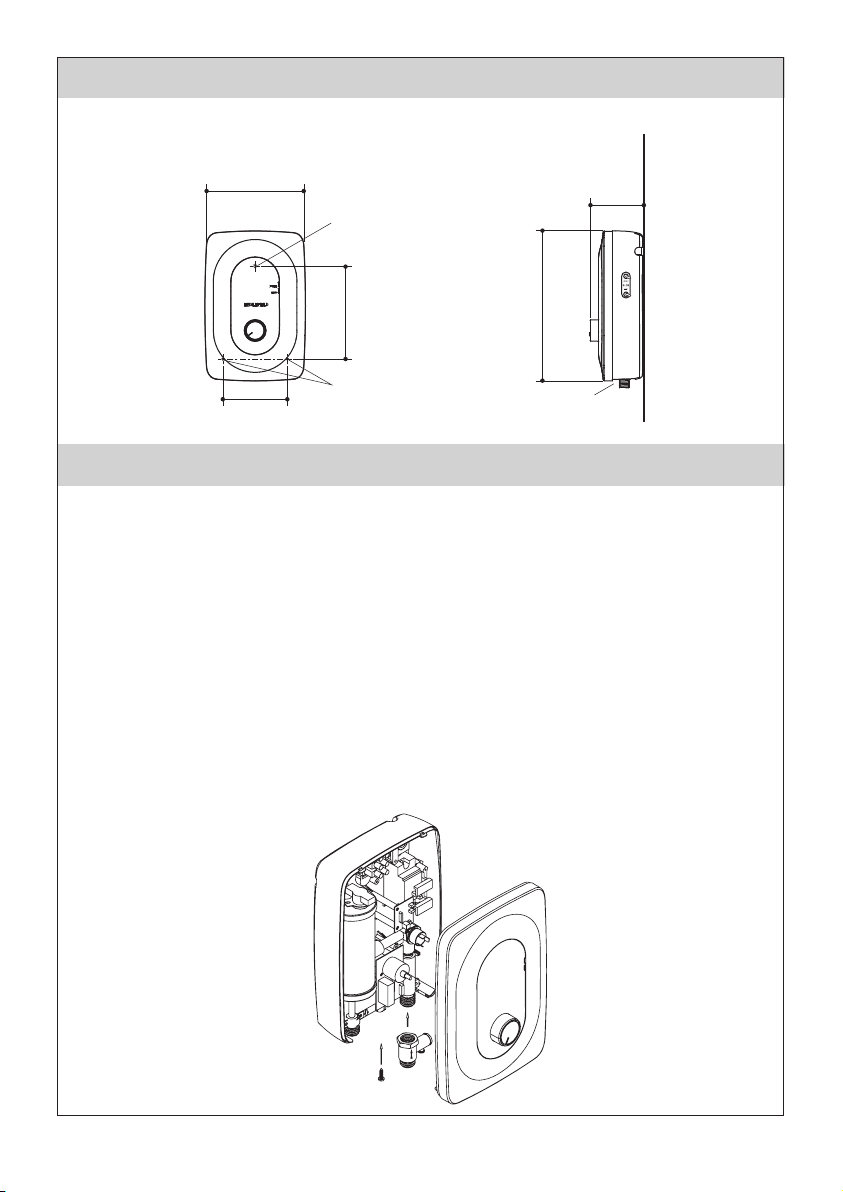

Installation
¨ Select a suitable position in the bathroom.
¨ Remove the screw at the boom of the unit.
¨ Remove the front cover from the boom and then lift up the front cover.
¨ Rehearse heater unit installation for anchor mounting location determination.
¨ Mark 3 mounting holes of the heater base on the wall.
¨ Drill the anchor holes in depth of 34 mm with Ø6 mm drill.
¨ Insert the anchors and mount the heater rmly in position with the screws
provided, then install the front cover.
¨ Apply sealant tape to the inlet pipe. Then install the pressure relief valve
with appropriate tool. Make sure that the arrow symbol on the valve body
is facing in front position.
Kohler Co. 7 1287791-X2-C

Mesh Filter
Pressure Relief Valve
PVC Tube Ø8
(Not Supplied)
Discharge Nozzle
Plumbing Installation
WARNING: Risk of electrical shock. A licensed electrician should make
all electrical connections.
CAUTION: Risk of property or product damage. Do not tighten the nut
too securely.
¨ Connect the hose to the outlet connection with rubber washer. Use proper
tools to tighten the nut.
¨ Connect the hose to the pressure relief valve. Make sure to put mesh lter
between hose and pressure relief valve
NOTE: When connect the pressure relief valve to water inlet, please make sure
the discharge nozzle is facing downward. Connect the Ø8 mm discharge tube
(not supplied) to the discharge nozzle in a continuously downward direction
and this tube must be left open to the oor drain exhaust or discharge pipe.
In abnormal condition where pressure gets higher than 6.0 bars, water will
drip from discharge tube.
CAUTION: Risk of property or product damage. Turn on the water
mains to drain out all plumbing dirt before connecting the water supply
to the water heater. The water supply to the water heater must be free
from mud and dirt. (Always KEEP the water supply to the water heater
free from mud and dirt at all time during usage).
At the same time ll up the heater tank. The heater tank must be lled
up with water before turning on the electricity supply to prevent any
dry burnt damage to the heating element.
1287791-X2-C 8 Kohler Co.

Fuse Distributor Board
Miniature Circuit Breaker (MCB)
FUSE
ON/OFF
Double PVC cable over 6 mm2
ON/OFF Double Pole Switch
Cable
Note:
For the correct size of wire conductor corresponding to
different electrical loadings, refer to Cable Size table.
Electrical Installation
¨ Remember to SWITCH OFF the mains before carrying out any electrical
work. Refer to cable size table for the correct cable size.
¨ Use double insulation cable of over 6 sq.mm.
¨ Lead the power cable from MCB to a “ON/OFF’’ double pole linked switch
(If applicable) having a contact separation of at least 3 mm in all poles
outside the bathroom, then lead a cable to the terminal block inside the
heater unit.
¨ Cut a small groove on the rubber seal “A“ (at the back of heater base) with
a cuer for cable inserting.
Voltage
(AC)
Power
(Watt)
Current
(A)
Cable Size
(sq.mm.)
On/Off
Switch (A)
Fuse/MCB
(A)
~220V 50/60 Hz 6500 29.5 6.0 32 32
~220V 50/60 Hz 8000 36.5 6.0 40 40
Cable Size
DANGER: Risk of electrical shock. This appliance must be earthed.
Improper grounding could cause electrical shock.
Kohler Co. 9 1287791-X2-C

GREEN
or GREEN/YELLOW
BROWN
or RED BLUE or BLACK
A
B
This position
This position

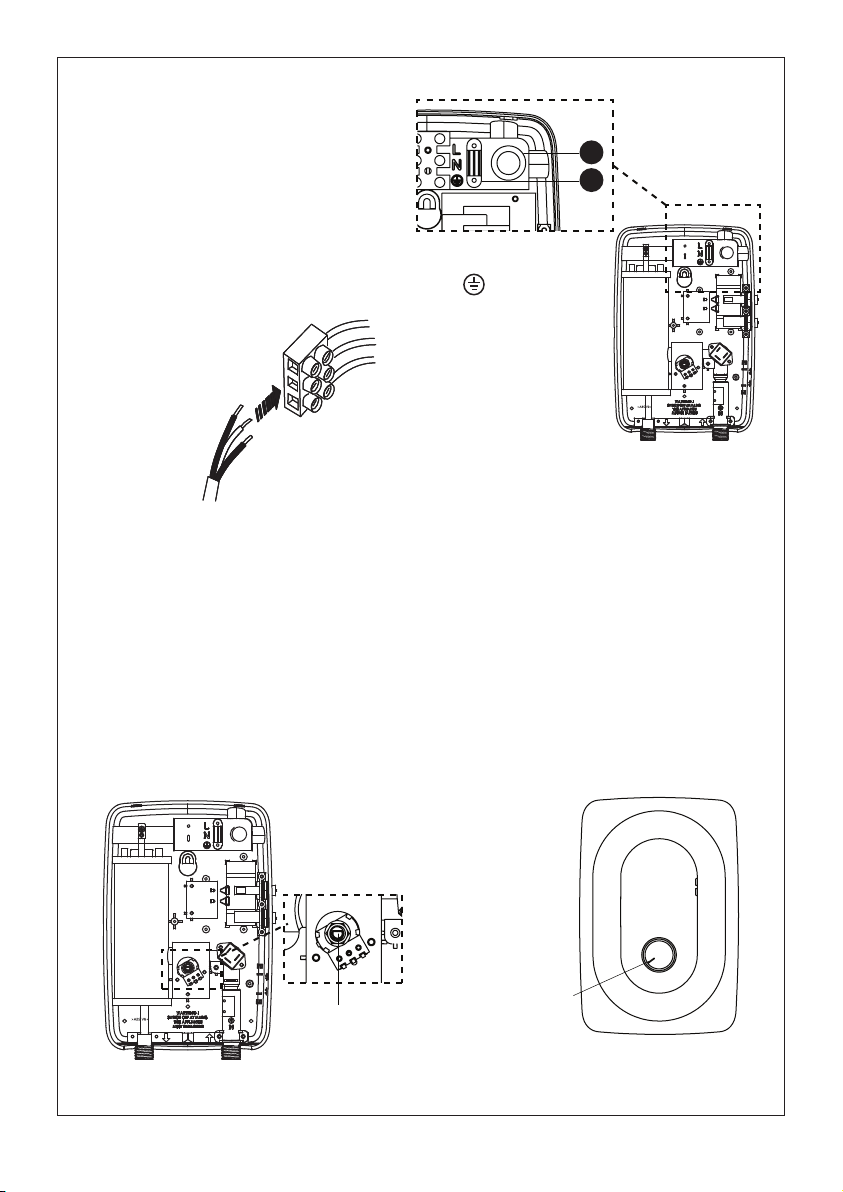

Electrical Installation (cont.)
¨ Insert the wall embedded cable
through side entry “A” and lead
the cable to cable bracket “B”.
¨ Connect the cable as following:
BROWN or RED --LIVE (L)
BLUE or BLACK --NEUTRAL (N)
GREEN or GREEN/YELLOW --EARTH ( )
¨ Clamp the cable to the correct position. Check if the wiring connection
is correct and replace the cover.
When reinstalling the front cover, please take note of the procedure shown be-
low:
¨ Ensure the position is correct, turn the VR shaft to OFF position (at the heater
base).
¨ Install the front cover, turn the temperature control knob to OFF position
to align with the VR shaft. (at the front cover).
¨ Press the upper part of the front of cover until it locks. Ensure the temperature
control knob x properly and screw the front cover to the heater base.
1287791-X2-C 10 Kohler Co.
