Important Information
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by Ground-Fault
Circuit-Interrupters (GFCI’s)*.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the electric supply panel with a
conductor equivalent in size to the circuit conductors supplying this equipment.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
NOTICE: Follow all local plumbing and electrical codes. In Canada, install this unit in accordance with
the Canadian Electrical Code, Part 1.
*Outside North America, this device may be known as a Residual Current Device (RCD).
Product Information
Electrical Requirements
The installation must have two Class A Ground-Fault Circuit-Interrupters (GFCI’s). The GFCI’s protect
against line-to-ground shock hazard. Use two 220-240 V, 20 A, 50/60 Hz dedicated services; one for each
pump/control/heater system.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of
the whirlpool. Do not relocate the whirlpool pumps, or make other modifications to the whirlpool
system, as this could adversely affect the performance and safe operation of the whirlpool. Kohler
Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any
such unauthorized modification.
Features
Components include two pumps, two controls, a heater, Waterfall, Flexjets, Riverjets, chromatherapy lights
(Model H2 only), integral fill valve (K-1397 only), and illuminated keypad with remote control.
1022205-2-D 2 Kohler Co.

Product Information (cont.)
Connections and Service Access
Before installation, ensure proper access to the final connections.
NOTICE: Provide generous, unrestricted service access to the pump. You must provide a minimum 48”
(1220 mm) wide x 15” (381 mm) high access panel for servicing the pumps and controls. The access must
be located immediately next to the pumps.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Features ..................................................................... 2
Connections and Service Access ................................................... 3
Before You Begin ................................................................. 3
Tools and Materials ............................................................... 4
Prepare the Site ................................................................. 5
Prepare the Whirlpool ............................................................. 5
Secure the Whirlpool to the Subfloor .................................................. 6
Cut the Pump Banding Straps ....................................................... 7
Install the Plumbing ............................................................... 7
Make Electrical Connections ......................................................... 8
Install the Whirlpool Trim Kit ........................................................ 10
Test Run the Whirlpool ............................................................ 10
Complete the Finished Wall/Deck .................................................... 11
Clean-Up After Installation ......................................................... 11
Install the Removable Pillows ....................................................... 12
Confirm Proper Operation .......................................................... 13
Operating Sequence ............................................................. 14
Chromatherapy Operation ......................................................... 15
Remote Control Operation ......................................................... 15
Troubleshooting ................................................................. 15
Before You Begin
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool.
We recommend this whirlpool for drop-in or flush installation.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Model K-1397 features an integral fill system using dual fill ports at both sides of the Waterfall, and
preinstalled valving.
Models K-1394 and K-1399 allow you to use the fill valving of your choice - you can use the
pre-installed dual fill ports or a separate fill spout if you desire. Confirm adequate support for a
rim-mounted faucet, if used; large faucets that may be inadvertently used as a means of support are
not appropriate or safe for this installation.
Consult local and national codes.
Kohler Co. 3 1022205-2-D

Tools and Materials
Silicone Sealant Measuring Tape Pencil Tin Snips Level
Safety Glasses Pipe Wrench
Plus:
• Conventional woodworking tools and materials
• Drop Cloth
• Cement, mortar or construction adhesive
• 2x4s
1022205-2-D 4 Kohler Co.

1. Prepare the Site
NOTICE: Do not support the whirlpool by the rim.
NOTICE: Provide adequate floor support.
NOTICE: Measure your actual product for site preparation. Note the model number located on the
whirlpool pump, then visit the product page at www.kohler.com for additional information.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool should be installed in a drop-in or flush installation. Construct 2x4 stud framing or
concrete or brick support designed for your particular installation. Frame the floor, or construct a
frame or support for a raised installation.
Use the template packed with the whirlpool to carefully lay out and cut the rough deck material.
For flush-mount installation, allow for the thickness of the planned deck material.
Position the plumbing. Cap the supplies, and check for leaks.
2. Prepare the Whirlpool
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Drop-In Installation
Whirlpool
Rim
Do not support
the whirlpool
by the rim.
Use the roughing-in
information to
construct the stud
framing.
Allow for the thickness of
the planned deck material.
Wood
Batten
Whirlpool
Rim
Flush Installation
Kohler Co. 5 1022205-2-D

3. Secure the Whirlpool to the Subfloor
NOTICE: Do not lift the whirlpool by the piping or pumps, or use the piping or pumps for structural
support of the whirlpool.
Choose the installation option that best applies to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the whirlpool support blocks as necessary.
Option for Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Spread a 2” (51 mm) thick layer of cement or mortar on the subfloor where the whirlpool will be
set. This will help secure, level, and support the unit. Clear all the material away from the pump
control locations.
NOTE: The pump controls (when the pump banding straps are cut) must rest directly on the subfloor.
With help, carefully lift the whirlpool into place, and make sure the pump controls do not rest in
the bed material.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.
Option for Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
blocks.

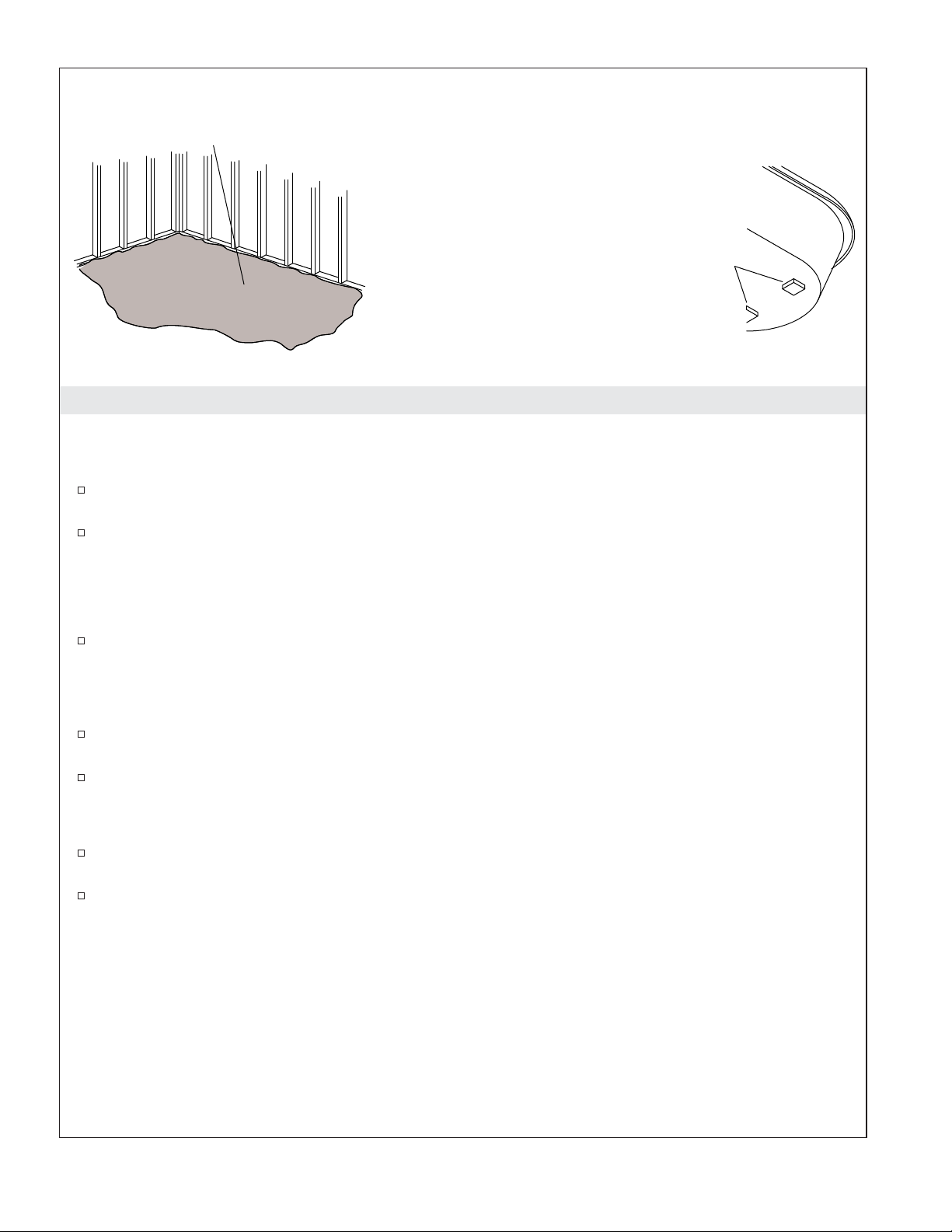

Spread a 2" (51 mm) layer of
mortar cement.
Apply construction
adhesive to the support
blocks.
1022205-2-D 6 Kohler Co.

4. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your KOHLER whirlpool operate more quietly.
Use tin snips to cut the two pump banding straps from each whirlpool pump.
NOTE: Do not raise the pumps higher than they were before you cut the pump banding straps. If the
pumps are raised too high, they will not prime properly. Make sure the rubber isolation feet are in place.
To minimize whirlpool noise and vibration, be sure the pumps are not in direct contact with the
whirlpool after the pump banding straps are cut. The pump controls contain rubber isolation feet to
reduce pump noise.
5. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
K-1397 only: Connect the hot and cold water supply lines to the integral fill valves according to
local codes. An additional hole is pre-drilled in the bath shell for the handshower. Install the
handshower at this time. Connect the end of the handshower hose to the open port of the transfer
valve (beneath the bath rim). Make sure the transfer valve stem is rotated fully clockwise. The
transfer valve includes an integral vacuum breaker that protects both the fill spouts and the
handshower from water backflow.
K-1394 and K-1399 only: Install the faucet valving according to the faucet manufacturer’s
instructions. Connect the valving to the whirlpool fill ports (spouts) according to local codes.
All models: Do not install the faucet trim until instructed. Open the hot and cold water supplies,
and check the supply connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
Rotate the transfer valve stem, and check the handshower connections for leakage.
Cut the pump
banding straps.
Rubber
Isolation
Feet
Control
Wiring
Harness
Pump
Kohler Co. 7 1022205-2-D

6. Make Electrical Connections
NOTE: The product model number is printed on a label on the pump side of the overflowing bath. This
label also identifies the electrical rating of the whirlpool. These whirlpools come equipped with two
wiring junction boxes and are designed to operate between 208 VAC and 240 VAC at either 50 Hz or 60
Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before
performing the following procedures. Refer to the “Important Information” section.
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI). The heater will also need to be
connected to a properly grounded Ground-Fault Circuit-Interrupter (GFCI). This will provide
additional protection against line-to-ground shock hazard. Two 208-240 V, 20 A, 50/60 Hz dedicated
circuits are required.
IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal
on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripes is the
equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.
The control and heater have been pre-wired at the factory. A licensed electrician should make
routine service connections to each of the junction boxes.
Connect service to the junction boxes. Both junction boxes contain blue, brown, and green with
yellow stripe colored wires.
Follow local electrical codes. Bond in accordance with national and local codes.
A wiring harness has been pre-wired at the factory, allowing communication between the keypad,
all features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
Heater (models may vary) T-style (shown)
or In-line (not shown)
Heater Electrical Cord
Wiring Harness
Junction Box
Control
Pump Electrical Cord
From
Control
Brown (L2)
* Connections to be Made
at the Circuit Breaker
* Equipment Ground Wire Connectors
Neutral Bus
(In Breaker Box)
120/240 VAC
Source
Typical Two-Pole
Circuit Breaker
with GFCI
* Line Neutral
(White Curly
Wire)
Typical Wiring Connection for North America
Ground
(Green with
Yellow Stripes)
*L1
No Connection
(Load Neutral)
Field Wiring
(From Junction Box
to GFCI Breaker)
Wire
Connector
Blue (L1)
*L2
240 V
120 V
240 V
120 V
Breaker Box
L2N
Bond in accordance with national and local codes.
Open bonding lugs are located at the top of the
junction box.
Electrician to provide
suitable strain relief.
1022205-2-D 8 Kohler Co.

Make Electrical Connections (cont.)
NOTE: Your wiring harness included an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Kohler Co. 9 1022205-2-D

7. Install the Whirlpool Trim Kit
Install the whirlpool trim kit (if not factory installed) according to the instructions packed with the
trim kit. Pay particular attention to the jet installation steps below - they are very important and are
included here to help you obtain smooth, trouble-free jet operation.
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
8. Test Run the Whirlpool
Check all electrical connections, then make sure all union connections to the pumps and heater are
securely hand tightened.
Verify both sets of pump banding straps have been cut and the pump controls are resting directly
on the subfloor. Ensure the rubber isolation feet are in place.
Turn electrical power to the whirlpool on.
Fill the whirlpool to a level above the water level sensors located on either side of the bath.
Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section).
Check for leaks coming from the piping connections on the back side of the whirlpool unit.
Turn on each of the whirlpool features and verify proper function. Check for any water leakage on
the whirlpool’s back side.
If equipped, turn on the chromatherapy cycle and allow it to sequence through all eight colors;
white, violet, indigo blue, aqua blue, green, yellow, orange and red. It takes approximately 1 minute
to cycle through all eight colors.
Verify functions using the remote control. Refer to the ″Remote Control Operation″section.
NOTE: For additional information on whirlpool operation, see the ″Confirm Proper Operation″section of
this guide.

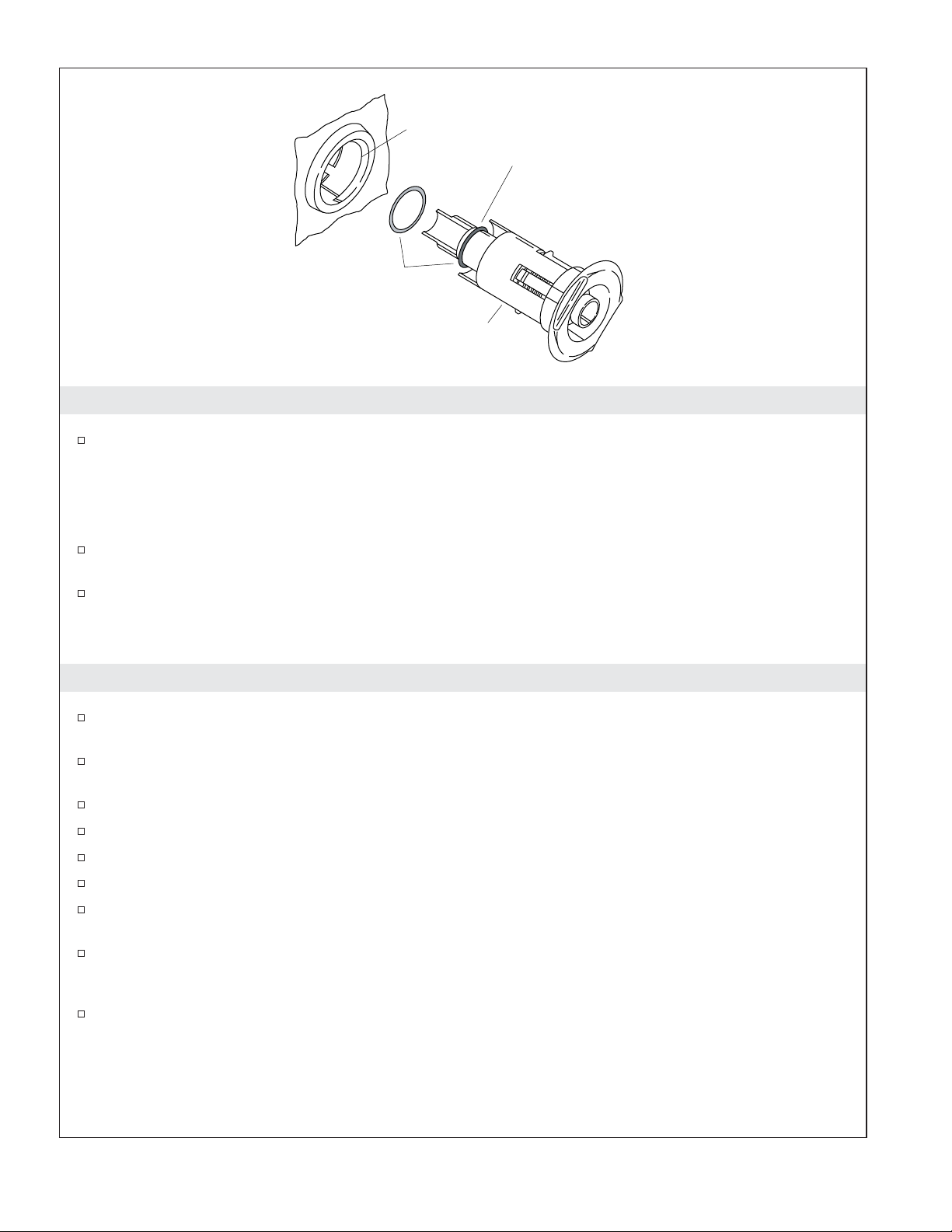

Slide the O-Ring
onto the first
shoulder of the jet.
Inspect and
lubricate the
O-Ring.
Insert the jet into the housing,
and lightly push and rotate
Housing
1022205-2-D 10 Kohler Co.

9. Complete the Finished Wall/Deck
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant wall material. Seal the joints between the whirlpool rim edge
and the water-resistant wall material with silicone sealant.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material so it is 1/16” (2 mm) above the enameled surface. Seal the joints between the whirlpool rim
and the finished wall material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
10. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad and remote control.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.

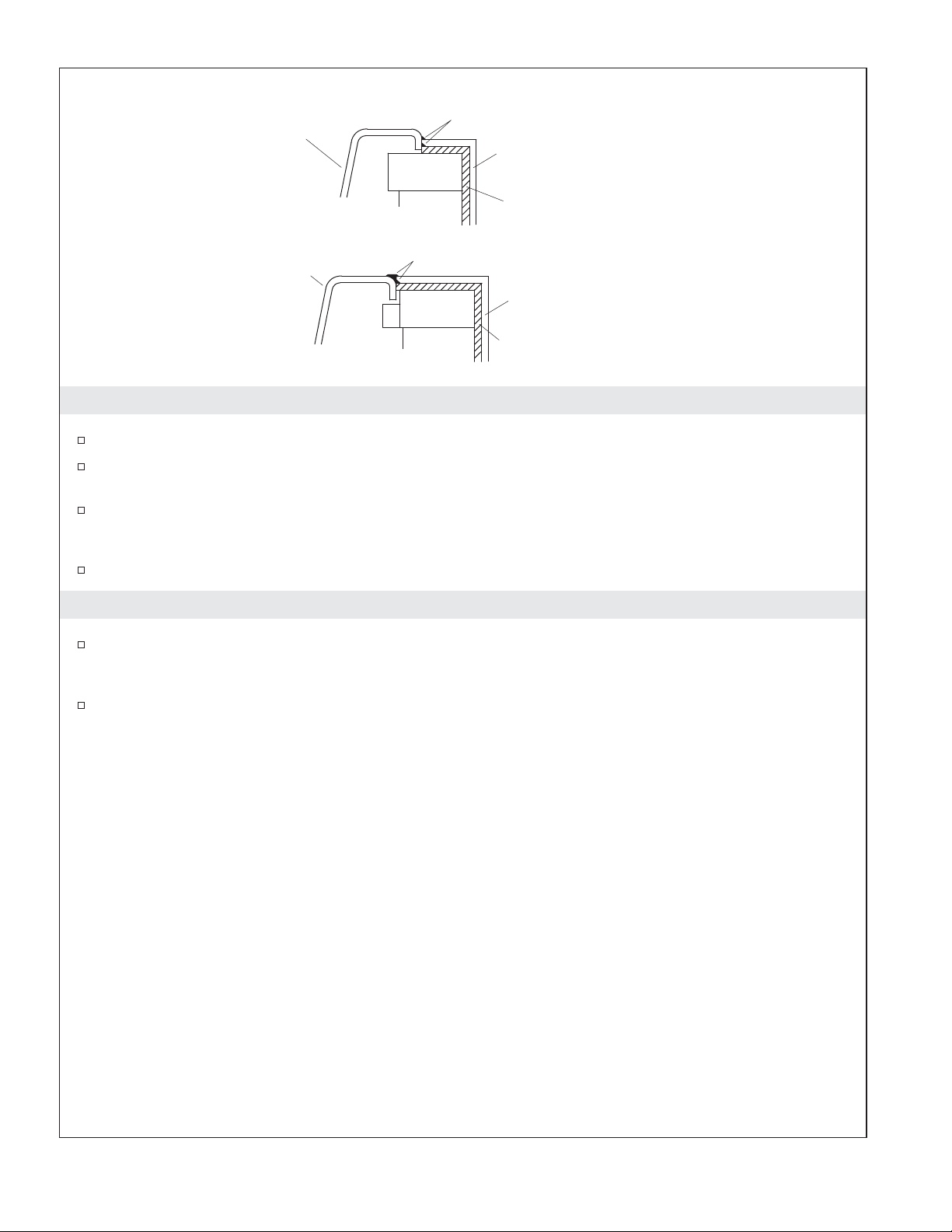

Apply silicone sealant to the water-resistant
wall material and the finished wall.
Install the finished
wall material.
First install
water-resistant
wall material.
Apply silicone sealant to the water-resistant
wall material and the finished wall.
Install the finished wall
material.
First install
water-resistant
wall material.
Drop-In Installation
Flush Installation
Whirlpool
Whirlpool
Kohler Co. 11 1022205-2-D

11. Install the Removable Pillows
NOTICE: Do not submerge the pillows underwater or use them as seat cushions.
NOTE: For best attachment to the whirlpool surface, moisten the back surface of the pillows at the
suction cup locations.
Clean the whirlpool surface of any soap film or oils. Suction cups are located on the back side of the
pillows. Position the large pillow in the appropriate location on the whirlpool ledge, and press
down firmly at the suction cup locations with the heel of your hand. Position the small pillows as
desired above the waterline by again pressing down firmly with the heel of your hand. Check to
make sure that the pillows are attached firmly to the whirlpool.
Detach the pillows by lifting them off the whirlpool surface.
Position the small pillows as
desired above the waterline.
Position the large pillow on the
whirlpool ledge, and press down
firmly with your hand.
Three pillows are shown -
four are included
1022205-2-D 12 Kohler Co.

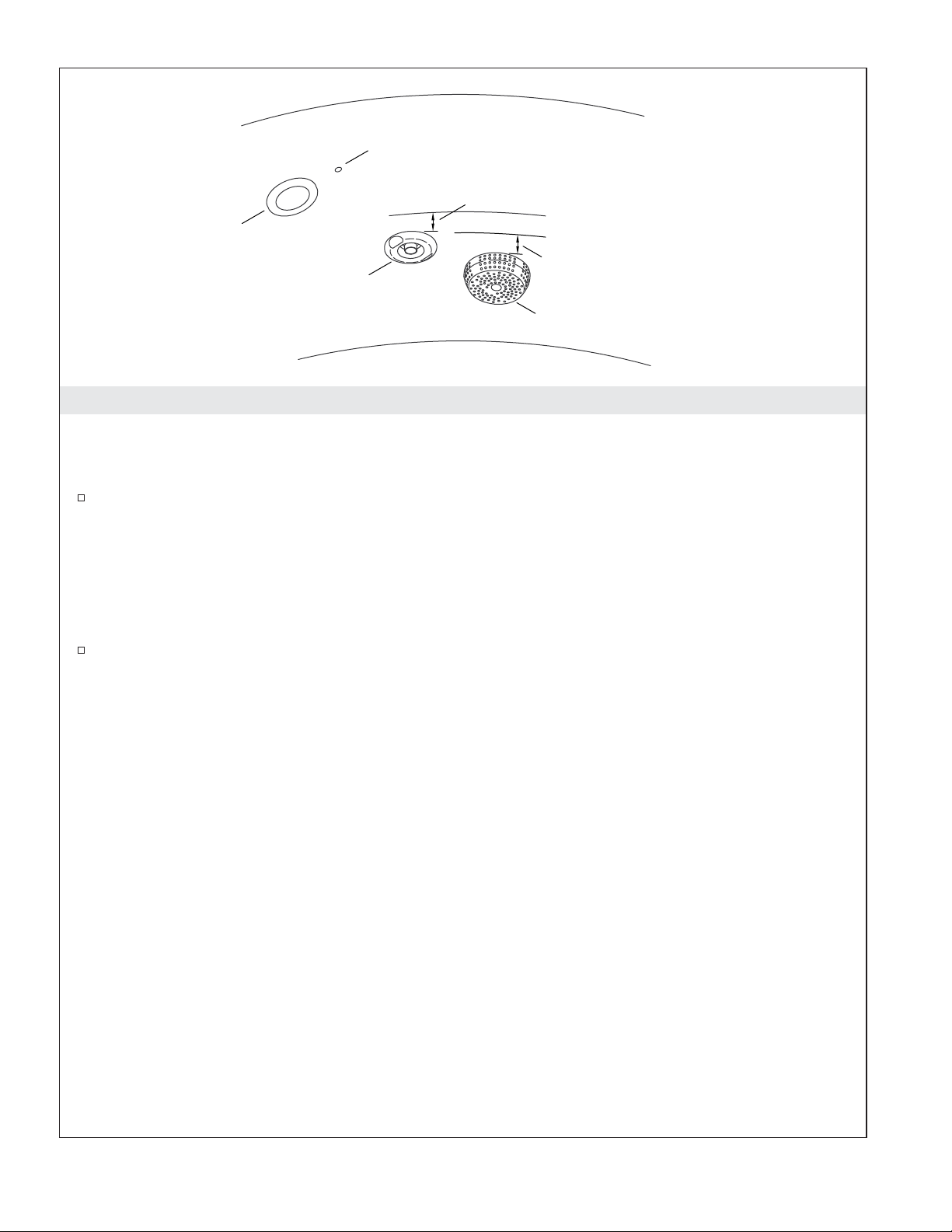

12. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Turn the jet trim rings fully counterclockwise. Position the jet nozzles so they face down toward the
basin.
NOTE: For Waterfall only use (no Flexjets or Riverjets), you only need to fill the whirlpool basin to a level
about 2” (50 mm) above the top of the suction covers.
NOTE: For Waterfall or Flexjets (no Riverjets), you only need to fill the whirlpool basin to a level about 2”
(50 mm) above the top of the highest Flexjet.
To operate all functions: Fill the whirlpool to a level above the water-level sensors on either side of
the Riverjets.
NOTE: The Riverjets will only operate if both water-level sensors are completely covered with water. If
the water level drops below the sensors, the Riverjets will automatically turn off, and the Flexjets will turn
on. The Riverjets and Flexjets will not operate at the same time.
NOTE: The water temperature in the whirlpool should not exceed 104°F (40°C). The heater will
automatically turn off as the water temperature approaches 104°F (40°C) and will remain off until the
water cools.
Flexjet - Turn the jet trim ring fully
counterclockwise and position the jet
nozzles downward.
Riverjet
To use only the Waterfall, fill to a level
2" (51 mm) over the suction cover.
Suction Cover
To use only the Waterfall and Flexjets, fill
to a level 2" (51 mm) over the highest jet.
Water-Level Sensors - To use all functions,
fill to a level above both water-level sensors.
Kohler Co. 13 1022205-2-D

13. Operating Sequence
NOTE: A built-in heater automatically helps to maintain the water temperature when the whirlpool is
running, as long as the water temperature does not exceed 104°F (40°C). The heater will disengage at
higher temperatures.
IMPORTANT! Please refer to your Homeowners Guide for detailed instructions on the user keypad and
remote control.
NOTE: Your bath uses two pumps. One pump powers the Waterfall, and the second pump propels water
through the Flexjets and Riverjets.
To turn the whirlpool on: Press the Power On/Off button or rotate the outer ring to access a
desired mode, as described below.
To access a desired mode: Rotate the outer ring until the button is flashing blue. Press “OK” to
activate the mode. The active mode will flash green. To turn off a mode, rotate the outer ring until
the button is flashing blue and press “OK” again. Verify each of the features listed below.
Waterfall: When activated, the Waterfall will start to flow at medium volume within several
seconds. The Waterfall mode is not heated. Increase or decrease the water flow by pressing either
the up or down arrow buttons on the keypad. An indicator bar in the center of the keypad shows
the water flow volume. The Waterfall may be used alone, or with any one of the following; Flexjets,
Whitewater mode or Rapids mode.
Flexjets: When activated, the Flexjets, located lower in your whirlpool than the Riverjets, will start
to flow at medium volume immediately. Increase or decrease the water flow by pressing either the
up or down arrow buttons on the keypad. An indicator bar in the center of the keypad shows the
water flow volume.
Whitewater: Whitewater mode activates the two outside Riverjets behind your neck to flow at
medium volume. Increase or decrease the water flow by pressing either the up or down arrow
buttons on the keypad. An indicator bar in the center of the keypad shows the water flow volume.
Rapids: Rapids mode activates the four Riverjets behind your neck to flow at medium volume.
Increase or decrease the water flow by pressing either the up or down arrow buttons on the keypad.
An indicator bar in the center of the keypad shows the water flow volume.
Tidepool: This feature turns off the air flow to the jets for a soothing, relaxing effect. The Tidepool
feature may be used at any time while any of the jets are operating. The Tidepool mode does not
affect the Waterfall.
NOTE: Some air may flow from one or more jets for a short time after the Tidepool feature has been
activated.

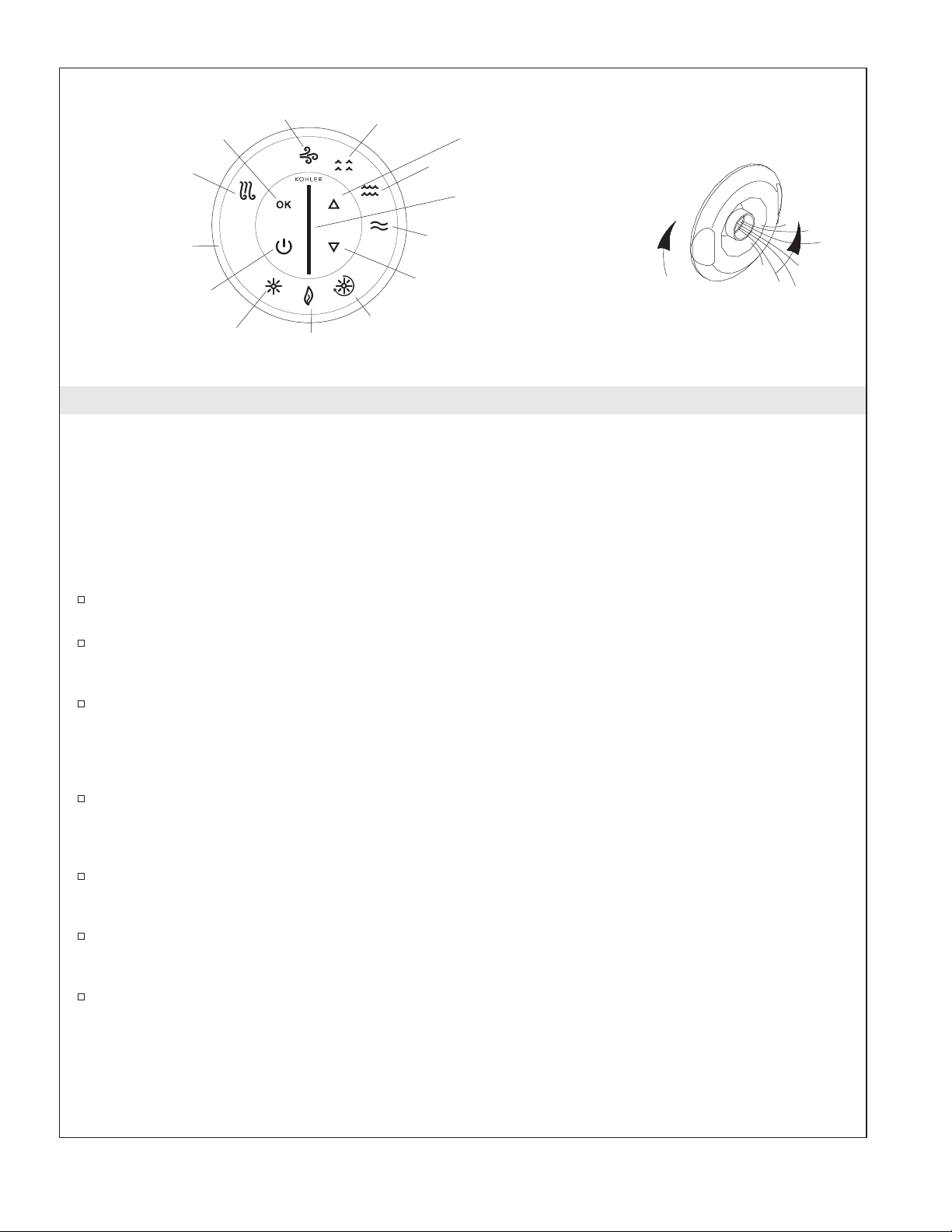

Flexjet Flow Mode
Activates Mode
Selected
Waterfall
Mode
Rotate outer
ring to access
desired mode
Power
On/Off
Chromatherapy-Specific
Color (H2 models only) Heater
On/Off
Chromatherapy Cycle
(H2 models only)
Decreases
Flow
Tidepool
Indicator Bar - Shows
water flow volume
Riverjet Rapids Mode
Increases Flow
Riverjet
Whitewater Mode
Turn the Flexjet
trim clockwise to
decrease the flow.
Turn the Flexjet trim
counterclockwise to
increase the flow.
Lighted User Keypad
1022205-2-D 14 Kohler Co.

Operating Sequence (cont.)
Heater: The built-in heater automatically helps to maintain the water temperature when any of the
jets are operating, as long as the water temperature does not exceed 104°F (40°C). The heater may be
turned off at any time while the pumps are operating, by rotating the outer ring until the heater
button is flashing and pressing “OK”. Press “OK” again to turn the heater back on.
Your whirlpool jet system adds air to the water stream (when not in the Tidepool mode) to increase
the force of the water flow. Decrease the force of the whirlpool water flow by turning the whirlpool
trim rings clockwise until you obtain the desired water force. Turn the trim rings counterclockwise
to increase the water flow force.
Press the Power On/Off button to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
14. Chromatherapy Operation
Equipped on H2 Models Only
NOTE: Chromatherapy may be used with all modes of operation. Chromatherapy may also be used when
the pumps are not operating.
Chromatherapy Cycle: When this mode is activated, the chromatherapy lights will automatically
and continuously cycle through the eight colors; white, violet, indigo blue, aqua blue, green, yellow,
orange and red. One cycle through all eight colors takes approximately one minute. Rotate the outer
ring to select this mode and press “OK” to activate it. Press “OK” while the chromatherapy mode is
active, to turn off the lights.
Chromatherapy Specific Color Selection: When this mode is activated, you may choose a specific
color for the bath. Rotate the outer ring to select this mode, press “OK” to activate and use the
up/down arrows to reach the desired color. Press “OK” while the chromatherapy mode is active, to
turn off the lights.
15. Remote Control Operation
NOTE: Refer to your Homeowners Guide for detailed instructions on your remote control.
The remote control places the whirlpool functions at your fingertips. You may access and modify all
modes/features from the remote control. The waterproof remote control is designed to be used in
the bath and will float in the water. The remote control uses two AAA batteries.
The mode selector button functions in the same way as the outer ring. When “M” is pressed, one of
the modes will flash on the user keypad. If “M” is pressed again, the next mode in clockwise order
will flash. When the desired mode is flashing, press “OK” to activate it.
When the Flexjets, Waterfall, Whitewater or Rapids mode is active, the arrows will increase or
decrease the water flow volume.
Troubleshooting
NOTICE: This section is for general aid only. A Kohler Co. Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, call 1-800-4KOHLER from within
the USA and Canada, or 001-800-456-4537 from within Mexico.
NOTE: Outside North America, a GFCI may be known as a Residual Current Device (RCD).
Troubleshooting the Whirlpool System
Kohler Co. 15 1022205-2-D

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power
button is pressed or outer
ring is rotated.
A. No power to control. A. Check wiring and connect power.
B. GFCI tripped. B. Reset GFCI.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is
illuminated, but does not
respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at
power-up.
A. Control program is locked. A. Reset GFCI.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
5. User keypad is
illuminated, but pump
won’t start.
A. Power cord from pump to
control is loose, disconnected or
damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump
won’t prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on intake
side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Little or poor water flow
from dual fill ports. A. Water supply lines blocked. A. Remove blockage.
B. Transfer valve not fully open. B. Rotate transfer valve handle.
8. Little or poor water flow
from Waterfall. A. Suction or harness blocked. A. Remove blockage.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
9. Riverjets run, but
Whitewater/Rapids jets
do not operate as
described.
A. Insufficient water in whirlpool
basin. A. Fill whirlpool so water covers water-level sensors.
1022205-2-D 16 Kohler Co.

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
B. User keypad does not work. B. Replace user keypad.
C. Butterfly valve does not work. C. Check wiring. Replace butterfly
valve.
D. Control does not work. D. Replace control.
10. Up/down volume control
arrows do not change
water flow as described.
A. User keypad does not work. A. Check wiring. Replace user keypad.
B. Pump does not work. B. Check wiring. Replace pump.
C. Control does not work. C. Check wiring. Replace control.
11. Air flow through jets does
not stop when Tidepool
mode is activated.
A. User keypad does not work. A. Replace user keypad.
B. Butterfly valve does not work. B. Check wiring. Replace butterfly
valve.
C. Control does not work. C. Check wiring. Replace control.
12. Air continues to flow
through one or more jets
for several seconds after
Tidepool mode is
activated.
A. Normal operation - air will stop
flowing in a short time. A. No action required.
13. Pump stops before 18
minutes. A. GFCI tripped. A. Identify source of fault, and correct. Reset GFCI.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage and
allow motor to cool.
14. Pump does not
automatically stop after 22
minutes.
A. 20-minute timer inadvertently
disabled. A. See service manual.
15. Pump won’t turn off
when the power button
on user keypad is
pressed.
A. User keypad does not work. A. Replace user keypad.
B. Control does not work. B. Replace control.
16. Pump operates but
variable speed feature
does not work.
A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
17. Bath water cools while
pump is operating. A. Water temperature above 104°F (40°C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or damaged. C. Check wiring for proper connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
18. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall jet.
19. Remote control (if
equipped) does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
Kohler Co. 17 1022205-2-D

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
C. Remote control not
programmed correctly. C. See homeowners guide or service manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
Troubleshooting the Chromatherapy Lights - H2 Models Only
Symptoms Probable Causes Recommended Action
20. Chromatherapy lights do
not work. A. Loose, disconnected or damaged wiring/connections. A. Check wiring for proper connections. Replace wiring if
necessary.
B. Control does not work. B. Replace control.
1022205-2-D 18 Kohler Co.

Guide d’installation
Baignoire à hydromassage ronde
Informations importantes
AVERTISSEMENT: Lors de l’utilisation de produits électriques, toujours observer les
précautions de base, notamment:
DANGER: Risque de choc électrique. Raccorder uniquement à un circuit protégé par des
disjoncteurs de fuite de terre (GFCI)*.
Les matériaux de construction et le câblage doivent être acheminés loin du corps de la pompe et des autres
composants de l’appareil qui dégagent de la chaleur.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Earth/Ground″(Terre/Masse) est fourni dans le
compartiment de câblage. Afin de réduire les risques de choc électrique, raccorder ce connecteur à une borne
de terre du panneau de service électrique ou du panneau d’alimentation avec un câble en cuivre ayant la
même dimension que le conducteur du circuit qui alimente cet équipement.
Des connecteurs à pression par câble sont fournis sur l’extérieur de la boîte de jonction ou de la commande
incluse dans cet appareil afin de permettre la connexion d’un conducteur de mise à la terre entre cet appareil
et toutes les autres surfaces de métal avoisinantes, tel que requis par les normes locales.
Une borne de mise à la terre est incluse dans le boîtier du câblage sur place. Pour réduire les risques
d’électrocution, cette borne doit être raccordée à un dispositif de mise à la terre fourni dans le panneau
d’alimentation électrique, avec un conducteur ayant le même calibre que celui des conducteurs du circuit qui
alimente cet équipement.
Une mise à la terre est requise. L’appareil doit être installé par un représentant qualifié et doit être mis à la
terre.
AVERTISSEMENT: Risque de blessures ou d’endommagement du matériel. Toutes les
instructions doivent être lues avec la plus grande attention avant de commencer l’installation, et
toutes les conditions suivantes doivent être respectées.
AVERTISSEMENT: Risque de choc électrique. Un électricien qualifié doit effectuer toutes les
connexions électriques.
AVERTISSEMENT: Risque de choc électrique. Déconnecter l’alimentation électrique avant
d’effectuer un entretien.
AVIS: Respecter tous les codes de plomberie et électriques locaux. Installer cet appareil conformément
au Code canadien de l’électricité, Partie 1.
*Hors de l’Amérique du Nord, ce dispositif peut être connu sous le nom de dispositif à courant résiduel
(RCD).
Information sur le produit
Installations électriques requises
Cette installation doit être munie de deux disjoncteurs de fuite de terre (GFCI) de classe A. Les disjoncteurs
GFCI protègent contre les risques d’électrocution ligne-terre. Utiliser deux alimentations dédiées de 220-240
V, 20 A, 50/60 Hz; une pour chaque système de pompe/commande/chauffe-eau.
Kohler Co. Français-1 1022205-2-D

Information sur le produit (cont.)
Notices du produit
AVERTISSEMENT: Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux et une mauvaise performance de la baignoire à hydromassage. Ne pas déplacer les
pompes de la baignoire à hydromassage et ne pas effectuer d’autres modifications sur le système
d’hydromassage car cela pourrait affecter la performance et la sécurité de la baignoire à
hydromassage. Kohler Co. décline toute responsabilité sous sa garantie et pour toutes blessures ou
tous dommages causés par de telles modifications non autorisées.
Caractéristiques
Les composants incluent deux pompes, deux commandes, un chauffe-eau, une cascade (Waterfall), des buses
Flexjet et Riverjet, des lampes de chromathérapie (modèle H2 seulement), un robinet de remplissage intégral
(K-1397 seulement) et un clavier lumineux avec télécommande.
Connexions et accès pour l’entretien
Avant d’effectuer l’installation, s’assurer d’avoir un accès adéquat aux connexions finales.
AVIS: Prévoir un large espace non restreint pour l’accès aux pompes. Il faut prévoir un panneau d’accès
d’un minimum de 48” (1220 mm) de largeur x 15” (381 mm) de hauteur pour l’entretien des pompes et
des commandes. L’accès doit être situé juste à côté des pompes.
Sommaire
Informations importantes ........................................................... 1
Information sur le produit ........................................................... 1
Installations électriques requises ................................................... 1
Notices du produit .............................................................. 2
Caractéristiques ................................................................ 2
Connexions et accès pour l’entretien ................................................ 2
Avant de commencer .............................................................. 2
Outils et matériaux ................................................................ 3
Préparer le site .................................................................. 4
Préparer la baignoire à hydromassage ................................................. 4
Fixer la baignoire à hydromassage sur le sous-plancher .................................... 5
Couper les sangles de retenue de la pompe ............................................. 6
Installer la plomberie .............................................................. 6
Effectuer les raccordements électriques ................................................ 7
Installer le kit de garniture de la baignoire à hydromassage .................................. 9
Effectuer un essai de fonctionnement de la baignoire à hydromassage ......................... 9
Terminer la finition murale/plate-forme ................................................. 11
Nettoyer après l’installation ......................................................... 11
Poser les coussins amovibles ....................................................... 12
Confirmer le bon fonctionnement .................................................... 13
Séquence de fonctionnement ....................................................... 14
Fonctionnement avec chromathérapie ................................................. 15
Fonctionnement de la télécommande ................................................. 15
Dépannage .................................................................... 15
Avant de commencer
AVIS: Ne pas soulever la baignoire à hydromassage par la tuyauterie ou la pompe et ne pas utiliser la
tuyauterie ou la pompe comme support structurel de la baignoire à hydromassage.
Nous recommandons cette baignoire à hydromassage pour des installations à encastrer par le dessus
ou affleurantes.
1022205-2-D Français-2 Kohler Co.
