4700 Series
1053310-2-D

Thank You For Choosing Sterling
Thank you for choosing Sterling. Sterling craftsmanship offers you a rare combination of proven performance
and graceful sophistication that will satisfy you for years to come. The dependability and beauty of your
Sterling product will surpass your highest expectations. We’re very proud of our products here at Sterling
and we know you will be too.
Please take a few minutes to study this guide. Pay special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product information available at the time of
publication. At Sterling, we constantly strive to improve the quality of our products. We reserve the right to
make changes in product characteristics, packaging or availability at any time without notice.
Tools and Materials
Before You Begin
CAUTION: Risk of eye injury. Always wear safety glasses when cutting or drilling.
CAUTION: Risk of injury or product damage. Tempered glass cannot be cut.
IMPORTANT! Pay special attention to the section titled ″Very Important Instructions.″Failure to follow
the directions could result in product damage.
NOTE: When using a retractable case tape measure, make sure that you add the length of the case to the
measurement, or measure in a manner that excludes the case.
Lay out and identify the parts. Inspect them for damage.
Return the glass panels to their packaging and place them in a safe area until they are needed.
The bath/shower should be installed at this time, including finished wall materials.
Sterling reserves the right to make revisions in the design of products without notice, as specified in
the Price Book.
Safety Glasses
Level
Caulk Gun
File
Knife Miter Box
Silicone
Sealant
Masking
Tape Tape
Measure Pencil or Felt
Tip Marker
Plus:
• Drop Cloth
• Tile or Masonry Bit
(if installing onto tile walls)
Center
Punch
Assorted
Screwdrivers Miter Saw or Hack Saw with 32 Teeth Per Inch Blade
Drill and
5/16" bit
Claw
Hammer
1053310-2-D 2 Sterling

Parts Identification
Roller
Blind Nut
Bolt
Bushing Hanger Bracket
Anchor
Anchor
Wall Jamb
Wall Jamb
Handle
Handle
Guide
Inside Panel
Front Panel
Tape
Tape
Bumper
Bumper Insert
Guide
Guide
Setscrew
Bumper
Panel Bracket
Top Track
Bottom Track
Bumper
Insert
Clamp
Gasket #8-32 x 5/16"
Flathead Screw
Wall Jamb Mounting
Screw #8-18 x 1-1/2"
Panhead
#8-18 x 3/8"
Panhead Screw
Roller Screw
#8-32 x 3/8"
Wall Jamb Mounting
Screw #8-18 x 1-1/2"
Panhead
Top (Longer)
Towel Bar
Bottom
Towel Bar
Right Hand Towel
Bar Bracket
Left Hand Towel
Bar Bracket
Guide Screw
#8-18 x 3/8"
Panhead
Sterling 3 1053310-2-D

Very Important Instructions
IMPORTANT!
Most Common Installation Mistake
Do not cut the top and bottom track the same
length for this installation.
Please read these installation instructions
carefully before cutting the top and bottom
track.
If uncertain about cutting tracks, please contact
a customer service representative.
1-888-783-7546
1053310-2-D 4 Sterling

1. Measure and Cut the Bottom Track
CAUTION: Risk of personal injury. Always wear safety glasses when cutting materials.
Measure from wall to wall at the flattest part of the shower ledge (dimension ″D″).
Mark dimension ″D″on the bottom track.
IMPORTANT! For best results, use a 32 teeth per inch hacksaw blade and a miter box to cut the bottom
track.
Subtract 7/8″(2.2 cm) from dimension ″D″and cut the bottom track to this dimension.
File the rough edges smooth where the bottom track was cut, taking care not to mar the finished
surface.
NOTE: If there are curves where the sidewalls meet the threshold, use a file to contour the bottom track
edges to match the curves.
Measure carefully. If your walls
are curved or angled, measure above the curve or
angle. Failure to do so can result in an improperly cut
bottom track and can void the warranty.
Warning:
Measure
here.
Measure
here. Measure distance
"D" above curves
in the corners.
Angled
Base
Curved
Base
D
Sterling 5 1053310-2-D

2. Position the Bottom Track
Drill the Guide Holes
Divide the final length of the bottom track by 4.
From one end of the bottom track, measure the determined distance and mark the bottom track on
the V-Groove.
Repeat with the other end of the bottom track.
Determine the centerline of the bottom track and mark the V-Groove.
Place a guide on the bottom track and align the hole in the guide with the mark on the V-Groove.
IMPORTANT! Do not install the guides at this time.
Using the hole in the guide as a template, drill a 1/8″diameter hole through the bottom track.
Repeat at opposite side of the bottom track and center guide locations.
Position the Bottom Track
Place the bottom track on the flattest part of the bath/shower ledge with the leg toward the outside
of the shower.
Position the bottom track so there is an equal gap at both ends of the bottom track.
Temporarily secure the bottom track to the ledge with masking tape.
Mark the ledge along the front edge of the bottom track with a soft pencil.
Front Side
Front Side
Guide
V-Groove
Inside of Shower
Centerline
(Bottom Track)
This side toward inside
of shower.
Bottom Track
1/4 of bottom
track length
V-Groove
1/4 of bottom
track length
1053310-2-D 6 Sterling

3. Mark the Wall Jamb Locations
Position a wall jamb against the wall directly over the bottom track. The wall jamb should sit flat
against the wall.
Slide the wall jamb down over the bottom track until the wall jamb and bottom track are fully
engaged.
IMPORTANT! The wall jamb must sit flat on the bottom ledge. If your ledge has a curve in the corners at
the side wall, it may be necessary to shape the bottom end of the wall jamb with a file.
Level the wall jamb vertically.
Using the pre-drilled screw holes as a guide, mark the hole locations on the wall.
Repeat this procedure with the second wall jamb.
Remove the bottom track and wall jambs.
NOTE: When installing on ceramic tile, use a center punch to nick the surface of the glaze. Tap the center
punch lightly with a hammer to avoid cracking the tile.
Lightly center punch the hole locations.
Drill a 5/16″hole at each mark. Use a tile or masonry bit for ceramic tile.
Press and hold the legs of each anchor (provided) together and insert the anchor legs into the
pre-drilled mounting holes.
Repeat for all the anchors.
Thoroughly clean the shower floor, ledge, and wall.
Wall Jamb
Mark the Hole Locations
Position the Wall Jamb
Pencil
Wall Jamb
Anchor
Inside of Shower
Bottom Track (Inside)
Round off bottom
ends of wall jamb
if necessary.
Press and hold
legs together.
Sterling 7 1053310-2-D

4. Caulk and Install the Bottom Track
Apply a bead of caulk or sealant in the front groove on the underside of the bottom track.
Apply a second, smaller bead of caulk or sealant to the other edge on the underside of the bottom
track.
Install the bottom track on the ledge at the marked location.
5. Install the Wall Jambs
Position a wall jamb over the bottom track and align the holes in the jamb with the holes in the
wall.
Insert a #8-18 x 1-1/2″screw through a bumper and wall jamb and thread it into the wall.
Repeat with the other screws.
Insert the bumper inserts into the bumpers.
Repeat the procedure with the second wall jamb.
Bottom Track
Caulk here.
Wall Jamb
Bumper Insert
Install The Wall Jambs
Bumper
#8-18 x 1-1/2"
Panhead Screw
#8-18 x 1-1/2"
Panhead Screw
Inside of
Shower
1053310-2-D 8 Sterling

6. Install the Top Track
NOTE: The top track is designed so either side may be positioned facing outward according to your
preference.
Measure the distance from wall to wall at the top of the wall jambs.
Mark the top track at the determined dimension.
NOTE: For best results, use a 32 teeth per inch hacksaw blade and miter box.
Cut the top track on the inside edge of the mark [approximately 1/32″(1 mm) from the mark] to
allow space for the top track to slide into place easily.
Carefully file the cut edges until smooth, taking care to avoid damaging finished surfaces.
Place the top track over the wall jambs.
From the inside of the shower, measure 1/2″(1.3 cm) up from the bottom edge of the top track,
and measure 3/4″(1.9 cm) in from the outside edge. Mark with a pencil.
At the marked location, drill a 5/32″(4 mm) hole through both the wall jamb and top track.
From inside the shower, repeat the steps on the other end of the top track.
Secure the top track with two #8-18 x 3/8″panhead screws.
Measure here.
3/4" (1.9 cm)
Groove
Approximately
1/2" (1.3 cm)
Inside of Shower
#8-18 x 3/8"
Panhead Screw
Sterling 9 1053310-2-D

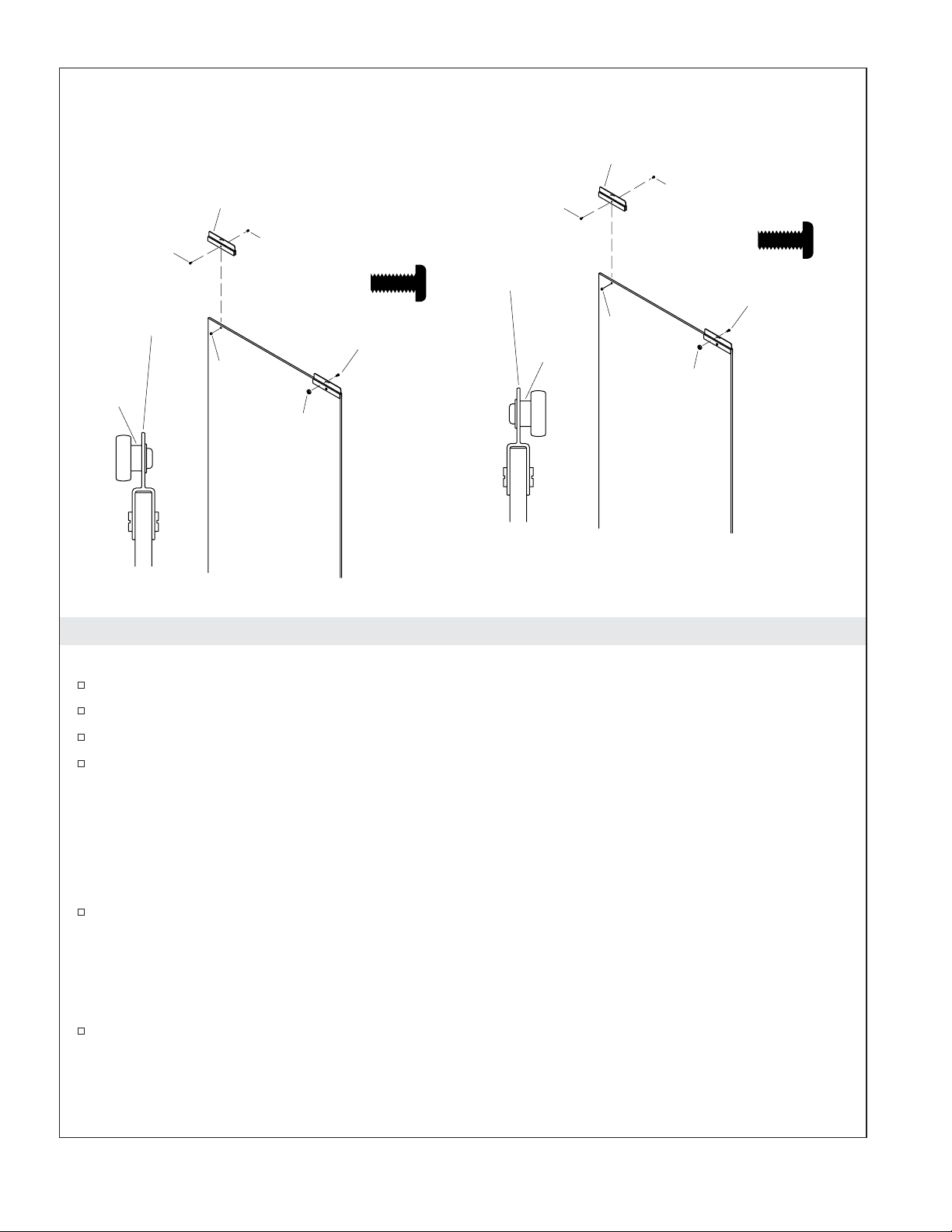

7. Install the Rollers
Install the Hanger Bracket
Insert a bushing into one of the holes at the top of the glass panels.
Install a hanger bracket over the glass panel, aligning the hole in the bracket with the bushing.
Insert a bolt through the hanger bracket hole and bushing. Secure with a blind nut.
Repeat the above steps to install the remaining three hanger brackets.
NOTE: The steel side of the roller must be installed against the hanger bracket.
Install the Outside Panel Rollers
IMPORTANT! If the glass panels have a textured side, install both rollers on the textured side of the
panel. If the glass panels are smooth on both sides, make sure that both rollers are installed on the same
side of the panel.
Assemble the rollers and #8-32 x 3/8″screws through the center hole of each hanger bracket.
Install the Inside Panel Rollers
IMPORTANT! If the glass panels have a textured side, install both rollers on the smooth side of the panel.
If the glass panels are smooth on both sides, make sure that both rollers are installed on the same side of
the panel.
Assemble the rollers and #8-32 x 3/8″screws through the center hole of each hanger bracket.
Roller
Steel
Side
#8-32 x 3/8"
Screw
Hanger
Bracket
Outside Panel
Roller
Bushing
Blind
Nut
Hanger Bracket
Bolt
Roller
Steel
Side
Hanger
Bracket
Inside Panel
Roller
Bushing
Hanger Bracket
Bolt Blind Nut
#8-32 x 3/8"
Screw
1053310-2-D 10 Sterling

8. Install the Door Panels
NOTE: Perform these installation steps from outside the bath/shower.
Install the Panels
Lift the inside door panel with the rollers facing away from you.
Position the rollers on the inside rail of the top track on the inside panel.
Lift the outside door panel with the rollers facing you and position the rollers on the outside rail.
Position the rollers on the outside rail of the top track on the outside panel.
Check the panels for proper alignment and smooth operation. Adjust as needed.
Adjusting the Rollers (Optional)
Remove the door panel.
Loosen the roller screw(s) and move the roller(s) to another hole in the hanger bracket.
Reinsert and tighten the screws, and reinstall the panel.
Inside Panel
Inside Panel
Inside Rail
Front Side
Outside Panel
Outside Panel
Outside Rail
Front Side
Sterling 11 1053310-2-D

9. Install the Bottom Track Guides
Push both door panels to the same side of the opening.
Place a guide on the bottom track, and align it with the drilled hole at the center of the bottom
track.
Secure the guide with a #8-18 x 3/8″panhead screw.
Place another guide near the end of the bottom track away from the door panels, and align it with
the drilled hole.
Secure the guide with a #8-18 x 3/8″panhead screw.
Push both door panels to the other side of the opening.
Place the third guide near the end of the bottom track away from the door panels, and align it with
the drilled hole.
Secure the guide with a #8-18 x 3/8″panhead screw.
End Guide
Guide
Guide
#8-18 x 3/8"
Panhead Screw
Inside Shower
Outside Shower
1053310-2-D 12 Sterling

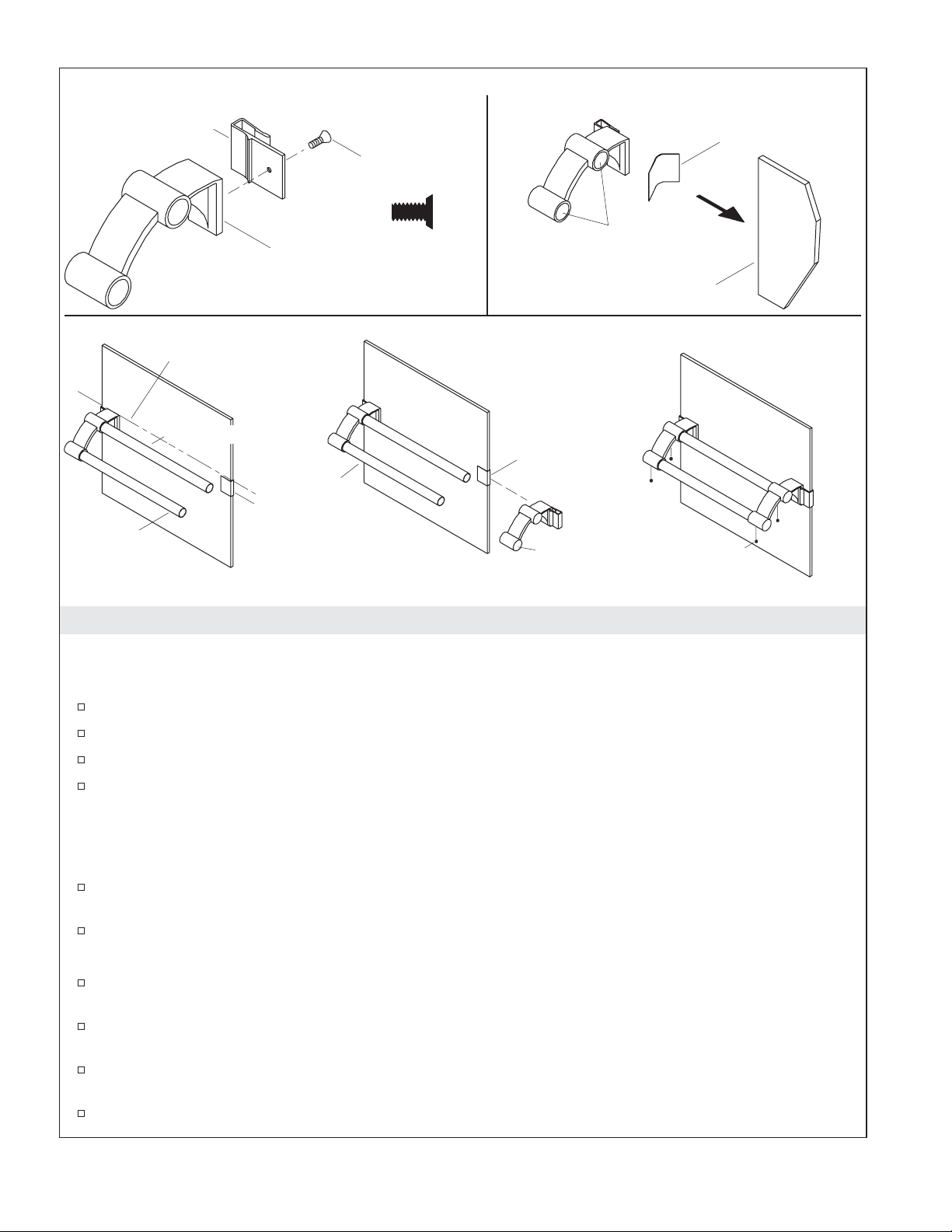

10. Install the Towel Bar
Install the Panel Brackets
NOTE: The towel bar should be installed on the outside panel.
Place a panel bracket on the left hand towel bracket.
Align the hole in the panel bracket with the hole in the towel bar bracket.
Secure with a #8-32 x 5/16″flathead screw.
Repeat the procedure for the other panel bracket and the right hand towel bar bracket.
Install the First Bracket
IMPORTANT! Use one clamp gasket on each side of clear glass panels. Pebble glass panels are thinner;
use two clamp gaskets on each side of pebble glass panels.
Fit a clamp gasket(s) over the left side of the outside glass panel at the horizontal center of the
panel.
Push the left hand towel bar bracket onto the clamp gasket.
Complete the Installation
Insert the longer towel bar into the top hole of the left towel bar bracket, and insert the other towel
bar into the bottom hole of the towel bar bracket.
Fit a gasket on the right side of the door panel, making sure that it is level with the left side towel
bar bracket.
Push the right hand towel bar bracket onto the clamp gasket while pushing the towel bars into the
bracket.
Insert two setscrews into each towel bar bracket and tighten.
#8-32 x 5/16"
Flathead Screw
Panel Bracket
Panel Bracket
Clamp Gasket
Clamp Gasket
Clamp Gasket
Setscrew
Outside Panel
Towel Bar
Towel Bar
Open End
Right Hand Towel
Bar Bracket
Longer Towel Bar
Install the Panel Bracket Install the First Bracket
Complete the Installation
C
L of Door Panel
Sterling 13 1053310-2-D

11. Install the Handles
NOTE: Install the handle on the inside door panel, on the side nearest the showerhead.
Make sure that the glass on the inside panel is clean and dry.
Remove the plastic covering from one side of the tape and apply the tape to the smooth side of each
handle.
Remove the plastic covering from the remaining side of the tape and install one of the handles 2″
(5.1 cm) from the edge on the horizontal centerline of the inside panel.
Install the other handle directly behind the installed handle on the opposite side of the glass.
Handle
Handle
Inside Panel
1053310-2-D 14 Sterling

12. Final Caulking
IMPORTANT! Carefully follow the caulk or silicone sealant manufacturer’s instructions for application
and curing time.
NOTE: Your shower door may not appear exactly as shown. The application of sealant or caulk is the
same.
NOTE: Thoroughly clean and dry all dust, dirt, and grease from the bottom track and shower ledge
surfaces where caulk or sealant will be applied.
Carefully apply caulk or sealant where:
the wall jambs and wall meet inside the shower.
the bottom track and wall jamb meet.
Care and Cleaning
For best results, keep the following in mind when caring for your STERLING product:
Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry overspray that lands on nearby surfaces.
Do not allow cleaners to sit or soak.
Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
Do not use abrasive cleansers or acidic solvents on Vikrell surfaces as they may cause surface
dullness or discoloration.
Seal
here.
Inside
of Bath
Seal
here.
Seal
here.
Sterling 15 1053310-2-D

Care and Cleaning (cont.)
Wipe your bath or shower unit with a soft cloth after each use to prevent a buildup of soap and
scum.
Extreme heat such as that generated by cigarettes or portable heaters can damage Vikrell surfaces.
Do not use such items near your bath or shower unit.
For detailed cleaning information and products to consider, visit www.sterlingplumbing.com/support.html.
To order Care & Cleaning information, call 1-800-456-4537.
Warranty
5 YEARS LIMITED 3 YEARS LIMITED 1 YEAR LIMITED
5100 Series 5700 Series 1500 Series 5900 Series 600 Series 1000 Series 2900 Series
5300 Series 6300 Series 1900 Series 6065 Series 660 Series 1100 Series 3100 Series
5400 Series 6500 Series 2200 Series 6075 Series 690 Series 2375 Series
950 Series 2800 Series
Based on the classification specified above, Sterling, a division of Kohler Co., (Sterling) bath and shower
doors are warranted to be free of manufacturing defects within the time of the specified model’s limited
warranty from date of sale.
Sterling will, at its election, repair, rectify or replace a fixture when Sterling’s inspection discloses any such
defects occurring in normal usage within the time period of coverage stated above. Sterling is not responsible
for removal or installation costs where replacement is indicated. Damages due to improper handling,
installation or maintenance are not considered manufacturing defects and are not covered by this warranty.
This warranty is valid for the original, consumer purchaser only.
To obtain warranty service, contact Sterling, either through your plumbing contractor, home center,
wholesaler or dealer, or by calling or writing Sterling, Consumer Services, 444 Highland Drive, Kohler,
Wisconsin 53044, 1-800-783-7546.
To the extent permitted by law, all implied warranties including those of merchantability and fitness for a
particular purpose are hereby disclaimed. Sterling and seller hereby disclaim any liability for special,
incidental, or consequential damages. Some states/provinces do not allow limitations on how long an
implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages, so these
limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may have
other rights which vary from state/province to state/province.
This is Sterling’s exclusive written warranty.
1053310-2-D 16 Sterling

Service Parts
**Finish/color code must be specified when ordering.
Top Track
3558-*-**
(Brass)
(Silver)
1048208-B
1048208-K
Screw
Hanger Bracket
(Brass)
(Silver)
10082.01
10082.02
(Nickel)
(White)
10082.03
10082.05 (Matte Silver)
10082.06
Anchor
1077762 Bumper Insert
702803
Bumper
702701
Wall Jamb
3418-*-**
Panel Bracket
(Brass)
(Silver)
780301
780302
(Nickel)
(White)
780303
780304
3453-*-**
3453-*-**
(Brass)
(Silver)
1048208-C
1048208-F
Screw
(Brass)
(Silver)
797901
797902
(Nickel)
(White)
797905
797907
Guide
789301
Guide
789301
Guide
789301
Outside Panel
(Clear)
(Pebble)
RP3476*
RC3476*
Parts Kit
1040671**
Bottom Track
3796-*-**
(Brass)
(Silver)
797903
797904
(Nickel)
(White)
797906
797908
Setscrew
1052903-A
792301
(Brass)
(Silver)
1042931-A
1042931-B
Screw
Tape
707000
Tape
707000
Handle
(Brass)
(Silver)
768701
768702
(Nickel)
(White)
768703
768704
Handle
(Brass)
(Silver)
768701
768702
(Nickel)
(White)
768703
768704
Inside Panel
(Clear)
(Pebble)
RP3476*
RC3476*
Bushing
702500
1052906-A
Screw
Roller
Blind Nut
Bolt
555900
707504
707503
Screw
Wall Jamb
3418-*-**
Bumper Insert
702803
Bumper
702701
(Brass)
(Silver)
1048208-B
1048208-K
Screw
(Brass)
(Silver)
1048208-C
1048208-F
Top (Longer)
Towel Bar
Left Hand Towel
Bar Bracket
w/Setscrews Bottom Towel
Bar
Clamp
Gasket
Right Hand Towel
Bar Bracket
w/Setscrews
*Length is defined by customer. All parts are custom.
Reference your order form or measure the part for length.
Sterling 17 1053310-2-D

Guide d’installation et d’entretien
Portes coulissantes de douche
Outils et matériels
Merci d’avoir choisi Sterling
Merci d’avoir choisi Sterling. Le travail soigné des artisans de Sterling vous fera apprécier une rare
combinaison de performances prouvées et une sophistication gracieuse, qui vous satisferont pour les années
à venir. La fiabilité et la beauté de votre produit Sterling surpasseront vos plus grandes espérances. Chez
Sterling, nous sommes fiers du rendement de nos produits et nous savons que vous le serez aussi.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce guide. Prêter une attention toute
particulière aux instructions d’entretien et de nettoyage.
Toute l’information dans ce manuel est basée sur la dernière disponible au moment de la publication. Chez
Sterling, nous veillons toujours à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, emballages et disponibilités des produits à tout moment, et
ce sans préavis.
Avant de commencer
ATTENTION : Risque de blessure des yeux. Toujours porter des lunettes de protection lors de la
découpe ou du perçage.
ATTENTION : Risque de blessure ou d’endommagement du produit. Le verre trempé ne peut pas
être taillé.
IMPORTANT ! Prêter particulièrement attention à la section ″Instructions très importantes″. Le non-respect
des instructions pourrait endommager le produit.
REMARQUE : Lorsqu’un mètre à ruban rétractable est utilisé, S’assurer d’ajouter la longueur de la boîte
du mètre dans la prise de mesure ou mesurer sans la longueur de la boîte.
Établir et identifier les pièces. Les inspecter pour s’assurer de l’absence de tout dommage.
Remettre les panneaux de verre dans l’emballage de protection et placer dans un endroit sauf en
attendant d’en avoir besoin.
Lunettes de protection
Niveau à bulle
Pistolet à mastic
Lime
Couteau Boîte à onglets
• Toile de protection
• Mèche pour carrelage ou
maçonnerie (si installation
sur murs carrelés)
Plus:
Crayon à
papier et feutre
Marteau de
charpentier
Scie à onglets ou à métaux avec
des lames de 32 dents par pouce
Perceuse et
mèche de
5/16"
Joint en
silicone
Ruban
cache
Mètre
ruban
Tournevis
assortis
Poinçon
Sterling Français-1 1053310-2-D

Avant de commencer (cont.)
La baignoire/douche doit être installée à ce moment, ainsi que les matériaux du mur fini.
Sterling se réserve le droit d’apporter des modifications sur le design des produits sans avis
préalables, comme spécifié dans le catalogue des prix.
Sterling Français-2 1053310-2-D

Identification des pièces
Rouleau
Écrou borgne
Boulon
Bague Support d'ancrage
Ancrage
Ancrage
Montant
du mur
Montant du mur
Poignée
Poignée
Guide
Panneau
intérieur
Panneau avant
Métre ruban
Métre ruban
Butée
Insertion butée
Guide
Guide
Vis de
retenue
Butée
Support panneau
Rail supérieur
Rail inférieur
Insertion butée
Vis guide à
tête ronde
# 8-18 x 3/8"
Support de
porte-serviettes
droit
Porte-serviettes
inférieur
Vis à tête
plate # 8-32
x 5/16"
Porte-serviettes
(le plus long)
supérieur
Support de porte
serviettes gauche
Joint à
pince
Vis rouleau
# 8-32 x 3/8"
Vis à tête ronde pour
montant du mur
# 8-18 x 1-1/2"
Vis à tête ronde
# 8-18 x 3/8"
Vis à tête ronde
pour montant du
mur # 8-18 x 1-1/2"
1053310-2-D Français-3 Sterling
